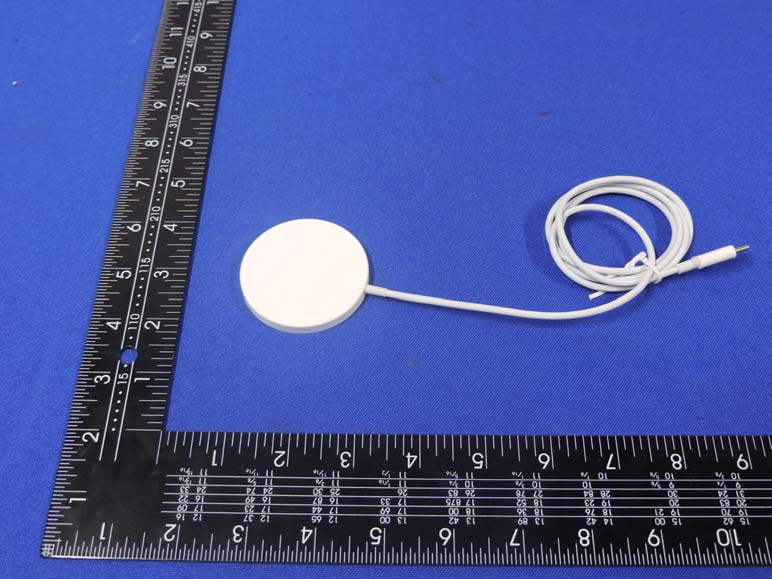

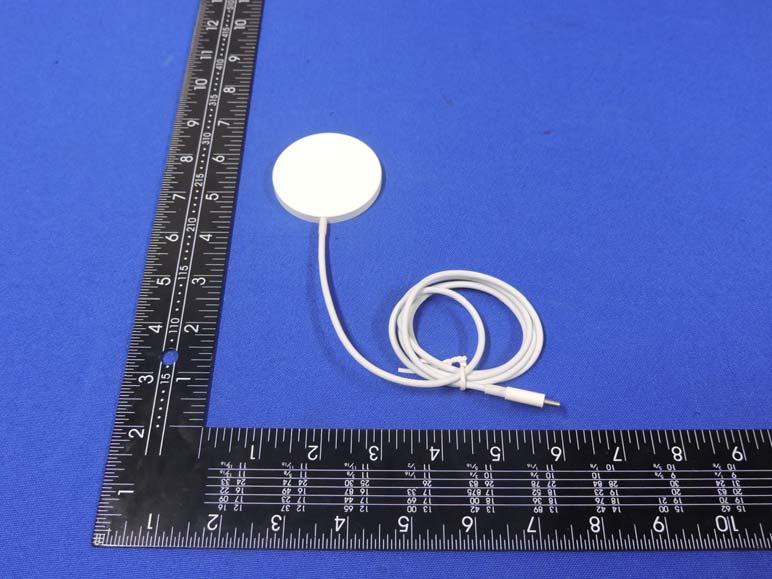

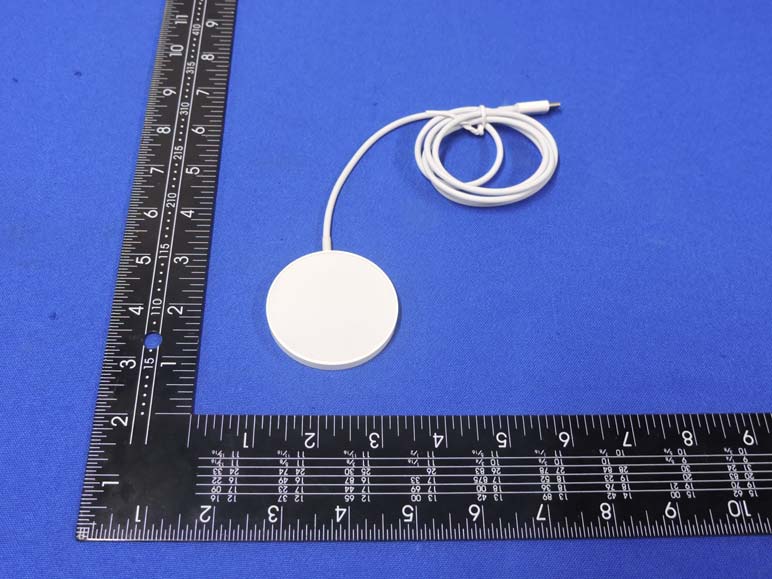

2AYBS-W20Magnet Wireless Charger

W20使用说明书 1.基本参数： 产品名称：磁吸无线充电器 产品型号：W20 产品颜色：白色 输入接口：USB C 输入电压：QC（5V/9V）、PD（5V/9V） 有效距离：≤3mm 异物检测：有 保护功能：过压保护、过流保护、短路保护、过温保护 兼容标准：Qi（BPP-5W、EPP-15W）、Samsung 10W、 工作环境：0-35°C 2.包装清单： 无线充电器*1 说明书*1 彩盒*1 3.使用说明 1.连接好USB C插头与USB C适配器; 2.连接好磁吸无线充面板与手机； 注意： 1.磁吸功能仅限与iPhone12系列手机，其他手机内部没有磁铁，无法与无线充 磁性吸附； 2.手机壳厚度会影响磁铁吸附效果，手机壳厚度越厚，吸附力越小，建议使用 苹果原装内置磁铁的保护壳； 3.请使用支持PD或者QC协议，并且输出功率≥18W的USB C适配器。 4.温馨提示 1.充电时，手机与无线充面板之间不能夹放金属物体。 2.无线充面板为易碎品，破裂后会形成锋利的片状物，注意避免外 力破坏。 3.无线充电时，手机会根据内部温度调节充电功率，避免过高温度 损坏手机。 4.产品如有进水请勿使用，以免短路引起火灾。 5.请使用干燥软布清洁表面，不要用化妆品、肥皂或者洗涤剂清 洗。 使用本产品之前，请仔细阅读本说明书 平放充电磁吸充电带外壳充电 iPhone12iPhone12 iPhone12 iPhone12 Case √ 磁吸无线充面板 USB C W20 User Manual 1.Specification Name：Magnetic Wireless Charger Model：W20 Color：white Charging Port：USB C Input Voltage: QC(5V/9V),PD(5V/9V). Effective Charging Distance：≤3mm FOD(Foreign Object Detect)：yes Protection：over-voltage, over-current, short-circuit, over-temperature. Compatibility：Qi(BPP-5W,EPP-15W), Samsung 10W. Operating Temperature：0-35°C 2.What's included Wireless Charger*1 User Manual*1 Packing Box*1 3.How to use 1.Connect the USB-C cable to the USB-C power adapter. 2.Place the phone onto the wireless charger panel. Notice： 1.The magnetic charging only works on iPhone12 series, the phones without magnets built in can not use the magnetic charging feature. 2.It's highly recommended to use the original Apple phone case if you want to charge your phone without removing the phone case. Because the thickness of phone case affects the effectiveness of magnetic charging. 3.The USB-C power adapter shall support PD or QC, output power ≥18W. 4.Tips . 1.When charging,no metal objects are allowed between the phone and the wireless charger TX. 2.The wireless charger panel is fragile material, breaking it may lead to sharp pieces that will cause injuries. Use with care to avoid injuries. 3.The charging efficiency varies all the time to avoid over- temperature that causes damage to the phone. 4.Do not use the product if water gets into the product, otherwise it may cause short-circuit or fire. 5.Clean the product with a soft dry cloth, do not use cosmetics, soap or corrosive detergent. Thank you for purchasing our product. Please read this manual carefully before use. Horizontal charge Magenetic Charge Charge without removing the phone case iPhone12iPhone12 iPhone12 iPhone12 Case √ wireless charger panel USB C 320*80mm.128g双铜版纸，风琴四页，中性款 单色印刷 日期 日期 1/1 日期 批准 审核 制图 名称 图纸编号 页数 单位 比例 型号 纸幅 深圳市无线云图电子有限公司 规格 物料编码 BCM0015-A00 W20说明书 2020/11/3 A3 马经权 80mm 80mm K FCC警告声明 未经负责合规方明确批准的更改或修改可能会使用户丧失操作设备 的权限。 根据FCC规则的第15部分，该设备已经过测试，证明符合B类数字 设备的限制。这些限制旨在为住宅安装中的有害干扰提供合理的保 护。本设备会产生，使用并辐射射频能量，如果未按照说明进行安 装和使用，可能会对无线电通信造成有害干扰。 但是，不能保证在特定安装中不会发生干扰。如果此设备确实对无 线电或电视接收造成有害干扰（可以通过打开和关闭设备来确定） ，则鼓励用户尝试通过以下一种或多种措施来纠正干扰： - 重新调整或摆放接收天线。 -增加设备和接收器之间的距离。 FCC Warning Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the device and receiver. --Connect the device into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. The distance between user and products should be no less than 20cm

ShenZhen Wireless Cloud Image Electronics Co., Ltd. Statement We ShenZhen Wireless Cloud Image Electronics Co., Ltd. Hereby Declare that The product Magnet Wireless Charger, models no. W10, W20, W28, W30, AB-20J, JR-A37, XO-CX001, EW100, GSG-W10, US-CD155, JR-A41, CW30 PRO are all identical in interior structure, electrical circuits and components, and just the model names are different for the marketing requirement. Your assistance on this matter is highly appreciated. Yours sincerely, Signature: Company Name: ShenZhen Wireless Cloud Image Electronics Co., Ltd.

December 07, 2020 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Shenzhen Timeway Testing Laboratories/ Zone C, 1st Floor, Zone C, 1st Floor, Block B, Jun Xiang Da Building, Zhongshan Park Road West, Tong Le Village, Nanshan District, Shenzhen, China (Name of Agent company name and address) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with ShenZhen Wireless Cloud Image Electronics Co., Ltd./ 7F, Qiugu Building, Meishenghuigu Science & Tech Innovation Park, Dabao Road, 33 District Bao’an, Shenzhen, China <Signature>： Name：Yong Zhang Title：GM Applicant Company：ShenZhen Wireless Cloud Image Electronics Co., Ltd.

December 07, 2020 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AYBS-W20 Product Name: Magnet Wireless Charger Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature>： Name：Yong Zhang Title：GM Applicant Company：ShenZhen Wireless Cloud Image Electronics Co., Ltd.

Model:W20Input:5V/2ADC9V/2ADCWirelessOutput:5W/7.5W/10W/15WFCCID:2AYBS-W20 Size：30*25mm BOTTOM

FCC ID: 2AYBS-W20 RF Exposure Evaluation 1 Measuring Standard KDB 680106 D01 RF Exposure Wireless Charging Apps v03 2 Requirements According to the item 5 of KDB 680106 D01 RF Exposure Wireless Charging App v03: (1)Power transfer frequency is less than 1 MHz. Yes，110kHz-148kHz (2)Output power from each primary coil is less than or equal to 15 watts. Yes, Max power 15W (3)The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that are able to detect and allow coupling only between individual pairs of coils. Yes. (4) Client device is placed directly in contact with the transmitter. Yes (5) Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). Yes (6) The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simult aneous transmitting coils are demonstrated to be less than 50% of the MPE limit. Yes Limit s The criteria liste d in the following table shall be used to eva luat e th e environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limi ts for Maximum Permissible Exposure (MPE) Report No.: TW2010209-H Page 2 of 4 Date: 2020-11-24 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the SHENZHEN TIMEWAY TESTING LABORATORIES. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the SHENZHEN TIMEWAY TESTING LABORATORIES. to his customer. Supplier or others persons directly concerned. SHENZHEN TIMEWAY TESTING LABORATORIES. will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The SHENZHEN TIMEWAY TESTING LABORATORIES. reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. 3 Test Setup 4 Test Procedure 1) The RF exposure test was performed in anechoic chamber. 2) The measurement probe was placed at test distance (15 cm from all sides and 20 cm from the top) which is between the edge of the charger and the geometric center of probe. 3) The highest emission level was recorded and compared with limit as soon as measurement of each points (A, B, C, D, E) were completed. 4) The EUT was measured according to the dictates of KDB 680106 D01v03. Remark：The EUT’s test position A, B, C, D and E is valid for the E and H field measurements. Report No.: TW2010209-H Page 3 of 4 Date: 2020-11-24 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the SHENZHEN TIMEWAY TESTING LABORATORIES. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the SHENZHEN TIMEWAY TESTING LABORATORIES. to his customer. Supplier or others persons directly concerned. SHENZHEN TIMEWAY TESTING LABORATORIES. will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The SHENZHEN TIMEWAY TESTING LABORATORIES. reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. 5 Test Instruments list Test Equipment ManufacturerModel No. SN. Cal.Date (mm-dd-yy) Cal.Due date (mm-dd-yy) EMF Meter NARDA ELT-400 N-0356 Oct 12, 2020 Oct 11, 2021 EMF probe NARDA B-Field ProbeM-0812 Oct 12, 2020 Oct 11, 2021 6 Test Result Note: Frequency Range 0.110-0.148 (MHz); <5% load energy, 50 % load energy,> 90% load energy mode all have been tested, Only worse case Max load mode（<5% load energy） is reported. E-Filed Strength at 15 cm from the edges surrounding the EUT (V/m) Frequency Range (MHz) Test Position A Test Position B Test Position C Test Position D Limits (V/m) 0.110-0.148 1.39 1.36 1.27 1.22 614 E- Filed Strength at 20 cm from the top of the EUT (V/m) Frequency Range (MHz) Test Position E Limits (V/m) 0.110-0.148 1.20 614 H-F iled Strength at 15 cm from the edges surrounding the EUT (A/m) Frequency Range (MHz) Test Position A Test Position B Test Position C Test Position D Limits (A/m) 0.110-0.148 0.59 0.52 0.44 0.38 1.63 H- Filed Strength at 20 cm from the top of the EUT (A/m) Frequency Range (MHz) Test Position E Limits (A/m) 0.110-0.148 0.34 1.63 Report No.: TW2010209-H Page 4 of 4 Date: 2020-11-24 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the SHENZHEN TIMEWAY TESTING LABORATORIES. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the SHENZHEN TIMEWAY TESTING LABORATORIES. to his customer. Supplier or others persons directly concerned. SHENZHEN TIMEWAY TESTING LABORATORIES. will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The SHENZHEN TIMEWAY TESTING LABORATORIES. reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. 7.0 Test Setup Photo Test Engineer: Reviewer:

Report No.: TW2010209E File Reference No.: 2020-11-24 Applicant: ShenZhen Wireless Cloud Image Electronics Co., Ltd. Product: Magnet Wireless Charger Model No.: W10, W20, W28, W30, AB-20J, JR-A37, XO-CX001, EW100, GSG-W10, US-CD155, JR-A41, CW30 PRO Trademark: N/A Test Standards: FCC CFR 47 Part 18 Test Result: It is herewith confirmed and found to comply with the requirements set up by FCC MP-5 & FCC Part 18, for the evaluation of electromagnetic compatibility Approved By Jack Chung Manager Dated: November 24, 2020 Results appearing herein relate only to the sample tested The technical reports is issued errors and omissions exempt and is subject to withdrawal at SHENZHEN TIMEWAY TESTING LABORATORIES Zone C, 1st Floor, Block B, Jun Xiang Da Building, Zhongshan Park Road West, Tong Le Village, Nanshan District, Shenzhen, China Tel (755) 83448688, Fax (755) 83442996, E-Mail:[email protected] Report No: TW2010209E Page 2 of 25 Date: 2020-11-24 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the SHENZHEN TIMEWAY TESTING LABORATORIES. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the SHENZHEN TIMEWAY TESTING LABORATORIES. to his customer. Supplier or others persons directly concerned. SHENZHEN TIMEWAY TESTING LABORATORIES. will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The SHENZHEN TIMEWAY TESTING LABORATORIES. reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Special Statement： The testing quality ability of our laboratory meet with "Quality Law of People's Republic of China" Clause 19. The testing quality system of our laboratory meet with ISO/IEC-17025 requirements, which is approved by CNAS. This approval result is accepted by MRA of APLAC. Our test facility is recognized, certified, or accredited by the following organizations: CNAS-LAB Code: L2292 The EMC Laboratory has been assessed and in compliance with CNAS-CL01 accreditation criteria for testing Laboratories (identical to ISO/IEC 17025:2005 General Requirements) for the Competence of testing Laboratories. FCC-Registration No.: 744189 The EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications commission. The acceptance letter from the FCC is maintained in our files. Registration No.: 744189. Industry Canada (IC) —Registration No.:5205A The EMC Laboratory has been registered by Certification and Engineering Bureau of Industry Canada for radio equipment testing with Registration No.: 5205A. A2LA (Certification Number:5013.01) The EMC Laboratory has been accredited by the American Association for Laboratory Accreditation (A2LA). Certification Number:5013.01 Report No: TW2010209E Page 3 of 25 Date: 2020-11-24 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the SHENZHEN TIMEWAY TESTING LABORATORIES. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the SHENZHEN TIMEWAY TESTING LABORATORIES. to his customer. Supplier or others persons directly concerned. SHENZHEN TIMEWAY TESTING LABORATORIES. will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The SHENZHEN TIMEWAY TESTING LABORATORIES. reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Test Report Conclusion Content 1.0 General Details ................................................................................................ 4 1.1 Test Lab Details................................................................................................ 4 1.2 Applicant Details.............................................................................................. 4 1.3 Description of EUT .......................................................................................... 4 1.4 Submitted Sample............................................................................................. 5 1.5 Test Duration.................................................................................................... 5 1.6 Test Uncertainty................................................................................................. 5 1.7 Test By.......................................................................................................... 5 2.0 List of Measurement Equipment......................................................................... 5 3.0 Technical Details............................................................................................. 6 3.1 Summary of Test Results..................................................................................... 6 3.2 Test Standards.................................................................................................. 6 4.0 EUT Modification............................................................................................. 6 5.0 Power Line Conducted Emission Test...................................................................... 7 5.1 Schematics of the Test........................................................................................ 7 5.2 Test Method and Test Procedure............................................................................ 7 5.3 Configuration of the EUT.................................…

Text truncated - open the document above for the full version.

Conducted Emission Te s t Setup: Radiated Emission Te s t Setup:
