2AYE6-HXHE2Infrared people counter

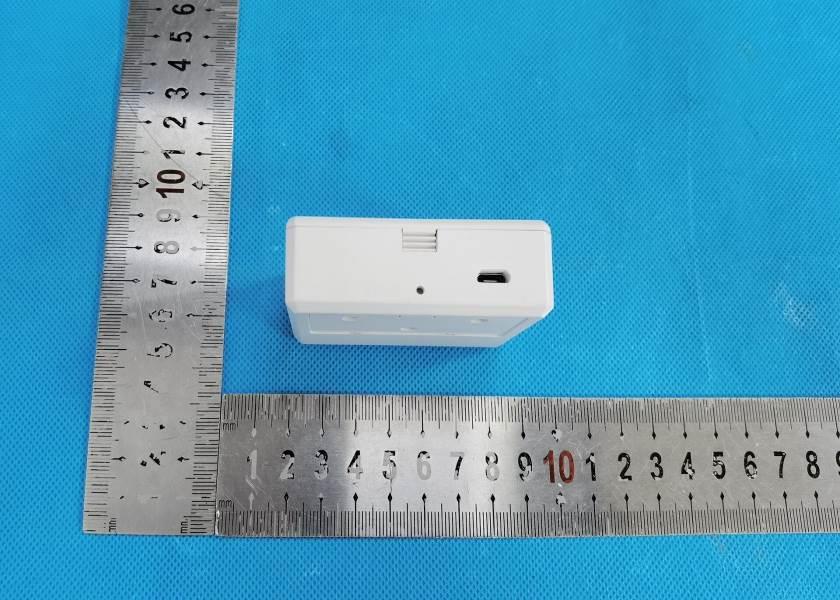

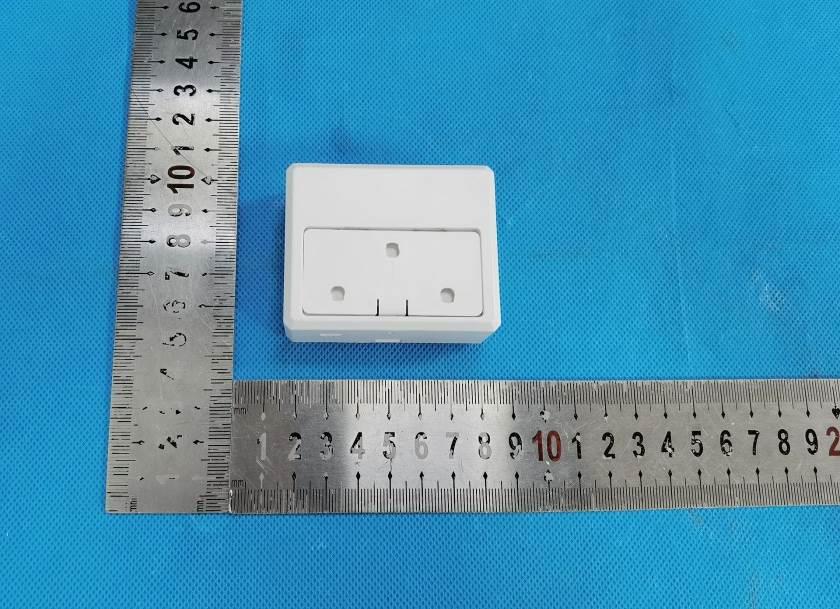

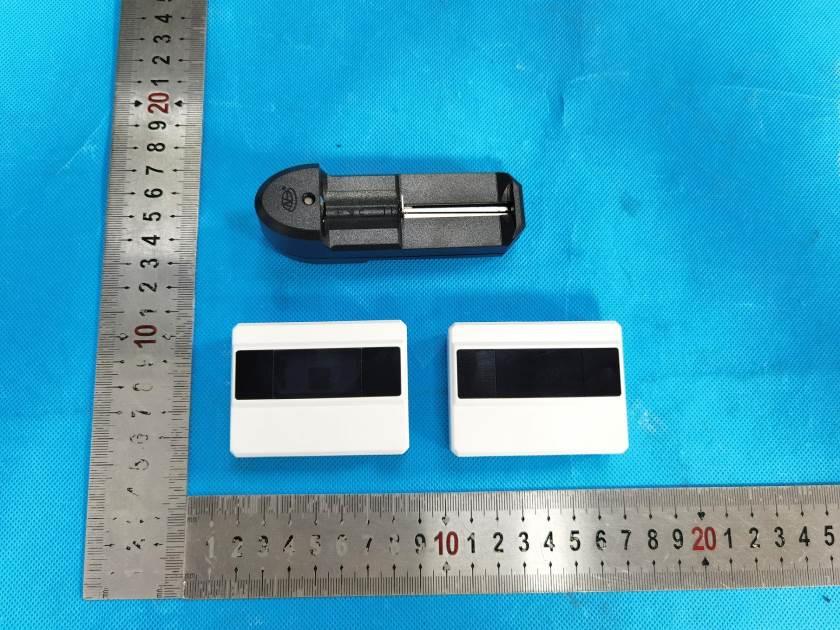

Corelink You and Me --Zhilian future www.huaxinlot.com.com User manual Infrared people counter MODEL: HX-HE1 First of all, we would like to express our most sincere thanks to you for purchasing our products. Please read this manual carefully and use it correctly. The warranty is enclosed in this manual, please keep it properly and take it out for reading when necessary. Corelink You and Me --Zhilian future www.huaxinlot.com.com HX-HE1 infrared passenger flow counter is an ultra-small, battery-powered, WIFI transmission passenger flow counting terminal, which provides a quick deployment, simple and efficient passenger flow statistics solution for various chain stores, supermarkets, scenic spots, libraries and other places . 一、Equipment introduction 1、Infrared passenger flow receiver ① LED status indicator Red indicator light: As an infrared focus indicator, when the passenger flow counting terminal cannot receive the infrared signal from the infrared transmitter, the indicator light flashes. Corelink You and Me --Zhilian future www.huaxinlot.com.com Yellow indicator light: As a battery alarm and charging indicator, when the battery voltage is too low, the indicator flashes to remind you to charge or replace the battery. When the battery is charged through the USB interface, the indicator light is always on. Blue indicator light: indicates WIFI network transmission or data storage instructions. ② Infrared receiving module: receiving infrared signals from infrared transmitters ③ Switching button: Touch through (touch-sensing antenna position) to wake up the OLED display. When the OLED display is on, the display content of the OLED display is switched every time you touch it. ④ OLED display: It can display the current power and product serial number, working parameters, working time and start AP menu. When there is no touch operation for more than 10 seconds, the display automatically turns off to reduce power consumption. ⑤ Confirm button: The display content switches to the "Long press to start AP" interface, and long press the confirm button for 5 seconds until the screen displays "AP is starting, please wait" and the countdown time is displayed, the device will enter the network configuration mode. 2、Infrared passenger flow transmitter Corelink You and Me --Zhilian future www.huaxinlot.com.com ① LED indicator Red indicator light: As a battery warning indicator, when the battery voltage is too low, the indicator light flashes to remind you to charge or replace the battery. Blue indicator light: As a self-check indicator, when the battery is installed, the blue light flashes 3 times and then goes out, indicating that the device is normal. ② Fast and slow speed switch: used to control the transmitter power, detect high and low speed people flow switching, NO position is high speed, 12 position is low speed, after changing the position of the DIP switch, it needs to reinstall the battery to start to take effect. ③ Infrared transmitter module: transmit infrared wireless signal Corelink You and Me --Zhilian future www.huaxinlot.com.com 二、Introduction to screen display The OLED display can be awakened by touching the light-transmitting bar (touch-sensing antenna position) with your hand. When the OLED display is on, the display content of the OLED display will be switched every time you touch it, which can display: The device will bounce every time it is powered on, indicating the strength of the infrared signal currently received, so that on-site personnel can check whether the device is aligned. The number of people in both directions of the day, the date of the day, the current time (the passenger flow data is automatically cleared to zero every day at 23:59.) Remaining battery power Unique product serial number Equipment working mode: stand-alone mode, networking mode Equipment working mode: low speed (walking speed), high speed (trotting speed) Recording cycle (not in stand-alone mode) upload cycle (not in stand-alone mode) Corelink You and Me --Zhilian future www.huaxinlot.com.com 三、Terminal configuration introduction 1、Passenger flow terminal opens AP mode Switch the display content of the passenger flow counting terminal to the "Long press to start AP" interface, press and hold the confirmation button for 5 seconds, the screen displays "Running" and the countdown time is displayed. 2、Connect to the passenger flow counting terminal Turn on the smart phone wireless LAN, search the WIFI network, find a network hotspot named "HXZY", join this network, and make sure Current operating business hours range Outside business hours, the passenger flow counting terminal automatically enters the dormant state, during which no counting is performed, and the business start time is automatically activated. Start the AP mode function operation interface Corelink You and Me --Zhilian future www.huaxinlot.com.com that the network is successfully connected. After the passenger flow counting terminal starts the AP service (WIFI hotspot), if there is no mobile phone connected to the "HXZY" network within 30 seconds, the AP service will be automatically closed. Therefore, you need to pay attention to the countdown on the passenger flow counting terminal screen, and the countdown will restart every time you touch it again. If the mobile phone is connected to the "HXZY" network, the AP service (WIFI hotspot) of the passenger flow counting terminal will continue to be maintained, so there is no need to worry about the countdown time. If there are other wireless devices in use or WIFI channel interference around the current passenger flow counting terminal, it may fail to add the network, you can try to add again until the network connection is successful. Corelink You and Me --Zhilian future www.huaxinlot.com.com 3、Passenger flow counting terminal configuration interface Open the browser, enter: 192.168.8.1 in the browser address bar, press Enter (GO) to enter the passenger flow counting terminal setting page. …
