2AYEN-DHANTDHAN-T

DHAN-T Module DECT-ULE Platform Datasheet Version: 2.2 April 16, 2020 Version 2.2 DHAN-T DECT-ULE Module Worldwide Sites April 16, 2020 DSP Group Confidential 3/17 Headquarters USA DSP Group Inc. 161 S San Antonio Rd Suite 10 Los Altos, CA 94022 Tel: (408)986-4300 Fax:(408)986-4323 Israel DSP Group Ltd. 5 Shenkar Street Herzelia, Israel 4672505 Tel: 972-9-952-9696 Fax: 972-9-954-1234 Europe Germany DSPG Technologies GmbH Nelson-Mandela-Platz 18 90459 Nurnberg Tel: +49-911-2001-0 Fax: +49-911-2001-1210 Scotland DSPG Edinburgh Ltd. Geddes House Kirkton North Livingston EH54 6GU Tel: +44-1223-772200 APAC China DSP Group (HK) Limited Unit 1-4, 11/F, 909 Cheung Sha Wan Rd. Kowloon Hong Kong Tel: +852-(3965)-5888 DSP Group (Shenzhen) Limited Room 1819, 18/F Kerry Centre, Renminnan Road, Shenzhen, China 518001 Tel: +(86 755) 2518 1214 Ascend Technology Inc. Room 1303, New World Center, No.6009 Yitian Road, Futian District, Shenzhen City, China Tel: +86-755-820-24598 Fax: +86-755-239-82986 Ascend Technology Inc. Rm 607, Hui Huang International Center, 1st Place, Shangdi 10th Road, Haidian District, Beijing City, P.R. Japan DSP Group (Japan) Inc. 1-29-1 Nishi-Gotanda Shinagawa-Ku Tokyo 141-0031 Tel:+81-(3)-3493-3050 Tomen Electronics 8-27, Kohnan 1 Chome, Minato-ku, Tokyo 108-8510, Japan Tel: +81-(3)-5462-9619 Fax: +81-(3)-5462-9686 Korea Daesung Semiconductors 140-848, RM 401 Wonhyo BD. 46-1 Wonhyo-ro 3ka, Yongsan-gu, Seoul, Korea Tel: +82-(2)-3272-7300 Fax: +82-(2)-712-4632-3 India DSP Technology Indian Private Limited Information Technology Park Nagawara Village Kasaba Hobli Bangalore 560045 Tel: +91 80 4024 8399 Taiwan Ascendtek Electronics, Inc 11F-7, No. 77, Sec. 1 Hsin Tai Wu Rd., Hsi Chih Taipei Hsien, Taiwan, R.O.C Tel: 886-2-2698-8696 Fax: 886-2-8698-2138 This document is provided by DSP Group, Inc. and/or one or more of its subsidiaries (“DSP Group”). All information and data contained in this document is for informational purposes only, without any commitment on the part of DSP Group, and is not to be considered as an offer for a contract. DSP Group shall not be liable, in any event, for any claims for damages or any other remedy in any jurisdiction whatsoever, whether in an action in contract, tort (including negligence and strict liability) or any other theory of liability, whether in law or equity including, without limitation, claims for damages or any other remedy in whatever jurisdiction, and shall not assume responsibility for patent infringements or other rights to third parties, arising out of or in connection with this document. Further, DSP Group reserves the right to revise this publication and to make changes to its content, at any time, without obligation to notify any person or entity of such revision changes. These materials are copyrighted and any unauthorized use of these materials may violate copyright, trademark, and other laws. Therefore, no part of this publication may be reproduced, photocopied, stored on a retrieval system, or transmitted without the express written consent of DSP Group. Any new issue of this document invalidates previous issues. DSP Group reserves the right to revise this publication and to make changes to its content, at any time, without obligation to notify any person or entity of such revision changes. © 2020 DSP Group Confidential. All rights reserved. Version 2.2 DHAN-T DECT-ULE Module Table of Contents April 16, 2020 DSP Group Confidential 4/17 TABLE OF CONTENTS 1. INTRODUCTION ........................................................................................................................................... 5 General Description ............................................................................................................................................ 5 Features ............................................................................................................................................................... 5 Block Diagram .................................................................................................................................................... 5 2. PIN AND SIGNAL DESCRIPTION ............................................................................................................... 6 3. MODULE ELECTRICAL SPECIFICATIONS .............................................................................................. 9 Absolute Maximum Ratings ............................................................................................................................... 9 Recommended Operating Conditions ................................................................................................................. 9 Peak Currents and Hibernation Current .............................................................................................................. 9 Transmitter ........................................................................................................................................................ 10 Receiver ............................................................................................................................................................ 10 4. ULE APPLICATION REFERENCE SCHEMATIC ..................................................................................... 11 5. INTERFACING THE DHAN-T WITH AN EXTERNAL MCU.................................................................. 12 RSTN Input ....................................................................................................................................................... 12 UART, SPI Interfaces ....................................................................................................................................... 12 6. APPLICATION PCB DESIGN RECOMMENDATIONS ............................................................................ 13 7. ASSEMBLY INFORMATION .................................................................................…

Text truncated - open the document above for the full version.

DSP Group Ltd. TCBJ FORM-4 Issued by: TCB Administrator Revision 6 12/06/10 2021.01.12 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, DSP Group Ltd. hereby authorize (Shenzhen STS Test Services Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Signature Name: Tal Ben-Zvi

DSP Group Ltd. FCC Modular Approval Request Rev 3.0 Federal Communications Commission Equipment Authorization Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Subject; Modular Transmitter Application Company name: DSP Group Ltd. FCC ID: 2AYEN-DHANT Dear Sir/Madam, This letter includes the FCC application requirements for Modular Transmitter Approval Request for;- FCC KDB 996369 D01 ‘Module Certification Guide v02; and FCC KDB 996369 D03 OEM Manual v01 In accordance with 47CFR 15.212 Modular Transmitters and KDB 996369 D01 ‘Module Equip Auth Guide v02’. FCC ID 2AYEN-DHANT has been examined against the following requirements. Requirement per 15.212 and KDB 996369 D01 Explanation from Grantee (do not write yes/no, but explain why product complies/how it is achieved) The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly. Yes, with shielded The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal. Yes , All inputs to the modules are buffered through logic or microprocessor inputs. The module must contain power supply regulation on the module. Yes, A low drop out regulator is used for modular power supply regulation. The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per §§ 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b). Yes, Device is equipped with Integral antenna. The module must demonstrate compliance in a stand-alone configuration. Yes, distance between modular and all AEs are longer than 20cm ，refer to setup photo. The module must be labeled with its permanently affixed FCC ID label, or use an electronic display (see KDB Publication 784748). Yes ,The modular has a permanent fixed label, and below statement was listed in the User Manual; The host device must be labeled to display the FCCID of the module Contains FCC ID: 2AYEN-DHANT The module must comply with all specific rules applicable to the transmitter, including all the conditions provided in the integration instructions by the grantee. Yes ,The module comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee, Refer to test report and user manual DSP Group Ltd. FCC Modular Approval Request Rev 3.0 The module must comply with RF exposure requirements Yes , Transmitter meets MPE calculation of 47 CFR 1.1307 . Refer to MPE Reports and Refer to modular installation manual Integration Instructions for host product manufacturers The following items are submitted in support of application for Modular Transmitter FCC ID as noted above as required by the FCC KDB 996369 D03 OEM Manual v01. These items are provided as integration instructions for host product manufacturers (e.g., OEM instruction manual) to use when integrating a module in a host product. Any requirements that are not applicable to the Module are as indicated below. Summary of requirements and Checklist. Refer to the KDB for description of the complete requirements; KDB Ref Sect Requirements of KDB 996369 D03 User Manual Page Number reference 2.2 List of applicable FCC rules 2.3 Summarize the specific operational use conditions 2.4 Limited module procedures 2.5 Trace antenna designs 2.6 RF exposure considerations 2.7 Antennas 2.8 Label and compliance information 2.9 Information on test modes and additional testing requirements 2.10 Additional testing, Part 15 Subpart B disclaimer Name: Tal Ben-Zvi Date: 2021.01.12 Title: Quality Manager Signature of applicant: page 19 page 19 page 19 page 19 page 19 page 19 page 19 page 19 page 19 General Statements (1)Module use PCB antenna, the maximum gain is 0dBi. (2)Any change of antenna type is not allowed,module only use PCB antenna. (3)Host containing modules must comply with FCC Rule requirements.

DSP Group Ltd. TCBJ FORM-4 Issued by: TCB Administrator Revision 6 12/06/10 2021.01.12 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (DHAN-T / DHAN-T /FCC ID: 2AYEN-DHANT) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the • Schematics • Block diagram • Operation description • Tune Up Procedure These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. required to be submitted with this application be permanently withheld from public review. Please contact me if there is any information you may need. Sincerely, Name: Tal Ben-Zvi Signature:

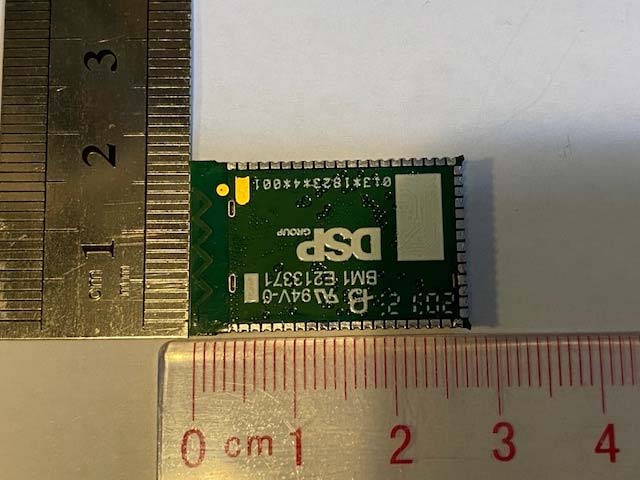

Page 1 of 1 Report No.: STS2012111 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: DHAN-T Photo 1 Photo 2

Location Location

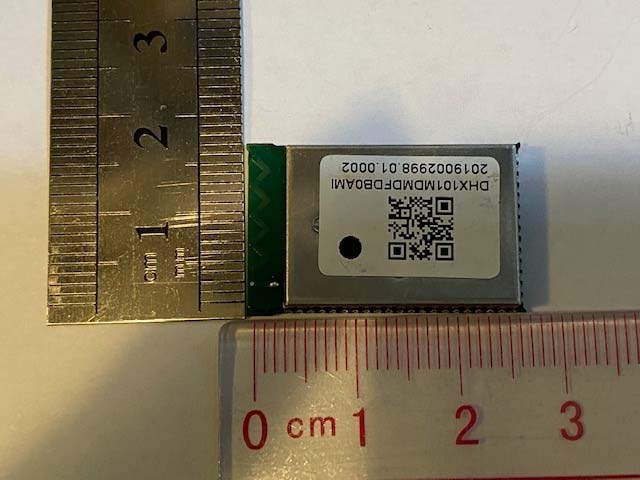

Page 1 of 1 Report No.: STS2012111 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: DHAN-T Photo 1 Photo 2 Antenna

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. Shenzhen STS Test Services Co., Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] RADIO TEST REPORT Report No.: STS2012111H05 Issued for DSP Group Ltd. 3 Arik Einstein Street., Herzeliya 4659071 Israel Product Name: DHAN-T Brand Name: Model Name: DHAN-T Series Model: N/A FCC ID: 2AYEN-DHANT Test Standard: FCC 47 CFR §2.1091 S T L A B S Page 2 of 7 Report No.: STS2012111H05 Test Report Certification Applicant’s Name ................. : DSP Group Ltd. Address ................................. : 3 Arik Einstein Street., Herzeliya 4659071 Israel Manufacturer's Name .......... : DSP Group Ltd. Address ................................. : 3 Arik Einstein Street., Herzeliya 4659071 Israel Factory's Name .................... : MeiZhou GuoWei Electronics Co., Ltd. Address ................................. : AD1 Section, The Economy Exploitation Area, Meizhou, Guangdong Province, China. Product Description Product Name ........................ : DHAN-T Brand Name ......................... : Model Name .......................... : DHAN-T Series Model .......................... : N/A Standards ............................. : FCC 47 CFR §2.1091 This report shall not be reproduced except in full, without the written approval of STS, this document only be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ............................................ : Date of receipt of test item ...................... : 16 Dec. 2020 Date of performance of tests ................... : 16 Dec. 2020 ~ 30 Dec. 2020 Date of Issue ........................................... : 30 Dec. 2020 Test Result ............................................... : Pass Testing Engineer : (Chris Chen) Technical Manager : (Sean she) Authorized Signatory: (Vita Li) Page 3 of 7 Report No.: STS2012111H05 TABLE OF CONTENTS 1. GENERAL INFORMATION 5
1.1 GENERAL DESCRIPTION OF THE EUT 5
1.2 TEST FACTORY 5
2. FCC 47 CFR §2.1091 REQUIREMENT 6
2.1 TEST STANDARDS 6
2.2 LIMIT 6
2.3 EUT OPERATION CONDITION 6
2.4 CLASSIFICATION 6
2.4 TEST RESULT 7
Page 4 of 7 Report No.: STS2012111H05 Revision History Rev. Issue Date Report No. Effect Page Contents 00 30 Dec. 2020 STS2012111H05 ALL Initial Issue Page 5 of 7 Report No.: STS2012111H05 1. GENERAL INFORMATION 1.1 GENERAL DESCRIPTION OF THE EUT Product Name DHAN-T Brand Name Model Name DHAN-T Series Model N/A Model Difference N/A Product Description The EUT is DHAN-T. Operation Frequency: 1921.536-1928.448MHz Modulation Type: GFSK Antenna Designation: PCB antenna Antenna Gain (dBi): 0dBi Power Rating DC 3V Hardware Version 01 Software Version 02 Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User Manual. 1.2 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 Page 6 of 7 Report No.: STS2012111H05 2. FCC 47 CFR §2.1091 REQUIREMENT 2.1 TEST STANDARDS The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The gain of the antennas used in the product is extracted from the Antenna data sheets provided and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis Transmission formula is far field assumption, the calculated result of that is an over-prediction for near field power density. It is taken as worst case to specify the safety range. 2.2 LIMIT According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of the human exposure to radio-frequency (RF) radiation as specified in 1.1307 (b) Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm²) Limits for Occupational / controlled Exposures 300 - 1500 -- -- F/300 1500 – 100000 -- -- 5.0 Limits for General population / Uncontrolled Exposure 300 - 1500 -- -- F/1500 1500 – 100000 -- -- 1.0 F= Frequency in MHz Friss Formula Friss Transmission Formula: Pd = (Pout * G) / (4*pi*r²) Where Pd = power density in mW/cm² aaa Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = Distance between observation point and the center of radiator in cm If we know the maximum gain of the antenna and the total output power to the antenna, through calculation, we will know MPE value at distance 20cm. 2.3 EUT OPERATION CONDITION EUT was enabled to transmit and receive at lowest, middle and highest channels. 2.4 CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance from the antenna should be included in the User manual. So, this device is classified as Mobile device. Page 7 of 7 Report No.: STS2012111H05 2.4 TEST RESULT Turn up Mode Detector Turn up GFSK PEAK 19±1dBm ANT Gain (G) 0dBi (gain of antenna in linear scale=1) ※※※※※END OF THE REPORT※※※※※ Protocol Output Power to Antenna (mW) Power Density (mW/cm²) Limit (mW/cm²) Result GFSK 100 0.020 1 Pass

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. Shenzhen STS Test Services Co., Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] RADIO TEST REPORT Report No.: STS2012111W02 Issued for DSP Group Ltd. 3 Arik Einstein Street., Herzeliya 4659071 Israel Product Name: DHAN-T Brand Name: Model Name: DHAN-T Series Model: N/A FCC ID: 2AYEN-DHANT Test Standard: Title 47 of the CFR, Part 15 Subpart D S T L A B S Page 2 of 59 Report No.: STS2012111W02 TEST RESULT CERTIFICATION Applicant’s Name ................. : DSP Group Ltd. Address .................................. : 3 Arik Einstein Street., Herzeliya 4659071 Israel Manufacturer's Name ........... : DSP Group Ltd. Address .................................. : 3 Arik Einstein Street., Herzeliya 4659071 Israel Factory's Name .................... : MeiZhou GuoWei Electronics Co., Ltd. Address .................................. : AD1 Section, The Economy Exploitation Area, Meizhou, Guangdong Province, China. Product Description Product Name ........................ : DHAN-T Brand Name ......................... : Model Name ........................... : DHAN-T Series Model .......................... : N/A Test Standards ..................... : Title 47 of the CFR, Part 15. Subpart D Test procedure ........................ : ANSI C63.17-2013 This device described above has been tested by STS and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document only be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ........................................... : Date of receipt of test item ..................... : 16 Dec. 2020 Date of performance of tests .................. : 16 Dec. 2020 ~ 30 Dec. 2020 Date of Issue .......................................... : 30 Dec. 2020 Test Result .............................................. : Pass Testing Engineer : (Chris Chen) Technical Manager : (Sean she) Authorized Signatory : (Vita Li) Page 3 of 59 Report No.: STS2012111W02 TABLE OF CONTENTS Page SUMMARY OF TEST RESULTS 5
1 INTRODUCTION 7
1.1 TEST FACTORY 7
1.2 MEASUREMENT UNCERTAINTY 7
2 PRODUCT INFORMATION 8
3 TEST CONFIGURATION OF EQUIPMENT UNDER TEST 9
3.1 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 10
3.2 SYSTEM TEST CONFIGURATION 11
4 MEASUREMENT INSTRUMENTS 12
5 TEST ITEMS 14
5.1 ANTENNA REQUIREMENT 14
5.2 MODULATION TECHNIQUES 14
5.3 EMISSION BANDWIDTH 15
5.4 PEAK TRANSMIT POWER 18
5.5 POWER SPECTRAL DENSITY 21
5.6 POWER ADJUSTMENT FOR ANTENNA GAIN 24
5.7 AUTOMATICALLY DISCONTINUE TRANSMISSION 25
5.8 SYSTEM ACKNOWLEDGE-MENT TEST 26
5.9 MONITORING THRESHOLD 27
5.10 DURATION OF TRANSMISSION 28
5.11 SELECTED CHANNEL CONFIRMATION, POWER ACCURACY, SEGMENT OCCUPANCY 29
5.12 RANDOM WAITING 31
5.13 MONITORING REQUIREMENTS 32
5.14 MONITORING ANTENNA 33
5.15 DUPLEX CONNECTIONS 33
5.16 ALTERNATIVE MONITORING INTERVAL FOR CO-LOCATED DEVICES 34
5.17 FAIR ACCESS 34
5.18 SPURIOUS EMISSIONS 35
5.19 FRAME PERIOD 43
5.20 FREQUENCY STABILITY 44
5.21 CONDUCTED EMISSION MEASUREMENT 46
5.22 RADIATED SPURIOUS EMISSION 50
Page 4 of 59 Report No.: STS2012111W02 Revision History Rev. Issue Date Report NO. Effect Page Contents 00 30 Dec. 2020 STS2012111W02 ALL Initial Issue Page 5 of 59 Report No.: STS2012111W02 SUMMARY OF TEST RESULTS Test procedures according to the technical standards: The following tests were conducted on a sample of the equipment for the purpose of demonstrating com- pliance with Part 15 Subpart D. Requirement FCC Part Test Procedure Result Emission Bandwidth 15.323 (a) 6.1.3 Compliant Labeling Requirements 15.19(a)(3) -- Compliant Conducted Emissions 15.315 & 15.207 ANSI C63.4 Compliant Antenna Requirements 15.317 & 15.203 Declaration Compliant Use digital modulation 15.319 (b) 6.1.4 Compliant Peak transmit power 15.319 (c) 6.1.2 Compliant Power spectral density 15.319 (d) 6.1.5 Compliant Power adjustment for an- tenna gain 15.319 (e) 4.3.1 Compliant Automatically dis- continue transmis- sion 15.319 (f) -- Compliant Spurious emissions conducted 15.323 (d) (1) & 15.323 (d) (2) 6.1.6 Compliant RF Exposure 15.319 (i) & 1.1307(b), 2.1091 and 2.1093 ANSI/IEEE C95.1 Compliant (The test data please refer to RF exposure report) Monitoring time 15.323 (c)(1) 7.3.4 Compliant Monitoring thresh- old 15.323 (c)(2) 7.3 Compliant Duration of transmission 15.323 (c)(3) 8.2.2 Not Applicable System acknowledgment test 15.323(c)(4) 8.2.1 Compliant Channel confirmation, Power accuracy, Segment occupancy 15.323 (c)(5) 7.3.3 & 7.3.4 Compliant Random waiting 15.323 (c)(6) 8.1.3 Not Applicable Page 6 of 59 Report No.: STS2012111W02 Monitoring bandwidth 15.323 (c)(7) 7.4 Compliant Monitoring reaction time 15.323 (c)(1 ) 7.5 Compliant Monitoring antenna 15.323 (c)(8) 4 Compliant Monitoring thresh- old relaxation 15.323 (c)(9) 4 Compliant Duplex connections 15.323 (c)(10) 8.3 Not Applicable Alternate monitoring interval 15.323 (c)(11) 8.4 Not Applicable Fair access 15.323 (c)(12) Declaration Not Applicable Frame period 15.323 (e) 6.2.2 & 6.2.3 Compliant Frequency stability 15.323 (f) 6.2.1 Compliant Radiated Out of Band Emissions 15.319 (g), 15.309 (b) & FCC Part 15 Subpart B, 15.109 and 15.209 -- Compliant Page 7 of 59 Report No.: STS2012111W02 1 INTRODUCTION 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhe…

Text truncated - open the document above for the full version.

Page 1 of 2 Report NO.:STS2012111 PUB Setup Photo Model: DHAN-T Conducted Emission Radiated Spurious Emission（Below 1GHz） Page 2 of 2 Report NO.:STS2012111 Radiated Spurious Emission （Above 1GHz ）
