ONNTR295Manual Bluetooth name: SelfieCom. Boot mode: long press for 3 seconds to boot, the blue light flashes. Shutdown mode: long press for three seconds to shut down, the blue light goes out. No pairing link status: indicator light flashes blue Standby state: After power on, it will flash for 1 second after 5 minutes without pairing connection and shut down Paired connection status: After pairing and connection, the indicator light goes out, 10 minutes without operation enters sleep, after another 10 minutes without operation, it will automatically shut down. Take a photo: Short press the photo, the blue light flashes. Sleep state: In the sleep state, short-circuit the camera button, the camera indicator flashes for 4 seconds, and enters the unpaired connection state. Selfie stick product description: For cameras/mobile phones Material: Aluminum alloy Selfie stick product specifications: Maximum height: 1000mm Minimum height: 340mm Pipe diameter: 10-22∅ bluetooth Camera screw Second section tube Third Section Tube Fourth section tube Angle adjustment hand twist first section tube Right spin lock Left spin release Federal Communications Commission (FCC) Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ●Reorient or relocate the receiving antenna. ●Increase the separation between the equipment and receiver. ●Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ●Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications made to this device not expressly approved by Zhejiang H&R Industry And Trade Co., Ltd may void the FCC authorization to operate this device. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. RF exposure statement: The transmitter must not be colocated or operated in conjunction with any other antenna or transmitter. This equipment complies with the FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a Minimum distance of 5mm between the radiator and any part of your body.

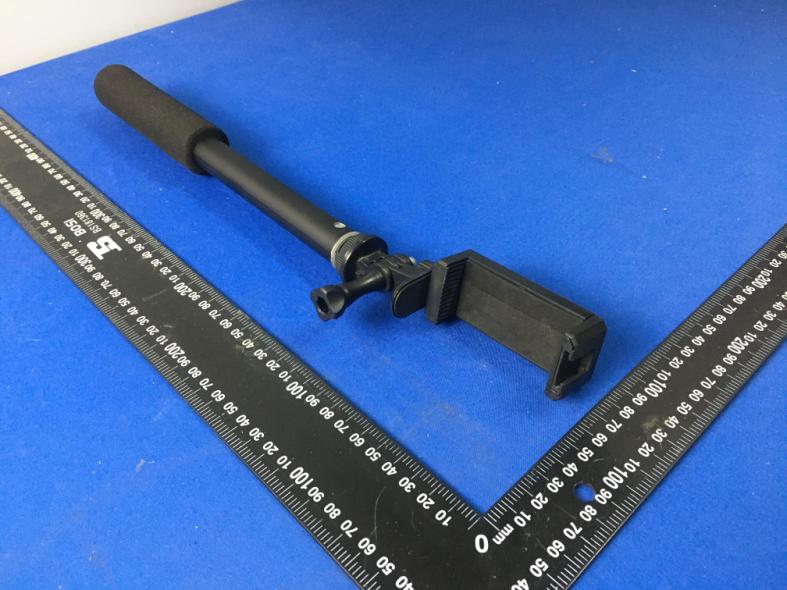

External Photos of EUT FCC ID：2AYFN-YRNH2011

FCCIDLabelInformation Labellocation: FCCID:2AYFN-YRNH2011

Internal Photos of EUT FCC ID：2AYFN-YRNH2011 Antenna

version01 ZhejiangH&RIndustryAndTradeCo.,Ltd. No.9XichunMiddleRoad,DonggangDevelopmentZone,QuZhouZheJiang,China Tel:13615706959Fax:N/A DeclarationconcerningAntennaSpecification Itisherebydeclaredthattheproduct ModelNo.:ONNTR295,KM-008,009KM-1006,100029445,KM-1005. fulfillstherequirementinFCCtestrelatingtotheantennatype. ThedevicespecifiedaboveconfirmstotheFCCrecommendationsfor PCB antennatype(s)described below: ModelNo.ofantenna:N/A Typeofantenna:PCBAntenna Gainoftheantenna: 1.34dBi Frequencyrange:2402-2480MHz Themountingoftheantennaisfixedtotheradiomoduleandnootherantennashouldbeused. Companyname:ZhejiangH&RIndustryAndTradeCo.,Ltd. Address: No.9XichunMiddleRoad,DonggangDevelopmentZone,QuZhou ZheJiang,China City:QuZhou ZIP/Postalcode: Country:China Place:ShenzhenDate:2020-12-30 Signature:

RF Exposure evaluation 2AYFN-YRNH2011 According to 447498 D01 General RF Exposure Guidance v06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances≤50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHz)]≤3.0 for 1-g SAR and≤7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison For Bluetooth low Energy pt=-0.70dBm=0.851mW at 2480MHz So (0.851mW/5mm)x√2.480GHz = 0.27< 3 Then SAR evaluation is not required

Page 1 of 11 Report No.: CTL2012011011-WF Appendix for 15.247 1. Bandwidth 1.1 Test Result Test Mode Frequency (MHz) TX Type ANT No. 6dB Bandwidth Verdict Test Result (MHz) 1M 2402 SISO 1 0.734 PASS 2440 SISO 1 0.728 PASS 2480 SISO 1 0.731 PASS Test Mode Frequency (MHz) TX Type ANT No. 99% Occupied Bandwidth Test Result (MHz) 1M 2402 SISO 1 1.102 Only for Report Use 2440 SISO 1 1.104 Only for Report Use 2480 SISO 1 1.110 Only for Report Use 1.2 Test Graph - 6dB Bandwidth Page 2 of 11 Report No.: CTL2012011011-WF Page 3 of 11 Report No.: CTL2012011011-WF 1.3 Test Graph - 99% Occupied Bandwidth Page 4 of 11 Report No.: CTL2012011011-WF 2. Maximum Conducted Output Power 2.1 Test Result Test Mode Frequency (MHz) Tx Type Measured Peak Output Power (dBm) Limits (dBm) Verdict Ant 1 1M 2402 SISO -2.21 30 PASS 2440 SISO -0.98 30 PASS 2480 SISO -0.70 30 PASS Page 5 of 11 Report No.: CTL2012011011-WF 2.2 Test Graph Page 6 of 11 Report No.: CTL2012011011-WF 3. Maximum Power Spectral Density (PSD) 3.1 Test Result Test Mode Frequency (MHz) Tx Type Maximum Power Spectral Density (dBm/3KHz) Limits (dBm/3kHz) Verdict Ant 1 1M 2402 SISO -19.27 ≤8 PASS 2440 SISO -17.99 ≤8 PASS 2480 SISO -17.57 ≤8 PASS Page 7 of 11 Report No.: CTL2012011011-WF 3.2 Test Graph Page 8 of 11 Report No.: CTL2012011011-WF 4. Unwanted Emissions in Non-restricted Frequency Bands 4.1 Test Result Test Mode Frequency (MHz) TX Type ANT No. Spurious Conducted Emission (dBm) Limits (dBm) Verdict 1M 2402 SISO 1 Refer to test graph -22.23 PASS 2440 SISO 1 Refer to test graph -22.23 PASS 2480 SISO 1 Refer to test graph -22.23 PASS Page 9 of 11 Report No.: CTL2012011011-WF 4.2 Test Graph Page 10 of 11 Report No.: CTL2012011011-WF Page 11 of 11 Report No.: CTL2012011011-WF

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] TEST REPORT FCC PART 15.247 Report Reference No. ................. : CTL2012011011-WF Compiled by: ( position+printed name+signature) Happy Guo (File administrators) Tested by: ( position+printed name+signature) Cary Gao (Test Engineer) Approved by: ( position+printed name+signature) Ivan Xie (Manager) Product Name .............................. : Bluetooth selfie stick Model/Type reference ................. : ONNTR295 List Model(s) ................................ : KM-008, 009 KM-1006, 100029445, KM-1005. Trade Mark ................................... : N/A FCC ID .......................................... : 2AYFN-YRNH2011 Applicant’s name ........................ : Zhejiang H&R Industry And Trade Co., Ltd. Address of applicant .................. : No. 9 Xichun Middle Road, Donggang Development Zone, QuZhou ZheJiang, China Test Firm ...................................... : Shenzhen CTL Testing Technology Co., Ltd. Address of Test Firm .................. : Floor 1-A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Test specification ........................ : Standard ........................................ : FCC Part 15.247: Operation within the bands 902-928 MHz, 2400-2483.5 MHz and 5725-5850 MHz. TRF Originator .............................. : Shenzhen CTL Testing Technology Co., Ltd. Master TRF ................................... : Dated 2011-01 Date of receipt of test item ......... : Dec. 04, 2020 Date of sampling ......................... : Dec. 04, 2020 Date of Test Date ......................... : Dec. 04, 2020–Dec. 29, 2020 Date of Issue ................................ : Dec. 29, 2020 Result ........................................... : Pass Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. V1.0 Page 2 of 25 Report No.: CTL2012011011-WF TEST REPORT Test Report No. : CTL2012011011-WF Dec. 29, 2020 Date of issue Equipment under Test : Bluetooth selfie stick Sample No : CTL201201101-1-S001 Model /Type : ONNTR295 Listed Models : KM-008, 009 KM-1006, 100029445, KM-1005. Applicant : Zhejiang H&R Industry And Trade Co., Ltd. Address : No. 9 Xichun Middle Road, Donggang Development Zone, QuZhou ZheJiang, China Manufacturer : Zhejiang H&R Industry And Trade Co., Ltd. Address : No. 9 Xichun Middle Road, Donggang Development Zone, QuZhou ZheJiang, China Test result Pass * * In the configuration tested, the EUT complied with the standards specified page 5. The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the issuing testing laboratory. V1.0 Page 3 of 25 Report No.: CTL2012011011-WF ** Modified History ** Revisions Description Issued Data Report No. Remark Version 1.0 Initial Test Report Release 2020-12-29 CTL2012011011-WF Tracy Qi V1.0 Page 4 of 25 Report No.: CTL2012011011-WF Table of Contents Page 1. SUMMARY............................................................................................................................................................ 5 1.1. TEST STANDARDS ..................................................................................................................................................... 5 1.2. TEST DESCRIPTION ........................................................................................................................................................ 5 1.3. TEST FACILITY .............................................................................................................................................................. 6 1.4. STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................................... 6 2. GENERAL INFORMATION ....................................................................................................................................... 7 2.1. ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 7 2.2. GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 7 2.3. DESCRIPTION OF TEST MODES AND TEST FREQUENCY .......................................................................................................... 7 2.4. EQUIPMENTS USED DURING THE TEST .............................................................................................................................. 8 2.5. RELATED SUBMITTAL(S) / GRANT (S) ................................................................................................................................ 8 2.6. MODIFICATIONS ........................................................................................................................................................... 8 3. TEST CONDITIONS AND RESULTS ........................................................................................................................... 9 3.1. CONDUCTED EMISSIONS TEST ......................................................................................................................................... 9 3.2. RADIATED EMISSIONS AND BAND EDGE .......................................................................................................................... 10 3.3. MAXIMUM CONDUCTED OUTPUT POWER .......................…
