Smart Jigsaw Light WOINO Light Up Your Colorful World [email protected] Smart Jigsaw Light User Manual I. Device Connection Interface Open the APP --> The system automatically prompts to connect to Bluetooth --> Click "OK" to allow the app to use the Bluetooth function --> Enter the device connection interface --> Pull down to refresh the device list --> Click "CONNECT" to connect to the product --> Click "DONE" to enter APP Smart Jigsaw Light WOINO Light Up Your Colorful World [email protected] II. Static Color Interface 1. Slide to select your favorite color on the color disk--> Slide the button to set the brightness 2. Six fixed colors --> Click the corresponding fixed color --> The lighting effect changes to the corresponding color Six DIY colors --> Click the customized box to enter the color dialog box --> Select the color, and then click "Confirm" --> The customized color has been successfully added 3. Long press the customized color for 3 seconds to cancel the color. III. Dynamic Effect Interface 1. Dynamic lighting effect interface --> Click the color bar to select the corresponding dynamic effect (75 dynamic modes in total) Smart Jigsaw Light WOINO Light Up Your Colorful World [email protected] 2. Pattern lighting effect interface-->Click the corresponding graphic-->Connect the lamps according to the connection diagram- ->Click "APPLY" to execute the corresponding dynamic lighting effect (a total of 25 patterns) IV. DIY Dynamic Effect Interface 1. DIY dynamic effect interface --> Click the "lighting effect" drop-down box to select your favorite dynamic effect --> Click to add a desired color on the color disk --> Click "CONFIRM" to confirm the color --> Click "RUN" to execute the customized dynamic effect 2. Long press the customized color for 3 seconds to cancel the color 3. Slide the button to set the overall brightness and speed of the light Smart Jigsaw Light WOINO Light Up Your Colorful World [email protected] V. Music Rhythm Interface 1. Music mode interface-->Click to select the music you like from the phone-->Click the color ring to change the dynamic lighting effect (the light changes the brightness and frequency according to the strength of the music rhythm, a total of 4 lighting effects are available) 2. Microphone mode interface-->The brightness and change speed of the light will change with the intensity and rhythm of the outside sound-->Click the color ring to change the dynamic lighting effect. (a total of 4 lighting effects are available) NOTE: Click the microphone icon in the middle to stop or start receiving sound. Smart Jigsaw Light WOINO Light Up Your Colorful World [email protected] VI. Color Catcher Interface 1. Camera color interface --> Click "capture color" to open the phone camera --> Enable the phone camera and click "OK" --> Take a picture --> Use the picture to click "USE PHOTO" / Retake click "RETAKE" - ＞Select the color on the photo, Smart jigsaw light will change color accordingly. Smart Jigsaw Light WOINO Light Up Your Colorful World [email protected] VII. Timing function interface 1. Timing function-->Click the alarm clock icon in the upper right corner to enter the time setting interface-->Click "+" to add timing-->Choose "TURN ON" or "TURN OFF"-->Choose repeat cycle-->Click" √"to Confirm 2. Swipe left to delete scheduled tasks. Smart Jigsaw Light WOINO Light Up Your Colorful World [email protected] VIII. Manual Function Click "!" in the upper right corner of the connection interface-->The product installation manual pops up IX. Help Instructions Click on the upper left corner of the connection interface --> Select "Help" --> Pop up the product installation manual. Smart Jigsaw Light WOINO Light Up Your Colorful World [email protected] X. Setting The Number of Jigsaw Light Modules Click on the upper left corner of the connection interface --> Select "LED Settings" --> Click the number in the “Lamps” box --> Fill in the number of jigsaw light modules in the pop-up box --> Click "CONFIRM" to complete the setting. Smart Jigsaw Light WOINO Light Up Your Colorful World [email protected] XI. Trouble shooting 1. Part of the smart jigsaw light modules does not light up The default number of modules set by the APP is 3. When the actual number of modules is greater than 3, some of the smart jigsaw light modules will not light up. When the set quantity is less than the actual quantity, some indicators will not light up. This is because the control information cannot be transmitted to the tail lights. At this time, you only need to set the number of lights to be consistent with the actual number of modules. After pressing "Confirm", the module will light up. Please refer to the manual： X. Setting The Number of Jigsaw Light Modules 2. Cannot drop down the music playlist When the music rhythm mode is used, the mobile phone and the controller continuously receive and send information, which takes up a lot of memory, causing the playlist pull-down command to fail to execute. At this time, return to the connection interface, pull down to refresh the interface, the app is disconnected, and the memory is cleared. Click "connect", reconnect to the APP, return to the music rhythm interface, and the playlist can be used normally. 3. Timing cannot take effect In music rhythm mode, the rhythm and brightness information will be sent continuously. Therefore, at the moment when the application is closed regularly, new brightness and rhythm commands will also be received at the same time, and the controller will default to the start command. Therefore, the APP continues to execute the new brightness and rhythm commands without turning off the smart jigsaw lights. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates u…

Text truncated - open the document above for the full version.

Zhongshan Jiusheng Photoelectric Technology Co., Ltd. May 27, 2021 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Explanation of differences between product types FCC ID : Smart Jigsaw Light Model Number: JIGSAW-13PLUS, JIGSAW-1, JIGSAW-3, JIGSAW-7, JIGSAW- 10PLUS To Whom It May Concern: We, The Zhongshan Jiusheng Photoelectric Technology Co., Ltd. hereby declare that the model : JIGSAW-1, JIGSAW-3, JIGSAW-7, JIGSAW-10PLUS are identical with the model : JIGSAW-13PLUS, except the number of lights Except for the different above, no other modification is performed. Sincerely, Signature: Zhongshan Jiusheng Photoelectric Technology Co., Ltd. Contact person: Wang Mei

Zhongshan Jiusheng Photoelectric Technology Co., Ltd. Agent Authorization Company: Zhongshan Jiusheng Photoelectric Technology Co., Ltd. Address: No.30 Xinxing Road, Henglan Town, Zhongshan City, Guangdong Province, China Product Name: Smart Jigsaw Light Model Number(s): JIGSAW-13PLUS, JIGSAW-1, JIGSAW-3, JIGSAW-7, JIGSAW- 10PLUS Product Description: Smart Jigsaw Light We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-05-27 Name: Wang Mei Company: Zhongshan Jiusheng Photoelectric Technology Co., Ltd.

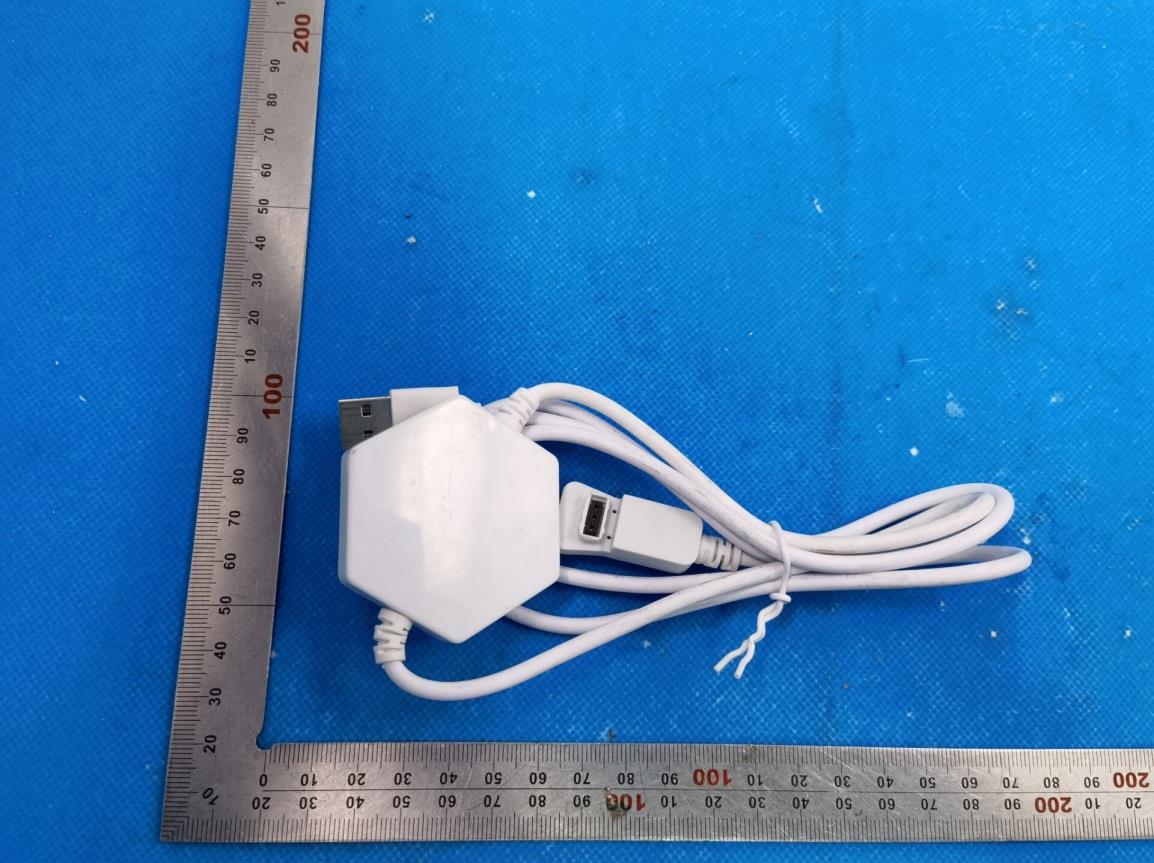

External Photos WHOLE VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT ADAPTER OF EUT

FCC ID Label Location 20mm&20mm FCC ID: 2AYHGJIGSAW-13PLUS

Internal Photos OPEN VIEW OF EUT INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 OPEN VIEW OF EUT INTERNAL VIEW OF EUT-1 BT Antenna INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description Smart Jigsaw Light Model Name JIGSAW-13PLUS, JIGSAW-1, JIGSAW-3, JIGSAW-7, JIGSAW-10PLUS FCC ID 2AYHGJIGSAW-13PLUS 2. EVALUATION METHOD According to 447498 D01 General RF Exposure Guidance v06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 3. CALCULATION P t =-4.061dBm=0.39mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(0.39mW /5mm) .[√2.402GHz)]= 0.12<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. 4. CONCLUSION The SAR evaluation is not required.

Page 1 of 54 FCC Test Report Report No.: AGC10117210401FE02 FCC ID : 2AYHGJIGSAW-13PLUS APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Smart Jigsaw Light BRAND NAME : N/A MODEL NAME : JIGSAW-13PLUS, JIGSAW-1, JIGSAW-3, JIGSAW-7, JIGSAW-10PLUS APPLICANT : Zhongshan Jiusheng Photoelectric Technology Co., Ltd. DATE OF ISSUE : May 14, 2021 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC10117210401FE02 Page 2 of 54 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / May 14, 2021 Valid Initial Release Report No.: AGC10117210401FE02 Page 3 of 54 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE .................................................................................................................. 5 2. GENERAL INFORMATION .............................................................................................................................. 6 2.1. PRODUCT DESCRIPTION ........................................................................................................................ 6 2.2. TABLE OF CARRIER FREQUENCYS ....................................................................................................... 6 2.3. RELATED SUBMITTAL(S)/GRANT(S) ....................................................................................................... 7 2.4. TEST METHODOLOGY ............................................................................................................................. 7 2.5. SPECIAL ACCESSORIES .......................................................................................................................... 7 2.6. EQUIPMENT MODIFICATIONS ................................................................................................................. 7 2.7. ANTENNA REQUIREMENT ....................................................................................................................... 7 3. MEASUREMENT UNCERTAINTY ................................................................................................................... 8 4. DESCRIPTION OF TEST MODES ................................................................................................................... 9 5. SYSTEM TEST CONFIGURATION ................................................................................................................ 10 5.1. CONFIGURATION OF TESTED SYSTEM ............................................................................................... 10 5.2. EQUIPMENT USED IN TESTED SYSTEM .............................................................................................. 10 5.3. SUMMARY OF TEST RESULTS .............................................................................................................. 10 6. TEST FACILITY .............................................................................................................................................. 11 7. PEAK OUTPUT POWER ................................................................................................................................ 12 7.1. MEASUREMENT PROCEDURE .............................................................................................................. 12 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 12 7.3. LIMITS AND MEASUREMENT RESULT .................................................................................................. 13 8. BANDWIDTH .................................................................................................................................................. 15 8.1. MEASUREMENT PROCEDURE .............................................................................................................. 15 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 15 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................... 15 9. CONDUCTED SPURIOUS EMISSION........................................................................................................... 19 9.1. MEASUREMENT PROCEDURE .............................................................................................................. 19 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 19 9.3. MEASUREMENT EQUIPMENT USED .................................................................................................... 19 9.4. LIMITS AND MEASUREMENT RESULT .................................................................................................. 19 10. MAXIMUM CONDUCTED OUTPUT POWER SPECTRAL DENSITY ........................................................ 26 10.1. MEASUREMENT PROCEDURE ............................................................................................................ 26 10.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................. 26 10.3. MEASUREMENT EQUIPMENT USED .................................................................................................. 26 10.4. LIMITS AND MEASUREMENT RESULT................................................................................................ 26 11. RADIATED EMISSION ................................................................................................................................. 28 11.1. MEASUREMENT PROCEDURE ............................................................................................................ 28 11.2. TEST SETUP .......................................................................................................................................... 29 11.3. LIMITS AND MEASUREMENT RESULT..........................................................…

Text truncated - open the document above for the full version.

Report No.: AGC10117210401FE02 Page 46 of 54 APPENDIX B: PHOTOGRAPHS OF EUT WHOLE VIEW OF EUT TOP VIEW OF EUT Report No.: AGC10117210401FE02 Page 47 of 54 BOTTOM VIEW OF EUT FRONT VIEW OF EUT Report No.: AGC10117210401FE02 Page 48 of 54 BACK VIEW OF EUT LEFT VIEW OF EUT Report No.: AGC10117210401FE02 Page 49 of 54 RIGHT VIEW OF EUT OPEN VIEW OF EUT Report No.: AGC10117210401FE02 Page 50 of 54 INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 Report No.: AGC10117210401FE02 Page 51 of 54 FRONT VIEW OF EUT BACK VIEW OF EUT Report No.: AGC10117210401FE02 Page 52 of 54 OPEN VIEW OF EUT INTERNAL VIEW OF EUT-1 BT Antenna Report No.: AGC10117210401FE02 Page 53 of 54 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 Report No.: AGC10117210401FE02 Page 54 of 54 ADAPTER OF EUT ----END OF REPORT---- Conditions of Issuance of Test Reports 1. All samples and goods are accepted by the Attestation of Global Compliance (Shenzhen) Co., Ltd (the “Company”) solely for testing and reporting in accordance with the following terms and conditions. The company provides its services on the basis that such terms and conditions constitute express agreement between the company and any person, firm or company requesting its services (the “Clients”). 2. Any report issued by Company as a result of this application for testing services (the “Report”) shall be issued in confidence to the Clients and the Report will be strictly treated as such by the Company. It may not be reproduced either in its entirety or in part and it may not be used for advertising or other unauthorized purposes without the written consent of the Company. The Clients to whom the Report is issued may, however, show or send it, or a certified copy thereof prepared by the Company to its customer, supplier or other persons directly concerned. The Company will not, without the consent of the Clients, enter into any discussion or correspondence with any third party concerning the contents of the Report, unless required by the relevant governmental authorities, laws or court orders. 3.The Company shall not be called or be liable to be called to give evidence or testimony on the Report in a court of law without its prior written consent, unless required by the relevant governmental authorities, laws or court orders. 4. The non-CMA report issued by AGC is only permitted to be used by the client as internal reference use and shall not be used for public demonstration purpose. 5. In the event of the improper use of the report as determined by the Company, the Company reserves the right to withdraw it, and to adopt any other additional remedies which may be appropriate. 6. Samples submitted for testing are accepted on the understanding that the Report issued cannot form the basis of, or be the instrument for, any legal action against the Company. 7. The Company will not be liable for or accept responsibility for any loss or damage however arising from the use of information contained in any of its Reports or in any communication whatsoever about its said tests or investigations. 8.Clients wishing to use the Report in court proceedings or arbitration shall inform the Company to that effect prior to submitting the sample for testing. 9. The Company is not responsible for recalling the electronic version of the original report when any revision is made to them. The Client assumes the responsibility to providing the revised version to any interested party who uses them. 10. Subject to the variable length of retention time for test data and report stored hereinto as otherwise specifically required by individual accreditation authorities, the Company will only keep the supporting test data and information of the test report for a period of six years. The data and information will be disposed of after the aforementioned retention period has elapsed. Under no circumstances shall we provide any data and information which has been disposed of after retention period. Under no circumstances shall we be liable for damage of any kind, including (but not limited to) compensatory damages, lost profits, lost data, or any form of special, incidental, indirect, consequential or punitive damages of any kind, whether based on breach of contract of warranty, tort (including negligence), product liability or otherwise, even if we are informed in advance of the possibility of such damages.
