Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ‐ Reorient or relocate the receiving antenna. ‐ Increase the separation between the equipment and receiver. ‐ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐ Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This transmitter must not be co‐located or operating in conjunction with any other antenna or transmitter. IMPORTANT NOTE: Radiation Exposure Statement The product complies with the FCC portable RF exposure limit set forth for an uncontrolled environment and are safe for intended operation as described in this manual. The further RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or set the device to lower output power if such function is available. These requirements set a SAR limit of 1.6 W/kg averaged over one gram of tissue. The highest SAR value reported un der this standard during product certification is 1.344W/kg. Industry Canada Equipment Standard for Digital Equipment (ICES) – Canada This Class B digital apparatus complies with Canadian ICES‐003. Cet appareil numérique de la classe B est conforme à la norme NMB‐003 du Canada. Innovation, Science and Economic Development Canada (ISED) – Canada Statement: This device complies with ISED license‐exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d' ISED applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. Pour les produits disponibles aux États‐Unis / Canada du marché, seul le canal 1 à 11 peuvent être exploités. Sélection d'autres canaux n'est pas possible. IMPORTANT NOTE: Radiation Exposure Statement The product complies with the Canada portable RF exposure limit set forth for an uncontrolled environment and are safe for intended operation as described in this manual. The further RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or set the device to lower output power if such function is available. Déclaration d'exposition aux radiations Le produit est conforme aux limites d'exposition pour les appareils portables RF pour les Etats‐Unis et le Canada établies pour un environnement non contrôlé. Le produit est sûr pour un fonctionnement tel que décrit dans ce manuel. La réduction aux expositions RF peut être augmentée si l'appareil peut être conservé aussi loin que possible du corps de l'utilisateur ou que le dispositif est réglé sur la puissance de sortie la plus faible si une telle fonction est disponible. These requirements set a SAR limit of 1.6 W/kg averaged over one gram of tissue. The highest SAR value reported under this standard during product certification is 1.344W/kg. Ces exigences établissent une limite SAR de 1,6 W / kg en moyenne sur un gramme de tissu. La valeur SAR la plus élevée déclarée selon cette norme lors de la certification est de 1.344W/kg.

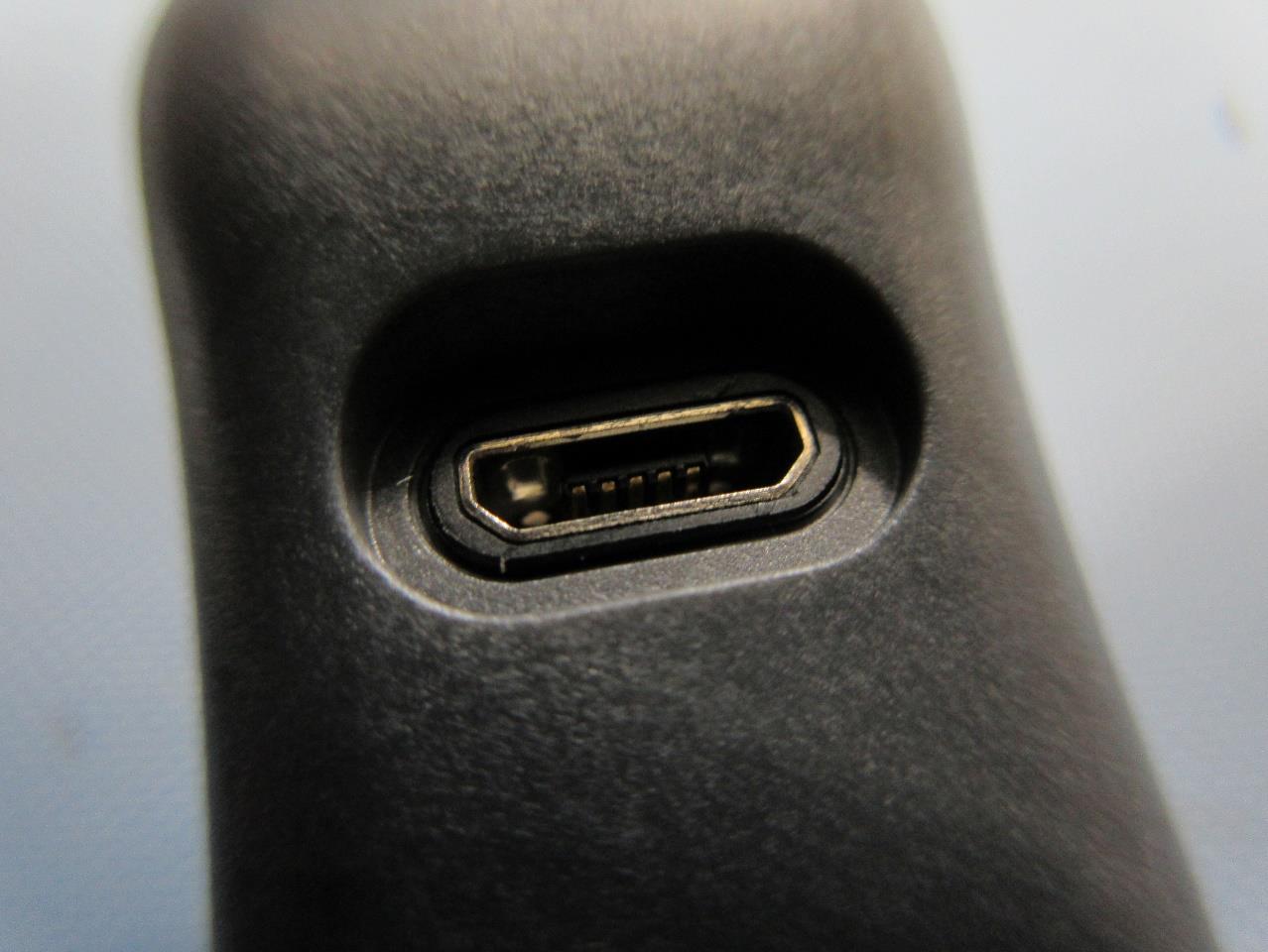

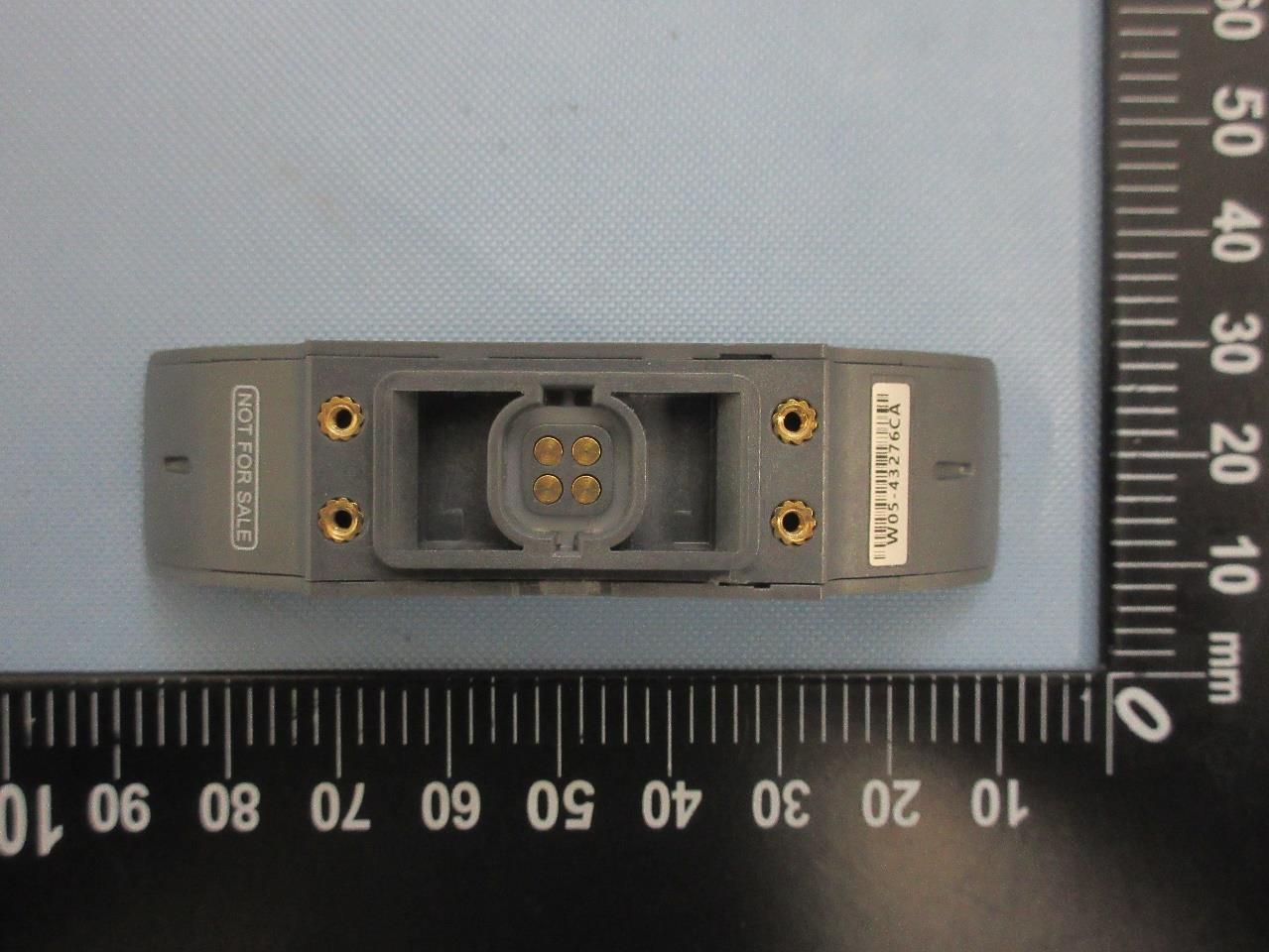

Appendix EP Photographs of EUT Page 1 of 16 CN21DEDK(P15C-BLE) 001, CN21DEDK(P15C-2.4GHz) 001, CN21DEDK(P24-WWAN) 001, CN21DEDK(P27-WWAN) 001, CN217ZYG(RSS-BLE) 001, CN217ZYG(RSS-2.4GHz) 001, CN217ZYG(RSS130-WWAN) 001, CN217ZYG(RSS133-WWAN) 001, CN217ZYG(RSS139-WWAN) 001 Product: Whistle Switch Type Identification: Switch Appendix EP Photographs of EUT Page 2 of 16 CN21DEDK(P15C-BLE) 001, CN21DEDK(P15C-2.4GHz) 001, CN21DEDK(P24-WWAN) 001, CN21DEDK(P27-WWAN) 001, CN217ZYG(RSS-BLE) 001, CN217ZYG(RSS-2.4GHz) 001, CN217ZYG(RSS130-WWAN) 001, CN217ZYG(RSS133-WWAN) 001, CN217ZYG(RSS139-WWAN) 001 Product: Whistle Switch Type Identification: Switch Appendix EP Photographs of EUT Page 3 of 16 CN21DEDK(P15C-BLE) 001, CN21DEDK(P15C-2.4GHz) 001, CN21DEDK(P24-WWAN) 001, CN21DEDK(P27-WWAN) 001, CN217ZYG(RSS-BLE) 001, CN217ZYG(RSS-2.4GHz) 001, CN217ZYG(RSS130-WWAN) 001, CN217ZYG(RSS133-WWAN) 001, CN217ZYG(RSS139-WWAN) 001 Product: Whistle Switch Type Identification: Switch Appendix EP Photographs of EUT Page 4 of 16 CN21DEDK(P15C-BLE) 001, CN21DEDK(P15C-2.4GHz) 001, CN21DEDK(P24-WWAN) 001, CN21DEDK(P27-WWAN) 001, CN217ZYG(RSS-BLE) 001, CN217ZYG(RSS-2.4GHz) 001, CN217ZYG(RSS130-WWAN) 001, CN217ZYG(RSS133-WWAN) 001, CN217ZYG(RSS139-WWAN) 001 Product: Whistle Switch Type Identification: Switch Appendix EP Photographs of EUT Page 5 of 16 CN21DEDK(P15C-BLE) 001, CN21DEDK(P15C-2.4GHz) 001, CN21DEDK(P24-WWAN) 001, CN21DEDK(P27-WWAN) 001, CN217ZYG(RSS-BLE) 001, CN217ZYG(RSS-2.4GHz) 001, CN217ZYG(RSS130-WWAN) 001, CN217ZYG(RSS133-WWAN) 001, CN217ZYG(RSS139-WWAN) 001 Product: Whistle Switch Type Identification: Switch Appendix EP Photographs of EUT Page 6 of 16 CN21DEDK(P15C-BLE) 001, CN21DEDK(P15C-2.4GHz) 001, CN21DEDK(P24-WWAN) 001, CN21DEDK(P27-WWAN) 001, CN217ZYG(RSS-BLE) 001, CN217ZYG(RSS-2.4GHz) 001, CN217ZYG(RSS130-WWAN) 001, CN217ZYG(RSS133-WWAN) 001, CN217ZYG(RSS139-WWAN) 001 Product: Whistle Switch Type Identification: Switch




Appendix EP Photographs of EUT Page 1 of 5 CN21DEDK(P15C-BLE) 001, CN21DEDK(P15C-2.4GHz) 001, CN21DEDK(P24-WWAN) 001, CN21DEDK(P27-WWAN) 001, CN217ZYG(RSS-BLE) 001, CN217ZYG(RSS-2.4GHz) 001, CN217ZYG(RSS130-WWAN) 001, CN217ZYG(RSS133-WWAN) 001, CN217ZYG(RSS139-WWAN) 001 Product: Whistle Switch Type Identification: Switch Appendix EP Photographs of EUT Page 2 of 5 CN21DEDK(P15C-BLE) 001, CN21DEDK(P15C-2.4GHz) 001, CN21DEDK(P24-WWAN) 001, CN21DEDK(P27-WWAN) 001, CN217ZYG(RSS-BLE) 001, CN217ZYG(RSS-2.4GHz) 001, CN217ZYG(RSS130-WWAN) 001, CN217ZYG(RSS133-WWAN) 001, CN217ZYG(RSS139-WWAN) 001 Product: Whistle Switch Type Identification: Switch Appendix EP Photographs of EUT Page 3 of 5 CN21DEDK(P15C-BLE) 001, CN21DEDK(P15C-2.4GHz) 001, CN21DEDK(P24-WWAN) 001, CN21DEDK(P27-WWAN) 001, CN217ZYG(RSS-BLE) 001, CN217ZYG(RSS-2.4GHz) 001, CN217ZYG(RSS130-WWAN) 001, CN217ZYG(RSS133-WWAN) 001, CN217ZYG(RSS139-WWAN) 001 Product: Whistle Switch Type Identification: Switch Appendix EP Photographs of EUT Page 4 of 5 CN21DEDK(P15C-BLE) 001, CN21DEDK(P15C-2.4GHz) 001, CN21DEDK(P24-WWAN) 001, CN21DEDK(P27-WWAN) 001, CN217ZYG(RSS-BLE) 001, CN217ZYG(RSS-2.4GHz) 001, CN217ZYG(RSS130-WWAN) 001, CN217ZYG(RSS133-WWAN) 001, CN217ZYG(RSS139-WWAN) 001 Product: Whistle Switch Type Identification: Switch Appendix EP Photographs of EUT Page 5 of 5 CN21DEDK(P15C-BLE) 001, CN21DEDK(P15C-2.4GHz) 001, CN21DEDK(P24-WWAN) 001, CN21DEDK(P27-WWAN) 001, CN217ZYG(RSS-BLE) 001, CN217ZYG(RSS-2.4GHz) 001, CN217ZYG(RSS130-WWAN) 001, CN217ZYG(RSS133-WWAN) 001, CN217ZYG(RSS139-WWAN) 001 Product: Whistle Switch Type Identification: Switch WWAN Antenna BLE / WiFi Antenna GPS Antenna

Test Laboratory: TUV Inc. Date: 2021/2/24 System Check_H750MHz DUT: D750V2; Communication System: UID 0, CW; Frequency: 750 MHz; Duty Cycle: 1:1 Medium parameters used: f = 750 MHz; σ = 0.913 S/m; ε r = 42.654; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.3°C DASY Configuration: •Electronics: DAE4 Sn855; Calibrated: 2020/4/23 •Probe: EX3DV4 - SN7400; ConvF(9.87, 9.87, 9.87) @ 750 MHz; Calibrated: 2020/6/26 •Sensor-Surface: 1.4mm (Mechanical Surface Detection), z = 1.0, 31.0 •Phantom: Front_Twin-SAM V4.0 (20deg probe tilt); Type: QD 000 P40 CC; Serial: TP-1467 •DASY52 52.10.4(1527); SEMCAD X 14.6.14(7483) Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 3.16 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 57.95 V/m; Power Drift = 0.09 dB Peak SAR (extrapolated) = 3.72 W/kg SAR(1 g) = 2.13 W/kg; SAR(10 g) = 1.41 W/kg Maximum value of SAR (measured) = 3.61 W/kg Test Laboratory: TUV Inc. Date: 2021/2/23 System Check_H1800MHz DUT: D1800V2; Communication System: UID 0, CW; Frequency: 1800 MHz; Duty Cycle: 1:1 Medium parameters used: f = 1800 MHz; σ = 1.371 S/m; ε r = 41.071; ρ = 1000 kg/m 3 Ambient Temperature：22.9 °C; Liquid Temperature：21.9°C DASY Configuration: •Electronics: DAE4 Sn855; Calibrated: 2020/4/23 •Probe: EX3DV4 - SN7400; ConvF(8.3, 8.3, 8.3) @ 1800 MHz; Calibrated: 2020/4/29 •Sensor-Surface: 1.4mm (Mechanical Surface Detection), z = 1.0, 31.0 •Phantom: Front_Twin-SAM V4.0 (20deg probe tilt); Type: QD 000 P40 CC; Serial: TP-1467 •DASY52 52.10.4(1527); SEMCAD X 14.6.14(7483) Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 12.2 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 88.70 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 19.3 W/kg SAR(1 g) = 10.1 W/kg; SAR(10 g) = 5.29 W/kg Maximum value of SAR (measured) = 15.8 W/kg Test Laboratory: TUV Inc. Date: 2021/2/22 System Check_H1900MHz DUT: D1900V2 ; Communication System: UID 0, CW; Frequency: 1900 MHz; Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.407 S/m; ε r = 40.649; ρ = 1000 kg/m 3 Ambient Temperature：22.9 °C; Liquid Temperature：21.8°C DASY Configuration: •Electronics: DAE4 Sn855; Calibrated: 2020/4/23 •Probe: EX3DV4 - SN7400; ConvF(8.02, 8.02, 8.02) @ 1900 MHz; Calibrated: 2020/4/29 •Sensor-Surface: 1.4mm (Mechanical Surface Detection), z = 1.0, 31.0 •Phantom: Front_Twin-SAM V4.0 (20deg probe tilt); Type: QD 000 P40 CC; Serial: TP-1467 •DASY52 52.10.4(1527); SEMCAD X 14.6.14(7483) Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 14.7 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 99.05 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 18.8 W/kg SAR(1 g) = 9.97 W/kg; SAR(10 g) = 5.16 W/kg Maximum value of SAR (measured) = 15.6 W/kg Test Laboratory: TUV Inc. Date: 2021/2/25 System Check_H2450 DUT: D2450V2; Communication System: UID 0, CW; Frequency: 2450 MHz; Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.886 S/m; ε r = 38.421; ρ = 1000 kg/m 3 Ambient Temperature：23.1 °C; Liquid Temperature：22.1 °C DASY Configuration: •Electronics: DAE4 Sn855; Calibrated: 2020/4/23 •Probe: EX3DV4 - SN7400; ConvF(7.49, 7.49, 7.49) @ 2450 MHz; Calibrated: 2020/4/29 •Sensor-Surface: 1.4mm (Mechanical Surface Detection), z = 1.0, 31.0 •Phantom: Front_Twin-SAM V4.0 (20deg probe tilt); Type: QD 000 P40 CC; Serial: TP-1467 •DASY52 52.10.4(1527); SEMCAD X 14.6.14(7483) Area Scan (9x9x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 17.5 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 93.65 V/m; Power Drift = 0.12 dB Peak SAR (extrapolated) = 25.6 W/kg SAR(1 g) = 12.3 W/kg; SAR(10 g) = 5.68 W/kg Maximum value of SAR (measured) = 20.5 W/kg

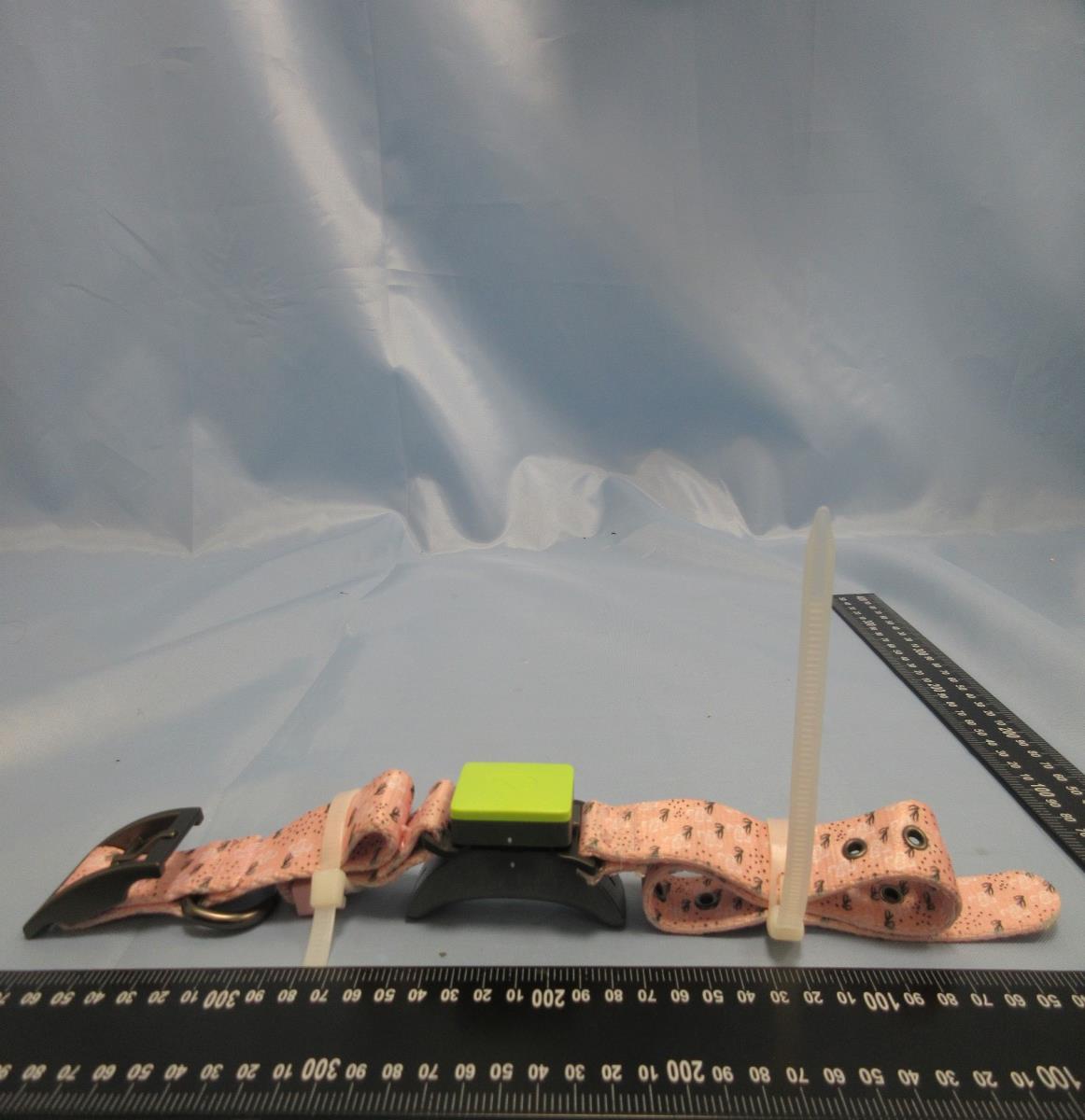

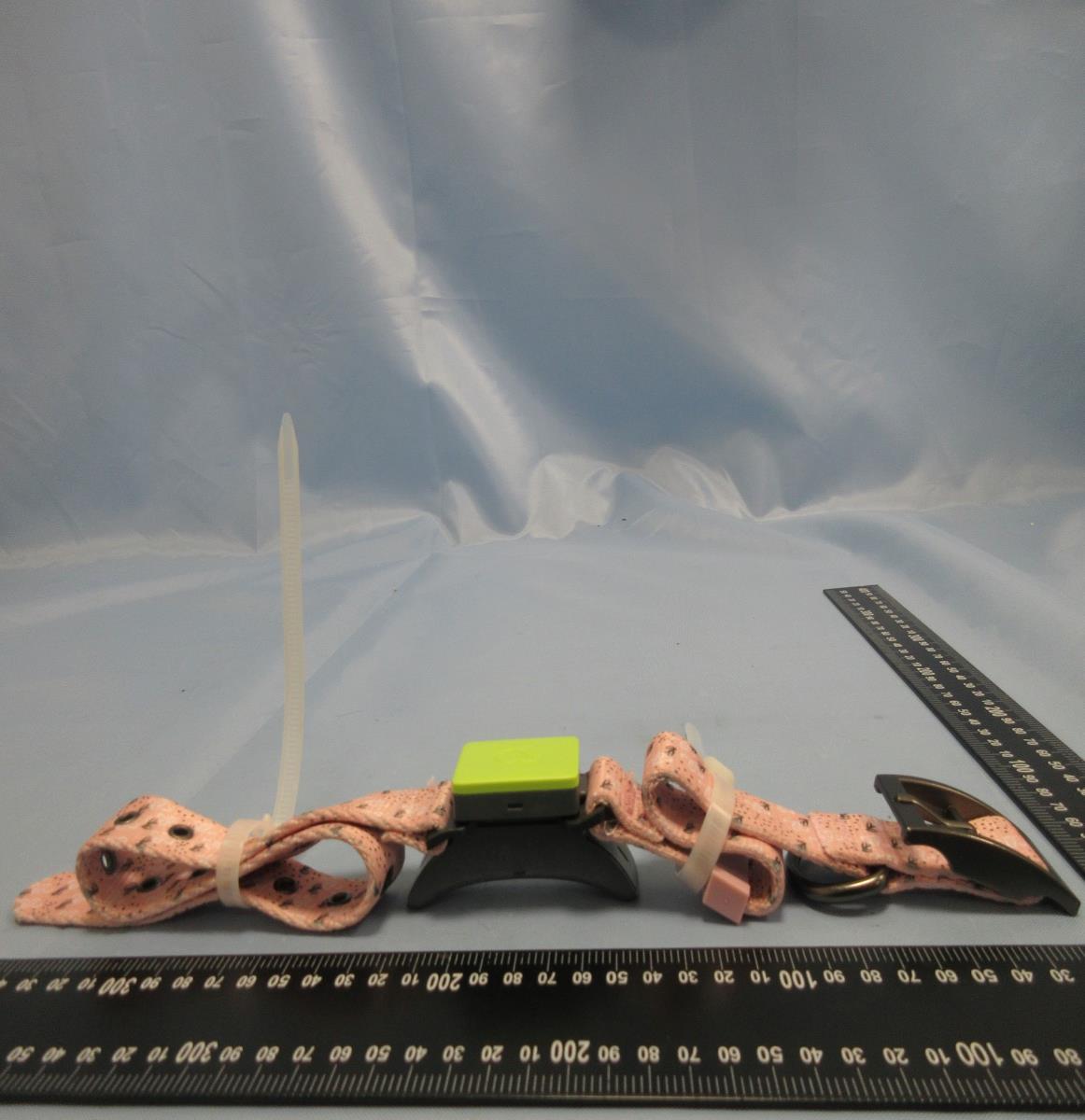

Test Laboratory: TUV Inc. Date: 2021/2/22 P16 LTE B2_CatM1_QPSK 20M_Ch19100_3RB Offset 0 Index 0_Top Side_0.5cm DUT: Pet Tracker; Communication System: UID 0, Generic LTE; Frequency: 1900 MHz; Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.407 S/m; ε r = 40.649; ρ = 1000 kg/m 3 Ambient Temperature：22.9 °C; Liquid Temperature：21.8°C DASY Configuration: •Electronics: DAE4 Sn855; Calibrated: 2020/4/23 •Probe: EX3DV4 - SN7400; ConvF(8.02, 8.02, 8.02) @ 1900 MHz; Calibrated: 2020/4/29 •Sensor-Surface: 1.4mm (Mechanical Surface Detection), z = 3.0, 31.0 •Phantom: Front_Twin-SAM V4.0 (20deg probe tilt); Type: QD 000 P40 CC; Serial: TP-1467 •DASY52 52.10.4(1527); SEMCAD X 14.6.14(7483) Area Scan (8x10x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 0.357 W/kg Zoom Scan (5x5x5)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.58 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 0.575 W/kg SAR(1 g) = 0.279 W/kg; SAR(10 g) = 0.128 W/kg Maximum value of SAR (measured) = 0.419 W/kg Draft Test Laboratory: TUV Inc. Date: 2021/2/23 P24 LTE B4_CatM1_QPSK 20M_Ch20050_1RB Offset 0 Index 0_Top Side_0.5cm DUT: Pet Tracker; Communication System: UID 0, Generic LTE; Frequency: 1720 MHz; Duty Cycle: 1:1 Medium parameters used: f = 1720 MHz; σ = 1.303 S/m; ε r = 41.319; ρ = 1000 kg/m 3 Ambient Temperature：22.9 °C; Liquid Temperature：21.9°C DASY Configuration: •Electronics: DAE4 Sn855; Calibrated: 2020/4/23 •Probe: EX3DV4 - SN7400; ConvF(8.3, 8.3, 8.3) @ 1720 MHz; Calibrated: 2020/4/29 •Sensor-Surface: 1.4mm (Mechanical Surface Detection), z = 3.0, 31.0 •Phantom: Front_Twin-SAM V4.0 (20deg probe tilt); Type: QD 000 P40 CC; Serial: TP-1467 •DASY52 52.10.4(1527); SEMCAD X 14.6.14(7483) Area Scan (8x10x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 1.17 W/kg Zoom Scan (5x5x5)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 22.43 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 1.93 W/kg SAR(1 g) = 1.09 W/kg; SAR(10 g) = 0.524 W/kg Maximum value of SAR (measured) = 1.48 W/kg Draft Test Laboratory: TUV Inc. Date: 2021/2/24 P50 LTE B12_CatM1_QPSK 10M_Ch23130_3RB Offset 0 Index 0_Bottom Side_0.5cm DUT: Pet Tracker; Communication System: UID 0, Generic LTE; Frequency: 711 MHz; Duty Cycle: 1:1 Medium parameters used: f = 711 MHz; σ = 0.882 S/m; ε r = 43.112; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.3°C DASY Configuration: •Electronics: DAE4 Sn855; Calibrated: 2020/4/23 •Probe: EX3DV4 - SN7400; ConvF(9.87, 9.87, 9.87) @ 711 MHz; Calibrated: 2020/4/29 •Sensor-Surface: 1.4mm (Mechanical Surface Detection), z = 3.0, 31.0 •Phantom: Front_Twin-SAM V4.0 (20deg probe tilt); Type: QD 000 P40 CC; Serial: TP-1467 •DASY52 52.10.4(1527); SEMCAD X 14.6.14(7483) Area Scan (8x10x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 0.351 W/kg Zoom Scan (5x5x5)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.33 V/m; Power Drift = 0.16 dB Peak SAR (extrapolated) = 0.490 W/kg SAR(1 g) = 0.242 W/kg; SAR(10 g) = 0.138 W/kg Maximum value of SAR (measured) = 0.368 W/kg Draft Test Laboratory: TUV Inc. Date: 2021/2/25 P119 802.11g_6M_Ch1_Left Side_0.5cm DUT: Pet Tracker; Communication System: UID 0, WiFi (0); Frequency: 2412 MHz; Duty Cycle: 1:1 Medium parameters used: f = 2412 MHz; σ = 1.848 S/m; ε r = 38.779; ρ = 1000 kg/m 3 Ambient Temperature：23.1 °C; Liquid Temperature：22.1°C DASY Configuration: • Electronics: DAE4 Sn855; Calibrated: 2020/4/23 • Probe: EX3DV4 - SN7400; ConvF(7.49, 7.49, 7.49) @ 2412 MHz; Calibrated: 2020/4/29 • Sensor-Surface: 1.4mm (Mechanical Surface Detection), z = 1.0, 31.0 • Phantom: Front_Twin-SAM V4.0 (20deg probe tilt); Type: QD 000 P40 CC; Serial: TP-1467 • DASY52 52.10.4(1527); SEMCAD X 14.6.14(7483) Area Scan (6x7x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 0.712 W/kg Zoom Scan (5x5x5)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 15.75 V/m; Power Drift = 0.16 dB Peak SAR (extrapolated) = 1.13 W/kg SAR(1 g) = 0.511 W/kg; SAR(10 g) = 0.219 W/kg Maximum value of SAR (measured) = 0.881 W/kg Draft
