RF Protocol Document No.: XCT-RFP-EV100 Revision No.: 1 Date of revision: 2020-11-06 Title: RF Protocol Doc.#: XCT-RFP-EV100 (Rev. 1) [CONFIDENTIAL] Page 1 of 26 Contents Specification ··································································································· 3 Configuration of IS-4500C1 ················································································ 3 2.1 Connect ········································································································ 3 2.2 USB Driver ···································································································· 4 Operation method of IS-4500C1 RFID ·································································· 5 Usage of ISReaderPro V3.0 ················································································ 6 Protocol Format ······························································································ 8 5.1 Request (Target , PC → IS-4500C1) ······································································ 8 5.2 Request (Target , PC → IS-4500C1) ······································································ 8 Check Sum Calculation method ··········································································· 9 Protocol (NTAG) ····························································································· 10 7.1 NTAG Active Request (Target , PC → IS-4500C1) ···················································· 10 7.2 NTAG Active Response (IS-4500C1 → Target , PC) ·················································· 10 7.3 NTAG Authenticate Request (Target , PC → IS-4500C1) ············································ 11 7.4 NTAG Authenticate Response (IS-4500C1 → Target , PC) ·········································· 11 7.5 NTAG Authenticate Key Value Change Request (Target , PC → IS-4500C1) ····················· 12 7.6 NTAG Authenticate Key Value Change Response (IS-4500C1 → Target , PC) ··················· 12 7.7 NTAG Block Read 16 Byte Request (Target , PC → IS-4500C1) ··································· 13 7.8 NTAG Block Read 16 Byte Response (IS-4500C1 → Target , PC) ································· 13 7.9 NTAG Block Read 4 Byte Request (Target , PC → IS-4500C1) ····································· 14 7.10 NTAG Block Read 4 Byte Response (IS-4500C1 → Target , PC) ································· 14 7.11 NTAG Block Write 4 Byte Request (Target , PC → IS-4500C1) ··································· 15 7.12 NTAG Block Write 4 Byte Response (IS-4500C1 → Target , PC) ································ 15 7.13 NTAG Block Write 16 Byte Request (Target , PC → IS-4500C1) ································· 16 7.14 NTAG Block Write 16 Byte Response (IS-4500C1 → Target , PC) ······························ 16 7.15 Version Read Request (Target , PC → IS-4500C1) ··················································· 17 7.16 NTAG Version Read Response (IS-4500C1 → Target , PC) ········································ 17 7.17 Sign ECC Read Request (Target , PC → IS-4500C1) ················································ 18 7.18 NTAG Sign ECC Read Response (IS-4500C1 → Target , PC) ····································· 18 7.19 AUTH0 Write Request (Target , PC → IS-4500C1) ·················································· 19 7.20 NTAG AUTH0 Write Response (IS-4500C1 → Target , PC) ······································· 19 7.21 Access Protect Write Request (Target , PC → IS-4500C1) ·········································· 20 7.22 NTAG Access Protect Write Response (IS-4500C1 → Target , PC) ······························· 20 7.23 AUTH0, Access Protect State Request (Target , PC → IS-4500C1) ······························· 21 7.24 NTAG AUTH0, Access Protect State Response (IS-4500C1 → Target , PC) ···················· 21 7.25 24Bit Read Request (Target , PC → IS-4500C1) ····················································· 22 7.26 NTAG 24Bit Counter Read Response (IS-4500C1 → Target , PC) ································ 22 7.27 24bit Enable Request (Target , PC → IS-4500C1)···················································· 23 7.28 NTAG 24bit Counter Enable Response (IS-4500C1 → Target , PC)······························ 23 7.29 24bit Protect Request (Target , PC → IS-4500C1) ··················································· 24 7.30 NTAG 24bit Counter Protect Response (IS-4500C1 → Target , PC) ······························ 24 7.31 NTAG 24bit Counter Enable, Protect State Request (Target , PC → IS-4500C1) ··············· 25 7.32 NTAG 24bit Counter Enable, Protect State Response (IS-4500C1 → Target , PC) ············· 25 Title: RF Protocol Doc.#: XCT-RFP-EV100 (Rev. 1) [CONFIDENTIAL] Page 2 of 26 Related Document ··························································································· 26 Title: RF Protocol Doc.#: XCT-RFP-EV100 (Rev. 1) [CONFIDENTIAL] Page 3 of 26 Specification Category Contents RF Frequency 13.56MHz Power Supply 4.5 to 5.5V DV Operation Supply Current 40mA @ 5V Dimensions 43*35*6 mm RF Protocol ISO 14443-A Host Interface TTL232, USB To Serial(FTDI USB Chip) Antenna 50-ohm Internal antenna RF Power 150mW @ 5V Read Range 50mm internal ant Anticollision Support(1tags) ⚫The RFID Reader is used after being mounted inside the equipment. Configuration of IS-4500C1 2.1 Connect •PCB Top Title: RF Protocol Doc.#: XCT-RFP-EV100 (Rev. 1) [CONFIDENTIAL] Page 4 of 26 • PCB Bottom 2.2 USB Driver HID USB KeyBoard o Automatically recognized without the need for driver installation. USB To Serial Driver o USB Chip : FTDI230x o Download site : http://www.ftdichip.com/Drivers/VCP.htm Title: RF Protocol Doc.#: XCT-RFP-EV100 (Rev. 1) [CONFIDENTIAL] Page 5 of 26 Operation method of IS-4500C1 RFID Dummy RFID Reader Support Auto Polling RFID Reader Support Title: RF Protocol Doc.#: XCT-RFP-EV100 (Rev. 1) [CONFIDENTIAL] Page 6 of 26 Usage of ISReaderPro V3.0 Enable NTAG. Authenticate NTAG. Change the value of the authenti…

Text truncated - open the document above for the full version.

FCC ID : 2AYHQ-IS-4500-C1 Page : 1 of 1 UL Korea, Ltd. Suwon Laboratory 218 Maeyeong-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16675, Korea TEL: (031) 337-9902 FAX: (031) 213-5433 EXTERNAL PHOTOS OF EUT Top view of EUT Bottom view of EUT

Label and Location FCC ID: 2AYHQ-IS-4500-C1 Label Location *This lable is attached to the front of the product and not easily removed.

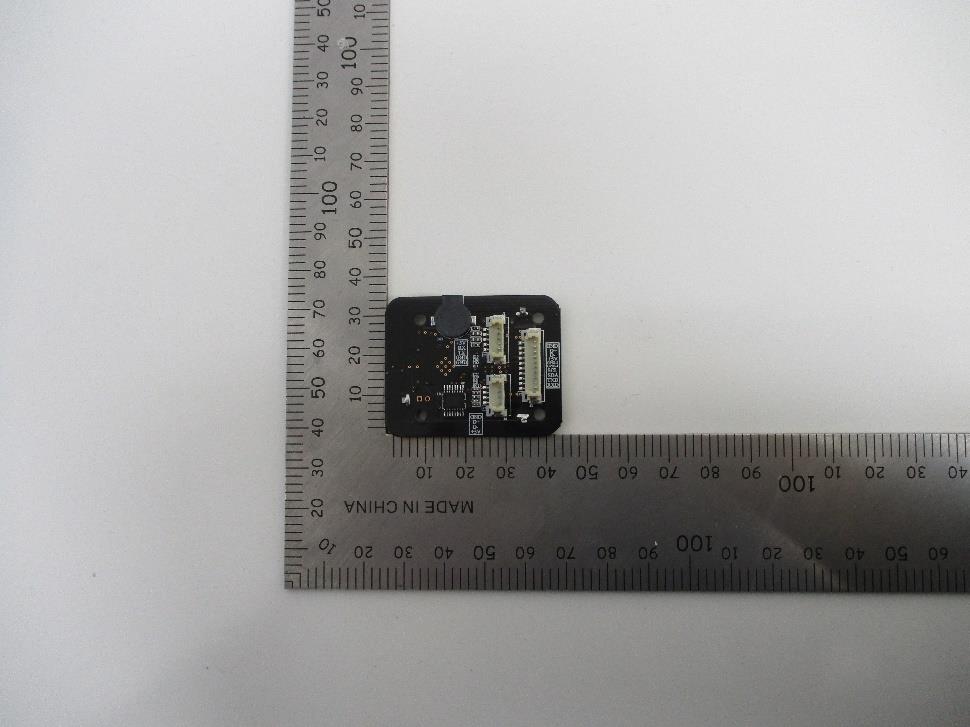

FCC ID : 2AYHQ-IS-4500-C1 Page : 1 of 2 UL Korea, Ltd. Suwon Laboratory 218 Maeyeong-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16675, Korea TEL: (031) 337-9902 FAX: (031) 213-5433 INTERNEL PHOTOS OF EUT Main Board front side Main Board rear side FCC ID : 2AYHQ-IS-4500-C1 Page : 2 of 2 UL Korea, Ltd. Suwon Laboratory 218 Maeyeong-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16675, Korea TEL: (031) 337-9902 FAX: (031) 213-5433 Antenna

Testing Laboratory TL-637 CERTIFICATION TEST REPORT Report Number. : 4789765080-FR1V3 Applicant : XCATH, Inc 42 Changeop-ro, Sujeong-gu, Seongnam-si, Gyeonggi-do, 13449, Korea Model : IS-4500-C1 FCC ID : 2AYHQ-IS-4500-C1 EUT Description : RFID Reader Test Standard(s) : FCC 47 CFR PART 15 SUBPART C Date Of Issue: December 24, 2020 Prepared by: UL Korea, Ltd. 26th floor, 152, Teheran-ro, Gangnam-gu Seoul, 06236, Korea Suwon Test Site: UL Korea, Ltd. Suwon Laboratory 218 Maeyeong-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16675, Korea TEL: (031) 337-9902 FAX: (031) 213-5433 REPORT NO: 4789765080-FR1V3 DATE: DEC 24, 2020 FCC ID: 2AYHQ-IS-4500-C1 Page 2 of 21 UL Korea, Ltd. Suwon Laboratory FORM ID: FCC_15C(04) 218 Maeyeong-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16675, Korea TEL: (031) 337-9902 FAX: (031) 213-5433 UL Korea, Ltd. Confidential This report shall not be reproduced except in full, without the written approval of UL Korea, Ltd. Revision History Rev. Issue Date Revisions Revised By V1 12/23/20 Initial issue Jaehyong Lee V2 12/24/20 Update the section 5.2 Jaehyong Lee V3 12/24/20 Update the section 5.3 Jaehyong Lee REPORT NO: 4789765080-FR1V3 DATE: DEC 24, 2020 FCC ID: 2AYHQ-IS-4500-C1 Page 3 of 21 UL Korea, Ltd. Suwon Laboratory FORM ID: FCC_15C(04) 218 Maeyeong-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16675, Korea TEL: (031) 337-9902 FAX: (031) 213-5433 UL Korea, Ltd. Confidential This report shall not be reproduced except in full, without the written approval of UL Korea, Ltd. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 5 3. FACILITIES AND ACCREDITATION ................................................................................. 5 4. CALIBRATION AND UNCERTAINTY ................................................................................ 6 4.1. MEASURING INSTRUMENT CALIBRATION ................................................................ 6 4.2. SAMPLE CALCULATION .............................................................................................. 6 4.3. MEASUREMENT UNCERTAINTY ................................................................................ 6 4.4. DECISION RULE .......................................................................................................... 6 5. EQUIPMENT UNDER TEST ............................................................................................... 7 5.1. DESCRIPTION OF EUT ................................................................................................ 7 5.2. MAXIMUM E-FIELD STRENGTH .................................................................................. 7 5.3. WORST-CASE CONFIGURATION AND MODE ........................................................... 7 5.4. DESCRIPTION OF TEST SETUP ................................................................................. 8 6. TEST AND MEASUREMENT EQUIPMENT ....................................................................... 9 7. 20dB BANDWIDTH ...........................................................................................................10 8. RADIATED EMISSION TEST RESULTS...........................................................................11 8.1. LIMITS AND PROCEDURE .........................................................................................11 8.1.1. FUNDAMENTAL AND SPURIOUS EMISSIONS (0.15 – 30 MHz) .........................13 8.1.2. SPURIOUS EMISSION 0.009 TO 30 MHz .............................................................15 8.1.3. TX SPURIOUS EMISSION 30 TO 1000 MHz ........................................................17 9. AC MAINS LINE CONDUCTED EMISSIONS ....................................................................18 10. FREQUENCY STABILITY ..............................................................................................21 REPORT NO: 4789765080-FR1V3 DATE: DEC 24, 2020 FCC ID: 2AYHQ-IS-4500-C1 Page 4 of 21 UL Korea, Ltd. Suwon Laboratory FORM ID: FCC_15C(04) 218 Maeyeong-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16675, Korea TEL: (031) 337-9902 FAX: (031) 213-5433 UL Korea, Ltd. Confidential This report shall not be reproduced except in full, without the written approval of UL Korea, Ltd. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: XCATH, Inc EUT DESCRIPTION: RFID Reader MODEL NUMBER: IS-4500-C1 SERIAL NUMBER: Prototype (RADIATED) DATE TESTED: DEC 17, 2020 – DEC 22, 2020; APPLICABLE STANDARDS STANDARD TEST RESULTS CFR 47 Part 15 Subpart C Complies UL Korea, Ltd. tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by UL Korea, Ltd. based on interpretations and/or observations of test results. Measurement Uncertainties were not taken into account and are published for informational purposes only. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by UL Korea, Ltd. and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by UL Korea, Ltd. will constitute fraud and shall nullify the document. This report must not be used by the client to claim product certification, approval, or endorsement by IAS, any agency of the Federal Government, or any agency of any government. Approved & Released For UL Korea, Ltd. By: Tested By: CY Choi Jaehyong Lee Suwon Lab Engineer Suwon Lab Engineer UL Korea, Ltd. UL Korea, Ltd. REPORT NO: 4789765080-FR1V3 DATE: DEC 24, 2020 FCC ID: 2AYHQ-IS-4500-C1 Page 5 of 21 UL Korea, Ltd. Suwo…

Text truncated - open the document above for the full version.

FCC ID: 2AYHQ-IS-4500-C1 Page 1 of 3 1. Appendix: TEST SETUP PHOTOS(Conducted Test) 1) CONDUCTED RF MEASUREMENT SETUP CONDUCTED TEST PHOTO FCC ID: 2AYHQ-IS-4500-C1 Page 2 of 3 2. Appendix: TEST SETUP PHOTOS(Radiated Test) 1) RADIATED RF MEASUREMENT SETUP (BELOW 30 MHz) BELOW 30 MHz FRONT TEST PHOTO BELOW 30 MHz REAR TEST PHOTO FCC ID: 2AYHQ-IS-4500-C1 Page 3 of 3 2) RADIATED RF MEASUREMENT SETUP (BELOW 1 GHz) END OF REPORT BELOW 1 GHz FRONT TEST PHOTO BELOW 1 GHz REAR TEST PHOTO
