2AYIW-M786Dog Training Collar

1--4 User Manual Product model: CSW-M786 Precautions before use  Whether you can use this product, please abide by local regulations;  Charge with a charger with a rated current of 5V/0.5A or 5V/1A;  It is recommended to wear the collar continuously for no more than 6 hours. If you find that the pet's skin is red and swollen where the collar touches, please stop wearing it immediately and seek medical attention if necessary;  Pay attention to adjusting the size of the collar to avoid the pet's breathing difficulties caused by wearing the collar too tightly;  The user's operating frequency is different, and the battery working time is different. Pay attention to the color indicator of the receiving head and the power display on the LCD screen of the remote control. If necessary, please charge it in time;  The stable control distance of the remote control will be affected by the high and low position of the receiving head and the remote control, obstacles, surrounding radio interference, and climatic conditions. Generally speaking, an open place, without radio interference, and the remote control is relatively high from the receiving head,the remote control distance is farther;  Avoid falling or strong impact on the machine, and do not press the LCD screen with excessive force, otherwise it may cause damage to the LCD screen or display abnormalities;  Do not disassemble, repair or change the machine by yourself. If there is any problem with the product, please contact the dealer's customer service;  The company is not responsible for disputes caused by illegal use of this product or damage due to maintenance. Function Instruction 1: Electric Shock Button 2: Vibration Button 3: Buzzing Button 4: Switch Button 5: Lock Button 6: Charging Type-C Port 7: Level Adjustment Knob 8: LCD display 9: Hook 2--4 10: Electric Shock Contact 11: Buzzer 12: Charging Port/Remote Pairing 13: Status Indicator Light Package List 1* Receiver 1* Belt 1* USB Charging Line 1* Remote Control 1* User Manual 1* Box Features 1.Use knob to quickly adjust the intensity of electric shock, vibration and beep; 2.Three modes: electric shock, vibration and beep which can meet different training requirements; 3.Maximal control three collars; 4.Remote and collar are both with Power indicator; 5.IP67 Waterproof; 6.Power-saving design,the receiver will automatically enters the power-saving state after 3-minute static state and can be waked up quickly when is moved. Charge 1.Charge for remote Connect the remote with a USB charger by the Type-C cable ,LCD shows the battery symbol starts flashing and stops flashing when sufficient charge is charged. Battery display status: full power; More sufficient for three lattice; Slightly less than two grids, emergency charging for 1 grid; Cannot work properly for Spaces. 2 . Charge for receiver Connect the receiver with a USB charger by the Type-C cable,the blue light flashes 10 seconds before the charging line is inserted, indicating that the code matching is being learned,after 10 seconds, the red light turns on, indicating its normal charging begins,after being charged full, the red lights go off and the blue lights turn on. Note* Receiver battery status checking: when connect the receiver with a USB charger by the Type-C cable , Pull out the moment,,if battery power is full, the buzzer will sound 1 time, if the battery power remaining 1/2 power,the buzzer will sound 2 times, if the battery power is low ,the buzzer will sound 3 times. Remote Pairing 1. Single receiving head pairing: the receiving head is plugged into the charging cable, the blue light of the receiving head starts to flash quickly, within 10 seconds, press the【】button or 【】button on the remote control, the blue light on the receiving head will be fast flashing to red, indicating that the function has been paired. Note: If the code is unsuccessful once, you can unplug the charging cable and repeat the above operation again. 2. Multi-receiving head pairing: After completing a single receiving head pairing, short press the remote control 【】key to switch the receiving head,repeat the first step. 3--4 Function Operation Electric Shock Short press the 【】button on the remote control, the receiving head receives the instruction to start the electric shock, and the electric shock lasts for 2-3 seconds. Vibration Short press the【】button on the remote control, the receiving head receives the instruction to start the vibration, and the vibration lasts for 3-4 seconds. Beep Short press the 【】button on the remote control, the receiving head receives the instruction to start the buzzer, and the buzzer keeps sounding for 2-4 seconds. Receive Head Power Query After inserting the Type-C cable into the USB charging head, plug the other end into the receiving head. If the charging cable is inserted into the receiving head, When the charging line is pulled out of the receiver ,the receiving head buzzer will beep once, indicating that the receiving head is fully charged. If the receiving head buzzer beeps twice, it indicates the power of the receiving head is only half. If the buzzer beeps three times, it indicates that the power of the receiving head is too low and needs to be charged. Intensity Adjustment Short press the 【】 button on the remote control, then press and hold the【】button, while rotating the knob on the top of the remote control to adjust the intensity of the electric shock; Short press the 【】button on the remote control, then press and hold the【】button, while rotating the knob on the top of the remote control to adjust the vibration intensity; Short press the【】button on the remote control, then press the 【】 button, and rotate the remote control at the same time The top knob can adjust the time of the buzzer; Note: Level 0 is closed, level 1 is the weakest, and level 99 is the strongest. Electrical Specification Description Item Description Rated charging voltage/current 5V/ 0.5A or 5V/1A Power supply 3.7V/300mAh Lithium …

Text truncated - open the document above for the full version.

Shenzhen Cashway Technology Co., Ltd Agent Authorization Company: Shenzhen Cashway Technology Co., Ltd Address: 2F, Building A, Cenxia Road, Fenghuang Community, Fuyong Street, Baoan, Shenzhen, 518103, China Product Name: Dog Training Collar Trade Mark: CSSIWE Model Number(s): CSW-M786 FCC ID: 2AYIW-M786 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-08-05 Name: Krause Yeh Title: general manager Company: Shenzhen Cashway Technology Co., Ltd

Shenzhen Cashway Technology Co., Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021-08-05 Subject; Request for Confidentiality FCC ID: 2AYIW-M786 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Krause Yeh Title: general manager

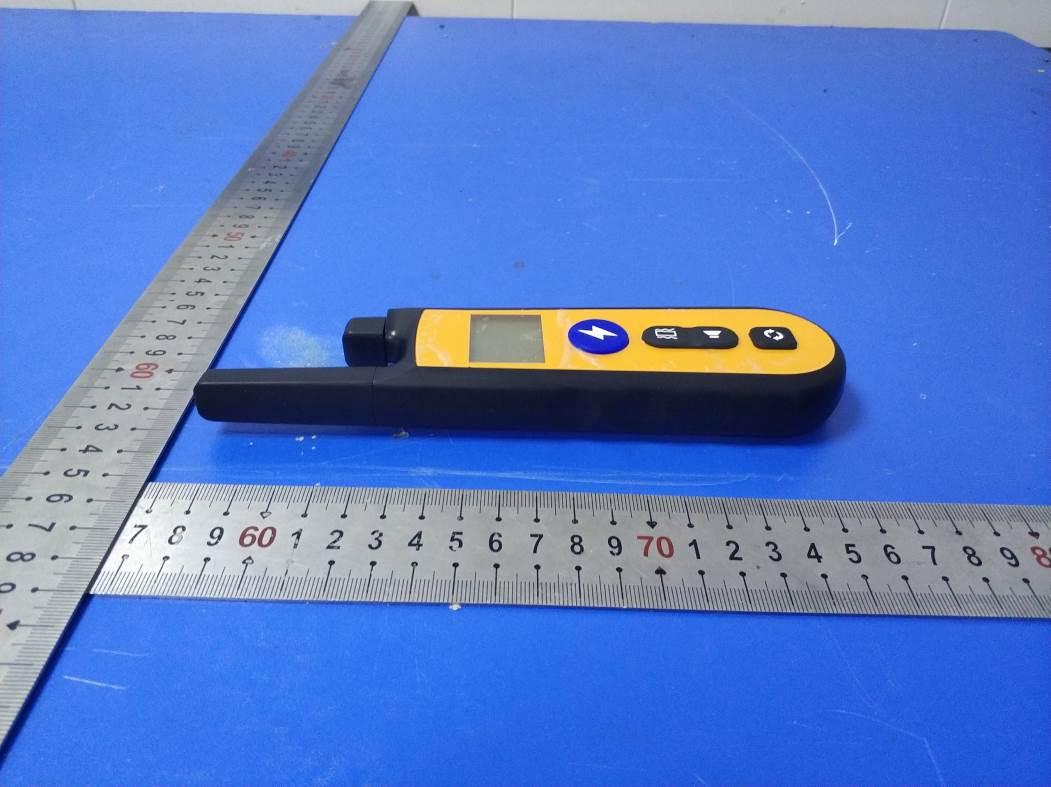

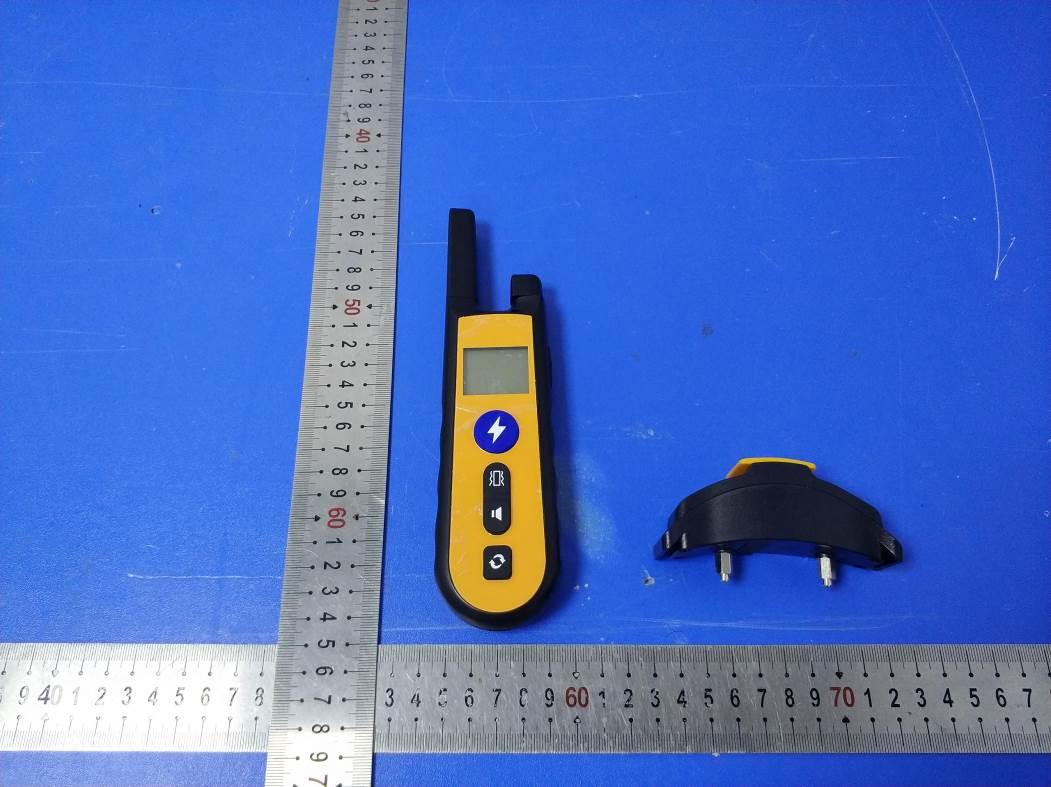

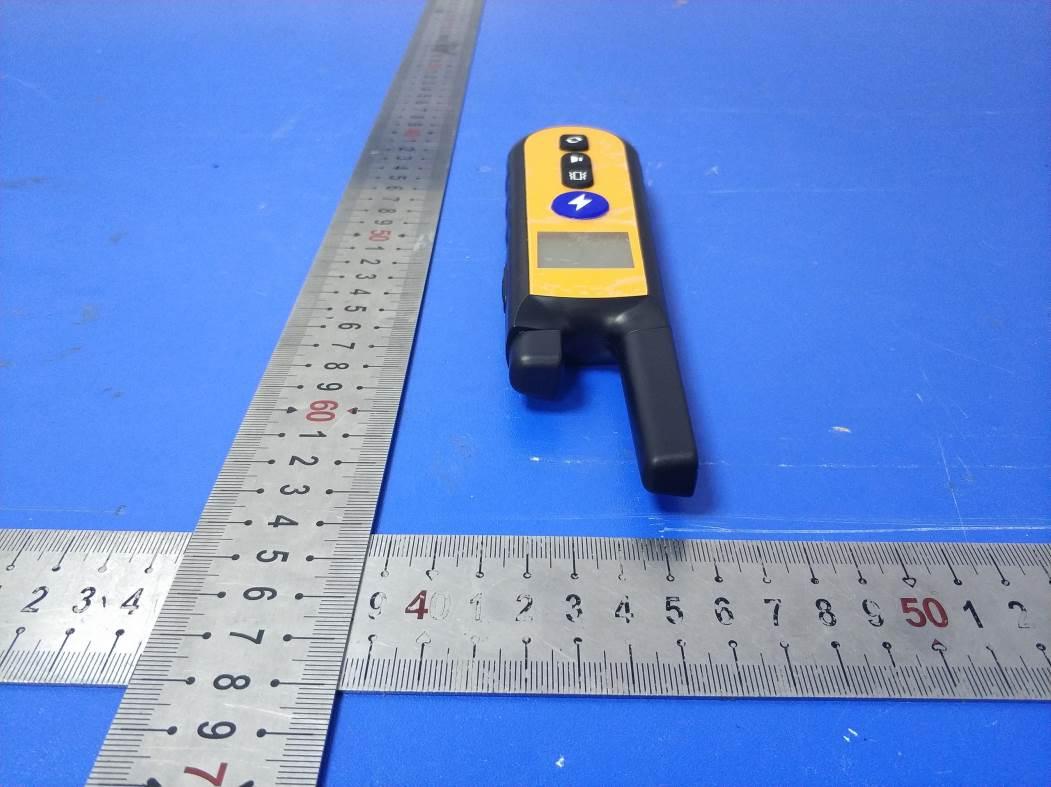

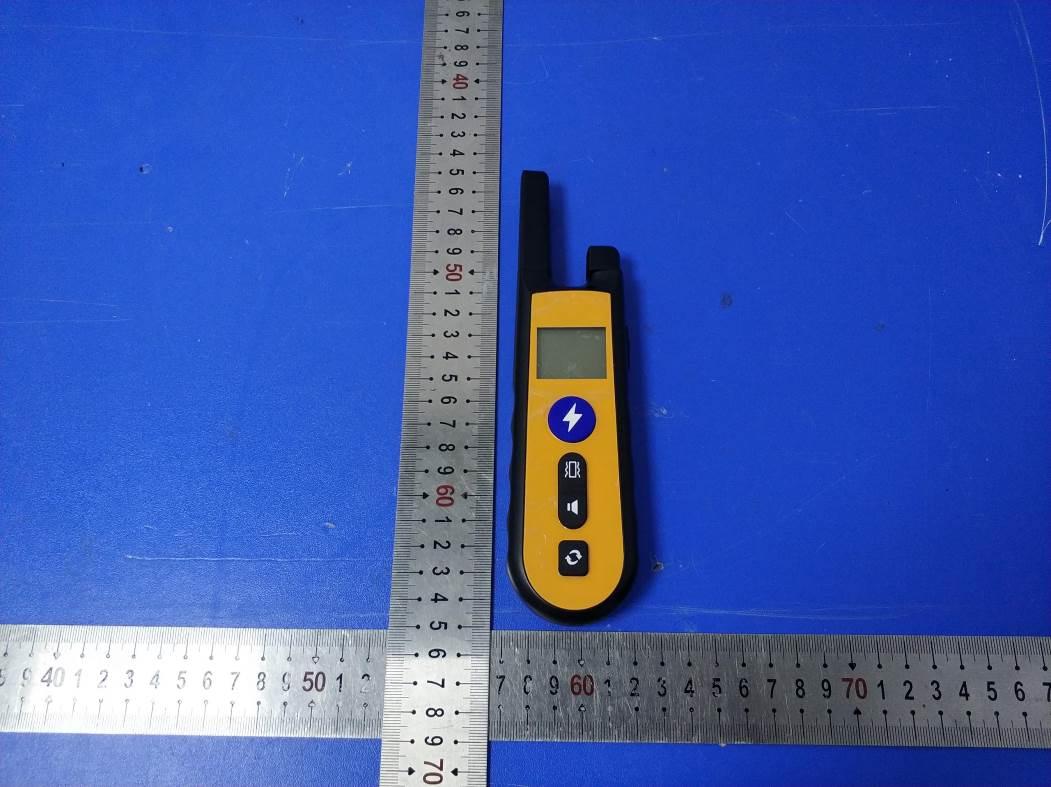

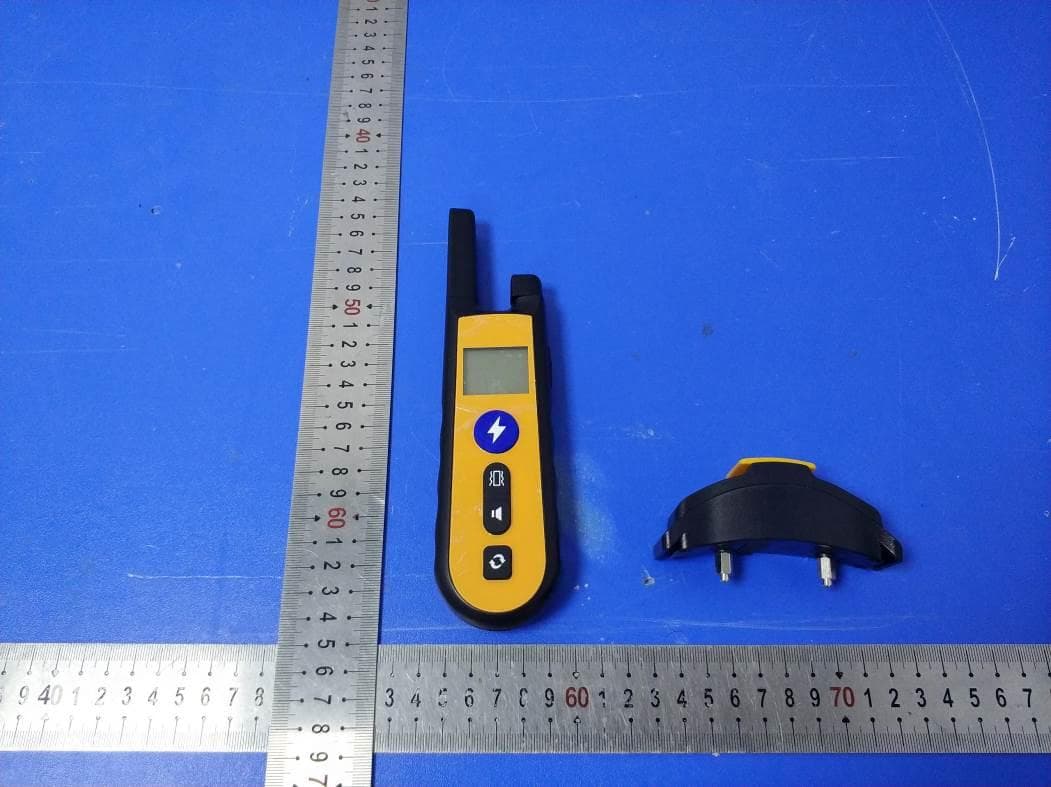

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYIW-M786 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 EXTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Transmitte r Receiver SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYIW-M786 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYIW-M786 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYIW-M786 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 4 Fig.7 Fig.8
