I DATE :2021.1.14 Equipment Autorisation Division Federal Communications Commission 7 435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AYK7XL-20 Product Name: Monitor Light Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission's rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality - for example ... ) •Schematics •Block diagram •Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits tb our competitors. <Signature> Name: JiaXian Mo JY<tX itvt MO Title: D&R Mangager Ap plicant Company: HE SHAN MINGKEDA INDUSTRIES CO., LTD

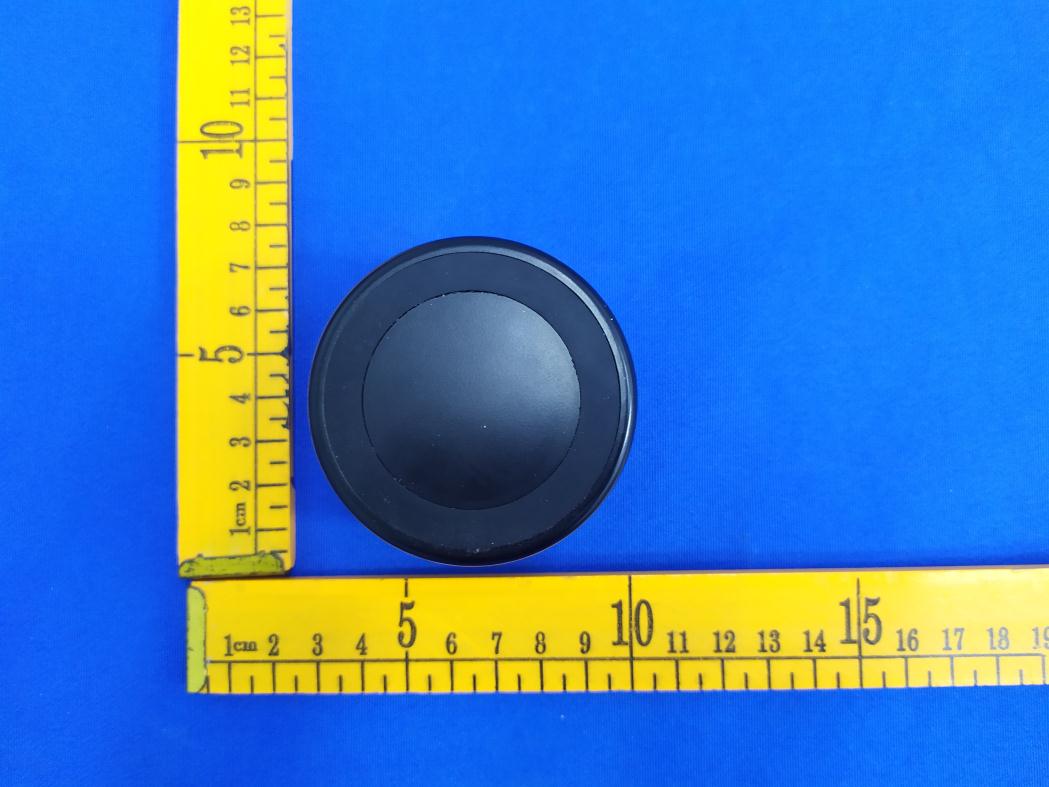

External photos Model No: XL-20
Label and label location Model No: XL-20
Internal Photos Model No: XL-20 Antenna
RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10- g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m)---3m Sopt = (EXd) 2 /30 x gt Ant gain= 0 dBi ; so Ant numeric gain= 1 Field strength = 87.47 dBμV/m @3m So Pt={ [10 (87.47 /20) /10 6 x3] 2 /30x1 }x1000 mW = 0.17 mW So (0.17 mW/5mm)x √2.402 GHz = 0.053 < 3 Then SAR evaluation is not required
TEST REPORT Report No. ...................................... : NTC-ER2012042 Applicant’s name ........................... : HE SHAN MINGKEDA INDUSTRIES CO., LTD Address .......................................... : Head Office Mingkeda #1825 Renmin e.Rd. Heshan City, Guangdong, China DONGGUAN NEW TESTING CENTRE CO., LTD ◎Address: 3F, No. 1 the 1st North Industry Road, Songshan Lake Science & Technology Park, Dongguan, Guangdong, China, 523808 Tel: +86-769-22212079 Web: http://www.ntc-cert.com E-mail: [email protected] Dongguan New Testing Centre Co., Ltd E-mail: [email protected] 3F, No. 1 the 1st North Industry Road, Songshan Lake Science & Technology Park, Dongguan, Guangdong, China, 523808 Page 1 of 35 Report No.: NTC-ER2012042 TABLE OF CONTENTS Test Report Declare ...................................................................................................................... 2 1. Summary of test results ........................................................................................................... 3 2. General test information .......................................................................................................... 3 2.1. Description of EUT ................................................................................................................... 3 2.2. Description of test modes ........................................................................................................ 5 2.3. Block diagram EUT configuration for test ............................................................................. 5 2.4. Test environment conditions ................................................................................................... 6 2.5. Measurement uncertainty ........................................................................................................ 6 3. Radiated emission test ............................................................................................................. 7 3.1. Test equipment ....................................................................................................................... 11 3.2. Block diagram of test setup ................................................................................................... 12 3.3. Limit .......................................................................................................................................... 14 3.4. Test Procedure ........................................................................................................................ 16 3.5. Test result ................................................................................................................................ 16 4. -20dB & 99% Bandwidth ........................................................................................................ 26 4.1. Test equipment ....................................................................................................................... 26 4.2. Block diagram of test setup ................................................................................................... 26 4.3. Limit .......................................................................................................................................... 26 4.4. Test Procedure ........................................................................................................................ 26 4.5. Test result ................................................................................................................................ 27 5. Antenna Requirements .......................................................................................................... 29 5.1. Limit .......................................................................................................................................... 29 5.2. Result........................................................................................................................................ 29 6. Test setup photograph ........................................................................................................... 30 6.1. Photos of radiated emission test .......................................................................................... 30 7. Photos of the EUT .................................................................................................................. 32 Dongguan New Testing Centre Co., Ltd E-mail: [email protected] 3F, No. 1 the 1st North Industry Road, Songshan Lake Science & Technology Park, Dongguan, Guangdong, China, 523808 Page 2 of 35 Report No.: NTC-ER2012042 TEST REPORT DECLARE Test Standard Used: FCC Rules and Regulations Part 15 Subpart C: 2019, ANSI C63.10:2013. We Declare: The equipment described above is tested by Dongguan New Testing Centre Co., Ltd and in the configuration tested the equipment complied with the standards specified above. The test results are contained in this test report and Dongguan New Testing Centre Co., Ltd is assumed of full responsibility for the accuracy and completeness of these tests. After test and evaluation, our opinion is that the equipment provided for test compliance with the requirement of the above standards. Report No.: NTC-ER2012042 Date of Test: Dec.14, 2020 to Jan.30, 2021 Date of Report: Jan.30, 2021 Prepared By: Approved By: ________________ _____________________ Jeffrey Zhang/Engineer Dave Gao/LAB Manager pNote: This report applies to above tested sample only. This report shall not be reproduced in parts without written approval of Dongguan New Testing Centre Co., Ltd FCC ID : 2AYK7XL-20 Applicant : HE SHAN MINGKEDA INDUSTRIES CO., LTD Address : Head Office Mingkeda #1825 Renmin e.Rd. Heshan City, Guangdong, China EUT Name : Monitor Light Model No : XL-20 Trade mark : / Manufacturer : HE SHAN MINGKEDA INDUSTRIES CO., LTD Address : Head Office Mingkeda #1825 Renmin e.Rd. Heshan City, Guangdong, China Test Laboratory : Dongguan New Testing Centre Co., …
Text truncated - open the document above for the full version.
Setup photos Model No: XL-20 Conducted emission test Radiated emission test 30MHz – 1GHz Above 1GHz
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 2.40 GHz - 2.48 GHz | - |
