2AYKD-TB8TABLET

快速使用指南 法律声明 本资料著作权属我司所有。未经著作权人书面许可，任何单位或 个人不得以任何方式摘录、复制或翻译。 对本手册中的印刷错误与最新资料不符之处我们会及时改进。这 些改进会编入新版手册中不再另行通知，我司保留最终解释权。 本手册中的图片仅为示意图，如图片与实物不一致，请以实物为 准，有关手持机结构、电池与充电器的其他相关参数详见实物。注 意：更换错误型号的电池可能会有爆炸危险，务必按照说明处置用 完的电池。建议定期对电池进行充电，如长时间不使用请取出电池 。另外，根据您所购买产品的型号及功能不同随机附带的配件会有 所不同，请以包装盒内实物为准。 外观正面外观背面安装 产品型号：.................................. 产品编号：.................................. 生产日期：.................................. 检 验 员：.................................. 检验标准：.................................. 出厂日期：.................................. 本产品经检验符合标准要求. 检验单位 合 格 证 配置清单 Q C P A S S 0 1 配置清单 产品名称 数量 主机 1 适配器 1 数据线 1 快速使用指南 1 包装盒 1 电池 1 触摸笔 1（选配） 电池盖安装 前置摄像头 开关机键 实体按键 Type-C充电/数据接口 扬声器 扩展槽 电池盖锁扣 后置摄像头 闪光灯 电池盖锁扣 请按图示方向插入Nano-SIM卡和MicroSD卡请按图示顺序正确安装电池盖 1 2 Quike User Guide Legal declaration Copyright of this material is owned by our company Without the written permission of the copyright owner, any company or individual can t excerpt, copy, or translate in any way. We will improve the printing errors and places which are not consistent with the new material in this manual. These improvements will be included into a new version of the manual, and no longer being notified. We reserve all the right or the final explanation . The pictures in this manual are only diagrams. If the pictures are inconsistent with the actual product, please refer to the actual product. For other details about the structure battery and charger, please refer to the actual product. Note: It may be dangerous when replacing the wrong type of battery, please use battery as instructed. It is recommended to charge the battery regularly. If not used for a long time please remove the battery. In addition, depending on the model and function of the product you purchased, the attached accessories will be different, please refer to the inside materials of the packing box. Front AppearanceInstallation Product Type：............................... Part Number：................................ Manufacture Date：........................ QC Standard：............................... Data of production：....................... User Name：.................................. Configuration list Q C P A S S 0 1 Configuration list Product nameQuautity Host1 Adapter 1 USB Cable1 Quick Guide1 Packing Box1 Battery Cover 1 Stylus Pen 1（Apolegamy） Battery cover Installation Front Camera Power on/off button Physical keys Type-C Charging/data interface Speaker Expansion slot Battery cover lock Rear camera Flashlight Please insert the Nano-SIM card and Micro-SD card in the direction of the diagram. Please install the battery cover in correct order 1 2 Back Appearance Battery cover lock Certificate Contact Tel：.................................. E-mail address：............................ 版本号 1.0 发布日期 2020.12 Version Number 1.0 Release Time 2020.12 合格证书 クイックマニュアル 法律上の声明 この資料の著作権は我が社の所有です。著作権者の書面許可な しに、いかなる単位または個人もいかなる方式で抜粋、複製また は翻訳してはならない。このマニュアルの印刷ミスと最新の資料 が一致しないところについて、直ちに改善します。これらの改良 は新版のマニュアルに組み入れられます。別途に通知しなくて、 弊社は最終的な解釈権を保留します。本マニュアルの中の写真は ただ模式図で、写真と実物が一致しない場合、実物を基準として ください。ハンドセットの構造、電池と充電器に関するその他の 関連パラメータは実物をご参照ください。注意：間違ったタイプ の電池を交換すると爆発する恐れがあります。必ず説明通りに使 い切った電池を処分してください。定期的に電池を充電すること をおすすめします。長期間使わないなら、電池を取り出してくだ さい。また、お買い上げの製品の型番や機能によっては、ランダ ムに付属する部品が異なりますので、包装ケースの実物を基準に してください。 外観正面外観の背面インストール 製品の型番：.............................. 商品コード：.............................. 生産日：.................................... 検査員：.................................... 検査基準：................................. 出荷期日：................................. 本製品は検査を経て標準要求に適合している 検査機関 合 格 証 設定リスト Q C P A S S 0 1 設定リスト 商品コード 数 ホスト 1 アダプター 1 データ線 1 使用マニュアル 1 包装ケース 1 バッテリー 1 タッチペン 1（選択） バッテリーカバーの取り付け フロントカメラ スイッチボタン 本体キー Type-C充電/データインターフェース スピーカー 拡張スロット バッテリーカバーロック 背面カメラ 閃光灯 バッテリーカバーロック Nano-SIMカードとMicroSDカードを 図示の方向に挿入してください バッテリーカバーは図示の順序で正しく 取り付けてください 1 2 バージョン番号 1.0 公開日 2020.12 合格証明書 FCC Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. Specific Absorption Rate (SAR) information: This device meets the government's requirements for exposure to radio waves. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons regardless of age or health. FCC RF Exposure Information and Statement the SAR limit of USA (FCC) is 1.6 W/kg averaged …

Text truncated - open the document above for the full version.

Shanghai Armour Technology Co., Ltd. Agent Authorization Company: Shanghai Armour Technology Co., Ltd. Address: Room 411, building 10, 471 Guiping Road, Xuhui District, Shanghai, China Product Name: TABLET Trade Mark: armourphone Model Number: TB8 FCC ID: 2AYKD-TB8 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-03-03 Name: Wangqing Yu Title: R&D Manager Company: Shanghai Armour Technology Co., Ltd.

Shanghai Armour Technology Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021-03-03 Subject; Request for Confidentiality FCC ID: 2AYKD-TB8 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description Parts List Tune-up Procedure Declaration of Software Security Requirements For U-NII Devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Wangqing Yu Title: R&D Manager

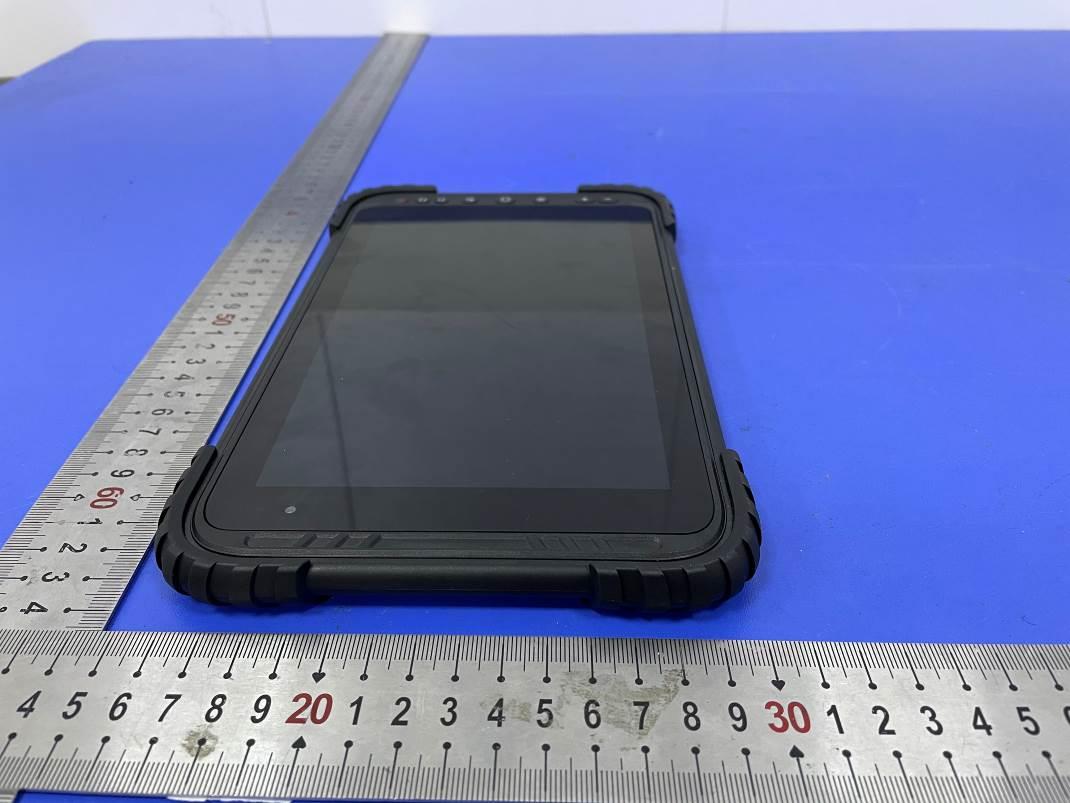

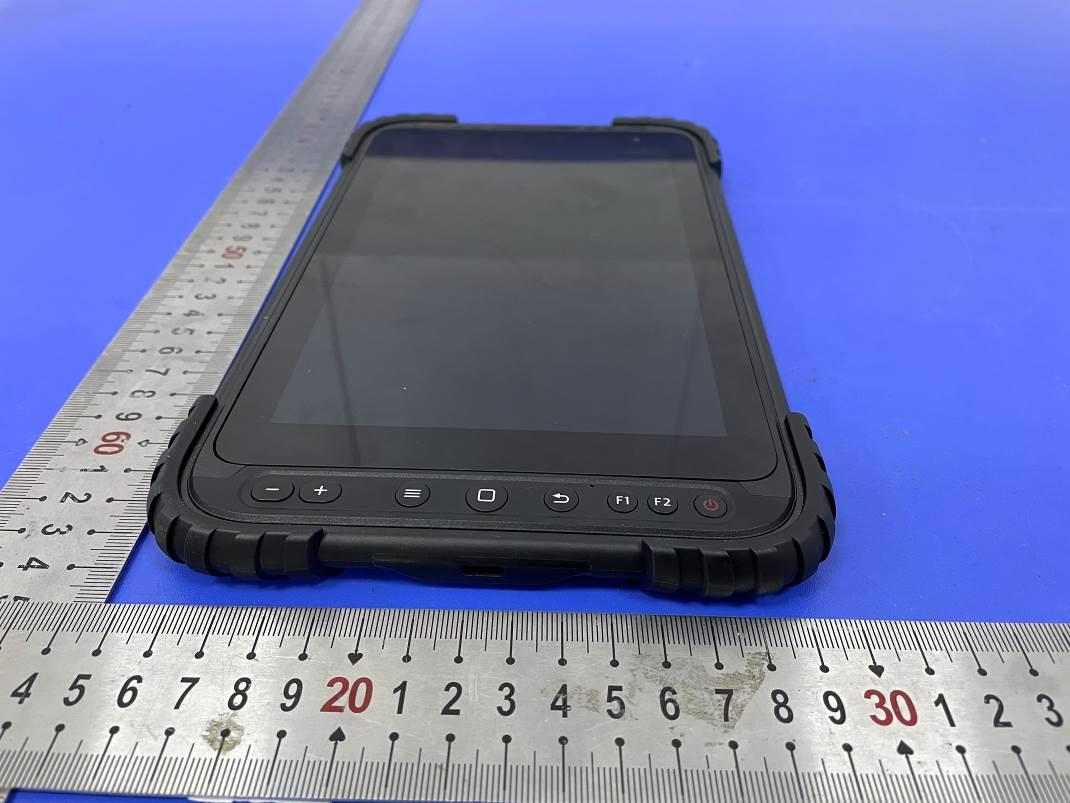

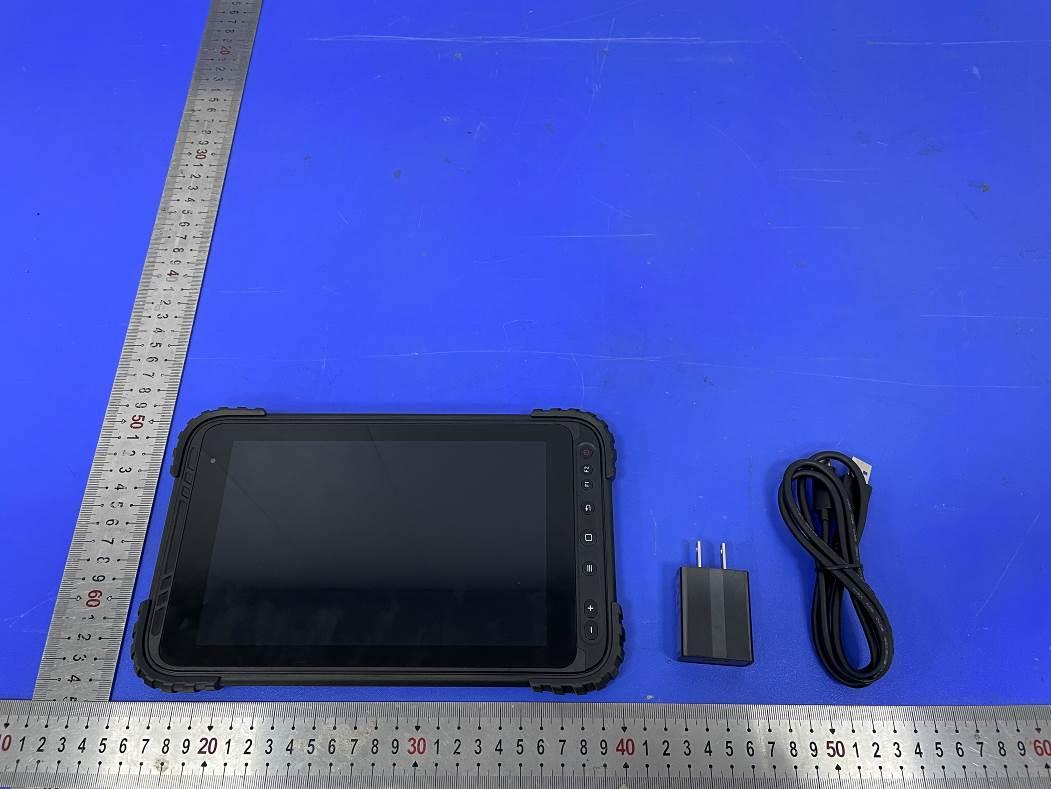

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYKD-TB8 EXTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYKD-TB8 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYKD-TB8 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYKD-TB8 Fig. 7 Fig. 8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYKD-TB8 Fig. 9

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYKD-TB8 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L: 4cm*W: 6cm Label Location TABLET Model No: TB8 FCC ID: 2AYKD-TB8 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYKD-TB8 INTERIOR PHOTOGRAPHS Fig.1 Fig.2 BT/WIFI ANT LTE Div ANT GPS RX ANT NFC ANT GSM/WCDMA/LTE Main ANT SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYKD-TB8 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYKD-TB8 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYKD-TB8 Fig.7 Fig.8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYKD-TB8 Fig.9 Fig.10 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYKD-TB8 Fig.11 Fig.12 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYKD-TB8 Fig.13 Fig.14 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYKD-TB8 Fig.15 Fig.16

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laborator y Ltd. Page 1 of 163 SA R TEST REPORT For Shanghai Armour Technology Co., Ltd. TABLET Test Model: TB8 Prepared for : Shanghai Armour Technology Co., Ltd. Address : Room 411, building 10, 471 Guiping Road, Xuhui District, Shanghai, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (86)755-82591330 Fax : (86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : December 29, 2020 Number of tested samples : 1 Serial number : Prototype Date of Test : December 29, 2020~January 21, 2021 Date of Report : February 19, 2021 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laborator y Ltd. Page 2 of 163 SAR TEST REPORT Report Reference No. ............... : LCS201224030AEB Date Of Issue .............................. : February 19, 2021 Testing Laboratory Name ........ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ....................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Procedure ....... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ...................... : Shanghai Armour Technology Co., Ltd. Address ....................................... : Room 411, building 10, 471 Guiping Road, Xuhui District, Shanghai, China Test Specification: Standard ...................................... : IEEE Std C95.1, 2005& IEEE Std 1528™-2013&FCC Part 2.1093 Test Report Form No. ................. : LCSEMC-1.0 TRF Originator ........................... : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ................................. : Dated 2014-09 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes noresponsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. .............. : TABLET Trade Mark ................................. : armourphone Model/Type Reference ............... : TB8 Operation Frequency .................. : GSM 850/PCS1900, WCDMA Band II/V; LTE Band2/4/5/17/41; WLAN2.4G, WLAN5.2G, SRD5.8G; Bluetooth4.0. Modulation Type ........................ : Refer to page 7 Ratings ........................................ : DC 3.8V by Rechargeable Li-ion Battery, 9000mAh For Adapter Input: AC 100-240V, 50/60Hz, 0.35A Max Adapter Output: DC 5.0V, 2A Result ........................................ : Positive Compiled by: Supervised by: Approved by: Ping Li/ File administrator Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laborator y Ltd. Page 3 of 163 SAR -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS201224030AEB February 19, 2021 Date of issue Test Model........................... : TB8 EUT....................................... : TABLET Applicant.............................. : Shanghai Armour Technology Co., Ltd. Address.................................. : Room 411, building 10, 471 Guiping Road, Xuhui District, Shanghai, China Telephone.............................. : / Fax......................................... : / Manufacturer....................... : Shanghai Armour Technology Co., Ltd. Address.................................. : Room 411, building 10, 471 Guiping Road, Xuhui District, Shanghai, China Telephone.............................. : / Fax......................................... : / Factory.................................. : / Address.................................. : / Telephone.............................. : / Fax......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laborator y Ltd. Page 4 of 163 Revison History Revision Issue Date Revisions Revised By 000 February 19, 2021 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laborator y Ltd. Page 5 of 163 TABLE OF CONTENTS 1. TEST STANDARDS AND TEST DESCRIPTION .....................................................................................................................6 1.1. TEST STANDARDS ................................................................................................................................................................... 6 1.2. TEST DESCRIPTION .................................................................................................................................................................6 1.3. GENERAL REMARKS .......…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laborator y Ltd. Page 111 of 163 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laborator y Ltd. Page 112 of 163 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laborator y Ltd. Page 113 of 163 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laborator y Ltd. Page 114 of 163 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laborator y Ltd. Page 115 of 163 5.5 SID1900 Dipole Calibration Certificate SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laborator y Ltd. Page 116 of 163 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laborator y Ltd. Page 117 of 163 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laborator y Ltd. Page 118 of 163 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laborator y Ltd. Page 119 of 163 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laborator y Ltd. Page 120 of 163 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laborator y Ltd. Page 121 of 163 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laborator y Ltd. Page 122 of 163 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laborator y Ltd. Page 123 of 163 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laborator y Ltd. Page 124 of 163 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laborator y Ltd. Page 125 of 163 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laborator y Ltd. Page 126 of 163 5.6 SID2450 Dipole Calibration Ceriticate SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laborator y Ltd. Page 127 of 163 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laborator y Ltd. Page 128 of 163 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laborator y Ltd. Page 129 of 163 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laborator y Ltd. Page 130 of 163 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laborator y Ltd. Page 131 of 163 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laborator y Ltd. Page 132 of 163 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laborator y Ltd. Page 133 of 163 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laborator y Ltd. Page 134 of 163 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEB This report sh…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEA Page 1 of 47 Appendix A RF Test Data for BT V4.0(BDR/EDR) (Conducted Measurement) Product Name: TABLET Trade Mark: armourphone Test Model: TB8 Environmental Conditions Temperature: 22.9 C Relative Humidity: 53.3% ATM Pressure: 100.0 kPa Test Engineer: Diamond Lu Supervised by: Li Huan A.1 Maxmum Conducted Peak Output Power Mode Channel. Maximum Peak Output Power [dBm] Limit [dBm] Verdict GFSK LCH 2.708 30 PASS MCH 1.309 30 PASS HCH 2.208 30 PASS π/4DQPSK LCH 2.083 21 PASS MCH 0.519 21 PASS HCH 2.092 21 PASS 8DPSK LCH 2.139 21 PASS MCH 0.605 21 PASS HCH 2.175 21 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEA Page 2 of 47 Test Graphs GFSK/LCH GFSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEA Page 3 of 47 GFSK/HCH π/4DQPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEA Page 4 of 47 π/4DQPSK/MCH π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEA Page 5 of 47 8DPSK/LCH 8DPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEA Page 6 of 47 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEA Page 7 of 47 A.2 20dB Bandwidth Mode Channel. 20dB Bandwidth [MHz] Limit [MHz] Verdict GFSK LCH 0.8418 Not Specified PASS MCH 0.8483 Not Specified PASS HCH 0.8536 Not Specified PASS π/4DQPSK LCH 1.274 Not Specified PASS MCH 1.267 Not Specified PASS HCH 1.268 Not Specified PASS 8DPSK LCH 1.266 Not Specified PASS MCH 1.273 Not Specified PASS HCH 1.281 Not Specified PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEA Page 8 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEA Page 9 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEA Page 10 of 47 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEA Page 11 of 47 8DPSK/MCH 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEA Page 12 of 47 A.3 Carrier Frequency Separation Mode Channel. Carrier Frequency Separation [MHz] Limit [MHz] Verdict GFSK LCH 1.006 0.8418 PASS MCH 0.998 0.8483 PASS HCH 0.974 0.8536 PASS π/4DQPSK LCH 1.246 0.849 PASS MCH 1.204 0.849 PASS HCH 0.984 0.849 PASS 8DPSK LCH 1.130 0.854 PASS MCH 0.888 0.854 PASS HCH 1.330 0.854 PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEA Page 13 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEA Page 14 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEA Page 15 of 47 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEA Page 16 of 47 8DPSK/MCH 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEA Page 17 of 47 A.4 Hopping Channel Number Mode Channel. Number of Hopping Channel [N] Limit [N] Verdict GFSK Hop 79 >=15 PASS π/4DQPSK Hop 79 >=15 PASS 8DPSK Hop 79 >=15 PASS Test Graphs GFSK/Hop π/4DQPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEA Page 18 of 47 8DPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEA Page 19 of 47 A.5 Dwell Time Mode Packet Channel Burst Width [ms/hop/ch] Total Hops[hop*ch] Dwell Time[s] Limit [s] Verdict GFSK DH5 LCH 2.88 106.7 0.307 0.4 PASS DH5 MCH 2.88 106.7 0.307 0.4 PASS DH5 HCH 2.88 106.7 0.307 0.4 PASS π/4DQPSK 2DH5 LCH 2.88 106.7 0.307 0.4 PASS 2DH5 MCH 2.88 106.7 0.307 0.4 PASS 2DH5 HCH 2.88 106.7 0.307 0.4 PASS 8DPSK 3DH5 LCH 2.89 106.7 0.308 0.4 PASS 3DH5 MCH 2.89 106.7 0.308 0.4 PASS 3DH5 HCH 2.89 106.7 0.308 0.4 PASS Test Graphs GFSK_DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEA Page 20 of 47 GFSK_DH5/MCH GFSK_DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEA Page 21 of 47 π/4DQPSK _2DH5/LCH π/4DQPSK _2DH5/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEA Page 22 of 47 π/4DQPSK _2DH5/HCH 8DPSK _3DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEA Page 23 of 47 8DPSK _3DH5/MCH 8DPSK _3DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEA Page 24 of 47 A.6 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict GFSK LCH 2.24 -38.102 -17.760 PASS MCH 0.767 -37.227 -19.233 PASS HCH 1.679 -37.050 -18.321 PASS π/4DQPSK LCH 1.754 -37.802 -18.246 PASS MCH 0.104 -37.489 -19.896 PASS HCH 1.79 -37.772 -18.210 PASS 8DPSK LCH 1.236 -37.760 -18.764 PASS MCH 0.082 -38.569 -19.918 PASS HCH 1.615 -37.591 -18.385 PASS GFSK_LCH_Graphs Pref SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEA Page 25 of 47 Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEA Page 26 of 47 GFSK_MCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEA Page 27 of 47 GFSK_HCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEA Page 28 of 47 π/4DQPSK_LCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEA Page 29 of 47 π/4DQPSK_MCH_Graphs …

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 39 FCC TEST REPORT For Shanghai Armour Technology Co., Ltd. TABLET Test Model: TB8 Prepared for : Shanghai Armour Technology Co., Ltd. Address : Room 411, building 10, 471 Guiping Road, Xuhui District, Shanghai, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : December 29, 2020 Number of tested samples : 1 Serial number : Prototype Date of Test : December 29, 2020 ~ January 27, 2021 Date of Report : January 28, 2021 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYKD-TB8 Report No.: LCS201224030AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 39 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................. : LCS201224030AEA Date of Issue .................................. : January 28, 2021 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address .......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Proc…

Text truncated - open the document above for the full version.
