2AYKS-ZDUWAUBKWireless charger (transmitting)

Usermanual ThankyouforpurchasingandusingZCOVER®ZDUWAUBKproducts.Inordertoreceivethebest wirelesschargingeffectforyourmobilephoneorelectronicproducts,pleaserefertothe operationmanualofyourmobilephoneorelectronicproductswhilereadingthisusers'manual, pleasemakesureallreceivingdevicemusthaveQicompatiblewirelesschargingfunction. WirelessChargerspecification PIDZDUAWUBK Input5V/1.5A Output5W Powerconversionrate70%±10% ZDUWAUBKUsers'Manual： ZCOVER®ZDUWAUBKsupportsfastwirelesschargingfunction,whichcomplaintswithQi® WirelessChargingStandard.Shortdistancewirelesspowertransmissionisrealizedbymagnetic induction,whichmeetsQiStandard.AllelectronicdeviceswithQicompatiblewirelesscharging functioncanbechargedwithZDUWAUBKwirelesscharger. ZDUWAUBKconnectswithQC2.0StandardACadapteritsprovides5Wpoweroutput,with overchargeprotection,over-voltageprotection(9V)andover-currentprotection(2A); After5VDCPowerconnectedtheLEDindicatorturnonBLUElight,whenthereceivingdevice putoncharging,theLEDlightturnRED,afterthedevicefullychargedtheLEDlightoff. Method1SingleCharger: 1.ConnecttheZDUWAUBKtoZCOVER5VDCUSBpoweradapter; 2.Connectthematchingpoweradaptertothepoweroutletsupply,ZDUWAUBKLEDlightBLUE on; 3.PlaceaQicompatibleelectronicdeviceonthechargingboard,adjustdeviceposition,tillthe LEDlightfromblinkBLUEturntoRED,itstatswirelesspowertransmission. Method2GangCharger: 1.PlaceZDUWAUBKonZCOVERDock-in-Dock®PowerBase(upto5Bay)andfixitwithscrews; 2.Connectthematchinggangchargertothepowersupply(seetheinstructionsforZCOVER Dock-in-DockPowerBase),ZDUWAUBKLEDlightBLUEon; 3.PlaceaQicompatibleelectronicdeviceonthechargingboard,adjustdeviceposition,tillthe LEDlightfromblinkBLUEturntoRED,itstatswirelesspowertransmission Note:allreceivingdevicemusthaveQicompatiblewirelesschargingfunction This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC Radiation Exposure Statement This device complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This device must operate with a minimum distance of 15 cm between the radiator and user body. FCC statement

C5266091_X8_Ed.1 1/1 LetterofAuthorization Company:ZCOVERINC Address:100-13551VERDUNPLACERICHMOND,CANADA ProductName:Wirelesscharger(transmitting) ModelNumber:ZDUWAUBK FCCIdentifier:2AYKS-ZDUWAUBK WeauthorizeLGAITechnologicalCenterS.A.,RondadelaFontdelCarme,s/n, 08193Bellaterra,Spain,toactonourbehalfonallmattersconcerningthe abovenamedequipment. AnyindividualwithinLGAITechnologicalCenterS.A.isauthorizedtoactonour behalfandtakeactionontheapplication. WedeclarethatauthorizeLGAITechnologicalCenterS.A.,RondadelaFontdel Carme,s/n,08193Bellaterra,Spain,isallowedtoforwardallinformation relatedtotheapprovalprojecttotheFederalCommunicationCommissionand todiscussanyissuesconcerningtheapprovalapplication.Anyandallacts carriedoutbyLGAITechnologicalCenterS.A.onourbehalfshallhavethe sameeffectasactsofourown. Name:DEREKTAMUDate:Jan.07,2021 Title:CTO Signatureofapplicant:

C5266091_X10_Ed.1 1/1 ZCOVERINC OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 Date:Jan.07,2021 Subject:RequestforConfidentiality FCCID:2AYKS-ZDUWAUBK ToWhomItMayConcern, PursuanttotheprovisionsofSections0.457and0.459ofCommission'srules (47CFR0.457,0.459),wearerequestingtheCommissiontowithholdthefollowing attachment(s)asconfidentialdocumentfrompublicdisclosure. ExhibitsLong-Term Confidentiality Short-Term Confidentiality IDLabel/LocationNoNo AttestationStatementNoNo ExternalPhotosNo BlockDiagram Schematics TestReportNoNo TestSetupPhotosNo User’sManual InternalPhotos PartsList/TuneUp RFExposureInfo OperationalDescription CoverLetter(s)NoNo SDRSoftware/SecurityInfoNo Abovementioneddocumentcontainsdetailedsystemandequipmentdescriptionare consideredasproprietaryinformationinoperationoftheequipment.Thepublic disclosureofabovedocumentsmightbeharmfultoourcompanyandwouldgive competitoranunfairadvantageinthemarket. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondentduringcertificationreviewprocesscannotbegrantedasconfidential documentsandthoseinformationwillbeavailableforpublicreviewoncethegrantof equipmentauthorizationisissued. Sincerely, Signature: Name:DEREKTAMU Title: CTO

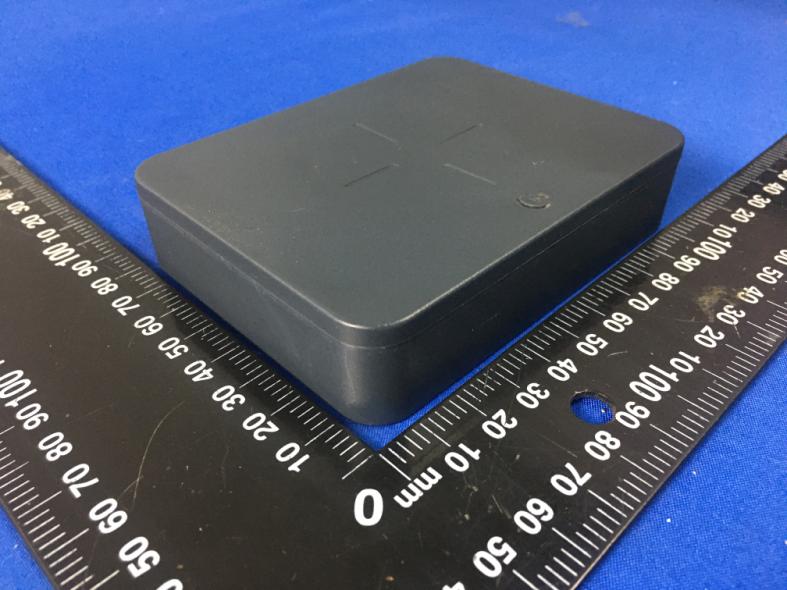

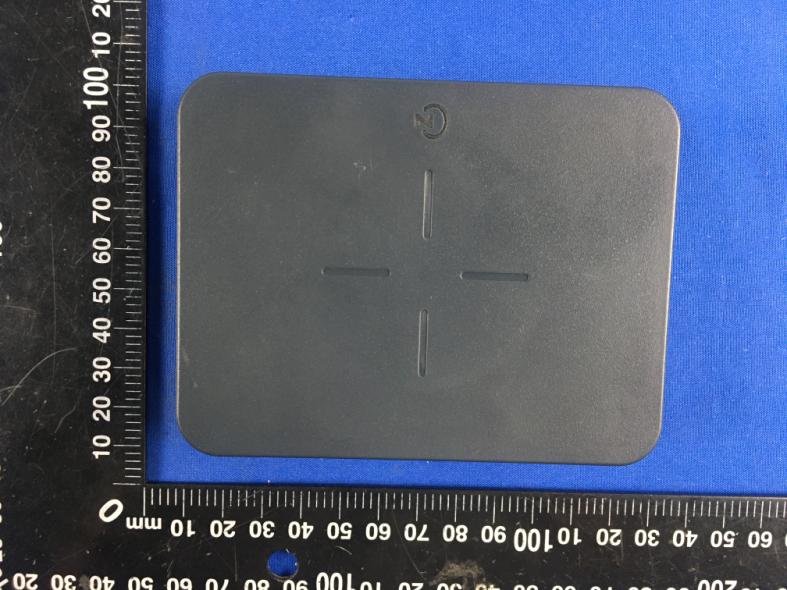

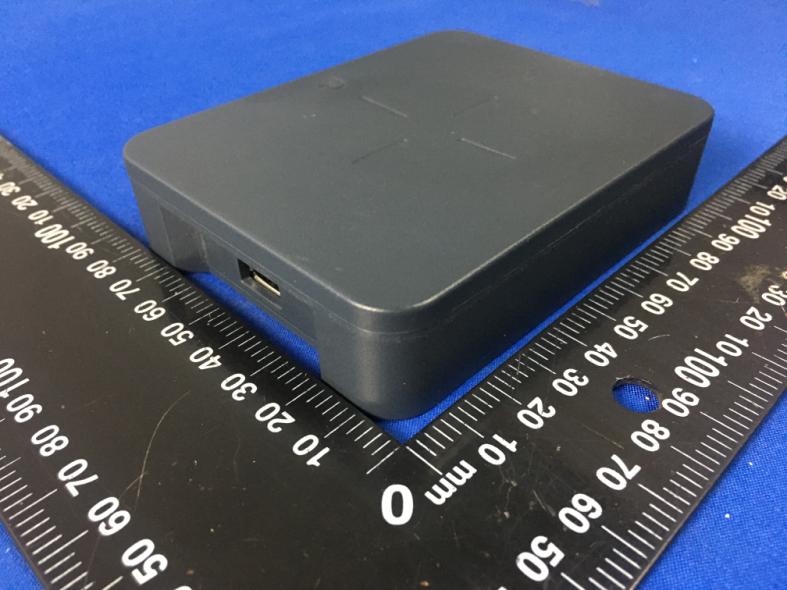

External Photos FCC ID:2AYKS-ZDUWAUBK
