2AYKT-C2100Magnetic wireless charging

2 USER MANUAL Mosonth Magenetic Pad Wireless 3 EN You cannot charge your device wirelessly when using an ultra-thick (> 4 mm) protective phone case or a case with a pop socket. This wireless charger only supports the protective cases that match the magnetic structure of the iPhone. Do not place any foreign objects between your device and the wireless charger’s surface, including metal pads on a car mount, magnetic cards, door keys, coins, metal, or NFC cards, as they could potentially demagnetize the wireless charger, affect the charging speed, or cause overheating. Wireless chargers make charging more convenient than wired chargers, but confined by current wireless technology, their charging speed is slower than that of wired chargers. High temperatures will reduce charging speed and restrict power. It is recommended that you charge your device in environments with temperatures below 25°C / 77°F. Avoid dropping. Do not disassemble. Do not expose to liquids. For the safest and fastest charge, use original or certified cables. Please refer to the electrical and safety information before installing or operating the product. Important Safety Instructions 4 This product is suitable for moderate climates only. The maximum ambient temperature during use of this product must not exceed 40°C. Open flame sources, such as candles, must not be placed on this product. Only use a dry cloth or brush to clean this product. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the partyresponsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in ccordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the FCC Statement Warning: Note: 5 equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: (1) Reorient or relocate the receiving antenna. (2) Increase the separation between the equipment and receiver. (3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. (4) Consult the dealer or an experienced radio / TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 20cm between the radiator & your body. This device complies with RSS-216 of Industry Canada. Operation is subject to the condition that this device does not cause harmful interference. RSS-Gen Issue 5 March 2019 This device contains licence-exempt transmitter(s)/receiver(s) that complywith Innovation, Science and Economic Product Name: Mosonth Magnetic Pad Model: C2100 The following importer is the responsible party (for FCC matters only).Company Name: SHENZHEN YIZE ZHILIAN TECHNOLOGY CO., LTD Address: 200102, 03, BUILDING, GALAXY WORLDF,, NO. 1 YABAO ROAD, NANKENG COMMUNITY, BANTIAN STREET,, LONGGANG DISTRICT SHENZHEN CHINA IC Statement Radiation Exposure Statement 6 Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. RF exposure statement: The equipment complies with IC Radiation exposure limit set forth for uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. This symbol indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Specifications Input Indoor use only. Output 7 DE Sie können Ihr Gerät nicht drahtlos aufladen, wenn Sie eine ultradicke (> 4 mm) Schutzhülle oder eine Schutzhülle mit Sockel/Griff verwenden. Dieses drahtlose Ladegerät unterstützt nur die Schutzhüllen, die der magnetischen Struktur des iPhone entsprechen. Legen Sie keine Fremdkörper zwischen Ihr Gerät und die Oberfläche des drahtlosen Ladegeräts, einschließlich Metallpads einer Kfz-Halterung, Magnetkarten, Türschlüssel, Münzen, Metall- oder NFC-Karten, da diese möglicherweise das Aufladen des drahtlosen Geräts verhindern oder eine Überhitzung verursachen könnten. Kabellose Ladegeräte machen das Aufladen praktischer als Ladegeräte mit Kabel, haben aber eine langsamere Ladegeschwindigkeit als Ladegeräte mit Kabel, da sie durch die aktuelle kabellose Technologie eingeschränkt sind. Hohe Temperaturen verringern die Ladegeschwindigkeit und schränken die Leistung ein. Es wird empfohlen, dass Sie Ihr Gerät in Umgebungen mit Temperaturen unter 25°C / 77°F aufladen. Bitte lesen Sie die elektrischen und Sicherheitsinforma- tionen, bevor Sie das Produkt installieren oder betreiben. Wichtige Sicherheitsinformationen 8 Nicht fallen lassen . Nicht zerlegen. Keinen Flüssigkeiten aussetzen. Für das sichere und schnellste Aufladen verwenden Sie Originalkabel oder zertifizierte Kab…

Text truncated - open the document above for the full version.

FCCID:2AYKT-C2100

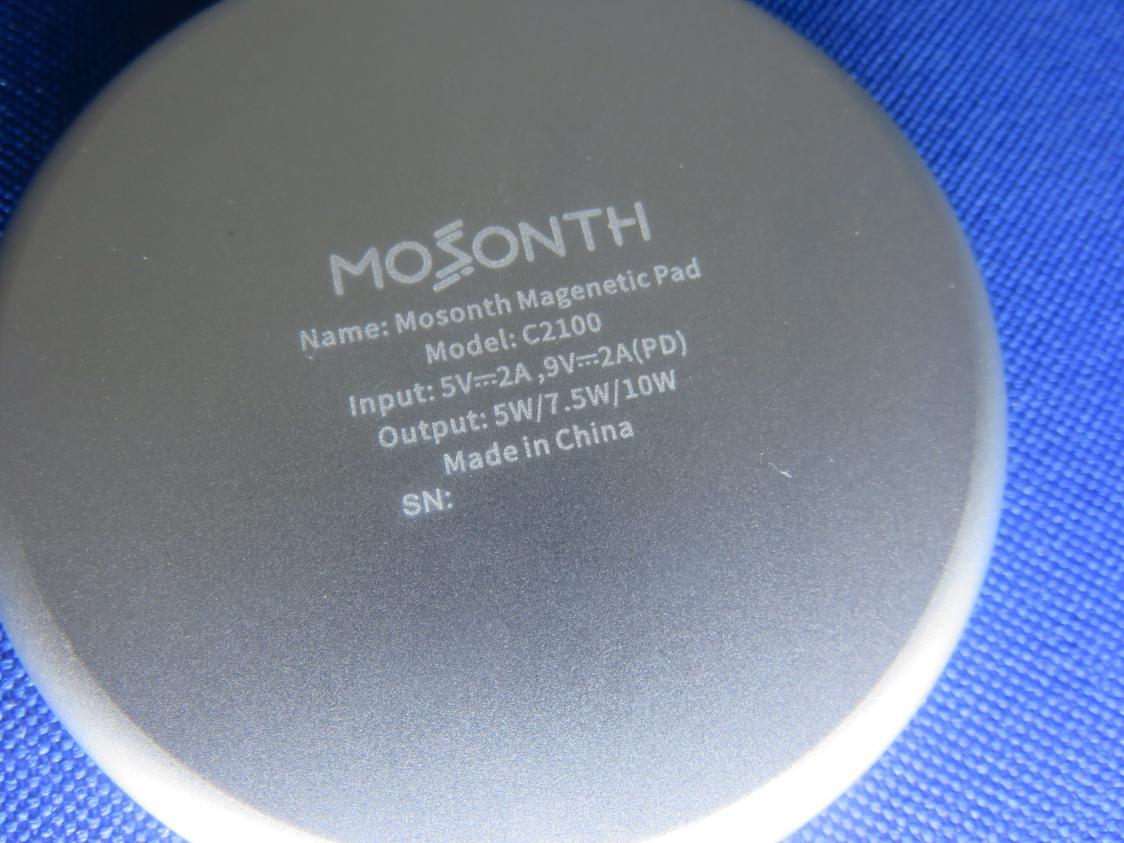

LabelLocationOnEUT Label ProductName:Magneticwirelesscharging ModelNo.:C2100 FCCID:2AYKT-C2100 ThisdevicecomplieswithPart15oftheFCCRules. Operationissubjecttothefollowingtwoconditions: (1)Thisdevicemaynotcauseharmfulinterference, and (2)Thisdevicemustacceptanyinterferencereceived, includinginterferencethatmaycauseundesired operation.

FCCID:2AYKT-C2100 ANT

version01 mosonth DeclarationconcerningAntennaSpecification Itisherebydeclaredthattheproduct ModelNo.: C2100 FCCID:2AYKT-C2100 fulfillstherequirementinFCCtestrelatingtotheantennatype. ThedevicespecifiedaboveconfirmstotheFCCrecommendationsforinternalantennatype(s) describedbelow: ModelNo.ofantenna:N/A Typeofantenna:InductiveloopcoilAntenna Gainoftheantenna:0dBi Frequencyrange:111-205KHz Themountingoftheantennaisfixedtotheradiomoduleandnootherantennashouldbeused. Companyname:mosonth Address: Room2301-03,BuildingBXingheWorld,YabaoRD1#,BantianDistrict, Shenzhen,Guangdong,China City: Shenzhen,Guangdong ZIP/Postalcode:/ Country:China Place: Shenzhen,GuangdongDate:1/11/2021 Signature:

ReportNo.:18220WC00192702FCCID:2AYKT-C2100Page1of12 Code:AB-RF-05-a FCCTESTREPORT ClientName:mosonth Address: Room2301-03,BuildingBXingheWorld,YabaoRD1#, BantianDistrict,Shenzhen,Guangdong,China ProductName:Magneticwirelesscharging Date:Jan.11,2021 ShenzhenAnbotekComplianceLaboratoryLimited ReportNo.:18220WC00192702FCCID:2AYKT-C2100Page2of12 Code:AB-RF-05-a Contents 1.GeneralInformation ............................................................................................................................................... 4 1.1.ClientInformation ....................................................................................................................................... 4 1.2.DescriptionofDevice(EUT) ..................................................................................................................... 4 1.3.AuxiliaryEquipmentUsedDuringTest ................................................................................................... 5 1.4.TestEquipmentList .................................................................................................................................... 5 1.5.MeasurementUncertainty ......................................................................................................................... 5 1.6.DescriptionofTestFacility ........................................................................................................................ 6 2.MeasurementandResult ..................................................................................................................................... 7 2.1.Requirements .............................................................................................................................................. 7 2.2.TestSetup .................................................................................................................................................... 8 2.3.TestProcedure ............................................................................................................................................ 8 2.4.TestResult ................................................................................................................................................... 8 2.4.1.EquipmentApprovalConsiderationsitem5.bofKDB680106D01v03. ...................................... 8 2.4.2.EnvironmentalevaluationandexposurelimitaccordingtoFCCCFR47part1,1.1307(b), 1.1310 ................................................................................................................................................................ 10 APPENDIXI--TESTSETUPPHOTOGRAPH ................................................................................................... 12 ReportNo.:18220WC00192702FCCID:2AYKT-C2100Page3of12 Code:AB-RF-05-a TESTREPORT Applicant:mosonth Manufacturer:mosonth ProductName:Magneticwirelesscharging ModelNo.:C2100 TradeMark: MOSONTH Rating(s): Input:DC5V/2A,DC9V/2A Wirelessoutput:5W/7.5W/10W TestStandard(s): FCCPart1.1310,1.1307(b) TestMethod(s): KDB680106D01RFExposureWirelessChargingAppsv03 ThedevicedescribedaboveistestedbyShenzhenAnbotekComplianceLaboratoryLimitedto determinethemaximumemissionlevelsemanatingfromthedeviceandtheseverelevelsofthedevice canendureanditsperformancecriterion.Themeasurementresultsarecontainedinthistestreportand ShenzhenAnbotekComplianceLaboratoryLimitedisassumedfullofresponsibilityfortheaccuracy andcompletenessofthesemeasurements.Also,thisreportshowsthattheEUT(EquipmentUnder Test)istechnicallycompliantwiththeFCCPart1.1307&KDB680106D01requirements. Thisreportappliestoabovetestedsampleonlyandshallnotbereproducedinpartwithoutwritten approvalofShenzhenAnbotekComplianceLaboratoryLimited. DateofReceipt Dec.17,2020 DateofTest Dec.17,2020~Jan.8,2021 PreparedBy (Engineer/YiliaZhong) Reviewer (Supervisor/BiboZhang) Approved&AuthorizedSigner (Manager/KingkongJin) ReportNo.:18220WC00192702FCCID:2AYKT-C2100Page4of12 Code:AB-RF-05-a 1.GeneralInformation 1.1.ClientInformation Applicant:mosonth Address: Room2301-03,BuildingBXingheWorld,YabaoRD1#,BantianDistrict, Shenzhen,Guangdong,China Manufacturer:mosonth Address : Room2301-03,BuildingBXingheWorld,YabaoRD1#,BantianDistrict, Shenzhen,Guangdong,China Factory:mosonth Address: Room2301-03,BuildingBXingheWorld,YabaoRD1#,BantianDistrict, Shenzhen,Guangdong,China 1.2.DescriptionofDevice(EUT) ProductName:Magneticwirelesscharging ModelNo.:C2100 TradeMark:MOSONTH TestPowerSupply: AC120V,60Hzforadapter TestSampleNo.: 1-2-1(NormalSample),1-2-2(EngineeringSample) Product Description : OperationFrequency:111-205KHz ModulationType:FSK AntennaType:InductiveloopcoilAntenna AntennaGain(Peak):0dBi Remark:1)Foramoredetailedfeaturesdescription,pleaserefertothemanufacturer’sspecifications ortheUser’sManual. ReportNo.:18220WC00192702FCCID:2AYKT-C2100Page5of12 Code:AB-RF-05-a 1.3.AuxiliaryEquipmentUsedDuringTest Adapter: M/N:A2613 Input:AC100-240V,1.8A,50-60Hz Output:5V2.4A/9V3A/15V3A/20V3A MobilePhone:iPhone12 1.4.TestEquipmentList ItemEquipmentManufacturerModelNo.SerialNo.LastCal.Cal.Interval 1MagneticfieldmeterNARDAELT-400423623Dec.24,20183Year 2E-FieldProbeNardaEF0391Q15221Nov.17,20203Year 3H-FieldProbeNardaHF3061Q15835Nov.17,20203Year 1.5.MeasurementUncertainty RadiationUncertainty: Ur=3.9dB(Horizontal) Ur=3.8dB(Vertical) ConductionUncertainty: Uc=3.4dB ReportNo.:18220WC00192702FCCID:2AYKT-C2100Page6of12 Code:AB-RF-05-a 1.6.DescriptionofTestFacility Thetestfacilityisrecognized,certified,oraccreditedbythefollowingorganizations: FCC-RegistrationNo.:184111 ShenzhenAnbotekComplianceLaboratoryLimited,EMCLaboratoryhasbeenregistedandfully describedinareportfiledwiththe(FCC)FederalCommunicationsCommission.Theacceptanceletter fromtheFCCismaintainedinourfiles.RegistrationNo.184111,September30,2020. ISED-RegistrationNo.:8058A ShenzhenAnbotekComplianceLaboratoryLimited,EMCLaboratoryhasbeenregisteredandfully describedinareportfiledwiththe(ISED)Innovation,ScienceandEconomicDevelopmentCanada.The acceptancel…

Text truncated - open the document above for the full version.

ReportNo.:18220WC00192701FCCID:2AYKT-C2100Page1of22 Code:AB-RF-05-a FCCTESTREPORT ClientName:mosonth Address: Room2301-03,BuildingBXingheWorld,YabaoRD1#, BantianDistrict,Shenzhen,Guangdong,China ProductName:Magneticwirelesscharging Date:Jan.11,2021 ShenzhenAnbotekComplianceLaboratoryLimited ReportNo.:18220WC00192701FCCID:2AYKT-C2100Page2of22 Code:AB-RF-05-a Contents 1.GeneralInformation ............................................................................................................................................... 4 1.1.ClientInformation ....................................................................................................................................... 4 1.2.DescriptionofDevice(EUT) ..................................................................................................................... 4 1.3.AuxiliaryEquipmentUsedDuringTest ................................................................................................... 5 1.4.DescriptionofTestModes ........................................................................................................................ 5 1.5.DescriptionOfTestSetup ......................................................................................................................... 6 1.6.TestEquipmentList .................................................................................................................................... 7 1.7.MeasurementUncertainty ......................................................................................................................... 8 1.8.DescriptionofTestFacility ........................................................................................................................ 8 2.SummaryofTestResults ..................................................................................................................................... 9 3.ConductedEmissionTest ................................................................................................................................... 10 3.1.TestStandardandLimit .......................................................................................................................... 10 3.2.TestSetup .................................................................................................................................................. 10 3.3.TestProcedure .......................................................................................................................................... 10 3.4.TestData .................................................................................................................................................... 10 4.RadiationSpuriousEmissionandBandEdge ................................................................................................ 15 4.1.TestStandardandLimit .......................................................................................................................... 15 4.2.TestSetup .................................................................................................................................................. 15 4.3.TestProcedure .......................................................................................................................................... 16 4.4.TestData .................................................................................................................................................... 16 5.AntennaRequirement ......................................................................................................................................... 21 5.1.TestStandardandRequirement ............................................................................................................ 21 5.2.AntennaConnectedConstruction .......................................................................................................... 21 APPENDIXI--TESTSETUPPHOTOGRAPH ................................................................................................... 22 APPENDIXII--EXTERNALPHOTOGRAPH ..................................................................................................... 22 APPENDIXIII--INTERNALPHOTOGRAPH ..................................................................................................... 22 ReportNo.:18220WC00192701FCCID:2AYKT-C2100Page3of22 Code:AB-RF-05-a TESTREPORT Applicant:mosonth Manufacturer:mosonth ProductName:Magneticwirelesscharging ModelNo.:C2100 TradeMark: MOSONTH Rating(s): Input:DC5V/2A,DC9V/2A Wirelessoutput:5W/7.5W/10W TestStandard(s): FCCPart15SubpartC,Paragraph15.209 TestMethod(s): ANSIC63.10:2013 ThedevicedescribedaboveistestedbyShenzhenAnbotekComplianceLaboratoryLimitedto determinethemaximumemissionlevelsemanatingfromthedeviceandtheseverelevelsofthedevice canendureanditsperformancecriterion.Themeasurementresultsarecontainedinthistestreportand ShenzhenAnbotekComplianceLaboratoryLimitedisassumedfullofresponsibilityfortheaccuracy andcompletenessofthesemeasurements.Also,thisreportshowsthattheEUT(EquipmentUnder Test)istechnicallycompliantwiththeFCCPart15SubpartCrequirements. Thisreportappliestoabovetestedsampleonlyandshallnotbereproducedinpartwithoutwritten approvalofShenzhenAnbotekComplianceLaboratoryLimited. DateofReceiptDec.17,2020 DateofTestDec.17,2020~Jan.8,2021 PreparedBy (Engineer/YiliaZhong) Reviewer (Supervisor/BiboZhang) Approved&AuthorizedSigner (Manager/KingkongJin) ReportNo.:18220WC00192701FCCID:2AYKT-C2100Page4of22 Code:AB-RF-05-a 1.GeneralInformation 1.1.ClientInformation Applicant:mosonth Address: Room2301-03,BuildingBXingheWorld,YabaoRD1#,BantianDistrict, Shenzhen,Guangdong,China Manufacturer:mosonth Address : Room2301-03,BuildingBXingheWorld,YabaoRD1#,BantianDistrict, Shenzhen,Guangdong,China Factory:mosonth Address: Room2301-03,BuildingBXingheWorld,YabaoRD1#,BantianDistrict, Shenzhen,Guangdong,China 1.2.DescriptionofDevice(EUT) ProductName:Magneticwirelesscharging ModelNo.:C2100 TradeMar…

Text truncated - open the document above for the full version.

FCCID:2AYKT-C2100 PhotoofConductedEmissionMeasurement PhotoofRadiationEmissionTest PhotoofMPEMeasurement
