2AYLS-C6Intelligent Visual Ear Picker

SHENZHEN JIDING ELECTRONIC CO.,LTD Add: 3rd Floor, Building 28, Chentian Industrial Zone, Baotian 2nd Road, Xixiang Street, Baoan District, Shenzhen, China Date: 2021-1-11 FCC ID: 2AYLS-C6 Dear Sir/Madam, We, SHENZHEN JIDING ELECTRONIC CO.,LTD Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: Intelligent Visual Ear Picker Model no.: C6, C7, C8, C9, C10, C11, C12, CC6, CC7, CC8, CC9, CC10, CC11, CC12, Y8, Y9, Y10, Y11, Y12, Y13, YY8, YY9, YY10, YY11, YY12, YY13, S2, S3, S5, S6, S7, S8, S9, P1, P2, P3, P5, P6, P7, P8 Sincerely, Name/Title： ZHIWEN PAN/Manager Company: SHENZHEN JIDING ELECTRONIC CO.,LTD Address: 3rd Floor, Building 28, Chentian Industrial Zone, Baotian 2nd Road, Xixiang Street, Baoan District, Shenzhen, China Phone: 0755-27909053 Fax: 0755-27909053 E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2021-1-11> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AYLS-C6 C6 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： ZHIWEN PAN/Manager Company: SHENZHEN JIDING ELECTRONIC CO.,LTD Address: 3rd Floor, Building 28, Chentian Industrial Zone, Baotian 2nd Road, Xixiang Street, Baoan District, Shenzhen, China Phone: 0755-27909053 Fax: 0755-27909053 E-Mail: [email protected]

SHENZHEN JIDING ELECTRONIC CO.,LTD 3rd Floor, Building 28, Chentian Industrial Zone, Baotian 2nd Road, Xixiang Street, Baoan District, Shenzhen, China Date: 2021-1-11 FCC ID: 2AYLS-C6 Model Number: C6 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, SHENZHEN JIDING ELECTRONIC CO.,LTD, declare that this EUT (FCC ID: 2AYLS-C6 ) doesn’t have Ad Hoc mode function on “non-US/Canada frequencies”. In addition. The frequency selection feature is disabled by firmware for devices marked to the US/Canada. For DTS part of this device, only channels 1-11 will be used in North America, Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, Name/Title： ZHIWEN PAN/Manager Company: SHENZHEN JIDING ELECTRONIC CO.,LTD Address: 3rd Floor, Building 28, Chentian Industrial Zone, Baotian 2nd Road, Xixiang Street, Baoan District, Shenzhen, China Phone: 0755-27909053 Fax: 0755-27909053 E-Mail: [email protected]

SHENZHEN JIDING ELECTRONIC CO.,LTD 3rd Floor, Building 28, Chentian Industrial Zone, Baotian 2nd Road, Xixiang Street, Baoan District, Shenzhen, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2021-1-11 To whom it may concern: We, SHENZHEN JIDING ELECTRONIC CO.,LTD the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AYLS-C6 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： ZHIWEN PAN/Manager Company: SHENZHEN JIDING ELECTRONIC CO.,LTD Address: 3rd Floor, Building 28, Chentian Industrial Zone, Baotian 2nd Road, Xixiang Street, Baoan District, Shenzhen, China Phone: 0755-27909053 Fax: 0755-27909053 E-Mail: [email protected]

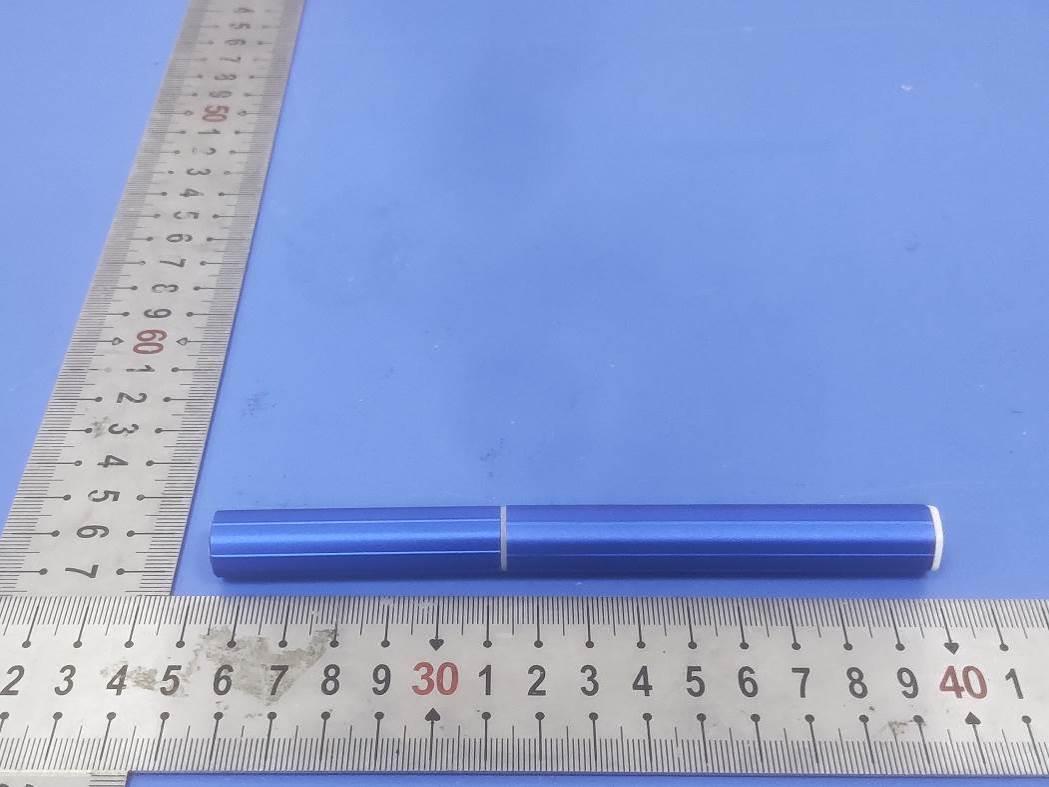

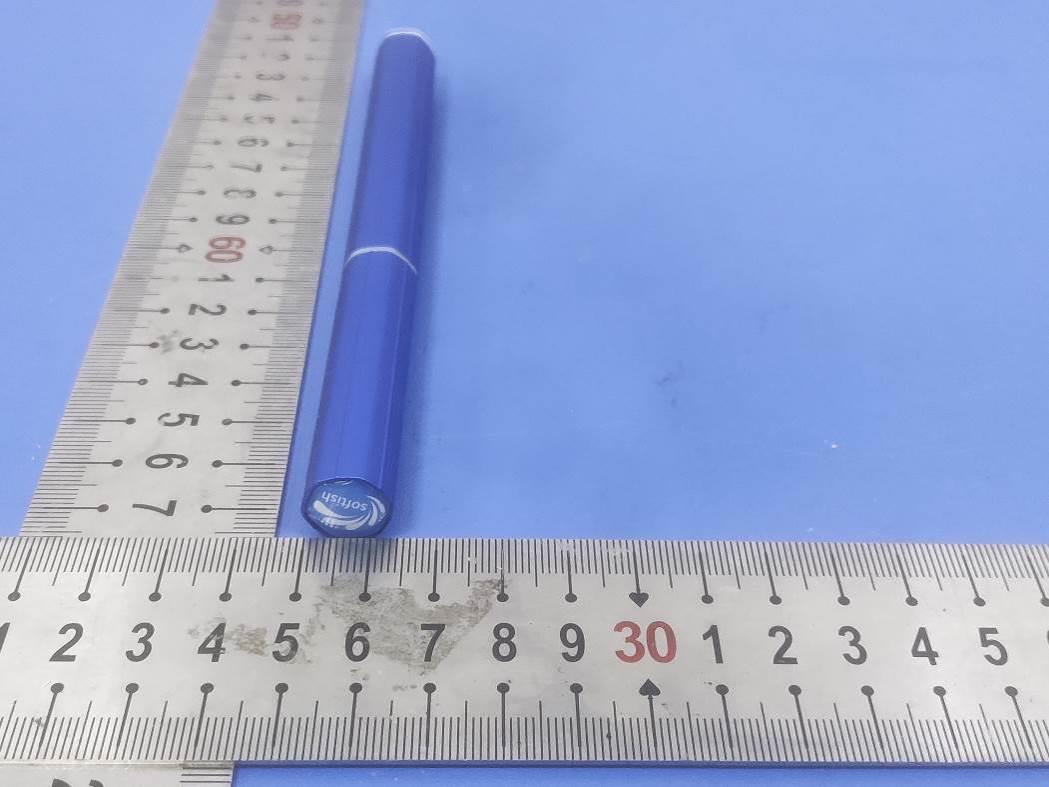

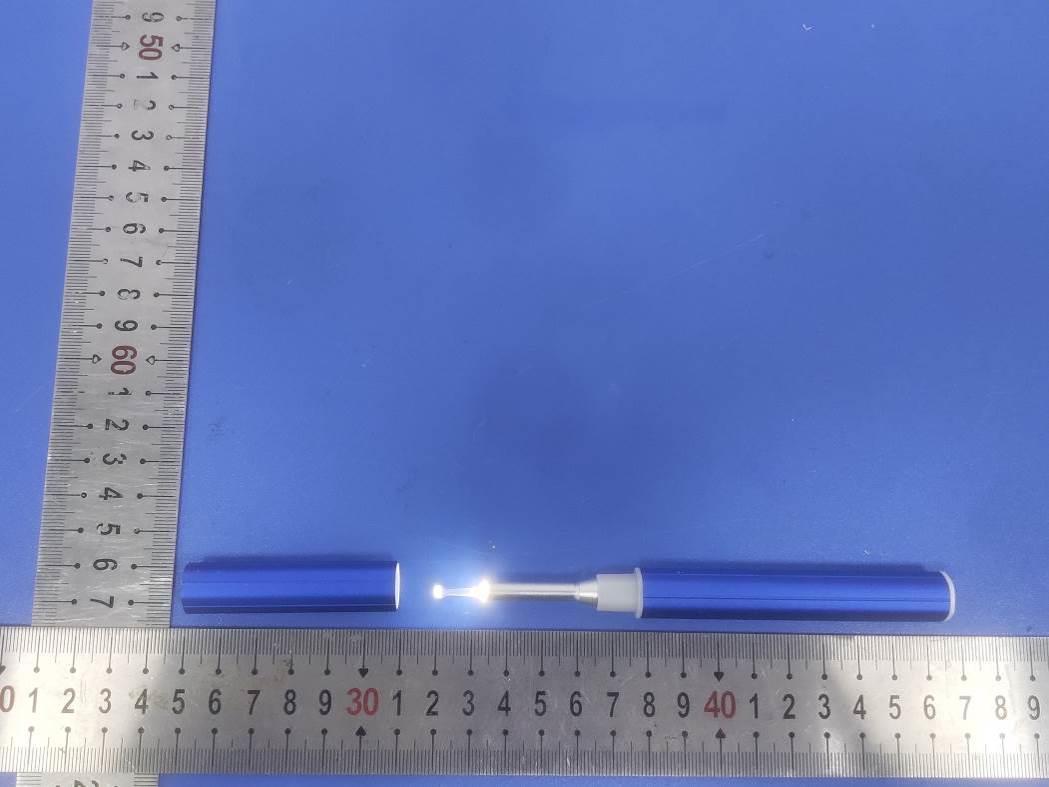

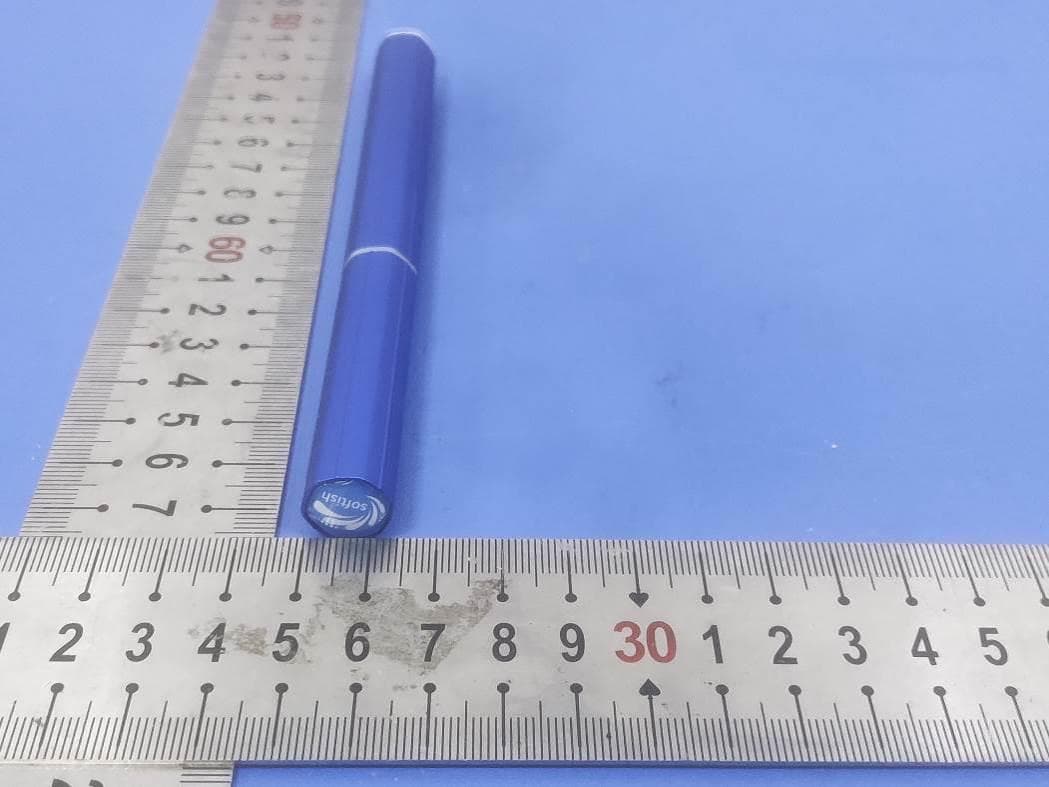

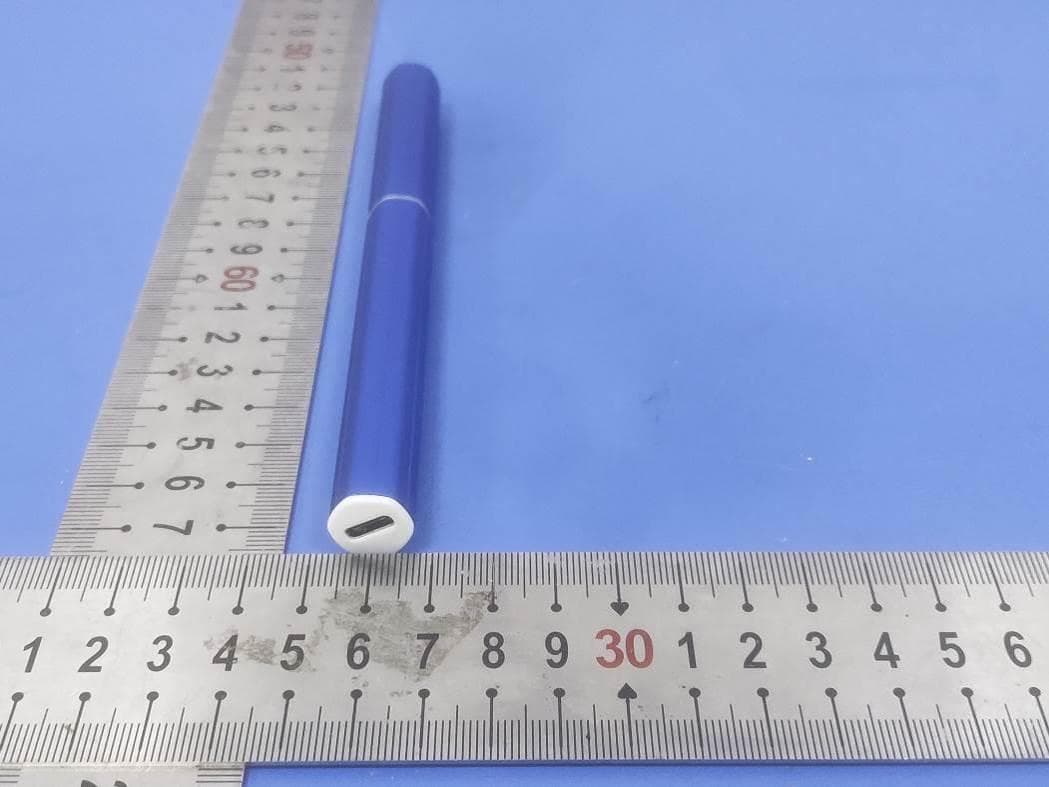

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYLS-C6 EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYLS-C6 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYLS-C6 Fig.5 Fig.6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYLS-C6 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L: 1.2.0cm*W: 1.5cm Label Location Intelligent Visual Ear Picker Model No.: C6 FCC ID: 2AYLS-C6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYLS-C6 INTERIOR PHOTOGRAPHS Fig.1 Fig.2 WIFI Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYLS-C6 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYLS-C6 Fig.5 Fig.6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYLS-C6 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 FCC RF Exposure Evaluation 1. Product Information FCC ID : 2AYLS-C6 Product name : Intelligent Visual Ear Picker Test Model : C6 Power supply : DC 3.7V by Rechargeable Li-ion Battery, 350mAh FCC Operation frequency : 2412 – 2462 MHz Channel Number : 11 Channels for 20MHz bandwidth (2412~2462MHz) 7 Channels for 40MHz bandwidth (2422~2452MHz) Channel Spacing : 5MHz Modulation Type : IEEE 802.11b: DSSS (CCK, DQPSK, DBPSK) IEEE 802.11g: OFDM (64QAM, 16QAM, QPSK, BPSK) IEEE 802.11n: OFDM (64QAM, 16QAM,QPSK,BPSK) Antenna Type : Internal Antenna Antenna Gain : 0dBi(Max.) Hardware Version : V1.1 Software Version : V1.1 Exposure category : General population/uncontrolled environment EUT Type : Production Unit Device Type : Portable Device 2. Evaluation method and Limit According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.“ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)+ · *√f (GHz)+ ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYLS-C6 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. When one of the following test exclusion conditions is satisfied for all combinations of simultaneous transmission configurations, further equipment approval is not required to incorporate transmitter modules in host devices that operate in the mixed mobile and portable host platform exposure conditions. The grantee is responsible for documenting this according to Class I permissive change requirements. Antennas that qualify for standalone SAR test exclusion must apply the estimated standalone SAR to determine simultaneous transmission test exclusion. a) The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. b)The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. 3. Refer Evaluation Method ANSI C95.1–2019: IEEE Standard for Safety Levels with Respect to Human Exposure to Electric, Magnetic, and Electromagnetic Fields, 0 Hz to 300 GHz FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYLS-C6 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 4. Conducted Power Results Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) 11B 1 2412 9.11 6 2437 8.90 11 2462 8.44 11G 1 2412 9.18 6 2437 8.78 11 2462 8.30 11N20SISO 1 2412 8.84 6 2437 8.30 11 2462 8.59 11N40SISO 3 2422 8.63 6 2437 8.30 9 2452 8.60 5. Manufacturing Tolerance 11B (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 8.5 8.0 8.0 Tolerance ±(dB) 1.…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYLS-C6 Report No.: LCS201226004AEA Page 1 of 46 Appendix A RF Test Data for 2.4G WIFI (Conducted Measurement) Product Name: Intelligent Visual Ear Picker Trade Mark: softish Test Model: C6 Environmental Conditions Temperature: 24.6 C Relative Humidity: 54.1% ATM Pressure: 100.0 kPa Test Engineer: Kay Hu Supervised by: Li Huan A.1 Duty Cycle Test Mode Test Channel Ant Duty Cycle[%] Verdict 11B 2437 Ant1 99.76 PASS 11G 2437 Ant1 98.38 PASS 11N20SISO 2437 Ant1 98.46 PASS 11N40SISO 2437 Ant1 98.15 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYLS-C6 Report No.: LCS201226004AEA Page 2 of 46 Duty Cycle_11B_2437_Ant1 Duty Cycle_11G_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYLS-C6 Report No.: LCS201226004AEA Page 3 of 46 Duty Cycle_11N20SISO_2437_Ant1 Duty Cycle_11N40SISO_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYLS-C6 Report No.: LCS201226004AEA Page 4 of 46 A.2 Maximum Conducted Output Power Mode Channel Meas.Level [dBm] Limit [dBm] Verdict 11B LCH 9.11 30 PASS MCH 8.9 30 PASS HCH 8.44 30 PASS 11G LCH 9.18 30 PASS MCH 8.78 30 PASS HCH 8.3 30 PASS 11N20SISO LCH 8.84 30 PASS MCH 8.3 30 PASS HCH 8.59 30 PASS 11N40SISO LCH 8.63 30 PASS MCH 8.3 30 PASS HCH 8.6 30 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYLS-C6 Report No.: LCS201226004AEA Page 5 of 46 A.3 Maximum Power Spectral Density Mode Channel Meas.Level [dBm/3KHz] Limit [dBm/3KHz] Verdict 11B LCH -18.275 8 PASS MCH -18.795 8 PASS HCH -17.989 8 PASS 11G LCH -22.964 8 PASS MCH -24.132 8 PASS HCH -24.470 8 PASS 11N20SISO LCH -23.725 8 PASS MCH -24.387 8 PASS HCH -24.935 8 PASS 11N40SISO LCH -26.235 8 PASS MCH -26.342 8 PASS HCH -25.451 8 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYLS-C6 Report No.: LCS201226004AEA Page 6 of 46 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYLS-C6 Report No.: LCS201226004AEA Page 7 of 46 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYLS-C6 Report No.: LCS201226004AEA Page 8 of 46 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYLS-C6 Report No.: LCS201226004AEA Page 9 of 46 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYLS-C6 Report No.: LCS201226004AEA Page 10 of 46 11N40SISO/LCH 11N40SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYLS-C6 Report No.: LCS201226004AEA Page 11 of 46 11N40SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYLS-C6 Report No.: LCS201226004AEA Page 12 of 46 A.4 6dB Bandwidth Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict 11B LCH 9.082 ≥0.5 PASS MCH 9.073 ≥0.5 PASS HCH 8.588 ≥0.5 PASS 11G LCH 15.46 ≥0.5 PASS MCH 15.82 ≥0.5 PASS HCH 15.48 ≥0.5 PASS 11N20SISO LCH 15.83 ≥0.5 PASS MCH 15.84 ≥0.5 PASS HCH 15.78 ≥0.5 PASS 11N40SISO LCH 35.49 ≥0.5 PASS MCH 35.43 ≥0.5 PASS HCH 35.42 ≥0.5 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYLS-C6 Report No.: LCS201226004AEA Page 13 of 46 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYLS-C6 Report No.: LCS201226004AEA Page 14 of 46 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYLS-C6 Report No.: LCS201226004AEA Page 15 of 46 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYLS-C6 Report No.: LCS201226004AEA Page 16 of 46 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYLS-C6 Report No.: LCS201226004AEA Page 17 of 46 11N40SISO/LCH 11N40SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYLS-C6 Report No.: LCS201226004AEA Page 18 of 46 11N40SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYLS-C6 Report No.: LCS201226004AEA Page 19 of 46 A.5 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdic t 11B LCH -2.702 -37.339 -22.702 PASS MCH -2.909 -37.966 -22.909 PASS HCH -3.549 -37.338 -23.549 PASS 11G LCH -9.214 -36.470 -29.214 PASS MCH -9.734 -38.665 -29.734 PASS HCH -10.304 -38.443 -30.304 PASS 11N20 SISO LCH -9.764 -38.047 -29.764 PASS MCH -10.489 -37.976 -30.489 PASS HCH -9.978 -38.772 -29.978 PASS 11N40 SISO LCH -13.132 -38.370 -33.132 PASS MCH -13.374 -38.175 -33.374 PASS HCH -12.857 -37.730 -32.857 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYLS-C6 Report No.: LCS201226004AEA Page 20 of 46 11B_LCH_Graphs Pref/11B/LCH Puw/11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYLS-C6 Report No.: LCS201226004AEA Page 21 of 46 11B_MCH_Graphs Pref/11B/MCH Puw/11B/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYLS-C6 Report No.: LCS201226004AEA Page 22 of 46 11B_HCH_Graphs Pref/11B/HCH Puw/11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYLS-C6 Report No.: LCS201226004AEA Page 23 of 46 11G_LCH_Graphs Pref/11G/LCH Puw/11G/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYLS-C6 Report No.: LCS201226004AEA Page 24 of 46 11G_MCH_Graphs Pref/11G/MCH Puw/11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYLS-C6 Report No.: LCS201226004AEA Page 25 of 46 11G_HCH_Graphs Pref/11G/HCH Puw/11G/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYLS-C6 Report No.: LCS201226004AEA Page 26 of 46 11N20SISO_LCH_Graphs Pref/11N20SIS O/LCH Puw/11N20 SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYLS-C6 Report No.: LCS201226004AEA Page 27 of 46 11N20SISO_MCH_Graphs Pref/11N20 SISO/MCH Puw/11N20 SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYLS-C6 Report No.: LCS201226004AEA Page 28 of 46 11N20SISO_HCH_Graphs Pref/11N20 SISO/HCH Puw/11N20 SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYLS-C6 Report No.: LCS201226004AEA Page 29 of 46 11N40SISO_LCH_Graphs Pref/11N40 SISO/LCH Puw/11N40 SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FC…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYLS-C6 Report No.: LCS201226004AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 39 FCC TEST REPORT For SHEHZHEN JIDING ELECTRONIC CO.,LTD Intelligent Visual Ear Picker Test Model: C6 Additional Model No.: Please Refer to Page 6 Prepared for : SHEHZHEN JIDING ELECTRONIC CO.,LTD Address : 3rd Floor, Building 28, Chentian Industrial Zone, Baotian 2nd Road, Xixiang Street, Baoan District, Shenzhen, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : December 28, 2020 Number of tested samples : 2 Sample number : 201226004A-1, 201226004A-2 Serial number : Prototype Date of Test : December 28, 2020 ~ December 31, 2020 Date of Report : January 06, 2021 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYLS-C6 Report No.: LCS201226004AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 39 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................. : LCS201226004AEA Date of Issue .................................. : January 06, 2021 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address .......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Procedure .......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ......................... : SHEHZHEN JIDING ELECTRONIC CO.,LTD Address .......................................... : 3rd Floor, Building 28, Chentian Industrial Zone, Baotian 2nd Road, Xixiang Street, Baoan District, Shenzhen, China Test Specification Standard ......................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No. .................. : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. .......................... : Intelligent Visual Ear Picker Trade Mark ..................................... : softish Test Model ...................................... : C6 Ratings ........................................... : DC 3.7V by Rechargeable Li-ion Battery, 350mAh Result ............................................ : Positive Compiled by: Supervised by: Approved by: Linda He/ Administrators Jin Wang / Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYLS-C6 Report No.: LCS201226004AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 39 FCC -- TEST REPORT EUT......................................... : Intelligent Visual Ear Picker Test Model............................... : C6 Applicant............................... : SHEHZHEN JIDING ELECTRONIC CO.,LTD Address.................................. : 3rd Floor, Building 28, Chentian Industrial Zone, Baotian 2nd Road, Xixiang Street, Baoan District, Shenzhen, China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : SHEHZHEN JIDING ELECTRONIC CO.,LTD Address................................... : 3rd Floor, Building 28, Chentian Industrial Zone, Baotian 2nd Road, Xixiang Street, Baoan District, Shenzhen, China Telephone............................... : / Fax.......................................... : / Factory................................... : SHEHZHEN JIDING ELECTRONIC CO.,LTD Address................................... : 3rd Floor, Building 28, Chentian Industrial Zone, Baotian 2nd Road, Xixiang Street, Baoan District, Shenzhen, China Telephone............................... : / Fax.......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS201226004AEA January 06, 2021 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYLS-C6 Report No.: LCS201226004AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 39 Revision History Revision Issue Date Revisions Revised By 000 January 06, 2021 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYLS-C6 Report No.: LCS201226004AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 39 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 6 1.1. DESCRIPTION OF DEVICE (EUT) ....................................................................................................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYLS-C6 _______________________________________________________________________________________________ TEST SETUP PHOTOGRAPHS Photo of Radiated Emissions Measurement Below 1 GHz Above 1 GHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYLS-C6 _______________________________________________________________________________________________ Power Line Conducted Emission
