2AYLW-ALALBLE01bluetooth remote control

T4HiU2005/35k Take Off Guide 2. Turn On Alva L1 Alva L1 remote control arrives with a 2 AAA batteries blister inside a polybag. To turn on your Alva L1 remote control, please follow the instructions below. 1. Turn ON your TV and your Set Top Box. 2. Remove your Alva L1 remote control and its batteries from the plastic bag. 3. Remove the remote’s battery lid. 4. Place the batteries on the Alva L1 remote control as indicated in the image above and replace the battery lid. 5. After inserting the batteries, wait a few seconds and the Alva L1 remote will be ready to operate the Set-Top-Box. FCC Compliance Statements This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or televison reception, which can be determinated by turning the equipment off an on, the user is encouraged to try to correct the interference by one or more of the following measures: . Reorient or relocate the receiving antenna. . Increase the separation between the equipment and receiver. . Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. .Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement: This equipment complies with FCC portable radiation expuser limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. CAUTION Risk of explosion if the battery is replaced by an incorrect type, disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion; Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas; A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.

Tech4homeInternational,Lda AgentAuthorization Company:Tech4homeInternational,Lda Address:StartupMadeira,CampusdaPenteada,9020-105Funchal,Portugal ProductName:bluetoothremotecontrol TradeMark:N/A ModelNumber(s):T4HiU2005/35k,T4HiU2004/35k,T4HiU2006/35k,T4HiU2007/35k, T4HiU2008/35k,AlvaL1BLE,ALALBLE01 FCCID:2AYLW-ALALBLE01 WeauthorizeMiCOMLabsInc.,575BoulderCourt,Pleasanton,California94566,USA, toactonourbehalfonallmattersconcerningthecertificationofabovenamed equipment. WedeclarethatMiCOMLabsInc.isallowedtoforwardallinformationrelatedtothe approvalandcertificationofequipmenttotheregulatoryagenciesasrequiredandto discussanyissuesconcerningtheapprovalapplication.Anyandallactscarriedoutby MiCOMLabsonourbehalfshallhavethesameeffectasactsofourown. Signature:Date:2021-07-05 Name:MiguelValente Title:TotalQualityManager Company:Tech4homeInternational,Lda

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AYLW-ALALBLE01ReportNo.:LCS210601027AEA Page1of14 AppendixA RFTestDataforBTLEV4.2(DTS)(ConductedMeasurement) ProductName:bluetoothremotecontrol TradeMark:N/A TestModel:T4HiU2005/35k EnvironmentalConditions Temperature: 24.6  C RelativeHumidity:54.1% ATMPressure:100.0kPa TestEngineer:KayHu Supervisedby:LiHuan A.1DutyCycle TestModeTestChannelAntDutyCycle[%]Verdict BTLE2440Ant1100PASS #imgrbble1hchnnav SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AYLW-ALALBLE01ReportNo.:LCS210601027AEA Page2of14 A.2MaximumConductedPeakOutputPower ModeChannelConductPeakPower[dBm]Limit[dBm]Verdict BTLELCH-1.30330PASS BTLEMCH-1.17530PASS BTLEHCH-0.76930PASS TestGraphs LCH MCH SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AYLW-ALALBLE01ReportNo.:LCS210601027AEA Page3of14 HCH SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AYLW-ALALBLE01ReportNo.:LCS210601027AEA Page4of14 A.3MaximumPowerSpectralDensity ModeChannelPSD[dBm/3KHz]Limit[dBm/3KHz]Verdict BTLELCH-17.9558PASS BTLEMCH-17.7118PASS BTLEHCH-17.5798PASS TestGraphs LCH MCH SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AYLW-ALALBLE01ReportNo.:LCS210601027AEA Page5of14 HCH SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AYLW-ALALBLE01ReportNo.:LCS210601027AEA Page6of14 A.46dBBandwidth ModeChannel6dBBandwidth[MHz]Limit[MHz]Verdict BTLELCH0.6553 ≥0.5 PASS BTLEMCH0.6686 ≥0.5 PASS BTLEHCH0.6688 ≥0.5 PASS TestGraphs LCH MCH SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AYLW-ALALBLE01ReportNo.:LCS210601027AEA Page7of14 HCH SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AYLW-ALALBLE01ReportNo.:LCS210601027AEA Page8of14 A.5RFConductedSpuriousEmissions ModeChannelPref[dBm]Max.Level[dBm]Limit[dBm]Verdict BTLELCH-1.755-36.996-21.755PASS BTLEMCH-2.093-37.548-22.093PASS BTLEHCH-1.382-35.941-21.382PASS BTLE_LCH_Graphs Pref/BTLE/LCH Puw/BTLE/LCH SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AYLW-ALALBLE01ReportNo.:LCS210601027AEA Page9of14 BTLE_MCH_Graphs Pref/BTLE/MCH Puw/BTLE/MCH SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AYLW-ALALBLE01ReportNo.:LCS210601027AEA Page10of14 BTLE_HCH_Graphs Pref/BTLE/HCH Puw/BTLE/HCH SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AYLW-ALALBLE01ReportNo.:LCS210601027AEA Page11of14 A.6Band-edgeforRFConductedEmissions ModeChannelCarrierPower[dBm] Max.SpuriousLevel [dBm] Limit[dBm]Verdict BTLELCH-2.704-49.749-22.7PASS BTLEHCH-1.165-49.221-21.17PASS TestGraphs LCH HCH SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AYLW-ALALBLE01ReportNo.:LCS210601027AEA Page12of14 A.7Restrict-bandband-edgemeasurements Test Mode Test Chann el AntFreq. Power [dBm] GainGround Factor E [dBuV/m] Detector Limit [dBuV/ m] Verdi ct BTLE 2402 Ant12310.0-41.252.0055.98PEAK74PASS Ant12310.0-53.332.0043.90AV54PASS Ant12390.0-43.752.0053.48PEAK74PASS Ant12390.0-53.022.0044.21AV54PASS 2480 Ant12483.5-42.452.0054.78PEAK74PASS Ant12483.5-52.402.0044.83AV54PASS Ant12500.0-42.682.0054.55PEAK74PASS Ant12500.0-52.262.0044.97AV54PASS SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AYLW-ALALBLE01ReportNo.:LCS210601027AEA Page13of14 Restrict-bandband-edgemeasurements_BTLE_2402_Ant1_PEAK Restrict-bandband-edgemeasurements_BTLE_2402_Ant1_AV SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AYLW-ALALBLE01ReportNo.:LCS210601027AEA Page14of14 Restrict-bandband-edgemeasurements_BTLE_2480_Ant1_PEAK Restrict-bandband-edgemeasurements_BTLE_2480_Ant1_AV

Tech4homeInternational,Lda Address:StartupMadeira,CampusdaPenteada,9020-105Funchal,Portugal OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA DearSir/Madam, We,Tech4homeInternational,LdaHerebydeclaresthefollowingstatementforMiCOM LabsInc,PCBboard,structureandinternalofthesemodel(s)arethesame,Onlymodels nameandshapeisdifferentforthesemodels: ProductName:bluetoothremotecontrol TradeMark:N/A ModelNumber(s):T4HiU2005/35k,T4HiU2004/35k,T4HiU2006/35k,T4HiU2007/35k, T4HiU2008/35k,AlvaL1BLE,ALALBLE01 FCCID:2AYLW-ALALBLE01 Signature:Date:2021-07-05 Name:MiguelValente Title:TotalQualityManager Company:Tech4homeInternational,Lda

Tech4homeInternational,Lda OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Date:2021-07-05 Subject;RequestforConfidentiality FCCID:2AYLW-ALALBLE01 ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,we arerequestingtheCommissiontowithholdthefollowingattachment(s)asconfidential documentsfrompublicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthesedocuments mightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantageinthemarket. SchematicDiagram BlockDiagram PartsList OperationalDescription Tune-upProcedure DeclarationofSoftwareSecurityRequirementsForU-NIIDevices Inadditionaltoabovementioneddocuments,inordertocomplywiththemarketingregulations inTitle47CFR§2.803andtheimportationrulesinTitle47CFR§2.1204,whileensuringthat businesssensitiveinformationremainsconfidentialuntiltheactualmarketingofnewly authorizeddevices,werequestShortTermConfidentialityofthefollowingattachment(s); ExternalPhotos TestSetupPhotos InternalPhotos UserManual For45days,pursuanttoPublicNoticeDA04-1705. OR For180dayspursuanttoKDB726920D01. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondenceduringthecertificationreviewprocesscannotbegrantedasconfidential documentsandthisinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. Sincerely, Signature: Name:MiguelValente Title:TotalQualityManager

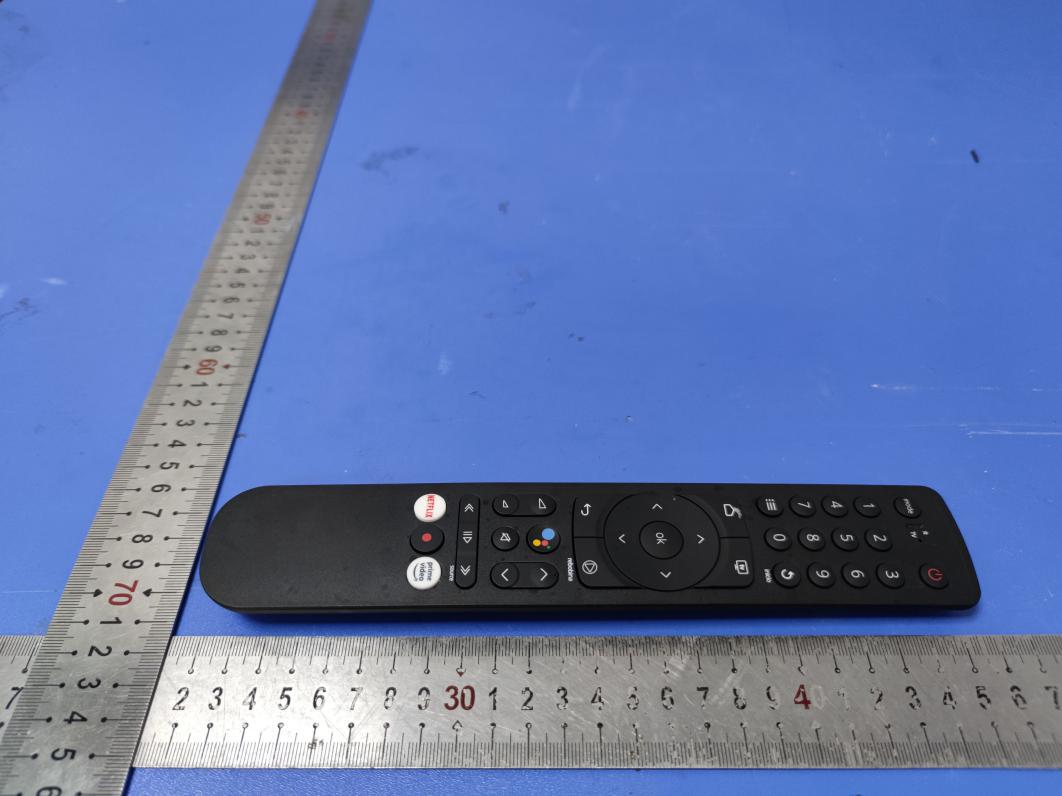

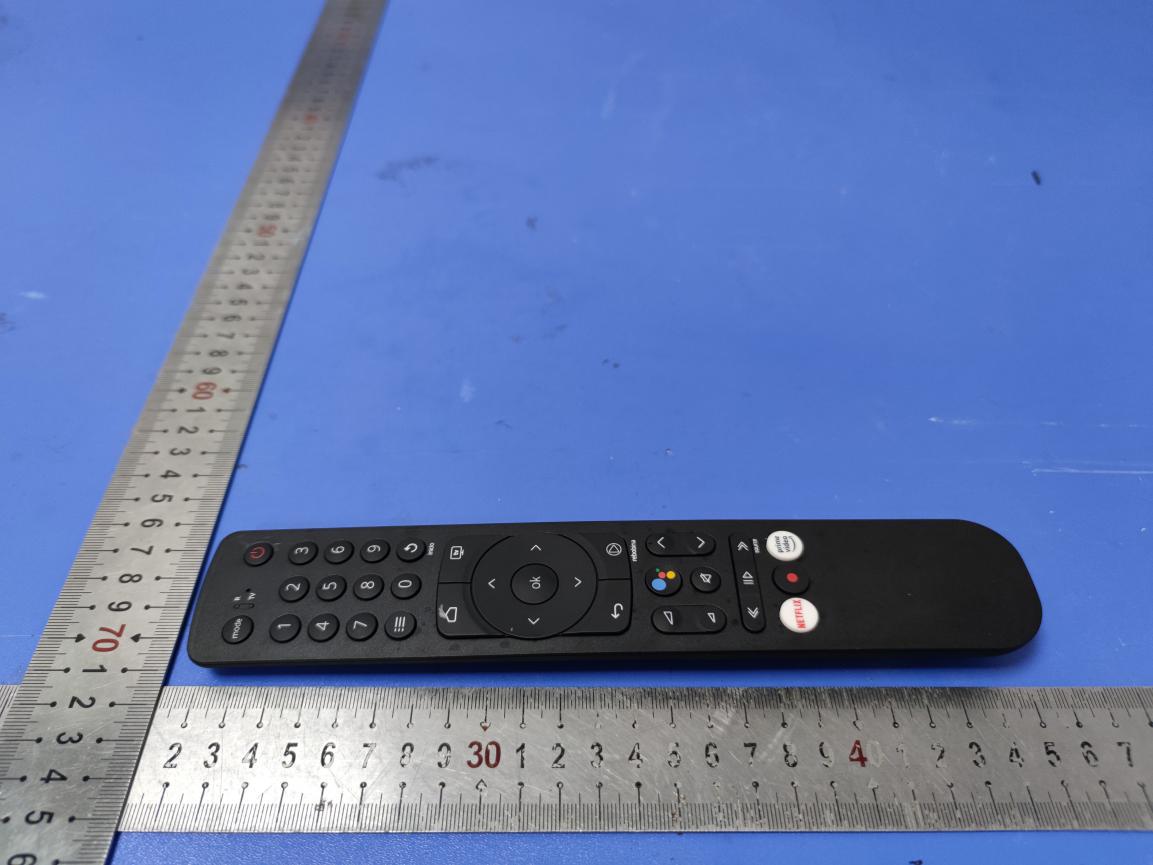

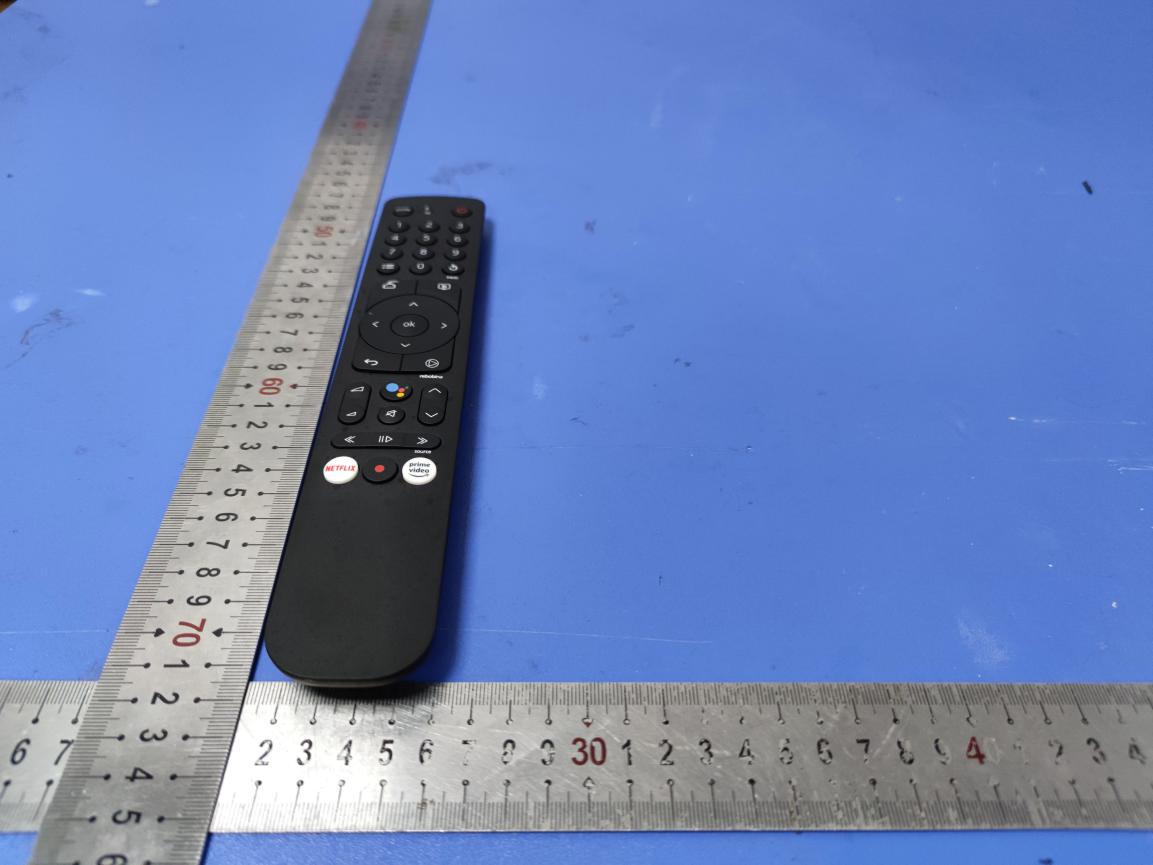

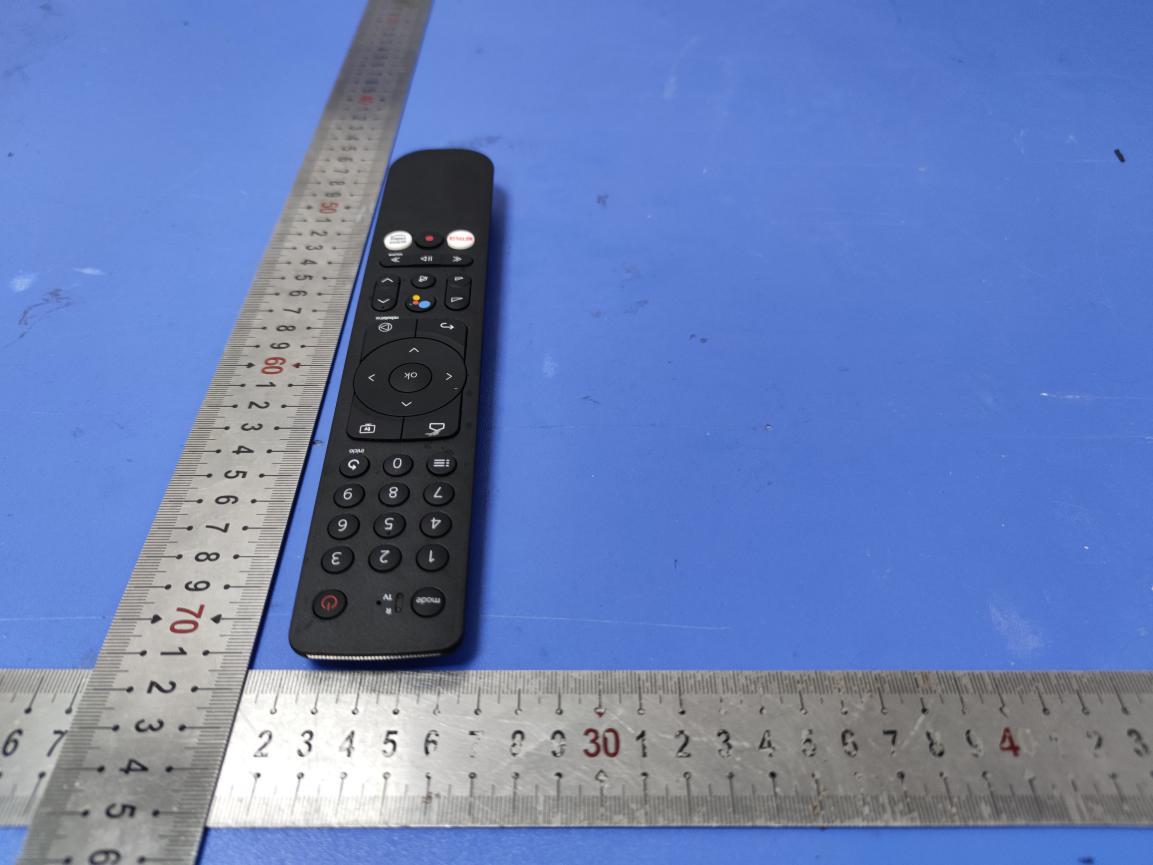

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AYLW-ALALBLE01 1.EXTERIORPHOTOGRAPHS Fig.1 Fig.2 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AYLW-ALALBLE01 Fig.3 Fig.4 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AYLW-ALALBLE01 Fig.5 Fig.6

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AYLW-ALALBLE01 Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 1 of1 LabelandLocation Size:L4.0cm*W2.0cm LabelLocation

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AYLW-ALALBLE01 1.INTERIORPHOTOGRAPHS Fig.1 Fig.2 IFAAntenna SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AYLW-ALALBLE01 Fig.3 Fig.4

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AYLW-ALALBLE01 ___________________________________________________________________________ Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 1 of 3 FCCRFExposureEvaluation 1.ProductInformation FCCID:2AYLW-ALALBLE01 Productname:bluetoothremotecontrol TestModel:T4HiU2005/35k AdditionalModelNo. : T4HiU2004/35k,T4HiU2006/35k,T4HiU2007/35k,T4HiU2008/35k,Alva L1BLE,ALALBLE01 ModelDeclaration : PCBboard,structureandinternalofthesemodel(s)arethesame,So noadditionalmodelsweretested Powersupply:DC3Vby2*AAABattery Bluetooth:2402MHz~2480MHz ChannelNumber:40channelsforBluetoothV4.2(DTS) ChannelSpacing:2MHzforBluetoothV4.2(DTS) ModulationType:GFSKforBluetoothV4.2(DTS) BluetoothVersion:V4.2 AntennaType:IFAAntenna AntennaGain:0dB(Max.) Hardwareversion:T4HIB20110402-M2 Softwareversion:0237.01.02 Exposurecategory:Generalpopulation/uncontrolledenvironment EUTType:ProductionUnit DeviceType:PortableDevice 2.EvaluationmethodandLimit AccordingtoKDB447498D01GeneralRFExposureGuidancev06Section4.3.1StandaloneSARtest exclusionconsiderations:“UnlessspecificallyrequiredbythepublishedRFexposureKDBprocedures, standalone1-gheadorbodyand10-gextremitySARevaluationforgeneralpopulationexposureconditions, bymeasurementornumericalsimulation,isnotrequiredwhenthecorrespondingSARTestExclusion Thresholdcondition,listedbelow,issatisfied.Thesetestexclusionconditionsarebasedonsource-based time-averagedmaximumconductedoutputpoweroftheRFchannelrequiringevaluation,adjustedfor tune-uptolerance,andtheminimumtestseparationdistancerequiredfortheexposureconditions.22The minimumtestseparationdistanceisdeterminedbythesmallestdistancefromtheantennaandradiating structuresoroutersurfaceofthedevice,accordingtothehostformfactor,exposureconditionsand platformrequirements,toanypartofthebodyorextremityofauserorbystander(see5)ofsection4.1). ToqualifyforSARtestexclusion,thetestseparationdistancesappliedmustbefullyexplainedandjustified bytheoperatingconfigurationsandexposureconditionsofthetransmitterandapplicablehostplatform requirements,typicallyintheSARmeasurementorSARanalysisreport,accordingtotherequiredpublished RFexposureKDBprocedures.WhennootherRFexposuretestingorreportingisrequired,astatementof justificationandcompliancemustbeincludedintheequipmentapproval,inlieuoftheSARreport,to qualifyfortheSARtestexclusion.Whenrequired,thedevicespecificconditionsdescribedintheother publishedRFexposureKDBproceduresmustbesatisfiedbeforeapplyingtheseSARtestexclusion provisions;forexample,handheldPTTtwo-wayradios,handsets,laptops&tabletsetc.“ [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance,mm)]·[√f(GHz)] ≤3.0for1-gSARand≤7.5for10-gextremitySAR,where: •f(GHz)istheRFchanneltransmitfrequencyinGHz •PoweranddistanceareroundedtothenearestmWandmmbeforecalculation •Theresultisroundedtoonedecimalplaceforcomparison •3.0and7.5arereferredtoasthenumericthresholdsinthestep2below SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AYLW-ALALBLE01 ___________________________________________________________________________ Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 2 of 3 Thetestexclusionsareapplicableonlywhentheminimumtestseparationdistanceis≤50mmandfor transmissionfrequenciesbetween100MHzand6GHz.Whentheminimumtestseparationdistanceis<5 mm,adistanceof5mmaccordingtof)insection4.1isappliedtodetermineSARtestexclusion. Whenoneofthefollowingtestexclusionconditionsissatisfiedforallcombinationsofsimultaneous transmissionconfigurations,furtherequipmentapprovalisnotrequiredtoincorporatetransmitter modulesinhostdevicesthatoperateinthemixedmobileandportablehostplatformexposureconditions. ThegranteeisresponsiblefordocumentingthisaccordingtoClassIpermissivechangerequirements. AntennasthatqualifyforstandaloneSARtestexclusionmustapplytheestimatedstandaloneSARto determinesimultaneoustransmissiontestexclusion. a)The[∑of(thehighestmeasuredorestimatedSARforeachstandaloneantennaconfiguration,adjusted formaximumtune-uptolerance)/1.6W/kg]+[∑ofMPEratios]is≤1.0. b)TheSARtopeaklocationseparationratiosofallsimultaneouslytransmittingantennapairsoperatingin portabledeviceexposureconditionsareall≤0.04,andthe[∑ofMPEratios]is≤1.0. 3.ReferEvaluationMethod ANSIC95.1–1999:IEEEStandardforSafetyLevelswithRespecttoHumanExposuretoRadioFrequency ElectromagneticFields,3kHzto300GHz. FCCKDBpublication447498D01GeneralRFExposureGuidancev06:MobileandPortableDevicesRFExposure ProceduresandEquipmentAuthorizationPolicies. FCCCFR47part11.1310:Radiofrequencyradiationexposurelimits. FCCCFR47part22.1093:Radiofrequencyradiationexposureevaluation:portabledevices 4.ConductedPowerResults <BTLE> ModeChannelFrequency(MHz)PeakConductedOutputPower(dBm) GFSK 02402-1.303 192440-1.175 392480-0.769 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AYLW-ALALBLE01 ___________________________________________________________________________ Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 3 of 3 5.ManufacturingTolerance <BTLE> GFSK(Peak) ChannelChannel0Channel19Channel39 Target(dBm)-1.0-1.00 Tolerance±(dB)1.01.01.0 6.EvaluationResults 6.1StandaloneEvaluation Band/Modef(GHz) Antenna Distance (mm) RFoutputpowerSARTest Exclusion Threshold SARTest Exclusion dBmmW BTLEGFSK2.48051.01.25890.3965<3.0Yes Remark: 1.Outputpowerincludingtuneuptolerance; 2.Whentheminimumtestseparationdistanceis<5mm,adistanceof5mmaccordingtof)insection4.1is appliedtodetermineSARtestexclusion. 6.2SimultaneousTransmissionforSARExclusion ThesamplesupportoneBTmodular.Noneedconsidersimultaneoustransmission. 7.Conclusion ThemeasurementresultscomplywiththeFCCLimitper47CFR2.1093fortheuncontrolledRFExposure andSARExclusionThresholdperKDB447498v06. .......................THEENDOFREPORT.........................

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AYLW-ALALBLE01ReportNo.:LCS210601027AEA Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page1of31 FCCTESTREPORT For Tech4homeInternational,Lda bluetoothremotecontrol TestModel:T4HiU2005/35k AdditionalModelNo.:PleaseRefertoPage6 Preparedfor:Tech4homeInternational,Lda Address:StartupMadeira,CampusdaPenteada,9020-105Funchal,Portugal Preparedby:ShenzhenLCSComplianceTestingLaboratoryLtd. Address: 101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei, ShajingStreet,BaoanDistrict,Shenzhen,518000,China Tel:(+86)755-82591330 Fax:(+86)755-82591332 Web:www.LCS-cert.com Mail:[email protected] Dateofreceiptoftestsample:June04,2021 Numberoftestedsamples:2 SampleNo.:210601027A-1,210601027A-2 Serialnumber:Prototype DateofTest:June04,2021~June09,2021 DateofReport:June11,2021 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AYLW-ALALBLE01ReportNo.:LCS210601027AEA Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page2of31 FCCTESTREPORT FCCCFR47PART15C(15.247) ReportReferenceNo......................:LCS210601027AEA DateofIssue.......................................: June11,2021 TestingLaboratoryName..............:ShenzhenLCSComplianceTestingLaboratoryLtd. Address................................................: 101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei, ShajingStreet,BaoanDistrict,Shenzhen,518000,China TestingLocation/Procedure............ : FullapplicationofHarmonisedstandards■ PartialapplicationofHarmonisedstandards□ Otherstandardtestingmethod□ Applicant’sName.............................: Tech4homeInternational,Lda Address................................................:StartupMadeira,CampusdaPenteada,9020-105Funchal,Portugal TestSpecification Standard..............................................: FCCCFR47PART15C(15.247) TestReportFormNo......................:LCSEMC-1.0 TRFOriginator....................................:ShenzhenLCSComplianceTestingLaboratoryLtd. MasterTRF.........................................:Dated2011-03 ShenzhenLCSComplianceTestingLaboratoryLtd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe ShenzhenLCSComplianceTestingLaboratoryLtd.isacknowledgedascopyrightownerandsourceofthe material.ShenzhenLCSComplianceTestingLaboratoryLtd.takesnoresponsibilityforandwillnotassume liabilityfordamagesresultingfromthereader'sinterpretationofthereproducedmaterialduetoitsplacement andcontext. EUTDescription...............................:bluetoothremotecontrol TradeMark.........................................................................................................................................................:N/A TestModel..........................................................................................................................................................: T4HiU2005/35k Ratings................................................................................................................................................................:DC3Vby2*AAABattery Result..................................................:Positive Compiledby:Supervisedby:Approvedby: JackLiu/AdministratorsJinWang/TechniqueprincipalGavinLiang/Manager SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AYLW-ALALBLE01ReportNo.:LCS210601027AEA Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page3of31 FCC--TESTREPORT TestModel...........................:T4HiU2005/35k EUT.........................................:bluetoothremotecontrol Applicant...............................: Tech4homeInternational,Lda Address..................................: StartupMadeira,CampusdaPenteada,9020-105Funchal,Portuga l Telephone...............................: / Fax..........................................: / Manufacturer........................: Tech4homeInternational,Lda Address...................................: StartupMadeira,CampusdaPenteada,9020-105Funchal,Portuga l Telephone...............................: / Fax..........................................: / Factory...................................: Tech4homeInternational,Lda Address...................................: StartupMadeira,CampusdaPenteada,9020-105Funchal,Portuga l Telephone...............................:/ Fax..........................................:/ TestResultPositive Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetestlaboratory. TestReportNo.:LCS210601027AEA June11,2021 Dateofissue SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AYLW-ALALBLE01ReportNo.:LCS210601027AEA Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page4of31 RevisionHistory RevisionIssueDateRevisionsRevisedBy 000June11,2021InitialIssueGavinLiang SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AYLW-ALALBLE01ReportNo.:LCS210601027AEA Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page5of31 TABLEOFCONTENTS 1.GENERALINFORMATION.....................................................................................................................................6 1.1.DESCRIPTIONOFDEVICE(EUT).........................................................................................................................6 1.2.HOSTSYSTEMCONFIGURATIONLISTANDDETAILS..........................................................................................6 1.3.EXTERNALI/OCABLE..........................................................................................................................................6 1.4.DESCRIPTIONOFTESTFACILITY.........................................................................................................................6 1.5.STATEMENTOFTHEMEASUREMENT…

Text truncated - open the document above for the full version.

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AYLW-ALALBLE01 _______________________________________________________________________________________________ 1.TESTSETUPPHOTOGRAPHS 1.1.PhotoofRadiatedEmissionsMeasurement Fig.1 Fig.2
