2AYM8-HM25BUBaby Monitor

5 2 HM25BU This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC Radiation Exposure Statement This device complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. FCC statement

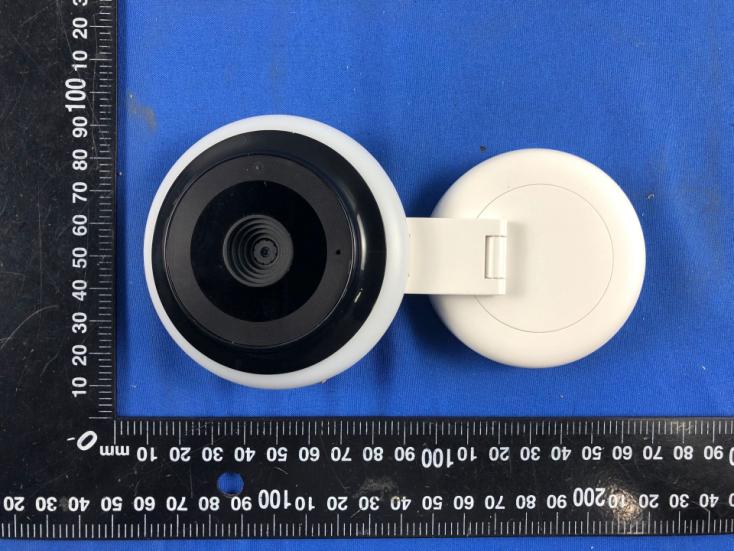

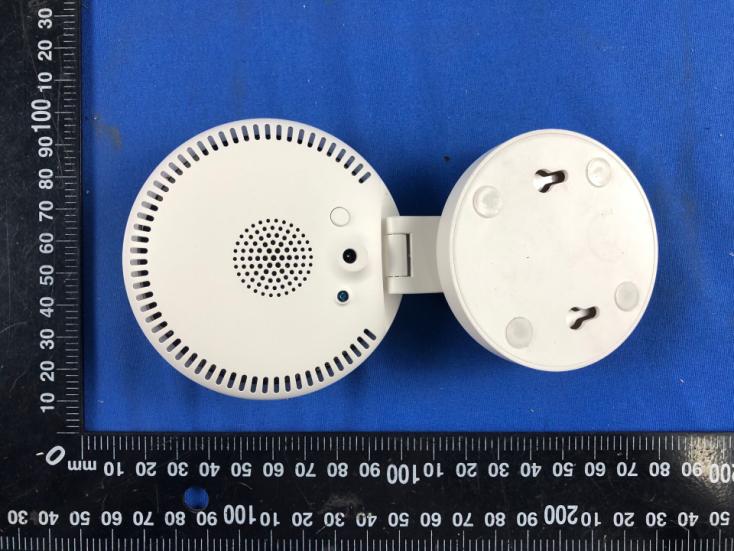

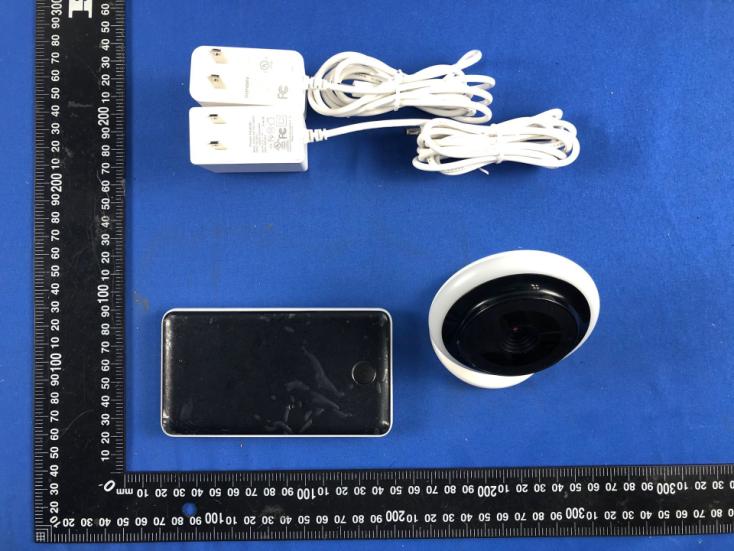

FCC ID: 2AYM8-HM25BU Page 1 of 3 Report No.: CTL2101041021-WF External Photos of EUT FCC ID: 2AYM8-HM25BU Page 2 of 3 Report No.: CTL2101041021-WF FCC ID: 2AYM8-HM25BU Page 3 of 3 Report No.: CTL2101041021-WF

FCC-ID Label Information 1. Label location: Baby Monitor Model: HM25BU FCC ID: 2AYM8-HM25BU This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID: 2AYM8-HM25BU Page 1 of 2 Report No.: CTL2101041021-WF Internal Photos of EUT FCC ID: 2AYM8-HM25BU Page 2 of 2 Report No.: CTL2101041021-WF Antenna

version01 SHENZHEN LIANHUA ELECTRONIC CO., LTD 3/F, Building D, Dakan Science & Technology Park, Xili Sub-district, NanShan, Shenzhen, Guangdong, P. R. China. P.C:518055 Tel: 0755-26552934 Fax: 0755-26552934 Declaration concerning Antenna Specification It is hereby declared that the product Model No.: HM25BU FCC ID: 2AYM8-HM25BU fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for Monopole antenna type(s) described below: Model No. of antenna: NA Type of antenna: Monopole antenna Gain of the antenna: 0 dBi Frequency range: 2410~2472 MHz Mo The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: SHENZHEN LIANHUA ELECTRONIC CO.,LTD Address: 3/F, Building D, Dakan Science & Technology Park, Xili Sub-district, NanShan, Shenzhen, Guangdong, P. R. China. P.C:518055 City: SHENZHEN ZIP / Postal code: Country: China Place: China Date: 2021.02.22 Signature:

FCC ID: 2AYM8-HM25BU Page 1 of 1 Report No.: CTL2101041021-WF RF Exposure Letter According to 447498 D01 General RF Exposure Guidance v05 The 1‐g and 10‐g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune‐up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1‐g SAR and ≤ 7.5 for 10‐g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison pt=(96.34+9.54-104.7)dBm= 1.31mW at 2410.88MHz So (1.31 mW/5mm)x √2.41088GHz = 0.4075<3 Then SAR evaluation is not required

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] TEST REPORT FOR FCC PART 15 SUBPART C 15.249 Report Reference No. ................ : CTL2101041021-WF Compiled by: ( position+printed name+signature) Happy Guo (File administrators) Tested by: ( position+printed name+signature) Nice Nong (Test Engineer) Approved by: ( position+printed name+signature) Ivan Xie (Manager) Product Name ............................ : Baby Monitor Model/Type reference ................ : HM25BU List Model(s) ............................... : N/A Trade Mark .................................. : N/A FCC ID ......................................... : 2AYM8-HM25BU Applicant’s name ....................... : SHENZHEN LIANHUA ELECTRONIC CO.,LTD Address of applicant ................. : 3/F, Building D, Dakan Science & Technology Park, Xili Sub-district, NanShan, Shenzhen, Guangdong, P. R. China. P.C:518055 Test Firm ..................................... : Shenzhen CTL Testing Technology Co., Ltd. Address of Test Firm ................. : Floor 1-A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Test specification ....................... : Standard ...................................... : FCC Part 15.249:Operation within the bands 920-928 MHz, 2400-2483.5 MHz, 5725-5850 MHz and 24.0 - 24.25 GHz. TRF Originator ............................. : Shenzhen CTL Testing Technology Co., Ltd. Master TRF .................................. : Dated 2011-01 Date of receipt of test item ........ : Jan. 08, 2021 Date of sampling ........................ : Jan. 08, 2021 Date of Test Date ........................ : Jan. 08, 2021–Jan. 26, 2021 Data of Issue............................... : Jan. 26, 2021 Result .......................................... : Pass Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. V1.0 Page 2 of 27 Report No.: CTL2101041021-WF TEST REPORT Test Report No. : CTL2101041021-WF Jan. 26, 2021 Date of issue Equipment under Test : Baby Monitor Sample No. CTL210104102-1-S001 Model /Type : HM25BU Applicant : SHENZHEN LIANHUA ELECTRONIC CO.,LTD Address : 3/F, Building D, Dakan Science & Technology Park, Xili Sub-district, NanShan, Shenzhen, Guangdong, P. R. China. P.C:518055 Manufacturer : SHENZHEN LIANHUA ELECTRONIC CO.,LTD Address : 3/F, Building D, Dakan Science & Technology Park, Xili Sub-district, NanShan, Shenzhen, Guangdong, P. R. China. P.C:518055 Test result Pass * * In the configuration tested, the EUT complied with the standards specified page 5. The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the issuing testing laboratory. V1.0 Page 3 of 27 Report No.: CTL2101041021-WF ** Modified History ** Revision Description Issued Data Report No. Remark Version 1.0 Initial Test Report Release 2021-01-26 CTL2101041021-WF Tracy Qi V1.0 Page 4 of 27 Report No.: CTL2101041021-WF Table of Contents Page 1. SUMMARY ............................................................................................................................................................... 5 1.1. TEST STANDARDS ..................................................................................................................................................... 5 1.2. TEST DESCRIPTION ........................................................................................................................................................ 5 1.3. TEST FACILITY .............................................................................................................................................................. 6 1.4. STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................................... 6 2. GENERAL INFORMATION .......................................................................................................................................... 7 2.1. ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 7 2.2. GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 7 2.3. DESCRIPTION OF TEST MODES AND TEST FREQUENCY .......................................................................................................... 7 2.4. EQUIPMENTS USED DURING THE TEST .............................................................................................................................. 8 2.5. RELATED SUBMITTAL(S) / GRANT(S)................................................................................................................................. 8 2.6. MODIFICATIONS ........................................................................................................................................................... 8 3. TEST CONDITIONS AND RESULTS .............................................................................................................................. 9 3.1. CONDUCTED EMISSIONS TEST ......................................................................................................................................... 9 3.2. RADIATED EMISSIONS AND BAND EDGE .......................................................................................................................... 12 3.3. OCCUPIED BANDWIDTH MEASUREMENT …

Text truncated - open the document above for the full version.

FCC ID: 2AYM8-HM25BU Page 1 of 1 Report No.: CTL2101041021-WF Test Setup Photos of the EUT
