2AYPE-RWBN22744All-in-one PC

[email protected] Model:RWBN22744 [email protected] Monitor screen Pop-up Camera Fully Adjustable Stand Power On/Off Audio Out/Headset SD Card Slot Data Type-c USB 2.0 2.5" SSD Slot (SATA SSD only) Speaker Power Adapter Port HDMI VGA USB 3.0X2 Ethernet port USB 3.0X2 Mic In Audio Out/Headset Kensington lock Brightness Up Brightness Down Line up the four buckles on stand VESA Panel with the holes on the backside of the monitor Hook and push them together, it was assembled well after you hear " click" Quick guide Supply power to the All-in-one PC Connect the supplied AC cable onto the supplied power adapter Connect the DC plug on the supplied power adapter to the charging socket (DC IN) on the All-in-one PC. Then plug the AC cable into a socket. Only leave the AC cable connected to the socket until you shut down your All-in-one PC. In addition, always disconnect the power adapter from the All-in-one PC when you are not charging it. Turning on the All-in-one PC for the first time Connect the DC plug on the supplied power adapter to the charging socket (DC IN) on the All-in-one PC. Press the on/off switch for about 5 seconds to switch on the All-in-one PC. The setup assistant will then appear on the screen. Follow the setup assistant instructions to set up your All-in-one PC. During the start-up, the wizard prompts you to register for your Microsoft account. If you do not yet have a Microsoft account, please set one up here After completion of the start-up, your All-in-one PC is configured. This may take several minutes to complete. Do not turn the All-in-one PC off during this time! Unlocking the display As soon as the device has been set up (and every time it is subsequently switched on and booted up), the lock screen appears, Press any key on the wireless keyboard to unlock the screen. If your All-in-one PC is password-protected, you must then enter the password. Start menu To display the start menu, click the Windows icon in the bottom left of the display or press the the Windows button on the keyboard. Press the icon a second time to hide the Start menu. The Start menu consists of the classic navigation list (A) and a useful app area (B) to the right of the navigation list. Among other things, the navigation list includes a link to open Settings (cog wheel icon).In the app area, you can pin apps and favorites in the form of live tiles and organize them. In the navigation list (A) you find a list of all installed apps in alphabetical order. An alphabetic quick access to the navigation list appears when you click on a respective first letter. The Action Center The Info Center is a bar with quick links to some important All-in-one PC functions, which you can either display or hide. To access the Info Center click the memo symbol in the bottom fight-hand corner. Activating WIFI and opening the browser a. Call up Settings(see “Start menu”). b In the settings, click “Network & Internet”. c Click “ Wi-Fi” on the left in the next screen. d Click the slider or the word “Off”. The word “On” now appears next to the slider. The All-in-one PC searches for all available for all available wireless networks nearby and then displays them as a list (“Show available networks”). e Click the network that you wish to connect to. f Enter the network key (password) if necessary. g . Click “Connect”. The All-in-one PC connects to the selected network. The button for launching the Internet browser can be found on the task bar at the bottom of the display. Click the little blue “e” to launch the browser. To enter an Internet address (URL), click the search bar displayed centrally at the top of the window. Reset If the All-in-one PC “freezes” and no longer responds, you can reset it. Please and hold down then on/off switches off. Wait for about 20 seconds and then turn the All-in-one PC on normally. Any files that have not been saved will be lost when the All-in-one PC is reset. Switching off the All-in-one PC Standby Briefly press the on/off switch on the device to activate the standby mode. Press it again quickly to take the All-in-one PC out of standby mode. Shutting down Open the Start menu. Click“Ф” in the bottom area of the Start menu and then tap “Shut down”. The All-in-one PC shuts down. Saving energy Deactivate the WIFI function when it is not in use. Only leave the power adapter connected to the socket until the All-in-one PC’s battery is fully charged. In addition, always disconnect the power adapter form the All-in-one PC when you are not charging the All-in-one PC. Reduce the display brightness under “System”→“Display” in the settings. Activate standby mode or turn off the All-in-one PC completely if you are not using the All-in-one PC. General safety information WARNING Risk of multiple injuries due ton reduced phsysical, sensory or mental capabilities and/or lack of knowledge or practical experience Children and vulnerable individuals may only use the device under direct supervision. Risk of electric shock or electrocution from live components Do not insert objects into the device’s ventilation slots. Do not open the power adapter. Do not touch the power adapter if you hands are wet. Do not short out the device and/or charger. Fire hazard and or risk of burns from damaged or leaking batteries Do not use or charge the device if the battery if damaged or leaking. Do not use or charge the device if the battery is damaged or leaking. Avoid skin contact with the device and/or battery if the battery is leaking. Wear protective gloves if it is not possible to avoid touching the device/battery in such cases. Immediately wash your hands thoroughly in the event of skin contact with the battery substrate. If the battery substrate comes into contact with your eyes, rinse them out with plenty of water and consult a physician immediately. Risk of fire or explosion when using non-approved chargers and power adapters Only use the included power adapter or on an equivalent power adapter to …

Text truncated - open the document above for the full version.

Rev1/26/2023 E&SInternationalEnterprises,Inc. FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA Date:18July2024 Ref:AttestationStatementsPart2.911(d)(5)(i)Filing FCCID:2AYPE-RWBN22744 E&SInternationalEnterprises,Inc.(“theapplicant”)certifiesthattheequipmentforwhichauthorization issoughtisnot“covered”equipmentprohibitedfromreceivinganequipmentauthorizationpursuantto section2.903oftheFCCrules. Sincerely, TingLiu Rev1/26/2023 E&SInternationalEnterprises,Inc. FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA Date:18July2024 Ref:AttestationStatementsPart2.911(d)(5)(ii)Filing FCCID:2AYPE-RWBN22744 E&SInternationalEnterprises,Inc.(“theapplicant”)certifiesthat,asofthedateofthefilingofthe application,theapplicantisnotidentifiedontheCoveredListasanentityproducing“covered” equipment.E&SInternationalEnterprises,Inc.certifiesthat,asofthedateofthefillingoftheapplication, theapplicantisnotidentifiedontheCoverlist(asspecificallynamedentityoranyofitssubsidiariesor affiliates)asanentityproducing”coveredequipment. Sincerely, TingLiu

[E&S International Enterprises, Inc.] [7801 Hayvenhurst Avenue, Van Nuys, California 91406, United States] Date: July 18, 2024 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AYPE-RWBN22744 FRN: 0030411623 US Agent – Attestation Statement / Part 2.911(d)(7) [E&S International Enterprises, Inc.] certifies, that as of July 18, 2024, we have designated E&S International Enterprises, Inc. to accept service of process on our behalf for FCC ID:2AYPE- RWBN22744. [E&S International Enterprises, Inc.], accepts to maintain an agent of service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. E&S International Enterprises, Inc., accepts as of the date of the filing of this application, the obligation of being the designated agent for the purpose of accepting service of process on behalf of [E&S International Enterprises, Inc.] for FCC ID: 2AYPE-RWBN22744. Designated Agent Information: Company Name: E&S International Enterprises, Inc. Address: 7801 Hayvenhurst Avenue, Van Nuys, California 91406, United States FRN: 0030411623 Contact Person: Ting Liu Phone: +1 818 887 0700 Email: [email protected] Sincerely, Company: [E&S International Enterprises, Inc.] Company Representative: Ting Liu Signature:

Date: 18 July 2024 E&S International Enterprises, Inc. To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: The E&S International Enterprises, Inc., the undersigned, hereby authorizes Mr. Wu Xuewen from Shenzhen BALUN Technology Co., Ltd., to act on the behalf of the E&S International Enterprises, Inc. solely in matters relating to the application for an FCC equipment authorizati on for FCC ID: 2AYPE-RWBN22744 including the signing of documents in connection with this Application. Necessary acts carried out by Shenzhen BALUN Technology Co., Ltd. in connection with the Application shall have the same effect as acts of the E&S International Enterprises, Inc.. The E&S International Enterprises, Inc. also hereby certify that no pa rty to this application is subject to a denial of benefits, including FCC benefits, pursuant to Secti on 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. Section 862. Yours Sincerely, Ting Liu

Date: 18 July 2024 E&S International Enterprises, Inc. To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Re: E&S International Enterprises, Inc. FCC ID: 2AYPE-RWBN22744 FCC Certification Confidentiality Request Gentlemen: This letter is to comply with 47 CFR 0.457 and 0.459 pertaining to confidentiality material. E&S International Enterprises, Inc. requests that the following documents regarding this submission for FCC ID: 2AYPE-RWBN22744 be kept confidential: Exhibit Type File Name Block Diagram Block Diagram.pdf Schematics Schematics.pdf Operational Description Operational Description.pdf General Description for UNII Devices General Description for UNII Devices.pdf Those documents contain detailed system and equipment description and related information about the product which E&S International Enterprises, Inc. considers to be confidential proprietary, a custom design and, otherwise, not releasable to the general public. Since this design is a basis form which future technological products will evolve, E&S International Enterprises, Inc. considers this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Yours Sincerely, Ting Liu

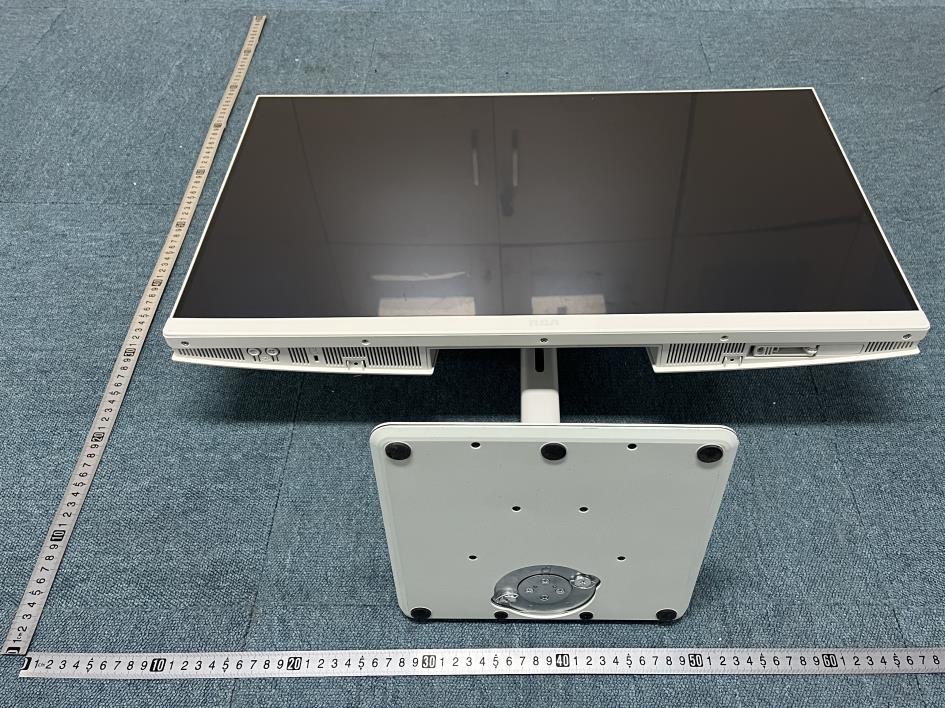

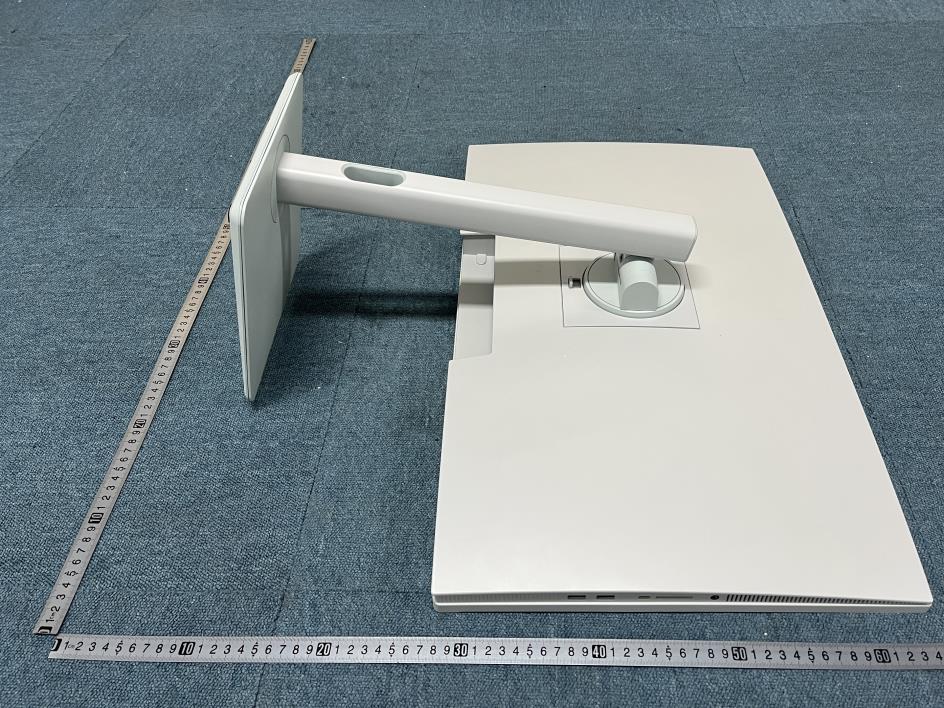

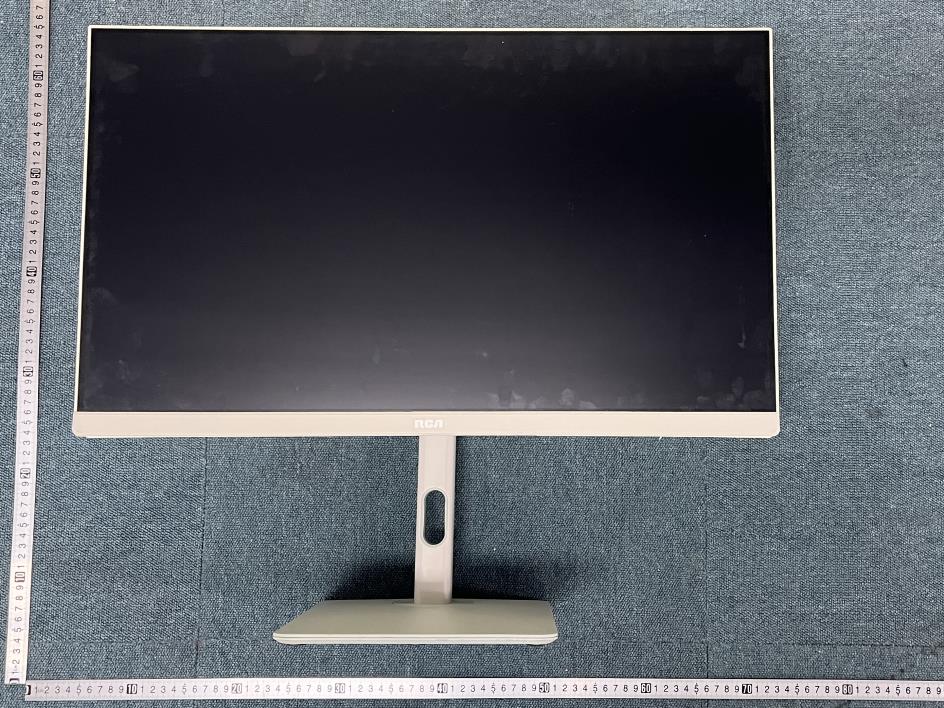

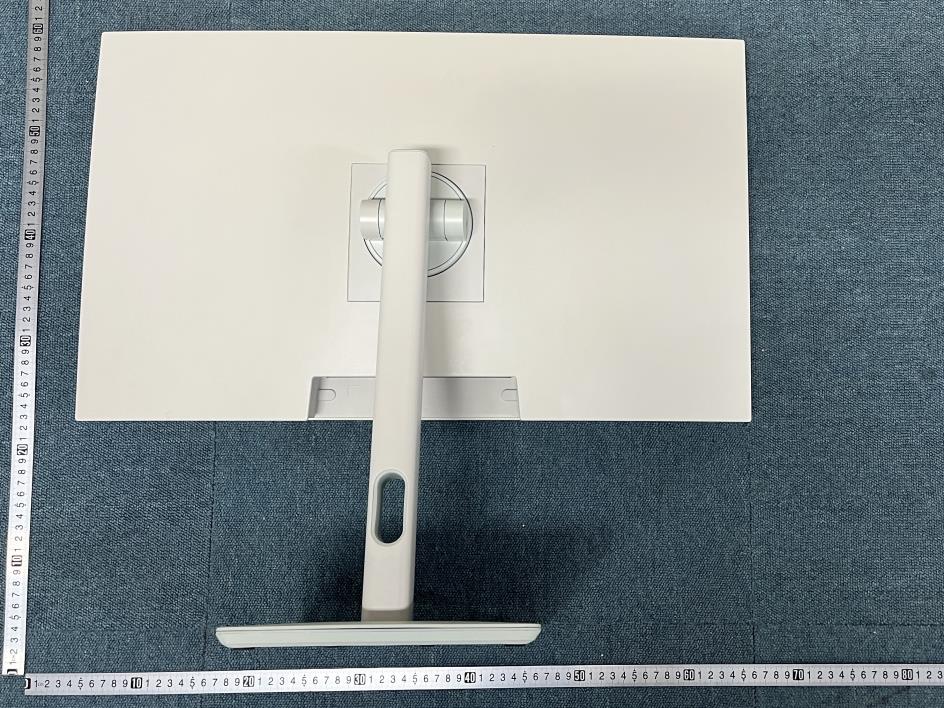

Report No.: BL-SZ2460562-AW 1 / 6 EUT EXTERNAL PHOTOS FRONT VIEW OF EUT REAR VIEW OF EUT Report No.: BL-SZ2460562-AW 2 / 6 LEFT VIEW OF EUT CLOSE-UP Report No.: BL-SZ2460562-AW 3 / 6 RIGHT VIEW OF EUT CLOSE-UP Report No.: BL-SZ2460562-AW 4 / 6 TOP VIEW OF EUT BOTTOM VIEW OF EUT Report No.: BL-SZ2460562-AW 5 / 6 CLOSE-UP Accessory-Adapter Report No.: BL-SZ2460562-AW 6 / 6 CLOSE-UP --BLANK BELOW--

Label: Location：

Report No.: BL-SZ2460562-AI 1 / 13 EUT INTERNAL PHOTOS EUT UNCOVER VIEW 1 EUT UNCOVER VIEW 2 Report No.: BL-SZ2460562-AI 2 / 13 EUT UNCOVER VIEW 3 CLOSE-UP Main Antenna Aux Antenna Report No.: BL-SZ2460562-AI 3 / 13 EUT UNCOVER VIEW 4 EUT UNCOVER VIEW 5 Report No.: BL-SZ2460562-AI 4 / 13 EUT UNCOVER VIEW 6 EUT UNCOVER VIEW 7 Report No.: BL-SZ2460562-AI 5 / 13 MAIN BOARD TOP VIEW (WITH SHIELDING) MAIN BOARD TOP VIEW (WITHOUT SHIELDING) RF Chip Report No.: BL-SZ2460562-AI 6 / 13 MAIN BOARD REAR VIEW SECONDARY BOARD 1 TOP VIEW Report No.: BL-SZ2460562-AI 7 / 13 SECONDARY BOARD 1 REAR VIEW SECONDARY BOARD 2 TOP VIEW Report No.: BL-SZ2460562-AI 8 / 13 SECONDARY BOARD 2 REAR VIEW SECONDARY BOARD 3 TOP VIEW Report No.: BL-SZ2460562-AI 9 / 13 SECONDARY BOARD 3 REAR VIEW SECONDARY BOARD 4 TOP VIEW Report No.: BL-SZ2460562-AI 10 / 13 SECONDARY BOARD 4 REAR VIEW SECONDARY BOARD 5 TOP VIEW Report No.: BL-SZ2460562-AI 11 / 13 SECONDARY BOARD 5 REAR VIEW SECONDARY BOARD 6 TOP VIEW Report No.: BL-SZ2460562-AI 12 / 13 SECONDARY BOARD 6 REAR VIEW SECONDARY BOARD 7 TOP VIEW Report No.: BL-SZ2460562-AI 13 / 13 SECONDARY BOARD 7 REAR VIEW --BLANK BELOW--

Report No.: BL-SZ2460562-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 1 / 11 Web: www.titcgroup.com Template No.: TRP-FCC-Mobile (2023-10-07) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China TEST REPORT Applicant: E&S International Enterprises, Inc. Address: 7801 Hayvenhurst Avenue, Van Nuys, California 91406 USA Equipment Type: All-in-one PC Model Name: RWBN22744 (refer to section 2.3) Brand Name: RCA FCC ID: 2AYPE-RWBN22744 Test Standard: 47 CFR Part 2.1091 KDB 447498 D04 v01 Sample Arrival Date: May 30, 2024 Test Date: Jun. 18, 2024 - Jul. 11, 2024 Date of Issue: Jul. 18, 2024 ISSUED BY: Shenzhen BALUN Technology Co., Ltd. Tested by: Xiong Lining Checked by: Xu Rui Approved by: Tolan Tu (Testing Director) _______________ _______________ _______________ Report No.: BL-SZ2460562-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 2 / 11 Web: www.titcgroup.com Template No.: TRP-FCC-Mobile (2023-10-07) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China Revision History Version Issue Date Revisions Content Rev. 01 Jul. 18, 2024 Initial Issue TABLE OF CONTENTS 1 GENERAL INFORMATION ......................................................................................................... 3 1.1 Test Laboratory .............................................................................................................. 3 1.2 Test Location .................................................................................................................. 3 2 PRODUCT INFORMATION ......................................................................................................... 4 2.1 Applicant Information ...................................................................................................... 4 2.2 Manufacturer Information ............................................................................................... 4 2.3 General Description for Equipment under Test (EUT) ................................................... 4 2.4 Technical Information ..................................................................................................... 5 3 SUMMARY OF TEST RESULT ................................................................................................... 6 3.1 Test Standards ............................................................................................................... 6 3.2 Limit Standards .............................................................................................................. 6 4 DEVICE CATEGORY AND LEVELS LIMITS .............................................................................. 7 5 ASSESSMENT RESULT ............................................................................................................. 9 5.1 Output Power ................................................................................................................. 9 5.2 Tune-up power ............................................................................................................... 9 5.3 RF Exposure Evaluation Result ..................................................................................... 9 5.4 Collocated Power Calculation ...................................................................................... 10 5.5 Conclusion .................................................................................................................... 10 Report No.: BL-SZ2460562-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 3 / 11 Web: www.titcgroup.com Template No.: TRP-FCC-Mobile (2023-10-07) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 1 GENERAL INFORMATION 1.1 Test Laboratory Name Shenzhen BALUN Technology Co., Ltd. Address Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China Phone Number +86 755 6685 0100 1.2 Test Location Name Shenzhen BALUN Technology Co., Ltd. Location Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 1/F, Building B, Ganghongji High-tech Intelligent Industrial Park, No. 1008, Songbai Road, Yangguang Community, Xili Sub-district, Nanshan District, Shenzhen, Guangdong Province, P. R. China Accreditation Certificate The laboratory is a testing organization accredited by FCC as a accredited testing laboratory. The designation number is CN1196. Report No.: BL-SZ2460562-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 4 / 11 Web: www.titcgroup.com Template No.: TRP-FCC-Mobile (2023-10-07) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 2 PRODUCT INFORMATION 2.1 Applicant Information Applicant E&S International Enterprises, Inc. Address 7801 Hayvenhurst Avenue, Van Nuys, California 91406 USA 2.2 Manufacturer Information Manufacturer Shenzhen Yuko Technology Co., Ltd. Address 6th, A9 Bldg, Tianrui Industrial Park, Fuyuan 1st Rd, Fuyong, Boanan, Shenzhen 2.3 General Description for Equipment under Test (EUT) EUT Name All-in-one PC Model Name Under Test RWBN22744 Series Model Name RWBN22744-GRY, E270 Description of Model name differentiation All models are same with electrical parameters and internal circuit structure, but only differ in shell color. (this information provided by the applicant) Hardware Version N/A Software Version 23H2 Dimensions (Approx.) N/A Weight (Approx.) N/A Report No.: BL-SZ2460562-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 5 / 11 Web: www.titcgroup.com Template No.: TRP-FCC-Mobile (2023-10-07) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 2.4 Technical Information Networ…

Text truncated - open the document above for the full version.

DocumentNo: BL-SZ2460562-604 Data Part 1 Page 1 of 114 AnnexA.2 26dB Bandwidth& 99% Bandwidth DocumentNo: BL-SZ2460562-604 Data Part 1 Page 2 of 114 Antenna1 26 dB Bandwidth 1. 802.11a_20M_U-NII-1_L 1.1. A.2-26dBBandwidth(NTNV) Center Frequency (MHz) XdB DownRBW (MHz)DetectorLimit (MHz) XdB BandWidth (MHz) Verdict 5180260.2Peak020.039904N/A DocumentNo: BL-SZ2460562-604 Data Part 1 Page 3 of 114 2. 802.11a_20M_U-NII-1_M 2.1. A.2-26dBBandwidth(NTNV) Center Frequency (MHz) XdB DownRBW (MHz)DetectorLimit (MHz) XdB BandWidth (MHz) Verdict 5220260.2Peak019.985928N/A DocumentNo: BL-SZ2460562-604 Data Part 1 Page 4 of 114 3. 802.11a_20M_U-NII-1_H 3.1. A.2-26dBBandwidth(NTNV) Center Frequency (MHz) XdB DownRBW (MHz)DetectorLimit (MHz) XdB BandWidth (MHz) Verdict 5240260.2Peak020.037402N/A DocumentNo: BL-SZ2460562-604 Data Part 1 Page 5 of 114 4. 802.11n_20M_U-NII-1_L 4.1. A.2-26dBBandwidth(NTNV) Center Frequency (MHz) XdB DownRBW (MHz)DetectorLimit (MHz) XdB BandWidth (MHz) Verdict 5180260.2Peak021.03598N/A DocumentNo: BL-SZ2460562-604 Data Part 1 Page 6 of 114 5. 802.11n_20M_U-NII-1_M 5.1. A.2-26dBBandwidth(NTNV) Center Frequency (MHz) XdB DownRBW (MHz)DetectorLimit (MHz) XdB BandWidth (MHz) Verdict 5220260.2Peak020.96622N/A DocumentNo: BL-SZ2460562-604 Data Part 1 Page 7 of 114 6. 802.11n_20M_U-NII-1_H 6.1. A.2-26dBBandwidth(NTNV) Center Frequency (MHz) XdB DownRBW (MHz)DetectorLimit (MHz) XdB BandWidth (MHz) Verdict 5240260.2Peak021.024815N/A DocumentNo: BL-SZ2460562-604 Data Part 1 Page 8 of 114 7. 802.11n_40M_U-NII-1_L 7.1. A.2-26dBBandwidth(NTNV) Center Frequency (MHz) XdB DownRBW (MHz)DetectorLimit (MHz) XdB BandWidth (MHz) Verdict 5190260.39Peak041.748973N/A DocumentNo: BL-SZ2460562-604 Data Part 1 Page 9 of 114 8. 802.11n_40M_U-NII-1_H 8.1. A.2-26dBBandwidth(NTNV) Center Frequency (MHz) XdB DownRBW (MHz)DetectorLimit (MHz) XdB BandWidth (MHz) Verdict 5230260.39Peak041.780511N/A DocumentNo: BL-SZ2460562-604 Data Part 1 Page 10 of 114 9. 802.11ac_20M_U-NII-1_L 9.1. A.2-26dBBandwidth(NTNV) Center Frequency (MHz) XdB DownRBW (MHz)DetectorLimit (MHz) XdB BandWidth (MHz) Verdict 5180260.2Peak021.246827N/A DocumentNo: BL-SZ2460562-604 Data Part 1 Page 11 of 114 10. 802.11ac_20M_U-NII-1_M 10.1. A.2-26dBBandwidth(NTNV) Center Frequency (MHz) XdB DownRBW (MHz)DetectorLimit (MHz) XdB BandWidth (MHz) Verdict 5220260.2Peak021.183984N/A DocumentNo: BL-SZ2460562-604 Data Part 1 Page 12 of 114 11. 802.11ac_20M_U-NII-1_H 11.1. A.2-26dBBandwidth(NTNV) Center Frequency (MHz) XdB DownRBW (MHz)DetectorLimit (MHz) XdB BandWidth (MHz) Verdict 5240260.2Peak021.292029N/A DocumentNo: BL-SZ2460562-604 Data Part 1 Page 13 of 114 12. 802.11ac_40M_U-NII-1_L 12.1. A.2-26dBBandwidth(NTNV) Center Frequency (MHz) XdB DownRBW (MHz)DetectorLimit (MHz) XdB BandWidth (MHz) Verdict 5190260.39Peak041.707898N/A DocumentNo: BL-SZ2460562-604 Data Part 1 Page 14 of 114 13. 802.11ac_40M_U-NII-1_H 13.1. A.2-26dBBandwidth(NTNV) Center Frequency (MHz) XdB DownRBW (MHz)DetectorLimit (MHz) XdB BandWidth (MHz) Verdict 5230260.39Peak041.744257N/A DocumentNo: BL-SZ2460562-604 Data Part 1 Page 15 of 114 14. 802.11ac_80M_U-NII-1_M 14.1. A.2-26dBBandwidth(NTNV) Center Frequency (MHz) XdB DownRBW (MHz)DetectorLimit (MHz) XdB BandWidth (MHz) Verdict 5210260.82Peak082.398967N/A DocumentNo: BL-SZ2460562-604 Data Part 1 Page 16 of 114 15. 802.11a_20M_U-NII-3_L 15.1. A.2-26dBBandwidth(NTNV) Center Frequency (MHz) XdB DownRBW (MHz)DetectorLimit (MHz) XdB BandWidth (MHz) Verdict 5745260.2Peak039.441254N/A DocumentNo: BL-SZ2460562-604 Data Part 1 Page 17 of 114 16. 802.11a_20M_U-NII-3_M 16.1. A.2-26dBBandwidth(NTNV) Center Frequency (MHz) XdB DownRBW (MHz)DetectorLimit (MHz) XdB BandWidth (MHz) Verdict 5785260.2Peak039.466945N/A DocumentNo: BL-SZ2460562-604 Data Part 1 Page 18 of 114 17. 802.11a_20M_U-NII-3_H 17.1. A.2-26dBBandwidth(NTNV) Center Frequency (MHz) XdB DownRBW (MHz)DetectorLimit (MHz) XdB BandWidth (MHz) Verdict 5825260.2Peak039.449388N/A DocumentNo: BL-SZ2460562-604 Data Part 1 Page 19 of 114 18. 802.11n_20M_U-NII-3_L 18.1. A.2-26dBBandwidth(NTNV) Center Frequency (MHz) XdB DownRBW (MHz)DetectorLimit (MHz) XdB BandWidth (MHz) Verdict 5745260.2Peak040N/A DocumentNo: BL-SZ2460562-604 Data Part 1 Page 20 of 114 19. 802.11n_20M_U-NII-3_M 19.1. A.2-26dBBandwidth(NTNV) Center Frequency (MHz) XdB DownRBW (MHz)DetectorLimit (MHz) XdB BandWidth (MHz) Verdict 5785260.2Peak040N/A DocumentNo: BL-SZ2460562-604 Data Part 1 Page 21 of 114 20. 802.11n_20M_U-NII-3_H 20.1. A.2-26dBBandwidth(NTNV) Center Frequency (MHz) XdB DownRBW (MHz)DetectorLimit (MHz) XdB BandWidth (MHz) Verdict 5825260.2Peak040N/A DocumentNo: BL-SZ2460562-604 Data Part 1 Page 22 of 114 21. 802.11n_40M_U-NII-3_L 21.1. A.2-26dBBandwidth(NTNV) Center Frequency (MHz) XdB DownRBW (MHz)DetectorLimit (MHz) XdB BandWidth (MHz) Verdict 5755260.39Peak080N/A DocumentNo: BL-SZ2460562-604 Data Part 1 Page 23 of 114 22. 802.11n_40M_U-NII-3_H 22.1. A.2-26dBBandwidth(NTNV) Center Frequency (MHz) XdB DownRBW (MHz)DetectorLimit (MHz) XdB BandWidth (MHz) Verdict 5795260.39Peak080N/A DocumentNo: BL-SZ2460562-604 Data Part 1 Page 24 of 114 23. 802.11ac_20M_U-NII-3_L 23.1. A.2-26dBBandwidth(NTNV) Center Frequency (MHz) XdB DownRBW (MHz)DetectorLimit (MHz) XdB BandWidth (MHz) Verdict 5745260.2Peak040N/A DocumentNo: BL-SZ2460562-604 Data Part 1 Page 25 of 114 24. 802.11ac_20M_U-NII-3_M 24.1. A.2-26dBBandwidth(NTNV) Center Frequency (MHz) XdB DownRBW (MHz)DetectorLimit (MHz) XdB BandWidth (MHz) Verdict 5785260.2Peak040N/A DocumentNo: BL-SZ2460562-604 Data Part 1 Page 26 of 114 25. 802.11ac_20M_U-NII-3_H 25.1. A.2-26dBBandwidth(NTNV) Center Frequency (MHz) XdB DownRBW (MHz)DetectorLimit (MHz) XdB BandWidth (MHz) Verdict 5825260.2Peak040N/A DocumentNo: BL-SZ2460562-604 Data Part 1 Page 27 of 114 26. 802.11ac_40M_U-NII-3_L 26.1. A.2-26dBBandwidth(NTNV) Center Frequency (MHz) XdB DownRBW (MHz)DetectorLimit (MHz) XdB BandWidth (MHz) Verdict 5755260.39Peak080N/A DocumentNo: BL-SZ2460562-604 Data Part 1 Page 28 of …

Text truncated - open the document above for the full version.

深圳星源创科技有限公司 ShenZhenXingYuanChuangTechnologyCo.,Ltd 地址：深圳市宝安区福永镇福海街道塘尾股份商务大厦1506 Address:1506,TangweiBusinessBuilding,FuhaiStreet,FuyongTown,BaoanDistrict,Shenzhen Tel：0755-82103639QQ：487580356Email：[email protected] 规格承认书 ApprovalSheet 客户名称 Customer 昱科 日期 Data 2024/05/30 产品名称 Product WiFi 副天线 客户机型 Models E270 料号 P/N F667E-14RG-255 客户料号 CustomerP/N 31TX00E27025500 规格描述 Specifications 黑色FPC；RF0.81四代端子灰色同轴线；L=255mm 供应商承认签印 VenderApprovedBy 客户承认签印 CustomerApprovedBy CheckedBy:CheckedBy: AuditBy:AuditBy: ApprovalBy:ApprovalBy: 文件修订履历表 版本 Version 修订内容 ReviseTheContent 修订人 Revused 核准 Approval 修订日期 Date 备注 Note 深圳星源创科技有限公司 ShenZhenXingYuanChuangTechnologyCo.,Ltd 地址：深圳市宝安区福永镇福海街道塘尾股份商务大厦1506 Address:1506,TangweiBusinessBuilding,FuhaiStreet,FuyongTown,BaoanDistrict,Shenzhen Tel：0755-82103639QQ：487580356Email：[email protected] Content NO.ProectPageNO. 1Specification3 2WiFiAntTestInformation4 ３ AntennaPlacement5 ４ TestData6~~8 ５ AntennaAssembly9 深圳星源创科技有限公司 ShenZhenXingYuanChuangTechnologyCo.,Ltd 地址：深圳市宝安区福永镇福海街道塘尾股份商务大厦1506 Address:1506,TangweiBusinessBuilding,FuhaiStreet,FuyongTown,BaoanDistrict,Shenzhen Tel：0755-82103639QQ：487580356Email：[email protected] Specification 1.1ElectricalProperties CharacteristicsSpecifications WorkingBand 2.4GWiFi； 5GWiFi AntennaFromPIFA Impedance50Ω PolarizationLinear PeakEffi 41%@2.4G； 40%@5G PeakGain [email protected]； 2.8dBi@5G 1.2PhysicalProperties CharacteristicsSpecifications OperatingTemp -10°C~+60°C StorageTemp -10°C~+70°C Humidity10~95%RH 深圳星源创科技有限公司 ShenZhenXingYuanChuangTechnologyCo.,Ltd 地址：深圳市宝安区福永镇福海街道塘尾股份商务大厦1506 Address:1506,TangweiBusinessBuilding,FuhaiStreet,FuyongTown,BaoanDistrict,Shenzhen Tel：0755-82103639QQ：487580356Email：[email protected] WiFiAntTestInformation 深圳星源创科技有限公司 ShenZhenXingYuanChuangTechnologyCo.,Ltd 地址：深圳市宝安区福永镇福海街道塘尾股份商务大厦1506 Address:1506,TangweiBusinessBuilding,FuhaiStreet,FuyongTown,BaoanDistrict,Shenzhen Tel：0755-82103639QQ：487580356Email：[email protected] AntennaPlacement 深圳星源创科技有限公司 ShenZhenXingYuanChuangTechnologyCo.,Ltd 地址：深圳市宝安区福永镇福海街道塘尾股份商务大厦1506 Address:1506,TangweiBusinessBuilding,FuhaiStreet,FuyongTown,BaoanDistrict,Shenzhen Tel：0755-82103639QQ：487580356Email：[email protected] TestData S11Parameter-VSWR EfficiencyTable(2.4G) 深圳星源创科技有限公司 ShenZhenXingYuanChuangTechnologyCo.,Ltd 地址：深圳市宝安区福永镇福海街道塘尾股份商务大厦1506 Address:1506,TangweiBusinessBuilding,FuhaiStreet,FuyongTown,BaoanDistrict,Shenzhen Tel：0755-82103639QQ：487580356Email：[email protected] EfficiencyTable(5G) 深圳星源创科技有限公司 ShenZhenXingYuanChuangTechnologyCo.,Ltd 地址：深圳市宝安区福永镇福海街道塘尾股份商务大厦1506 Address:1506,TangweiBusinessBuilding,FuhaiStreet,FuyongTown,BaoanDistrict,Shenzhen Tel：0755-82103639QQ：487580356Email：[email protected] RadiationPattern(2.4G) RadiationPattern(5G) 深圳星源创科技有限公司 ShenZhenXingYuanChuangTechnologyCo.,Ltd 地址：深圳市宝安区福永镇福海街道塘尾股份商务大厦1506 Address:1506,TangweiBusinessBuilding,FuhaiStreet,FuyongTown,BaoanDistrict,Shenzhen Tel：0755-82103639QQ：487580356Email：[email protected] AntennaAssembly

深圳星源创科技有限公司 ShenZhenXingYuanChuangTechnologyCo.,Ltd 地址：深圳市宝安区福永镇福海街道塘尾股份商务大厦1506 Address:1506,TangweiBusinessBuilding,FuhaiStreet,FuyongTown,BaoanDistrict,Shenzhen Tel：0755-82103639QQ：487580356Email：[email protected] 规格承认书 ApprovalSheet 客户名称 Customer 昱科 日期 Data 2024/05/30 产品名称 Product WiFi 主天线 客户机型 Models E270 料号 P/N F667E-14RB-400 客户料号 CustomerP/N 31TX00E27040000 规格描述 Specifications 黑色FPC；RF0.81四代端子黑色同轴线；L=400mm 供应商承认签印 VenderApprovedBy 客户承认签印 CustomerApprovedBy CheckedBy:CheckedBy: AuditBy:AuditBy: ApprovalBy:ApprovalBy: 文件修订履历表 版本 Version 修订内容 ReviseTheContent 修订人 Revused 核准 Approval 修订日期 Date 备注 Note 深圳星源创科技有限公司 ShenZhenXingYuanChuangTechnologyCo.,Ltd 地址：深圳市宝安区福永镇福海街道塘尾股份商务大厦1506 Address:1506,TangweiBusinessBuilding,FuhaiStreet,FuyongTown,BaoanDistrict,Shenzhen Tel：0755-82103639QQ：487580356Email：[email protected] Content NO.ProectPageNO. 1Specification3 2WiFiAntTestInformation4 ３ AntennaPlacement5 ４ TestData6~~8 ５ AntennaAssembly9 深圳星源创科技有限公司 ShenZhenXingYuanChuangTechnologyCo.,Ltd 地址：深圳市宝安区福永镇福海街道塘尾股份商务大厦1506 Address:1506,TangweiBusinessBuilding,FuhaiStreet,FuyongTown,BaoanDistrict,Shenzhen Tel：0755-82103639QQ：487580356Email：[email protected] Specification 1.1ElectricalProperties CharacteristicsSpecifications WorkingBand 2.4GWiFi； 5GWiFi AntennaFromPIFA Impedance50Ω PolarizationLinear PeakEffi 45%@2.4G； 44%@5G PeakGain [email protected]； 4.2dBi@5G 1.2PhysicalProperties CharacteristicsSpecifications OperatingTemp -10°C~+60°C StorageTemp -10°C~+70°C Humidity10~95%RH 深圳星源创科技有限公司 ShenZhenXingYuanChuangTechnologyCo.,Ltd 地址：深圳市宝安区福永镇福海街道塘尾股份商务大厦1506 Address:1506,TangweiBusinessBuilding,FuhaiStreet,FuyongTown,BaoanDistrict,Shenzhen Tel：0755-82103639QQ：487580356Email：[email protected] WiFiAntTestInformation 深圳星源创科技有限公司 ShenZhenXingYuanChuangTechnologyCo.,Ltd 地址：深圳市宝安区福永镇福海街道塘尾股份商务大厦1506 Address:1506,TangweiBusinessBuilding,FuhaiStreet,FuyongTown,BaoanDistrict,Shenzhen Tel：0755-82103639QQ：487580356Email：[email protected] AntennaPlacement 深圳星源创科技有限公司 ShenZhenXingYuanChuangTechnologyCo.,Ltd 地址：深圳市宝安区福永镇福海街道塘尾股份商务大厦1506 Address:1506,TangweiBusinessBuilding,FuhaiStreet,FuyongTown,BaoanDistrict,Shenzhen Tel：0755-82103639QQ：487580356Email：[email protected] TestData S11Parameter-VSWR EfficiencyTable(2.4G) 深圳星源创科技有限公司 ShenZhenXingYuanChuangTechnologyCo.,Ltd 地址：深圳市宝安区福永镇福海街道塘尾股份商务大厦1506 Address:1506,TangweiBusinessBuilding,FuhaiStre…
