2AYPG-A6NMAXReceiver, Set-top box, Media player

USBUSB FCC WARNING This devic e complie s wit h part 15 of the FCC Rules. Operat io n is subject t o the follo wing two condit ions: (1) this devic e may not cause harmful interference, an d (2) this devic e must accept an y interference received, in cluding interference that may cause undesire d operation. Any changes or modifications not expressly approved by the party responsib le for compliance could void the user's authorit y t o operate the equipment. NOTE: This equipment has been tested and found t o comply wit h the lim it s for a Class B digita l device, pursuant t o Part 15 of the FCC Rules. These limit s are designed t o provide reasonable protectio n against harmful interference in a residential installation. This equipment generates, uses and can radiat e radio frequency energy and, if not installe d and used in accordance wit h the instructions, may cause harmful interference t o radio communications. However, there is no guarantee that interference wil l not occur i n a particula r installat ion. If this equipment does cause harmful interference t o radio or television reception, whic h can be determined by turnin g the equipment o ff an d on, the user is encouraged t o t ry to correct the interference by one or more of t he following measures: -- Reorient o r relocate the receiv in g antenna. -- Increase the separat io n between the equipment and receiver. -- Connect the equipment into an outle t o n a circuit different from that t o whic h the receiver is connected. -- Consult the deale r or an experienced radio/TV technician for help. To maintai n compl ianc e with FCC’s RF Exposu re gu idel ines , Th is equ ipmen t shou ld be insta lled and operated with minimum distance between 20cm the radiator your body: Use only the supplied antenna. The use of the 5150 – 5 250 MHz band is restricted to indoor use only. This restriction will be applied in all member states.

FCC Software Configuration Control Declaration Rev1.1 Shenzhen LinkDroid Technology Co., Limited FCC Software Configuration Control Declaration Date: February 2, 2021 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Attn: OET Dept. Product/ Model Number: Receiver, Set-top box, Media player / A6N MAX Regarding FCC Country Code Selection guidelines identified in KDB 594280 D01 Software Configuration Control v02r01. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Name: Jeff Liu Date: 2021/02/02 Title: Manger Signatureof applicant

Shenzhen LinkDroid Technology Co., Limited Agent Authorization Company: Shenzhen LinkDroid Technology Co., Limited Address: Room 601, Building 5A, ShenzhenBay Science & Technology Park, Nanshan, Shenzhen, Guangdong, China Product Name: Receiver, Set-top box, Media player Model Number(s): A6N MAX Product Description: Receiver, Set-top box, Media player We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020/02/01 Name: Jeff Liu Title: Manager Company: Shenzhen LinkDroid Technology Co., Limited

Shenzhen LinkDroid Technology Co., Limited Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020/12/29 Subject; Request for Confidentiality FCC ID: 2AYPG-A6NMAX To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram software security requirement Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Jeff Liu Title: Manager

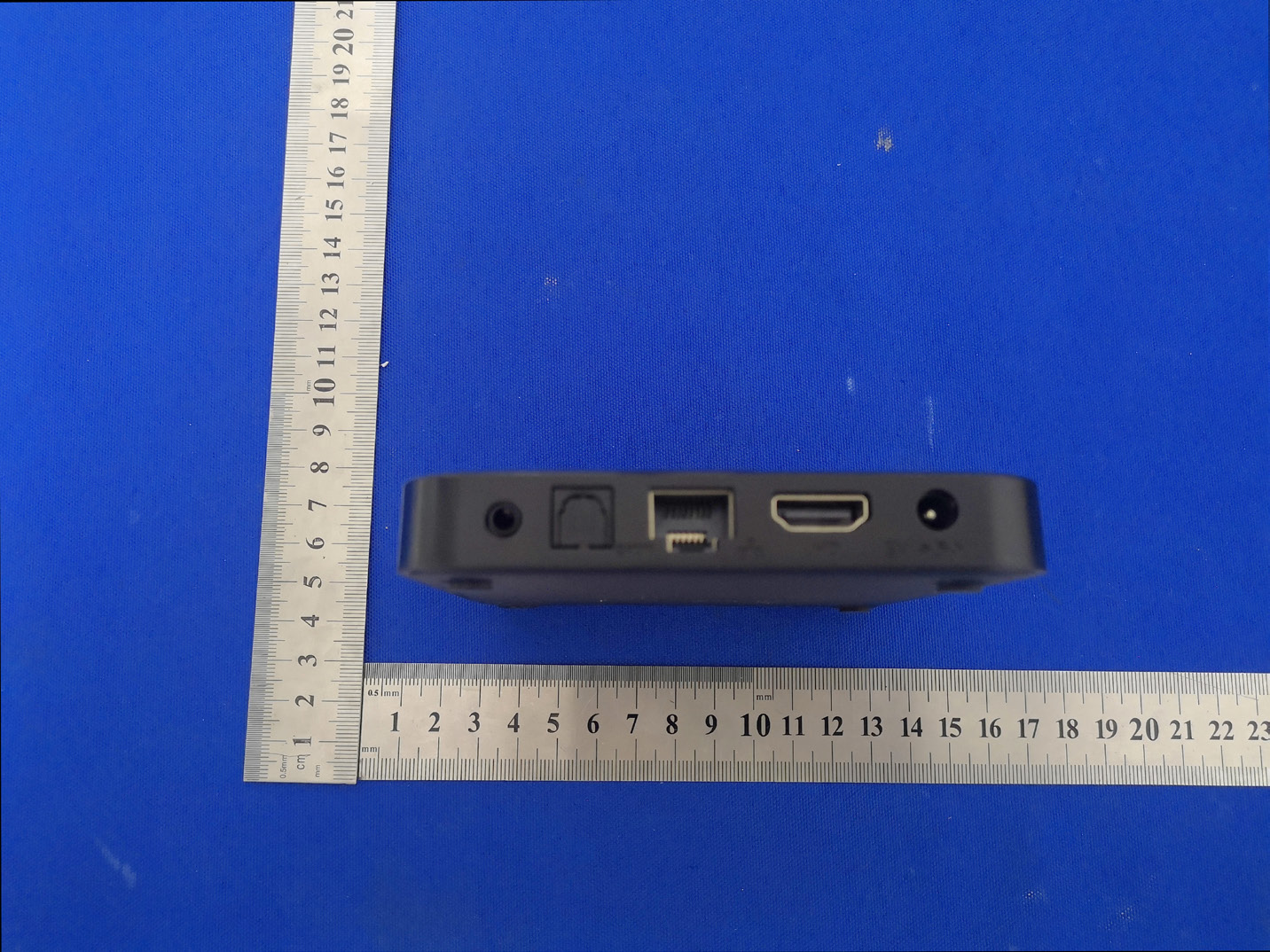

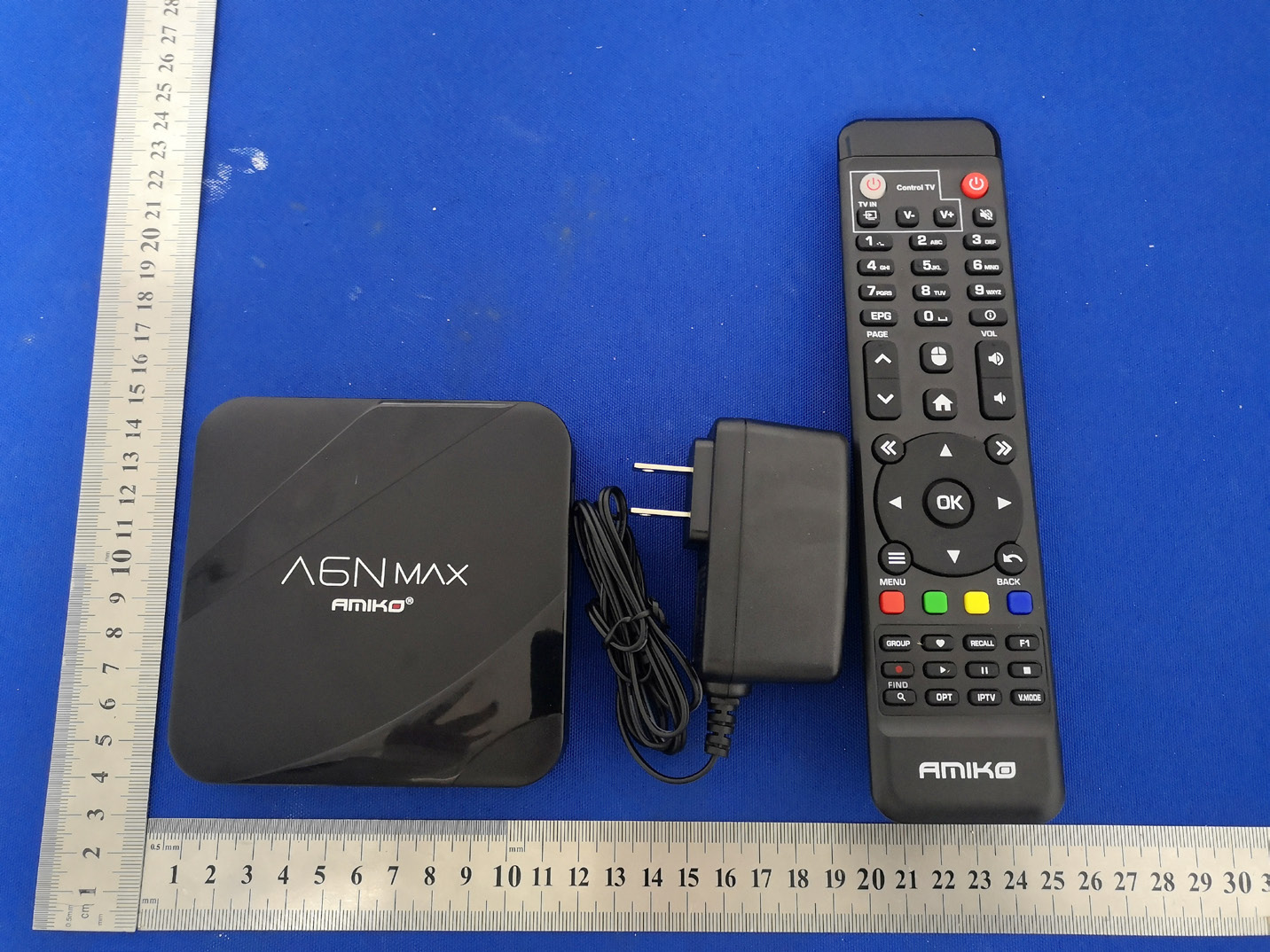

External Photos

Size:40*20mm M/N: A6N MAX FCC ID: 2AYPG-A6NMAX This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Label location

Internal Photos Antenna

FCC §15.247 (i), §2.1091 – RF Exposure FCC ID: 2AYPG-A6NMAX Applied procedures / limit According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density MPE PREDICTION Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna, R=0.2m TEST RESULTS The product does not support maximum synchronous transfer MPE Tune up Produce power Maximu m peak output power (dBm) Output power to antenn a (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm2) Limit (mW / cm2 ) Result 802.11b (2.4G Hz WIFI) 15±1 16 39.81 1.585 (2dBi) 0.01255 1 Pass 802.11a (U-NII-1) 13±1 14 25.12 1.585 (2dBi) 0.00792 1 Pass BT -2±1 -1 0.79 1.585 (2dBi) 0.00025 1 Pass

No.：BCTC/RF-EMC-005 Page: 1 of 68 Edition：A.3 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2101076568-3E Applicant: Shenzhen LinkDroid Technology Co., Limited Product Name: Receiver, Set-top box, Media player Model/Type Ref.: A6N MAX Tested Date: 2021-01-12 to 2021-01-25 Issued Date: 2021-01-26 Report No.: BCTC2101076568-3E No.：BCTC/RF-EMC-005 Page: 2 of 68 Edition：A.3 FCC ID: 2AYPG-A6NMAX The test report is effective only with both signature and specialized stamp.This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full.The tested sample(s) and the sample information are provided by the client. Product Name: Receiver, Set-top box,Media player Trademark: Amiko, AMIKO Model/Type Ref.: A6N MAX Prepared For: Shenzhen LinkDroid Technology Co., Limited Address: Room 601, Building 5A, ShenzhenBay Science & Technology Park, Nanshan, Shenzhen, Guangdong, China Manufacturer: Shenzhen LinkDroid Technology Co., Limited Address: Room 601, Building 5A, ShenzhenBay Science & Technology Park, Nanshan, Shenzhen, Guangdong, China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Tangwei, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2021-01-12 Sample tested Date: 2021-01-12 to 2021-01-25 Issue Date: 2021-01-26 Report No.: BCTC2101076568-3E Test Standards FCC Part15 15.407 ANSI C63.10-2013 KDB 789033 D02 v02r01 Test Results PASS Tested by: Approved by: Cathy Zhong/ Project Handler Zero Zhou/Reviewer Report No.: BCTC2101076568-3E No.：BCTC/RF-EMC-005 Page: 3 of 68 Edition：A.3 TABLE OF CONTENT Test Report Declaration Page 1. VERSION ............................................................ 5 2. TEST SUMMARY ..................................................... 6 3. MEASUREMENT UNCERTAINTY ....................................... 7 4. PRODUCT INFORMATION AND TEST SETUP............................ 8 4.1 Product Information ..................................................... 8 4.2 Test Setup Configuration ................................................ 9 4.3 Support Equipment ..................................................... 9 4.4 Channel List .......................................................... 10 4.5 Test Mode ............................................................ 11 4.6 table of parameters of text software setting ................................ 11 5. TEST FACILITY AND TEST INSTRUMENT USED ........................ 12 5.1 Test Facility ........................................................... 12 5.2 Test Instrument Used .................................................. 12 6. CONDUCTED EMISSIONS ............................................ 15 6.1 Block Diagram Of Test Setup ............................................ 15 6.2 Limit ................................................................. 15 6.3 Test procedure ........................................................ 15 6.4 EUT operating Conditions ............................................... 16 6.5 Test Result ........................................................... 17 7. RADIATED EMISSIONS .............................................. 19 7.1 Block Diagram Of Test Setup ............................................ 19 7.2 Limit ................................................................. 20 7.3 Test procedure ........................................................ 21 7.4 EUT operating Conditions ............................................... 22 7.5 Test Result ........................................................... 23 8. POWER SPECTRAL DENSITY TEST ................................... 32 8.1 Block Diagram Of Test Setup ............................................ 32 8.2 Limit ................................................................. 32 8.3 Test procedure ........................................................ 33 8.4 EUT operating Conditions ............................................... 33 8.5 Test Result ........................................................... 34 9. 26DB & 6DB & 99% EMISSION BANDWIDTH ........................... 38 9.1 Block Diagram Of Test Setup ............................................ 38 9.2 Limit ................................................................. 38 9.3 Test procedure ........................................................ 38 9.4 EUT operating Conditions ............................................... 39 9.5 Test Result ........................................................... 39 10. MAXIMUM CONDUCTED OUTPUT POWER ............................. 43 10.1 Block Diagram Of Test Setup .......................................... 43 Report No.: BCTC2101076568-3E No.：BCTC/RF-EMC-005 Page: 4 of 68 Edition：A.3 10.2 Limit ................................................................ 43 10.3 Test procedure ....................................................... 43 10.4 EUT operating Conditions ............................................. 44 10.5 Test Result .......................................................... 45 11. OUT OF BAND EMISSIONS ........................................... 46 11.1 Block Diagram Of Test Setup .......................................... 46 11.2 Limit ................................................................ 46 11.3 Test procedure ....................................................... 46 11.4 EUT operating Conditions ............................................. 46 11.5 Test Result .......................................................... 47 12. SPURIOUS RF CONDUCTED EMISSIONS .............................. 50 12.1 Block Diagram Of Test Setup .......................................... 50 12.2 Limit ................................................................ 50 12.3 Test procedure ....................................................... 50 12.4 Test Result ............................…

Text truncated - open the document above for the full version.

Report No.: BCTC2101076568-3E No.：BCTC/RF-EMC-005 Page: 47 of 68 Edition：A.3 11.5 Test Result Temperature： 26 °C Relative Humidity： 54% Pressure： 101kPa Test Voltage ： AC 120V/60Hz 5.1G 5.180~5.240 GHz (802.11a) Band Edge, Left Side (802.11n20) Band Edge, Left Side (802.11a) Band Edge, Right Side (802.11n20) Band Edge, Right Side Report No.: BCTC2101076568-3E No.：BCTC/RF-EMC-005 Page: 48 of 68 Edition：A.3 5.180~5.240 GHz (802.11n40) Band Edge, Left Side (802.11ac20) Band Edge, Left Side (802.11n40) Band Edge, Right Side (802.11ac20) Band Edge, Right Side Report No.: BCTC2101076568-3E No.：BCTC/RF-EMC-005 Page: 49 of 68 Edition：A.3 5.180~5.240 GHz (802.11ac40) Band Edge, Left Side (802.11ac80) Band Edge, Left Side (802.11ac40) Band Edge, Right Side (802.11ac80) Band Edge, Right Side Report No.: BCTC2101076568-3E No.：BCTC/RF-EMC-005 Page: 50 of 68 Edition：A.3 12. SPURIOUS RF CONDUCTED EMISSIONS 12.1 Block Diagram Of Test Setup 12.2 Limit Undesirable emission limits. Except as shown in paragraph (b)(7) of this section, the maximum emissions outside of the frequency bands of operation shall be attenuated in accordance with the following limits: (1)For transmitters operating in the 5.15-5.25 GHz band: All emissions outside of the 5.15-5.35 GHz band shall not exceed an e.i.r.p. of −27 dBm/MHz. (2)For transmitters operating in the 5.725-5.85 GHz band(i) All emissions shall be limited to a level of −27 dBm/MHz at 75 MHz or more above or below the band edge increasing linearly to 10 dBm/MHz at 25 MHz above or below the band edge, and from 25 MHz above or below the band edge increasing linearly to a level of 15.6 dBm/MHz at 5 MHz above or below the band edge, and from 5 MHz above or below the band edge increasing linearly to a level of 27 dBm/MHz at the band edge.. 12.3 Test procedure 1. Check the calibration of the measuring instrument using either an internal calibrator or a known signal from an external generator. 2. Position the EUT without connection to measurement instrument. Turn on the EUT and connect its antenna terminal to measurement instrument via a low loss cable. Then set it to any one measured frequency within its operating range, and make sure the instrument is operated in its linear range. 3. Set RBW of spectrum analyzer to 1 MHz with a convenient frequency span. 4. Measure the highest amplitude appearing on spectral display and set it as a reference level. Plot the graph with marking the highest point and edge frequency. 5. Repeat above procedures until all measured frequencies were complete. Report No.: BCTC2101076568-3E No.：BCTC/RF-EMC-005 Page: 51 of 68 Edition：A.3 12.4 Test Result Remark: The measurement frequency range is from 9KHz to the 10th harmonic of the fundamental frequency. The lowest, middle and highest channels are tested to verify the spurious emissions and bandege measurement data. About:26.5GHz-40GHz, The amplitude of spurious emissions which are attenuated by more than 20dB below the permissible value has no need to be reported. Report No.: BCTC2101076568-3E No.：BCTC/RF-EMC-005 Page: 52 of 68 Edition：A.3 5.1G Test Plot 802.11a on channel 36 802.11a on channel 40 802.11a on channel 36 802.11a on channel 40 802.11a on channel 36 802.11a on channel 40 Report No.: BCTC2101076568-3E No.：BCTC/RF-EMC-005 Page: 53 of 68 Edition：A.3 Test Plot 802.11a on channel 48 802.11n20 on channel 36 802.11a on channel 48 802.11n20 on channel 36 802.11a on channel 48 802.11n20 on channel 36 Report No.: BCTC2101076568-3E No.：BCTC/RF-EMC-005 Page: 54 of 68 Edition：A.3 Test Plot 802.11n20 on channel 40 802.11n20 on channel 48 802.11n20 on channel 40 802.11n20 on channel 48 802.11n20 on channel 40 802.11n20 on channel 48 Report No.: BCTC2101076568-3E No.：BCTC/RF-EMC-005 Page: 55 of 68 Edition：A.3 Test Plot 802.11n40 on channel 38 802.11n40 on channel 46 802.11n40 on channel 38 802.11n40 on channel 46 802.11n40 on channel 38 802.11n40 on channel 46 Report No.: BCTC2101076568-3E No.：BCTC/RF-EMC-005 Page: 56 of 68 Edition：A.3 Test Plot 802.11ac20 on channel 36 802.11ac20 on channel 40 802.11ac20 on channel 36 802.11ac20 on channel 40 802.11ac20 on channel 36 802.11ac20 on channel 40 Report No.: BCTC2101076568-3E No.：BCTC/RF-EMC-005 Page: 57 of 68 Edition：A.3 Test Plot 802.11ac20 on channel 48 802.11ac40 on channel 38 802.11ac20 on channel 48 802.11ac40 on channel 38 802.11ac20 on channel 48 802.11ac40 on channel 38 Report No.: BCTC2101076568-3E No.：BCTC/RF-EMC-005 Page: 58 of 68 Edition：A.3 Test Plot 802.11ac40 on channel 46 802.11ac80 on channel 42 802.11 ac40 on channel 46 802.11 ac80 on channel 42 802.11 ac40 on channel 46 802.11 ac80 on channel 42 Report No.: BCTC2101076568-3E No.：BCTC/RF-EMC-005 Page: 59 of 68 Edition：A.3 13. FREQUENCY STABILITY MEASUREMENT 13.1 Block Diagram Of Test Setup 13.2 Limit Manufactures of U-NII devices are responsible for ensuring frequency stability such that an emission is maintained within the band of operation under all conditions of normal operation as specified in the user’s manual. The transmitter center frequency tolerance shall be ± 20 ppm maximum for the 5 GHz band (IEEE 802.11n specification).. 13.3 Test procedure 1. The transmitter output (antenna port) was connected to the spectrum analyzer. 2. EUT have transmitted absence of modulation signal and fixed channelize. 3. Set the spectrum analyzer span to view the entire absence of modulation emissions bandwidth. 4. Set RBW = 10 kHz, VBW = 10 kHz with peak detector and maxhold settings. 5. fc is declaring of channel frequency. Then the frequency error formula is (fc-f)/fc × 106 ppm and he limit is less than ±20ppm (IEEE 802.11nspecification). 6. The test extreme voltage is to change the primary supply voltage from 85 to 115 percent of the nominal value 7. Extreme temperature is -20°C~70°C. Report No.: BCTC2101076568-3E No.：BCTC/RF-EMC-005 Page: 60 of 68 Edition：A.3 13.4 Test Result Temperature： 26 °C Relative Humidity： 54% Pressure： 101kPa Test Voltage： AC 120V/60Hz Test Mode ： TX Frequency U-NII-1 …

Text truncated - open the document above for the full version.

1. EUT TEST SETUP PHOTOGRAPHS Conducted emissions Radiated Measurement Photos
