2AYQ5-WA002MedicTec AI Watch

大麦客人工智能手表 守望者1 产 品 使 用 说 明 01 外观介绍 心率感应区域 屏幕支持 上下左右滑动 单击、双击、长按 充电口 手表采用专业健康材质，并通过了严格的皮肤过敏测试，您可以放心佩戴。 因个体差异原因,如果佩戴时感到皮肤不适，请停止佩戴并咨询医生。 温度感应区域 ·大麦客人工智能手表· 首次激活手表需要连接充电器，充电可自动开机 , 将充电口对准、贴合充 电底座的金属触点，直到手表屏幕出现充电电量指示。 02 充电和开机 ·请使用包装内自带专用充电线充电，充电前请擦干充电口。 ·请使用额定输出电压5V、额定输出电流1A及以上的MedicTec充电器，使用非包装内充 电器，可能出现充电慢、发热等问题， 请谨慎使用。推荐从MedicTec官方渠道购买充 电器。 ·大麦客人工智能手表· 手表支持全屏触摸、上滑、下滑、左滑、右滑、长按等操 作， 滑动屏幕，切换查看各项功能;也可单击、 长按屏幕 进行相关操作。 手表支持运动监测、睡眠监测、心率监测、体温监测、日常活动监测、 消息提醒、音乐控制等功能，各类功能的使用方法及常见问题，请扫描 二维码获取使用指南。 04 功能介绍 ·大麦客人工智能手表· 首次使用，您可以扫描以下二维码直接下载App。 1 打开 App，点击左上角图标进入设备页面，根据提示完成配对。 2 APP下载二维码 03 下载和配对 配对时请确认手机输入和手表显示的配对码一致。 ·大麦客人工智能手表· 了解保修期限 非人为的质量问题 7 天退货，15 天包换，1 年质保。 寄修无需您亲自赴店，只需：联系客户服务中心，邮寄到指定地址。 退换货或送修前，请核对如下打 内容是否准备齐全。 保修卡 部件名称 退货 主机、配件齐全包装完整发票(未涂改)赠品(若有) 换货 维修 保修期限保修期限 用户送修 / 寄修 无 1 年(含)免费保修 不予保修 主机(不含表带) 其他(表带、腕带、装饰件等) 满足ISO标注22810:2010，具备50米防水等级，可用 于游泳池或海滨游泳等浅水 域的水上活动。 不适用于潜水、跳水、热水淋浴、温泉、桑拿、高速水 流下的其他涉水或深水活动。 在海水中使用后，建议用清水冲洗并擦干。 可防如起居室、办公室、实验室、轻工业工作室、仓储 室等的灰尘条件，不适合特殊的扬尘环境。 05 维护保养 ·大麦客人工智能手表· 客户服务卡 用户姓名： 联系电话： 电子邮箱： 邮政编码： 地址： 进网标志： 机型： 手表编号： 充电器/电池序列号： 请在购买地退换货。请在购买地或服务中心维修或申请寄修。 确认保修状态 1. 产品保修起始日期以购机发票开具日为准。 2. 若无发票证明，则保修起始日期以出厂日期向后顺延 90 日为准。 客服热线：（0755）8669 9216 本资料仅供参考，不构成任何形式的承诺。 本产品非医疗器械，所提供的健康数据及建议仅供参考，不作为诊断和治疗的 依据。 服务记录 购机商店： 地址： 购买日期： 检修日期检修记录检修人员 MedicTec AI Watch Watchman1 Product Manual 01 Overview Heart rate senor area The screen supports swipe up and down, swipe left and right, single click, double click and press Charging Port Temperature sensor area ·MedicTec AI Watch· 首次激活手表需要连接充电器，充电可自动开机 , 将充电口对准、贴合充 电底座的金属触点，直至手表屏幕出现充电电量指示。 02 Charging and Power on ·Please use the dedicated charging cable that comes with the package to charge. Wipe the charging port dry before charging. · Please use a MedicTec charger with rated output voltage of 5 V and a rated output current of 1 A or higher or a computer USB port to charge your watch. Use of a charger that is not included in the package may cause problems such as slow charging or heat generation. Please use it with caution. It is recommended to buy the charger from the official MedicTec channel. ·MedicTec AI Watch· The watch is made of professional and healthy materials and has passed strict skin allergy tests. You can rest assured wearing it. Due to individual differences, if you feel skin discomfort during wearing, please stop wearing and consult a doctor. The watch supports full-screen touch, swipe up, swipe down, swipe left , swipe right, long press etc.. Swipe the screen to switch and view various functions; you can also click and long press the screen to perform related operations. The watch supports sports monitoring, sleep monitoring, heart rate monitoring, daily activity monitoring, instant notifications, music etc.. For the usage methods and common problems of various functions, please scan the QR code to get the usage guide. 04 Functions ·MedicTec AI Watch· For the first use, you can scan the following QR code to download the App. 1 Open the App, click the icon in the upper left corner to enter the device page, and follow the prompts to complete pairing. 2 APP Download QR code 03 Download and Pairing When pairing, make sure that the phone input is consistent with the pairing code displayed on the watch. ·MedicTec AI Watch· Understand the warranty period Non-artificial quality problems: 7 days return, 15 days replacement, 1 year warranty. You don't need to go to the store in person to send repairs, just contact customer service and mail the divice to the designated address. Before returning or sending the goods for repair, please check whether the contents marked with below are complete. Warranty Card Part name Return Complete watch and accessories Complete package Invoice (not altered) Gifts (if any) Replacement Repair Warranty periodWarranty period User repair/Sending repair No 1 year (inclusive) free warranty No warranty Watch (without strap) Others (watchbands,wristbands, decorative pieces,etc. It meets the ISO 22810:2010 annotation and has a water resistance of 50 meters, which can be used in shallow water activities such as swimming pools or beach swimming. Not suitable for snorkeling, diving, hot showers, hot springs, saunas, and other wading or deep water activities under high-speed water flow.After using in sea water, it is recommended to rinse with clean water and wipe dry. It can prevent dust conditions such as living room, office, laboratory, light industry studio, storage room, etc., and is not suitable for special dust environment. 05 Maintenance ·MedicTec AI Watch· Customer service card User name： Contact number： E-mail： Post code： Address： Network access sign： Model： Watch number： Charger/battery serial number： Please return or exchange at the place of purchase. Please repair it at the place of purchase or service center or apply for sending repair. Confirm warranty status 1. The product warranty start date is subject to the date of issuance of the purchase invoice. 2. If there is no proof of invoice, the warranty start date shall be delayed 90 days from the factory date. Customer Service：（0755）8669 9216 This manual is only for reference and does not constitute any form of commitment. This product is not a medical device. The health data and suggestions provided are only for reference, not as a basis for diagnosis and treatment. Service record Purchase store： Address： Purchase date： Inspection dateMaintenance recordsMaintenance staff This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency …

Text truncated - open the document above for the full version.

Modeldifferencedeclarationletter DifferencesDescription WeParadiseDigitalTechnology(shenzhen)Limitedstate: Product： MedicTecAIWatch ModelName WA002,WA001,WA003,BO001,BO002,BO003, shouwangzhe-1,shouwangzhe-2,shouwangzhe-3, shouwangzhe-4 Theaboveproductwithsamecircuit,PCBlayout,electricalparts,materialsandwiring structures,Appearanceshape,thematerialsofdecorativeaccessoriesissame,only differentcolor, Signatory Date:01-20-2021 <Signature> Name： xiganghu Title：Manager Company：ParadiseDigitalTechnology(shenzhen)Limited Address:Suite501,5/F,SKYWORTHmansionNO.008GaoxinNandaoScienceParkNanshan District,Shenzhen

C5266091_X8_Ed.1 1/1 LetterofAuthorization ParadiseDigitalTechnology(shenzhen)Limited Company:ParadiseDigitalTechnology(shenzhen)Limited Address:Suite501,5/F,SKYWORTHmansionNO.008GaoxinNandaoScience ParkNanshanDistrict,Shenzhen ProductName:MedicTecAIWatch ModelNumber:WA002 FCCIdentifier:2AYQ5-WA002 WeauthorizeLGAITechnologicalCenterS.A.,RondadelaFontdelCarme,s/n, 08193Bellaterra,Spain,toactonourbehalfonallmattersconcerningthe abovenamedequipment. AnyindividualwithinLGAITechnologicalCenterS.A.isauthorizedtoactonour behalfandtakeactionontheapplication. WedeclarethatauthorizeLGAITechnologicalCenterS.A.,RondadelaFontdel Carme,s/n,08193Bellaterra,Spain,isallowedtoforwardallinformation relatedtotheapprovalprojecttotheFederalCommunicationCommissionand todiscussanyissuesconcerningtheapprovalapplication.Anyandallacts carriedoutbyLGAITechnologicalCenterS.A.onourbehalfshallhavethe sameeffectasactsofourown. Name:xiganghuDate:January20,2021 Title:Manager Signatureofapplicant:

C5266091_X10_Ed.2 1/1 ParadiseDigitalTechnology(shenzhen)Limited OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 Date:January20,2021 Subject:RequestforConfidentiality FCCID:2AYQ5-WA002 ToWhomItMayConcern, PursuanttotheprovisionsofSections0.457and0.459ofCommission'srules (47CFR0.457,0.459),wearerequestingtheCommissiontowithholdthefollowing attachment(s)asconfidentialdocumentfrompublicdisclosure. ExhibitsLong-Term Confidentiality Short-Term Confidentiality NOTE2 IDLabel/LocationNoNo AttestationStatementNoNo ExternalPhotosNo ☐ BlockDiagram ☒☐ Schematics ☒☐ TestReportNoNo TestSetupPhotosNo ☐ User’sManual ☐ NOTE 1 ☐ InternalPhotos ☐ NOTE 1 ☐ PartsList/TuneUp ☐☐ RFExposureInfoNoNo OperationalDescription ☒☐ CoverLetter(s)NoNo SDRSoftware/SecurityInfo ☐ No NOTE1:Long-TermConfidentialitymaybepermittedunderspecialconditions(SeeII.LONG-TERMCONFIDENTIALITY,Section3of KDB726920,uselastinforce) NOTE2:Short-TermConfidentialitycanberequestedforamaximumof180daysfromthedateofthegrant. Abovementioneddocumentcontainsdetailedsystemandequipmentdescriptionare consideredasproprietaryinformationinoperationoftheequipment.Thepublic disclosureofabovedocumentsmightbeharmfultoourcompanyandwouldgive competitoranunfairadvantageinthemarket. Incaseofshort-termConfidentiality,theapplicantrequeststheexhibitsselected abovearewithheldfrompublicviewforaperiodof______daysfromthedateofthe GrantofEquipmentAuthorizationandpriortomarketing. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondentduringcertificationreviewprocesscannotbegrantedasconfidential documentsandthoseinformationwillbeavailableforpublicreviewoncethegrantof equipmentauthorizationisissued. C5266091_X10_Ed.2 1/1 Sincerely, Signature: Name:xiganghu Title: Manager

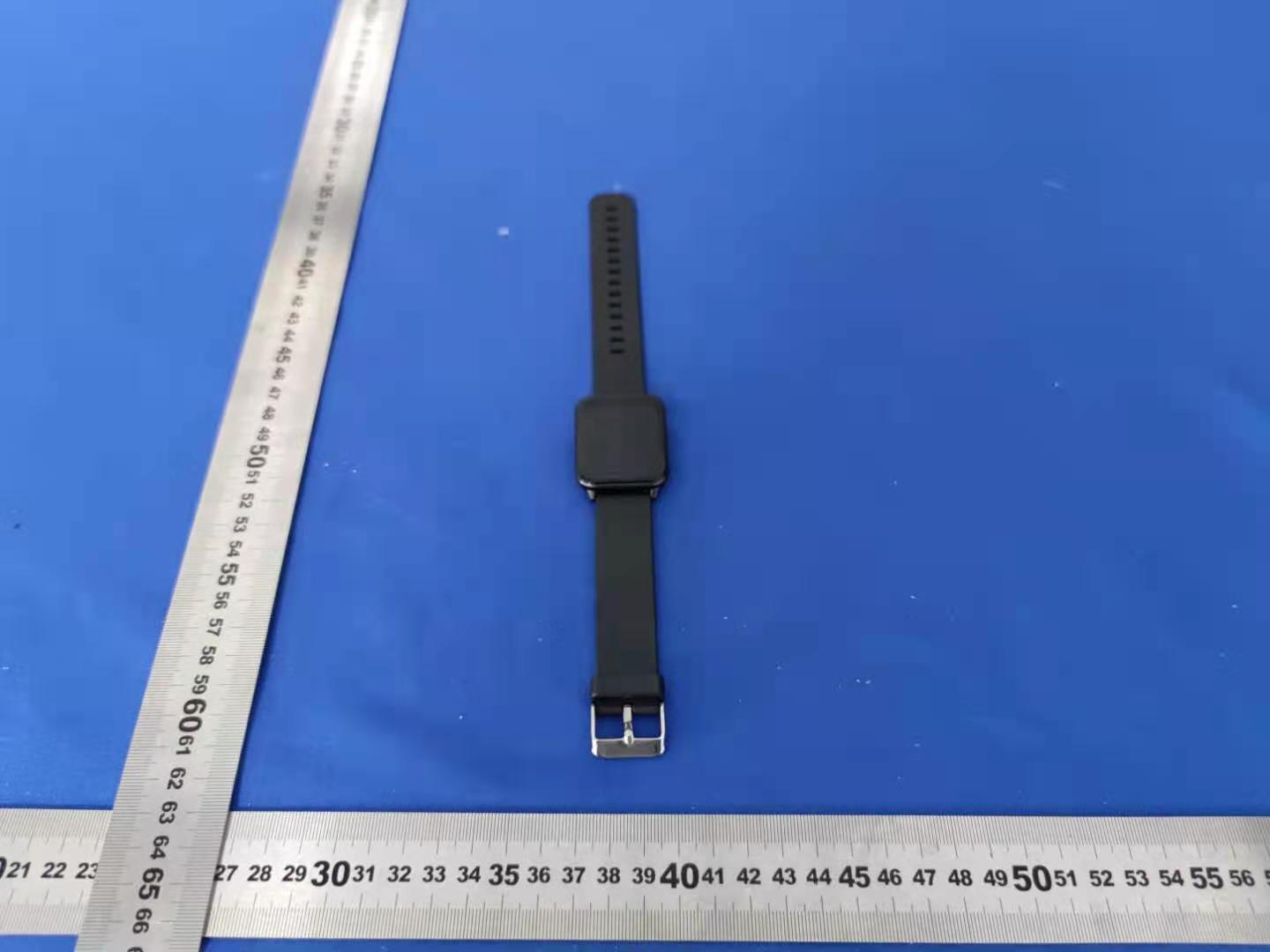

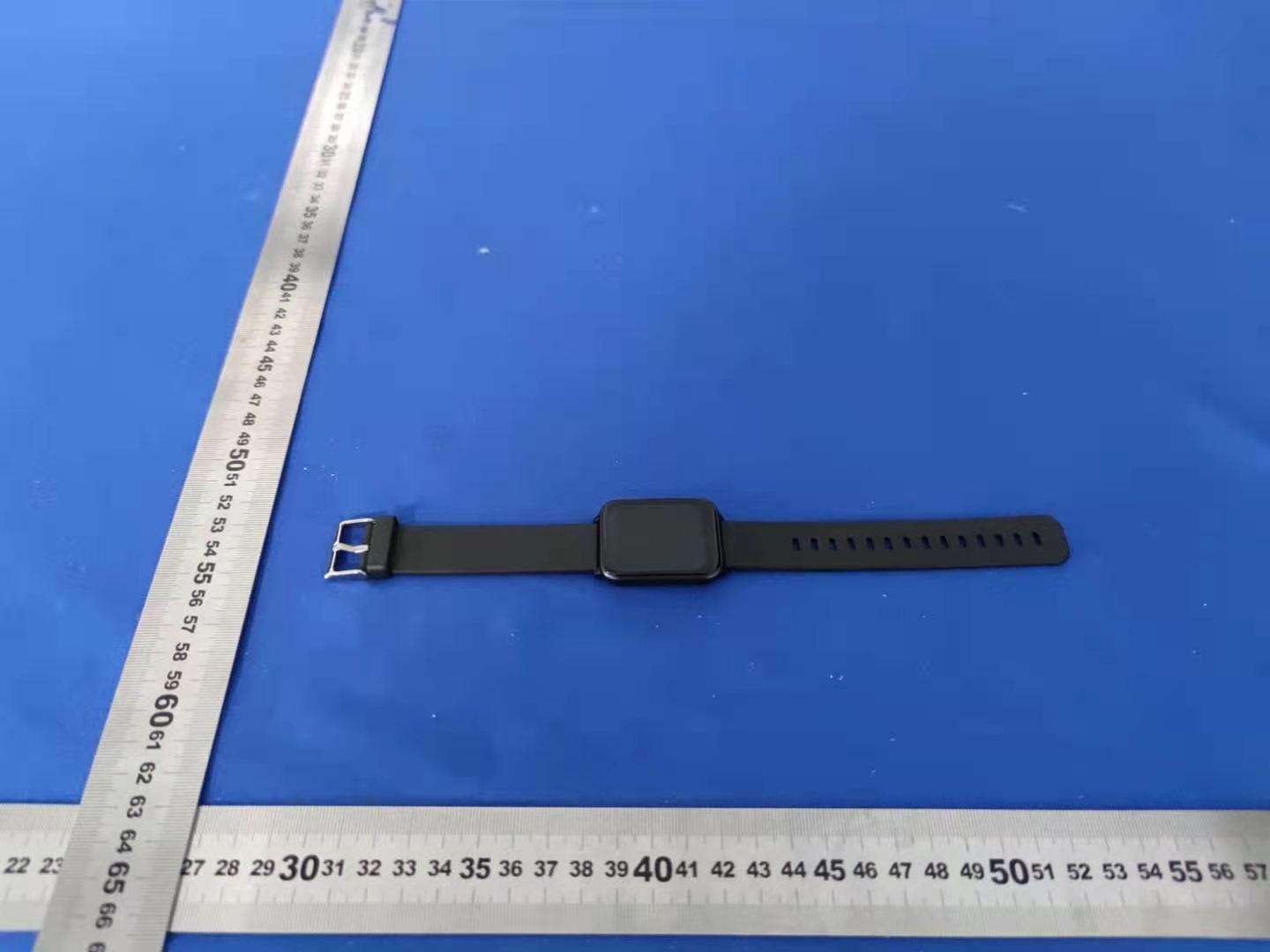

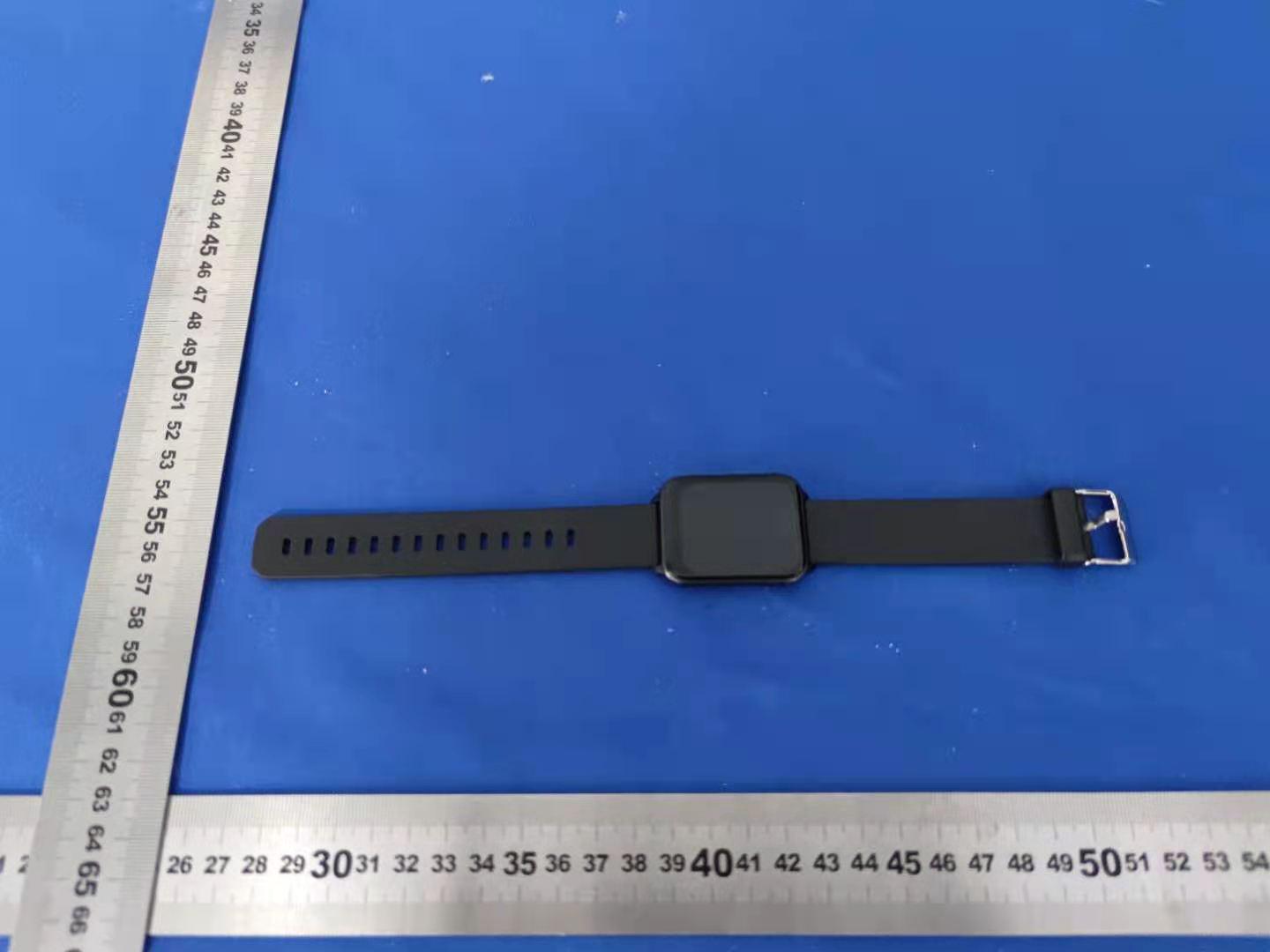

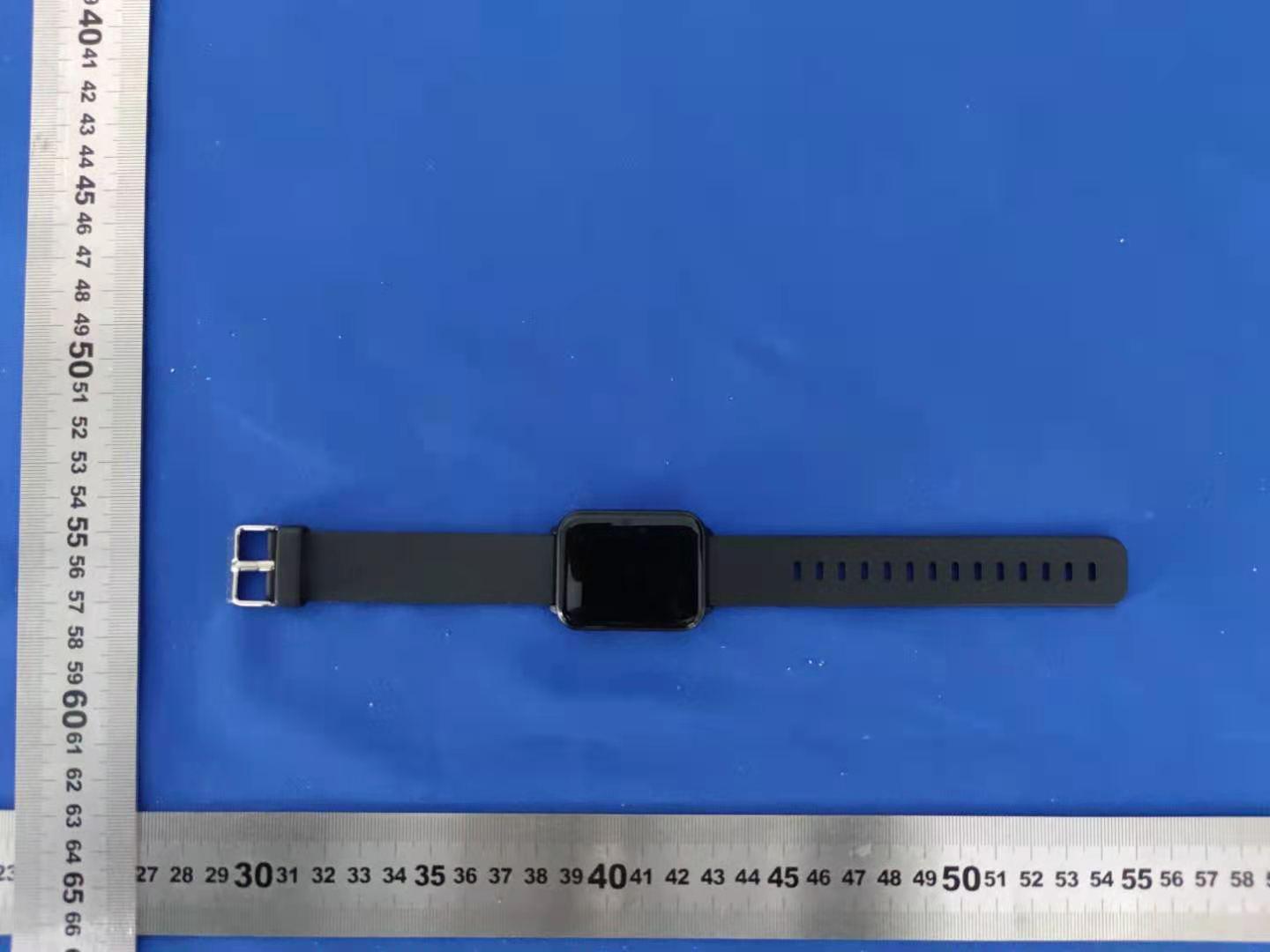

Page1of3ReportNo.:FCS202101008 Externalphotos Photo1 Photo2 Page2of3ReportNo.:FCS202101008 Photo3 Photo4 Page3of3ReportNo.:FCS202101008 Photo5 Photo6

LabelandLabelLocation FCCID:2AYQ5-WA002 L*W:10mm*7mm whitefontonaBlacklabel

Page1of4ReportNo.:FCS202101008 Photo1 Photo2 Page2of4ReportNo.:FCS202101008 Photo3 Antenna Photo4 Page3of4ReportNo.:FCS202101008 Photo5 Photo6 Page4of4ReportNo.:FCS202101008 Photo7

FCCTestReport ReportNo:FCS202101008W01 Issuedfor Applicant: ParadiseDigitalTechnology(shenzhen)Limited Address: Suite501,5/F,SKYWORTHmansionNO.008Gaoxin NandaoScienceParkNanshanDistrict,Shenzhen ProductName: MedicTecAIWatch BrandName: MedicTec ModelName: WA002 SeriesModel: WA001,WA003,BO001,BO002,BO003,shouwangzhe-1, shouwangzhe-2,shouwangzhe-3,shouwangzhe-4 FCCID: 2AYQ5-WA002 IssuedBy:FluxComplianceServiceLaboratory Add:Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-Tech Industrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com Page2of33ReportNo.:FCS202101008W01 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com TESTRESULTCERTIFICATION Applicant’sName......................:ParadiseDigitalTechnology(shenzhen)Limited Address......................................: Suite501,5/F,SKYWORTHmansionNO.008GaoxinNandao ScienceParkNanshanDistrict,Shenzhen Manufacture'sName ................ :ParadiseDigitalTechnology(shenzhen)Limited Address ...................................... : Suite501,5/F,SKYWORTHmansionNO.008GaoxinNandao ScienceParkNanshanDistrict,Shenzhen ProductDescription ProductName...........................:MedicTecAIWatch BrandName ............................. :MedicTec ModelName..............................:WA002 SeriesModel .............................. : WA002,WA003,BO001,BO002,BO003,shouwangzhe-1, shouwangzhe-2,shouwangzhe-3,shouwangzhe-4 TestStandards..........................:FCCRulesandRegulationsPart15SubpartC,Section249 TestProcedure .......................... :ANSIC63.10:2013 ThisdevicedescribedabovehasbeentestedFCS,thetestresultsshowthattheequipmentundertest (EUT)isincompliancewiththeFCCrequirements.Anditisapplicableonlytothetestedsample identifiedinthereport. Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofFCS,thisdocument maybealteredorrevisedbyFCS,personalonly,andshallbenotedintherevisionofthedocument.. DateofTest .................................. : Date(s)ofperformanceoftests.:06Jan,2021~14Jan,2021 DateofIssue.................................:14Jan,2021 TestResult.....................................:Pass Testedby: (ScottShen) Reviewedby : (DukeQian) Approvedby: (KaitChen) Page3of33ReportNo.:FCS202101008W01 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com TableofContentsPage 1.SUMMARYOFTESTRESULTS5 1.1TESTFACTORY6 1.2MEASUREMENTUNCERTAINTY6 2.GENERALINFORMATION7 2.1GENERALDESCRIPTIONOFTHEEUT7 2.2DESCRIPTIONOFTHETESTMODES9 2.3DESCRIPTIONOFNECESSARYACCESSORIESANDSUPPORTUNITS10 2.4EQUIPMENTSLIST11 3CONDUCTEDEMISSIONMEASUREMENT12 3.1LIMIT12 3.2TESTPROCEDURE12 3.3TESTSETUP13 3.4TESTRESULTS14 4.RADIATEDEMISSIONMEASUREMENT17 4.1LIMIT17 4.2TESTPROCEDURE18 4.3TESTSETUP19 4.4TESTRESULTS20 5.BANDEDGETEST26 5.1LIMIT26 5.2TESTPROCEDURE26 5.3TESTSETUP27 5.4TESTRESULTS28 6.20DBBANDWIDTHTEST31 6.1LIMIT31 6.2TESTPROCEDURE31 6.3TESTSETUP31 6.4TESTRESULTS32 7.ANTENNAREQUIREMENT34 7.1STANDARDREQUIREMENT34 7.2EUTANTENNA34 Page4of33ReportNo.:FCS202101008W01 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com RevisionHistory Rev.IssueDateEffectPageContents 0014Jan,2021AllInitialIssue Page5of33ReportNo.:FCS202101008W01 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com 1.SUMMARYOFTESTRESULTS FCCPart15.249,SubpartC Standard Section TestItemJudgmentRemark 15.207ConductedEmissionPASS-- 15.205(a),15.209(a), 15.249(a),15.249(c) RadiatedSpuriousEmissionPASS-- 15.209FieldstrengthoffundamentalPASS 15.249(d)BandEdgeEmissionPASS-- 15.215(c)20dBBandwidthPASS-- 15.203AntennaRequirementPASS-- NOTE: (1)”N/A”denotestestisnotapplicableinthisTestReport (2)AlltestsareaccordingtoANSIC63.10-2013 Page6of33ReportNo.:FCS202101008W01 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com 1.1TESTFACTORY CompanyName:FluxComplianceServiceLaboratory Address: Room105FloorBaohaoTechnologyBuilding1NO.15Gongye WestRoadHi-TechIndustrial,SongshanlakeDongguan Telephone:+86-769-27280901 Fax:+86-769-27280901 FCCTestFirmRegistrationNumber:514908 Designationnumber:CN0127 A2LAaccreditationnumber：5545.01 1.2MEASUREMENTUNCERTAINTY Thereporteduncertaintyofmeasurementy±U,whereexpendeduncertaintyUisbasedona standarduncertaintymultipliedbyacoveragefactorofk=2,providingalevelofconfidenceof approximately95%. No.ItemUncertainty 1RFoutputpower,conducted±0.71dB 2UnwantedEmissions,conducted±2.98dB 3ConductedEmission(9KHz-150KHz) ±4.13dB 4ConductedEmission(150KHz-30MHz) ±4.74dB 5Allemissions,radiated(<1G)30MHz-1000MHz ±3.2dB 6Allemissions,radiated(1GHz-18GHz) ±3.66dB 7Allemissions,radiated(18GHz-40GHz) ±4.31dB Page7of33ReportNo.:FCS202101008W01 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com 2.GENERALINFORMATION 2.1GENERALDESCRIPTIONOFTHEEUT ProductNameMedicTecAIWatch TradeNameMedicTec ModelNameWA002 SeriesModel WA001,WA003,BO001,BO002,BO003,shouwangzhe-1, shouwangzhe-2,shouwangzhe-3,shouwangzhe-4 ModelDifference Theaboveproductwithsamecircuit,PCBlayout, electricalparts,materialsandwiringstructures, Appearanceshape,thematerialsofdecorative accessoriesissame,onlydifferentcolor. ChannelList PleaserefertotheNote2. BT Frequency:2402-2480MHz Modulation:GFSK Datarate:1Mbps Channelnumber:40CH PowerSupply Input ： DC5V,1A Output:DC3.7V HardwareversionnumberV1.0 SoftwareversionnumberV1.0 ConnectingI/OPort(s)Pleasereferto…

Text truncated - open the document above for the full version.

Page 1 of2ReportNo.:FCS202101008 Above1GHzforradiatedemissiontestsetup Blow1GHzforradiatedemissiontestsetup Page 2 of2ReportNo.:FCS202101008 Conductionemissiontestingdevice
