2AYQN-LR2Puck Pro

Guangzhou EZVALO Technology Company Limited 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – Equipment Type Company name: Guangzhou EZVALO Technology Company Limited Address: Unit 1503 and 1504, 15/F, 166 Huangpu Park West Road, Huangpu District, Guangzhou, China Product Name: Puck Pro FCCID: 2AYQN-LR2 Model(s): LR2, LR3, LR4, LR5, LR6, LR7, LR8, LR9, LR10, LR11, LR12, LR13, LR14, LR15, LR16, LR17, LR18, LR19, LR20 2.911(d)(5)(i) Equipment Type We, [Guangzhou EZVALO Technology Company Limited] (“the applicant”) certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Ying Wang Date: Aug. 27, 2023 Signature: Title and Company name: Sales Director / Guangzhou EZVALO Technology Company Limited NOTE 1 “Covered List ”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Guangzhou EZVALO Technology Company Limited 2.911 (d)(5)(ii) Applicant Attestation v1.3 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: Guangzhou EZVALO Technology Company Limited Address: Unit 1503 and 1504, 15/F, 166 Huangpu Park West Road, Huangpu District, Guangzhou, China Product Name: Puck Pro FCCID: 2AYQN-LR2 Model(s): LR2, LR3, LR4, LR5, LR6, LR7, LR8, LR9, LR10, LR11, LR12, LR13, LR14, LR15, LR16, LR17, LR18, LR19, LR20 2.911(d)(5)(ii) Applicant filing We, [Guangzhou EZVALO Technology Company Limited] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 , established pursuant to §1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Name: Ying Wang Date: Aug. 27, 2023 Signature: Title and Company name: Sales Director / Guangzhou EZVALO Technology Company Limited NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List ”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Guangzhou EZVALO Technology Company Limited 2.911 (d)(7)USA Agent v1.4 Section 2.9 11(d)(7) USA Agent for Service of Process Company name: Guangzhou EZVALO Technology Company Limited Address: Unit 1503 and 1504, 15/F, 166 Huangpu Park West Road, Huangpu District, Guangzhou, China Product Name: Puck Pro FCCID: 2AYQN-LR2 Model(s): LR2, LR3, LR4, LR5, LR6, LR7, LR8, LR9, LR10, LR11, LR12, LR13, LR14, LR15, LR16, LR17, LR18, LR19, LR20 2.911(d)(7) USA Designated Agent for Service of Process We, [Guangzhou EZVALO Technology Company Limited] (“the applicant”) designate [USA MEIHUA TRADING INC] NOTE1 for the purpose of accepting service of process on behalf of the applicant. Applicant consent:We acknowledgeour consent to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address of the designated agent and acknowledgeour acceptance of our obligation to maintain an agent for service of process in the United States for no less than one year after either we the grantee have permanently terminated all marketing and importation of the applicable equipment within the U.S., or at the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. Agent obligation:We acknowledgeourobligation to accept service of process in the United States for matters related to the applicable equipment at our physical U.S. address and email addressfor no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or at the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. USA Agent Company name: USA MEIHUA TRADING INC Address: 5379 Pine Valley Ct Boulder CO 80301 United States FRN Number: 0033406166 Contact Name: Harley Quinn Telephone No: 1-312-363-9424 Email:[email protected] Applicant Company name: Guangzhou EZVALO Technology Company Limited Address: Unit 1503 and 1504, 15/F, 166 Huangpu Park West Road, Huangpu District, Guangzhou, China FCC Grantee Code: 2AYQN FRN Number: 0030441851 Contact Name: Ying Wang Telephone No: 8618529424026 Email: [email protected] GuangzhouEZVALOTechnologyCompanyLimited 2.911(d)(7)USAAgentv1.4 Signature: Title: Signature: Title:SalesDirector Date:Sep.25,2023Date:Sep.25,2023 NOTE1:AnapplicantlocatedintheUnitedStatesmaydesignateitselfastheagentforservice ofprocess. Reference;FederalRegisterdocument2022-28263publishedon02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-nation al-security-threats-to-the-communications-supply-chain-through-the

Guangzhou EZVALO Technology Company Limited Agent Authorization Company: Guangzhou EZVALO Technology Company Limited Address: Unit 1503 and 1504, 15/F, 166 Huangpu Park West Road, Huangpu District, Guangzhou, China Product Name: Puck Pro Model Number(s): LR2, LR3, LR4, LR5, LR6, LR7, LR8, LR9, LR10, LR11, LR12, LR13, LR14, LR15, LR16, LR17, LR18, LR19, LR20 Product Description: Puck Pro We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Sep. 27, 2023 Name: Ying Wang Title: Sales Director Company: Guangzhou EZVALO Technology Company Limited

Guangzhou EZVALO Technology Company Limited Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Sep. 27, 2023 Subject; Request for Confidentiality FCC ID: 2AYQN-LR2 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure Software security requirement In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Ying Wang Title: Sales Director

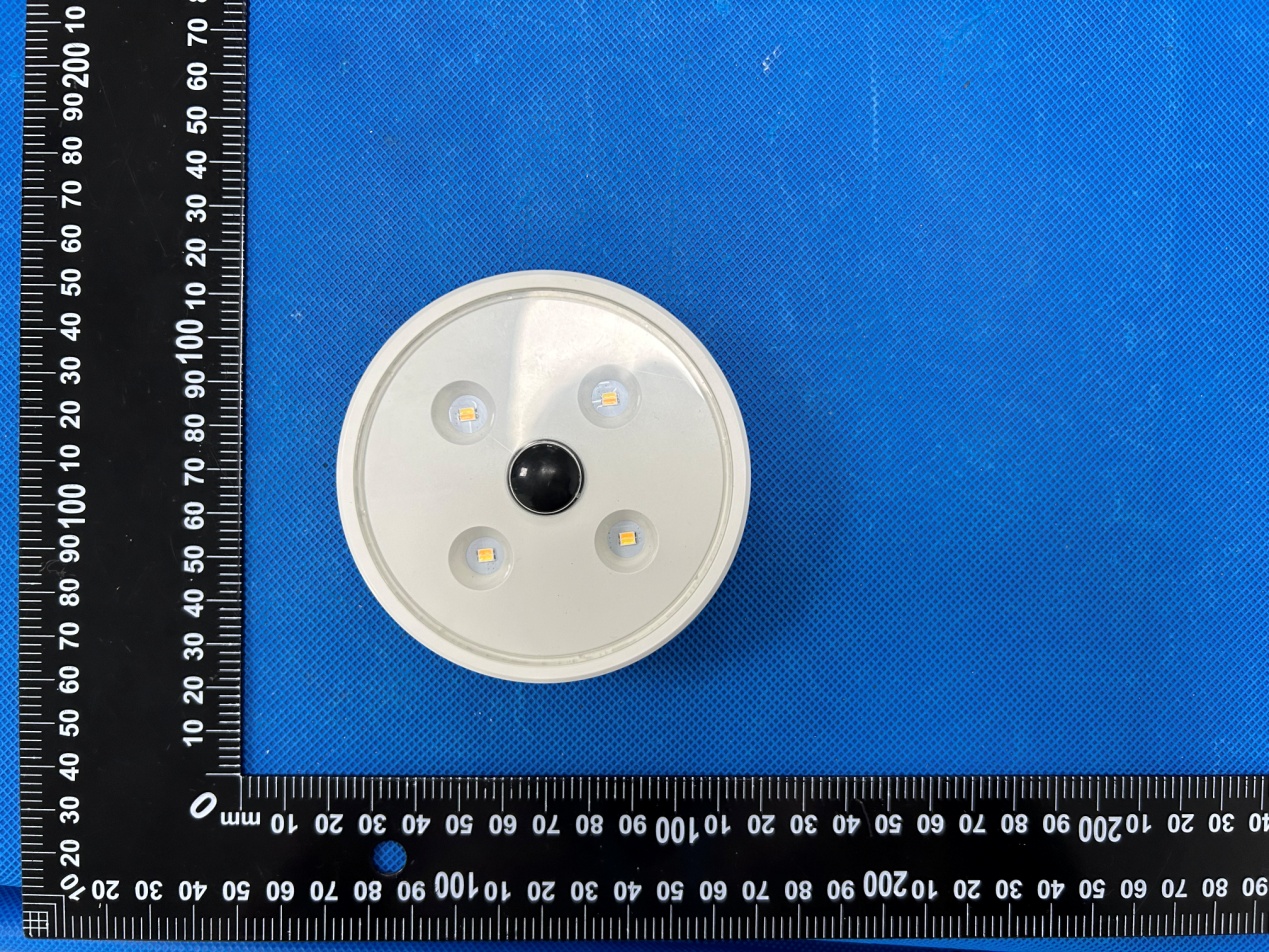

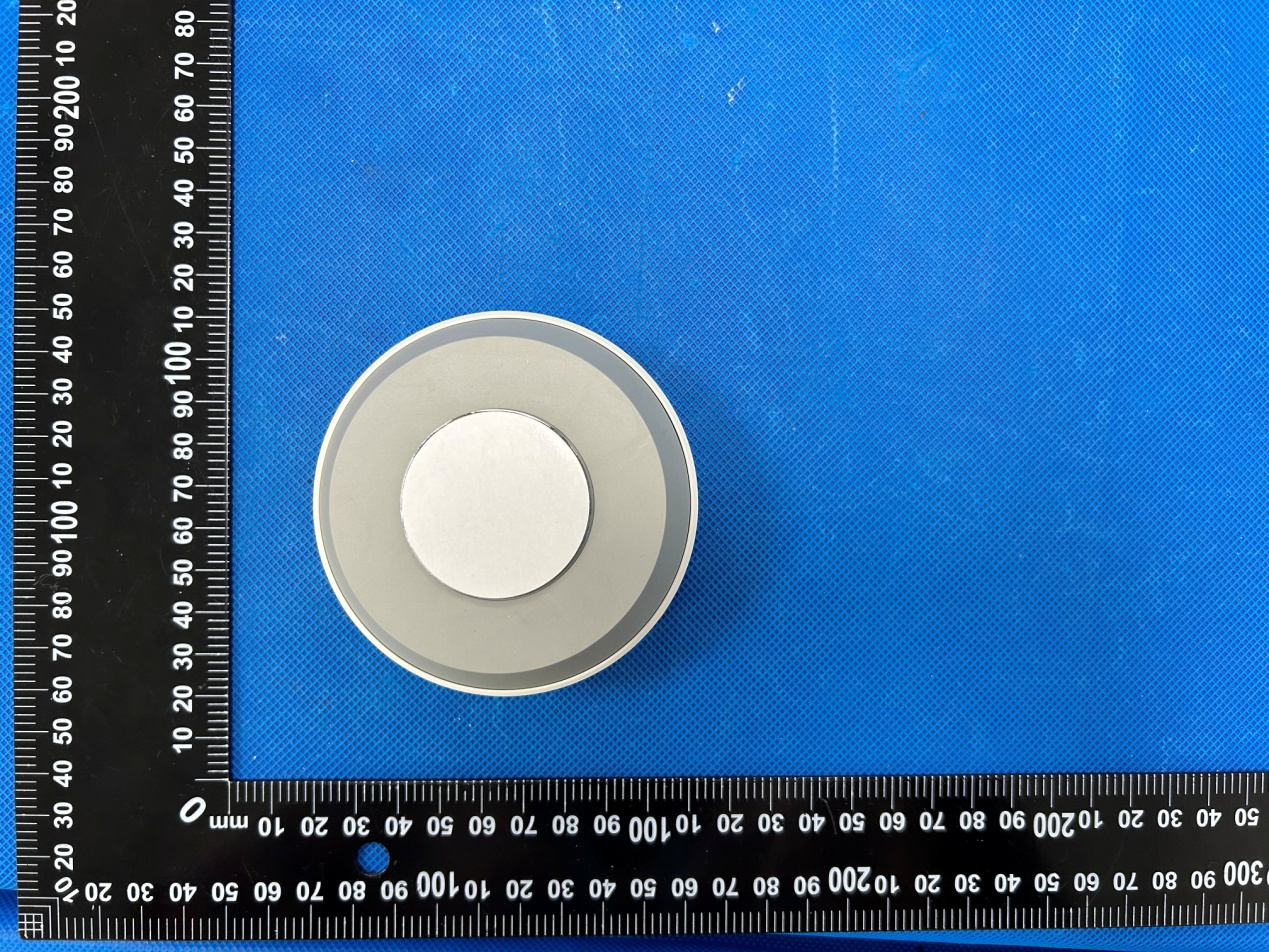

Annex A External Photos Model No.: LR2 Page 1 of 4 Model No.: LR2 Page 2 of 4 Model No.: LR2 Page 3 of 4 Model No.: LR2 Page 4 of 4

FCC ID LABEL: Ca: 10mm x 30mm Label Location FCC ID: 2AYQN-LR2

Annex B Internal Photos Model No.: LR2 Page 1 of 4 Model No.: LR2 Page 2 of 4 Model No.: LR2 Page 3 of 4 Antenna Model No.: LR2 Page 4 of 4

FCC RF Exposure Product Name: Puck Pro FCCID: 2AYQN‐LR2 Model(s): LR2, LR3, LR4, LR5, LR6, LR7, LR8, LR9, LR10, LR11, LR12, LR13, LR14, LR15, LR16, LR17, LR18, LR19, LR20 1. Limits According to KDB 447498 D01 General RF Exposure Guidance v06 The 1‐g and 10‐g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max power of channel, including tune‐up tolerance, mW)/(min. test separation distance, mm)]·[√ f(GHz)]≤3.0 for 1‐g SAR and ≤ 7.5 for 10‐g extremity SAR, Where: Result=P/D*√F F= the RF channel transmit frequency in GHz P=Maximum turn‐up power in mw D=Min. test separation distance in mm 2. Test Result of RF Exposure Evaluation 2405MHz: EIRP(dBm)=94.03 (dBuV/m)-95.2=-1.17(dBm) Frequency (MHz) Output power (dBm) Tune Up Power (dBm) Max Tune Up power dBm/mW Min test separatio n distance mm Result Limit (mW/cm 2 ) SAR Test Exclusion 2420 ‐1.17 ‐1±1 0/1.00 5 0.313 3.0 Pass Note: PK Output power= conducted power. Conducted power see the test report HK2309204360‐E , antenna gain=‐0.58dBi Per KDB 447498 D01, when the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine RF Exposure test exclusion. The test exclusion threshold is 0.313 which is<= 3, RF Exposure testing is not required. Note: Exclusion Thresholds Results=[(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f (GHz)] f(GHz) is the RF channel transmit frequency in GHz Distance=5mm

InvertedFAntennaSpecification Summary ITEMANTSPEC ModelName2.4GANT Center Frequency HorizontalVertical 2400MHz2450MHz2500MHz2400MHz2450MHz2500MHz -1.26dBi-0.76dBi-0.58dBi-5.25dBi-2.46dBi-1.86dBi MAX.Gain-0.58dBi PolarizationHorizontalandVertical Azimuth BeamPattern Omni-directional Impedance50Ohm Antenna Length 38.20mm AntennaTypePIFA AntennaPhoto&Length(mm) Horizontal:2400MHz2450MHz2500MHz Power(dBi) Max:0Min:-40Scale:5/div Frequency (MHz) Gain(dBi) MaxMinAvg 2400-1.26174-30.0801-7.18716 2450-0.765802-36.5604-7.48023 2500-0.585582-22.0315-6.59127 Vertical:2400MHz2450MHz2500MHz Power(dBi) Max:0Min:-30Scale:5/div Frequency (MHz) Gain(dBi) MaxMinAvg 2400-5.2537-22.1424-12.4294 2450-2.4652-24.5837-10.4702 2500-1.86120-29.5214-9.20432

Page 1 of 24 Report No.: HK2309204360-E FCC TEST REPORT Test report On Behalf of Guangzhou EZVALO Technology Company Limited For Puck Pro Model No.: LR2, LR3, LR4, LR5, LR6, LR7, LR8, LR9, LR10, LR11, LR12, LR13, LR14, LR15, LR16, LR17, LR18, LR19, LR20 FCC ID: 2AYQN-LR2 Prepared for : Guangzhou EZVALO Technology Company Limited Unit 1503 and 1504, 15/F, 166 Huangpu Park West Road, Huangpu District, Guangzhou, China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Date of Test: Sep. 18, 2023 ~ Sep. 25, 2023 Date of Report: Sep. 25, 2023 Report Number: HK2309204360-E A A M A P T P M S T S m lia p D D D T Applicant’s Address ...... Manufacture Address ...... Product des Trade Mark: Product nam Model and/o Standards . This publica Shenzhen H material. Sh ability for d lacement a Date of Test Date (s) of pe Date of Issue Test Result .. name ....... .................. e's Name .. .................. scription me ................ or type refer .................. ation may b HUAK Testin enzhen HU damages re nd context. t ................. erformance e ................ ................... T e T e Au TE .......... : Gu .......... : U n Di .......... : Gu .......... : U n Di N / ............ : P u rence : L R LR .......... : F C AN be reproduc ng Technol UAK Testing esulting fro .................. of tests ..... .................. .................. esting Engin echnical Ma uthorized S EST RES uangzhou E nit 1503 an istrict, Guan uangzhou E nit 1503 an istrict, Guan /A uck Pro R2, LR3, L R14, LR15, CC Rules an NSI C63.10 ced in who logy Co., L g Technolog om the rea ........ : ........ : Se ........ : Se ........ : Pas neer : anager : ignatory : Page 2 o ULT CER EZVALO Te nd 1504, 1 ngzhou, Ch EZVALO Te nd 1504, 1 ngzhou, Ch R4, LR5, L LR16, LR1 nd Regulati : 2013 le or in p a td. is ackno gy Co., Ltd der's inter p p. 18, 2023 ~ p. 25, 2023 ss of 24 RTIFICAT echnology C 5/F, 166 H ina echnology C 5/F, 166 H ina LR6, LR7, L 7, LR18, LR ons Part 15 art for non-c owledged a . takes no pretation of ~ Sep. 25, 20 (Gary Q i (Eden H (Jason Z h Report TION Company Li Huangpu P Company Li Huangpu P LR8, LR9, R19, LR20 5 Subpart C commercial as copyrigh responsibil f the repro 023 ian) Hu) hou) No.: HK2309 mited Park West R mited Park West R LR10, LR1 Section 15 . l purposes t owner a n ity for and duced ma t 9204360-E Road, Hua Road, Hua 1, LR12, L .249 as long a s nd source o will not ass terial due t ngpu ngpu LR13, s the of the sume to its Page 3 of 24 Report No.: HK2309204360-E Table of Contents Page 1 . TEST SUMMARY 5 2 . GENERAL INFORMATION 6 2.1 General Description of EUT 6 2.2 Carrier Frequency of Channels 7 2.3 Operation of EUT during testing 7 2.4 Description of Test Setup 7 2.5 Description of Support Units 8 2.6 Measurement Instruments List 9 3 . CONDUCTED EMISSIONS TEST 10 3.1 Conducted Power Line Emission Limit 10 3.2 Test Setup 10 3.3 Test Procedure 10 3.4 Test Result 11 4 RADIATED EMISSION TEST 13 4.1 Radiation Limit 13 4.2 Test Setup 13 4.3 Test Procedure 14 4.4 Test Result 14 5 BAND EDGE 18 5.1 Limits 18 5.2 Test Procedure 18 5.3 Test Result 19 6 OCCUPIED BANDWIDTH MEASUREMENT 20 6.1 Test Setup 20 6.2 Test Procedure 20 6.3 Measurement Equipment Used 20 6.4 Test Result 20 7 ANTENNA REQUIREMENT 21 8 PHOTOGRAPH OF TEST 22 8.1 Radiated Emission 22 8.2 Conducted Emission 23 9 PHOTOS OF THE EUT 24 Page 4 of 24 Report No.: HK2309204360-E ** Modified History ** Revision Description Issued Data Remark Revision 1.0 Initial Test Report Release Sep. 25, 2023 Jason Zhou Page 5 of 24 Report No.: HK2309204360-E 1. TEST SUMMARY 1.1 Test Procedures And Results DESCRIPTION OF TEST RESULT CONDUCTED EMISSIONS TEST §15.207 COMPLIANT RADIATED EMISSION TEST §15.249 (a) / §15.209 COMPLIANT BAND EDGE §15.249 (d)/ §15.209 COMPLIANT OCCUPIED BANDWIDTH MEASUREMENT §15.215 (c) COMPLIANT ANTENNA REQUIREMENT §15.203 COMPLIANT 1.2 Information of The Test Laboratory Shenzhen HUAK Testing Technology Co., Ltd. Add.: 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Testing Laboratory Authorization： A2LA Accreditation Code is 4781.01. FCC Designation Number is CN1229. Canada IC CAB identifier is CN0045. CNAS Registration Number is L9589. 1.3 Measurement Uncertainty Conducted Emission Expanded Uncertainty =2.23dB, k=2 Radiated emission expanded uncertainty(9kHz-30MHz) = 3.08dB, k=2 Radiated emission expanded uncertainty(30MHz-1000MHz)= 4.42dB, k=2 Radiated emission expanded uncertainty(Above 1GHz) = 4.06dB, k=2 Page 6 of 24 Report No.: HK2309204360-E 2. GENERAL INFORMATION 2.1 General Description of EUT Equipment Puck Pro Model Name LR2 Serial Model LR3, LR4, LR5, LR6, LR7, LR8, LR9, LR10, LR11, LR12, LR13, LR14, LR15, LR16, LR17, LR18, LR19, LR20 Model Difference All model’s the function, software and electric circuit are the same, only with model named different. Test sample model: LR2. FCC ID 2AYQN-LR2 Antenna Type PCB Antenna Antenna Gain -0.58dBi Equipment Puck Pro Operation frequency 2420MHz Number of Channels 1CH Modulation Type GFSK Power Source DC 5V from Type-C or DC 3.7V from Battery Power Rating DC 5V from Type-C or DC 3.7V from Battery Firmware Version V2.0 Hardware Version V2.0 Page 7 of 24 Report No.: HK2309204360-E 2.2 Carrier Frequency of Channels Description of Channel: Channel Frequency (MHz) 1 2420 2.3 Operation of EUT during testing Operating Mode The mode is used: Transmitting mode Channel1: 2420MHz 2.4 Description of Test Setup Operation of EUT during conducted testing and radiation testing: AC Plug The sample was placed (0.8m below 1GHz, 1.5m above 1GHz) above the ground plane of 3m chamber. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated a…

Text truncated - open the document above for the full version.

LR2 Radiated Emission Conducted Emission
