2AYQV-SSTWCH1Wireless Charger

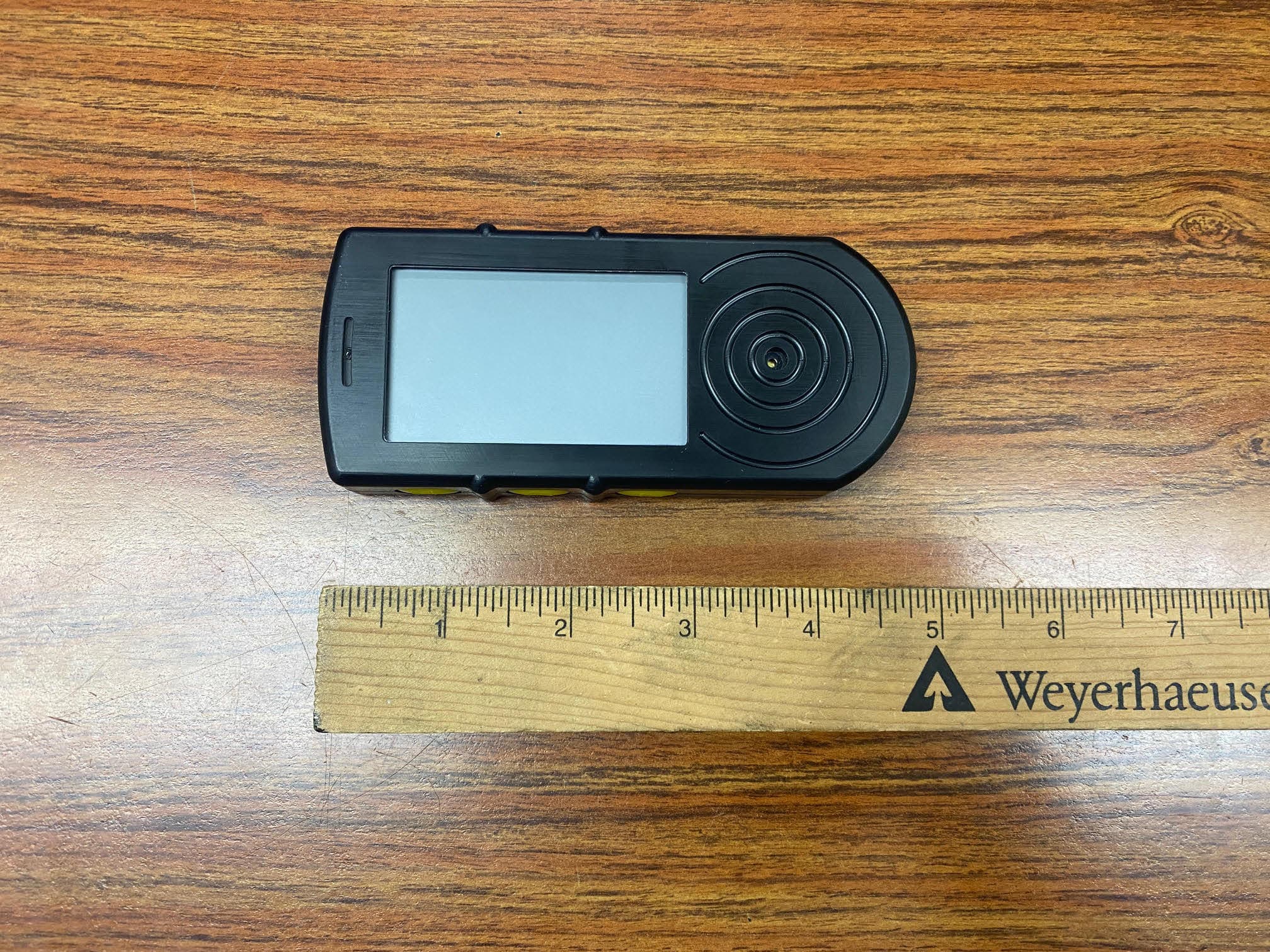

SG SHOT TIMER: User Manual 1.Purpose of the SG SHOT TIMER device SG SHOT TIMER is available in two versions: MILITARYand SPORT and has the technical capabilities to reliably capture shots ofany gun caliber. The device is configured to capture shots of standard hunting andmilitary ammunition of any firearms in any conditions (outdoors or indoors). The timercan capture shots from small-caliber subsonic ammunition or air guns. The MILITARY timer has been designed to operate inthe toughest conditions. The body is military-grade protected, entirely waterproof,and its surface recovers from minor damages. It’s made of a special polyurethane compound,which provides the protection you would expect from a military-grade device. Theunibody design and the absence of ports allow the military model to be submerged ata depth of 16ft or 5 meters underwater with no consequences. Another benefit of this design is its ability to withstandmechanical damage and shock. Because everything is so sealed up and there is noair inside, you can literally throw it against the wall, step on it, or even drive a carover it. It will keep working without any problems. The surface will even heal itself afterminor damage. It’s equipped with a wireless charger and we includethe docking station in the box. It also doubles as a magnetic holder for your timer. The SPORT version is designed for regular shootingand dry practice sessions. Lightweight, easy to carry and operate, and comeswith a magnetic holder. It’s the same size and shape as the military one withthe only difference being the body material. This is thick high-quality plastic. It isalso water-resistant, but not to the level of the military model. The sports model has a USB-c port for charging anda wireless charger built-in. The screen is backlit and controlled by a light sensorfor maximum battery efficiency. The electronics and firmware are the same in bothversions, the microphone is sensitive enough to capture a trigger pull, and both supportfirmware updates using Bluetooth and the mobile app. Before using SG SHOT TIMER, read the user manual at https://timer.shooters.global/timer-instruction/ 2.Technical specifications Battery: Li-po Time to fully charge the device: 3 hours Bluetooth version: 4.2 Dimensions: SG SHOT TIMER SPORT Timer dimensions117,5mm х 20,5mm х 54mm, weight - 145g Magnetic holder dimensions118mm х 52mm х 16,7mm, weight - 95g SG SHOT TIMER MILITARY Timer dimensions117,5mm х 19,5mm х 54mm, weight - 160g Wireless charger dimensions118mm х 52mm х 25,5mm, weight - 115g Note: Specifications are subject to change withoutnotice. 3.Packaging options SG SHOT TIMER SPORT: the box contains theSG SHOT TIMERSPORT device, a magnetic holder with a belt clip (without a wirelesscharger), a 1m USB Type-C cable, a neck strap, and a short manual for quick setup. SG SHOT TIMER MILITARY: the box contains the SG SHOTTIMER MILITARY, a wireless charger that is also used as a magnetic holderwith a belt clip, 1m USB Type-C cable, neck strap, and quick guide for quick setup. 4.Usage instructions 4.1 Turning the timer on and off To turn the timer on, press and hold the “ENTER” buttonfor two seconds. The “ENTER” button is located in the middle of the left side ofthe timer and marked with an “O” symbol. The first screen that appears when the timeris turned on is the “Shooting Practice” screen. Shooting is a type of training witha shot fixation. From the main screen, you can open the main menu ofthe device. Navigation in the main menu is performed using the side timer buttonsand you can select the desired section by pressing the “ENTER” button. Menu sections: ●Training statistics for the entire time of timer use.The timer remembers and displays the statistics of 1,000,000 shots. ●Shooting practice with custom parameters. ●"Dry Practice" mode to improve weapon skills. "DryPractice" is a type of training with fixation of the trigger sound (Smart) or withoutfixation of sounds (Classic). ●Training history for the entire time of timer use. The history stores data on all endings of a session. If there were no shots or completed sets in the session, such a session will not be recorded. This screen inthe timer's interface displays the basic data about each session. Navigation betweensessions is performed using the side timer buttons when selecting the menuitem "Session". ●Language, time, factory reset, and timer informationsettings. To turn the timer off, press the "ENTER" button andhold it for two seconds on any timer screen. Also, the timer will be automatically turnedoff after 30 minutes of inactivity (no timer buttons pressed or there is no data transfervia Bluetooth). 4.2 Charging the SG SHOT TIMER The SG SHOT TIMER uses a Li-po battery for poweringthe devices. Do not attempt to replace the device's battery yourself, as this maydamage the device and/or the battery, result in overheating, fire, and injury. Do not exposethe battery to strong heat sources such as sunlight, fire, etc. To charge the device, use the USB Type-C cable thatcame with the device, or use the wireless charging station that may also come withthe device, depending on the selected device model or that is available to purchaseat https://timer.shooters.global. To charge the battery of the SG SHOT TIMER SPORT device,insert the charger plug into a dedicated timer socket and plug the chargerinto a wall outlet, or use the wireless charger that may be included with the device. Forthe SG SHOT TIMER MILITARY device use the wireless charger. If the battery is completely discharged, it may takesome time before the charging process is displayed on the device's interface bya charging indicator. A fully discharged battery charges in about 3 hours. Do not leave the timer on charge after the chargingprocess is complete, otherwise, it may shorten the battery life. 4.3 Software update instructions The device software can be easily updated via the"Drills" mobile application available in App Store and Google Play Market. If a software…

Text truncated - open the document above for the full version.

09.03.2021 Compatible Electronics TCl3 114 Olinda Drive Brea. CA 92823 Re: FCC ID: 2A YQV-' T4/\ Re: FCC ID: 2A YQV-SSTWCI 11 Greetings. This is a letter of authoriLation to accept Compatible Electronic·. Inc .. specifically including the employees of Compatible Electronics. as an Agent for SHOOTERS.GLOBAL p. z o.o. (adre : LUBLfN. UL. LUBARTOWSKA, nr 71 A, kod 20-123), for a period of one year, to sign applications before the Commission on our behalf. to make representations to you on our behalC and to receive and exchange data between our company and the Commission in connection wi1h ccrti fication or thl.'. following(SIIOOTERS.GLOBAL Sp. z o.o.) product: SG MART SI IOT I IM LR tv!L I. SG SM1\I{'( SI 10 I Tl\11.R Sl'OR I. \\'irclcs Charger Under r-cc Docket 1 umber 20780 and General Docket umber 80-284 pursuant to Part 15 of FCC Rules and Regulations. Please also accept this lelter as an attestation that neither SIIOOTERS.GLOBAL Sp. z o.o. nor any of its officers. directors. or person holding 5% or more or the outstanding stock or shares. voting or non- voting, have been denied federal benefi1s under section 5301 of"thc /\nti-Drug-/\buse act or 1988.21 U .. C. 853(a). In addition. SIIOOTERS.GLOBAL Sp. z o.o. \\ill notil� the Federal C ommunications Commission ii'. at any time. the situation changes causing SIIOOTERS.GLOBAL Sp. z o.o. to be denied federal benefits. If you have any further questions or need additional information. pica e fe el free to give me a call at (Phone+ 38 067 612 9988). incerely, PREZES Z/\R7:f\DU KOSANOV KY IGOR SHOOTERS.GLOBAL Sp. z o.o. 20-123 Lublin. ul. Lubartowska 71A REGON 385489505 NIP 9462695099 KRS 0000827305 J\clrcs: LUBLIN, UL. LURARTOW 1(/\, nr 71A, kocl 20-123, Nurncr KRS: 0000827305. NIP: 9462695099, REGON: 38548950500000, BNP Parib<1� Bani-. Pol,ka Sp61Ka /\1-.c)jria. Pl. 03 1600 1462 1897 6971 2000 0004

EUT: Wireless Charger Model: V2 FCC ID: 2AYQV-SSTWCH1 1. Power transfer frequency range is 110 to 205 kHz 2. Output power from each primary coil is less 15 Watts 3. The system consists a single coil 4. Client device is placed directly in contact with the transmitter 5. Mobile exposure conditions only. The device is an AC powered wireless charger and would be more than 20 cm away from user 6. The aggregate H-field strengths was less than 50% of the applicable MPE limit Title: Date: 6/3/2021 Operator: Temp: 72 EUT Type: Hum: 38 EUT Condition:Comments Fundamental worst case emission Frequency (kHz): 146 a b c d e f g h Max Reading dBuV Loop Factor Cable loss dBpT dBuA/m Reading A/m MPE Limit A/m Margin regulatory base Distance cm 60.97 26.57 0 87.54 85.54 0.01892344 0.815 -0.80 FCC(50%) 15 & 20 E-Field reading 6.7 V/m Fomula used -----dBpT (d) = dBuV (a) + dBpT/uV (b) + cable loss (c) dBuA/m (e) = dBpT (d) - 2 Howard Huang Aggregate leakage fieldsWireless ChargerEUT is continuously charging accessory Frequency range Electric field strength Magnetic field strength Power density Averaging time (MHz) (V/m) (A/m) (mW/cm2) (minutes) (A) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 *100 6 3.0-30 1842/f 4.89/f *900/f2 6 30-300 61.4 0.163 1 6 300-1,500 f/300 6 1,500-100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *100 30 1.34-30 824/f 2.19/f *180/f2 30 30-300 27.5 0.073 0.2 30 300-1,500 f/1500 30 1,500-100,000 1 30 50% 1.63 0.815 Table 1 of Section 1.1310

Report Number: D10326R1 20621 PASCAL WAY, LAKE FOREST, CALIFORNIA, 92630 • PH: (949) 587-0400 FX: (949) 587-0476 Page 1 of 22 FCC PART 15 SUBPART B FCC PART 18 TEST REPORT TEST METHOD: ANSI C63.4 AND FCC OET/MP-5 For SMART SHOT TIMER AND WIRELESS CHARGER TIMER MODELS: SST4A.00 and SST4A.01 FCC ID: 2AYQV-SST4A CHARGER MODEL: V2 FCC ID: 2AYQV-SSTWCH1 Prepared for SHOOTERS.GLOBAL Z.O.O. UL. LUBARTOWSKA, nr71A, LUBLIN, 20-123 POLAND Prepared by: _____________________ HOWARD HUANG Approved by: ____________________ CARLA ATIZADO COMPATIBLE ELECTRONICS, INC. 20621 PASCAL WAY LAKE FOREST, CA 92630 (949) 587-0400 DATE: APRIL 8, 2021 REPORT APPENDICES TOTAL BODY A B C D E PAGES 22 2 2 2 20 26 74 This report shall not be reproduced, except in full, without the written approval of Compatible Electronics. Report Number: D10326R1 20621 PASCAL WAY, LAKE FOREST, CALIFORNIA, 92630 • PH: (949) 587-0400 FX: (949) 587-0476 Page 2 of 22 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 5 SUMMARY OF TEST RESULTS 6 1. PURPOSE 7 1.1 Decision Rule & Risk 8 2. ADMINISTRATIVE DATA 9 2.1 Location of Testing 9 2.2 Traceability Statement 9 2.3 Cognizant Personnel 9 2.4 Date Test Sample was Received 9 2.5 Disposition of the Test Sample 9 2.6 Abbreviations and Acronyms 9 3. APPLICABLE DOCUMENTS 10 4. DESCRIPTION OF TEST CONFIGURATION 11 4.1 Description of Test Configuration - EMI 11 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 13 5.1 EUT and Accessory List 13 5.2 EMI Test Equipment 14 5.3 Test Software 14 6. TEST SITE DESCRIPTION 15 6.1 Test Facility Description 15 6.2 EUT Mounting, Bonding and Grounding 15 6.3 Facility Environmental Characteristics 15 6.4 Measurement Uncertainty 15 7. TEST PROCEDURES 16 7.1 RF Emissions 16 8 TEST PROCEDURE DEVIATIONS 23 9. CONCLUSIONS 23 Report Number: D10326R1 20621 PASCAL WAY, LAKE FOREST, CALIFORNIA, 92630 • PH: (949) 587-0400 FX: (949) 587-0476 Page 3 of 22 LIST OF APPENDICES APPENDIX TITLE A Laboratory Accreditations B Modifications to the EUT C Additional Models D Di agrams, Charts and Photos • Test Setup Diagrams • Antenna and Amplifier Gain Factors • Emissions Photos E Data Sheets LIST OF TABLES TABLE TITLE 1 Radiated Emissions Test Results - Timer 2 Conducted Emissions Test Results 120V - Timer 3 Conducted Emissions Test Results 230V - Timer 4 Radiated Emissions Test Results - Charger 5 Conducted Emissions Test Results 120V - Charger 6 Conducted Emissions Test Results 230V - Charger Report Number: D10326R1 20621 PASCAL WAY, LAKE FOREST, CALIFORNIA, 92630 • PH: (949) 587-0400 FX: (949) 587-0476 Page 4 of 22 LIST OF FIGURES FIGURE TITLE 1 Conducted Emissions Setup 2 Low Frequency Test Setup 3 Radiated Emissions 3 meter Semi-Anechoic Test Chamber 4 High Frequency Test Volume Report Number: D10326R1 20621 PASCAL WAY, LAKE FOREST, CALIFORNIA, 92630 • PH: (949) 587-0400 FX: (949) 587-0476 Page 5 of 22 GENERAL REPORT SUMMARY This electromagnetic emission report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced in any form except in full, without the written permission of Compatible Electronics. This report must not be us ed by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the U.S. government. Device Tested: Smart Shot Timer and Wireless Charger Timer Models: SST4A.00 and SST4A.01 FCC ID: 2AYQV-SST4A Charger Model: V2 FCC ID: 2AYQV-SSTWCH1 Product Description: The EUT is Smart Shot Timer and Wireless Charger. Timer Clock Frequencies: 32.768 kHz and 32 MHz (Dimensions: 11.5cm x 5.1cm x 1.9cm) Charger Clock Frequency: 32.768 kHz (Dimensions: 11.9cm x 5.1cm x 1.2cm) Modifications : The EUTs were not modified during the testing in order to comply with the specifications. Manufacturer: Shooters.Global Z.o.o. UL. Lubartowska, Nr71a, Lublin, 20-123 Poland Test Date: March 26, 2021 Test Specifications Covered by Accreditation : Test Specifications: EMI requirements FCC CFR Title 47, Part 15 Subpart B, Part 18 Subpart C FCC OET/MP-5 Test Procedure: ANSI C63.4 Report Number: D10326R1 20621 PASCAL WAY, LAKE FOREST, CALIFORNIA, 92630 • PH: (949) 587-0400 FX: (949) 587-0476 Page 6 of 22 SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions, 150 kHz – 30 MHz Complies with the Class B limits of CISPR 32. See section 6.4 for Measurement Uncertainty 2 Radiated RF Emissions, 30 MHz – 12 GHz Complies with the Class B limits of CISPR 32. See section 6.4 for Measurement Uncertainty 3 Radiated RF Emissions: Carrier (110 – 205 kHz) Complies with FCC CFR Title 47, Part 18, Subpart C. See Section 6.4 for measurement uncertainty Reported uncertainty is based on a standard uncertainty multiplied by a coverage factor of k=2 Report Number: D10326R1 20621 PASCAL WAY, LAKE FOREST, CALIFORNIA, 92630 • PH: (949) 587-0400 FX: (949) 587-0476 Page 7 of 22 1. PURPOSE This document is a qualification test report based on the Electromagnetic Int erference (EMI) tests performed on the Smart Shot Timer, Models: SST4A.00 and SST4A.01, and Wireless Charger, Model: V2. The EMI measurements were performed according to the measurement procedure described in ANSI C63.4 and FCC OET/MP-5 FCC Methods of Measurement of Radio Noise Emissions for ISM Equipment (cited in 47 CFR FCC Part 18 – Industrial, Scientific, and Medical Equipment). The tests were performed in order to determine whether the electromagnetic emissions from the equipment under test, referred to as EUT (equipment under test) hereafter, are within the specification limits defined by the Code of Federal Regulations Title 47, Part 15 Subpart B. Under paragraph G of section 15.109 of the Code o…

Text truncated - open the document above for the full version.

SMART SHOT TIMER AND WIRELESS CHARGER TIMER MODELS: SST4A.00 and SST4A.01 SHOOTERS.GLOBAL Z.O.O. FCC ID: 2AYQV-SST4A CHARGER MODEL: V2 FCC ID: 2AYQV-SSTWCH1 SMART SHOT TIMER AND WIRELESS CHARGER TIMER MODELS: SST4A.00 and SST4A.01 SHOOTERS.GLOBAL Z.O.O. FCC ID: 2AYQV-SST4A CHARGER MODEL: V2 FCC ID: 2AYQV-SSTWCH1 SMART SHOT TIMER AND WIRELESS CHARGER TIMER MODELS: SST4A.00 and SST4A.01 SHOOTERS.GLOBAL Z.O.O. FCC ID: 2AYQV-SST4A CHARGER MODEL: V2 FCC ID: 2AYQV-SSTWCH1
