2AYTF-I15Bluetooth TWS

Mipodz i15 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) L' appareil ne doit pas produire de brouillage; (2) L' appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d' en compromettre le fonctionnement. 2

Home Aesthetics 40 Tiffield Road, Unit 3, Scarborough, Ontario M1V 5B6 Canada Agent Authorization Company: Home Aesthetics Address: 40 Tiffield Road, Unit 3, Scarborough, Ontario M1V 5B6 Canada Product Name: TWS Model Number(s): Mipodz i15, i15, X11S, X20 Product Description: Bluetooth TWS We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Jan. 27, 2021 Name: Joe Liu Title: General Manager Company: Home Aesthetics

Home Aesthetics 40 Tiffield Road, Unit 3, Scarborough, Ontario M1V 5B6 Canada Jan. 27, 2021 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Explanation of differences between product types FCC ID: 2AYTF-I15 Models: Mipodz i15, i15, X11S, X20 To Whom It May Concern: We, The Home Aesthetics hereby declare that the model : i15, X11S, X20 is identical with the model : Mipodz i15, except the model name. Except for the different above, no other modification is performed. Sincerely, Home Aesthetics Signature: [Joe Liu, General Manager]

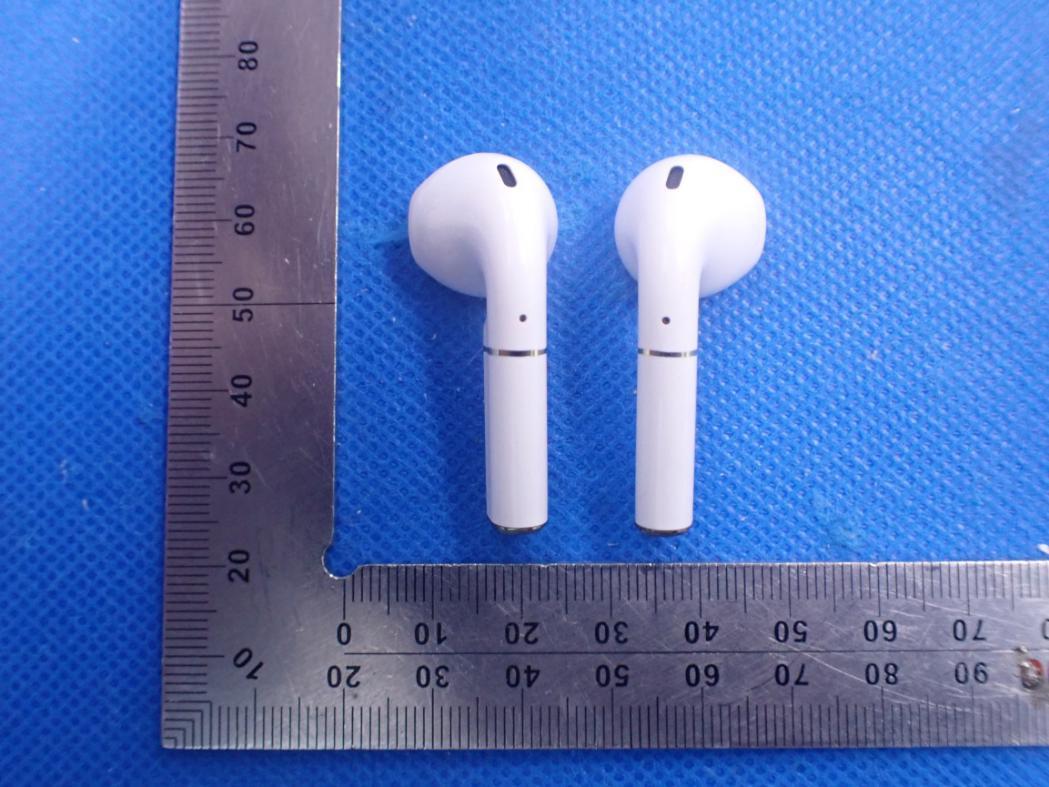

External Photos ALL VIEW-1 OF EUT EXTERNAL VIEW-1 OF EUT EXTERNAL VIEW-2 OF EUT EXTERNAL VIEW-3 OF EUT EXTERNAL VIEW-4 OF EUT EXTERNAL VIEW-5 OF EUT EXTERNAL VIEW-6 OF EUT

FCC ID Label Location The product does not have enough space to place the label, and FCC ID label is reflected in the user manual and package, as below:

Internal Photos INTERNAL VIEW-1 OF EUT(Left earphone) INTERNAL VIEW-2 OF EUT(Left earphone) INTERNAL VIEW-3 OF EUT(Left earphone) INTERNAL VIEW-4 OF EUT(Left earphone) Antenna INTERNAL VIEW-5 OF EUT(Left earphone) INTERNAL VIEW-1 OF EUT(Right earphone) INTERNAL VIEW-2 OF EUT(Right earphone) INTERNAL VIEW-3 OF EUT(Right earphone) Antenna INTERNAL VIEW-4 OF EUT(Right earphone) INTERNAL VIEW-5 OF EUT(Right earphone)

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description TWS Model Name Mipodz i15 FCC ID 2AYTF-I15 2. EVALUATION METHOD According to 447498 D01 General RF Exposure Guidance v06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 3. CALCULATION BR/EDR: P t =-1.336dBm=0.74mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(0.74mW /5mm) .[√2.402GHz)]=0.23<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. 4. CONCLUSION The SAR evaluation is not required.

Page 1 of 65 FCC Test Report Report No.: AGC11112210102FE03 FCC ID : 2AYTF-I15 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : TWS BRAND NAME : N/A MODEL NAME : Mipodz i15, i15, X11S, X20 APPLICANT : Home Aesthetics DATE OF ISSUE : Jan. 27, 2021 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC11112210102FE03 Page 2 of 65 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Jan. 27, 2021 Valid Initial Release Report No.: AGC11112210102FE03 Page 3 of 65 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY .................................................................................................................. 5 2. GENERAL INFORMATION .............................................................................................................................. 6 2.1. PRODUCT DESCRIPTION ........................................................................................................................ 6 2.2. TABLE OF CARRIER FREQUENCYS ....................................................................................................... 6 2.3. RECEIVER INPUT BANDWIDTH .............................................................................................................. 7 2.4. EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE ......................................................................... 7 2.5. EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ......................................................... 7 2.6. RELATED SUBMITTAL(S) / GRANT (S) .................................................................................................... 8 2.7. TEST METHODOLOGY ............................................................................................................................. 8 2.8. SPECIAL ACCESSORIES ......................................................................................................................... 8 2.9. EQUIPMENT MODIFICATIONS ................................................................................................................. 8 2.10. ANTENNA REQUIREMENT..................................................................................................................... 8 3. MEASUREMENT UNCERTAINTY ................................................................................................................... 9 4. DESCRIPTION OF TEST MODES ................................................................................................................. 10 5. SYSTEM TEST CONFIGURATION ................................................................................................................ 11 5.1. CONFIGURATION OF EUT SYSTEM ...................................................................................................... 11 5.2. EQUIPMENT USED IN TESTED SYSTEM .............................................................................................. 11 5.3. SUMMARY OF TEST RESULTS .............................................................................................................. 11 6. TEST FACILITY .............................................................................................................................................. 12 7. PEAK OUTPUT POWER ................................................................................................................................ 13 7.1. MEASUREMENT PROCEDURE ............................................................................................................. 13 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 13 7.3. LIMITS AND MEASUREMENT RESULT .................................................................................................. 14 8. 20DB BANDWIDTH ........................................................................................................................................ 18 8.1. MEASUREMENT PROCEDURE ............................................................................................................. 18 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 18 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................... 19 9. CONDUCTED SPURIOUS EMISSION........................................................................................................... 23 9.1. MEASUREMENT PROCEDURE ............................................................................................................. 23 Report No.: AGC11112210102FE03 Page 4 of 65 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 23 9.3. MEASUREMENT EQUIPMENT USED .................................................................................................... 23 9.4. LIMITS AND MEASUREMENT RESULT .................................................................................................. 23 10. RADIATED EMISSION ................................................................................................................................. 34 10.1. MEASUREMENT PROCEDURE ........................................................................................................... 34 10.2. TEST SETUP ......................................................................................................................................... 36 10.3. LIMITS AND MEASUREMENT RESULT ............................................................................................... 37 10.4. TEST RESULT........................................................................................................................................ 37 11. NUMBER OF HOPPING FREQUENCY .........................................................................................…

Text truncated - open the document above for the full version.

Report No.: AGC11112210102FE03 Page 41 of 65 EUT TWS Model Name Mipodz i15 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 5 Antenna Horizontal FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4882.00045.740.1445.8874-28.12 peak 4882.00038.290.1438.4354-15.57 AVG 7323.00041.232.3643.5974-30.41 peak 7323.00034.182.3636.5454-17.46 AVG Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Value Type EUT TWS Model Name Mipodz i15 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 5 Antenna Vertical FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4882.00045.410.1445.5574-28.45 peak 4882.00037.340.1437.4854-16.52 AVG 7323.00040.852.3643.2174-30.79 peak 7323.00032.722.3635.0854-18.92 AVG Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Value Type Report No.: AGC11112210102FE03 Page 42 of 65 EUT TWS Model Name Mipodz i15 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 6 Antenna Horizontal FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4960.00046.990.2247.2174-26.79 peak 4960.00038.740.2238.9654-15.04 AVG 7440.00041.582.6444.2274-29.78 peak 7440.00032.412.6435.0554-18.95 AVG Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Value Type EUT TWS Model Name Mipodz i15 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 6 Antenna Vertical FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4960.00046.540.2246.7674-27.24 peak 4960.00038.730.2238.9554-15.05 AVG 7440.00041.222.6443.8674-30.14 peak 7440.00033.052.6435.6954-18.31 AVG Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Value Type RESULT: PASS Note: The amplitude of other spurious emissions from 1G to 25 GHz which are attenuated more than 20 dB below the permissible value need not be reported. Factor = Antenna Factor + Cable loss - Amplifier gain, Over=Measure-Limit. The “Factor” value can be calculated automatically by software of measurement system. All test modes had been tested. The π/4-DQPSK modulation is the worst case and recorded in the report. Report No.: AGC11112210102FE03 Page 43 of 65 TEST RESULT FOR RESTRICTED BANDS REQUIREMENTS EUT TWS Model Name Mipodz i15 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 4 Antenna Horizontal PK AV RESULT: PASS Report No.: AGC11112210102FE03 Page 44 of 65 EUT TWS Model Name Mipodz i15 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 4 Antenna Vertical PK AV RESULT: PASS Report No.: AGC11112210102FE03 Page 45 of 65 EUT TWS Model Name Mipodz i15 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 6 Antenna Horizontal PK AV RESULT: PASS Report No.: AGC11112210102FE03 Page 46 of 65 EUT TWS Model Name Mipodz i15 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 6 Antenna Vertical PK AV RESULT: PASS Note: The factor had been edited in the “Input Correction” of the Spectrum Analyzer. The π/4-DQPSK modulation is the worst case and recorded in the report. Report No.: AGC11112210102FE03 Page 47 of 65 11. NUMBER OF HOPPING FREQUENCY 11.1. MEASUREMENT PROCEDURE The EUT shall have its hopping function enabled. Use the following spectrum analyzer settings: 1. Span: The frequency band of operation. Depending on the number of channels the device supports, it may be necessary to divide the frequency range of operation across multiple spans, to allow the individual channels to be clearly seen. 2. RBW: To identify clearly the individual channels, set the RBW to less than 30% of the channel spacing or the 20 dB bandwidth, whichever is smaller. 3. VBW ≥ RBW. Sweep: Auto. Detector function: Peak. Trace: Max hold. 4. Allow the trace to stabilize. 11.2. TEST SETUP (BLOCK DIAGRAM OF CONFIGURATION) Same as described in section 8.2 11.3. MEASUREMENT EQUIPMENT USED The same as described in section 6 11.4. LIMITS AND MEASUREMENT RESULT TOTAL NO. OF HOPPING CHANNEL LIMIT (NO. OF CH) MEASUREMENT (NO. OF CH) RESULT >=15 79 PASS TEST PLOT FOR NO. OF TOTAL CHANNELS Note: The GFSK modulation is the worst case and recorded in the report. Report No.: AGC11112210102FE03 Page 48 of 65 12. TIME OF OCCUPANCY (DWELL TIME) 12.1. MEASUREMENT PROCEDURE The EUT shall have its hopping function enabled. Use the following spectrum analyzer settings: 1. Span: Zero span, centered on a hopping channel. 2. RBW shall be≤channel spacing and where possible RBW should be set >> 1 / T, where T is the expected dwell time per channel. 3. Sweep: As necessary to capture the entire dwell time per hopping channel; where possible use a video trigger and trigger delay so that the transmitted signal starts a little to the right of the start of the plot. The trigger level might need slight adjustment to prevent triggering when the system hops on an adjacent channel; a second plot might be needed with a longer sweep time to show two successive hops on a channel. 4. Detector function: Peak. Trace: Max hold. 5. Use the marker-delta function to determine the transmit time per hop. 6. Repeat the measurement using a longer sweep time to determine the number of hops over the period specified in the requirements. The sweep time shall be equal to, or less than, the period specified in the requirements. Determine the number of hops over the sweep time and calculate the total number of hops in the period specified in the requirements, using the following equation: (Number of hops in the period specified in the requirements) = (number of hops on spectrum analyzer) × (period specified in the requirements / analyzer sweep time) 7. The average time of occupancy is calculated …

Text truncated - open the document above for the full version.

Test Setup Photos RADIATED EMISSION TEST SETUP BELOW 1GHz RADIATED EMISSION TEST SETUP ABOVE 1GHz CONDUCTED TEST SETUP
