2AYTKBA003EDLUND 10x10 Pizza scale with 2 buttons display

M191 RevA Edlund Company, LLC 319 Queen City Park Rd, Burlington, VT 05401 1-800-772-2126 www.edlundco.com Edlund Wireless Pizza Scale MODEL BBPZ-20 Model Capacity (lbs./oz.) Capacity (g) Platform (in) Display Size (in) BBPZ-20 20 lbs. x 0.05 oz, 20 lbs. x 0.002 lbs.,20 lbs. x 1/8 oz, 320 oz x 0.05 oz, 320 oz x 1/8 oz 10000 g x 1g 10.0” x 10.0” OP = 12.0” x 12.0” LED= 1.75” x 4.5” Overall= 9.5” x 5.0” x 2.0” POWER SOURCE: INPUT: 100~240 VAC ~ 50/60 Hz. 0.4A OUTPUT: 5VDC 1A -Not Legal for Trade – Operating Instructions: The s c al e operates on eight AA batteries for the display and two AAA batteries for the base, or two 5-volt Mi ni-USB power supplies (part #PS200 for US 115V 60Hz and part #PS201 for 230V 50-60Hz). The scale has an automatic power off feature. If a battery is used, the scale will shut off after 7 minutes if no weighing operation is performed. The Auto-off feature is disabled when the power supply is used. Replace batteries or use the power supply when the LED shows “H Lo” or “b Lo”. (H Low = Head unit; b Low = Base) To install the batteries in the readout, unscrew the two screws for the battery box, install eight AA batteries, (observing polarity) and reinstall the cover. For the base, turn the base over and unscrew the one screw for the battery box cover, install two AAA batteries (observing polarity) and reinstall the cover. If pow er supplies are used, the base and readout must be plugged in. The base power jack is underneath the scale and the readout jack is on the back of the readout. Make sure the power supply tips are fully seated in the jack. Turn on the scale by pressing the “On/Off/Mode/Cal” switch. The scale readout will illuminate all segments followed by dashes for approximately 3 seconds and then display Zero. If the scale is overloaded, an “E” will be displayed; remove the weight immediately otherwise you may damage the scale. The scale cannot weigh over 105% of max capacity. When a product is placed on the scale platform, the weight of the product is shown on the scale display in the units in which the scale is weighing. You can change the weighing mode units by pressing the “On/Off/Mode/Cal” button. This product can now be “tared out”, i.e. shown as zero on the scale display, by depressing the “Tare” button. The display will illuminate the tare indicator in the upper left corner. If an additional product is then placed on the platform, the weight of this additional product can also be “tared out” by depressing the “Tare” button. This tare operation can be repeated up to the full capacity of the scale. If the total product is now removed from the platform, the weight of the total product will be shown as a negative value on the scale display. This negative value can now be removed from the display by depressing the “Tare” button. Depressing the “On/Off/Mode/Cal” button while the scale is on for greater than five seconds will turn the scale off. Key Pad Functions: [On/Off/Mode/Cal] ~ Press to turn the scale on while its off. ~ Press to turn scale off. (With the scale on the button must be pressed for greater than 5 seconds) ~ Press to cycle through the weight units. ~ Press and hold the key to enter user calibration mode (SCALE MUST BE OFF) [Tare] ~ Press to Tare the weight. Using the wireless Bluetooth connection: 1.) There is slide switch on both display head and the scale base to enable or disable Bluetooth operation. If there is no cable connection between display head and scale base, please slide the both slide switches to “ON” to enable the wireless function on both. The weighing data will be sent from the scale base to the display head wirelessly. In order to save the energy consumption once the cable connection is established, the power to the BLE modules will be cut off. 2.) There is a LED on both display head and the scale to show the wireless connection status: LED of Scale base: - Steady flashing while waiting to be connected - Lit up solidly after wireless connection is established LED of the Display head: - Quick flashing when unpaired or searching - Long flashing when paired and establishing connection - Lit up solidly after wireless connection is established Calibration procedure: 1) MUST start with the scale off to enter the calibration feature. Press and hold the “On/Off/Mode/Cal” key for greater than 5 seconds. The calibration weight (2000g) will flash on the display. 2) Momentarily Press the “On/Off/Mode/Cal” key and the display will change to read “CAL 0 “. Gently place the correct calibration weight on the platform. 3) When the calibration is complete the unit will briefly display “CAL F”, remove weight and scale will return to NORMAL WEIGHING MODE. Note: If “CAL E” appears, this indicates that a calibration error has occurred, and the calibration process must be repeated. “CAL E” can occur when the calibration steps are not followed in the correct order, the incorrect calibration weight was used, or the weight was not placed on the scale in time. “CAL E” will remain on the display until any key is pressed on the scale. The scale then returns to the NORMAL WEIGHING MODE, and the scale will revert to the previous calibration settings. The calibration procedure must be repeated in order to change the scale calibration settings. M191 RevA Edlund Company, LLC 319 Queen City Park Rd, Burlington, VT 05401 1-800-772-2126 www.edlundco.com Troubleshooting: 1.) In a dry environment, static electricity may cause your scale to shut down. If this happens, press “On/Off” to turn scale back on. FCC statements: The device has been evaluated to meet general RF exposure requirement; The device can be used in portable exposure condition without restriction Federal Communication Commission (FCC) Radiation. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cau…

Text truncated - open the document above for the full version.

EdlundCompany,LLC Date:2022-06-13 To:FederalCommunicationsCommission, Authorization&EvaluationDivision, 7435OaklandMillsRoad, Columbia,MD21046 ToWhomItMayConcern: TheEdlundCompany,LLC,theundersigned,herebyauthorizesMrs.Wendy ZhanfromShenzhenMorlabCommunicationsTechnologyCo.,Ltd.,toact onthebehalfoftheEdlundCompany,LLCsolelyinmattersrelatingtothe applicationforanFCCequipmentauthorizationforFCCID:2AYTKBA003 includingthesigningofdocumentsinconnectionwiththisApplication.Necessary actscarriedoutShenzhenMorlabCommunicationsTechnologyCo.,Ltd.on ourbehalfoftheEdlundCompany,LLCinconnectionwiththeApplicationshall havethesameeffectasactsoftheEdlundCompany,LLC.EdlundCompany,LLC alsoherebycertifythatnopartytothisapplicationissubjecttoadenialofbenefits, includingFCCbenefits,pursuanttoSection5301oftheAnti-DrugAbuseActof 1988,21U.S.C.862. Thankyouforyourattentiontothismatter. YoursSincerely, Signatory: Contactname:ShawnStech Title:ContinuousImprovementManager Tel:1-800-772-2126Ext.29 Email:[email protected] Companyname: EdlundCompany,LLC

EdlundCompany,LLC Date:2022-06-13 To:FederalCommunicationsCommission, Authorization&EvaluationDivision, 7435OaklandMillsRoad, Columbia,MD21046 Re:RequestofConfidentialityforFCCID:2AYTKBA003 ToWhomitmayconcern: Pursuanttosections0.457and0.459ofCommission’sRules(CFR47),andSection552(b)(4) oftheFreedomofInformationAct,EdlundCompany,LLCherebyrequestsconfidentialityand treatmentofcertaininformationaccompanyingthisapplication.Thematerialscontaintradesecrets andproprietaryinformationnotcustomarilyreleasedtothepublic.Thepublicdisclosureofthese mattersmightbeharmfultotheApplicantandprovideunjustifiedbenefitstoitscompetitors. WearealsoherebyrequestShort-TermConfidentialityfor180daysafterthegrantasoutlinedin PublicNoticeDA04-1705.ThisprovisionwillgiveEdlundCompany,LLCtemporaryconfidentialityof commerciallysensitiveinformationpriortoproductrelease. TherequestedPermanentandShort-TermConfidentialexhibitsarelistedasfollows: PERMANENTANDSHORT-TERMCONFIDENTIALLIST ExhibitDescription PERMANENT 1BlockDiagram 2OperationalDescription 3Schematics 4BOM SHORT-TERM 6ExternalPhotos 7InternalPhotos 8Test-SetupPhotos 9UserManual TheApplicantunderstandsthatpursuanttoRule0.457,disclosureofthisapplicationandall accompanyingdocumentations,whereapplicable,willnotbemadepublicbeforethedateoftheGrant forthisapplication. Signatory Contactname:ShawnStech Title:ContinuousImprovementManager Tel:1-800-772-2126Ext.29 Email:[email protected] Companyname:EdlundCompany,LLC

EdlundCompany,LLC Supplier’sDeclarationOfConformity fortheFCCSDoCProcedure ThefollowingEquipmentadaptFCCSDoCProcedureaccordingtoFCCpart2.906: ProductName:EDLUND10"x10"Pizzascalewith2buttonsdisplay BrandName:EDLUND ModelNumber:BA003 ReportNumber:SZ20120175E02 It’sherewithconfirmedtocomplywiththerequirementsofFCCPart15Rules. Operationissubjecttothefollowingtwoconditions: (1)Thisdevicemaynotcauseharmfulinterference,and (2)Thisdevicemustacceptanyinterferencereceived,includinginterferencethat maycauseundesiredoperation. Itisunderstoodthateachunitmarketedisidenticaltothedeviceastested,andanychangestothe devicethatcouldadverselyaffecttheemissioncharacteristicswillrequireretest. Thefollowingimporter/responsiblepartyinUnitedStates: NotAvailableatCertificationStage CompanyName:N/A CompanyAddress:N/A Telephone:N/A Fax:N/A Personisresponsibleformarkingthisdeclaration: ShawnStechContinuousImprovementManager __________________________________________________________________________ Name(Fullname)Position/Title 2022-06-13 _________________________________________________________________________ LegalSignatureDate

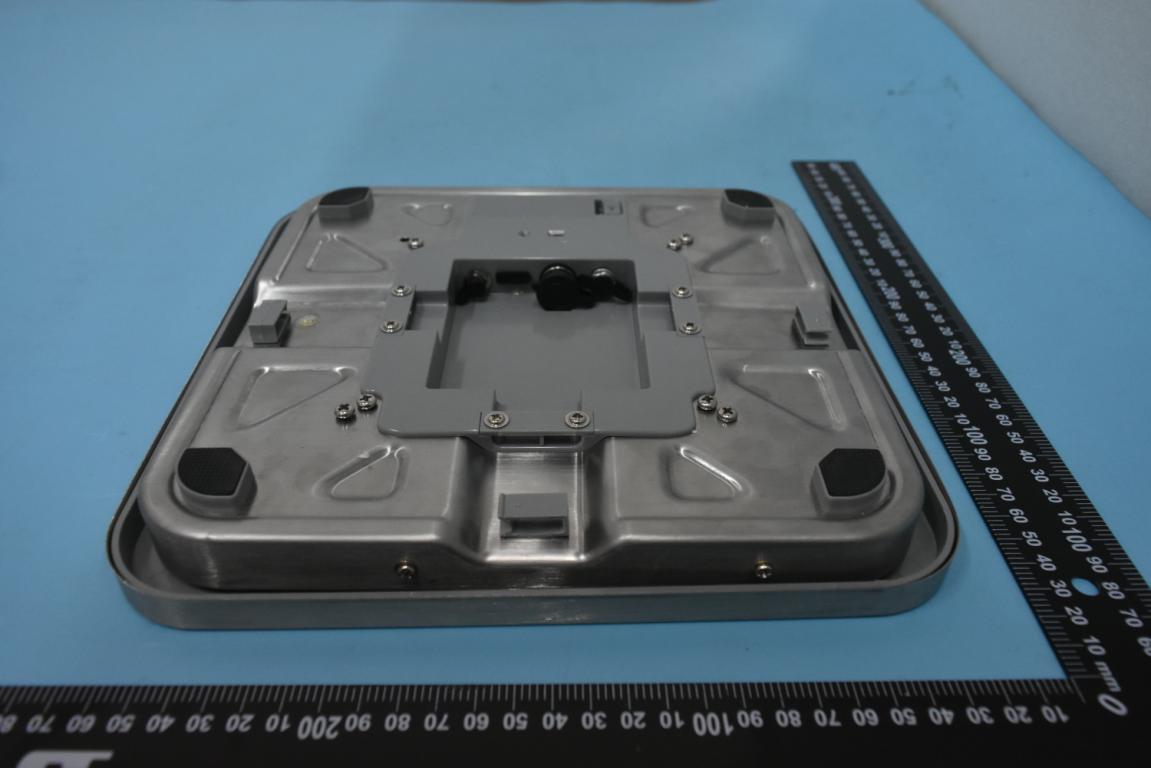

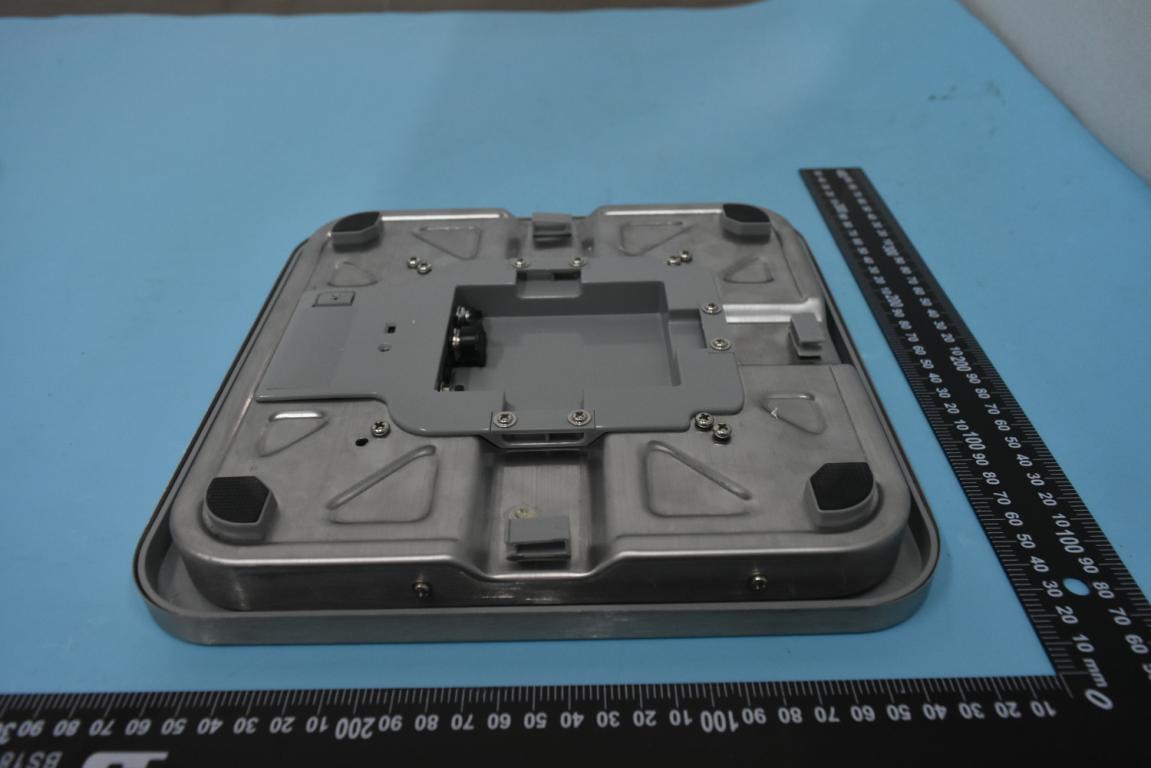

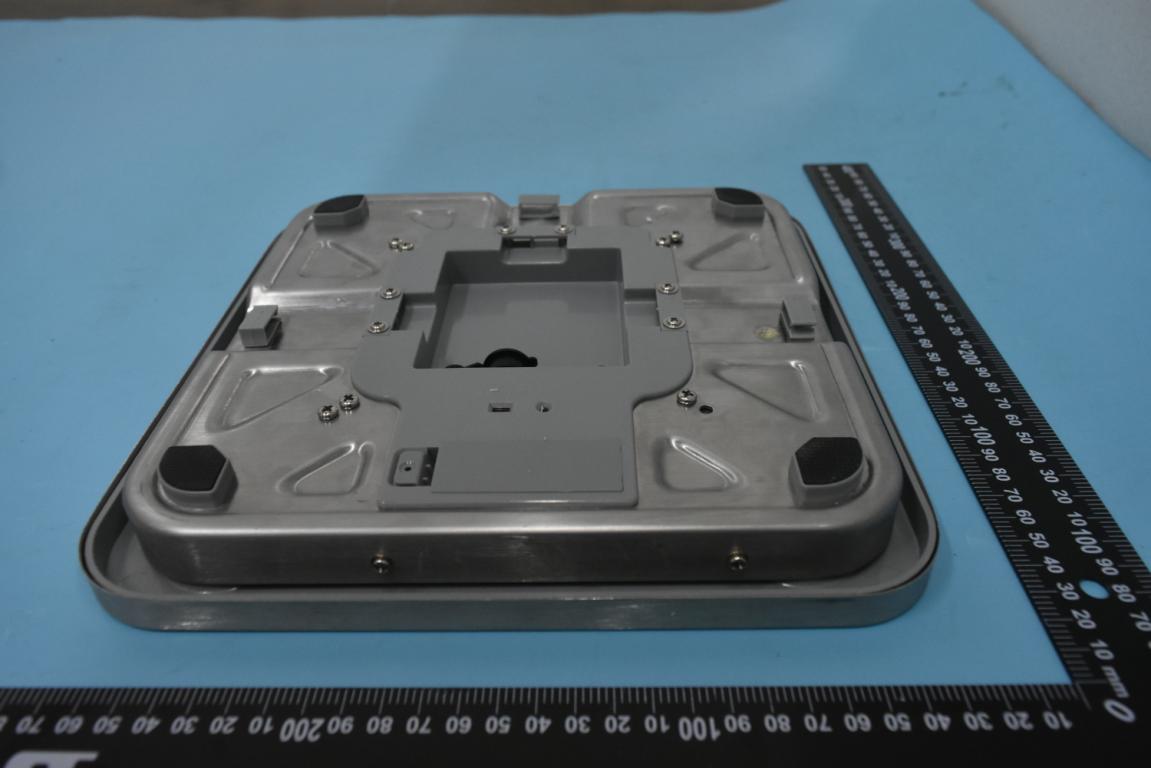

FCC ID: 2AYTKBA003, MODEL NAME: BA003 IC: 27139-BA003 1. External Photos 1. EUT front view 2. EUT rear view 3. EUT left side view 4. EUT right side view 5. EUT top view 6. EUT bottom view

1. Label: 2. Label location: In the back:

FCC ID: 2AYTKBA003, MODEL NAME: BA003 IC: 27139-BA003 Internal Photos 1. EUT uncover view 1. Antenna view-Electronic Scale Head BluetoothAntenna

NOTE: This document is issued by Shenzhen Morlab Communications Technology Co., Ltd., the test report shall not be reproduced except in full without prior written permission of the company. The test results apply only to the particular sample(s) tested and to the specific tests carried out which is available on request for validation and information confirmed at our website. MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 1 of 8 REPORT No.：SZ20120175S02 RF EXPOSURE EXEMPT REPORT APPLICANT : Edlund Company, LLC PRODUCT NAME : EDLUND 10" x10" Pizza scale with 2 buttons display MODEL NAME :BA003 BRAND NAME : EDLUND FCC ID : 2AYTKBA003 STANDARD(S) : FCC 47CFR Part 2(2.1093) RECEIPT DATE : 2021-01-05 TEST DATE :2021-01-14 to 2021-01-23 ISSUE DATE : 2022-07-13 Edited by: Peng Mi (Rapporteur) Approved by: Shen Junsheng (Supervisor) MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 2 of 8 REPORT No.：SZ20120175S02 DIRECTORY 1. Technical Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3 1.1 Applicant and Manufacturer Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3 1.2 Equipment Under Test (EUT) Description ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3 1.3 Applied Reference Documents ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 4 2. Device Category and RF Exposure Limit ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 5 3. RF Output Power ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 6 4. RF Exposure Evaluation ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 7 Annex A Testing Laboratory Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 8 Change History Version Date Reason for change 1.0 2022-07-13 First edition MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 3 of 8 REPORT No.：SZ20120175S02 1. Technical Information Note: Provide by applicant. 1.1 Applicant and Manufacturer Information Applicant: Edlund Company, LLC Applicant Address: 319 Queen City Park Rd., Burlington, VT 05401, USA Manufacturer: GUANGDONG XINYU ELECTRONIC AND TECHNOLOGY CO.,LTD. Manufacturer Address: 1th to 4th floor, Number 42, CuiCheng Road, Cuiheng New District, Zhongshan,Guangdong, China 1.2 Equipment Under Test (EUT) Description Product Name: EDLUND 10" x10" Pizza scale with 2 buttons display Sample No.: 1# Hardware Version: Pizza-2KEY DB-V2.2/PIZZA -WB-V1.3 Software Version: B06C Equipment Type: Bluetooth LE Bluetooth Version: 4.0 Operating Frequency Range: 2402MHz-2480MHz Modulation Type: GFSK(1Mbps) Antenna Type: Ceramic Antenna Antenna Gain: 0.50dBi MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 4 of 8 REPORT No.：SZ20120175S02 1.3 Applied Reference Documents Leading reference documents for testing: Identity Document Title Method Determination /Remark FCC 47CFR Part 2(2.1093) Radio Frequency Radiation Exposure Assessment: Portable devices No deviation KDB 447498 D01v06 General RF Exposure Guidance No deviation Note 1: Additions to, deviation, or exclusions from the method shall be judged in the "method determination" column of add, deviate or exclude from the specific method shall be explained in the "Remark" of the above table. Note 2: When the test result is a critical value, we will use the measurement uncertainty give the judgment result based on the 95% confidence intervals. MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 5 of 8 REPORT No.：SZ20120175S02 2. Device Category and RF Exposure Limit Per user manual, this device is a EDLUND 10" x10" Pizza scale with 2 buttons display. Based on 47CFR 2.1093, this device belongs to portable device category with General Population/Uncontrolled exposure. Portable Devices: 47CFR 2.1093(b) For purposes of this section, a portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. General Population/Uncontrolled Exposure: 47CFR 2.1093(d) (2) Limits for General Population/Uncontrolled exposure: 0.08 W/kg as averaged over the whole-body and spatial peak SAR not exceeding 1.6 W/kg as averaged over any 1 gram of tissue (defined as a tissue volume in the shape of a cube). Exceptions are the hands, wrists, feet and ankles where the spatial peak SAR shall not exceed 4 W/kg, as averaged over any 10 grams of tissue (defined as a tissue volume in the shape of a cube). General Population/Uncontrolled limits apply when the general public may be exposed, or when persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or do not exercise control over th…

Text truncated - open the document above for the full version.

NOTE: This document is issued by Shenzhen Morlab Communications Technology Co., Ltd., the test report shall not be reproduced except in full without prior written permission of the company. The test results apply only to the particular sample(s) tested and to the specific tests carried out which is available on request for validation and information confirmed at our website. MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZh en , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 1 of 42 REPORT No.：SZ20120175W02 TEST REPORT APPLICANT : Edlund Company, LLC PRODUCT NAME : EDLUND 10" x10" Pizza scale with 2 buttons display MODEL NAME :BA003 BRAND NAME : EDLUND FCC ID :2AYTKBA003 STANDARD(S) :47 CFR Part 15 Subpart C RECEIPT DATE : 2021-01-05 TEST DATE :2021-01-14 to 2021-01-23 ISSUE DATE : 2022-07-13 Edited by: Peng Mi (Rapporteur) Approved by: Shen Junsheng (Supervisor) MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 2 of 42 REPORT No.：SZ20120175W02 DIRECTORY 1. Technical Information ·············································································· 3 1.1. Applicant and Manufacturer Information ··················································· 3 1.2. Equipment Under Test (EUT) Description ·················································· 3 1.3. The Channel Number and Frequency ························································ 4 1.4. Test Standards and Results ····································································· 5 1.5. Environmental Conditions ······································································· 7 2. 47 CFR Part 15C Requirements ································································· 7 2.1. Antenna Requirement ············································································· 7 2.2. Duty Cycle of Test Signal ········································································ 8 2.3. Maximum Peak Conducted Output Power ················································· 9 2.4. Maximum Average Conducted Output Power ··········································· 13 2.5. 6 dB Bandwidth ··················································································· 14 2.6. Conducted Spurious Emissions and Band Edge ······································ 17 2.7. Power Spectral Density ········································································· 21 2.8. Conducted Emission ············································································ 24 2.9. Restricted Frequency Bands ································································· 28 2.10. Radiated Emission ············································································· 32 Annex A Test Uncertainty ·········································································· 39 Annex B Testing Laboratory Information ····················································· 40 Change History Version Date Reason for change 1.0 2022-07-13 First edition MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 3 of 42 REPORT No.：SZ20120175W02 1. Technical Information Note: Provide by applicant. 1.1. Applicant and Manufacturer Information Applicant: Edlund Company, LLC Applicant Address: 319 Queen City Park Rd., Burlington, VT 05401, USA Manufacturer: GUANGDONG XINYU ELECTRONIC AND TECHNOLOGY CO.,LTD. Manufacturer Address: 1th to 4th floor, Number 42, CuiCheng Road, Cuiheng New District, Zhongshan,Guangdong, China 1.2. Equipment Under Test (EUT) Description Product Name: EDLUND 10" x10" Pizza scale with 2 buttons display Sample No.: 1# Hardware Version: Pizza-2KEY DB-V2.2/PIZZA -WB-V1.3 Software Version: B06C Equipment Type: Bluetooth LE Bluetooth Version: 4.0 Modulation Type: GFSK Data Rate: 1Mbps Operating Frequency Range: 2402MHz-2480MHz Antenna Type: PCB Antenna Antenna Gain: 0.50dBi Accessory Information: Battery Brand Name: Chaoba alkaline battery Model No.: AA/AAA alkaline battery Serial No.: N/A Capacity: 420mAh Rated Voltage: 3V Charge Limit: N/A Manufacturer: Zhongshan sunrise electronics co.,Ltd MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 4 of 42 REPORT No.：SZ20120175W02 Accessory Information: AC Adapter Brand Name: NO Model No.: MF-05001000SA1 Serial No.: N/A Rated Output: 5V0.01A-10A Rated Input: 100-240V 50/60Hz, 0.4A Manufacturer: Shenzhen Meifu electric Appliance Industrial Co., LTD Note 1: We use the dedicated software to control the EUT continuous transmission. Note 2: For a more detailed description, please refer to Specification or User’s Manual supplied by the applicant and/or manufacturer. 1.3. The Channel Number and Frequency Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 0 2402 10 2422 20 2442 30 2462 MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 5 of 42 REPORT No.：SZ20120175W02 1 2404 11 2424 21 2444 31 2464 2 2406 12 2426 22 2446 32 2466 3 2408 13 2428 23 2448 33 2468 4 2…

Text truncated - open the document above for the full version.

FCC ID: 2AYTKBA003, MODEL NAME: BA003 IC: 27139-BA003 Test Setup Photos 1. Conducted emission main’s port front view 2. Conducted emission main’s port side view 3. Radiated emission (9KHz-30MHz) 4. Radiated emission (30MHz-1GHz) 5. Radiated emission (above 1GHz) 6. RF measurement setup (Bluetooth LE)
