2AYUAM400In-car Telematics Device

© 2021 Zipcar, Inc. All Rights Reserved. Confidential & Proprietary Information of Zipcar, Inc. 1 M400 User Manual Revision 2 The user manual describes the basic operation of M400. The M400 device allows members to have on- demand access to Zipcars. The M400 device complies with all regulatory and FCC/IC guidelines. Please find the details on the last page of this document. Major Components • M400 • Vehicle specific harness • Traka • Card Reader • Antenna M400 Overview © 2021 Zipcar, Inc. All Rights Reserved. Confidential & Proprietary Information of Zipcar, Inc. 2 Radios The M400 has Bluetooth and 4G cellular radio capabilities. 1. Bluetooth a. Bluetooth radio allows Zipcar to let members access Zipcars using their mobile devices. 2. 4G Cellular a. Allows Zipcar to access vehicle specific and reservation specific data along with device health information. This helps Zipcar allow cars to be used as self-service vehicle rentals. GPS GPS data is used by Zipcar to find missing cars. GPS data is always used with full compliance with State regulations for GPS use. Vehicle Specific Data Zipcar uses proprietary vehicle harnesses that connect to cars in different ways depending on the vehicle Make and Model Year. Data Collected from vehicles can include • Fuel • Odometer • Vehicle OBDII information • Vehicle VIN • Ignition Status • Door Status • Electric Vehicle Charge Status • Other proprietary vehicle CAN data Remote Car Control • Lock • Unlock • Immobilizer • Horn Product Specifications • 4G LTE o 4G Bands (MHz) B2, B4, B12 o 3G Bands (MHz) B1, B2, B4, B5, B8 o 2G Bands (MHz) B2,B3,B5,B8 • Bluetooth o Low Energy v4.2 • GPS o GNSS • General Purpose I/Os © 2021 Zipcar, Inc. All Rights Reserved. Confidential & Proprietary Information of Zipcar, Inc. 3 • Expandable Ports o Card Reader o Traka o Serial Port o SPI Port • OTA (Over the Air) firmware update capabilities • 3 Tri-state LED’s to indicate different status of the device • Integrated GPS/GSM external under-dash mount antenna • 1 OBDII Port • 1 CAN Port Installation 1. Connect Antenna a. Antenna placement must provide a minimum separation distance of at least 20 cm from all persons. 2. Connect card reader a. The card reader when used must be placed to provide a separation distance of at least 20cm from all persons 3. Connect Traka (where required) 4. Connect vehicle specific harness using the harness installation guide 5. Cell connection is confirmed with two horn honks (usually within 1 minute of connecting the vehicle harness) Antenna M400 uses Taoglas antenna MA220.LB.079 Peak Cellular Antenna Gain is 2.21 dBi The M400, it’s antenna and the card reader when used must be installed and placed to provide a separation distance of at least 20 cm from all persons. Antenna placement must provide a minimum separation distance of at least 20 cm from all persons. • Adhesive Glass Mount 2in1 GPS/GLONASS/GALILEO & 4G/3G/2G LTE • GPS-GLONASS-GALILEO 1575-1610MHz 3M RG-174 SMA(M) • Gain 3dBic Typ. @ Zenith • 4G/3G/2G LTE 698MHz-960MHz/1710MHz-2690MHz 3M RG-174 SMA(M) • Efficiency 26%(avg) • High Grade 3M Double Sided Tape • Dims: 68*63*12mm © 2021 Zipcar, Inc. All Rights Reserved. Confidential & Proprietary Information of Zipcar, Inc. 4 Legal Notices NOTICE: This device complies with Part 15 of the FCC Rules [and with Industry Canada licence-exempt RSS standard(s)]. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. NOTICE: Changes or modifications made to this equipment not expressly approved by (manufacturer name) may void the FCC authorization to operate this equipment. Antenna must provide a minimum separation distance of at least 20 cm from all persons This device complies with Part 15 of the FCC Rules [and Industry Canada licence-exempt RSSs.*]. Operation is subject to the following two conditions: a.) this device may not cause harmful interference, and b.) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This radio transmitter IC ID: 21268-M400 has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. Antenna: Taoglas MA220.LB.001 Peak Gain 2.21 dBi across the LTE Bands (Combined GPS/LTE external antenna FCC and IC IDs FCC ID: 2AYUAM400 IC ID: 21268-M400 Revision Notes 1 Initial Release 2 1. Added antenna name on block diagram. 2. Peak Cellular Antenna Gain is 2.21 dBi added to antenna section 3. Added statements about antenna and card reader separation of at least 20cm 4. Corrected ISED statement to include ID number and antenna information

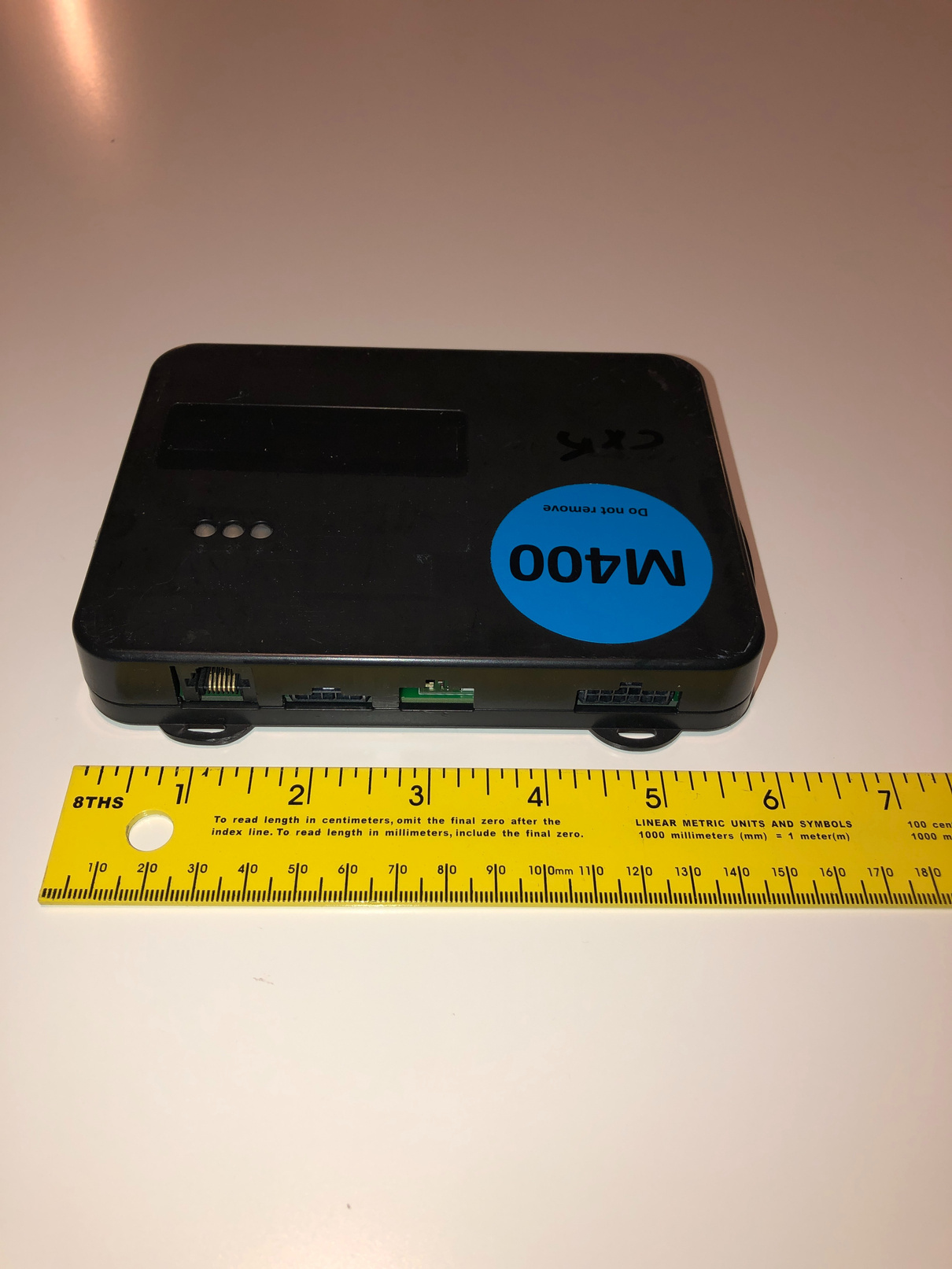

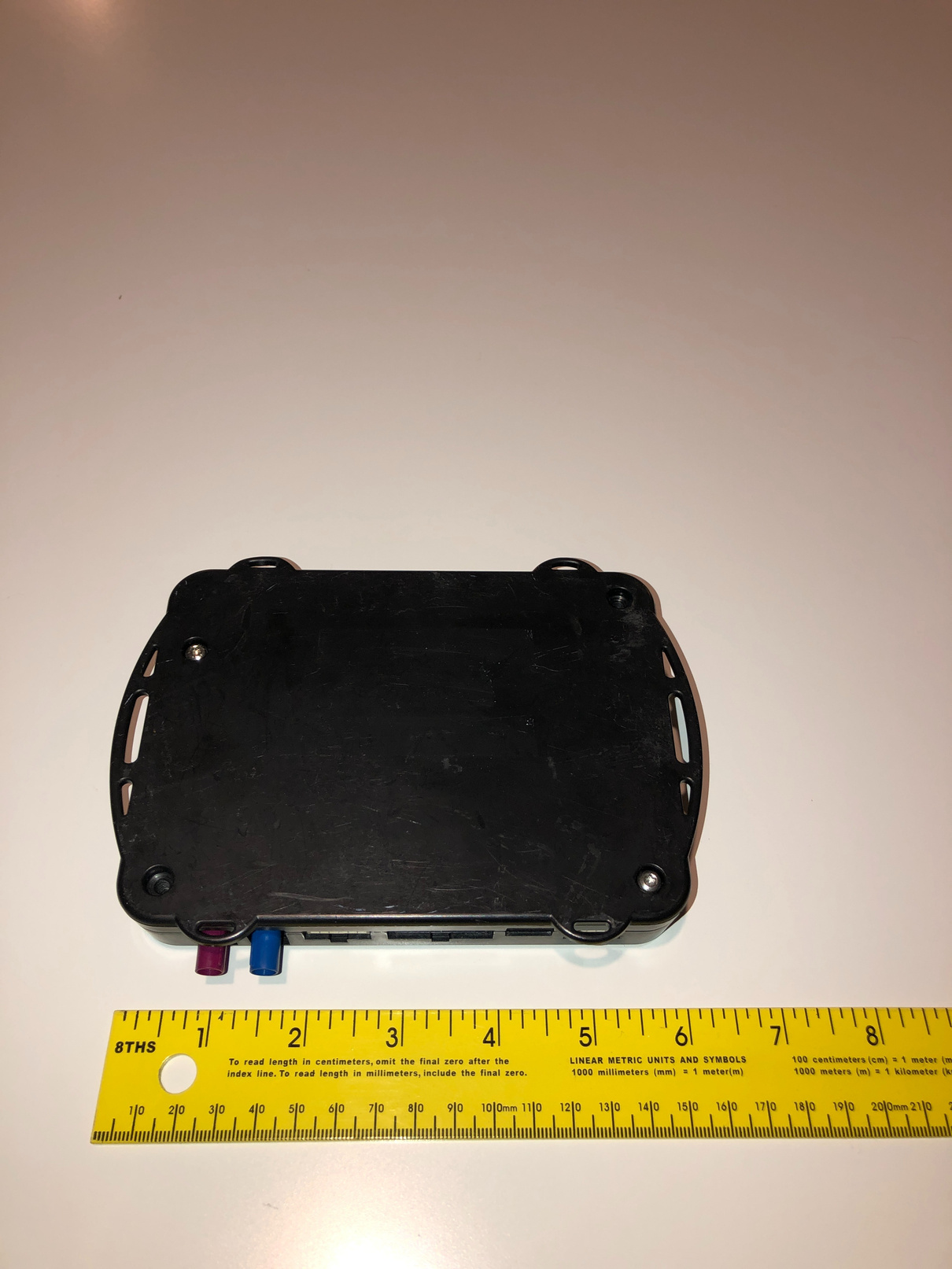

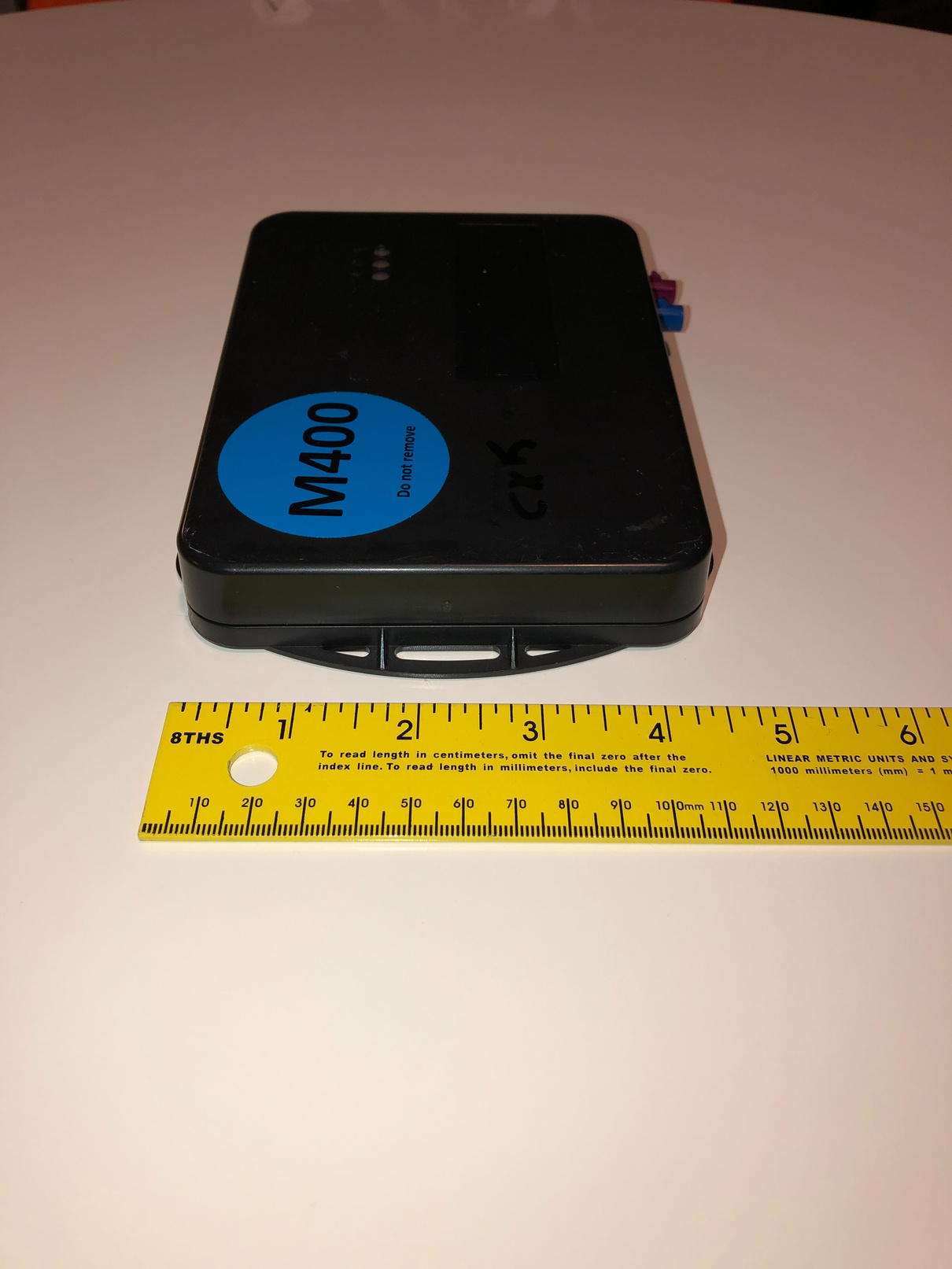

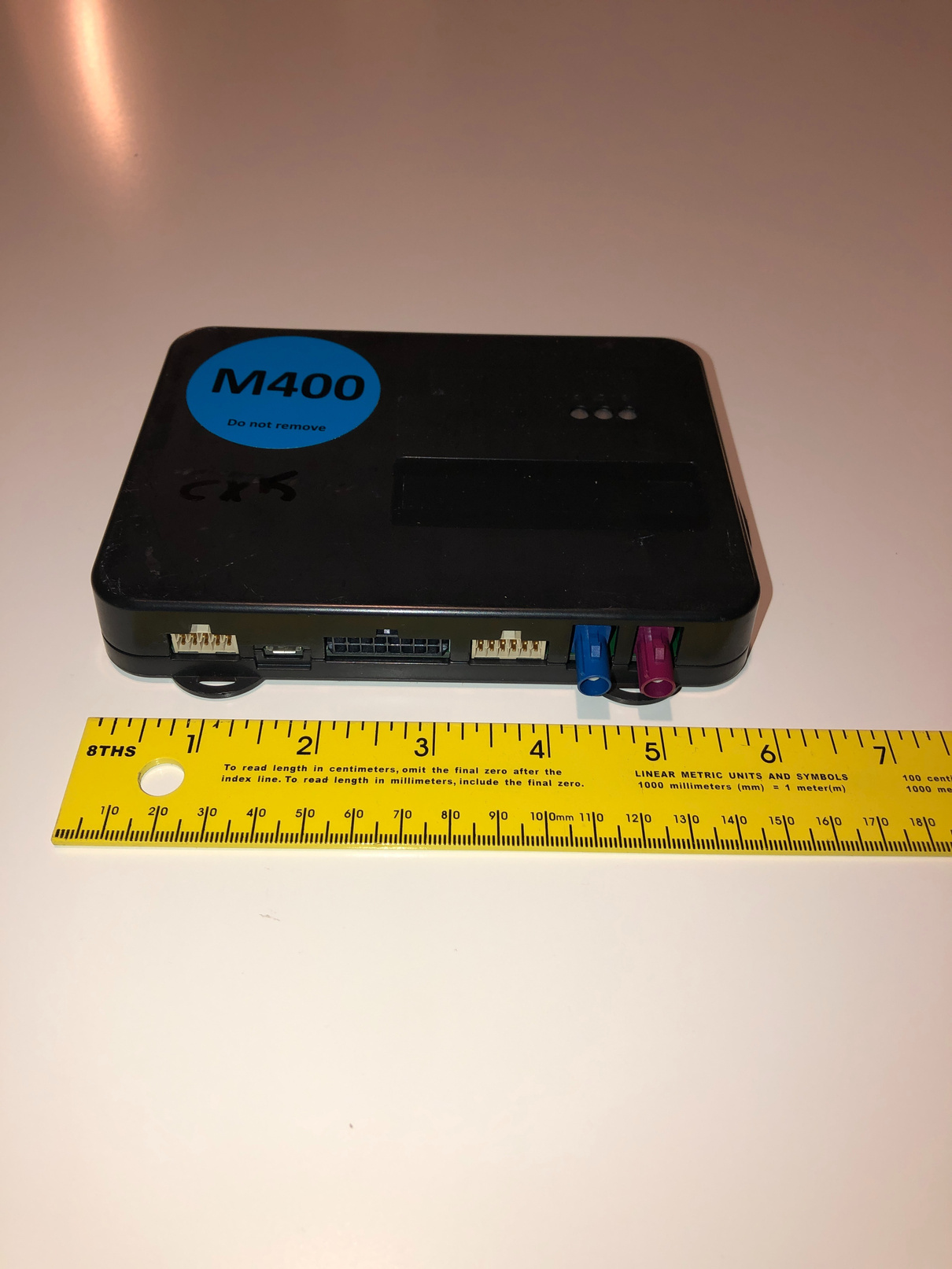

External M400 Pictures External M400 Pictures External M400 Pictures External M400 Pictures External M400 Pictures External M400 Pictures

IMEI: 357164042065634 M 4 0 0 FCC ID: 2AYUAM400, IC: 21268-M400 D.O.M 01/01/2021 - F4 0 6 5 6 3 4 Model:

Internal M400 Picture Internal M400 Picture Internal M400 Picture Internal M400 Picture RI7LE910CXNF Internal Photo

Radio Frequency Exposure Evaluation Report FOR: Zipcar Inc. Brand: Zipcar Model Name: M400 Marketing Name: M400 Product Description: Provide telemetry data to Zipcar backend. FCC ID: 2AYUAM400 IC ID: 21268-M400 Per: CFR Part1 (1.1307 &1.1310), Part 2 (2.1091), FCC KDB 447498 D01 General RF Exposure Guidance v06 ISED RSS-102 Issue 5 Report number: EMC_ZIPCA_009_20001_FCC_ISED_MPE_Rev1 DATE: 4/30/2021 CETECOM Inc. 411 Dixon Landing Road  Milpitas, CA 95035  U.S.A. Phone: + 1 (408) 586 6200  Fax: + 1 (408) 586 6299  E-mail: [email protected]  http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2905571 © Copyright by CETECOM Test Report #: EMC_ZIPCA_009_20001_FCC_ISED_MPE_Rev1 FCC ID: 2AYUAM400 Date of Report 4/30/2021 Page 2 of 10 IC ID: 21268-M400 Page 2 of 10 TABLE OF CONTENTS 1 Assessment ................................................................................................................................................ 3 2 Administrative Data .................................................................................................................................... 4 2.1 Identification of the Testing Laboratory Issuing the Test Report ..................................................... 4 2.2 Identification of the Client / Manufacturer .................................................................................... 4 2.3 Identification of the Manufacturer ............................................................................................... 4 3 Equipment under Assessment .................................................................................................................... 5 4 RF Exposure Limits and FCC and IC Basic Rules ..................................................................................... 7 4.1 Power Density Limits acc. to FCC 1.1310(e)/ RSS-102 i5, cl. 4: .................................................... 7 4.2 Routine Environmental Evaluation Categorical Exclusion Limits acc. to FCC 2.1091(c) / RSS-102, cl. 2.5 (rounded to 1 decimal point): ...................................................................................................... 7 4.3 RF Exposure Estimation (MPE Estimation) ................................................................................. 7 5 Evaluation .................................................................................................................................................. 8 5.1 Analysis to Exclude Routine RF Exposure evaluation for Stand Alone Operation ............................ 8 5.2 Analysis to Exclude Routine RF Exposure evaluation for Stand Alone Operation ............................ 9 6 Revision History ....................................................................................................................................... 10 Test Report #: EMC_ZIPCA_009_20001_FCC_ISED_MPE_Rev1 FCC ID: 2AYUAM400 Date of Report 4/30/2021 Page 3 of 10 IC ID: 21268-M400 Page 3 of 10 1 Assessment This RF Exposure evaluation report, provides evidence for compliance of the below identified device, with the RF Exposure limits for mobile devices, as defined in FCC CFR Part1 (1.1307 &1.1310), Part 2 (2.1091), and IC standard ISED RSS-102 Issue 5, under worst case conditions (measured or rated RF output power, antenna gain, distance towards human body. Multiple transmitter information as presented by the applicant). In addition, maximum antenna gain, or minimum distance towards the human body calculated respectively where relevant. The device meets the limits as stipulated by the above given FCC and IC rule parts based on available specifications for worst case conditions at 20cm distance to the body. Company Description Model Name Zipcar Inc. Provide telemetry data to Zipcar backend. M400 Report reviewed by: TCB Evaluator 4/30/2021 Compliance Wang, Kevin (Lab Manager) Date Section Name Signature Responsible for the Report: 4/30/2021 Compliance Issa Ghanma (EMC Engineer) Date Section Name Signature Test Report #: EMC_ZIPCA_009_20001_FCC_ISED_MPE_Rev1 FCC ID: 2AYUAM400 Date of Report 4/30/2021 Page 4 of 10 IC ID: 21268-M400 Page 4 of 10 2 Administrative Data 2.1 Identification of the Testing Laboratory Issuing the Test Report Company Name: CETECOM Inc. Department: Compliance Street Address: 411 Dixon Landing Road City/Zip Code Milpitas, CA 95035 Country USA Telephone: +1 (408) 586 6200 Fax: +1 (408) 586 6299 Lab Manager: Wang, Kevin Responsible Project Leader: Saman, Rami 2.2 Identification of the Client / Manufacturer Applicant’s Name: Zipcar Inc. Street Address: 35 Thomson Place City/Zip Code Boston, MA 02210 Country USA 2.3 Identification of the Manufacturer Manufacturer’s Name: Same as client. Manufacturers Address: -------------------- City/Zip Code -------------------- Country -------------------- Test Report #: EMC_ZIPCA_009_20001_FCC_ISED_MPE_Rev1 FCC ID: 2AYUAM400 Date of Report 4/30/2021 Page 5 of 10 IC ID: 21268-M400 Page 5 of 10 3 Equipment under Assessment Model No: M400 FCC ID: 2AYUAM400 IC ID: 21268-M400 HW Version : E4 SW Version : 670 Power Supply/ Rated Operating Voltage Range: Low 9 V, High 14 V DC Integrated Module Info:  Bluetooth LE version 4.2:  Module name : ST Microelectonics  Model number : BlueNRG-M0  FCC ID : S9NBNRGM0AL  IC ID : 8976C-BNRGM0AL  Cellular Module:  Name / Number : Telit / LE910C1-NF  FCC / IC ID : RI7LE910CXNF / 5131A-LE910CXNF  125 KHz AWID SR2400 Card reader:  FCC ID : OGSSR2400  IC ID : 6449A-SR2400A Regulatory Band:  Bluetooth LE version 4.2:  Nominal band: 2400 MHz – 2483.5 MHz;  Center to center: 2402 MHz (ch 0) – 2480 MHz (ch 39), 40 channels  Cellular Module:  4G Bands : B 2, B 4, B 5, B 12, B 13, B 14, B 66, B 71  3G Bands : B II, B IV, B V  125 KHz AWID SR2400 Card reader Test Report #: EMC_ZIPCA_009_20001_FCC_ISED_MPE_Rev1 FCC ID: 2AYUAM400 Date of Report 4/30/2021 Page 6 of 10 IC ID: 21268-M400 Page 6 of 10 Antenna Type and Peak gain:  Bluetooth LE: Dedicated …

Text truncated - open the document above for the full version.

A2LA Accredited IC recognized # 3462B CETECOM Inc. 411 Dixon Landing Road  Milpitas, CA 95035  U.S.A. Phone: + 1 (408) 586 6200  Fax: + 1 (408) 586 6299  E-mail: [email protected]  http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2905571 © Copyright by CETECOM FCC / ISED Test Report For: Zipcar Inc. Brand: Zipcar Marketing Name: M400 Model #: M400 Product Description: Provide telemetry data to Zipcar backend. FCC ID: 2AYUAM400 IC ID: 21268-M400 Applied Rules and Standards: 47 CFR Part 15.247 (DTS) RSS-247 Issue 2 (DTSs) & RSS-Gen Issue 5 REPORT #: EMC_ZIPCA_009_20001_FCC_15.247_ISED_BTLE_DTS_Rev1 DATE: 4/27/2021 Test Report #: EMC_ZIPCA_009_20001_FCC_15.247_ISED_BTLE_DTS_Rev1 FCC ID: 2AYUAM400 Date of Report 4/27/2021 Page 2 of 29 IC ID: 21268-M400 TABLE OF CONTENTS 1 ASSESSMENT .............................................................................................................................................................. 3 2 ADMINISTRATIVE DATA ............................................................................................................................................... 4 2.1 IDENTIFICATION OF THE TESTING LABORATORY ISSUING THE EMC TEST REPORT ........................................................................... 4 2.2 IDENTIFICATION OF THE CLIENT ............................................................................................................................................. 4 2.3 IDENTIFICATION OF THE MANUFACTURER ................................................................................................................................. 4 3 EQUIPMENT UNDER TEST (EUT) ................................................................................................................................... 5 3.1 EUT SPECIFICATIONS ......................................................................................................................................................... 5 3.2 EUT SAMPLE DETAILS ......................................................................................................................................................... 6 3.3 ACCESSORY EQUIPMENT (AE) DETAILS ................................................................................................................................... 6 3.4 TEST SAMPLE CONFIGURATION ............................................................................................................................................. 7 3.5 MODE OF OPERATION DETAILS .............................................................................................................................................. 7 3.6 JUSTIFICATION FOR WORST CASE MODE OF OPERATION ............................................................................................................ 7 4 SUBJECT OF INVESTIGATION ...................................................................................................................................... 8 5 MEASUREMENT RESULTS SUMMARY .......................................................................................................................... 9 6 MEASUREMENT UNCERTAINTY.................................................................................................................................. 10 6.1 ENVIRONMENTAL CONDITIONS DURING TESTING: .................................................................................................................... 10 6.2 DATES OF TESTING: .......................................................................................................................................................... 10 7 MEASUREMENT PROCEDURES .................................................................................................................................. 11 7.1 RADIATED MEASUREMENT .................................................................................................................................................. 11 8 TEST RESULT DATA .................................................................................................................................................. 14 8.1 RADIATED TRANSMITTER SPURIOUS EMISSIONS AND RESTRICTED BANDS ................................................................................... 14 9 TEST SETUP PHOTOS ................................................................................................................................................ 28 10 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTING ......................................................................................... 28 11 HISTORY ................................................................................................................................................................... 29 Test Report #: EMC_ZIPCA_009_20001_FCC_15.247_ISED_BTLE_DTS_Rev1 FCC ID: 2AYUAM400 Date of Report 4/27/2021 Page 3 of 29 IC ID: 21268-M400 1 Assessment The following device was evaluated against the applicable criteria specified in FCC rules Parts 15.247 of Title 47 of the Code of Federal Regulations and the relevant ISED Canada standard RSS-247. No deviations were ascertained. According to section 5 of this report, the overall result is Pass. Company Description Model # Zipcar Inc. Provide telemetry data to Zipcar backend. M400 Responsible for Testing Laboratory: 4/27/2021 Compliance Wang, Kevin (EMC Lab Manager) Date Section Name Signature Responsible for the Report: 4/27/2021 Compliance Ghanma, Issa (EMC Engineer) Date Section Name Signature The test results of this test report relate exclusively to the test item specified in Section3. CETECOM Inc. USA does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts …

Text truncated - open the document above for the full version.

The results of tests and checks reported in this Test Report refer exclusively to the samples tested and described in the Report itself. This Report shall not be reproduced partially the written approval of IMQ S.p.A.. The authenticity of this Test Report and its contents can be verified by contacting IMQ S.p.A., responsible for this Test Report. TEST REPORT No. AR19-0034267-01 performed in accordance with FCC Rules: Code of Federal Regulations (CFR) no. 47 Part 15 Subpart C Section 15.247 PRODUCT Bluetooth Low Energy module on evaluation board STEVAL MODEL(s) TESTED BLUENRG M0A FCC ID S9NBNRGM0AL TRADE MARK(s) STMICROELECTRONICS APPLICANT STMicroelectronics - Via Olivetti, 2 I-20864 Agrate Brianza (MB) Tested by Robertino Torri [Laboratory technician] Approved by Giovanni Di Turi [Laboratory manager] Revision Sheet Release No. Date Revision Description Rev. 0 2019-02-22 First edition Digital signed - AR19-0034267-01_TR_FCC 15.247 - STM - BLUENRG-M0A & M0L Rev. 1 2019-03-14 Insert correction factor in table at pag. 23 and 33, insert instrument for AC power line emission at pag. 38 Digital signed - AR19-0034267-01 rev.1_TR_FCC 15.247 - STM - BLUENRG-M0A & M0L Rev. 2 2019-05-07 Adjustment RF exposure evaluation (erased evaluation at 8 dBm at pag. 36) Digital signed - AR19-0034267-01 rev.2_TR_FCC 15.247 - STM - BLUENRG-M0A & M0L Mod. TRF 3712 / / 2 B.U. P RODUCTS C ONFORMITY A SSESSMENT - R ADIO E QUIPMENT L ABORATORY Test Report No. AR19-0034267-01 Date: 2019-05-07 Page 2 of 38 Mod. TRF 3 712 / 2 B.U. P RODUCTS C ONFORMITY A SSESSMENT - R ADIO E QUIPMENT L ABORATORY 1. GENERAL DATA SAMPLE Samples received on 2018-12-17 (Item(s) sampled and sent by applicant) IMQ reference samples BEM 93653 Samples tested No. 1 Object under analysis recognition Not carried out Except where stated, characteristics of products were taken from client description and were not verified by the laboratory Date of acceptance of test item 2018-12-17 TEST LOCATION Testing dates 2019-01-14 ÷ 2019-01-21 Testing laboratory. IMQ S.p.A. - Via Quintiliano, 43 – I-20138 Milano Testing site Via Quintiliano, 43 – I-20138 Milano ENVIRONMENTAL CONDITIONING Parameter Measured Ambient Temperature 24.0 ÷ 25.0 °C Relative Humidity 46 ÷ 58 % Atmospheric Pressure 1005 ÷ 1007 mbar The laboratory is monitored by a continuous environmental conditions measurements system. Temperature, humidity and pressure data are recorded on a weekly basis and stored in local archive. REMARKS Throughout this report a point is used as the decimal separator. The ability or reliability of this product to perform its intended function in a particular application has not been investigated. Unless otherwise specified, warnings, installation instruction and/or user manual provided with the sample have been checked in Italian or English version only. IMQ declines any responsibility derived from missing or wrong information provided aside by the applicant. Test Report No. AR19-0034267-01 Date: 2019-05-07 Page 3 of 38 Mod. TRF 3 712 / 2 B.U. P RODUCTS C ONFORMITY A SSESSMENT - R ADIO E QUIPMENT L ABORATORY 2. REFERENCE DOCUMENT DOCUMENT DATE TITLE 47 CFR Part 15 2015 Radio Frequency Device ANSI C63.4 2014 American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz ANSI C63.10 2013 American National Standard of Procedures for Compliance Testing of Unlicensed Wireless Devices Test Report No. AR19-0034267-01 Date: 2019-05-07 Page 4 of 38 Mod. TRF 3 712 / 2 B.U. P RODUCTS C ONFORMITY A SSESSMENT - R ADIO E QUIPMENT L ABORATORY 3. UNIT UNDER TEST (EUT) DETAILS GENERAL DATA MODEL (basic) Description BLUENRG-M0A Kit composed by: M0A : Bluetooth Low Energy module STEVAL : Evaluation board dongle VARIANTS (derived) Description BLUENRG-M0L Kit composed by: M0L: Bluetooth Low Energy module (depopulated) STEVAL : Evaluation board dongle FCC ID S9NBNRGM0AL Manufacturer STMicroelectronics - Via Olivetti, 2 - I-20864 Agrate Brianza (MB) Type of equipment DTS - Digital transmission equipment (Bluetooth® Low Energy module) Operating frequency 2400 ÷ 2483.5 MHz Max RF radiated power 100.54 dBμV/m @3m Modulation GFSK Channel 40 channel, 2MHz spaced from 2402 to 2480MHz Antenna 2450AT18A100E of JOHANSON TECHNOLOGY / +0.5 dBi max peak Remarks None Channel No. Frequency (MHz) Channel No. Frequency (MHz) Channel No. Frequency (MHz) Channel No. Frequency (MHz) 1(lower) 2402 2 2404 3 2406 4 2408 5 2410 6 2412 7 2414 8 2416 9 2418 10 2420 11 2422 12 2424 13 2426 14 2428 15 2430 16 2432 17 2434 18 2436 19 2438 20(middle) 2440 21 2442 22 2444 23 2446 24 2448 25 2450 26 2452 27 2454 28 2456 29 2458 30 2460 31 2462 32 2464 33 2466 34 2468 35 2470 36 2472 37 2474 38 2476 39 2478 40(higher) 2480 Test Report No. AR19-0034267-01 Date: 2019-05-07 Page 5 of 38 Mod. TRF 3 712 / 2 B.U. P RODUCTS C ONFORMITY A SSESSMENT - R ADIO E QUIPMENT L ABORATORY 4. TEST CONFGURATION OF UNIT UNDER TEST EUT PORTS Port Description Max length Enclosure Open frame board / AC power Power supply of notebook / DC power 5 VDC by USB port of notebook / Earth / / Telecommunication / / Signal & Control / / Antenna Dedicated / STATE OF THE EUT DURING TESTS Ref. Mode Description #1 Operating The EUT is installed on dedicated USB evaluation board R16-STEVAL-IDB003V1M (USB supplied). The EUT is in continuously transmitting with duty cycle close to 100%. SUPPORT EQUIPMENT Defined as equipment needed for correct operation or loading of the EUT, but not considered as tested: Equipment Manufacturer Model PC with dedicated software for RF transmission management / / Evaluation board STM R16-STEVAL-IDB003V1M EUT Antenna Port AC Power Port Earth Port Telecommunication Port Signal/Control Port DC Power Port Enclosure Port Test Report No. AR19-0034267-01 Date: 2019-05-07 Page 6 of 38 Mod. TRF 3 712 / 2 B.U. P RODUCTS C ONFORMITY A SSESSMENT - R ADIO E QUIPMENT L ABORATORY ELECTROMAGNETICALLY RELEVANT COMPONENTS Component No. Manufact…

Text truncated - open the document above for the full version.

CETECOM Inc. 411 Dixon Landing Road  Milpitas, CA 95035  U.S.A. Phone: + 1 (408) 586 6200  Fax: + 1 (408) 586 6299  E-mail: [email protected]  http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2905571 FCC/IC Test Setup Photos For: Zipcar Inc. Brand: Zipcar Marketing Name: M400 Model #: M400 Product Description: Provide telemetry data to Zipcar backend. FCC ID: 2AYUAM400 IC ID: 21268-M400 Addition to Report #: EMC_ZIPCA_009_20001_FCC_15.247_ISED_BTLE_DTS EMC_ZIPCA_009_20001_FCC_22_24_27_90_ISED_ISED_BTLE_DTS DATE: 4/2/2021 Page 2 of 6 EUT Photos Front Back Open Setup with accessories Page 3 of 6 Radiated Measurements 9 KHz to 30 MHz 30 MHz to 1 GHz Page 4 of 6 1 GHz to 3 GHz 3 GHz to 18 GHz Page 5 of 6 Above 18 GHz Page 6 of 6  Revision History Date Report Name Changes to report Report prepared by 4/2/2021 EMC_ZIPCA_009_20001_FCC_ISED_Setup_Photos Initial Version Issa Ghanma <<< The End >>>
