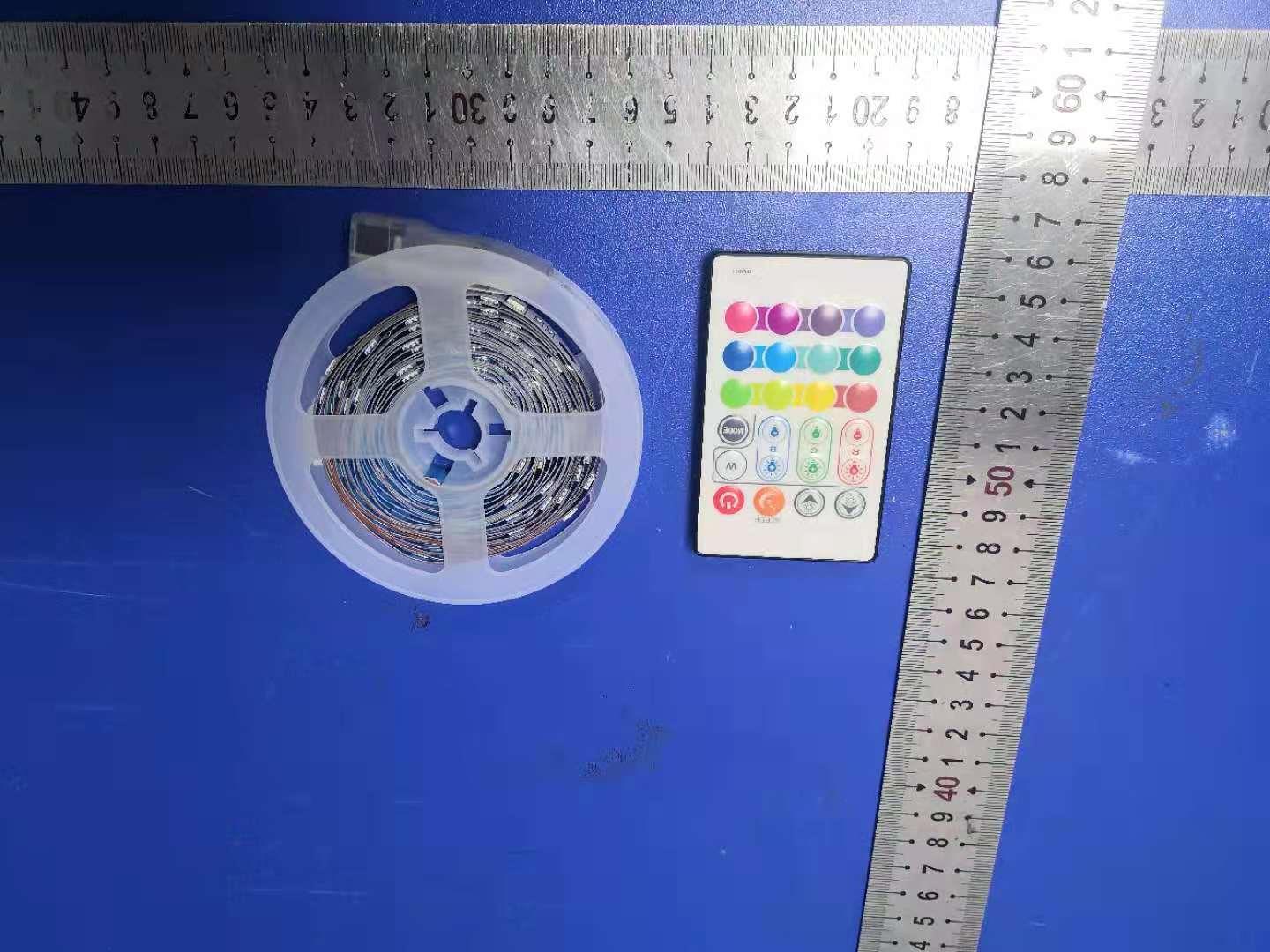

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYVG-BS511 EXTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYVG-BS511 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYVG-BS511 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYVG-BS511 Fig. 7 Fig. 8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYVG-BS511 Fig. 9 Fig. 10 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYVG-BS511 Fig. 11 Fig. 12 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYVG-BS511 Fig. 13 Fig. 14 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYVG-BS511 Fig. 15 Fig. 16 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYVG-BS511 Fig. 17 Fig. 18 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYVG-BS511 Fig. 19 Fig. 20 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYVG-BS511 Fig. 21

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYVG-BS511 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L: 2.0cm*W: 0.5cm Label Location LED bluetooth controller Model No.: CL306 FCC ID : 2AYVG-BS511

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYVG-BS511 INTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYVG-BS511 Fig.3 Fig.4 BT Antenna

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYVG-BS511 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 FCC RF Exposure Evaluation 1. Product Information FCC ID 2AYVG-BS511 Product name LED bluetooth controller Model number CL306 Additional Model No. CL125, CL126, CL127, CL222, CL223, CL224, CL225, CL226, CL227, CL301, CL302, CL303, CL304, CL305, DL101, DL102, DL103, DL104, DL105, TV831, TV832, TV833, TV834, LH101, CL122，CL123，CL124 Model Declaration PCB board, structure and internal of these model(s) are the same, So no additional models were tested Power supply Input: DC 5V-24V For Adapter Model: MYX-1202000US Input: AC 100-240V, 50/60Hz, 0.8A max Output: DC 12V, 2.0A For Adapter Model: MYX-2401500US Input: AC 100-240V, 50/60Hz, 1.2A max Output: DC 24V, 1.5A For Adapter Model: MYX-2402000US Input: AC 100-240V, 50/60Hz, 1.2A max Output: DC 24V, 2.0A For Adapter Model: R241-1202000U Input: AC 100-240V, 50/60Hz, 1.5A Output: DC 12V, 2.0A For Adapter Model: R241-2401000U Input: AC 100-240V, 50/60Hz, 1.5A Output: DC 24V, 1.0A Modulation Type GFSK for Bluetooth V4.2(DSS) GFSK for Bluetooth V4.2(DTS) Antenna Type PCB Antenna Antenna Gain 0dBi(Max.) Hardware version V110 Software version / FCC Operation frequency 2402MHz ~ 2480MHz Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Devices 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYVG-BS511 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. 3. Limit 3. 1 Refer Evaluation Method ANSI C95.1–2019: IEEE Standard for Safety Levels with Respect to Human Exposure to Electric, Magnetic, and Electromagnetic Fields, 0 Hz to 300 GHz FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information Artemis Antenna can only use antennas certificated as follows provided by manufacturer; Internal Identification Antenna type and antenna number Operate frequency band Maximum antenna gain Note Antenna PCB Antenna 2402MHz ~ 2480MHz 0dBi BT Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYVG-BS511 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 6. Conducted Power < BT Max Conducted Power > Mode Channel Frequency(MHz) Max Conducted Power (dBm) GFSK 0 2402 -3.643 39 2441 -4.191 78 2480 -4.448 < BT LE Max Conducted Power > Mode Channel Frequency(MHz) Max Conducted Power (dBm) GFSK 0 2402 -3.924 19 2440 -4.475 39 2480 -4.699 7. Manufacturing Tolerance <BT> GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -3.0 -4.0 -4.0 Tolerance ±(dB) 1.0 1.0 1.0 <BT LE> GFSK (Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) -3.0 -4.0 -4.0 Tolerance ±(dB) 1.0 1.0 1.0 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYVG-BS511 This report shall not be re…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYVG-BS511 Report No.: LCS210308567AEA Page 1 of 19 Appendix A RF Test Data for BT V4.2(DSS) (Conducted Measurement) Product Name: LED bluetooth controller Trade Mark: N/A Test Model: CL306 Environmental Conditions Temperature: 22.4  C Relative Humidity: 53.5% ATM Pressure: 100.0 kPa Test Engineer: Carl Fu Supervised by: Li Huan A.1 Maxmum Conducted Peak Output Power Mode Channel. Maximum Peak Output Power [dBm] Limit [dBm] Verdict GFSK LCH -3.643 21 PASS MCH -4.191 21 PASS HCH -4.448 21 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYVG-BS511 Report No.: LCS210308567AEA Page 2 of 19 Test Graphs GFSK/LCH GFSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYVG-BS511 Report No.: LCS210308567AEA Page 3 of 19 GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYVG-BS511 Report No.: LCS210308567AEA Page 4 of 19 A.2 20dB Bandwidth Mode Channel. 20dB Bandwidth [MHz] Limit [MHz] Verdict GFSK LCH 1.164 Not Specified PASS MCH 1.057 Not Specified PASS HCH 1.054 Not Specified PASS Test Graphs GFSK/LCH GFSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYVG-BS511 Report No.: LCS210308567AEA Page 5 of 19 GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYVG-BS511 Report No.: LCS210308567AEA Page 6 of 19 A.3 Carrier Frequency Separation Mode Channel. Carrier Frequency Separation [MHz] Limit [MHz] Verdict GFSK LCH 0.997 0.776 PASS MCH 1.136 0.776 PASS HCH 1.006 0.776 PASS Test Graphs GFSK/LCH GFSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYVG-BS511 Report No.: LCS210308567AEA Page 7 of 19 GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYVG-BS511 Report No.: LCS210308567AEA Page 8 of 19 A.4 Hopping Channel Number Mode Channel. Number of Hopping Channel [N] Limit [N] Verdict GFSK Hop 79 >=15 PASS π/4DQPSK Hop 79 >=15 PASS 8DPSK Hop 79 >=15 PASS Test Graphs GFSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYVG-BS511 Report No.: LCS210308567AEA Page 9 of 19 A.5 Dwell Time Mode Packet Channel Burst Width [ms/hop/ch] Total Hops[hop*ch] Dwell Time[s] Limit [s] Verdict GFSK DH5 LCH 2.74 106.7 0.292 0.4 PASS DH5 MCH 2.74 106.7 0.292 0.4 PASS DH5 HCH 2.74 106.7 0.292 0.4 PASS Test Graphs GFSK_DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYVG-BS511 Report No.: LCS210308567AEA Page 10 of 19 GFSK_DH5/MCH GFSK_DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYVG-BS511 Report No.: LCS210308567AEA Page 11 of 19 A.6 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict GFSK LCH -4.541 -36.915 -24.541 PASS MCH -5.167 -37.923 -25.167 PASS HCH -5.342 -37.705 -25.342 PASS GFSK_LCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYVG-BS511 Report No.: LCS210308567AEA Page 12 of 19 GFSK_MCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYVG-BS511 Report No.: LCS210308567AEA Page 13 of 19 GFSK_HCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYVG-BS511 Report No.: LCS210308567AEA Page 14 of 19 A.7 Band-edge for RF Conducted Emissions Mode Channel Carrier Frequency [MHz] Carrier Power [dBm] Frequency Hopping Max Spurious Level [dBm] Limit [dBm] Verdict GFSK LCH 2402 -4.154 Off -49.654 -24.15 PASS -4.552 On -48.916 -24.55 PASS HCH 2480 -5.001 Off -48.838 -25 PASS -5.124 On -48.719 -25.12 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYVG-BS511 Report No.: LCS210308567AEA Page 15 of 19 Test Graphs GFSK/LCH/No Hop GFSK/LCH/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYVG-BS511 Report No.: LCS210308567AEA Page 16 of 19 GFSK/HCH/No Hop GFSK/HCH/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYVG-BS511 Report No.: LCS210308567AEA Page 17 of 19 A.8 Restrict-band band-edge measurements Test Mode Hopping Freq. Power [dBm] Gain Ground Factor E [dBuV/m] Detector Limit [dBuV/m] Verdict GFSK Off 2310.0 -42.42 2.0 0 52.84 PEAK 74 PASS Off 2310.0 -53.30 2.0 0 41.96 AV 54 PASS Off 2390.0 -42.70 2.0 0 52.56 PEAK 74 PASS Off 2390.0 -52.92 2.0 0 42.34 AV 54 PASS Off 2483.5 -42.22 2.0 0 53.03 PEAK 74 PASS Off 2483.5 -52.31 2.0 0 42.95 AV 54 PASS Off 2500.0 -42.19 2.0 0 53.07 PEAK 74 PASS Off 2500.0 -52.35 2.0 0 42.91 AV 54 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYVG-BS511 Report No.: LCS210308567AEA Page 18 of 19 Restrict-band band-edge measurements_Hopping Off_ GFSK_PEAK (Low Channel) Restrict-band band-edge measurements_Hopping Off_ GFSK_Average (Low Channel) Restrict-band band-edge measurements_Hopping Off_ GFSK_PEAK (High Channel) SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYVG-BS511 Report No.: LCS210308567AEA Page 19 of 19 Restrict-band band-edge measurements_Hopping Off_ GFSK_Average (High Channel)

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYVG-BS511 Report No.: LCS210308567AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 36 FCC TEST REPORT FOR Shenzhen Bason Electronics Technology Co., Ltd. LED bluetooth controller Test Model: CL306 Additional Model No.: Please Refer to Page 6 Prepared for : Shenzhen Bason Electronics Technology Co., Ltd. Address : 5/F., Bldg B, Huilongda Industrial Park, Shiyan Street, Baoan, Shenzhen, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : March 18, 2021 Number of tested samples : 2 Sample No. : 210308567A-1, 210308567A-2 Serial number : Prototype Date of Test : March 18, 2021 ~ March 31, 2021 Date of Report : April 06, 2021 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYVG-BS511 Report No.: LCS210308567AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 36 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................. : LCS210308567AEA Date of Issue ................................... : April 06, 2021 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : Shenzhen Bason Electronics Technology Co., Ltd. Address ........................................... : 5/F., Bldg B, Huilongda Industrial Park, Shiyan Street, Baoan, Shenzhen, China Test Specification Standard.......................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No. ..................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. .................. : LED bluetooth controller Trade Mark ...................................... : N/A Test Model ...................................... : CL306 Ratings ............................................ : Please Refer to Page 6 Result ........................................... : Positive Compiled by: Supervised by: Approved by: Linda He/ File administrators Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYVG-BS511 Report No.: LCS210308567AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 36 FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS210308567AEA April 06, 2021 Date of issue Test Model........................... : CL306 EUT......................................... : LED bluetooth controller Applicant............................... : Shenzhen Bason Electronics Technology Co., Ltd. Address.................................. : 5/F., Bldg B, Huilongda Industrial Park, Shiyan Street, Baoan, Shenzhen, China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Shenzhen Bason Electronics Technology Co., Ltd. Address................................... : 5/F., Bldg B, Huilongda Industrial Park, Shiyan Street, Baoan, Shenzhen, China Telephone............................... : / Fax.......................................... : / Factory................................... : / Address................................... : / Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYVG-BS511 Report No.: LCS210308567AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 36 Revision History Revision Issue Date Revisions Revised By 000 April 06, 2021 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYVG-BS511 Report No.: LCS210308567AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 36 TABLE OF CONTENTS Description Page 1.GENERAL INFORMATION ......................................................................................... 6 1.1 Description of Device (EUT) ............................................................................................. 6 1.2 Support equipment List .................................................................................................... 7 1.3 External I/O Cable ............................................................................................................ 7 1.4 Description of Test Facility ...........…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYVG-BS511 _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 2 Test Setup Photos of the EUT Test Setup Photo(s) of Radiated Emissions Measurement Fig. 1 (Below 1GHz) Fig. 2 (Above 1GHz) SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYVG-BS511 _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 2 Test Setup Photo of Line Conducted Emissions Measurement AC Conducted Emission of charge from power adapter mode
