2AYWOHBT600-3Wireless doorbell with SRD

No. 1 2 3 4 5 6 7 8 Item Receiver Working Voltage Waage Transmission range (without obstacles) Choosing Chimes Sound Volume Working Frequency Working Temperature Waterproof Level (Don’t drop into water) Parameter AC 85-265V ＜0.5w 500-1000 36 25-110dB, 4levels 433.92MHz±280KHz -30°C~70°C IP44 Features What You Should Know Before Installaon Quick Start 1. Sound Volume Adjust: Press the volume buon on the receiver ll the sound volume level that you prefer, then release your hands. 2. Set Chimes: 36 chimes included for your opon, press chimes seng buon ll the one that you prefer, then release your hands. 1. The emier supplied with this kit is already paired with receivers and set to default tune “Dingdong”, also can press Chimes Buon of receivers ll your favorite chimes selected. 2. It is not advisable to mount the emier onto METAL SURFACES, as the material can BLOCK RF signals between emier and receiver. 3. We recommend to use the scky pad provided as first opon, using screws as second opon. 4. Transmission range will decrease if baery in emier is in a low volume status. 5. It is not advisable to mount the emier outdoor directly WITHOUT any SHELTER which could accelerate aging of key electric components. ·Modern and stylish design ·Piano buon of emier, brings good touch feels. · 36 selected chimes ·4-level adjustable sound volume. ·Super long transmission range. ·Easy to install and use ·Lower power consumpon 1 Sound buon Volume buon Speaker AC plug Press buon Installat ion Methods 1. Test the doorbell working status and transmission range f irst before installaon, baery inside emier already. Receiver Emier 2 2. Plug receivers into standard outlet of the room you oen stay, then it will work. 3. Install the emier, there are two opons for choosing. a. Choose a flat area that you intend to install, then use dry cloth to clean. b. tear off one side film of pad and sck to emier, then the other side and sck to the area that you intend to put on, pressing 10 secs. Opt ion-1, Double-sided adhesive pad AC 85V~265V Receiver Sck to emier back cover Sck emier to the area → → → 3 Opt ion-2, Screws/Screws and Anchors Please prepare an electric drill and screwdriver before installaon. a. Mark the hole area that you intend to install. b. Drill two holes on the marked area, then insert anchors into the hole, or use screws directly on the surface, such as wood surface etc. c. Use a flat screwdriver to PRY open the bracket or back cover of the emier. Pry via slot Install baery d. Screw up the bracket or back of the emier. Screw up the back cover Drill hole and install anchors → → → → → → 4 Please carefully read this Welcome Guide before using and installaon Plug-in Wireless Doorbell Welcome Guide Zeapa R

Shenzhen Haibeituokejiyouxiangongsi Agent Authorization Company: Shenzhen Haibeituokejiyouxiangongsi Address: Longgangqu Bantianjiedao Huangjinshan Gaoxinkejiyuan Weigu 206, SHENZHEN, GUANGDONG, 518000, China Product Name: Wireless doorbell Trade Mark: Zeapa Model Number: HBT600-3, HBT60, DB-01, DB-023, DB-032 FCC ID: 2AYWOHBT600-3 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-02-20 Name: YAN XIA Title: Manager Company: Shenzhen Haibeituokejiyouxiangongsi

Shenzhen Haibeituokejiyouxiangongsi Add: Longgangqu Bantianjiedao Huangjinshan Gaoxinkejiyuan Weigu 206, SHENZHEN, GUANGDONG, 518000, China Tel: 13692149351 Fax: 13692149351 Date: 2021-02-20 Dear Sir/Madam, We, Shenzhen Haibeituokejiyouxiangongsi Hereby declares the following statement , PCB board, circuit, structure and internal of these model(s) are the same, Only product appearance and model number are different for marketing purpose: Product name: Wireless doorbell Models No.: HBT600-3, HBT60, DB-01, DB-023, DB-032 Sincerely, Client’s name / title : YAN XIA / Manager Contact information / address: Longgangqu Bantianjiedao Huangjinshan Gaoxinkejiyuan Weigu 206, SHENZHEN, GUANGDONG, 518000, China Tel: 13692149351 Fax: 13692149351 E-Mail: [email protected]

Shenzhen Haibeituokejiyouxiangongsi Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021-02-20 Subject; Request for Confidentiality FCC ID: 2AYWOHBT600-3 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description BOM Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: YAN XIA Title: Manager

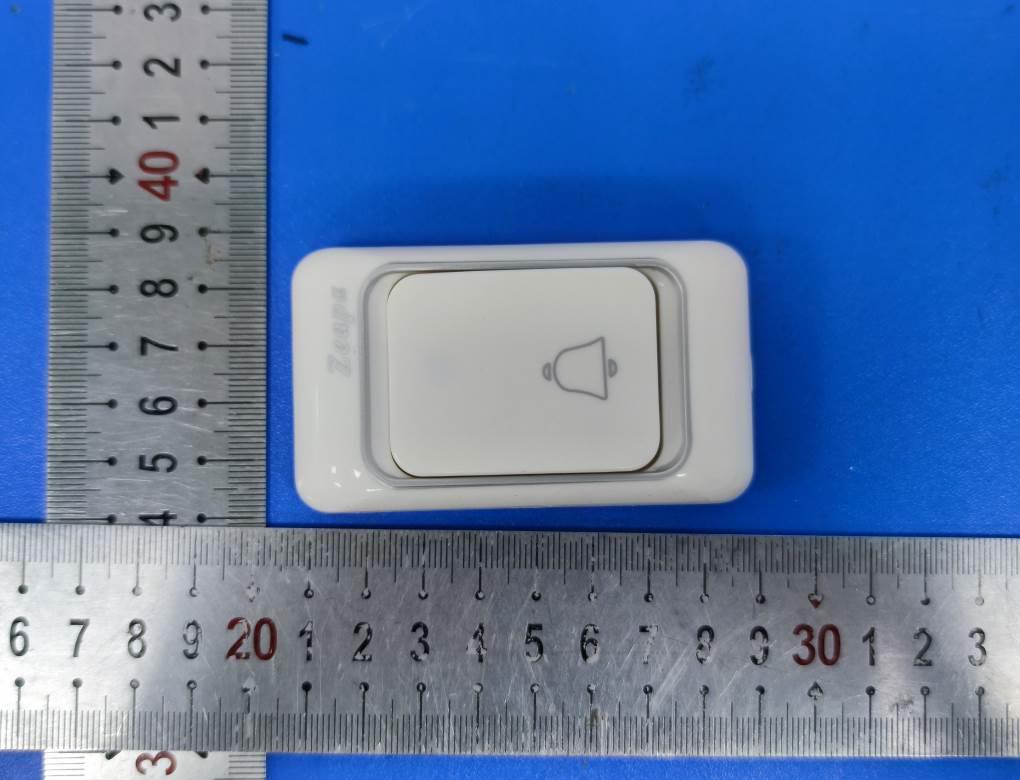

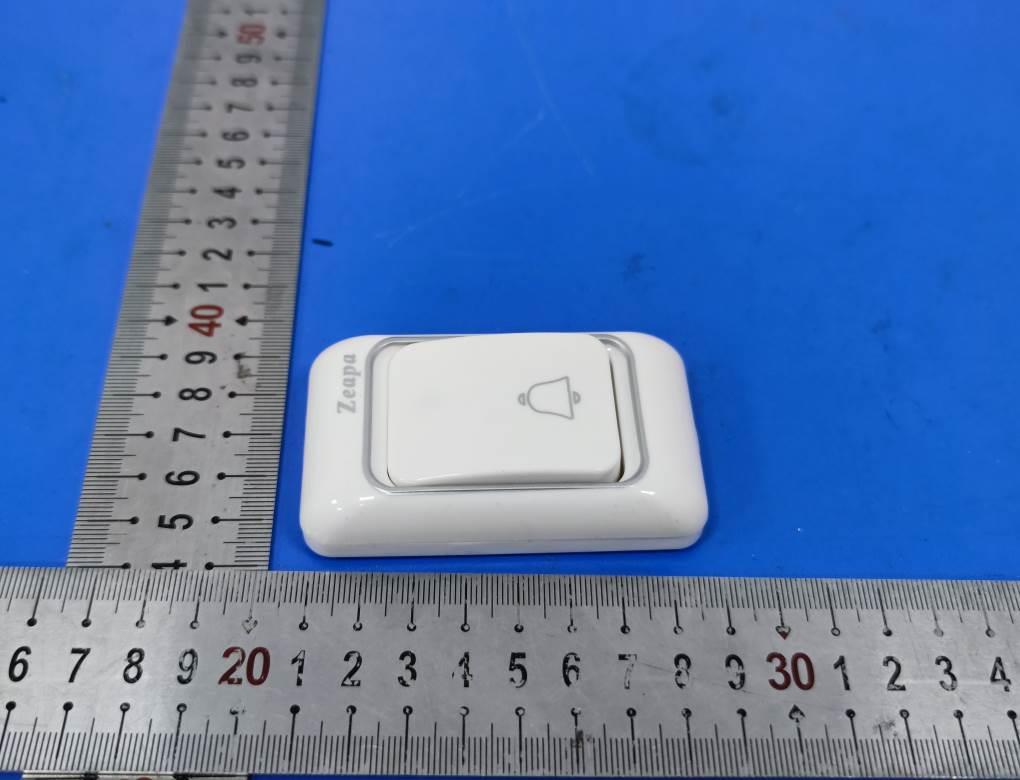

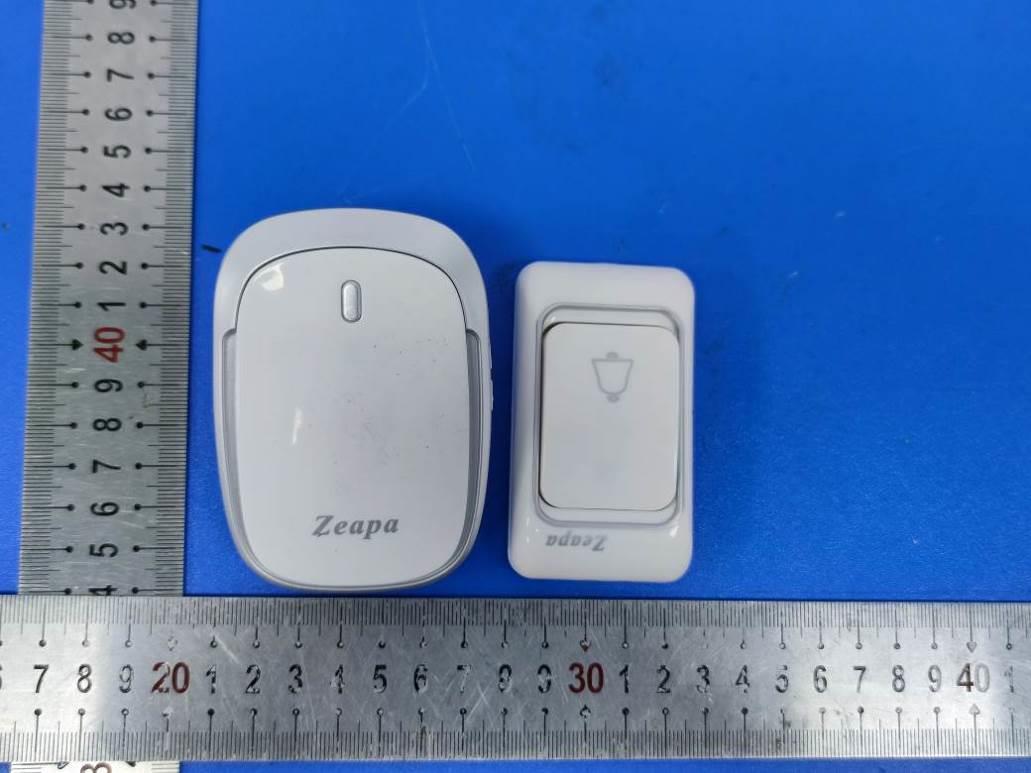

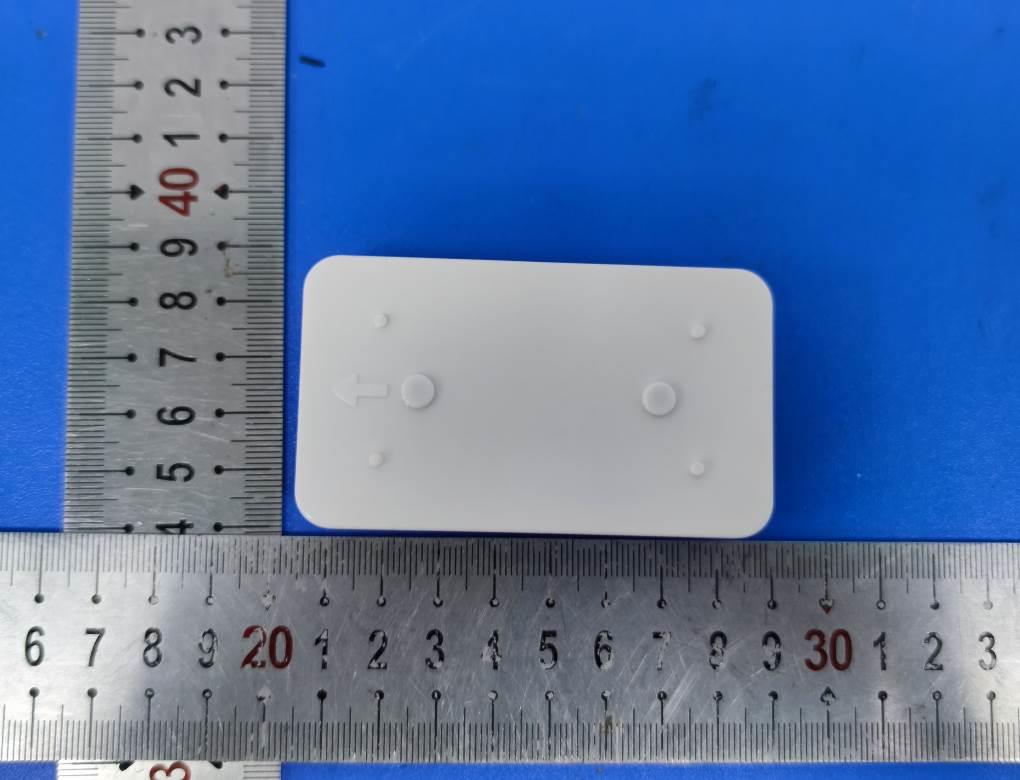

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYWOHBT600-3 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 EXTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Transmitter Receiver SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYWOHBT600-3 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYWOHBT600-3 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYWOHBT600-3 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 4 Fig.7 Fig.8
