2AYXHMBEC4FOB2007Remote Keyless Entry Transmitter

Title : NO. Date SHT/SHTS : 3/12 2. PRODUCT SPECIFICATION 2.1 Scope of RKE, passive entry control, passive start control in SMART Key system. 2.1.1 FOB KEY : It has the functions for passive entry and passive start including RKE functions. It also has the TP for emergency authentication for passive start 2.1.2 SMART Key system : It is an ECU to control the whole smart key system. It has the functions such as passive entry control, passive start control, RKE functions. 2.2 SPECIFICATIONS 2.2.1 FOB KEY Battery life 2 Year(10Times/Day)(Lithium 3V 1EA) Electric field strength10mW (433.92MHz) Code Rolling Code(Hopping Algorithm) Operating voltage range DC 2.5 ~ 3.2V ITEM SPECIFICATION Rated supply voltage DC 3V Operating temperature range - 10 ~ + 60°C with Battery Frequency 433.92MHz Storage temperature range - 30 ~ + 85°C without Battery ModulationFSK Information Document Title : NO. Date SHT/SHTS : 5/12 3. USER MANUAL 3.1 ITEM : FOB LF system - This system is IBU and inculdes RKE. - RKE in IBU system is intended for auto door lock or unlock or TRUNK in vehicle. - This SMK system is to be installde on motor vehicles as *OE item. *OE : Original Equipment. *IBU : Intergrated Body control Unit *RKE : Remote Keyless Entry. 3.2 SYSTEM CONSTRUCTION 3.2.1 SYSTEM IN VEHICLE 3.2.2 SYSTEM FOR TEST ① Connect the 12V power supply and turn on the switch ② Pressing the white tact switch, LF signal is transmitted and FOB LED and IBU LED is flahes ③ When the tact switch is pressed repeatively, FOB LED and IBU LED is flahes, repeatively. * It shows the status of operation through the LED used. Information Document Information Document Information Document Radio Frequency (433.92MHz) ANTENNA BATTERY LF ANT IBU Low Frequency (125KHz) SSB Radio Frequency (433.92MHz) ANTENNA BATTERY LF ANT IBU Low Frequency (125KHz) SwitchLED U S E R M A N U A L FCC Information to User This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ‡5HRULHQWRUUHORFDWHWKHUHFHLYLQJDQWHQQD ‡,QFUHDVHWKHVHSDUDWLRQEHWZHHQWKHHTXLSPHQWDQGUHFHLYHU ‡ &RQQHFW WKH HTXLSPHQW LQWR DQ RXWOHW RQ D FLUFXLW GLIIerent from that to which the receiver is con- nected. ‡&RQVXOWWKHGHDOHURUDQH[SHULHQFed radio/TV technician for help. Caution 0RGLILFDWLRQV QRW H[SUHVVO\ DSSURYHG E\ WKH SDUW\ UHsponsible for compliance could void the user’s authority to operate the equipment. FCC Compliance Information : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation IMPORTANT NOTE: FCC RF Radiation Exposure Statement:

MOBASE ELECTRONICS INDIA PRIVATE LIMITED No:136,Arakkonam road ,Thodukadu village, Tiruvallur District, Tamilnadu – 602105.INDIA. Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 ,Industry Canada c.c. Timco Engineering, Inc. Certification Division 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA FCC ID : 2AYXHMBEC4FOB2007 To whom it may concern: I, the undersigned, hereby authorize Technical Manager Issac Jin of MOVON TEST LAB CO., LTD . and here after referred to as MOVON TEST LAB CO., LTD., to act on our behalf in all manners rela ting to application for equipment authorization, including signing of all documents relating to these m atters. Any and all acts carried out by Technical Manager Issac Jin of MOVON TEST LAB CO., LTD. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing MOVON TEST LAB CO., LTD. as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; MOBASE ELECTRONICS INDIA PRIVATE LIMITED No:136,Arakkonam road ,Thodukadu village, Tiruvallur District, Tamilnadu – 602105.INDIA. e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, HYUN SUK KWON /Manager MOBASE ELECTRONICS INDIA PRIVATE LIMITED REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

MOBASE ELECTRONICS INDIA PRIVATE LIMITED No:136,Arakkonam road ,Thodukadu village, Tiruvallur District, Tamilnadu – 602105.INDIA. Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: 2AYXHMBEC4FOB2007 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematics / Block Diagram / Operational Description / Parts List Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. 2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days External Photos / Internal Photos / Test Setup Photos / User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondence during certification review process cannot be granted as confidential documents and such information will be available for public review once the grant of equipment authorization is issued. Sincerely Yours, HYUN SUK KWON /Manager MOBASE ELECTRONICS INDIA PRIVATE LIMITED

MOBASE ELECTRONICS INDIA PRIVATE LIMITED No:136,Arakkonam road ,Thodukadu village, Tiruvallur District, Tamilnadu – 602105.INDIA. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject : FCC ID (Label / Label Location) To Whom It May Concern : We Would like to submit this letter for label requirement. MOBASE ELECTRONICS INDIA PRIVATE LIMITED Accepts responsibility for all information as below. 1. Why the FCC ID or label is placed inside the device (on PCB board) : Mobase > Label information is affected to device design and there is not sufficient location surface on the device. 2. How FCC ID or label will be accessible when using the device.: Mobase > When client replaces the battery, who must to open the device cover. In this time, user can see the label and FCC ID. 3. How FCC ID or label will be readily viewable at the time of purchase : Mobase > General consumer can’t purchase only the Key. When the consumer buy a car, FCC ID and information attached as sticker. Sincerely . HYUN SUK KWON / Manager Email : [email protected]

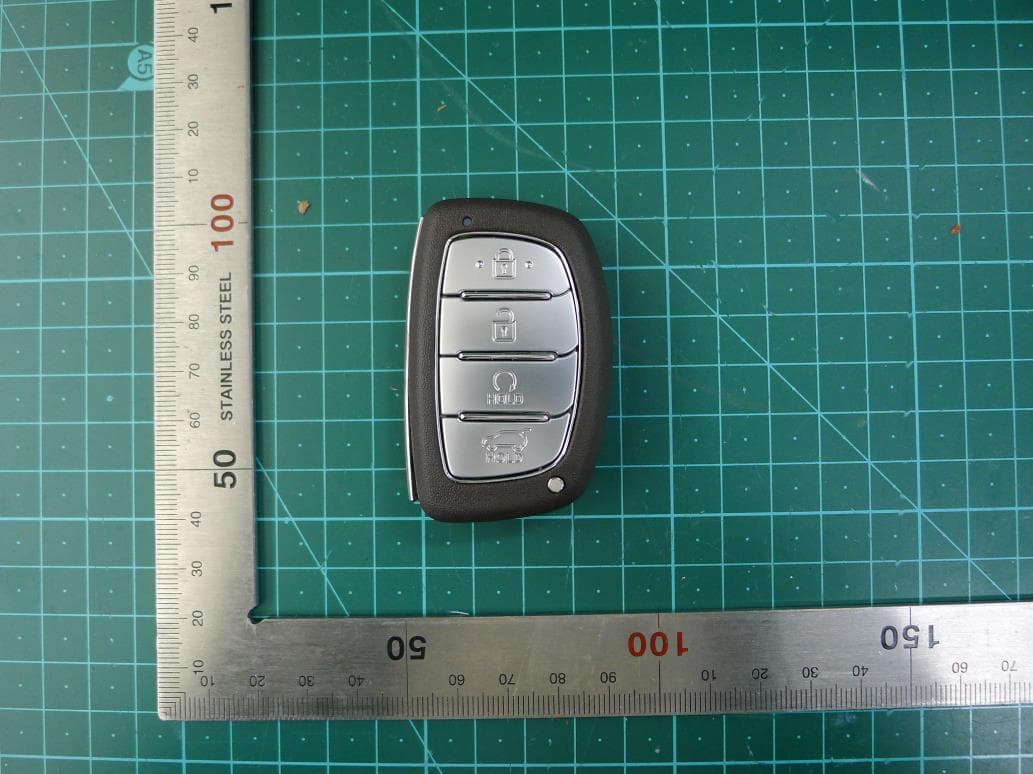

Copyright ⓒ MOVON Test Lab Co., Ltd.All rights Reserved. External Photos Copyright ⓒ MOVON Test Lab Co., Ltd.All rights Reserved. External Photos Front Rear Copyright ⓒ MOVON Test Lab Co., Ltd.All rights Reserved. External Photos Left Right Copyright ⓒ MOVON Test Lab Co., Ltd.All rights Reserved. External Photos Top Bottom

Copyright ⓒ MOVON Test Lab Co., Ltd. All rights Reserved. Label Informaion SHT/SHTS : 11/12 NAME FOB TITLE LABEL SCALE FREE

Copyright ⓒ MOVON Test Lab Co., Ltd. All rights Reserved. Internal Photos Copyright ⓒ MOVON Test Lab Co., Ltd. All rights Reserved. Internal Photos PCB Front PCB Rear Copyright ⓒ MOVON Test Lab Co., Ltd. All rights Reserved. Internal Photos Inside Antenna Antenna

[(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Step.2 For 100 MHz to 6 GHz and test separation distances > 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following {[Power allowed at numeric threshold for 50 mm in step a)] + [(test separation distance – 50 mm)· (f(MHz)/150)]} mW, for 100 MHz to 1500 MHz {[Power allowed at numeric threshold for 50 mm in step a)] + [(test separation distance – 50 mm)·10]} mW, for > 1500 MHz and ≤ 6 GHz Step.2-1 Step.2-2 RF EXPOSURE KDB447498 was used as the guidance. SAR test exclusion considerations Step.1 For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion threshold are determined by the following : The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm, and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 4.1 f) is applied to determine SAR test exclusion. The values 3.0 and 7.5 are referred to as numeric thresholds in step b) below Copyright ⓒ MOVON Test Lab Co., Ltd All rights Reserved. Page :1 / 2 ( mm ) =S : Maximum Power Density P(mW) : Output power transmitter (mW)= [√0.43392 dBm mW [( 0.0081 / = The EUT will only be used with a separation of 50 millimeters or lesser between the antenna and the body of the SAR Exclusion calculation for this exposure is shown below. - NOTE P : Output power transmitter (dBm) SAR test exclusion considerations : RKE 433.92 MHz 74.30 [(P(mW) / R)] X [√f(GHz)] - P= = -20.90 0.0081 Therefore, EUT is not required the SAR Evaluation. ] 0.001 07 Power Density at the specific separation - NOTE- S RF Exposure Compliance Issue f(GHz) : the RF channel transmit frequency in GHz 5.00)]X R : Distance to the center of the radiation of the antenna 5.00 NOTE : f(GHz) was used as worst case is highest frequency. -20.90dBm - Frequency Range : - Worst case output power transmitter : dBuV/m @ 3 m= Copyright ⓒ MOVON Test Lab Co., Ltd All rights Reserved. Page :2 / 2

MOVON Test Lab Co., Ltd Report Number: MOV-21-RF-I013 MOV-P-16-13(0) Page : (1) of (16) FCC Part 15 Subpart C §15.231 Test Report Equipment Under Test Remote Keyless Entry Transmitter Model Name MBEC4FOB2007 Variant Model Name - FCC ID 2AYXHMBEC4FOB2007 Applicant MOBASE ELECTRONICS INDIA PRIVATE LIMITED Manufacturer MOBASE ELECTRONICS INDIA PRIVATE LIMITED Date of Test(s) 2021. 02. 05~2021. 02. 18 Date of Issue 2021. 02. 22 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This Test Report cannot be reproduced, except in full. Issue to Issue by MOBASE ELECTRONICS INDIA PRIVATE LIMITED No:136,Arakkonam road ,Thodukadu village, Tiruvallur District, Tamilnadu – 602105.INDIA. Tel.: +91 9677759630 MOVON Test Lab Co., Ltd 498-2, Geumeo-ro, Pogok-eup, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea, 17030 Tel.: +82-31-338-8837 Fax: +82-31-338-8847 MOVON Test Lab Co., Ltd Report Number: MOV-21-RF-I013 MOV-P-16-13(0) Page : (2) of (16) Revision history Revision Date of issue Description Revised by -- 2021.02.22 Initial - MOVON Test Lab Co., Ltd Report Number: MOV-21-RF-I013 MOV-P-16-13(0) Page : (3) of (16) Table of contents 1. Applicant Information ................................................................................................... 4 2. Laboratory Information ................................................................................................. 4 3. Summary of test results................................................................................................ 5 4. EUT Description ............................................................................................................ 6 5. Measurement equipment .............................................................................................. 7 6. Antenna requirement .................................................................................................... 8 7. Field strength of Fundamental ..................................................................................... 9 8. Radiated spurious emissions ..................................................................................... 11 9. Bandwidth measurement ............................................................................................ 14 10. Transmission time ..................................................................................................... 16 MOVON Test Lab Co., Ltd Report Number: MOV-21-RF-I013 MOV-P-16-13(0) Page : (4) of (16) 1. Applicant Information 1.1. Details of applicant Applicant : MOBASE ELECTRONICS INDIA PRIVATE LIMITED Address : No:136,Arakkonam road ,Thodukadu village, Tiruvallur District, Tamilnadu – 602105.INDIA. Contact Person : HYUN SUK KWON Telephone : +91 9677759630 Fax : - 1.2. Manufacturer Information Manufacturer : MOBASE ELECTRONICS INDIA PRIVATE LIMITED Address : No:136,Arakkonam road ,Thodukadu village, Tiruvallur District, Tamilnadu – 602105.INDIA 2. Laboratory Information Company name : MOVON Test Lab Co., Ltd Address : 498-2, Geumeo-ro, Pogok-eup, Cheoin-gu, Yongin-si, Gyeonggi-do, 17030, Rep. of Korea Web site : http://www.movonlab.co.kr Telephone : +82-31-338-8837 Facsimile +82-31-338-8847 MOVON Test Lab Co., Ltd Report Number: MOV-21-RF-I013 MOV-P-16-13(0) Page : (6) of (16) 4. EUT Description Kind of product Remote Keyless Entry Transmitter Model Name MBEC4FOB2007 Variant Model Name - FCC ID 2AYXHMBEC4FOB2007 IC Number - Power supply DC 3.0 V Frequency range 433.92 MHz (TX), 0.125 MHz (RX) Modulation technique FSK Number of channels 1 ch Antenna gain / Type -19㏈i (Max.) / PCB Antenna Test Site Registration Number FCC (KR0151) 4.1. Declarations by the manufacturer None 4.2. Details of modification None MOVON Test Lab Co., Ltd Report Number: MOV-21-RF-I013 MOV-P-16-13(0) Page : (7) of (16) 5. Measurement equipment Equipment Manufacturer Model Serial number Calibration Interval Calibration date Calibration due. Test Receiver R&S ESVS30 829673/015 1 year 2020-11-23 2021-11-23 Signal Generator R&S SMB100A 178128 1 year 2020-06-26 2021-06-26 Vector Signal Generator R&S SMBV100A 257379 1 year 2020-05-26 2021-05-26 Spectrum Analyzer R&S FSV-40 100832 1 year 2020-05-27 2021-05-27 Horn Antenna R&S HF906 100236 2 year 2019-04-09 2021-04-09 Bi-Log Ant. S/B VULB 9161SE 4159 2 year 2020-03-30 2022-03-30 Loop Antenna ETS LINDGREN 6502 00118166 2 year 2020-06-30 2022-06-30 Power Amplifier TESTEK TK-PA18H 170013-L 1 year 2021-05-26 2022-05-26 Controller INNCO CO2000 CO2000/064/6961003/ L N/A N/A N/A Antenna Master INNCO MA4000 MA4000/038/6961003/ L N/A N/A N/A Controller INNCO CO3000 CO3000/812/34240914 /L N/A N/A N/A Antenna Master INNCO MA4640-XP-ET None N/A N/A N/A RF Cable SUHNER SUCOFLEX100 84047746 3 month 2020-12-04 2021-03-04 RF Cable SUHNER SUCOFLEX102 801270/2 3 month 2020-12-04 2021-03-04 RF Cable SUHNER SUCOFLEX102 801532/2 3 month 2020-12-04 2021-03-04 ※Remark Support equipment Description Manufacturer Model Serial number - - - - MOVON Test Lab Co., Ltd Report Number: MOV-21-RF-I013 MOV-P-16-13(0) Page : (8) of (16) 6. Antenna requirement 6.1. Regulation According to §15.203, an intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. The use of a permanently attached antenna or of an antenna that uses a unique coupling to the intentional radiator shall be considered sufficient to comply with the provisions of this Section. The manufacturer may design the unit so that a broken antenna can be replaced by the user, but the use of a standard antenna jack or electrical connector is prohibited. 6.2. Test results Complied The PCB Antenna is an integral antenna, and no antenna other than that furnished by the responsible party shall be used with the device MOVON Test Lab Co., Ltd Report Number: MOV-21-RF-I013 MOV-P-16-13(0) Page : (9) of (16) 7. Field strength of Fundamental 7.1. Regulation According to § 15.109(a), Except as provided elsewhere…

Text truncated - open the document above for the full version.

Copyright ⓒ MOVON Test Lab Co., Ltd. All rights Reserved. Test Setup Photos Copyright ⓒ MOVON Test Lab Co., Ltd. All rights Reserved. Test Setup Photos Radiated Emission_9 kHz ~ 30 MHz Test distance : 3 m, height of table : 0.8 m Radiated Emission_30 MHz ~ 1 GHz Test distance : 3 m, height of table : 0.8 m Copyright ⓒ MOVON Test Lab Co., Ltd. All rights Reserved. Test Setup Photos Radiated Emission_1 GHz ~ 5 GHz Test distance : 3 m, height of table : 1.5 m
