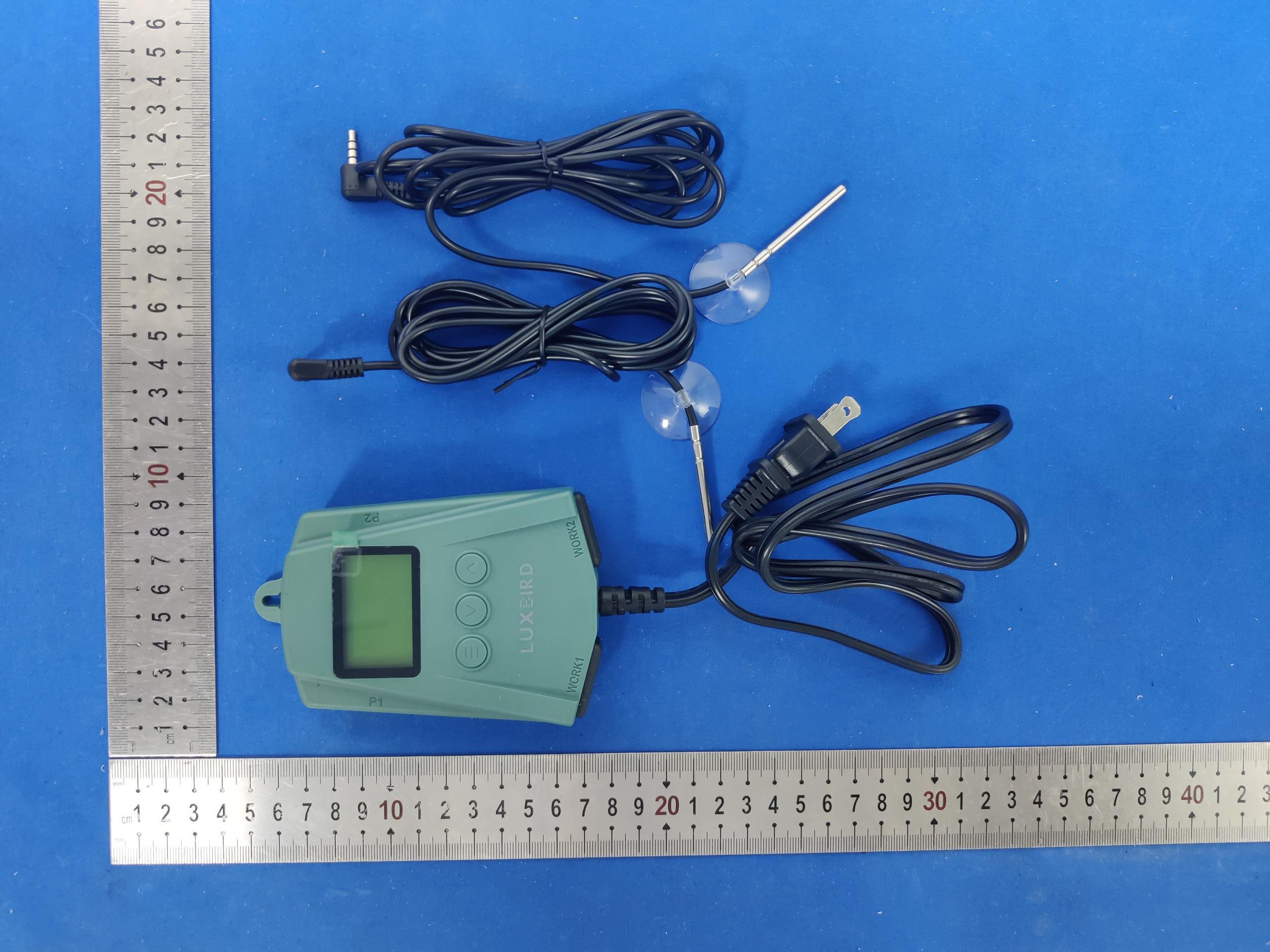

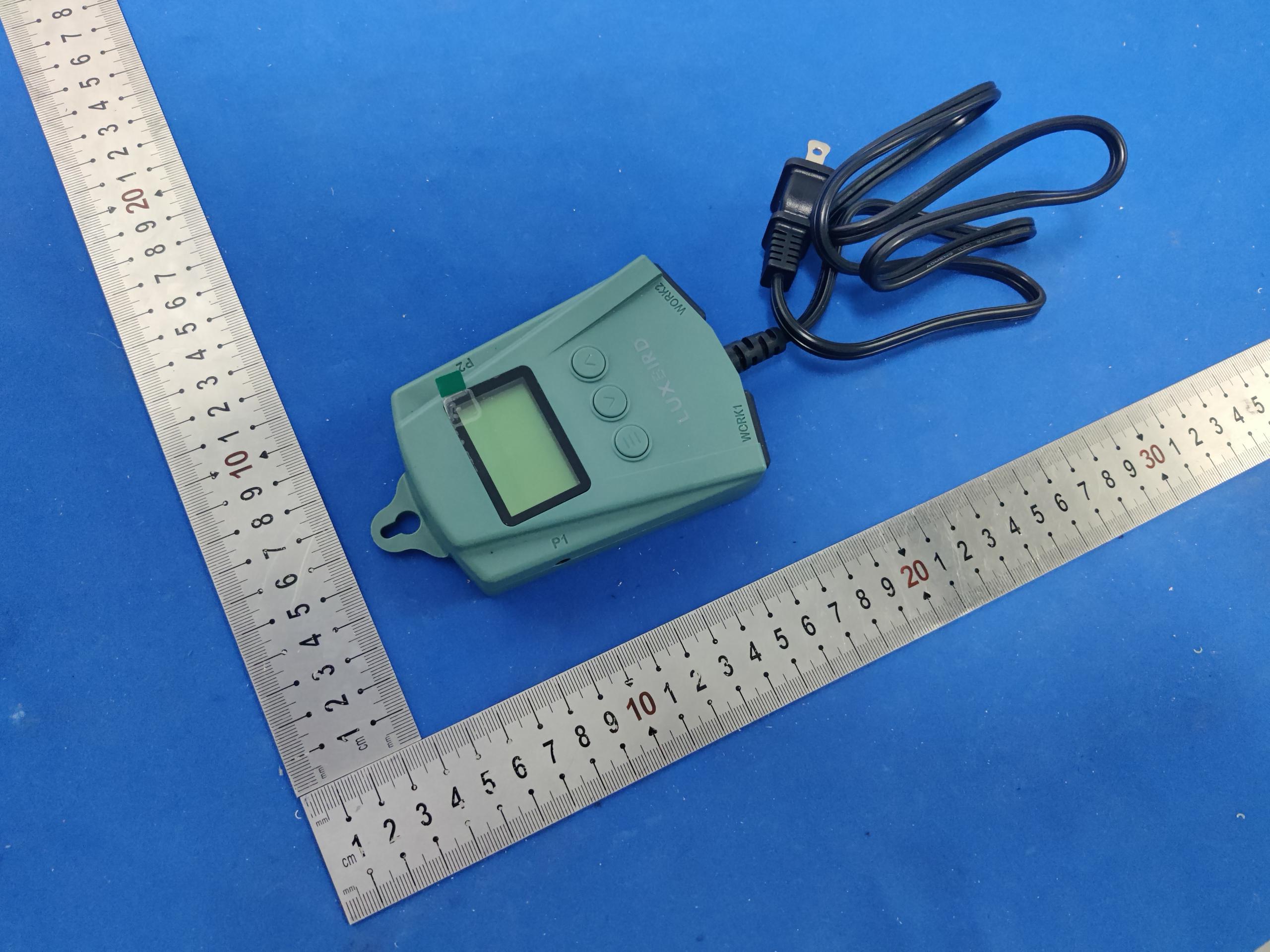

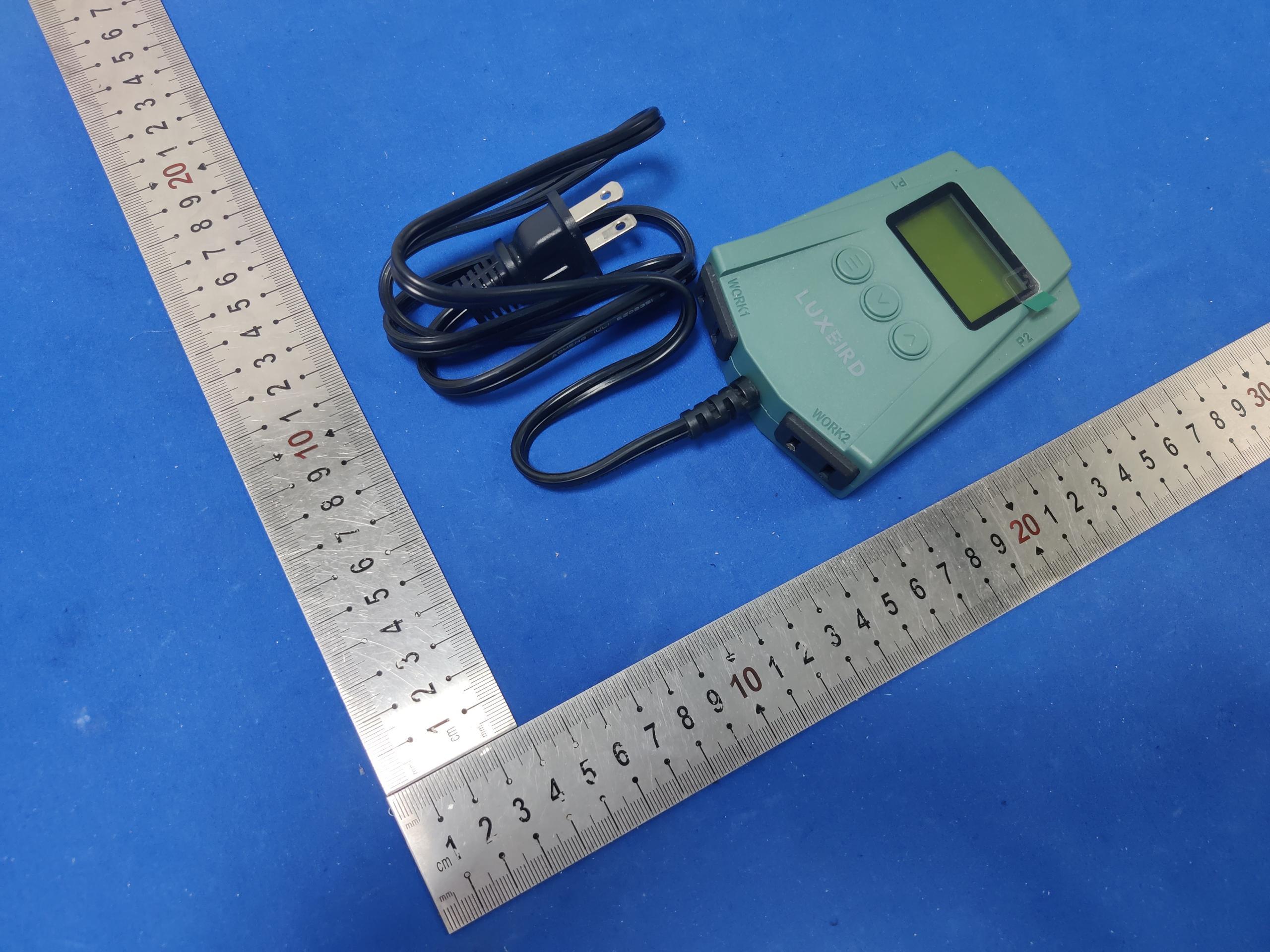

2AYZDLB-2SCTemperature Controller

95mm*170mm Temperature LB-2SC Manual Controller P1 P2 WORK1 WORK2 IN TRODUCTION OPERATING INSTRUCTIONS Contents 01 02 Features 1 Technical Parameters 1 Pr oduct Layout 2 CAUTION 1 Factor y Reset 3 Quick Query of The Start Heating Temperature 4 Quick Setup of The ControllingTemperature 5 Temperature Unit Setting 6 Start Heating Temperature of P1 (ST1) 7 St op Heating Temperature of P1 (SP1) 8 Technical Assistance and Warranty 17 Temperature Display 16 Turn On/Off The Buzzer Sound Manually (ALM) 15 The Setting of The P2 Calibration Value (CA2) 15 Low Temperature Alarm of P2 (AL2) 14 High Temperature Alarm of P2 (AH2) 13 St op Heating Temperature of P2 (SP2) 12 11 Start Heating Temperature of P2 (ST2) The Setting of The P1 Calibration Value (CA1) 10 Low Temperature Alarm of P1 (AL1) 9 High Temperature Alarm of P1 (AH1) 9 KEEP CHILDREN AWAY TO REDUCE THE RISK OF ELECTRIC SHOCK, USE ONLY INDOORS DO NOT PLUG IN TO ANOTHER RELOCATABLE POWER TAPS OR AN EXTENSION CORD USE ONLY IN DRY LOCATION CAUTION Features IN TRODUCTION Technical Par ameters Plug-n-Play, easy to use. Dual relay control, controls two sets of outputs. Users can set different target temperatures according to differ ent environments. Supports both Celsius and Fahrenheit units. LCD display, displays the testing temperature, the target temperature and the output state. Supports temperature calibration. Supports high/low temperature limit alarm. Supports probe abnormal alarm. Power Input: 100~240Vac 50/60Hz Output: 100~240Vac 50/60Hz 500W Max Probe Type: R25°C=10KΩ±1% R0°C=26.74~27.83KΩ B25/85°C=3435K±1% Temperature Control Range: 0.0°C~45.0°C/32.0°F~113°F Power Probe Type: R25°C=10KΩ±1% R0°C=26.74~27.83KΩ B25/85°C=3435K±1% Temperature Control Range: 0.0°C~45.0°C/32.0°F~113°F -1- Temperature Measurement Range: -5.0°C~50.0°C /23.0°F~122°F Temperature Display Accuracy: 0.1°C/°F (T<100°C/°F), 1°C/°F (≥100°C/°F) Temperature Measurement Accuracy: ±1°C/±2°F Temperature Unit: Celsius °C or Fahrenheit °F Operating Ambient Temperature: -20°C~60°C/-4°F~140°F St or age Environment: -temperature range: 0°C~60°C/32°F~140°F -humidity range: 20~80%RH (not frozen or condensa- tion) Warranty: 2 years for the controller and 1 year for the probes Temperature Measurement Range: -5.0°C~50.0°C /23.0°F~122°F Temperature Display Accuracy: 0.1°C/°F (T<100°C/°F), 1°C/°F (≥100°C/°F) Temperature Measurement Accuracy: ±1°C/±2°F Temperature Unit: Celsius °C or Fahrenheit °F Operating Ambient Temperature: -20°C~60°C/-4°F~140°F St or age Environment: -temperature range: 0°C~60°C/32°F~140°F -humidity range: 20~80%RH (not frozen or condensa- tion) Warranty: 2 years for the controller and 1 year for the probes Product Layout P1 P2 WORK1 WORK2 LCD: Display the Current Temperature, the WORK1 Stop Heating Temperature, the Heating Indicator of WORK1, the WORK2 Stop Heating Temperature, and the Heating Indica- tor of WORK2. Pr obe Interfaces Buttons WORK1/WORK2 Outputs -2- Unplug the controller, then hold and plug in the power cord to reset the controller. Display after the factor y reset Display before the factor y reset OPERATING INSTRUCTIONS Factor y Reset Note: The buzzer will beep a short sound to remind you that all the parameters have been restored to the default data. -3- Press again, the P2 SET TEMP. area will display the start heating temperature 80.0°F. Press , the P1 SET TEMP. area will display the start heating temperature 77.0°F. The controller will return to normal display if there’s no operation for 3 seconds, or you can press any button to return to normal display manually. For example, the start heating temperature of P1 is 77.0°F and the stop heating temperature is 78.0°F; the start heating temperature of P2 is 80.0°F, and the stop heating temperature of P2 is 82.0°F. The device displays the stop heating temperature of P1 and P2 by default. Quick Query of The Start Heating Temperature -4- Pr ess once, then the P1 SET TEMP 77.0 (the start heating temperature value) will flash. Press or to adjust the stop heating temperature value. Press once, then the P2 SET TEMP 80.0 (the start heating temperature value) will flash. Pr ess or to adjust the start heating temperature value. Pr ess once, then the P1 SET TEMP 78.0 (the st op heating temperature value) will flash. For example, the start heating temperature of P1 is 77.0°F and the stop heating temperature is 78.0°F; the start heating temperature of P2 is 80.0°F, and the stop heating temperature of P2 is 82.0°F. Quick Setup of The Controlling Temperature -5- Pr ess or to adjust the start heating temperature value. Press once, then the P2 SET TEMP 82.0 (the stop heating temperature value) will flash. Pr ess or to adjust the st op heating temperature value. The controller will save the settings and exit automati- cally if there’s no operation in 30 seconds, or you can hold for 2 seconds to exit settings manually. Hold for 2 seconds and press once again to enter the setting menu, then select CF. Temperature Unit Setting -6- Pr ess or to select between °C and °F. Note: The buzzer will beep a short sound to remind you that all the parameters have been rest ored to the default data. The controller will save the settings and exit automati- cally if there's no operation in 60 seconds, or you can hold for 2 seconds to exit settings manually. Short press or to adjust the setting values, hold or to adjust the setting values quickly. The controller will save the settings and exit automati- cally if there's no operation in 60 seconds, or you can hold for 2 seconds to exit settings manually. When the current temperature of P1 is less than or equal to the start heating temperature of P1, WORK1 will turn on the output and the heating symbol will light up. Hold for 2 seconds and press once again to enter the setting menu, then select St1. Start Heating Temperature of P1(ST1) -7- Note: The minimum temperature difference value between ST1 and SP1 is 0.3°C/0.5°F. When both values of ST1 and SP1 are larger than or equal to 100°F, t…
