2AYZUWCDP-00Wireless Charging Desk Pad

Wireless Charging Desk Pad M anual Flatten Your Wireless Charging Desk Pad Step 1 Stretch Your Desk Pad Step 2 Roll up the edges in reverse way to the direction it curls and put it still for a short while Step 3 Press slightly on the cylinder according to how severe it curls. Step 4 Lay desk pad flat, if it still curls, repeat step 2 & 3. How to use charging station 1. A USB cable comes in the package. Connect the USB C port to the desk pad. 2. Connect the USB A/C (switchable) on the other side to an adapter and plug into a power source. (USB C port and QC2.0/3.0/PD/AFC adapter are recommended to enable the max charging efficiency) 3. Place QI enabled charging device onto the charging area. Charging compatibility Max charging watt on standby flight mode 1. Input: 5-12V 2. Output: 15W(max) 3. Over voltage protection: >13V 4. Over current protection: >2.4A 5. 15W: Pixel 4/4XL, LG V50/V40/V30+/V30, LG G8/G7, Sony Xperia XZ3, etc 6. 10W: Samsung S20/S10/S9/ S8, Note 10/9/8 series, etc 7. 7.5W: iPhone 12/11/XS/XR/8 series, etc 8. 5W: Apple Airpods/Watch and other QI enabled devices Indicators 1. Indicators are on for 5 sec when plugged into power source 2. Indicators are on while charging 3. Indicators show on and off while foreign object like metal, magnetic item, IC chip is detected. 4. Indicators are still on when device is fully charged, but charging has actually stopped. How to clean your desk pad 1. Normally, tissue or towel is enough to clean stains from coffee, tea or snacks. 2. Use wet towel to clean stains from oil or stains that existed for days. 3. The pad will dry in seconds after wiped clean. 4. Do not use caustic cleaning supplies to clean your desk pad. Note: 1. Actual charging efficiency is based on the quality of power source, adapter and charging device. Power via computer or adapter lower than QC2.0 may slow down charging. 2.Charging efficiency 75%. It reduces gradually as the distance between charger and charger receiver increases 3.It is normal that charging station gets warm to 95°F, please do not worry. 4.Do not place any foreign object between charging station and charging device. Cases that contains metal, such as Pitaka, Evutec, and Spigen QNMP, will trigger foreign object detection and interrupt charging. 5. Avoid direct sunlight for long. FCCCaution Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothe followingtwoconditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2) thisdevicemustacceptanyinterferencereceived,includinginterferencethatmay causeundesiredoperation. AnyChangesormodificationsnotexpresslyapprovedbythepartyresponsiblefor compliancecouldvoidtheuser'sauthoritytooperatetheequipment. N ote:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClass Bdigitaldevice,pursuanttopart15oftheFCCRules.Theselimitsaredesignedto providereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation. Thisequipmentgeneratesusesandcanradiateradiofrequencyenergyand,ifnot installedandusedinaccordancewiththeinstructions,maycauseharmfulinterference toradiocommunications.However,thereisnoguaranteethatinterferencewillnot occurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferenceto radioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoff andon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthe followingmeasures: -Reorientorrelocatethereceivingantenna. -Increasetheseparationbetweentheequipmentandreceiver. -Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthe receiverisconnected. -Consultthedealeroranexperiencedradio/TVtechnicianforhelp. Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Wireless Charging Desk Pad Manual Flatten Your Wireless Charging Desk Pad Step 1 Stretch Your Desk Pad Step 2 Roll up the edges in reverse way to the direction it curls and put it still for a short while Step 3 Press slightly on the cylinder according to how severe it curls. Step 4 Lay desk pad flat, if it still curls, repeat step 2 & 3. How to use charging station 1. A USB cable comes in the package. Connect the USB C port to the desk pad. 2. Connect the USB A/C (switchable) on the other side to an adapter and plug into a power source. (USB C port and QC2.0/3.0/PD/AFC adapter are recommended to enable the max charging efficiency) 3. Place QI enabled charging device onto the charging area. Charging compatibility Max charging watt on standby flight mode 1. Input: 5-12V 2. Output: 15W(max) 3. Over voltage protection: >13V 4. Over current protection: >2.4A 5. 15W: Pixel 4/4XL, LG V50/V40/V30+/V30, LG G8/G7, Sony Xperia XZ3, etc 6. 10W: Samsung S20/S10/S9/ S8, Note 10/9/8 series, etc 7. 7.5W: iPhone 12/11/XS/XR/8 series, etc 8. 5W: Apple Airpods/Watch and other QI enabled devices Indicators 1. Indicators are on for 5 sec when plugged into power source 2. Indicators are on while charging 3. Indicators show on and off while foreign object like metal, magnetic item, IC chip is detected. 4. Indicators are still on when device is fully charged, but charging has actually stopped. How to clean your desk pad 1. Normally, tissue or towel is enough to clean stains from coffee, tea or snacks. 2. Use wet towel to clean stains from oil or stains that existed for days. 3. The pad will dry in seconds after wiped clean. 4. Do not use caustic cleaning supplies to clean your desk pad. Note: 1. Actual charging efficiency is based on the quality of power source, adapter and charging device. Power via computer or adapter lower than QC2.0 may slow down charging. 2. Charging efficiency 75%. It reduces gradually as the distance between charger and charger receiver increases 3. It is normal that charging station gets warm to 95°F, please do not worry. 4. Do not place any foreign object between charging station and charging device. Cases that contains metal, such as Pitaka, Evutec, and Spigen QNMP, will trigger foreign object detection and interrupt charging. 5. Avoid direct sunlight for long. FCCCaution Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothe followingtwoconditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2) thisdevicemustacceptanyinterferencereceived,includinginterferencethatmay causeundesiredoperation. AnyChangesormodificationsnotexpresslyapprovedbythepartyresponsiblefor compliancecouldvoidtheuse r'sauthoritytooperatetheequipment. Note:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClass Bdigitaldevice,pursuanttopart15oftheFCCRules.Theselimitsaredesignedto providereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation. Thisequipmentgeneratesusesandcanradiateradiofrequencyenergyand,ifnot installedandusedinaccordancewiththeinstructions,maycauseharmfulinterference toradiocommunications.However,thereisnoguaranteethatinterferencewillnot occurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferenceto radioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoff andon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthe followingmeasures: -Reorientorrelocatethereceivingantenna. -Increasetheseparationbetweentheequipmentandreceiver. -Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthe receiverisconnected. -Consultthedealeroranexperiencedradio/TVtechnicianforhelp. Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Shenzhenshi Gaosheng Textile & Leather Co., Ltd Model Difference Product description: Wireless Charging Desk Pad Model name: WCDP-00, WCDP-01, WCDP-02, WCDP-03, WCDP-04, WCDP-05, WCDP-06, WCDP-07, WCDP-08, WCDP-09, WCDP-10, WCDP-11, WCDP-12, WCDP-13, WCDP-14, WCDP-15, WCDP-16, WCDP-17, WCDP-18, WCDP-19, WCDP-20, WCDP-21, WCDP-22, WCDP-23, WCDP-24, WCDP-25, WCDP-26, WCDP-27, WCDP-28, WCDP-29, WCDP-30, WCDP-31, WCDP-32, WCDP-33 WCDP-34, WCDP-35, WCDP-36, WCDP-37, WCDP-38, WCDP-39, WCDP-40 WCDP-41, WCDP-42, WCDP-43, WCDP-44, WCDP-45, WCDP-46, WCDP-47 WCDP-48, WCDP-49, WCDP-50, WCDP-51, WCDP-52, WCDP-53, WCDP-54, WCDP-55, WCDP-56, WCDP-57, WCDP-58, WCDP-59, WCDP-60, WCDP-61, WCDP-62, WCDP-63, WCDP-64, WCDP-65, WCDP-66, WCDP-67, WCDP-68, WCDP-69, WCDP-70, WCDP-71, WCDP-72, WCDP-73, WCDP-74, WCDP-75, WCDP-76, WCDP-77, WCDP-78, WCDP-79, WCDP-80, WCDP-81, WCDP-82, WCDP-83, WCDP-84, WCDP-85, WCDP-86, WCDP-87, WCDP-88, WCDP-89, WCDP-90, WCDP-91, WCDP-92, WCDP-93, WCDP-94, WCDP-95, WCDP-96, WCDP-97, WCDP-98, WCDP-99. Trade Name: Furison, Jelison FCC ID: 2AYZUWCDP-00 All the model are the same circuit and RF module, only for model name. Regards Sincerely Client’s signature: Client’s name / title : Edward Wei (Head of Operations) Contact information / address: No. 125, Bldg T9, Intl Textile & Clothing Logistic Zone (Phase 1), South China City, Huanan Blvd No 1, Pinghu Street, Longgang District, Shenzhen, PRC. 518000

C5266091_X8_Ed.1 Letter of Authorization Shenzhenshi Gaosheng Textile & Leather Co., Ltd Company: Shenzhenshi Gaosheng Textile & Leather Co., Ltd Address: No. 125, Bldg T9, Intl Textile & Clothing Logistic Zone (Phase 1), South China City, Huanan Blvd No 1, Pinghu Street, Longgang District, Shenzhen, PRC. 518000 Product Name: Wireless Charging Desk Pad Model Number: WCDP-00 FCC Identifier: 2AYZUWCDP-00 We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Edward Wei Date: Feb.25.2021 Title: Head of Operations Signature of applicant: 1/1

C5266091_X8_Ed.1 Letter of Authorization Shenzhenshi Gaosheng Textile & Leather Co., Ltd Company: Shenzhenshi Gaosheng Textile & Leather Co., Ltd Address: No. 125, Bldg T9, Intl Textile & Clothing Logistic Zone (Phase 1), South China City, Huanan Blvd No 1, Pinghu Street, Longgang District, Shenzhen, PRC. 518000 Product Name: Wireless Charging Desk Pad Model Number: WCDP-00 FCC Identifier: 2AYZUWCDP-00 We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Edward Wei Date: Feb.25.2021 Title: Head of Operations Signature of applicant: 1/1

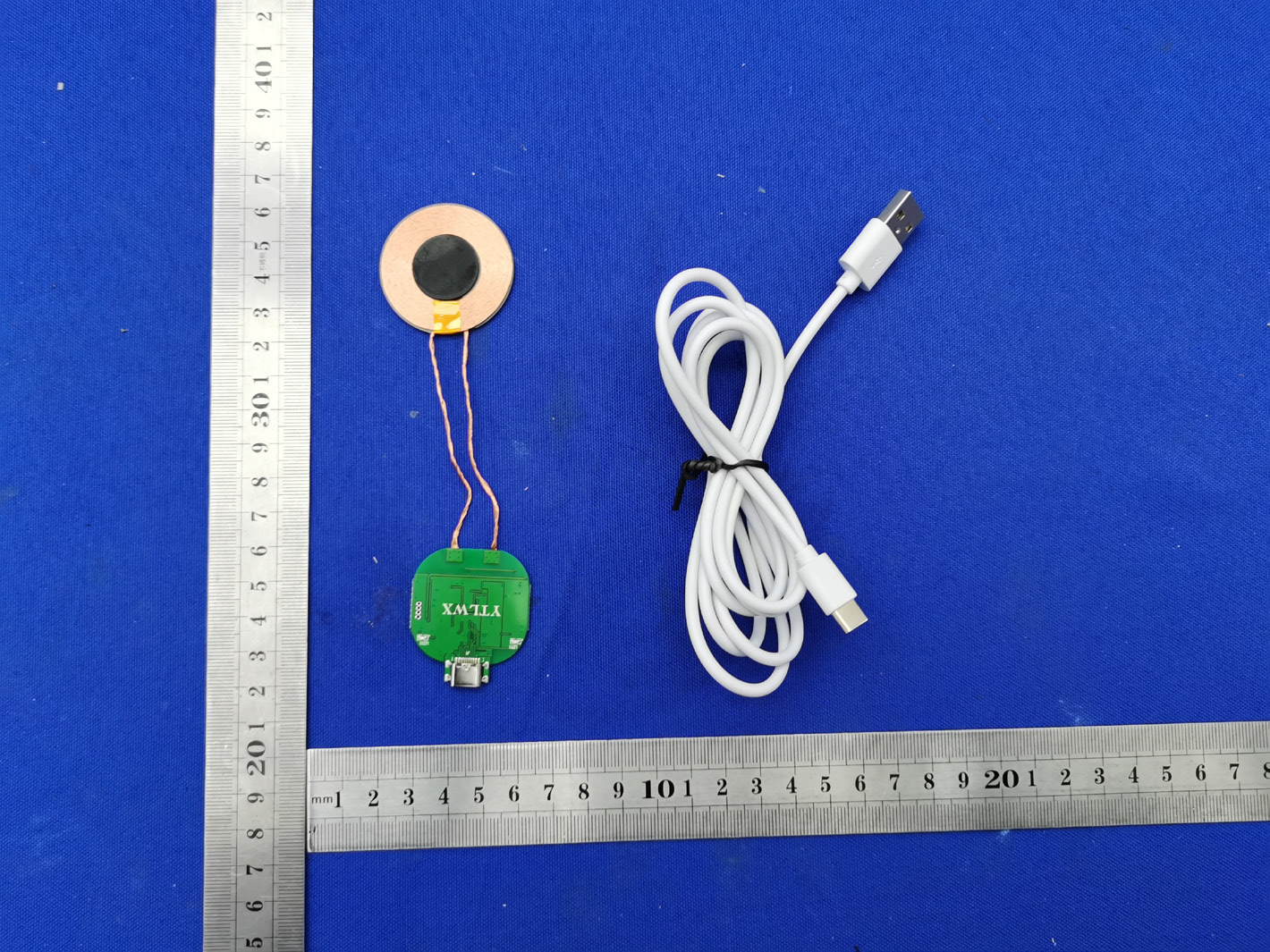

External Photos FCC ID: 2AYZUWCDP -00

Model: WCDP-00 FCC ID: 2AYZUWCDP-00 Label Location

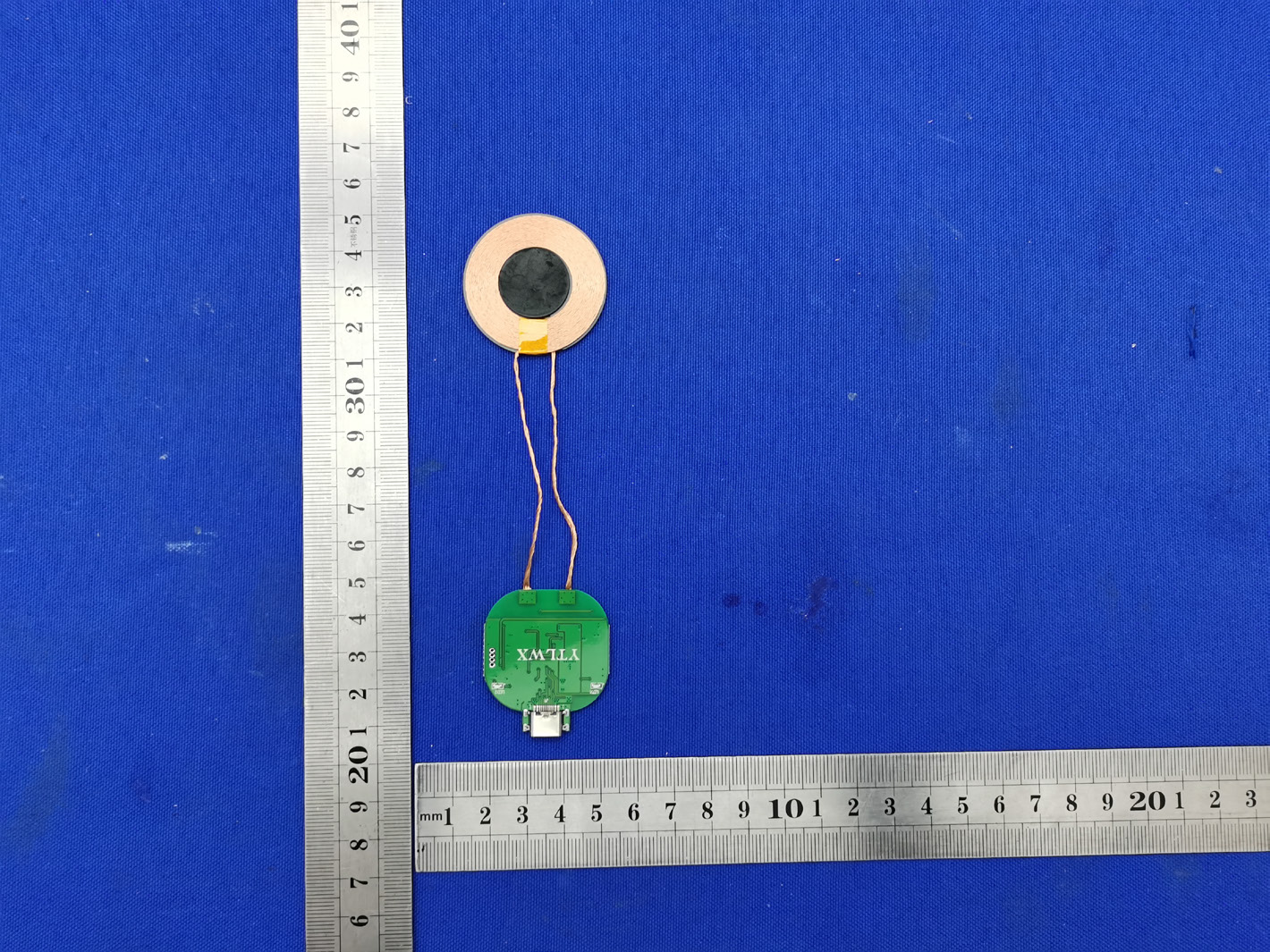

Internal Photos ANT FCC ID: 2AYZUWCDP-00 8025 8803

RF EXPOSURE REPORT Compiled by: Reviewed by: Approved by: Arron Liu Bin Mei Rita Xiao / Director The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen CTB Testing Technology Co., Ltd. this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: Wireless Charging Desk Pad FCC ID: 2AYZUWCDP-00 Trademark: Furison, Jelison Model Number: WCDP-00 Prepared For: Shenzhenshi Gaosheng Textile & Leather Co., Ltd Address: No. 125, Bldg T9, Intl Textile & Clothing Logistic Zone (Phase 1), South China City, Huanan Blvd No 1, Pinghu Street, Longgang District, Shenzhen, PRC. 518000 Manufacturer: Shenzhenshi Gaosheng Textile & Leather Co., Ltd Address: No. 125, Bldg T9, Intl Textile & Clothing Logistic Zone (Phase 1), South China City, Huanan Blvd No 1, Pinghu Street, Longgang District, Shenzhen, PRC. 518000 Prepared By: Shenzhen CTB Testing Technology Co., Ltd. Address: Floor 1&2, Building A, No. 26 of Xinhe Road, Xinqiao Community, Xinqiao Street, Baoan District, Shenzhen, Guangdong China Sample Received Date: Feb. 22, 2021 Sample tested Date: Feb. 22, 2021 to Feb. 25, 2021 Issue Date: Feb. 25, 2021 Report No.: CTB210222017RFX Test Standards FCC CFR 47 part1, 1.1307(b), 1.1310 47 CFR§2.1091; 47 CFR§2.1093 Test Results PASS Remark: This is wireless charger EMF report. EMF Report Te l : 4008-707-283 Web: http://www.ctb-lab.net Page1 of 7 Table of Contents Page 1 . GENERAL INFORMATION 3 1.1 . Independent Operation Mode 3 1.2 . Test Supporting System 3 2 .LIST OF T EST AND MEASUREMENT I NSTRUMENTS 4 2.1 . For conducted emission at the mains terminals test 4 3. METHOD OF MEASUREMENT 5 3. 1.Applicable Standard 5 4. TEST RESULT 5 4.1. Conducted Emission at the Mains Terminals Test 5 4.2. Equipment Approval Considerations: 6 4.3. E and H field Strength 6 EMF Report Te l : 4008-707-283 Web: http://www.ctb-lab.net Page2 of 7 1. GENERAL INFORMATION 1.1. Independent Operation Mode The basic operation mode is: 1.1.1. wireless charger power: 15 W 1.2. Test Supporting System Adapter Description : Adapter Model No. : HKA03612030-7B Power Input : AC100-240V~ 1.0A 50/60Hz Output: 5V 3.0A DC Line : Unshielded, Detachable 0.2m EMF Report Te l : 4008-707-283 Web: http://www.ctb-lab.net Page3 of 7 2.LIST OF TEST AND MEASUREMENT INSTRUMENTS 2.1. For conducted emission at the mains terminals test Item Equipment Brand Model No. Frequency Range Last calibration Calibrated until 1 Broadband Field Meter NARDA NBM-550 - Nov. 02, 2020 Nov. 01, 2021 2 Magnetic Field Meter NARDA ELT-400 1 – 400kHz Nov. 02, 2020 Nov. 01, 2021 3 Magnetic Probe NARDA HF-3061 300kHz – 30MHz Nov. 02, 2020 Nov. 01, 2021 4 Magnetic Probe NARDA HF-0191 27 – 1000MHz Nov. 02, 2020 Nov. 01, 2021 5 Broadband Field Meter NARDA NBM-550 - Nov. 02, 2020 Nov. 01, 2021 6 Electric Field Meter COMBINOV A EFM 200 5Hz – 400kHz Nov. 02, 2020 Nov. 01, 2021 7 E- Field Probe NARDA EF-0391 100kHz – 3GHz Nov. 02, 2020 Nov. 01, 2021 8 E- Field Probe NARDA EF-6091 100MHz – 60GHz Nov. 02, 2020 Nov. 01, 2021 EMF Report Te l : 4008-707-283 Web: http://www.ctb-lab.net Page4 of 7 3. METHOD OF MEASUREMENT 3. 1.Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure is calculated. According KDB680106 D01v03: RF Exposure Wireless Charging Apps v02. 4. TEST RESULT 4.1. Conducted Emission at the Mains Terminals Test Note: Measurements should be made from all sides and the top of the primary/client pair, with the 15 cm measured from the center of the probe(s) to the edge of the device Test Procedure: a) The RF exposure test was performed on 360 degree turn table in anechoic chamber. b) The measurement probe was placed at test distance (15cm) which is between the edge of the charger and the geometric centre of probe. c) The turn table was rotated 360d degree to search of highest strength. d) The highest emission level was recorded and compared with limit as soon as measurement of each points were completed. e) The EUT were measured according to the dictates of KDB 680106D01v03. EMF Report Te l : 4008-707-283 Web: http://www.ctb-lab.net Page5 of 7 4.2. Equipment Approval Considerations: The EUT does comply with item 5(b) of KDB 680106 D01v03 1) Power transfer frequency is less than 1MHz Ye s , the device operate in the frequency range from 110 KHz to 205KHz 2) Output power from each primary coil is less than or equal to 15 watts. Ye s , the maximum output power of the primary coil is 1500mW. 3) The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that able to detect and allow coupling onlybetween individual pair of coils. Ye s , the transfer system includes only single primary and secondary coils. 4) Client device is inserted in or placed directly in contact with the transmitter. Ye s , client device is placed directly in contact with the transmitter. 5) Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). Ye s , the EUT is a Mobile Wireless Charger 6) The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. Ye s , the EUT field strength levels are 50% x MPE limit. 4.3. E and H field Strength EMF Report Te l : 4008-707-283 Web: http://www.ctb-lab.net Page6 of 7 E- Field Strength at 15 cm surrounding the EUT and for above the top surface of the EUT，15cm and 20cm all have been tested, only worse case 15cm is reported. battery level Frequency Range (kHz) Te s t Position Right Te s t …

Text truncated - open the document above for the full version.

Report Te l : 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 22 TEST REPORT Compiled by: Reviewed by: Approved by: Arron Liu Bin Mei Rita Xiao / Director The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen CTB Testing Technology Co., Ltd. this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: Wireless Charging Desk Pad FCC ID: 2AYZUWCDP-00 Trademark: Furison, Jelison Model Number: Please refer to section 2.1 Prepared For: Shenzhenshi Gaosheng Textile & Leather Co., Ltd Address: No. 125, Bldg T9, Intl Textile & Clothing Logistic Zone (Phase 1), South China City, Huanan Blvd No 1, Pinghu Street, Longgang District, Shenzhen, PRC. 518000 Manufacturer: Shenzhenshi Gaosheng Textile & Leather Co., Ltd Address: No. 125, Bldg T9, Intl Textile & Clothing Logistic Zone (Phase 1), South China City, Huanan Blvd No 1, Pinghu Street, Longgang District, Shenzhen, PRC. 518000 Prepared By: Shenzhen CTB Testing Technology Co., Ltd. Address: Floor 1&2, Building A, No. 26 of Xinhe Road, Xinqiao Community, Xinqiao Street, Baoan District, Shenzhen, Guangdong China Sample Received Date: Feb. 22, 2021 Sample tested Date: Feb. 22, 2021 to Feb. 25, 2021 Issue Date: Feb. 25, 2021 Report No.: CTB210222016RFX Te s t Standards FCC Part 15 C Test Results PASS Remark: This is wireless charger radio test report. TABLE OF CONTENTS 1. GENERAL INFORMATION ........................................................................................................ 3 1.1. Report information ......................................................................................................................... 3 1.2. Measurement Uncertainty ............................................................................................................ 3 1.3. Test Facility .................................................................................................................................... 3 1.4. Test Uncertainty ............................................................................................................................ 4 2. PRODUCT DESCRIPTION ......................................................................................................... 5 2.1. EUT Description ............................................................................................................................ 5 2.2. Block Diagram of EUT Configuration .......................................................................................... 5 2.3. Test Conditions .............................................................................................................................. 5 2.4. Description Of Support Units (Conducted Mode) ..................................................................... 6 3. TEST RESULTS SUMMARY ..................................................................................................... 6 4. TEST EQUIPMENT USED .......................................................................................................... 7 4.1. MEASUREMENT INSTRUMENTS LIST ................................................................................... 7 5. CONDUCTED EMISSION TEST ................................................................................................ 9 5.1. Block Diagram of Test Setup ....................................................................................................... 9 5.2. Test Standard ................................................................................................................................ 9 5.3. Conducted Emission Limit ........................................................................................................... 9 5.4. EUT Configuration on Test .......................................................................................................... 9 5.5. Operating Condition of EUT ....................................................................................................... 10 5.6. Test Procedure ............................................................................................................................ 10 5.7. Test Result ................................................................................................................................... 10 6. RADIATED EMISSION MEASUREMENT ............................................................................. 13 6.1. Block Diagram of Test Setup ..................................................................................................... 13 6.2. Test Standard .............................................................................................................................. 14 6.3. EMI Test Receiver Setup ........................................................................................................... 14 6.4. Test Procedure ............................................................................................................................ 14 6.5. Test Result ................................................................................................................................... 14 7. OCCUPIED BANDWIDTH ........................................................................................................ 18 7.1. Block Diagram of Test Setup ..................................................................................................... 18 7.2. Rules and specifications............................................................................................................. 18 7.3. Test Procedure ............................................................................................................................ 18 7.4. Test Result .............................................................................................................................…

Text truncated - open the document above for the full version.

Conducted Measurement Photos Radiated Measurement Photos 9K-30MHz FCC ID: 2AYZUWCDP -00 30MHz-1GHz
