2AZ2H-ECUBE-AUData Terminal

eCube-CP-AU eCube-CG-AU Quick Guide Issue:01 Copyright © Chengdu TD-Tech Ltd. Chengdu TD-Tech Co., Ltd. Website: https://www.td-tech.com Copyright © Chengdu TD-Tech Co., Ltd. 2020. All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Chengdu TD-Tech Co., Ltd. Trademarks and Permissions and other trademarks are trademarks of Chengdu TD-Tech Co., Ltd. All other trademarks and trade names mentioned in this document are the property of their respective holders. Notice The purchased products, services and features are stipulated by the contract made between Chengdu TD-Tech and the customer. All or part of the products, services and features described in this document may not be within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements, information, and recommendations in this document are provided "AS IS" without warranties, guarantees or representations of any kind, either express or implied. The information in this document is subject to change without notice. Every effort has been made in the preparation of this document to ensure accuracy of the contents, but all statements, information, and recommendations in this document do not constitute the warranty of any kind, express or implied. eCube-CP-AU eCube-CG-AU Quick Guide 1 Packing list Copyright © Chengdu TD-Tech Co., Ltd. iii 1 Packing list Main equipment Quantity 1 eCube-CP-AU eCube-CG-AU Quick Guide 2 Appearance Copyright © Chengdu TD-Tech Co., Ltd. iv 2 Appearance eCube-CP-AU No. Description 1 Main 4G antenna port 2 FXS port 3 Two RS232 ports 4 RS485 port 5 Reset button eCube-CP-AU eCube-CG-AU Quick Guide 2 Appearance Copyright © Chengdu TD-Tech Co., Ltd. v 6 SIM card slot 7 Auxiliary 4G antenna port 8 ETH port (ETH0 : WAN / LAN ETH1 ~ ETH3 : LAN) 9 DI/DO port 10 USB Host port 11 Power port with RS232 eCube-CG-AU eCube-CP-AU eCube-CG-AU Quick Guide 2 Appearance Copyright © Chengdu TD-Tech Co., Ltd. vi No. Description 1 Main 4G antenna port 2 RS232 port 3 RS485 port 4 Reset button 5 SIM card slot 6 Auxiliary antenna 4G antenna port 7 ETH0 port (WAN/LAN interface) 8 ETH1 port (LAN port) 9 USB Host port 10 Power port eCube-CP-AU eCube-CG-AU Quick Guide 3 Specifications Copyright © Chengdu TD-Tech Co., Ltd. vii 3 Specifications Name Data Terminal Model eCube-CP-AU the family models eCube-CG-AU Indicator Value Indicator Value Sizes 150mm×105mm×48mm Operating temperature –10°C ～+ 50°C Weight 340 ± 30 g Storage temperature –40°C ～+ 85°C Voltage DC 9V~DC36V Humidity requirements RH5% ～ RH95% Power < 8 W SIM card 2FF SIM card x 1 operating bands LTE：Band2 Uplink / Downlink:1850~1910MHz / 1930~1990MHz Band4 Uplink / Downlink:1710~1755MHz / 2110~2155MHz Band7 Uplink / Downlink:2500~2570MHz / 2620~2690MHz WCDMA: Band2 Uplink / Downlink: 1850~1910MHz / 1930~1990MHz Band5 Uplink / Downlink:824~849MHz / 869~894MHz GSM:GSM1900 Uplink / Downlink:1850~1910MHz / 1930~1990MHz GSM850 Uplink / Downlink: 824~849MHz / 869~894MHz BT: BLE 1Mbps, 2Mbps Maximum Tx power LTE: 23 dBm±2dB WCDMA： 23 dBm±2dB GSM: 33dBm±2dB BT: <10 dBm eCube-CP-AU eCube-CG-AU Quick Guide 3 Specifications Copyright © Chengdu TD-Tech Co., Ltd. viii Hardware eCube-CP-V4.2 eCube-CG-V4.2 Software V100R001C00 eCube-CP-AU eCube-CG-AU Quick Guide 4 Hardware Installation Copyright © Chengdu TD-Tech Co., Ltd. ix 4 Hardware Installation 4.1 Install Warning •This device must be professionally installed, this should be noted on grantee. •To maintain compliance, only the antenna types that have been tested shall be used, which listed in “Remote Antenna Part Numbers” section on page . •This device requires a significant technology engineering expertise towards understanding of the tools and relevant technology, not readily available to average consumer. Only a person professionally trained in the technology is competent. •This device is not directly marketed or sold to general public. 4.2 Wall-mounted (standard) ST4.2 tapping screw x 2 Drill two mounting holes on the wall according to the distance shown in the left figure, and insert plastic plugs into the holes. Screw one tapping screw into the pre-installation hole and leave a 4 mm (0.08 in.). Align the cucurbit hole at the bottom of the device with the pre-installation hole, hold the device bottom, and secure the device to the wall using another tapping screw. eCube-CP-AU eCube-CG-AU Quick Guide 4 Hardware Installation Copyright © Chengdu TD-Tech Co., Ltd. x 4.3 Rail-mounted (optional) ST4.2 tapping screw x 2 Use a flat-head screwdriver to press the metal spring on the DIN mounting kit inwards and pull out the buckle. Align the DIN mounting kit with the DIN guide rail, and press the buckle to secure the device to the DIN guide rail. 4.4 Installing the Power Supply and Antenna eCube-CP-AU eCube-CG-AU Quick Guide 4 Hardware Installation Copyright © Chengdu TD-Tech Co., Ltd. xi 4.5 SIM Card Positions Install the SIM card after removing the screws and removing the rear cover. The following figure shows the position. No. Description 1 SIM card slot eCube-CP-AU eCube-CG-AU Quick Guide 5 Software functions and indicators Copyright © Chengdu TD-Tech Co., Ltd. xii 5 Software functions and indicators 5.1 Software Functions • Supports peripheral interfaces such as buttons, indicators, and RS485, RS232, DIDO, USB, BLE. • Supports FXS voice port. • Supports 4G LTE wireless network module（eCube-CG-WAN excepted.）. • Supports 100M Ethernet ports. • Supports secure boot. • Supports the OP-TEE secure development environment. • The Debian10 operating system is preinstalled, and the kernel version is 4.19. 5.2 Indicator description Software Version V100R001C00 Indicators Description PWR • Off: The board is not powered on. • On: The device is powered on. FXS • Fast blinking green: Indicates that the FXS line is ringing. • Slow blinking green: Indicates that the FXS line is in the offhook state. • Off: Indicates that the FXS line is on…

Text truncated - open the document above for the full version.

X

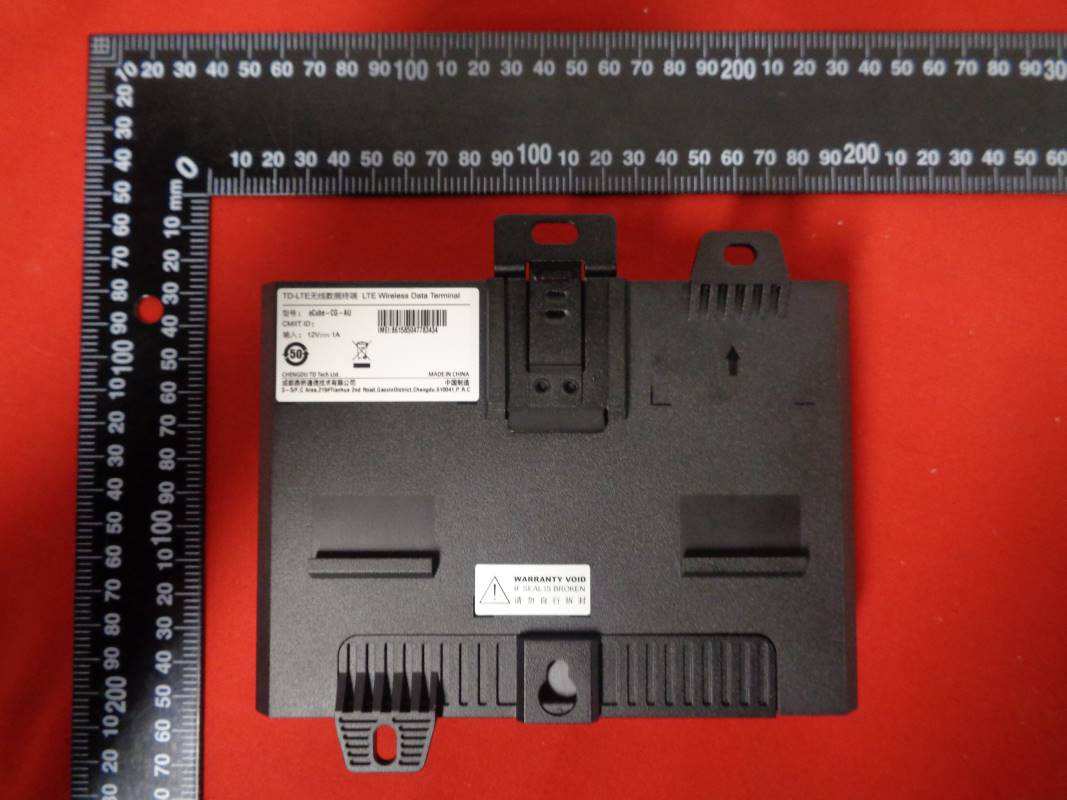

Photo Documentation Page 1 of 7 Product: Data Terminal Type Designation: eCube-CP-AU, eCube-CG-AU Rev. 0 eCube-CP-AU with Antenna eCube-CG-AU with Antenna Photo Documentation Page 2 of 7 Product: Data Terminal Type Designation: eCube-CP-AU, eCube-CG-AU Rev. 0 Pic.1 eCube-CP-AU top view Pic.2 eCube-CP-AU bottom view Photo Documentation Page 3 of 7 Product: Data Terminal Type Designation: eCube-CP-AU, eCube-CG-AU Rev. 0 Pic.3 eCube-CP-AU front view Pic.4 eCube-CP-AU rear view Photo Documentation Page 4 of 7 Product: Data Terminal Type Designation: eCube-CP-AU, eCube-CG-AU Rev. 0 Pic.5 eCube-CP-AU side view Pic.6 eCube-CP-AU side view Photo Documentation Page 5 of 7 Product: Data Terminal Type Designation: eCube-CP-AU, eCube-CG-AU Rev. 0 Pic.7 eCube-CG-AU top view Pic.8 eCube-CG-AU bottom view Photo Documentation Page 6 of 7 Product: Data Terminal Type Designation: eCube-CP-AU, eCube-CG-AU Rev. 0 Pic.9 eCube-CG-AU front view Pic.10 eCube-CG-AU rear view Photo Documentation Page 7 of 7 Product: Data Terminal Type Designation: eCube-CP-AU, eCube-CG-AU Rev. 0 Pic.11 eCube-CG-AU side view Pic.12 eCube-CG-AU side view

Unit: mm Unit: mm

Photo Documentation Page 1 of 7 Product: Data Terminal Type Designation: eCube-CP-AU, eCube-CG-AU Rev. 0 Pic.1 eCube-CP-AU internal view Pic.2 eCube-CP-AU top view of PCB 1 Photo Documentation Page 2 of 7 Product: Data Terminal Type Designation: eCube-CP-AU, eCube-CG-AU Rev. 0 Pic.3 eCube-CP-AU bottom view of PCB 1 Pic.4 eCube-CP-AU top view of PCB 2 Photo Documentation Page 3 of 7 Product: Data Terminal Type Designation: eCube-CP-AU, eCube-CG-AU Rev. 0 Pic.5 eCube-CP-AU bottom view of PCB 2 Pic.6 eCube-CP-AU top view of PCB EC25-AU Photo Documentation Page 4 of 7 Product: Data Terminal Type Designation: eCube-CP-AU, eCube-CG-AU Rev. 0 Pic.7 eCube-CP-AU bottom view of EC25-AU Pic.8 eCube-CG-AU internal view Photo Documentation Page 5 of 7 Product: Data Terminal Type Designation: eCube-CP-AU, eCube-CG-AU Rev. 0 Pic.9 eCube-CG-AU top view of PCB 1 Pic.10 eCube-CG-AU bottom view of PCB 1 Photo Documentation Page 6 of 7 Product: Data Terminal Type Designation: eCube-CP-AU, eCube-CG-AU Rev. 0 Pic.11 eCube-CG-AU top view of PCB 2 Pic.12 eCube-CG-AU bottom view of PCB 2 Photo Documentation Page 7 of 7 Product: Data Terminal Type Designation: eCube-CP-AU, eCube-CG-AU Rev. 0 Pic.13 eCube-CG-AU top view of PCB EC25-AU Pic.14 eCube-CG-AU bottom view of PCB EC25-AU

Prüfbericht - Produkte Test Report - Products Prüfbericht-Nr.: Test report no.: CN21VQW2 004 Auftrags-Nr.: Order no.: 168313547 Seite 1 von 9 Page 1 of 9 Kunden-Referenz-Nr.: Client reference no.: N/A Auftragsdatum: Order date: 2021-05-06 Auftraggeber: Client: Chengdu TD Tech Ltd. 3-5/F, C Area, Tianfu Software Park, 219# Tianhua 2nd Road, Gaoxin District, Chengdu 610041 Sichuan, P.R. China Prüfgegenstand: Test item: Data Terminal Bezeichnung / Typ-Nr.: Identification / Type no.: eCube-CP-AU, eCube-CG-AU Auftrags-Inhalt: Order content: Test Report Prüfgrundlage: Test specification: CFR47 FCC Part 2.1091 Wareneingangsdatum: Date of sample receipt: 2021-04-02 Refer to Photo Documentation Prüfmuster-Nr.: Test sample no: A003017285-001/002 A003028673-001~003 Prüfzeitraum: Testing period: 2021-04-03 – 2021-06-10 Ort der Prüfung: Place of testing: TÜV Rheinland (Shenzhen) Co., Ltd. Prüflaboratorium: Testing laboratory: TÜV Rheinland (Shenzhen) Co., Ltd. Prüfergebnis*: Test result*: Pass geprüft von: tested by: genehmigt von: authorized by: Datum: Date: 2021-06-23 Ausstellungsdatum: Issue date: 2021-06-23 Stellung / Position: Senior Project Manager Stellung / Position: Technical Certifier Sonstiges / Other: FCC ID: 2AZ2H-ECUBE-AU Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhaft P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet * Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. TÜV Rheinland (Shenzhen) Co., Ltd. 1601 R&D Room, 1602-1604, 17-18F, Building 7 Site C, Vanke Cloud City Phase I, Xingke First Street, Xili Street, Xili Community, Nanshan District, Shenzhen 518052, P.R. China Mail: [email protected] · Web: www.tuv.com Lin Lin Winni e Hou Prüfbericht - Produkte Test Report - Products Prüfbericht - Nr.: Test Report No. CN21VQW2 004 Seite 2 von 9 Page 2 of 9 Contents 1 GENERAL REMARKS ........................................................................................................................... 3 1.1 COMPLEMENTARY MATERIALS ............................................................................................................ 3 2 TEST SITES ........................................................................................................................................ 4 2.1 TEST FACILITIES ................................................................................................................................. 4 2.2 TRACEABILITY .................................................................................................................................... 4 2.3 CALIBRATION ..................................................................................................................................... 4 2.4 LOCATION OF ORIGINAL DATA ............................................................................................................. 4 2.5 STATUS OF FACILITY USED FOR TESTING ............................................................................................. 4 3 GENERAL PRODUCT INFORMATION ...................................................................................................... 5 3.1 PRODUCT FUNCTION AND INTENDED USE ............................................................................................. 5 3.2 RATINGS AND SYSTEM DETAILS .......................................................................................................... 5 3.3 NOISE GENERATING AND NOISE SUPPRESSING PARTS ......................................................................... 7 3.4 SUBMITTED DOCUMENTS..................................................................................................................... 7 4 RF EXPOSURE COMPLIANCE ............................................................................................................... 8 4.1 TEST STANDARDS ............................................................................................................................... 8 4.2 MPE LIMITS OF FCC .......................................................................................................................... 8 4.3 TEST RESULT ..................................................................................................................................... 8 Prüfbericht - Produkte Test Report - Products Prüfbericht - Nr.: Test Report No. CN21VQW2 004 Seite 3 von 9 Page 3 of 9 1 General Remarks 1.1 Complementary Materials None. Prüfbericht - Produkte Test Report - Products Prüfbericht - Nr.: Test Report No. CN21VQW2 004 Seite 4 von 9 Page 4 of 9 2 Test Sites 2.1 Test Facilities TÜV Rheinland (Shenzhen) Co., Ltd. 362 Huanguan Road Middle Longhua District, Shenzhen 518110 People’s Republic of China FCC Accreditation Designation No.: CN1260 ISED wireless device testing laboratory: 25069 2.2 Traceability All measurement equipment calibrations are traceable to NIM (National Institute of Metrology) or where calibration is performed in other countries, to equivalent nationally recognized standards organizations. 2.3 Calibration Equipment requiring calibration is calibrated periodically by the manufacturer or according to manufacturer’s specifications. Additionally all equip…

Text truncated - open the document above for the full version.

Prüfbericht - Produkte Test Report - Products Prüfbericht-Nr.: Test report no.: CN21VQW2 001 Auftrags-Nr.: Order no.: 168313547 Seite 1 von 22 Page 1 of 22 Kunden-Referenz-Nr.: Client reference no.: N/A Auftragsdatum: Order date: 2021-05-06 Auftraggeber: Client: Chengdu TD Tech Ltd. 3-5/F, C Area, Tianfu Software Park, 219# Tianhua 2nd Road, Gaoxin District, Chengdu 610041 Sichuan, P.R. China Prüfgegenstand: Test item: Data Terminal Bezeichnung / Typ-Nr.: Identification / Type no.: eCube-CP-AU, eCube-CG-AU Auftrags-Inhalt: Order content: Test Report Prüfgrundlage: Test specification: 47 CFR FCC Part 22 47 CFR FCC Part 24 47 CFR FCC Part 27 47 CFR FCC Part 2 Wareneingangsdatum: Date of sample receipt: 2021-05-06 Refer to Photo Documentation Prüfmuster-Nr.: Test sample no: A003017285-001/002 Prüfzeitraum: Testing period: 2021-05-06 – 2021-06-03 Ort der Prüfung: Place of testing: TÜV Rheinland (Shenzhen) Co., Ltd. Prüflaboratorium: Testing laboratory: TÜV Rheinland (Shenzhen) Co., Ltd. Prüfergebnis*: Test result*: Pass geprüft von: tested by: genehmigt von: authorized by: Datum: Date: 2021-06-05 Ausstellungsdatum: Issue date: 2021-06-05 Stellung / Position: Senior Project Manager Stellung / Position: Technical Certifier Sonstiges / Other: FCC ID: 2AZ2H-ECUBE-AU Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhaft P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet * Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. TÜV Rheinland (Shenzhen) Co., Ltd. 1601 R&D Room, 1602-1604, 17-18F, Building 7 Site C, Vanke Cloud City Phase I, Xingke First Street, Xili Street, Xili Community, Nanshan District, Shenzhen 518052, P.R. China Mail: [email protected] · Web: www.tuv.com Prüfbericht - Produkte Test Report - Products Prüfbericht - Nr.: Test Report No. CN21VQW2 001 Seite 2 von 22 Page 2 of 22 TEST SUMMARY 5.1.1 RF POWER OUTPUT RESULT: Pass 5.1.2 MODULATION CHARACTERISTICS RESULT: Pass 5.1.3 OCCUPIED BANDWIDTH AND 26DB BANDWIDTH RESULT: Pass 5.1.4 SPURIOUS EMISSIONS AT ANTENNA TERMINALS RESULT: Pass 5.1.5 SPURIOUS EMISSIONS AT ANTENNA TERMINALS – BAND EDGE RESULT: Pass 5.1.6 FIELD STRENGTH OF SPURIOUS RADIATION RESULT: Pass 5.1.7 FREQUENCY STABILITY RESULT: Pass 5.1.8 PEAK TO AVERAGE RATIO RESULT: Pass Prüfbericht - Produkte Test Report - Products Prüfbericht - Nr.: Test Report No. CN21VQW2 001 Seite 3 von 22 Page 3 of 22 CONTENTS 1. GENERAL REMARKS ........................................................................................................................... 4 1.1 COMPLEMENTARY MATERIALS ............................................................................................................. 4 1.2 T EST STANDARD(S) ............................................................................................................................ 4 2. TEST SITES ........................................................................................................................................ 5 2.1 TEST FACILITIES ................................................................................................................................. 5 2.2 TEST DATE ........................................................................................................................................ 5 2.3 LIST OF TEST AND MEASUREMENT INSTRUMENTS................................................................................. 5 2.4 SYSTEM MEASUREMENT UNCERTAINTY ............................................................................................... 6 2.5 T RACEABILITY .................................................................................................................................... 6 2.6 C ALIBRATION...................................................................................................................................... 6 2.7 L OCATION OF ORIGINAL DATA ............................................................................................................. 7 2.8 STATUS OF FACILITY USED FOR TESTING............................................................................................. 7 3. GENERAL PRODUCT INFORMATION ...................................................................................................... 8 3.1 G ENERAL DESCRIPTION ...................................................................................................................... 8 3.2 RATING AND SYSTEM DETAILS ............................................................................................................. 8 3.3 INDEPENDENT OPERATION MODES .................................................................................................... 10 3.4 N OISE GENERATING AND NOISE SUPPRESSING PARTS ....................................................................... 10 3.5 SUBMITTED DOCUMENTS .................................................................................................................. 10 4. TEST SET-UP AND OPERATION MODES .............................................................................................. 11 4.1 P RINCIPLE OF CONFIGURATION SELECTION ..............................................................…

Text truncated - open the document above for the full version.

Prüfbericht - Produkte Test Report - Products Appendix A CN21VQW2 001 Page 1 of 44 Appendix A: Test Results of GSM APPENDIX A: EFFECTIVE (ISOTROPIC) RADIATED POWER OUTPUT DATA ........................................... 2 Test Result .................................................................................................................................................. 2 APPENDIX B: PEAK-TO-AVERAGE RATIO(CCDF) .............................................................................. 3 Test Result .................................................................................................................................................. 3 Test Graphs ................................................................................................................................................. 4 APPENDIX C: 26DB BANDWIDTH AND OCCUPIED BANDWIDTH ............................................................ 8 Test Result .................................................................................................................................................. 8 Test Graphs ................................................................................................................................................. 9 APPENDIX D: BAND EDGE ............................................................................................................. 13 Test Result ................................................................................................................................................ 13 Test Graphs ............................................................................................................................................... 14 APPENDIX E: CONDUCTED SPURIOUS EMISSION............................................................................. 17 Test Result ................................................................................................................................................ 17 Test Graphs ............................................................................................................................................... 19 APPENDIX F: FREQUENCY STABILITY ............................................................................................. 43 Test Result ................................................................................................................................................ 43 Prüfbericht - Produkte Test Report - Products Appendix A CN21VQW2 001 Page 2 of 44 Appendix A: Effective (Isotropic) Radiated Power Output Data Test Result Band Channel PCL Slot Power(dBm) Verdict GPRS850 128 5 1 32.05 PASS GPRS850 128 5 2 31.04 PASS GPRS850 128 5 3 29.37 PASS GPRS850 128 5 4 28.18 PASS GPRS850 190 5 1 31.89 PASS GPRS850 190 5 2 30.85 PASS GPRS850 190 5 3 28.83 PASS GPRS850 190 5 4 27.83 PASS GPRS850 251 5 1 31.94 PASS GPRS850 251 5 2 30.97 PASS GPRS850 251 5 3 29.20 PASS GPRS850 251 5 4 27.92 PASS GPRS1900 512 0 1 29.20 PASS GPRS1900 512 0 2 28.23 PASS GPRS1900 512 0 3 26.13 PASS GPRS1900 512 0 4 25.07 PASS GPRS1900 661 0 1 29.09 PASS GPRS1900 661 0 2 28.21 PASS GPRS1900 661 0 3 26.08 PASS GPRS1900 661 0 4 25.03 PASS GPRS1900 810 0 1 28.93 PASS GPRS1900 810 0 2 28.05 PASS GPRS1900 810 0 3 26.02 PASS GPRS1900 810 0 4 24.88 PASS Band Channel PCL Slot Power(dBm) Verdict EGPRS850 128 8 1 26.38 PASS EGPRS850 128 8 2 25.35 PASS EGPRS850 128 8 3 23.34 PASS EGPRS850 128 8 4 22.25 PASS EGPRS850 190 8 1 26.11 PASS EGPRS850 190 8 2 25.02 PASS EGPRS850 190 8 3 23.00 PASS EGPRS850 190 8 4 21.92 PASS EGPRS850 251 8 1 26.12 PASS EGPRS850 251 8 2 25.07 PASS EGPRS850 251 8 3 23.04 PASS EGPRS850 251 8 4 21.96 PASS EGPRS1900 512 2 1 25.02 PASS EGPRS1900 512 2 2 23.86 PASS EGPRS1900 512 2 3 21.84 PASS EGPRS1900 512 2 4 20.47 PASS EGPRS1900 661 2 1 24.98 PASS EGPRS1900 661 2 2 23.88 PASS EGPRS1900 661 2 3 21.76 PASS EGPRS1900 661 2 4 20.42 PASS EGPRS1900 810 2 1 24.83 PASS EGPRS1900 810 2 2 23.69 PASS EGPRS1900 810 2 3 21.69 PASS EGPRS1900 810 2 4 20.38 PASS Prüfbericht - Produkte Test Report - Products Appendix A CN21VQW2 001 Page 3 of 44 Appendix B: Peak-to-Average Ratio(CCDF) Test Result Band Channel PCL Result(dB) Limit(dB) Verdict GPRS850 128 5 6.58 13 PASS GPRS850 190 5 6.58 13 PASS GPRS850 251 5 6.58 13 PASS EGPRS850 128 8 9.48 13 PASS EGPRS850 190 8 9.48 13 PASS EGPRS850 251 8 9.48 13 PASS GPRS1900 512 0 7.88 13 PASS GPRS1900 661 0 7.88 13 PASS GPRS1900 810 0 7.88 13 PASS EGPRS1900 512 2 8.26 13 PASS EGPRS1900 661 2 8.26 13 PASS EGPRS1900 810 2 8.26 13 PASS Prüfbericht - Produkte Test Report - Products Appendix A CN21VQW2 001 Page 4 of 44 Test Graphs GPRS850-128 GPRS850-190 GPRS850-251 EGPRS850-128 Prüfbericht - Produkte Test Report - Products Appendix A CN21VQW2 001 Page 5 of 44 EGPRS850-190 EGPRS850-251 GPRS1900-512 Prüfbericht - Produkte Test Report - Products Appendix A CN21VQW2 001 Page 6 of 44 GPRS1900-661 GPRS1900-810 EGPRS1900-512 Prüfbericht - Produkte Test Report - Products Appendix A CN21VQW2 001 Page 7 of 44 EGPRS1900-661 EGPRS1900-810 Prüfbericht - Produkte Test Report - Products Appendix A CN21VQW2 001 Page 8 of 44 Appendix C: 26dB Bandwidth and Occupied Bandwidth Test Result Band Channel PCL Occupied Bandwidth (MHz) 26dB Bandwidth (MHz) Limit (MHz) Verdict GPRS850 128 5 0.245 0.314 --- PASS GPRS850 190 5 0.242 0.314 --- PASS GPRS850 251 5 0.249 0.314 --- PASS EGPRS850 128 8 0.244 0.311 --- PASS EGPRS850 190 8 0.244 0.313 --- PASS EGPRS850 251 8 0.244 0.302 --- PASS GPRS1900 512 0 0.247 0.318 --- PASS GPRS1900 661 0 0.244 0.312 --- PASS GPRS1900 810 0 0.245 0.312 --- PASS EGPRS1900 512 2 0.248 0.308 --- PASS EGPRS1900 661 2 0.243 0.310 --- PASS EGPRS1900 810 2 0.245 0.312 --- PASS Prüfbericht - Produkte Test Report - Products Appendix A CN21VQW2 001 Page 9 of 44 Test Graphs GPRS850-128 GPRS850-190 GPRS850-251 Prüfbericht - Produkte Test Report - Products Appendix A CN21VQW2 001 Page 10 of 44 EGPRS850-128 EGPRS850-190 EGPRS850-251 GPRS1900-512 Prüfbericht - Produkte Test Repor…

Text truncated - open the document above for the full version.

Prüfbericht - Produkte Test Report - Products Appendix C CN21VQW2 001 Page 1 of 48 Appendix C: Test Results of LTE Band 2 APPENDIX A: EFFECTIVE (ISOTROPIC) RADIATED POWER OUTPUT DATA ........................................... 2 Test Result .................................................................................................................................................. 2 APPENDIX B: PEAK-TO-AVERAGE RATIO(CCDF) .............................................................................. 7 Test Result .................................................................................................................................................. 7 Test Graphs ................................................................................................................................................. 8 APPENDIX C: 26DB BANDWIDTH AND OCCUPIED BANDWIDTH .......................................................... 10 Test Result ................................................................................................................................................ 10 Test Graphs ............................................................................................................................................... 11 APPENDIX D: BAND EDGE ............................................................................................................. 23 Test Result ................................................................................................................................................ 23 Test Graphs ............................................................................................................................................... 24 APPENDIX E: CONDUCTED SPURIOUS EMISSION............................................................................. 40 Test Result ................................................................................................................................................ 40 Test Graphs ............................................................................................................................................... 41 APPENDIX F: FREQUENCY STABILITY ............................................................................................. 47 Test Result ................................................................................................................................................ 47 Prüfbericht - Produkte Test Report - Products Appendix C CN21VQW2 001 Page 2 of 48 Appendix A: Effective (Isotropic) Radiated Power Output Data Test Result Band Bandwidth Modulation Channel RB Configuration Result(dBm) Verdict Band2 1.4MHz QPSK 18607 1RB#0 22.53 PASS Band2 1.4MHz QPSK 18607 1RB#2 23.23 PASS Band2 1.4MHz QPSK 18607 1RB#5 22.92 PASS Band2 1.4MHz QPSK 18607 3RB#0 22.96 PASS Band2 1.4MHz QPSK 18607 3RB#1 23.21 PASS Band2 1.4MHz QPSK 18607 3RB#3 22.95 PASS Band2 1.4MHz QPSK 18607 6RB#0 22.08 PASS Band2 1.4MHz QPSK 18900 1RB#0 22.69 PASS Band2 1.4MHz QPSK 18900 1RB#2 22.91 PASS Band2 1.4MHz QPSK 18900 1RB#5 22.79 PASS Band2 1.4MHz QPSK 18900 3RB#0 22.91 PASS Band2 1.4MHz QPSK 18900 3RB#1 22.79 PASS Band2 1.4MHz QPSK 18900 3RB#3 22.76 PASS Band2 1.4MHz QPSK 18900 6RB#0 21.92 PASS Band2 1.4MHz QPSK 19193 1RB#0 22.63 PASS Band2 1.4MHz QPSK 19193 1RB#2 22.62 PASS Band2 1.4MHz QPSK 19193 1RB#5 22.63 PASS Band2 1.4MHz QPSK 19193 3RB#0 22.88 PASS Band2 1.4MHz QPSK 19193 3RB#1 22.88 PASS Band2 1.4MHz QPSK 19193 3RB#3 22.70 PASS Band2 1.4MHz QPSK 19193 6RB#0 21.66 PASS Band2 1.4MHz 16QAM 18607 1RB#0 21.78 PASS Band2 1…
