2AZ2L-FT02SMART WATCH

Chinese（中文） 版本: 2021-03-25V1.0 用户手册 • 快速入门指南 概述 • 1：屏幕 • 2：按钮 • 3：充电POGO PIN • 4：温度感应器 • 5：心率 • 6：表带 • 7：扣子 • 确保充电电缆上的POGO引脚正确安装到智能手表背面的充电端子上。 • 将USB电缆的大头插入电源，充电成功后，屏幕上会出现一个充电图标 在手机上安装“IoT Watch”应用程序 从Google Play或App Store搜索并安装“IoT Watch”应用程序。 或扫描下面的二维码直接安装该应用程序。 • 将智能手表与手机连接 • 在智能手机上启用蓝牙。 • 在您的手机上打开“IoT Watch”应用程序 • 智能手机，然后单击右上角的“ +”，然后选择自动发现，手环靠近手机，并弹出一个提示，提示已找到设备，单击添加， 然后跳至页面， 单击“ +”，然后单击“完成”。连接成功后，将自动进入手环模块页面。 • 将智能手表与手机解除绑定 • •在智能手机上打开“IoT Watch”应用程序。 • 在“我的家”菜单中，长按“手环图标”，然后长按“删除设备”，然后单击“完成”。 功能 表盘 有4个表盘。 在当前手表表面上，按住屏幕并滑动以选择您喜欢的 计步器 手表会自动记录您的日常活动。 单击触摸屏以查看更多详细数据。 心率 点击图标，手表将自动监视您的心率，向右滑动即可退出。 运动 按下功能“运动”进入多运动模式。 智能手表具有14种运动模式：步行，跑步，室内跑步，徒步旅行，骑自行车，游泳，足 球，篮球，排球，羽毛球，乒乓球，棒球，跳绳和瑜伽。 选择其中之一并做一些练习。 智能手表会记录您的运动数据。 完成 练习后，向右滑动即可停止练习并保存练习数据。 如果您已通过蓝牙将智能手表连接到“APP”，在应用程序中查看运动数据。 运动细节： 如果要暂停移动，请向左或向右滑动屏幕以暂停，或者可以结束当前运动。 注意：如果花费很少的时间来练习数据，则不会保存数据。 睡眠监控 手表产生睡眠数据时，会在此时界面展示睡眠数据 当睡眠停止时，手表将显示您的睡眠报告与总睡眠、浅睡眠和深睡眠的时间。与APP同步后，您可以查看更详细的睡眠报告。 消息 未读消息将在消息界面中显示。滑动屏幕进入并查看手表上的信息。 天气 连接“app”后，开启定位权限，天气会自动推送至手表 温度 单击手表的体温检测功能，将手表放在手上以进行体温检测，然后等待30秒以获取体温结果 闹钟 在“闹钟”界面中，单击，您可以看到您在应用程序中设置的提醒。 提醒时间到时，手表会振动。 秒表 按屏幕触摸找到秒表。 进入计时页面，触摸开始和暂停键，然后向右滑动以退出。 久坐提醒 按下屏幕以打开或关闭您在应用程序中设置的久坐提醒。 远程拍照 该设备可用作手机上相机功能的遥控器。 在app中，点击“拍照”，您的手表将显示一个相机图标，短按以捕获您的照片。 音乐控制 点击音乐功能图标，进入音乐播放控制界面。 您可以选择上一首/下一首歌曲，然后播放/暂停歌曲。 要退出音乐播放控制，请从左向右滑动屏幕。 设置 在“设置”界面中，单击屏幕以查看更多功能，包括查找电话，屏幕亮度，显示时长，语言，重置，关机，系统。 切换表盘 触摸屏幕上的“切换表盘”以选择其他表盘 语言 在“设置”上选择“语言”功能，然后可以选择将手表切换为其他语言 重置 重置为出厂默认设置 *注意：如果恢复出厂设置，所有用户数据将被删除关机 触摸屏幕上的“关机”将关闭手表。 系统 选择“系统”功能以检查手表蓝牙名称，固件版本信息。 查找手机 连接应用程序后，在“主页”界面中单击查找电话功能，电话将响起/振动。 English language（英语） 2021-03-25V1.0 User Manual • Quick start guide Overview • 1：Screen • 2：Button • 3：Charging POGO PIN • 4：Temperature sensor • 5：Heart rate • 6：Strap • 7：Buckle Charging: • Make sure the POGO-pins on the charging cable fit correctly onto the charging terminals on the back of smart watch. • Plug the USB terminals to a power source and after successful charging, a charging icon will appear on the screen Install the "IoT Watch" application on your phone Search and install the "IoT Watch" application from Google Play or App Store. Or scan the QR code below to install the application directly. • Connect the smart watch with the phone • Turn on Bluetooth on the smartphone. • Open the "IoT Watch" application on your smartphone, and then click the "+" in the upper right corner, then select automatic discovery, when the bracelet is closing to the phone, and a reminder that the device is found pops up, click to add, and after jumping to the page, click "+" After that, click Finish. After successfully connected, it will automatically enter the fitness tracker module page • Unbind the smart watch with the phone • Open the "IoT Watch" app on your smartphone. • In the "My Home" menu, touch the "fitness tracker"and hold for few second, then "Remove Device", and click Finish Functions Dial Style There are 4 watch faces. dial styles. On the current dial, press the screen and slide to select your favorite. Pedometer The watch will automatically record your daily activities. Click on the touch screen to view more detailed data. Heart rate Press the icon to enter the heart rate, and the watch will automatically monitor your heart rate, swipe to right to exit. Sport Press the function "Sport" to enter the multi-sport mode. fitness tracker have 14 sports modes: walking, running, run indoor, Hiking, cycling, swimming, football, basketball, volleyball, badminton, table tennis, baseball, skipping and yoga. Choose one of them and do some exercises. Fitness tracker will record your sport data. After completing the exercise, slide right to stop the exercise and save the exercise data. If you have connected your Fitness tracker to the “APP” via Bluetooth, you can also view your sports data in the application. Sports details: When you want to pause the exercise, slide the screen left or right to pause, or you can end the current exercise. Note: If it takes too little time to practice, the data will not be saved. Sleep Monitor Click the interface, the watch will display the sleep data of the week. When stop sleeping, the watch will show the report of your sleep and the time of total sleep, light sleep and deep sleep. After sync with APP, you can check for more detailed report. Message Unread messages will be displayed in the Message icon. Slide the screen to enter and check the information on the watch. Weather After connecting to "APP" and opening the location permission, the weather will be automatically pushed to the watch Temperature Click on the watch body temperature detection function, put the watch on your hand for body temperature detection, and wait for 30 seconds to get the body temperature result Alarm Click in the "Alarm" interface, and you will see the pre-set alarms. When the reminder time is up, your watch will vibrate. Stopwatch Press the screen to find the stopwatch. Enter the timing page, touch the keys start and pause, and slide right to exit. Sedentary reminder Press the screen to turn on or off the sedentary reminder. Remote capture The device can be used as a remote control for the camera function on the mobile phone. In "APP", click the "photograph" button, your watch will display a camera icon, pressshortly to capture your photo. BT music Tap the music function icon to enter the music playback control interface. You can select the previous/next song, and play/pause the song. To exit music playback control, slide the screen from left to right. Settings In the "Settings" interface, click the screen slide to view more functions, including dial Switch, Language, Reset, Shut Down, System, Temperature Settings, Find phone, Brightness, Display off. Dial switch Touch "Dial Switch" on the screen to select other dials. Language Choose "Language" function on the “Settings”, and you can choose to switch the watch to another language. Reset Reset to factory default *Attention: if a factory reset is performed, all user datas will be erased and the smart watch will be turned off. Sh…

Text truncated - open the document above for the full version.

Shenzhen Futu Innovation Technology Co. , Ltd Agent Authorization Company: Shenzhen Futu Innovation Technology Co. , Ltd Address: A3 Floor 4,electronics building, Xiange technology company, Jiuwei Community, Hangcheng street, Baoan District, Shenzhen city,China Product Name: SMART WATCH Model Number(s): FT02 Product Description: SMART WATCH We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-05-24 Name: KIKI Li Title: Manager Company: Shenzhen Futu Innovation Technology Co. , Ltd

Shenzhen Futu Innovation Technology Co. , Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021/05/24 Subject; Request for Confidentiality FCC ID: 2AZ2L-FT02 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description SOFTWARE SECURITY REQUIREMENTS FOR U-NII DEVICES In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: KIKI Li Title: Manager Email: [email protected]

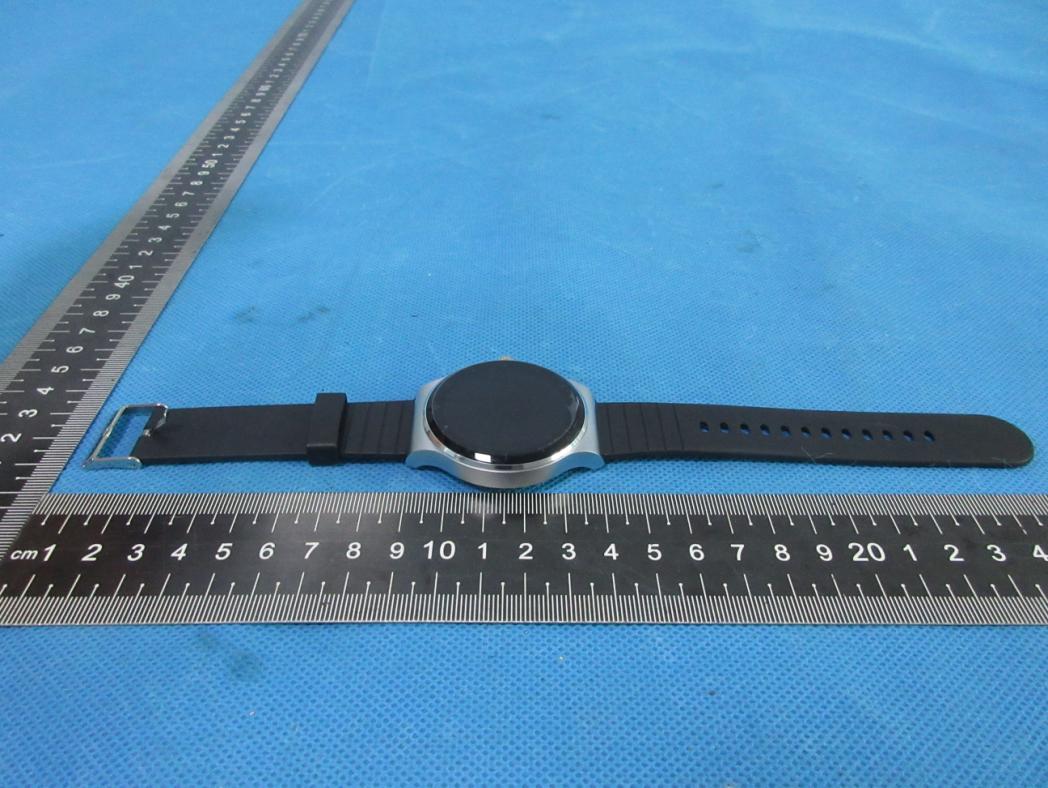

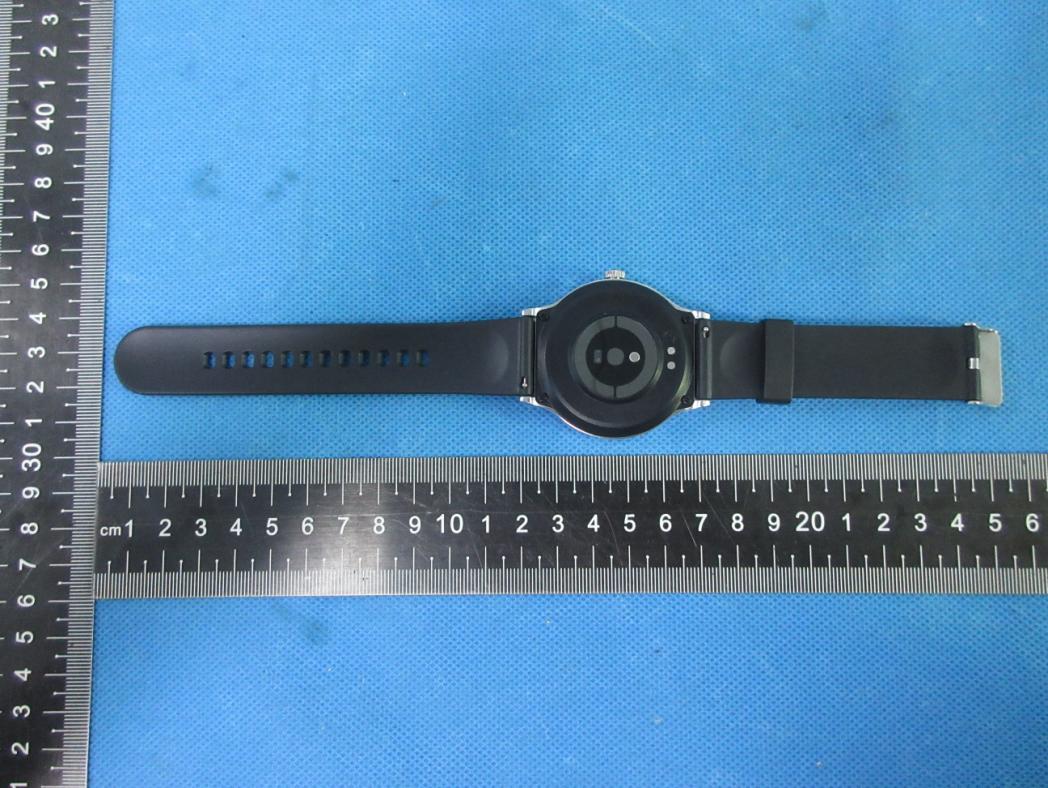

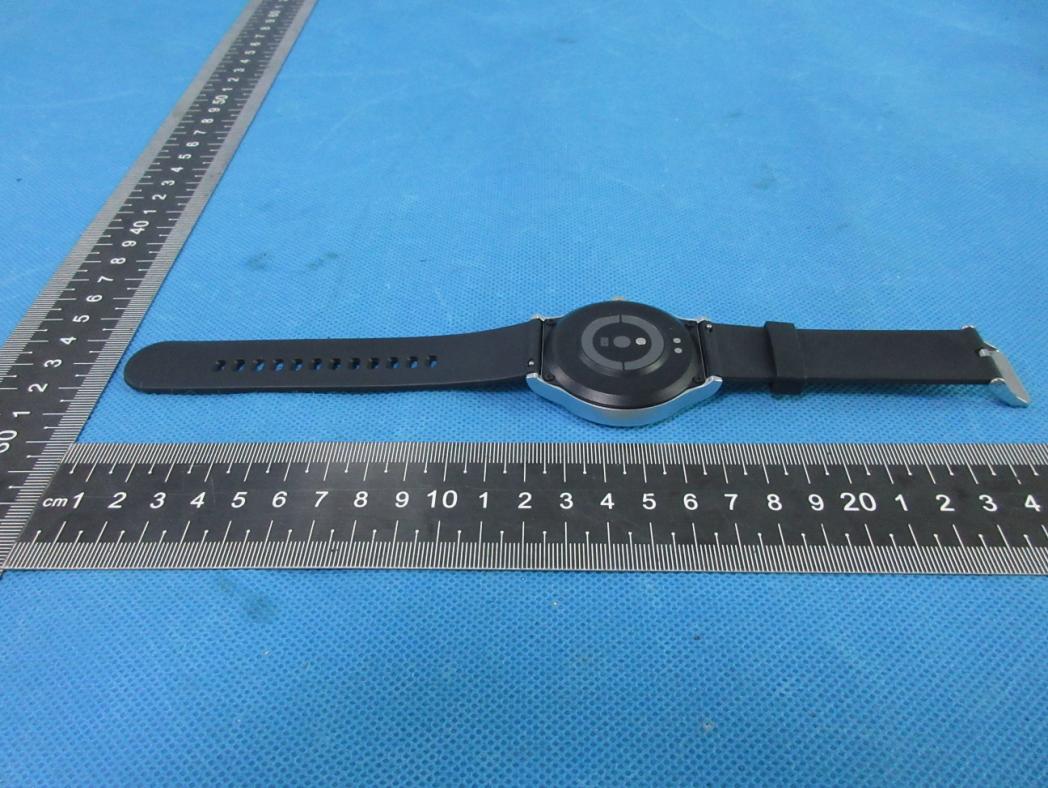

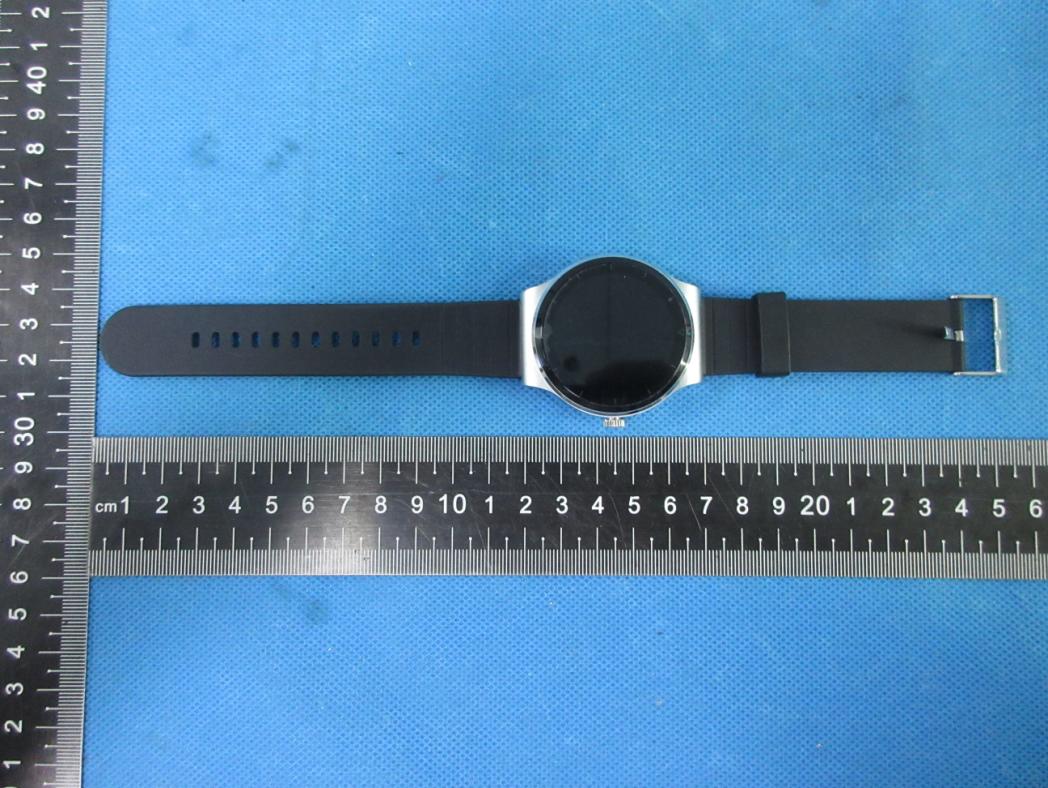

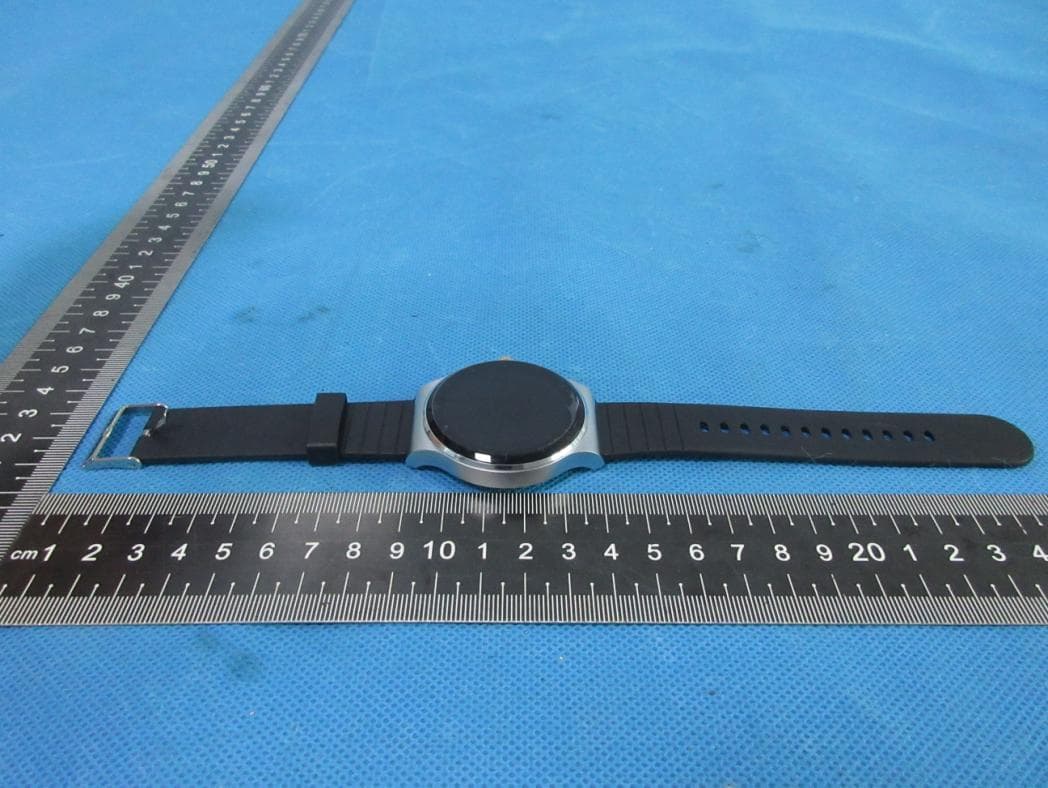

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 BT ANT Photo 5 Photo 6 Photo 7

FCC ID: 2AZ2L-FT02 Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. GFSK: Antenna Type : Cable Antenna Antenna Gain: 0 dBi Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n 1g SAR Exclusion threshold SAR test exclusion 2.402-4.955 0.320-4±1 -3 0.501<50.155353.00YES 2.44 -6.855 0.206-6±1 -5 0.316<50.098793.00YES 2.480 -5.565 0.278-6±1 -5 0.316<50.099603.00YES GFSK Conclusion: For the max result : 0.15535≤ 3.0 for 1-g SAR, No SAR is required. Signature: Date: 2021-05-24 NAME AND TITLE (Please print or type): Alex Li /Manager COMPANY (Please print or type): Shenzhen NTEK Testing Technology Co., Ltd./ 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China

Report No.: S21041901104001 Version.1.3 Page 1 of 47 RADIO TEST REPORT FCC ID:2AZ2L-FT02 Product: SMART WATCH Trade Mark: N/A Model No.: FT02 Family Model: N/A Report No.: S21041901104001 Issue Date: 18 May. 2021 Prepared for Shenzhen Futu Innovation Technology Co. , Ltd A3 Floor 4,electronics building, Xiange technology company, Jiuwei Community, Hangcheng street, Baoan District, Shenzhen city Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China Tel. 400-800-6106, 0755-3699 5508 Website: http://www.ntek.org.cn Report No.: S21041901104001 Version.1.3 Page 2 of 47 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ...................................................................................................................... 3 2 SUMMARY OF TEST RESULTS ......................................................................................................................... 4 3 FACILITIES AND ACCREDITATIONS ............................................................................................................. 5 3.1 FACILITIES..................................................................................................................................................... 5 3.2 LABORATORY ACCREDITATIONS AND LISTINGS ................................................................................. 5 3.3 MEASUREMENT UNCERTAINTY ............................................................................................................... 5 4 GENERAL DESCRIPTION OF EUT .................................................................................................................. 6 5 DESCRIPTION OF TEST MODES ..................................................................................................................... 8 6 SETUP OF EQUIPMENT UNDER TEST ........................................................................................................... 9 6.1 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ....................................................................... 9 6.2 SUPPORT EQUIPMENT ............................................................................................................................... 10 6.3 EQUIPMENTS LIST FOR ALL TEST ITEMS .............................................................................................. 11 7 TEST REQUIREMENTS .................................................................................................................................... 13 7.1 CONDUCTED EMISSIONS TEST ............................................................................................................... 13 7.2 RADIATED SPURIOUS EMISSION ............................................................................................................ 16 7.3 6DB BANDWIDTH ....................................................................................................................................... 25 7.4 DUTY CYCLE ............................................................................................................................................... 26 7.5 PEAK OUTPUT POWER .............................................................................................................................. 28 7.6 POWER SPECTRAL DENSITY ................................................................................................................... 29 7.7 CONDUCTED BAND EDGE MEASUREMENT......................................................................................... 31 7.8 SPURIOUS RF CONDUCTED EMISSIONS ................................................................................................ 32 7.9 ANTENNA APPLICATION .......................................................................................................................... 33 8 TEST RESULTS ................................................................................................................................................... 34 8.1 MAXIMUM CONDUCTED OUTPUT POWER ........................................................................................... 34 8.2 OCCUPIED CHANNEL BANDWIDTH ....................................................................................................... 36 8.3 MAXIMUM POWER SPECTRAL DENSITY LEVEL ................................................................................. 40 8.4 BAND EDGE ................................................................................................................................................. 42 8.5 CONDUCTED RF SPURIOUS EMISSION .................................................................................................. 44 Report No.: S21041901104001 Version.1.3 Page 3 of 47 1 TEST RESULT CERTIFICATION Applicant’s name ......................... : Shenzhen Futu Innovation Technology Co. , Ltd Address ....................................... : A3 Floor 4,electronics building, Xiange technology company, Jiuwei Community, Hangcheng street, Baoan District, Shenzhen city Manufacturer's Name .................. : Shenzhen Futu Innovation Technology Co. , Ltd Address ....................................... : A3 Floor 4,electronics building, Xiange technology company, Jiuwei Community, Hangcheng street, Baoan District, Shenzhen city Product description Product name .............................. : SMART WATCH Model and/or type reference ...... : FT02 Family Model ............................... : N/A Measurement Procedure Used: APPLICABLE STANDARDS APPLICABLE STANDARD/ TEST PROCEDURE TEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart C ANSI C63.10-2013 KDB 558074 D01 15.247 Meas Guidance v05r02 Complied This device described above has been tested by Shenzhen NTEK Testing Technology Co., Ltd., and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the …
