2AZ2Y-MQ14Wireless Speaker

User Manual Wireless Speaker MUQI Model: MQ-14 Made in China Shenzhen muqi Electronic Acoustics Co.,Ltd. Email: sales@szmuqi. com Http://www.szmuqi.com Add: No.14, Fengye 8th Rd,Fenghuang, Fuyong,Bao'an District, Shenzhen 518103 Contents English Deutsch Français Español Italiano 01~12 13~24 25~36 37~48 49~60 - 01 - Thank you for purchasing the MUQI MQ-14 Wireless Speaker. Please read this user manual carefully and keep it for future reference. If you need any assistance, please contact our support team with your product model number and Amazon order number. Wireless Speaker USB-A to C Cable 3.5mm Audio Cable User Manual Strap Package Contents Fully charge the speaker before first use. Connect one end of the USB-A to C cable to the charging input port of the MQ-14 and the other end to a USB charger or charging port to charge.LED indicator red during charging, green after full charge. When the battery voltage is lower than (equal to) 10.5V, a low battery alarm tone will appear, once at an interval of 15S, three times in a row, and will automatically shut down after the third alarm - 04 - Getting Started Charging the Speaker Note - 05 - Button Function Instructions Functions Turn speaker on / off Switch mode Enter or exit TWS mode Play or pause Adjust volume Skip to next/previous track Answer or end the call Reject an incoming call EQ Switch Disconnect BT Instructions Press and hold power button for 2 seconds Short-press power button (between BT and AUX mode) Press and hold Bluetooth button for 3 seconds Short-press play/pause button Short-press /volume + / - (synchronized with the volume of the iPhone, not Android) Press and hold /volume + / - for 2 seconds Short-press play/pause button Press and hold play/pause button for 2 seconds Press and hold play/pause button for 2 seconds3 EQ modes Short-press Bluetooth button ● ● ● ● If you want to use another device to connect to MUQI MQ-14, please short-press Bluetooth button to disconnect MUQI MQ-14 from the current device. When you turn the speaker on, it will automatically reconnect to the last-paired device or enter pairing mode if no paired device is found When the speaker is paused, or there is no Bluetooth connection, the speaker will automatically shut down after 10 minutes If the speaker or connected device exceeds the operating range, the speaker will disconnect. The connection to the last successfully connected device will be re-established once you re-enter the wireless range within 10 minutes. To connect to other devices, repeat the previous“pairing” steps Note 1. 2. When you turn on the speaker, it will automatically enter pairing mode Activate the pairing function on your phone and select “MUQI MQ-14” Bluetooth Pairing - 07 - ● ● ● The speaker will disconnect from your phone or other paired devices when an audio cable is plugged into the audio input jack. Short-press power button to switch back to BT mode When playing audio using the audio input jack, press /volume + / - to adjust the volume and short-press play/pause button to pause or resume. Next/previous track control on the speaker is disabled in audio input mode For some computers, you may need to access the audio control panel to manually set the speaker as the default audio device Note Connect the MUQI MQ-14 to your PC, laptop, or other devices with the audio output port using the included 3.5mm audio cable. AUX Audio Input - 08 - 1. 2. 3. 4. 5. First, connect one speaker to the phone successfully and leave the other speaker in the Bluetooth pending connection. Press and hold Bluetooth button of the speaker in Bluetooth connec- tion for 3 seconds to enter TWS grouping mode, the light button flashes quickly, and there is a group pairing tone. The speaker that initiates the group pairing is the host. During the TWS pairing process, Press and hold Bluetooth button for 3 seconds to cancel the TWS pairing. If the TWS pairing exceeds 60 seconds and the TWS pairing is not successful, it will automatically return to the normal BT mode. After the TWS pairing is successful, one of the LED lights of the two speakers is always on (this is the sub) and the other is flashing (this is the host). After successful pairing, short press Bluetooth button of the host/sub to disconnect the Bluetooth connection (the TWS connection will not be disconnected); long press the Bluetooth button of the host/sub for 3 seconds to disconnect the TWS connection (the Bluetooth connection will not be disconnected). TWS Mode - 09 - Please check if the phone is connected to the Bluetooth of the two speakers at the same time. If yes, disconnect any of the speakers BT from the phone. The phone connects into TWS pairing mode.If no, press and hold one of the speakers Bluetooth button 3S to enter TWS pairing mode. FAQ The TWS pairing is unsuccessful? Use the audio cable to connect the host speaker to the desired device. Short press Power button to switch back to Bluetooth mode. From TWS mode to AUX mode? - 11 - 6. 7. In TWS mode, when the speaker is turned on and off normally, the TWS can be reconnected. Long press Bluetooth button to actively discon- nect the TWS, and then the TWS will not be reconnected after turning it off and on. In TWS mode, host/sub, on/off button, play/pause button, volume +/-, Bluetooth button, light button and other operations the same. - 10 - ● ● Bluetooth & TWS mode: host/sub, on/off button, play/pause button, volume +/-, Bluetooth button, light button and other operations the same AUX mode: On/off button, volume +/-, play/pause button and other operations are the same as those in Bluetooth and TWS mode. Note - 06 - Light off Long press light button to turn off the light Light on Short-press light button to open/switch the light ● ● Keep away from extreme heat and strong magnetic fields Do not use this speaker at high volume for extended periods, as this may cause permanent hearing damage or hearing loss Product Care & Use For questions, support, or warranty claims, contact us at the addr…

Text truncated - open the document above for the full version.

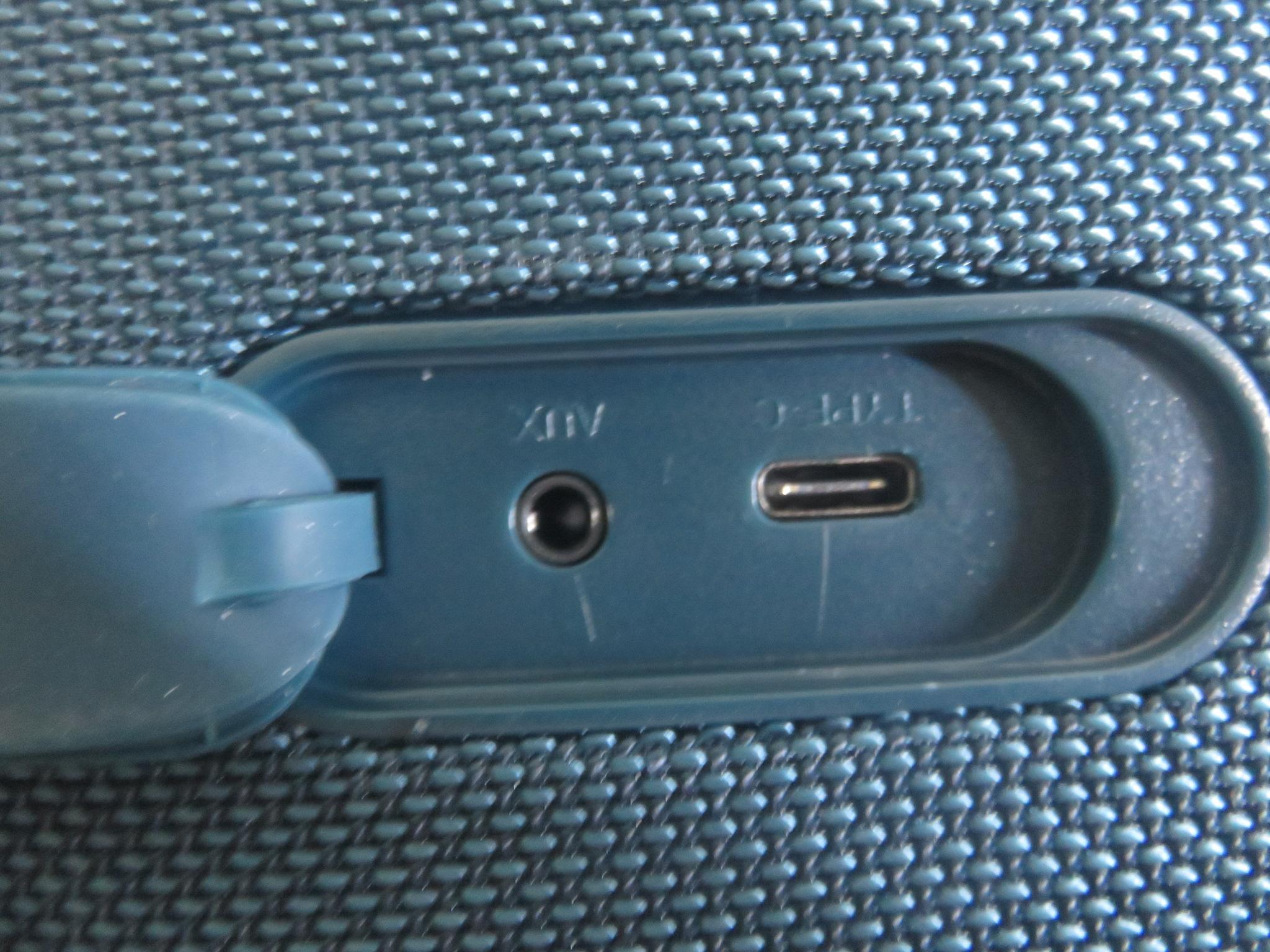

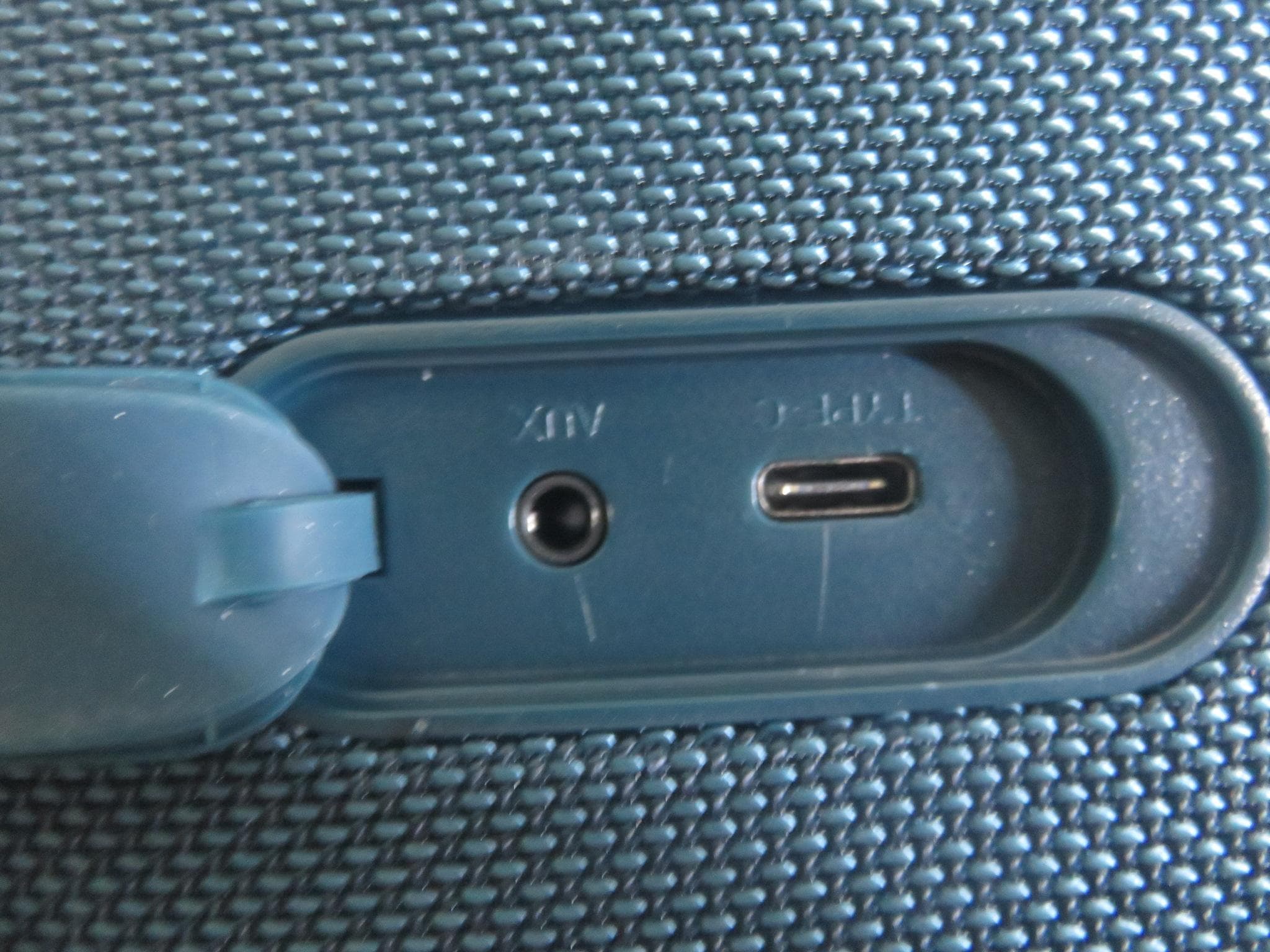

Code:AB-RF-05-b ExternalPhotograph Code:AB-RF-05-b Code:AB-RF-05-b Code:AB-RF-05-b

LabelLocationOnEUT Label ProductName:WirelessSpeaker ModelNo.:MQ-14 FCCID:2AZ2Y-MQ14 ThisdevicecomplieswithPart15oftheFCCRules.Operationis subjecttothefollowingtwoconditions: (1)Thisdevicemaynotcauseharmfulinterference,and (2) Thisdevicemustacceptanyinterferencereceived,including interferencethatmaycauseundesiredoperation.

Code:AB-RF-05-b InternalPhotograph Code:AB-RF-05-b ANT Code:AB-RF-05-b Code:AB-RF-05-b Code:AB-RF-05-b

version01 SHENZHENMUQIELECTRONICACOUSTICS CO.,LTD DeclarationconcerningAntennaSpecification Itisherebydeclaredthattheproduct ModelNo.:MQ-14 FCCID:2AZ2Y-MQ14 fulfillstherequirementinFCCtestrelatingtotheantennatype. ThedevicespecifiedaboveconfirmstotheFCCrecommendationsfor internal antennatype(s) describedbelow: ModelNo.ofantenna:N/A Typeofantenna:PCBAntenna Gainoftheantenna:-0.68dBi Frequencyrange:2402-2480MHz Themountingoftheantennaisfixedtotheradiomoduleandnootherantennashouldbeused. Companyname:SHENZHENMUQIELECTRONICACOUSTICSCO.,LTD Address:NO.14,Fengye8thRd,Fenghuang,Fuyong,Bao'anDistrict,Shenzhen City,GuangdongProvince,China. City:Shenzhen ZIP/Postalcode:/ Country:China Place:ShenzhenDate:8/16/2022 Signature:

RFEXPOSUREEVALUATION FCCID:2AZ2Y-MQ14 AccordingtoFCC1.1310:Thecriterialistedinthefollowingtableshallbeused toevaluatetheenvironmentimpactofhumanexposuretoradiofrequency(RF) Radiationasspecifiedin§1.1307(b): RoutineSARevaluationreferstothatspecificallyrequiredby§2.1093,using measurementsorcomputersimulation.WhenroutineSARevaluationisnot required,portabletransmitterswithoutputpowergreaterthantheapplicable lowthresholdrequireSARevaluationtoqualifyforTCBapproval. Channel (MHz) Maximum output power (dBm) Tuneup tolerance (dBm) MaxTuneUp Power(dBm) Distance (mm) Calculation results Limit Operating Mode 240222±13.00050.6183 GFSK 24411.561.56 ± 12.56050.5633 24800.850.85 ± 11.85050.4823 24021.31.3±12.30050.5263 π/4-DQPSK 24410.90.9 ± 11.90050.4843 24800.230.23 ± 11.23050.4183 24021.381.38±12.38050.5363 8-DPSK 24411.071.07 ± 12.07050.5033 24800.350.35 ± 11.35050.4303 Result:NoStandaloneSARtestisrequired.

Page1of50 AppendixTestData ReportNo.:18220WC20150001TestSampleNo.:1-2-2 StartTestDate:2022.7.6FinishTestDate:2022.7.18 TestEngineer:Auditor: Temperature:24.3 °C RelativeHumidity:57.1% Pressure:1012hPa AppendixA:20dBEmissionBandwidth TestResult TestModeAntennaChannel 20db EBW[MHz] FL[MHz]FH[MHz]Limit[MHz]Verdict DH5Ant1 24020.9422401.5352402.477---PASS 24410.9362440.5352441.471---PASS 24800.9452479.5322480.477---PASS 2DH5Ant1 24021.3232401.3342402.657---PASS 24411.2692440.3642441.633---PASS 24801.3262479.3342480.660---PASS 3DH5Ant1 24021.2722401.3492402.621---PASS 24411.2722440.3492441.621---PASS 24801.2722479.3492480.621---PASS Page2of50 TestGraphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 Page3of50 2DH5_Ant1_2402 2DH5_Ant1_2441 Page4of50 2DH5_Ant1_2480 3DH5_Ant1_2402 3DH5_Ant1_2441 Page5of50 3DH5_Ant1_2480 Page6of50 AppendixB:OccupiedChannelBandwidth TestResult TestModeAntennaChannel OCB[MHz] FL[MHz]FH[MHz]Limit[MHz]Verdict DH5Ant1 24020.88717 2401.55 7 2402.444---PASS 24410.89071 2440.55 3 2441.444---PASS 24800.90047 2479.54 8 2480.448---PASS 2DH5Ant1 24021.1930 2401.40 0 2402.593---PASS 24411.1918 2440.40 2 2441.593---PASS 24801.1929 2479.40 2 2480.595---PASS 3DH5Ant1 24021.2031 2401.39 1 2402.594---PASS 24411.2097 2440.38 4 2441.593---PASS 24801.2081 2479.38 5 2480.593---PASS Page7of50 TestGraphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 Page8of50 2DH5_Ant1_2402 2DH5_Ant1_2441 Page9of50 2DH5_Ant1_2480 3DH5_Ant1_2402 3DH5_Ant1_2441 Page10of50 3DH5_Ant1_2480 Page11of50 AppendixC:Maximumconductedoutputpower TestResult TestModeAntennaChannelResult[dBm]Limit[dBm]Verdict DH5Ant1 24022≤20.97PASS 24411.56≤20.97PASS 24800.85≤20.97PASS 2DH5Ant1 24021.3≤20.97PASS 24410.9≤20.97PASS 24800.23≤20.97PASS 3DH5Ant1 24021.38≤20.97PASS 24411.07≤20.97PASS 24800.35≤20.97PASS Page12of50 TestGraphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 Page13of50 2DH5_Ant1_2402 2DH5_Ant1_2441 Page14of50 2DH5_Ant1_2480 3DH5_Ant1_2402 3DH5_Ant1_2441 Page15of50 3DH5_Ant1_2480 Page16of50 AppendixD:Carrierfrequencyseparation TestResult TestModeAntennaChannelResult[MHz]Limit[MHz]Verdict DH5Ant1Hop1.2≥0.945PASS 2DH5Ant1Hop0.886≥0.884PASS 3DH5Ant1Hop0.994≥0.848PASS Page17of50 TestGraphs DH5_Ant1_Hop 2DH5_Ant1_Hop 3DH5_Ant1_Hop Page18of50 Page19of50 AppendixE:Timeofoccupancy TestResult TestModeAntennaChannel BurstWidth [ms] TotalHops [Num] Result[s]Limit[s]Verdict DH1Ant1Hop0.373130.117≤0.4PASS DH3Ant1Hop1.631580.257≤0.4PASS DH5Ant1Hop2.881010.291≤0.4PASS 2DH1Ant1Hop0.383130.119≤0.4PASS 2DH3Ant1Hop1.631590.259≤0.4PASS 2DH5Ant1Hop2.881020.294≤0.4PASS 3DH1Ant1Hop0.383120.119≤0.4PASS 3DH3Ant1Hop1.631590.259≤0.4PASS 3DH5Ant1Hop2.88960.277≤0.4PASS Page20of50 TestGraphs DH1_Ant1_Hop DH3_Ant1_Hop Page21of50 DH5_Ant1_Hop Page22of50 2DH1_Ant1_Hop 2DH3_Ant1_Hop Page23of50 2DH5_Ant1_Hop Page24of50 3DH1_Ant1_Hop 3DH3_Ant1_Hop Page25of50 3DH5_Ant1_Hop Page26of50 Page27of50 AppendixF:Numberofhoppingchannels TestResult TestModeAntennaChannelResult[Num]Limit[Num]Verdict DH5Ant1Hop79≥15PASS 2DH5Ant1Hop79≥15PASS 3DH5Ant1Hop79≥15PASS Page28of50 TestGraphs DH5_Ant1_Hop 2DH5_Ant1_Hop 3DH5_Ant1_Hop Page29of50 Page30of50 AppendixG:Bandedgemeasurements TestResult TestModeAntennaChNameChannel RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5Ant1 Low24021.62-57.95≤-18.38PASS High24800.54-58.42≤-19.46PASS LowHop1.49-58.14≤-18.51PASS HighHop0.18-59.71≤-19.82PASS 2DH5Ant1 Low24020.25-54.8≤-19.75PASS High2480-0.46-58.25≤-20.46PASS LowHop-3.31-58.58≤-23.31PASS HighHop-2.38-59.72≤-22.38PASS 3DH5Ant1 Low2402-0.41-56.55≤-20.41PASS High2480-0.51-58.14≤-20.51PASS LowHop-2.90-58.18≤-22.9PASS HighHop-0.65-60.42≤-20.65PASS Page31of50 TestGraphs DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop Page32of50 DH5_Ant1_High_Hop 2DH5_Ant1_Low_2402 Page33of50 2DH5_Ant1_High_2480 2DH5_Ant1_Low_Hop 2DH5_Ant1_High_Hop Page34of50 3DH5_Ant1_Low_2402 3DH5_Ant1_High_2480 Page35of50 3DH5_Ant1_Low_Hop 3DH5_Ant1_High_Hop Page36of50 AppendixH:ConductedSpuriousEmission TestResult TestModeAntennaChannel FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5Ant1 2402 Reference1.511.51---PASS 30~10001.51-70.48≤-18.49PASS 1000~265001.51-54.35≤-18.49PASS 2441 Reference0.700.70---PASS 30~10000.70-70.52≤-19.3PASS 1000~265000.70-54.25≤-19.3PASS 2480 Reference-0.03-0.03---PASS 30~1000-0.03-68.37≤-20.03PASS 1000~26500-0.03-54.44≤-20.03PASS 2DH5Ant1 2402 Reference-0.41-0.41---PASS 30~1000-0.41-69.94≤-20.41PASS 1000~26500-0.41-54.84≤-20.41PASS 2441 Reference0.040.04---PASS 30~10000.04-69.3≤-19.96PASS 1000~265000.04-54.03≤-19.96PASS 2480 Reference-1.23-1.23---PASS 30~1000-1.23-69.71≤-21.23PASS 1000~26500-1.23-54.27≤-21.23PASS 3DH5Ant1 2402 Reference-0.55-0.55---PASS 30~1000-0.55-67.24≤-20.55PASS 1000~26500-0.55-53.94≤-20.55PASS 2441 Reference-0.59-0.59---PASS 30~1000-0.59-51.84≤-20.59PASS 1000~26500-0.59-53.51≤-20.59PASS 2480 Reference-1.24-1.24---PASS 30~1000-1.24-69.03≤-21.24PASS 1000~26500-1.24-48.95≤-21.24PASS Page37of50 TestGraphs DH5_Ant1_2402_0~Reference DH5_Ant1_2402_30~1000 DH5_Ant1_2402_1000~26500 Page38of50 DH5_Ant1_2441_0~Reference DH5_Ant1_2441_30~1000 Page39of50 DH5_Ant1_2441_1000~26500 DH5_Ant1_2480_0~Reference DH5_Ant1_2480_30~1000 Page40of50 DH5_Ant1_2480_1000~26500 2DH5_Ant1_2402_0~Reference Page41of50 2DH5_Ant1_2402_30~1000 2DH5_Ant1_2402_1000~26500 2DH5_Ant1_2441_0~Reference Page42of50 2DH5_Ant1_2441_30~1000 2DH5_Ant1_2441_1000~26500 Page43of50 2DH5_Ant1_2480_0~Reference 2DH5_Ant1_2480_30~1000 2DH5_Ant1_2480_1000~26500 Page44of50 3DH5_Ant1_2402_0~Reference 3DH5_Ant1_2402_30~1000 Page45of50 3DH5_Ant1_2402_1000~26500 3DH5_Ant1_2441_0~Reference 3DH5_Ant1_2441_30~1000 Page46of50 3DH5_Ant1_2441_1000~26500 3DH5_Ant1_2480_0~Reference Page47of50 3DH5_Ant1_2480_30~1000 3DH5_Ant1_2480_1000~26500 Page48of50 AppendixI:DutyCycle TestResult TestModeAntennaChannel ONTime [ms] Period [ms] XDC [%] xFactor LimitVerdict DH5Ant124022.883.75 0.768 0 76.801.15---PASS 2DH5Ant124022.883.75 0.768 0 76.801.15---PASS 3DH5Ant124022.883.75 0.768 0 76.801.15---PASS Page49of50 TestGraphs DH5…

Text truncated - open the document above for the full version.

ReportNo.:18220WC20150001FCCID:2AZ2Y-MQ14Page1of32 Code:AB-RF-05-b FCCTestReport ClientName: SHENZHENMUQIELECTRONICACOUSTICS CO.,LTD ClientAddress: NO.14,Fengye8thRd,Fenghuang,Fuyong,Bao'an District,ShenzhenCity,GuangdongProvince,China. ProductName: WirelessSpeaker ReportDate: Aug.08,2022 ShenzhenAnbotekComplianceLaboratoryLimited ReportNo.:18220WC20150001FCCID:2AZ2Y-MQ14Page2of32 Code:AB-RF-05-b Contents 1.GeneralInformation ............................................................................................................................................6 1.1.ClientInformation ....................................................................................................................................6 1.2.DescriptionofDevice(EUT) ..................................................................................................................6 1.3.AuxiliaryEquipmentUsedDuringTest .................................................................................................7 1.4.DescriptionofTestConfiguration ..........................................................................................................7 1.5.DescriptionOfTestSetup ......................................................................................................................8 1.6.TestEquipmentList .................................................................................................................................9 1.7.MeasurementUncertainty ....................................................................................................................10 1.8.DescriptionofTestFacility ...................................................................................................................10 2.SummaryofTestResults .................................................................................................................................11 3.ConductedEmissionTest ................................................................................................................................12 3.1.TestStandardandLimit ........................................................................................................................12 3.2.TestSetup ...............................................................................................................................................12 3.3.TestProcedure .......................................................................................................................................12 3.4.TestData .................................................................................................................................................12 4.RadiationSpuriousEmissionandBandEdge .............................................................................................15 4.1.TestStandardandLimit ........................................................................................................................15 4.2.TestSetup ...............................................................................................................................................15 4.3.TestProcedure .......................................................................................................................................16 4.4.TestData .................................................................................................................................................17 5.MaximumPeakOutputPowerTest ...............................................................................................................25 5.1.TestStandardandLimit ........................................................................................................................25 5.2.TestSetup ...............................................................................................................................................25 5.3.TestProcedure .......................................................................................................................................25 5.4.TestData .................................................................................................................................................25 6.20DBOccupyBandwidthTest ........................................................................................................................26 6.1.TestStandard .........................................................................................................................................26 6.2.TestSetup ...............................................................................................................................................26 6.3.TestProcedure .......................................................................................................................................26 6.4.TestData .................................................................................................................................................26 7.CarrierFrequencySeparationTest ................................................................................................................27 7.1.TestStandardandLimit ........................................................................................................................27 7.2.TestSetup ...............................................................................................................................................27 7.3.TestProcedure .......................................................................................................................................27 7.4.TestData .................................................................................................................................................27 8.NumberofHoppingChannelTest ..................................................................................................................28 8.1.TestStandardandLimit ................................................................…

Text truncated - open the document above for the full version.

Code:AB-RF-05-b TestSetupPhotograph PhotoofConductedEmissionMeasurement PhotoofRadiationEmissionTest Code:AB-RF-05-b
