2AZ3L-BS1004Wireless remote vibrator

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction

Guangzhou Deluna Trading Co.,Ltd. Model Difference Product description: Wireless remote vibrator BS1035&37, BS1038, BS1052, BS1057 Trade Name: N/A FCC ID: 2AZ3L-BS1004 All the model are the same circuit and RF module, only for model name. Regards Sincerely Client’s signature: Client’s name / title : JIANG CHANGHUA (N/A) Contact information / address: Room 3506, 372 Huanshi East Road, Yuexiu District, Guangzhou, China Model name: BS1004 BS1004-2, BS1012, BS1013, BS1019-2, BS1030,

1/1 Com Ad d Prod Mod FC C We a 0819 abov Any beha We d Carm relat to d carri same Na m Title Si gn mpany: Gu dress: Roo Guan duct Nam del Numb B B C Identifie authorize L 93 Bellater ve named e individual alf and tak declare tha me, s/n, 0 ted to the discuss any ied out by e effect as me: JIANG e: N/A nature of < Gu uangzhou D om 3506, 3 ngzhou, Ch me: Wireles er: BS100 BS1004-2, BS1035&37 er: 2AZ3L- LGAI Tech rra, Spain, equipment within LGA ke action on at authoriz 08193 Bel approval p y issues c y LGAI Te s acts of ou G CHANGHU applicant Letter o uangzhou Deluna Tra 72 Huansh hina ss remote v 4 BS1012, B 7, BS1038, BS1004 nolo gical C , to act o t. AI Technol n the appli ze LGAI Te laterra, Sp project to concerning echnologica ur own. UA t: of Auth Deluna Tra ading Co.,L hi East Roa vibrator S1013, BS BS1052, B Center S.A on our beh logical Cen cation. echnologica pain, is a the Feder the app r al Center S horizati ading Co.,L Ltd. ad, Yuexiu S1019-2, BS BS1057 ., Ronda d half on all nter S.A. is al Center S llowed to al Commu oval appli c S.A. on ou D C ion Ltd.> District, S1030, de la Font d matters c s authorize S.A., Ronda forward nication C cation. An ur behalf Date: 2021 C5266091_X8 del Carme, concerning d to act on a de la Fon all inform ommissio n ny and all shall hav e -05-25 8_Ed.1 , s/n, g the n our nt del ation n and acts e the

1/1 Offic Fed e 7435 Colum Subj e FCC To W Purs u (47C attac Abo v cons discl o comp It is corr e docu equip Sinc e Signa Nam Title: e of Engine eral Commu 5 Oakland M mbia, MD 2 ect: Reques ID:2AZ3L-B Whom It May uant to th CFR0.457, 0 chment(s) a ve mentione idered as osure of ab petitor an u our under s espondent d uments and pment auth erely, ature: e: JIANG C : N/A < G eering Techn nications Co Mills Road 21046 st for Confid BS1004 y Concern, he provisio 0.459), we as confident Exhibits ID Label/Loca Attestation St External Photo Block Diagram Schematics Test Report Test Setup Ph User’s Manua Internal Photo Parts List / Tu RF Exposure I Operational D Cover Letter(s SDR Software ed docume proprietar y bove docum nfair advan standing th during cert those infor orization is HANGHUA uangzhou nology ommission dentiality ns of Sec t are reques tial docume ation tatement os m hotos l os une Up Info Description s) e / Security Inf nt contains y informatio ments migh ntage in the hat all mea tification rev rmation wil issued. Deluna Tra tions 0.457 sting the C nt from pub Lon Co n fo s detailed s on in oper ht be harm market. surement t view proce l be availab ading Co., 7 and 0.4 Commission blic disclosu g-Term nfidentiality S C No No No No No No system and ration of th mful to our test reports ess cannot ble for publ C5 Ltd.> D 59 of Com to withho ure. Short-Term Confidentiality No No No No No equipment he equipm company s, FCC ID la be granted ic review o 266091_X10 Date: 2021-0 mmission's old the follo y t descriptio ent. The p and would abel format d as confid nce the gr a 0_Ed.1 05-25 rules owing n are public give t and ential ant of

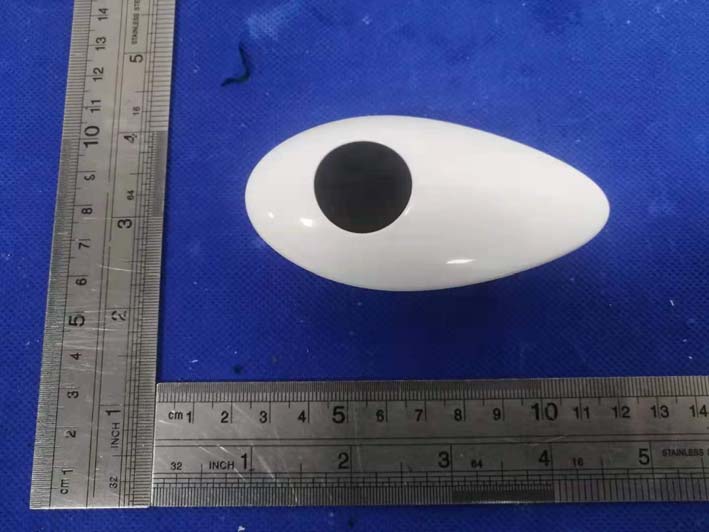

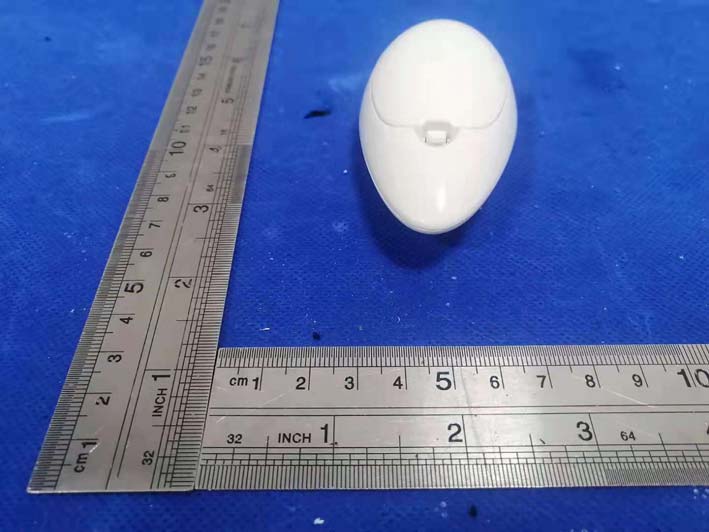

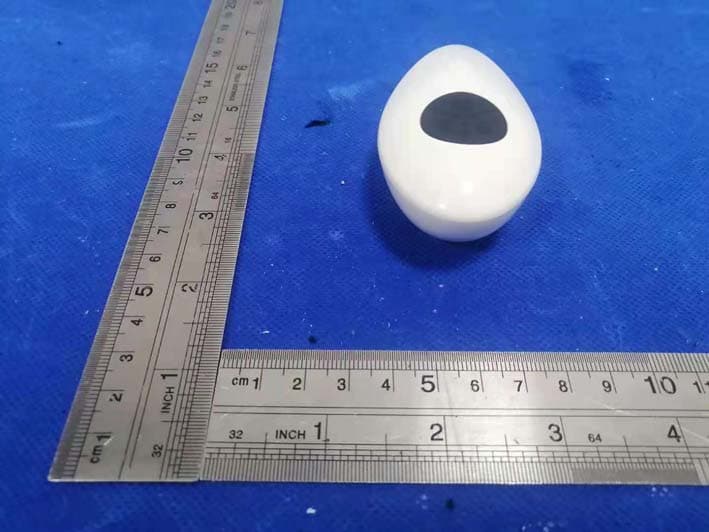

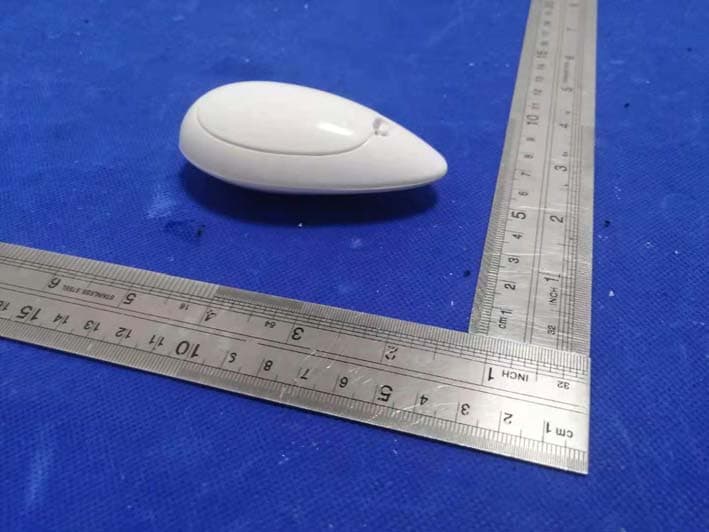

EUT PHOTO(External Photos)

Label and label location Wireless remote vibrator FCC ID:2AZ3L-BS1004 20mm 15mm

EUT PHOTO(Internal Photos) ※※※※※※※※※※ END OF REPORT ANT

Project No.: ZKT-2105081671E Page 1 of 29 FCC TEST REPORT FCC ID:2AZ3L-BS1004 Report Number. .............................. ZKT-2105081671E Date of Test ....................................... May. 14, 2021 to May. 20, 2021 Date of issue .................................... May. 20, 2021 Total number of pages ......................29 Test Result ..................................... PASS Testing Laboratory. ........................ Shenzhen ZKT Technology Co., Ltd. Address .......................................... 1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China Applicant's name ......................... Guangzhou Deluna Trading Co.,Ltd. Address .......................................... Room 3506, 372 Huanshi East Road, Yuexiu District, Guangzhou,China Manufacturer's name ................... Dongguan Xincheng Intelligent Manufacturing Co., Ltd. Address .......................................... 4 Fujun Rd.,Dakan,Huangjiang,Dongguan 523768,China Test specification: Standard ........................................... FCC CFR Title 47 Part 15 Subpart C Section 15.231 ANSI C63.10-2013 Test procedure ................................. / Non-standard test method ............. N/A Test Report Form No. .................... TRF-EL-108_V0 Test Report Form(s) Originator .... ZKT Testing Master TRF .................................... Dated: 2020-01-06 This device described above has been tested by ZKT, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of ZKT, this document may be altered or revised by ZKT, personal only, and shall be noted in the revision of the document. Product name ................................. Wireless remote vibrator Trademark ...................................... N/A Model/Type reference ...................... BS1004 BS1004-2, BS1012, BS1013, BS1019-2, BS1030, BS1035&37, BS1038, BS1052, BS1057 Ratings ............................................. Input: DC 3V Battery Project No.: ZKT-2105081671E Page 2 of 29 Testing procedure and testing location: Testing Laboratory ................................... : Shenzhen ZKT Technology Co., Ltd. Address ...................................................... :1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China Alen He Tested by (name + signature) .................... : Joe Liu Reviewer (name + signature) ..................... : Lake Xie Approved (name + signature) .................... : Project No.: ZKT-2105081671E Page 3 of 29 Table of Contents Page 1. VERSION 5 2. SUMMARY OF TEST RESULTS 6 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3. GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 9 3.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 9 3.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 9 3.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 10 4. EMC EMISSION TEST 11 4.1 CONDUCTED EMISSION MEASUREMENT 11 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 11 4.1.2 TEST PROCEDURE 12 4.1.3 DEVIATION FROM TEST STANDARD 12 4.1.4 TEST SETUP 12 4.1.5 EUT OPERATING CONDITIONS 12 4.1.6 TEST RESULTS 12 4.2 RADIATED EMISSION MEASUREMENT 13 4.2.1RADIATED EMISSION LIMITS 13 4.2.2TEST PROCEDURE 14 4.2.3 TEST SETUP 15 4.2.4 EUT OPERATING CONDITIONS 16 4.2.5 TEST RESULTS 16 5. BANDWIDTH TEST 21 5.1 APPLIED PROCEDURES / LIMIT 21 5.2 TEST PROCEDURE 21 5.3 DEVIATION FROM STANDARD 21 5.4 TEST SETUP 21 5.5 EUT OPERATION CONDITIONS 21 5.6 TEST RESULTS 22 6. CALCULATION OF AVERAGE FACTOR 23 7. DWELL TIME 26 7.1 APPLICABLE STANDARD 26 7.2 TEST PROCEDURE 26 7.5 EUT OPERATION CONDITIONS 26 7.6 TEST RESULTS 27 Project No.: ZKT-2105081671E Page 4 of 29 Table of Contents Page 8. ANTENNA REQUIREMENT 28 9. TEST SETUP PHOTO 29 10. EUT CONSTRUCTIONAL DETAILS 29 Project No.: ZKT-2105081671E Page 5 of 29 1. VERSION Report No. Version Description Approved ZKT-2105081671E Rev.01 Initial issue of report May. 20, 2021 Project No.: ZKT-2105081671E Page 6 of 29 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.231) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission N/A 15.209,15.231b Fundamental &Radiated Spurious Emission Measurement PASS 15.231c Occupy Bandwidth PASS 15.231a Dwell time PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Project No.: ZKT-2105081671E Page 7 of 29 2.1 TEST FACILITY Shenzhen ZKT Technology Co., Ltd. Add. : 1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China FCC Test Firm Registration Number: 692225 Designation Number: CN1299 IC Registered No.: 27033 2.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 3m camber Radiated spurious emission(30MHz-1GHz) U=4.3dB 2 3m chamber Radiated spurious emission(1GHz-18GHz) U=4.5dB 3 3m chamber Radiated spurious emission(18GHz-40GHz) U=3.34dB 4 Conducted Adjacent channel power U=1.38dB 5 Conducted output power uncertainty Above 1G U=1.576dB 6 Conducted output power uncertainty below 1G U=1.28dB 7 humidity uncertainty U=5.3% 8 Temperature uncertainty U=0.59°C 9 Radiated disturbance(30MHz- 1000MHz) U=4.8dB 10 Radiated disturbance(1GHz- 6GHz) U=4.9dB 11 Radiated disturbance(1GHz- 18GHz) U=5.0dB Project No.: ZKT-2105081671E Page 8 of 29 3. GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT Equipment Wireless remote vibrator Trade Name N/A Model Name BS1004 BS1004, BS1004-2, BS1012, BS1013, BS1019-2, BS1030, BS1035&37, BS1038, BS1052, BS1057 Serial Model …

Text truncated - open the document above for the full version.

EUT TEST PHOTO
