2AZ3Z-ZSF4142Electric Scooter

USER M ANUAL L9C pro 23 INTRODUCTION Hello WorldContents Unboxing . . . . . . . . . . . . ..... . .........5 Operation . . . . . . ......... . . . . . ..... .10 Display . . . . . . . . . . . . ..... . ......... .15 Settings ......... . ......... . . . . . . . . .16 Battery Info . . . . . . . . . . . . ..... . ..... . .17 General Safety . . . . . . . . . . . . ..... . ....18 Maintenance . . . . . . . . . . . . ..... . .....20 Troubleshooting ..... . . . . . ......... . .24 FAQs . . . . . . . . . . . . ..... . ......... . . .27 Warranty . . . . . . . . . . . . ..... . .........28 12 Month Limited Warranty ... . . . . . ....28 WEBSITE: apolloscooters.co (US) apolloscooters.ca (CAD) apolloscooters.com (GLOBAL) HELP CENTER: apolloscooters.co/support EMAIL: [email protected] Thank you for purchasing the Apollo City. The electric scooter industry is still young and it takes forward-thinking customers like yourself to advance it. We hope you enjoy your new scooter as much as we loved developing it. Model: L9C PRO FCC ID: 2AZ3Z-ZSF4142 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC Compliance Statement for USA This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: — Reorient or relocate the receiving antenna. — Increase the separation between the equipment and receiver. — Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. — Consult the dealer or an experienced radio/TV technician for help. FCC Note The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 5 UNBOXING IntroUnbox your scooter Setting up your scooter right is the single most important step to your safety. Please note that this process is also available in video format through our help centre. Visit apolloscooters.co/support to view it. We recommend having the following items ready prior to starting the setup process: t
#ox cutters or knife t
4UPPM
PS
CFODI t
"JS
QVNQ t
4Urong friend Open the box using the box cutter and fold open the top. Inside you should see protective styrofoam along with the following contents: t Apollo City electric scooter t Manual t Charger and cable t Allen key If any of these items are missing, please contact us immediately via apolloscooters.co/support . With the help of someone, remove the scooter from the box and place it on a flat surface. We recommend using a stool or bench as the wheels need to be able to spin freely. Carefully remove the protective material from the scooter and set it aside. We suggest keeping both the styrofoam and the box in case you need to ship your scooter back to us. Otherwise recycle the materials wherever possible. 4 67 The first step is to unfold your Apollo City. T o do so, ensure the hook is not clipped into the rear foot rest. If it is, push down on the stem and unhook it from the rear foot rest. Unfold the stem by pulling it to a vertical position. Ensure you do so until the stem is com- pletely vertical. Locate the folding latch and bring it up, locking the stem. The latch will require some force to lock fully upright. Lastly, make sure the saf ety button of the folding mech- anism is clipped in the stem. This saf ety mechanism prevents the latch from unlocking due to vibra- tion or shock. Prepare for assembly Unf olding 12 34 1 2 3 4 Connect the male connection cable coming out of the handlebar into the female cable coming out of the front stem. Make sure the pins are aligned. Make sure the male port and the female port are aligned properly. Insert the handlebar at the top of the front stem and tighten into place with the hex screw provided. Caution: Be car eful not to damage the cable when connecting the handlebar to the front stem. You will find that the latches and buttons on your handlebar are not tight. We deliver this way to avoid damage during shipping. Before tightening upwar d or downwar d until it reaches a comfort- able angle, keep in mind that once on a scooter, you will be higher up than you are while setting up your scooter. When you have found a comfortable position, go ahead and tighten the screws. Repeat the same process for the screws on the right hand side of your handlebar. Attach handlebar 1 3 5 2 4 1 2 3 4 5 scooter 89 Locate the power button on and press it for 3 seconds to power on the scooter. You should now be able to see the display powered on. Keep the scooter elevated on the stool or bench, as the testing will involve spinning both wheels. The scooter should be in Kick to Start mode, to begin testing the motors, spin the wheel and then pres…

Text truncated - open the document above for the full version.

Shenzhen Z.S.F Technology Co., Ltd No.4, LongShan 4 Rd. 3rd Luotian industrial district, SongGang Town, BaoAn district, Shenzhen, GuangDong, China Declaration letter Dear Sir, We, __ Shenzhen Z.S.F Technology Co., Ltd _declare product: _ Electric Scooter _with the model numbers 4142, L9C Pro _, there is no electrical change has been made to the equipment that alters the compliance characteristics. These models are the same except for model number. Please kindly handle on the project. FCC ID: 2AZ3Z-ZSF4142 Thank you! Sincerely, Signature Zhen Yao N/A Shenzhen Z.S.F Technology Co., Ltd

C5266091_X10_Ed.1 1/1 Shenzhen Z.S.F Technology Co., Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 07/13/2022 Subject: Request for Confidentiality FCC ID: 2AZ3Z-ZSF4142 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality ID Label/Location No No Attestation Statement No No External Photos No Block Diagram Schematics Test Report No No Test Setup Photos No User’s Manual Internal Photos Parts List / Tune Up RF Exposure Info Operational Description Cover Letter(s) No No SDR Software / Security Info No Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Zhen Yao Title: N/A

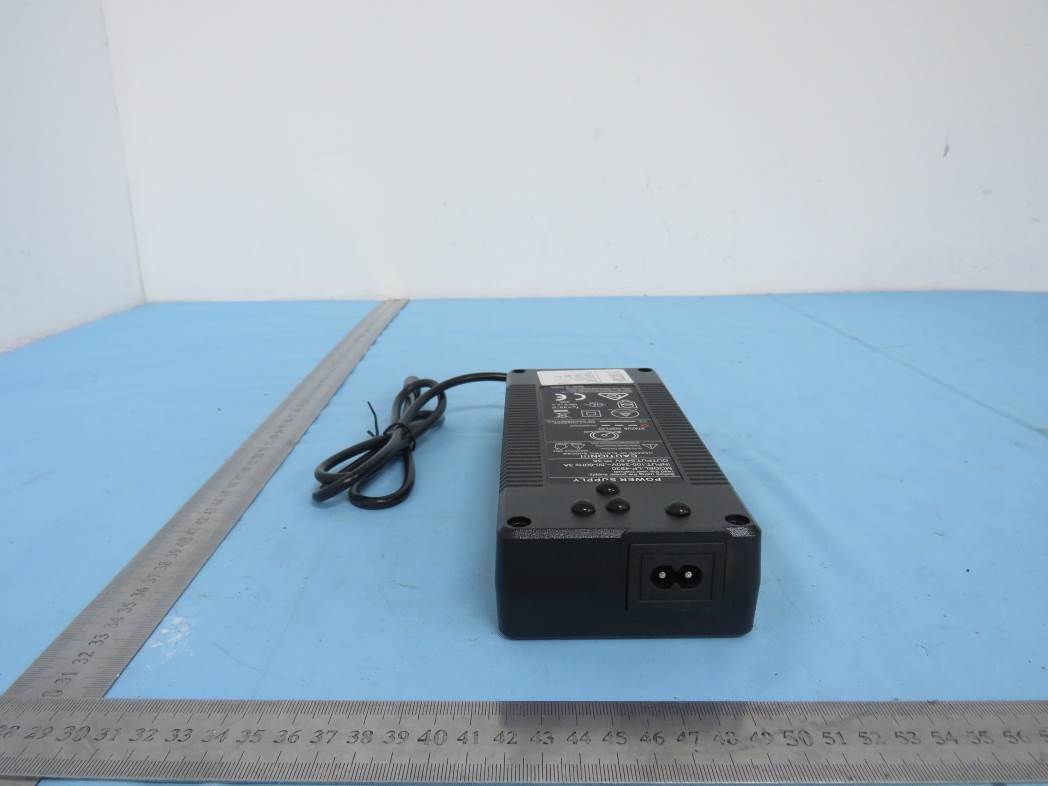

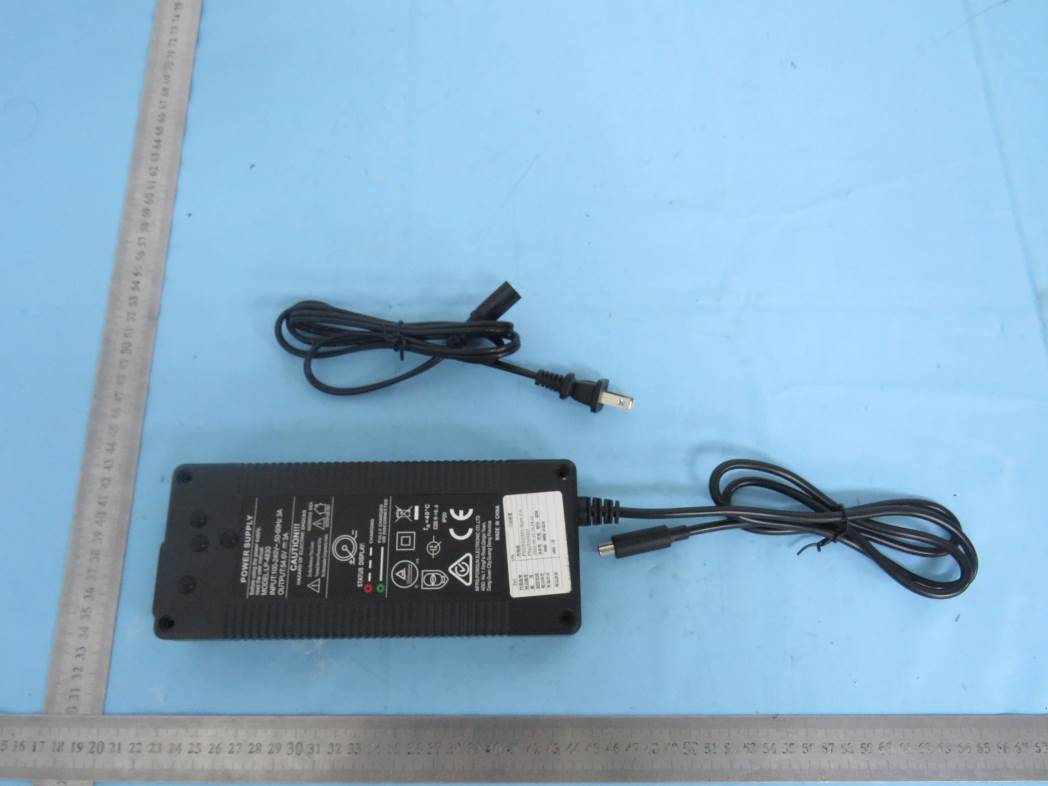

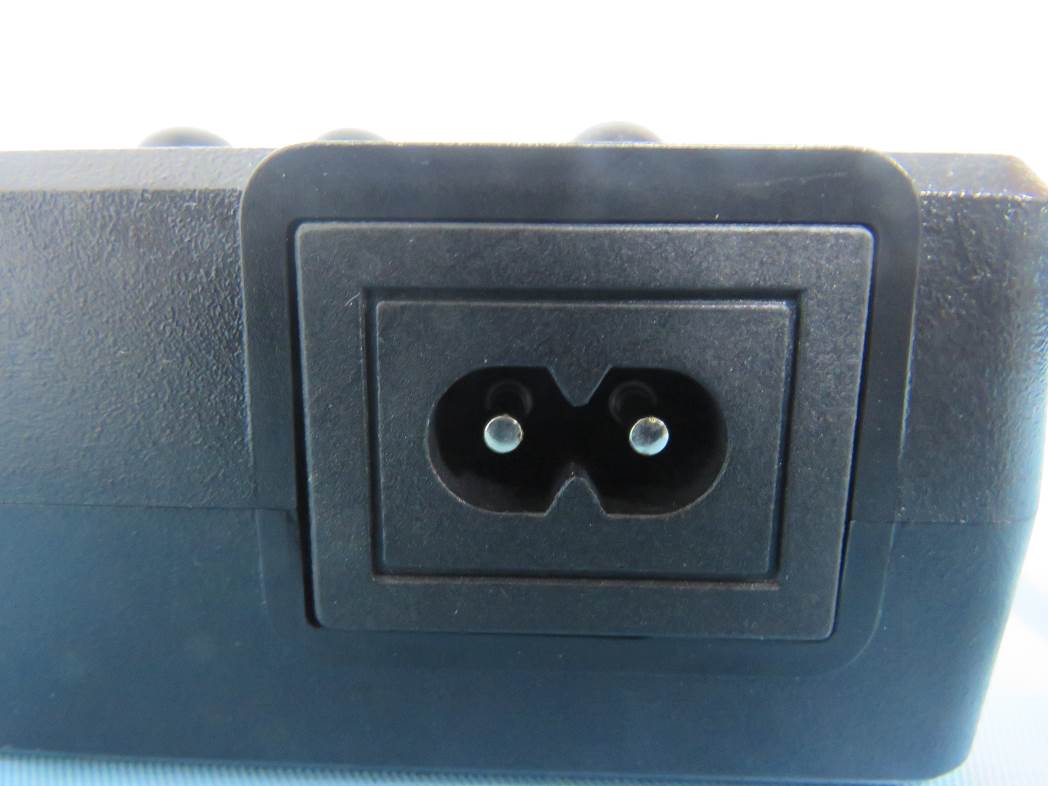

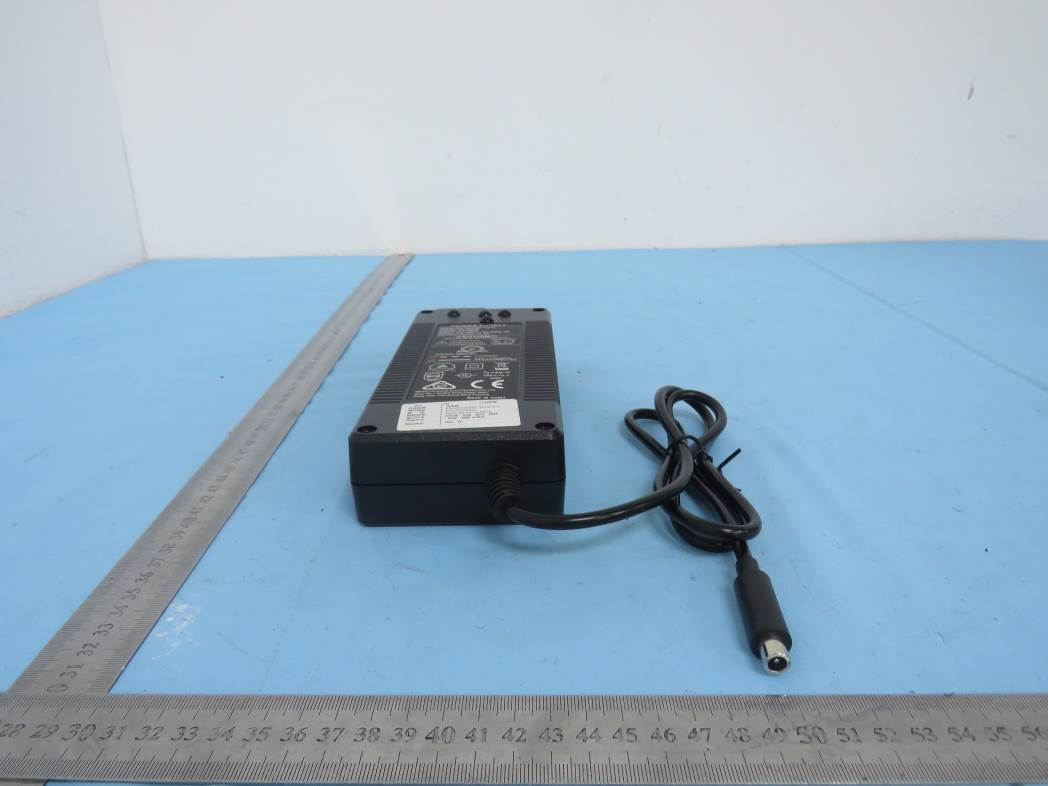

FCC ID: 2AZ3Z-ZSF4142 Page 3 of 15 External photos FCC ID: 2AZ3Z-ZSF4142 Page 4 of 15 FCC ID: 2AZ3Z-ZSF4142 Page 5 of 15 FCC ID: 2AZ3Z-ZSF4142 Page 6 of 15 FCC ID: 2AZ3Z-ZSF4142 Page 7 of 15 FCC ID: 2AZ3Z-ZSF4142 Page 8 of 15 FCC ID: 2AZ3Z-ZSF4142 Page 9 of 15

Z.S.F/APOLLO Z.S.F TECHNOLOGY(SHENZHEN)Co,/Apollo Imports INC. Designation of class: 2 Serial number: Year of construction: 2022 Type designation: Max. speed: 20hm/h Nominal poert: 500W Mass of the PLEV: 25kgs (ln most usual configuration) Maximum permissible payload: 100kg EN 17128:2020 Load Class2 Serial number4142220300001 100kg L9C PRO Model: L9C PRO FCC ID: 2AZ3Z-ZSF4142 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Label & Location

FCC ID: 2AZ3Z-ZSF4142 Page 10 of 15 Internal photos FCC ID: 2AZ3Z-ZSF4142 Page 11 of 15 FCC ID: 2AZ3Z-ZSF4142 Page 12 of 15 RF Antenna RF Chip FCC ID: 2AZ3Z-ZSF4142 Page 13 of 15 FCC ID: 2AZ3Z-ZSF4142 Page 14 of 15 FCC ID: 2AZ3Z-ZSF4142 Page 15 of 15

Dongguan Nore Testing Center Co., Ltd. Report No.: NTC2206230F-1 FCC ID: 2AZ3Z-ZSF4142 RF EXPOSURE EVALUATION EUT Specification EUT Electric Scooter Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5825GHz Others(Bluetooth: 2.402GHz ~ 2.480GHz) Device category Portable (<20cm separation) Mobile (>20cm separation) Others ___ Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power -4.911dBm(0.323mW) Antenna gain 0dBi Evaluation applied MPE Evaluation SAR Evaluation Standard Requirement Portable Device According to §15.247(i) and §1.1307b(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. See KDB 447498 D01 General RF Exposure Guidance v06, section 4.3.1. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, 16 where ·f(GHz) is the RF channel transmit frequency in GHz ·Power and distance are rounded to the nearest mW and mm before calculation17 ·The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Dongguan Nore Testing Center Co., Ltd. Report No.: NTC2206230F-1 FCC ID: 2AZ3Z-ZSF4142 Measurement Result Channel Channel Frequency (MHz) Max Output power (dBm) Max Output power (mW) Calculati on Value (Note 1) Threshold Value BLE Low 2402 -4.911 0.32 0.496 3.0 Only the worst case was recorded in the report. Note 1: Calculation Value =[(max. power of channel, mW)/(min. test separation distance, mm)] ·[√f(GHz)]. Fox example: 0.32/5*√2.402=0.496 ≤ 3.0 According to KDB447498 D01 V06, threshold at which no SAR required is ≤3.0 for 1-g SAR, separation distance is 5mm, and no simultaneous SAR measurement is required.
