正 面 B o b t o t P o rt a b l e Wi 「e l e ss S p e a k er Q u i c k S tart G u id e 09 1 技 术 要 求 ： Wh at ' s i n t he B ox 。 Bobtot Ch ec k t o m a k e s un, yo u h a ve e v叩 hing below . 。 三 。 尸 A: 1 * 091 Portable Sp eaker B : 1*US B Cha rg ing Cable ( Ty p e - C) c : 1 ·auick S ta rt Quid e 1 . 成 品 尺寸 75 * 75 mm 展开 尺 寸 ： 6 0 0 * 75 mm 2 . 12 8g 铜 版 纸 3 . 风 琴 折 ， 红色线为刀 模 线无 需印刷出来 。 4 . 单 黑色双 面 印刷 B u tt ons O verv i ew 2. Play/PausefTWS 1. Powe『On/Off 3 . � � ! �� 。 ： 二n卢 文二4 ' 、 5 芦 芯 ；／ 4 . P hone C a ll B u tt on B utt on F un ctio n � P o we r On/O ff L on g p re ss to tu rn t h e s p eak e r o n/ o ff Pl a y /P a us e /TWS 1>11� S h o rt p ress to p l a y / pa u se L o n g p re ss to dis conn e ct B T mo d e Double - dick to TWS pa i ri ng/ di sc o nn e ct Phone Call Button rf°Short press to answer t h e ca ll L o n g press to rej e ct t h e call Do u b le 七l i c k to re di a l the la s t n u m be 「 Vol u me Up /N ext Son g c} Sh o rt p re ss to go to th e n e xt so n g Long press to increase t he vo lu m e Vo lu me Down / Pre vi o u s S o n g S h o rt p re ss to go to th e p re v i ou s so n g L on g p ress to dec re as e t he vo lu m e I n itial S etu p 1 ) Once your spea ker is fully ch arge d , pre ss a n d ho l d t h e c!) Power button t o t urn o n t h e s pea ker , t he i n di ca to r l ig h t fta s h m e a n s tha t th e s p e ak e r ente rs B T pairing m o de 2 ) O n yo u r sma rt p h o ne or ta blet or o th er BT d e vic es, se arc h for the BT n am ed" B o b to t Q91" a nd ta p to co nn e ct 3 ) I t's s u cce ss f u ll y co n n e c t ed to yo ur d evice if yo u hea 『p ro m p t s oun d, a nd m ode i ndi c a to 八u rnss o lid N o te s : Wh en pow er o n th e sp ea ker but no conn e cti o n o r no p layb a c k , i t wi ll au to ma tica lly s h u t d ow n after 1 0 m in utes t o p rot ect th e ba tt e ry . T WSW i 「e l ess S t e re o P a i r i n g S tep 1 : Lo n g pre ss (!) o n tw o s p eak e rs t o power on a n d t he i ndica to r l i gh t fl a s hi n g . S tep 2 : Q uic kly d ou bl e 劝 ck 1>111 o n a n y sp ea k e r , and yo u w ill h e ar th e prompt so un d indi ca ti n g th e s pea k e r en ters pairing mod e , th e i n di cato r l i g h t of o ne s p e a k e r t u m s so l id . S tep 3 : F ind " B ob t ot Q9 1 ' spe a ker 011 the BT list o f your pho n e or pad, a n d c l ic k t o connec t. S tep 4 : Th e S p eake 『 i s s u cce s sf u ll y b e co nnected wi th y ou r s m a rt d ev i ce w h en th e indica to r l ight o f bot h s p e akers t u rn so lid . N o t es : 1. I n T WS m ode , tu m off e ith e r o ne s p e a k er , b oth of them a re o ff. 2 . Do u bl e - cli c k t h e 以I b utton w i ll b e d i scon n e ct e d. Sp e c ifi c a ti on s - M o del N am e. B ob to t 091 - BT Ve rs i on . VS .4 - O ut p ut P ower: SW - I n put P o wer · D C 5V - F r eq u e ncy R esponse : 1 2 0 H z - 1 8KHz -Wi『e le ssR a nge · �3311 ( 1 O m ) - Cha rg i ng p o rt Type C - LifeWat e 「p『oo f , S p r a yproo f - T'NS F u n c ti on - Bu i l l-in Mi cro p hon e - 1 2 00 m Ah R ec ha rg e abl e B at te ry Resetting Your Device If y our s peaker is not operating properly , you may re set It To do so, p r es s a n d h o ld t h e (!) po we r b u tton for a p p ro x i m a te l y 8 s un ti l t h e s p eaker powers o ff , a n d th en p ower i t o n a g ai n as usua l Bobtot 1 2 M o n t hs Wa rran ty Li fe - t i m e & T i m e ly Te c h n i c al S u pport 区 s u pp o rt @b obt o t. net 毯www . b o btot. ne t M ad e i n C h ina 芯 CE Ro HS 凸 呈 翌 O沁 咖//F ea t呻a nd ' tH I『 ' ' " " " " '� 的计eawchan g eandort叩叩me,t咐如1心 , ce

MOSWS INTERNATIONAL LIMITED FLAT/RM 07 BLK B 5/F KING YIP FACTORY BUILDING 59 KING YIP STREET KWUN TONG, HongKong, China U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: ANTEK SERVICE INC Address: 901 N PENNSYLVANIA ST STE 0 DENVER, CO 80203 FRN: 0033437609 Tel.: 01 303-8006306 Email: [email protected] Signed by: Shirley Kwok This letter is to confirm that we (“the Designated U.S. Agent) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date: 2025/11/13 Signed by (Printed Name/Title): The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: MOSWS INTERNATIONAL LIMITED Address: FLAT/RM 07 BLK B 5/F KING YIP FACTORY BUILDING 59 KING YIP STREET KWUN TONG, HongKong, China FRN: 0030976781 Grantee Code: 2AZ43 FCC ID: 2AZ43-Q91 Telephone No: +86 13699866756 Email: [email protected] Contact Name: Guogui Huang Applicant Signature: Date: 2025/11/13 Signed by (Printed Name/Title): Guogui Huang / Manager

(MOSWS INTERNATIONAL LIMITED) (2025/11/13) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2AZ43-Q91) [MOSWS INTERNATIONAL LIMITED] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. We also certify that, as of the 2025/11/13 of the filing of the application, the equipment does not utilize cyber-security or anti-virus software from Kaspersky Lab, Inc, or any of its successors and assignees, which is also on the “covered list”. Sincerely, (Applicant signature) (Applicant printed name) Guogui Huang (MOSWS INTERNATIONAL LIMITED) (2025/11/13) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID: 2AZ43-Q91) [MOSWS INTERNATIONAL LIMITED] (“the applicant”) certifies that, as of the 2025/11/13 of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Guogui Huang

MOSWS INTERNATIONAL LIMITED FLAT/RM 07 BLK B 5/F KING YIP FACTORY BUILDING 59 KING YIP STREET KWUN TONG, HongKong, China 2025/11/13 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: Portable Speaker Trademark: Bobtot MODEL: Q91 FCC ID: 2AZ43-Q91 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title: Guogui Huang / Manager Contact information / address: FLAT/RM 07 BLK B 5/F KING YIP FACTORY BUILDING 59 KING YIP STREET KWUN TONG, HongKong, China

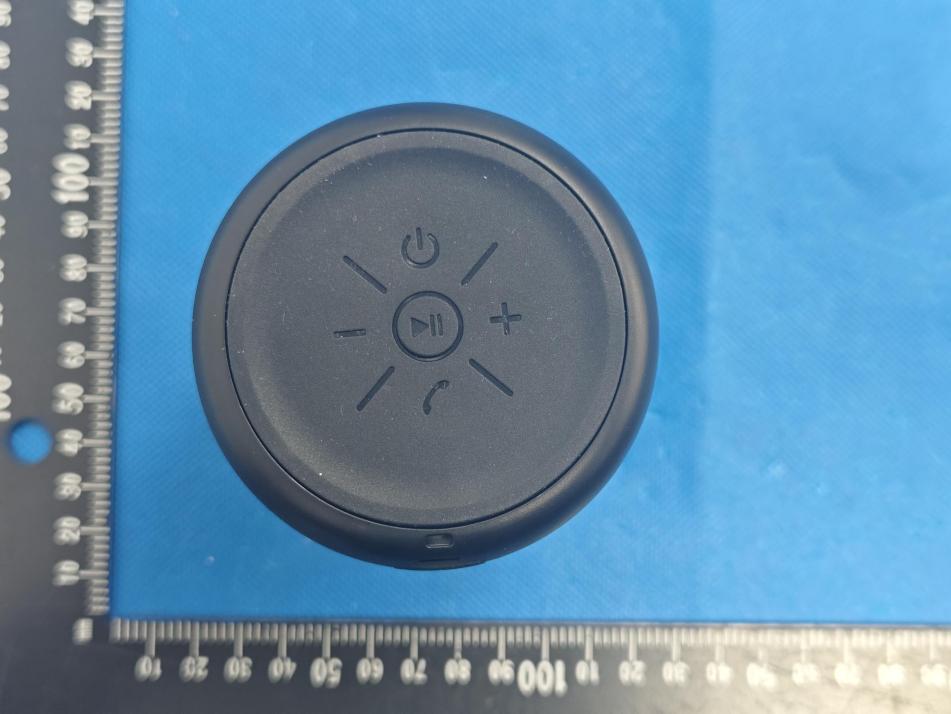

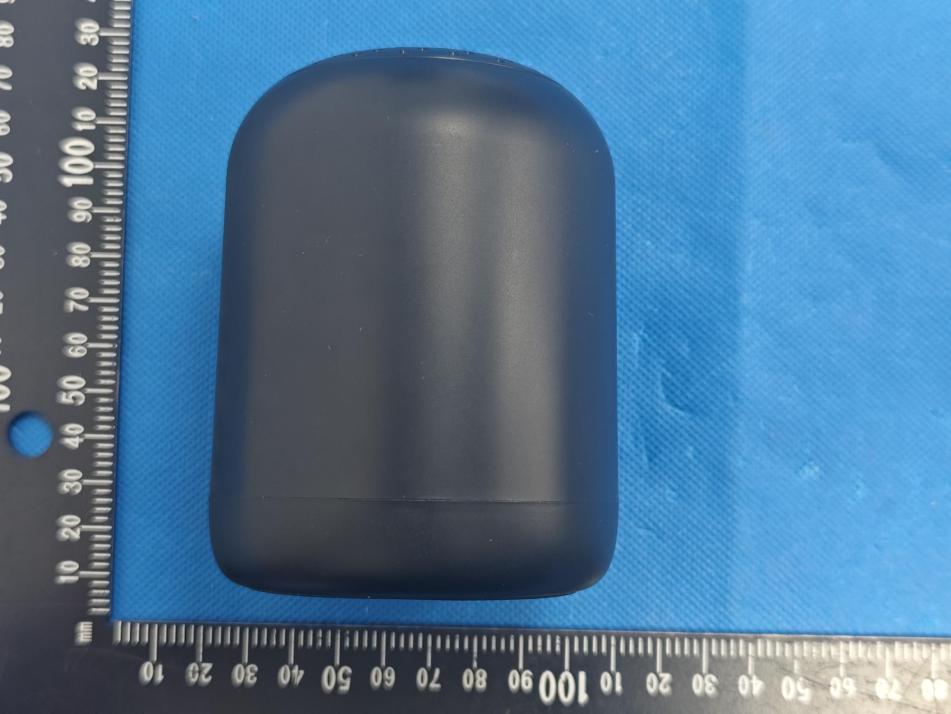

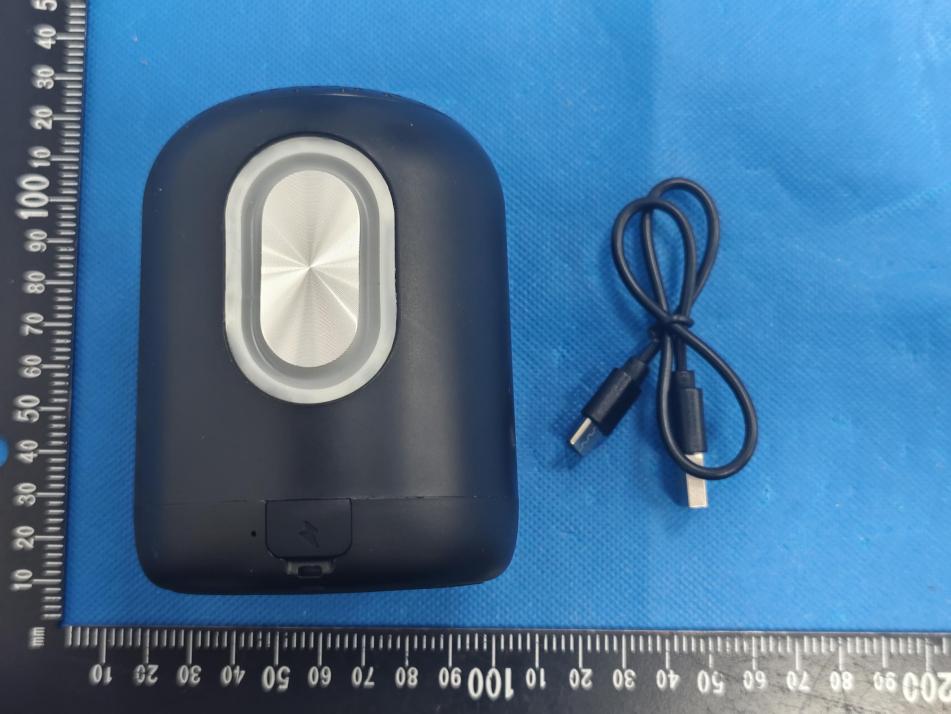

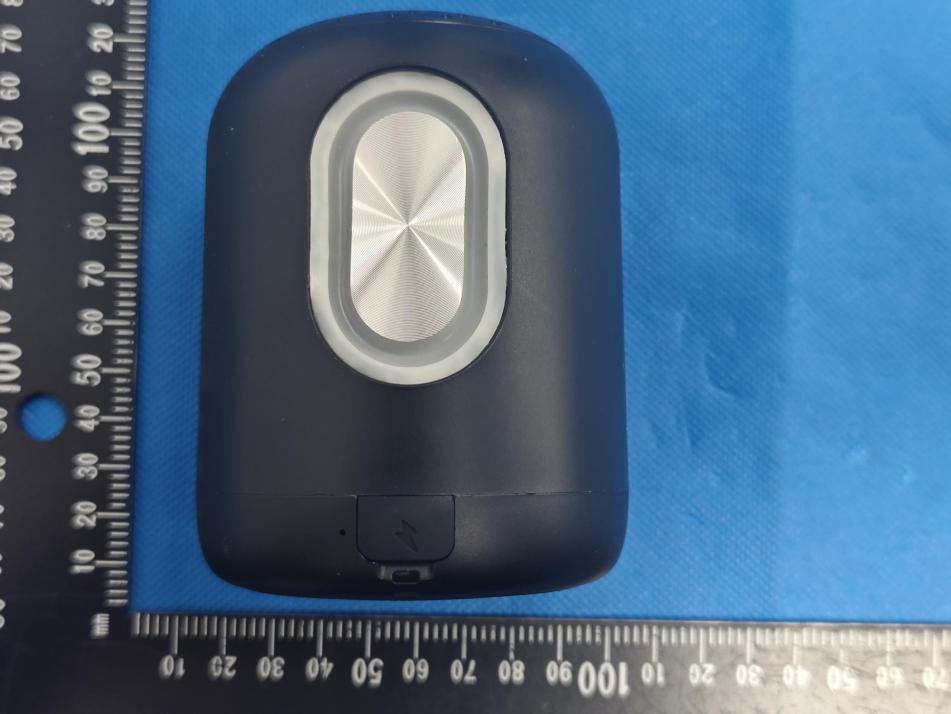

Report No.: BCTC2509863435E External Photos Report No.: BCTC2509863435E Report No.: BCTC2509863435E Report No.: BCTC2509863435E

FCC ID: 2AZ43-Q91 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation Label location

MOSWS INTERNATIONAL LIMITED FLAT/RM 07 BLK B 5/F KING YIP FACTORY BUILDING 59 KING YIP STREET KWUN TONG, HongKong, China 2025/11/13 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION EUT NAME: Portable Speaker Trademark: Bobtot MODEL: Q91 FCC ID: 2AZ43-Q91 To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title: Guogui Huang / Manager Contact information / address: FLAT/RM 07 BLK B 5/F KING YIP FACTORY BUILDING 59 KING YIP STREET KWUN TONG, HongKong, China

Report No.: BCTC2509863435E Internal Photos Report No.: BCTC2509863435E Report No.: BCTC2509863435E Report No.: BCTC2509863435E Antenna

FCC ID: 2AZ43-Q91 RF exposure evaluation §2.1093 Radiofrequency radiation exposure evaluation: Portable Devices. According to§15.247(i) and§1.1307b(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the commission’s guidance. The 1-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  When the minimum test separation distance is < 5 mm, a distance of 5 mm according is applied to determine SAR test exclusion.  The result is rounded to one decimal place for comparison Modulation Frequency (MHz) Max. Power (dBm) Tune-up Power (dBm) Tune-up Power (mW) Test distance (mm) Result exclusion thresholds for 1-g SAR 8DPSK 2402 1.56 2.0 1.58 5 0.50 3.0

Inverted F Antenna Specification Summary ITEMANT SPEC Model Name 2.4G ANT HorizontalVertical 2400MHz 2 450MHz2500MHz2400MHz 2 450MHz 2500MHz Center Frequency -1.26-0.76-0.58-5.25-2.46-1.86 MAX. Gain -0.58dB PolarizationHorizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance50 Ohm Antenna Length 38.20mm Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo & Length (mm) Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -1.26174 -30.0801 -7.18716 2450 -0.765802 -36.5604 -7.48023 2500 -0.585582 -22.0315 -6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain (dB) Frequency (MHz) MaxMinAvg 2400-5.2537-22.1424-12.4294 2450-2.4652-24.5837-10.4702 2500-1.86120-29.5214-9.20432 ANT Test Labs：Attestation of Global Compliance Co., Ltd.

No.：BCTC/RF-ICT-005 Page: 1 of 85 Edition：C.0 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2509863435E Applicant: MOSWS INTERNATIONAL LIMITED Product Name: Portable Speaker Test Model: Q91 Tested Date: 2025-09-09 to 2025-11-25 Issued Date: 2025-11-25 Report No.: BCTC2509863435E No.：BCTC/RF-ICT-005 Page: 2 of 85 Edition：C.0 FCC ID: 2AZ43-Q91 The test report is effective only with both signature and specialized stamp.This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full.The tested sample(s) and the sample information are provided by the client. Product Name: Portable Speaker Trademark: Bobtot Model/Type Reference: Q91 Prepared For: MOSWS INTERNATIONAL LIMITED Address: FLAT/RM 07 BLK B 5/F KING YIP FACTORY BUILDING 59 KING YIP STREET KWUN TONG, HongKong, China Manufacturer: GANZHOU CITY MOSWS ELECTRONICS LTD. Address: South of Jinlingxi Road,East of Qifengshan Road,Ganzhou development area Ganzhou city,Jiangxi province,China. Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China. Sample Received Date: 2025-09-09 Sample Tested Date: 2025-09-09 to 2025-11-25 Issue Date: 2025-11-25 Report No.: BCTC2509863435E Test Standards: FCC Part15.247 ANSI C63.10:2020 Test Results: PASS Remark: This is Bluetooth Classic radio test report. Tested by: Approved by: Min Zhi Cheng / Project Handler Zero Zhou / Reviewer Report No.: BCTC2509863435E No.：BCTC/RF-ICT-005 Page: 3 of 85 Edition：C.0 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 9 4.3 Support Equipment ............................................................................................... 9 4.4 Channel List ........................................................................................................ 10 4.5 Test Mode ........................................................................................................... 10 4.6 Table Of Parameters Of Text Software Setting ................................................... 10 5. Test Facility And Test Instrument Used ............................................................... 11 5.1 Test Facility ......................................................................................................... 11 5.2 Test Instrument Used .......................................................................................... 11 6. Conducted Emissions .......................................................................................... 13 6.1 Block Diagram Of Test Setup .............................................................................. 13 6.2 Limit .................................................................................................................... 13 6.3 Test procedure .................................................................................................... 13 6.4 EUT operating Conditions ................................................................................... 13 6.5 Test Result .......................................................................................................... 14 7. Radiated emissions ............................................................................................. 16 7.1 Block Diagram Of Test Setup .............................................................................. 16 7.2 Limit .................................................................................................................... 17 7.3 Test procedure .................................................................................................... 18 7.4 EUT operating Conditions ................................................................................... 19 7.5 Test Result .......................................................................................................... 19 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 25 8.1 Block Diagram Of Test Setup .............................................................................. 25 8.2 Limit .................................................................................................................... 25 8.3 Test procedure .................................................................................................... 26 8.4 EUT operating Conditions ................................................................................... 26 8.5 Test Result .......................................................................................................... 27 9. Spurious RF Conducted Emissions ..................................................................... 28 9.1 Block Diagram Of Test Setup .............................................................................. 28 9.2 Limit .................................................................................................................... 28 9.3 Test procedure .................................................................................................... 28 9.4 Test Result ..................................................................................................…

Text truncated - open the document above for the full version.

Report No.: BCTC2509863435E No.：BCTC/RF-ICT-005 Page: 47 of 85 Edition：C.0 Band Edge(Hopping) NVNT 2-DH1 2480MHz Hopping Ref Band Edge(Hopping) NVNT 2-DH1 2480MHz Hopping Emission Report No.: BCTC2509863435E No.：BCTC/RF-ICT-005 Page: 48 of 85 Edition：C.0 Band Edge(Hopping) NVNT 3-DH1 2402MHz Hopping Ref Band Edge(Hopping) NVNT 3-DH1 2402MHz Hopping Emission Report No.: BCTC2509863435E No.：BCTC/RF-ICT-005 Page: 49 of 85 Edition：C.0 Band Edge(Hopping) NVNT 3-DH1 2480MHz Hopping Ref Band Edge(Hopping) NVNT 3-DH1 2480MHz Hopping Emission Report No.: BCTC2509863435E No.：BCTC/RF-ICT-005 Page: 50 of 85 Edition：C.0 10. 20 dB Bandwidth 10.1 Block Diagram Of Test Setup 10.2 Limit N/A 10.3 Test procedure 1. Set RBW = 30kHz. 2. Set the video bandwidth (VBW) ≥ 3 x RBW. 3. Detector = Peak. 4. Trace mode = max hold. 5. Sweep = auto couple. 6. Allow the trace to stabilize. 7. Measure the maximum width of the emission that is constrained by the frequencies associated with the two outermost amplitude points (upper and lower frequencies) that are attenuated by 6 dB relative to the maximum level measured in the fundamental emission. 10.4 Test Result Temperature: 26 °C Relative Humidity: 54%RH Pressure: 101KPa Test Voltage : DC 3.7V Condition Mode Frequency (MHz) -20dB Bandwidth (MHz) Verdict NVNT 1-DH1 2402 1.018 Pass NVNT 1-DH1 2441 1.032 Pass NVNT 1-DH1 2480 1.022 Pass NVNT 2-DH1 2402 1.278 Pass NVNT 2-DH1 2441 1.296 Pass NVNT 2-DH1 2480 1.247 Pass NVNT 3-DH1 2402 1.251 Pass NVNT 3-DH1 2441 1.278 Pass NVNT 3-DH1 2480 1.264 Pass Report No.: BCTC2509863435E No.：BCTC/RF-ICT-005 Page: 51 of 85 Edition：C.0 Test Graphs -20dB Bandwidth NVNT 1-DH1 2402MHz -20dB Bandwidth NVNT 1-DH1 2441MHz Report No.: BCTC2509863435E No.：BCTC/RF-ICT-005 Page: 52 of 85 Edition：C.0 -20dB Bandwidth NVNT 1-DH1 2480MHz -20dB Bandwidth NVNT 2-DH1 2402MHz Report No.: BCTC2509863435E No.：BCTC/RF-ICT-005 Page: 53 of 85 Edition：C.0 -20dB Bandwidth NVNT 2-DH1 2441MHz -20dB Bandwidth NVNT 2-DH1 2480MHz Report No.: BCTC2509863435E No.：BCTC/RF-ICT-005 Page: 54 of 85 Edition：C.0 -20dB Bandwidth NVNT 3-DH1 2402MHz -20dB Bandwidth NVNT 3-DH1 2441MHz Report No.: BCTC2509863435E No.：BCTC/RF-ICT-005 Page: 55 of 85 Edition：C.0 -20dB Bandwidth NVNT 3-DH1 2480MHz Report No.: BCTC2509863435E No.：BCTC/RF-ICT-005 Page: 56 of 85 Edition：C.0 11. Maximum Peak Output Power 11.1 Block Diagram Of Test Setup 11.2 Limit FCC Part15 (15.247) , Subpart C Section Test Item Limit Frequency Range (MHz) Result 15.247(b)(1) Peak Output Power 0.125 watt or 21dBm 2400-2483.5 PASS 11.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set the spectrum analyzer: RBW = 2MHz. VBW = 6MHz. Sweep = auto; Detector Function = Peak. 3. Keep the EUT in transmitting at lowest, medium and highest channel individually. Record the max value. 11.4 Test Result Temperature: 26 °C Relative Humidity: 54%RH Pressure: 101KPa Test Voltage : DC 3.7V Condition Mode Frequency (MHz) Conducted Power (dBm) Limit (dBm) Verdict NVNT 1-DH1 2402 0.43 21 Pass NVNT 1-DH1 2441 0.05 21 Pass NVNT 1-DH1 2480 -0.74 21 Pass NVNT 2-DH1 2402 1.22 21 Pass NVNT 2-DH1 2441 0.88 21 Pass NVNT 2-DH1 2480 0.08 21 Pass NVNT 3-DH1 2402 1.56 21 Pass NVNT 3-DH1 2441 1.38 21 Pass NVNT 3-DH1 2480 0.45 21 Pass Report No.: BCTC2509863435E No.：BCTC/RF-ICT-005 Page: 57 of 85 Edition：C.0 Test Graphs Power NVNT 1-DH1 2402MHz Power NVNT 1-DH1 2441MHz Report No.: BCTC2509863435E No.：BCTC/RF-ICT-005 Page: 58 of 85 Edition：C.0 Power NVNT 1-DH1 2480MHz Power NVNT 2-DH1 2402MHz Report No.: BCTC2509863435E No.：BCTC/RF-ICT-005 Page: 59 of 85 Edition：C.0 Power NVNT 2-DH1 2441MHz Power NVNT 2-DH1 2480MHz Report No.: BCTC2509863435E No.：BCTC/RF-ICT-005 Page: 60 of 85 Edition：C.0 Power NVNT 3-DH1 2402MHz Power NVNT 3-DH1 2441MHz Report No.: BCTC2509863435E No.：BCTC/RF-ICT-005 Page: 61 of 85 Edition：C.0 Power NVNT 3-DH1 2480MHz Report No.: BCTC2509863435E No.：BCTC/RF-ICT-005 Page: 62 of 85 Edition：C.0 12. Hopping Channel Separation 12.1 Block Diagram Of Test Setup 12.2 Limit Frequency hopping systems shall have hopping channel carrier frequencies separated by a minimum of 25 kHz or the 20 dB bandwidth of the hopping channel, whichever is greater. Alternatively, frequency hopping systems operating in the 2400-2483.5 MHz band may have hopping channel carrier frequencies that are separated by 25 kHz or two-thirds of the 20 dB bandwidth of the hopping channel, whichever is greater, provided the systems operate with an output power no greater than 0.125W. 12.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set the spectrum analyzer: RBW = 30kHz. VBW = 100kHz , Span = 2.0MHz. Sweep = auto; Detector Function = Peak. Trace = Max hold. 3. Allow the trace to stabilize. Use the marker-delta function to determine the separation between the peaks of the adjacent channels. The limit is specified in one of the subparagraphs of this Section Submit this plot. 12.4 Test Result Mode Test Channel Separation (MHz) Limit(MHz) Result 1-DH1 Low 0.998 0.679 PASS 1-DH1 Middle 0.998 0.688 PASS 1-DH1 High 1.000 0.681 PASS 2-DH1 Low 0.998 0.852 PASS 2-DH1 Middle 1.000 0.864 PASS 2-DH1 High 1.000 0.831 PASS 3-DH1 Low 0.998 0.834 PASS 3-DH1 Middle 1.002 0.852 PASS 3-DH1 High 1.000 0.843 PASS Report No.: BCTC2509863435E No.：BCTC/RF-ICT-005 Page: 63 of 85 Edition：C.0 Test Graphs CFS NVNT 1-DH1 2402MHz CFS NVNT 1-DH1 2441MHz Report No.: BCTC2509863435E No.：BCTC/RF-ICT-005 Page: 64 of 85 Edition：C.0 CFS NVNT 1-DH1 2480MHz CFS NVNT 2-DH1 2402MHz Report No.: BCTC2509863435E No.：BCTC/RF-ICT-005 Page: 65 of 85 Edition：C.0 CFS NVNT 2-DH1 2441MHz CFS NVNT 2-DH1 2480MHz Report No.: BCTC2509863435E No.：BCTC/RF-ICT-005 Page: 66 of 85 Edition：C.0 CFS NVNT 3-DH1 2402MHz CFS NVNT 3-DH1 2441MHz Report No.: BCTC2509863435E No.：BCTC/RF-ICT-005 Page: 67 of 85 Edition：C.0 CFS NVNT 3-DH1 2480MHz Report No.: BCTC2509863435E No.：BCTC/RF-ICT-005 Page: 6…

Text truncated - open the document above for the full version.

Report No.: BCTC2509863435E No.：BCTC/RF-ICT-005 Page: 83 of 85 Edition：C.0 17. EUT Test Setup Photographs Conducted emissions Radiated Measurement Photos Report No.: BCTC2509863435E No.：BCTC/RF-ICT-005 Page: 84 of 85 Edition：C.0 Spurious emissions
