2AZ44-GLASG2Glas-B

54.554.554.554.554.554.554.554.5 110.3 54.554.554.554.554.554.554.554.5 110.3 436 436 16 PANEL FOLDER REVISION B Date 6/17/21 PART NUMBER: 1000-021 SOFT TOUCH COAT USER MANUAL CAUTION FRONTBACK FRONTBACK 100-20% Charge 20-5% Charge 5-0% Charge Glas-Smart™ (Customize Your Experience) Enhanced Security (Lock/Unlock, Signal/Locate Device) Monitor Usage (Track & Map Usage) Battery Monitor (Track Battery Life) Tutorials & FAQʼs (Device Troubleshooting) Customer Support (Glas Concierge Service) Easy To Use (Streamlined App) CAUTION IMPORTANT SAFEGUARDS. SAVE THESE INSTRUCTIONS. CHARGING: • • The Glas G2 device has an input rating of 5Vdc (USB Type A) 0.8A. Battery capacity is 350mAH at nominal voltage 4.2Vdc. This product is intended to be charged only using the included USB 2.0 charging cable (Type A to Micro B) with the following types of equipment: - - BATTERY DISPOSAL The Glas G2 device contains a lithium-ion battery, which contains elements that may pose health risks to individuals if disposed of incorrectly. DO NOT dispose of this product in a fire or incinerator, as that might cause the battery to catch fire and explode. Lithium-ion batteries can be recycled, but only at permitted treatment facilities such as household e-waste collection points or battery-recycling drop-off locations. Please contact your local authority for more information as to how to recycle this product properly. UNLOCK DEVICE As part of Glas’s youth prevention efforts, all new devices are locked and cannot be used until your age is confirmed. Please follow these steps to unlock and activate your device. 1. Download and open the Glas mobile application on your smart phone. 2. Login or create an account. 3. Follow the in-app instructions to unlock & activate your device. GETTING STARTED 1. Remove the colored cap from the pod. 2. Align the air sensor on the device with the small hole on the bottom of the Glas G2 Pod, and insert the Pod into the device. 3. Take small puffs from the Glas G2 device to get a feel for the vapor production & ease into inhaling. If it feels too harsh, try to inhale less and puff more gently. CONNECT APP BACK COVER App features include: SAFETY WARNING Listed / certified USB charger (marked “LPS” or “Class 2”), with a rated output of 5Vdc, 0.5A min (2.5A max). Listed / certified host computer using (5Vdc) USB 2.0 or better. • • BATTERY WARNING • • The included USB 2.0 charging cable is for INDOOR USE ONLY. Do not attempt to disassemble your device. Any attempt to do so will void the warranty. If your device needs service, please contact our customer service team at glas.com/support. The battery used in this device may present a risk of fire, explosion or chemical burn if mishandled. Do not disassem- ble or heat this device above 40°C (104°F). Stop using this product if it becomes abnormally hot, or if abnormal conditions are detected during charging, use or storage. • • • • This Glas G2 device is only to be used with Glas G2 pods. Do not insert any foreign objects or materials into this device. Non-smokers, pregnant women, women who may become pregnant, women who are breastfeeding, persons with or at risk of heart disease, high blood pressure, or diabetes, or persons taking medication for depression or asthma should not use this product. You should consult your physician before using any Glas products. This product is not to be used by children. Keep this product out of reach of children and pets at all times. Do not disassemble, drop, throw, crush, deform, puncture, shred, microwave or incinerate this product. SAFETY WARNING • • • • Keep this product dry. Stop using and dispose of this product immediately if the device enclosure shows any signs of damage, such as swelling or cracks. Some parts of the Glas G2 product may be a choking hazard. If ingested, consult a poison control center or doctor immediately. In the case of ingestion by a pet, consult a veterinarian immediately. Store the Glas G2 product at room temperature. Do not store or use this product in hot areas such as where the product is continuously exposed to direct sunlight, in a closed vehicle in hot weather, or near a heat source. BATTERY INDICATOR While in use the light glows to indicate battery life. CHARGING Insert the Type A part of the included USB 2.0 (Type A to Micro B) cable into a compatible USB port, and insert the Micro B part into the charging port located at the bottom of the Glas G2 device. Only charge the Glas G2 device within the temperature range of 0-40 ° C (32-104°F). Device is fully charged in approximately 20 minutes. While charging, the LED indicator glows to indicate the charging status. CLEANING Keep the following areas clean and dry to ensure optimal performance of your Glas G2 product: • G2 Pod • Inside the G2 device (Where the G2 pod is inserted) • Charging port (At the bottom of the G2 device) Use a cotton swab dampened with isopropyl alcohol to clean. Let air dry thoroughly. AT YOUR SERVICE Need help? Please feel free to contact our concierge support team at any time via the mobile app or glas.com website. Email: [email protected] Support: glas.com/support Website: glas.com Visit our website to see and try our currently available pod flavors. We are here to help! FCC NOTICE FCC Supplier’s Declaration of Conformity Product Name: Glas-B Model Number: M926-B, Glas G2 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Responsible Party – U.S. Contact Information: Company name: Glas, Inc. Address: 2127 Westwood Blvd., Los Angeles, CA 90025 Telephone Number: (844) 949-4527 FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interfere…

Text truncated - open the document above for the full version.

54.554.554.554.554.554.554.554.5 110.3 54.554.554.554.554.554.554.554.5 110.3 436 436 16 PANEL FOLDER REVISION B Date 6/17/21 PART NUMBER: 1000-021 SOFT TOUCH COAT MANUEL UTILISATEUR MISE EN GARDE FRONTBACK FRONTBACK 100-20% de charge 20-5% de charge 5-0% de charge Glas-Smart™ (Personnalisez votre expérience) Sécurité renforcée (Verrouiller / Déverrouiller Signaler / localiser l'appareil) Surveiller l'utilisation (Suivi et utilisation de la carte) Moniteur de batterie (Suivre la durée de vie de la batterie) Tutoriels et FAQ (Dépannage de l'appareil) Service client (Service de conciergerie Glas) Facile à utiliser (Application simplifiée) MISE EN GARDE GARANTIES IMPORTANTES. CONSERVEZ CES INSTRUC- TIONS. MESURES DE SÉCURITÉ IMPORTANTES. MISE EN CHARGE: • • L'appareil Glas G2 a une puissance d'entrée de 5Vdc (USB Type A) 0.8A. La capacité de la batterie est de 350 mAH à une tension nominale de 4.2 Vcc. Ce produit est destiné à être chargé uniquement à l'aide du câble de chargement USB 2.0 inclus (Type A à Micro B) avec les types d'équipement suivants: - - ÉLIMINATION DE BATTERIE L'appareil Glas G2 contient une batterie au lithium-ion, qui contient des éléments qui peuvent présenter des risques pour la santé des personnes en cas de mise au rebut incorrecte. NE jetez PAS ce produit dans un feu ou un incinérateur, car cela pourrait faire prendre feu et exploser la batterie. Les batteries lithium-ion peuvent être recyclées, mais uniquement dans les installations de traitement autorisées telles que les points de collecte des déchets électroniques ménagers ou les lieux de dépôt de recyclage des batteries. Veuillez contacter votre autorité locale pour plus d'informa- tions sur la manière de recycler correctement ce produit. UNLOCK DEVICE Dans le cadre des efforts de prévention jeunesse de Glas, tous les nouveaux appareils sont verrouillés et ne peuvent pas être utilisés tant que votre âge n’a pas été confirmé. Veuillez suivre ces étapes pour déverrouiller et activer votre appareil. 1. Téléchargez et ouvrez l'application mobile Glass sur votre smartphone. 2. Identifiez-vous ou créez un compte. 3. Suivez les instructions de l'applica- tion pour déverrouiller et activer votre appareil. COMMENCER 1. Retirez le capuchon coloré de la capsule. 2. Alignez le capteur d'air de l'appareil avec le petit trou au bas du Glas G2 Pod et insérez le Pod dans l'appareil. 3. Prenez de petites bouffées du Glas G2 appareil pour avoir une idée de la production de vapeur et faciliter l'inhalation. Si cela semble trop dur, essayez d'inhaler moins et de souffler plus doucement. CONNECTER L'APPLI RETOUR COUVRIR Les fonctionnalités de l'application incluent: ALERTE DE SÉCURITÉ Chargeur USB répertorié / certifié (marqué «LPS» ou «Classe 2»), avec une sortie nominale de 5 Vcc, 0.5 A min (2.5 A max). Ordinateur hôte répertorié / certifié utilisant (5Vdc) USB 2.0 ou supérieur. • • BATTERIE AVERTISSEMENT • • Le câble de chargement USB 2.0 inclus est UNIQUEMENT POUR UNE UTILISATION À L'INTÉRIEUR. N'essayez pas de démonter votre appareil. Toute tentative de le faire annulera la garantie. Si votre appareil nécessite une réparation, veuillez contacter notre équipe de service client à l'adresse glas.com/support. La batterie utilisée dans cet appareil peut présenter un risque d'incendie, d'explosion ou de brûlure chimique en cas de mauvaise manipulation. Ne démontez pas et ne chauffez pas cet appareil au-dessus de 40 ° C (104 ° F). Arrêtez d'utiliser ce produit s'il devient anormalement chaud ou si des conditions anormales sont détectées pendant le chargement, l'utilisation ou le stockage. • • • • Cet appareil Glas G2 ne doit être utilisé qu'avec les dosettes Glas G2. N'insérez aucun objet ou matériau étranger dans cet appareil. Les non-fumeurs, les femmes enceintes, les femmes susceptibles de devenir enceintes, les femmes qui allaitent, les personnes atteintes ou à risque de maladie cardiaque, d'hypertension ou de diabète, ou les personnes prenant des médicaments pour la dépression ou l'asthme ne doivent pas utiliser ce produit. Vous devriez consulter votre médecin avant d'utiliser tout produit Glas. Ce produit ne doit pas être utilisé par des enfants. Gardez ce produit hors de portée des enfants et des animaux en tout temps. Ne pas démonter, laisser tomber, jeter, écraser, déformer, percer, déchiqueter,micro-ondes ou incinérer ce produit. ALERTE DE SÉCURITÉ • • • • Gardez ce produit au sec. Cessez d'utiliser et jetez ce produit immédiatement si le boîtier de l'appareil présente des signes de dommages, tels que gonflement ou fissures. Certaines pièces du produit Glas G2 peuvent présenter un risque d'étouffement. En cas d'ingestion, consultez immédiatement un centre antipoison ou un médecin. En cas d'ingestion par un animal domestique, consultez immédiate- ment un vétérinaire. Conservez le produit Glas G2 à température ambiante. Ne stockez pas et n'utilisez pas ce produit dans des zones chaudes telles que les endroits où le produit est continuellement exposé à la lumière directe du soleil, dans un véhicule fermé par temps chaud ou à proximité d'une source de chaleur. INDICATEUR DE BATTERIE Pendant l'utilisation, le voyant s'allume pour indiquer la durée de vie de la batterie. MISE EN CHARGE Insérez la partie Type A du câble USB 2.0 (Type A vers Micro B) inclus dans un port USB compatible et insérez la partie Micro B dans le port de charge situé au bas de l'appareil Glas G2. Chargez l'appareil Glas G2 uniquement dans la plage de température de 0 à 40 ° C (32 à 104 ° F). L'appareil est complètement chargé en 20 minutes environ. Pendant la charge, le voyant LED s'allume pour indiquer l'état de charge. NETTOYAGE Gardez les zones suivantes propres et sèches pour garantir des performances optimales de votre produit Glas G2: • G2 Pod • À l'intérieur de l'appareil G2 (Où le pod G2 est inséré) • Port de chargement (Au bas de l'appareil G2) Utilisez un coton-tige imbibé d'alcool isopropylique pour nettoyer. Laissez sécher complètement à l'air. À…

Text truncated - open the document above for the full version.

Glas, Inc. Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc. as our representative, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to us relating to the product’s compliance with requirements of the relevant standard and to make these records available when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Best Regards, Company Name: Glas, Inc. Contact Name: Raoul Misra Title of Person: Quality Engineering Specialist Address: 2127 Westwood Blvd Los Angeles, CA 90025 USA

Glas, Inc. Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: 2AZ44-GLASG2 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential documents from public disclosure indefinitely: Schematic Diagram Block Diagram Theory of Operation The above mentioned documents contain detailed system and equipment descriptions, and are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitors an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondence during certification review process cannot be granted as confidential documents, and such information will be available for public review once the grant of equipment authorization is issued. Best Regards, Company Name: Glas, Inc. Contact Name: Raoul Misra Title of Person: Quality Engineering Specialist Address: 2127 Westwood Blvd Los Angeles, CA 90025 USA

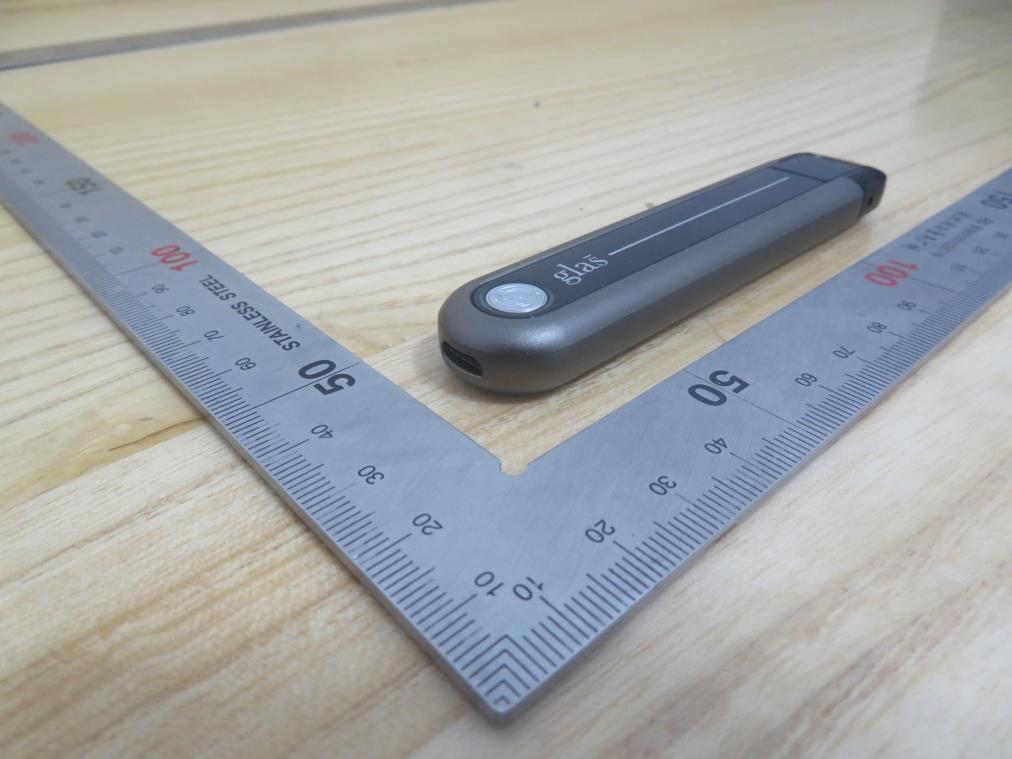

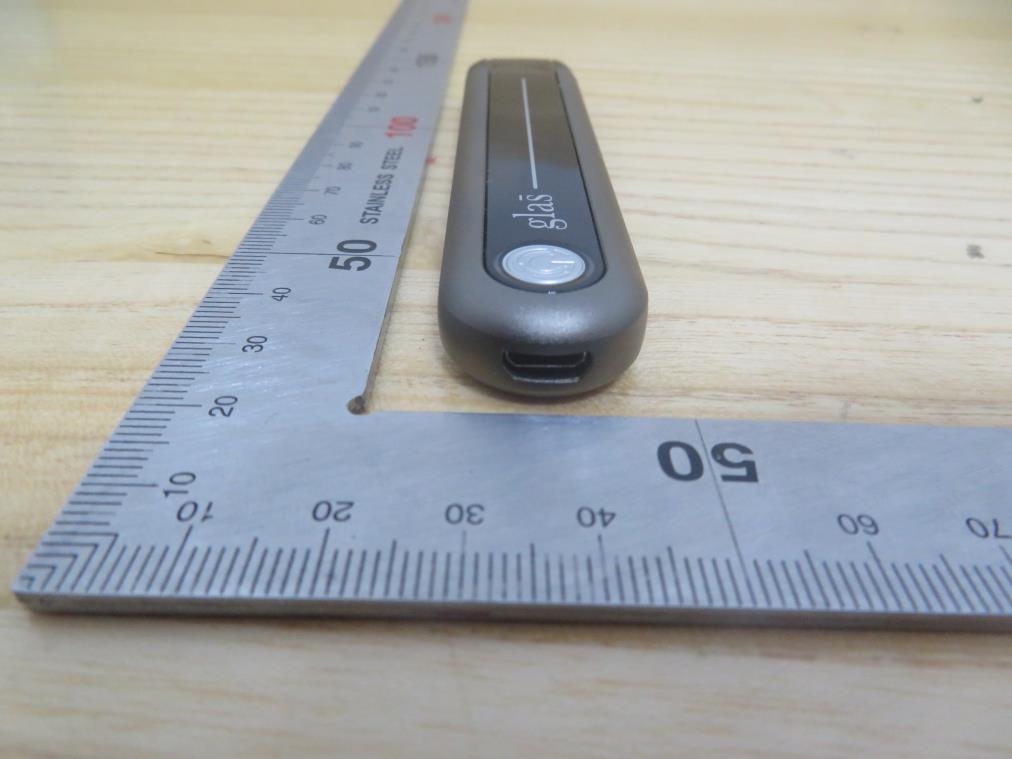

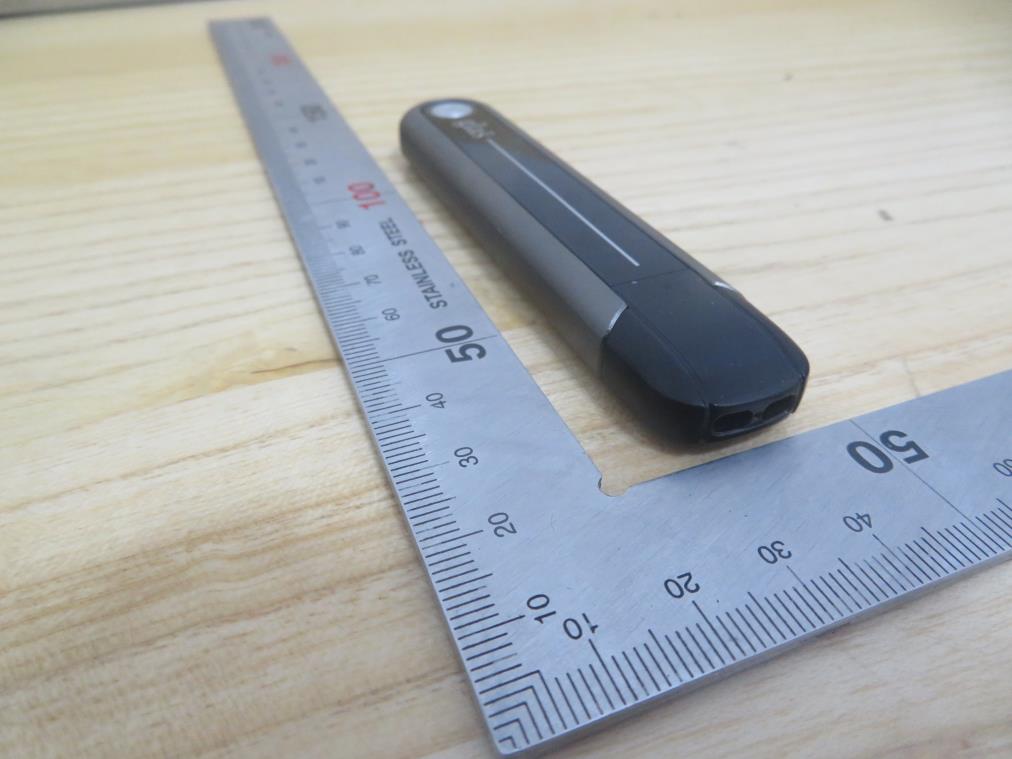

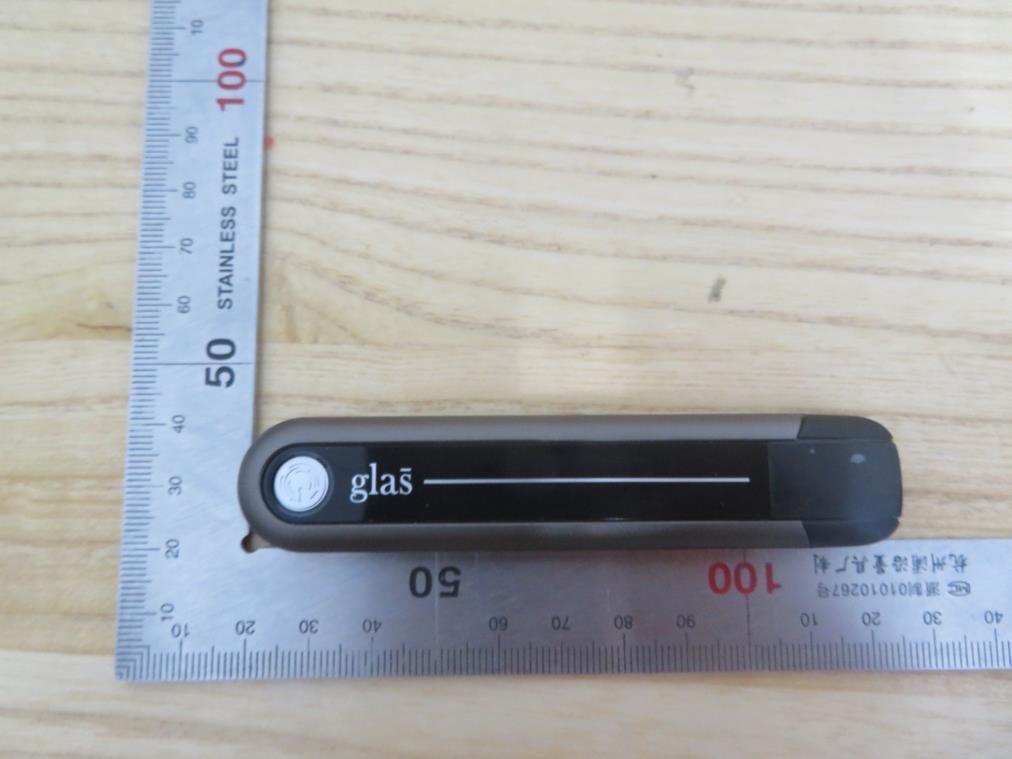

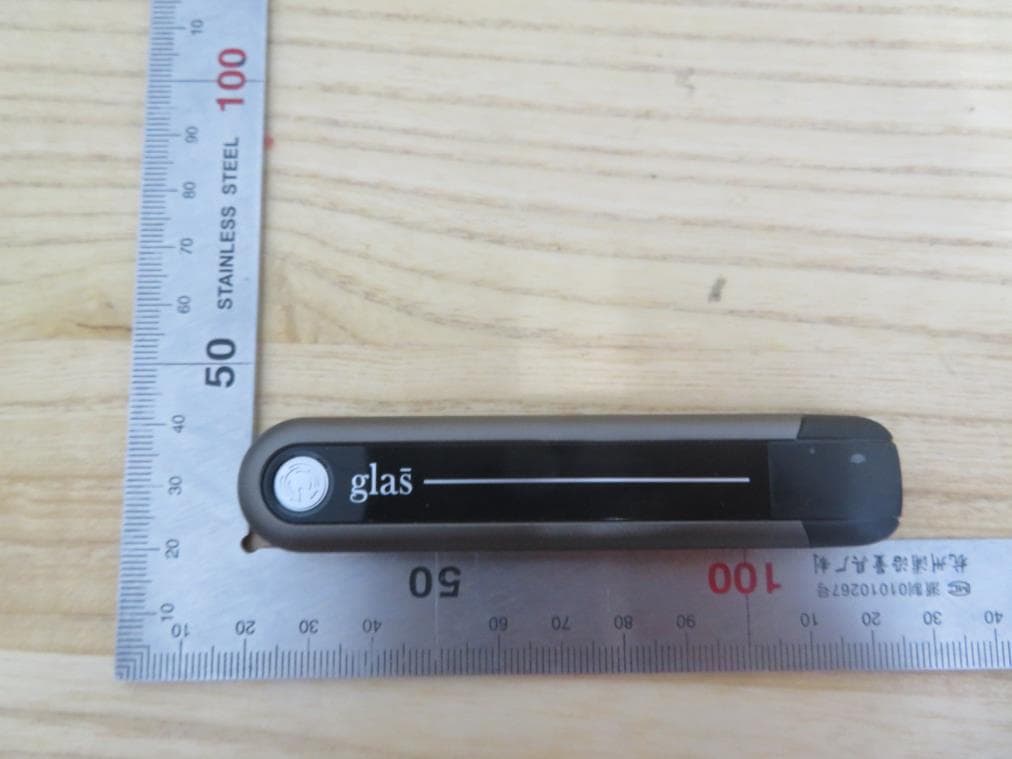

Appendix I External Photographs Page 2 of 4 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. View of EUT-1 View of EUT-2 Page 3 of 4 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. View of EUT-3 View of EUT-4 Page 4 of 4 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. View of EUT-5 View of EUT-6

M926-BGlas G2Laser Document JFactory code J=JWEI BProduct Name B=Battery YYProduction Year 20-2020 DDDDate of year 234-234 AProduction Line number A~Z EBattery supplier code E=EVE BSecond Generation Battery B=M926-B The bullet code of the cartridge is limited to A01JB, ∞, 深圳市聚维电子科技有限公司（未经书面授权，禁止传播、扩散） Shenzhen JWEI Electronic Technology Co., Ltd. (dissemination and diffusion are prohibited without written authorization) M926-B 产品名称 Part No. 1:1 mm 葛惠祖 2021-06-18 A1 5140000068 日期 Date 版 本 Revision 比例 Scale 单位 Unit 核准 Approved by 审 核 Checked by 设 计 Designed by 零件编号 Part No. 材料 Material 零件名称 Model No. 2020-12-16 葛惠祖 A3 A2 A1 更改日期 Date of Change 5 E 6 8 4 A C 3 E 6 1 A FF C B D 7 5 8 B 2 D 7 首次发行 New release A0 更改者 Changed by 更 改 内 容 Change Content 版 本 Versions 1.120.90.60.4315~620 0.90.70.50.3180~315 0.70.50.40.280~180 0.50.40.30.1530~80 0.40.30.20.16~30 0.30.20.10.050~6 长度 Dimensions 公差 Tolerance(±） 角度公差Angular Tolerance:(±1°) 镭射 Laser QF-R-42 A0 Huizu Ge 2021-06-18 葛惠祖 新增镭射信息 New Laser Information Huizu Ge Huizu Ge

Appendix II Internal Photographs Page 2 of 4 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Internal View of EUT-1 Internal View of EUT-2 Page 3 of 4 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Internal View of EUT-3 Internal View of EUT-4 Antenna Page 4 of 4 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. View of JS Battery View of EVE Battery

FCC ID: 2AZ44-GLASG2 According to KDB 447498 D01 General RF Exposure Guidance v06, section 4.3.1 At 100 MHz to 6 GHz and for test separation distances ≤ 50 mm, the SAR test exclusion threshold is determined according to the following [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] x [√f(GHz)] ≤ 3.0 1. SAR test exclusion threshold Frequency: 2480MHz (min. separation distances = 5 mm) SAR test exclusion thresholds (5 mm) = 3 x 5 / (√ 2.480) = 9.525 mW Max. Tune-up Tolerance (mW) SAR Test Exclusion Thresholds (5mm) (mW) 2 9.525 Calculation Value: 2 (mW) / 5 (mm) x √ 2.480 = 0.63 So, Calculation value ≤ 3.0 Remark: -Max. conducted power 1.26 mW is closet 2 mW, so 2 mW was calculated. -When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. 2. Conclusion: No SAR is required.

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. CFR 47 FCC PART 15 SUBPART C ISED RSS-247 ISSUE 2 CERTIFICATION TEST REPORT For Glas-B FCC MODEL NUMBER: M926-B, Glas G2 IC MODEL NUMBER: Glas G2 FCC ID: 2AZ44-GLASG2 IC: 27341- GLASG2 REPORT NUMBER: 4789905633-1 ISSUE DATE: May 24, 2021 Prepared for Glas, Inc. 2127 Westwood Blvd Los Angeles, CA 90025 USA Prepared by UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch Building 10, Innovation Technology Park, No. 1, Li Bin Road, Song Shan Lake Hi- Tech Development Zone Dongguan, 523808, People’s Republic of China Tel: +86 769 22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT NO.: 4789905633-1 Page 2 of 74 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0087 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Revision History Rev. Issue Date Revisions Revised By V0 05/17/2021 Initial Issue REPORT NO.: 4789905633-1 Page 3 of 74 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0087 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Summary of Test Results Clause Test Items FCC/ISED Rules Test Results 1 6dB Bandwidth and 99% Occupied Bandwidth FCC Part 15.247 (a) (2) RSS-247 Clause 5.2 (a) ISED RSS-Gen Clause 6.7 Pass 2 Peak Conducted Output Power FCC Part 15.247 (b) (3) RSS-247 Clause 5.4 (d) Pass 3 Power Spectral Density FCC Part 15.247 (e) RSS-247 Clause 5.2 (b) Pass 4 Conducted Bandedge and Spurious Emission FCC Part 15.247 (d) RSS-247 Clause 5.5 Pass 5 Radiated Bandedge and Spurious Emission FCC Part 15.247 (d) FCC Part 15.209 FCC Part 15.205 RSS-247 Clause 5.5 RSS-GEN Clause 8.9 Pass 6 Conducted Emission Test for AC Power Port FCC Part 15.207 RSS-GEN Clause 8.8 Pass 7 Antenna Requirement FCC Part 15.203 RSS-GEN Clause 6.8 Pass Note: 1.This test report is only published to and used by the applicant, and it is not for evidence purpose in China. 2.The measurement result for the sample received is <Pass> according to < CFR 47 FCC PART 15 SUBPART C >< ISED RSS-247 > when <Accuracy Method> decision rule is applied. REPORT NO.: 4789905633-1 Page 4 of 74 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0087 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 6 2. TEST METHODOLOGY ..................................................................................................... 7 3. FACILITIES AND ACCREDITATION ................................................................................. 7 4. CALIBRATION AND UNCERTAINTY ................................................................................ 8 4.1. MEASURING INSTRUMENT CALIBRATION .............................................................. 8 4.2. MEASUREMENT UNCERTAINTY ............................................................................... 8 5. EQUIPMENT UNDER TEST ............................................................................................... 9 5.1. DESCRIPTION OF EUT .............................................................................................. 9 5.2. CHANNEL LIST ........................................................................................................... 9 5.3. MAXIMUM PEAK OUTPUT POWER ..........................................................................10 5.4. TEST CHANNEL CONFIGURATION ..........................................................................10 5.5. THE WORSE CASE POWER SETTING PARAMETER ..............................................10 5.6. DESCRIPTION OF AVAILABLE ANTENNAS .............................................................10 5.7. DESCRIPTION OF TEST SETUP ...............................................................................11 6. MEASURING INSTRUMENT AND SOFTWARE USED ....................................................13 7. ANTENNA PORT TEST RESULTS ...................................................................................15 7.1. ON TIME AND DUTY CYCLE .....................................................................................15 7.2. 6 dB DTS BANDWIDTH AND 99 % OCCUPIED BANDWIDTH ..................................16 7.3. CONDUCTED OUTPUT POWER ...............................................................................18 7.4. POWER SPECTRAL DENSITY ..................................................................................19 7.5. CONDUCTED BANDEDGE AND SPURIOUS EMISSIONS ........................................21 8. RADIATED TEST RESULTS .............................................................................................23 8.1. RESTRICTED BANDEDGE ........................................................................................29 8.1.1. LE 1M MODE .......................................................................................................29 8.2. SPURIOUS EMISSIONS (1 GHz ~ 3 GHz) .................................................................37 8.2.1. LE 1M MODE .......................................................................................................37 8.3. SPURIOUS EMISSIONS (3 GHz ~ 18 GHz) ...............................................................43 8.3.1. LE 1M MODE .............................…

Text truncated - open the document above for the full version.

Appendix III Setup Photographs Conducted Disturbance Radiated Disturbance below 1 GHz and above 30 MHz Radiated Disturbance below 30 MHz Radiated Disturbance Setup (Above 1 GHz – X axis) Radiated Disturbance Setup (Above 1 GHz – Y axis) Radiated Disturbance Setup (Above 1 GHz – Z axis)
