2AZ47-3021FSfmStick

fmStick Quick Start Guide rev 1.0 Introduction fmStick is a device powered by Android system to play your advertisement on your TV to promote your product and service. You can use fmStick with any TV witha HDMI interface. Easy installation and setup. Learn More Visthttps://friendmedia.com/for more information. Visithttps://friendmedia.com/contactto request a demo, new user training and technical support. Singup and Create Your Playlist 1.Signup to FriendMedia from https://my.friendmedia.com/checkout 2.Login to your account athttps://my.friendmedia.com/ 3.Create your playlist to be played on your TV Hardware Installation 1.fmStick to power:Turn on your TV and power up fmStick by connecting USB cable to an adapter(5V2A)or the USB port on your TV. 2. fmStick to TVPlug fmStick into a HDMI port on your TV. 3. Select source:Set your TV source/input selectionto HDMI port connected to the fmStick. 4. Connect successfully:Your TV screen shall display the instructions once fmStick is connected successfully. Please follow the instructions to complete setup 5.Make your bluetooth remote discoverable and fmStick will connect it. 6.Connect fmStick to WIFI 7.Activate your fmStick 8.You fmStick is set up successfully fmStick Settings Internet: Connect fmStick to WIFI. Update Update the firmware over the air Browser Launch browser to troubleshoot internet connection issues Subtitle Turn on/off subtitles for video. About Check the fmStick system information ©2019 FriendMedia Inc. All right reserved. fmStick are trademarks of FriendMedia Inc., registered in the US, Europe, and other countries.Other product and company names mentioned herein may be trademarks other respective companies. FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1 This device may not cause harmful interference. 2 This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approvedby the party responsible for compliance could void the user's authority to operate the equipment. NOTE This equipment has been tested and found tocomply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. Theselimits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may causeharmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipment offand on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment andreceiver. Connect the equipment into an outlet on a circuitdifferent from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technicianfor help. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body

FCC Software Configuration Control Declaration Rev1.0.docx FriendMedia FCC Software Configuration Control Declaration Date: May. 27, 2021 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attn: OET Dept. Product: fmStick Regarding FCC Country Code Selection guidelines identified in KDB 594280 D01 v02r01 “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Date: May. 27, 2021 Name: Min Wang Title: CTO Signature of applicant Model No.: 3021FS

Co m Ad d Pr o Mo d Pr o We act We an d issu our Sig Na m Title Com mpany: Frie dress: 6314 oduct Name del Numbe oduct Desc authorize M on our beha declare tha d certificatio ues concern behalf shal nature: me: e: mpany: endMedia 4 Brookside P e: fmStick er(s): 3021F ription: fmS MiCOM Lab alf on all ma at MiCOM L n of equipm ning the app ll have the s Min Wang CTO FriendMed Agen Plaza STE 20 S Stick bs Inc., 575 atters conce Labs Inc. is ment to the r proval applic same effect dia FriendM nt Auth 04, Kansas C Boulder Co erning the c allowed to f regulatory a cation. Any t as acts of Media horizat City, MO 641 ourt, Pleasa certification forward all i agencies as and all acts our own. tion 113, United S anton, Califo of above na information s required a s carried ou Date: States ornia 94566 amed equip related to t nd to discu ut by MiCOM May. 27, 20 6, USA, to pment. the approva ss any M Labs on 021 al

Office o Federa 7435 O Columb USA Subjec t FCC ID To Wh o Pursua are req u docume These d propriet might b It is ou r corresp docume authoriz Sincer e Signat u Name: Title: C of Engineeri l Communic Oakland Mills bia, MD 210 t; Request f D: 2AZ47-30 om It May C nt to the pro uesting the ents from pu documents tary informa be harmful to Schema Block D Parts Lis Operatio Tune-up Softwar r understand pondence du ents and thi zation is iss ely, ure: Min Wang TO ing Techno cations Com s Road 046 for Confiden 021FS Concern, ovisions of t Commissio ublic disclos contain det ation in ope o our comp atic Diagram iagram st onal Descri p Procedure e Security R ding that all uring the ce s informatio sued. logy mmission ntiality the Commis on to withho sure indefin tailed syste ration of th e any and wo m ption e Requiremen l measurem ertification re on will be av FriendMe ssion’s rule old the follow nitely. m and equi e equipmen ould give co nt ment test rep eview proce vailable for edia s Title 47 S wing attach pment desc nt. The publ ompetitors a ports, FCC ess cannot public revi e Sections §0. hment(s) as criptions an ic disclosu r an unfair ad ID label for be granted ew once the Date: May. 457 and §0 confidentia d are consi re of these d vantage in mat and as confide n e grant of eq . 27, 2021 0.459, we al dered as documents the market . ntial quipment .

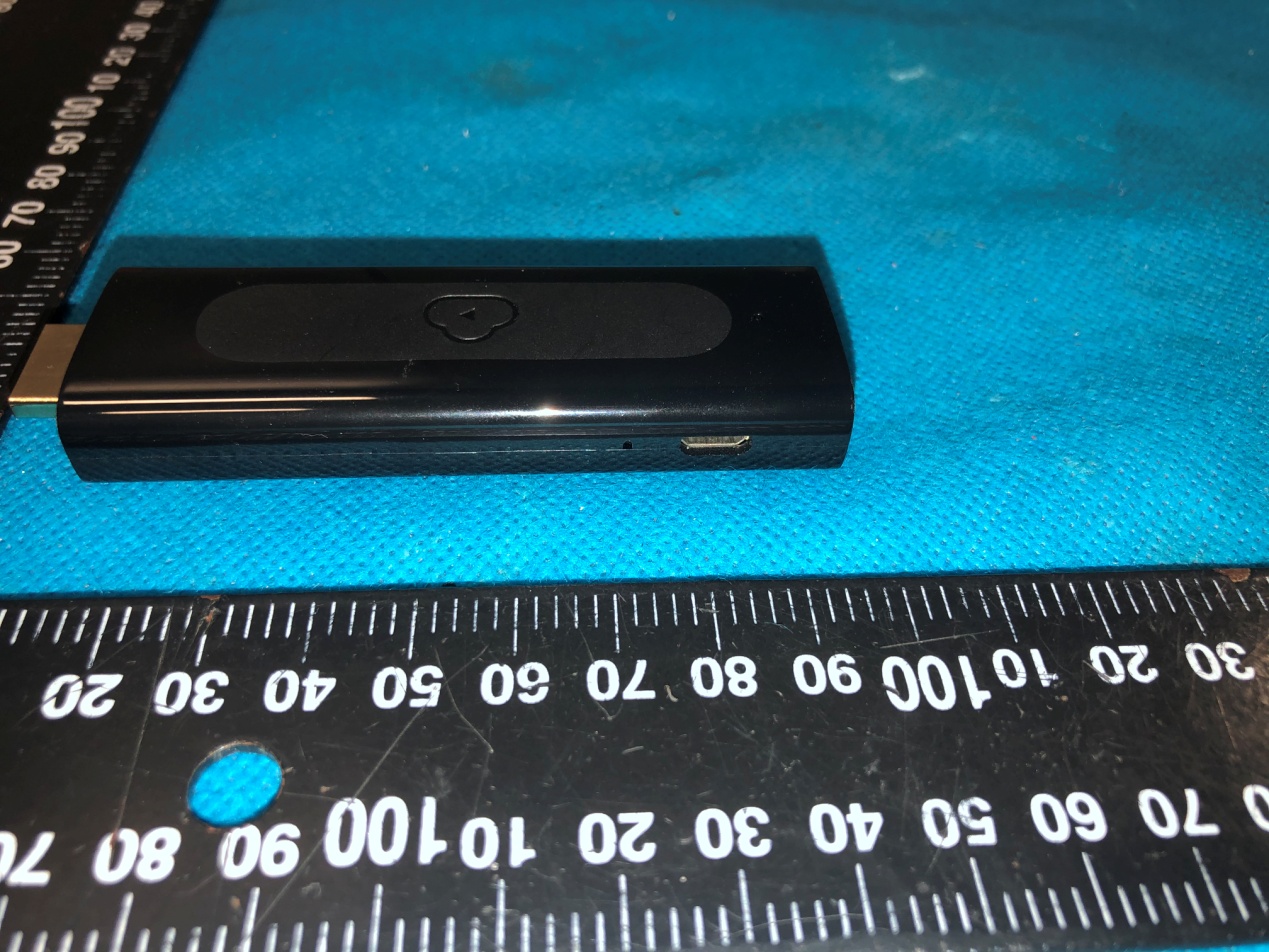

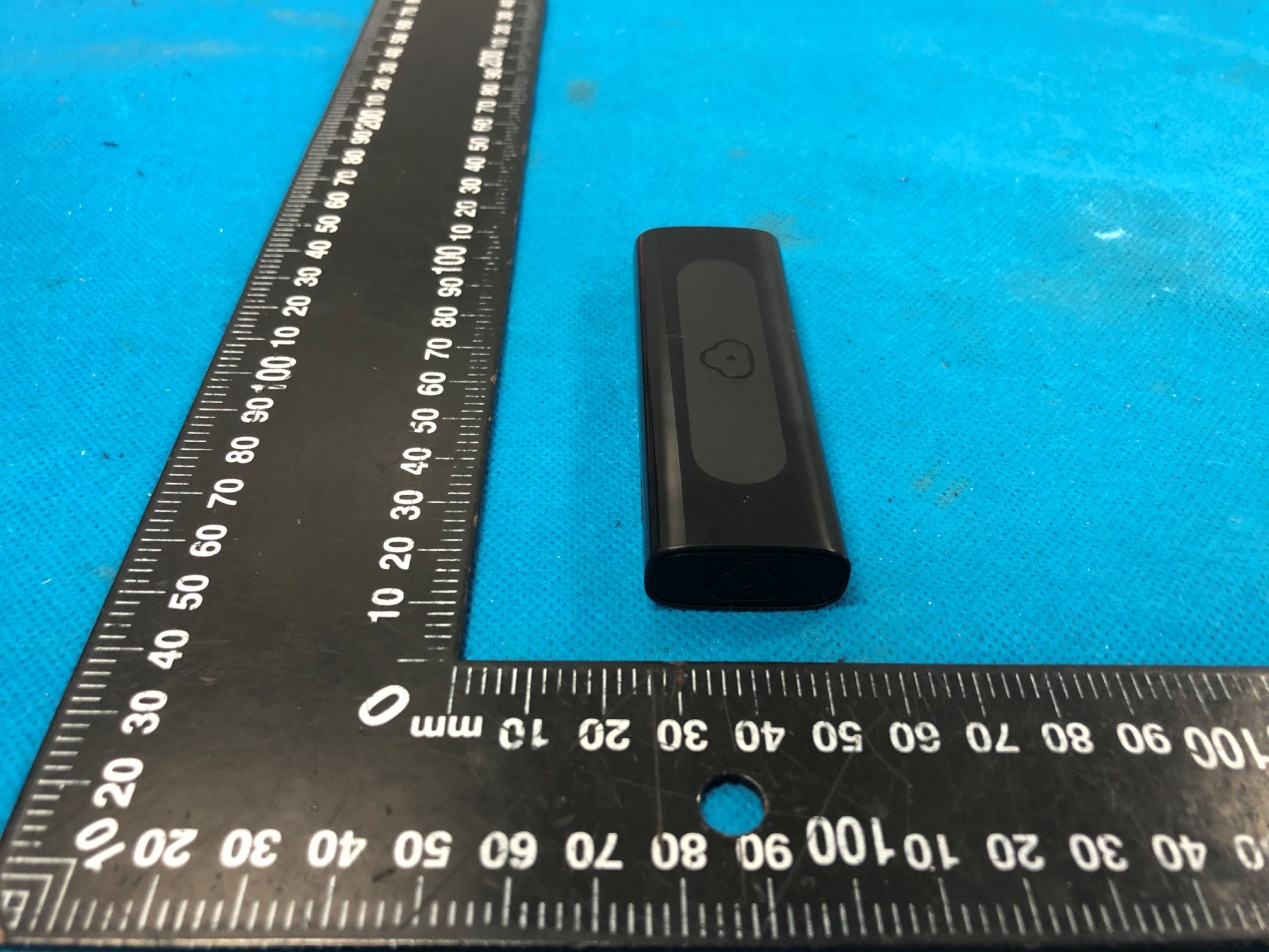

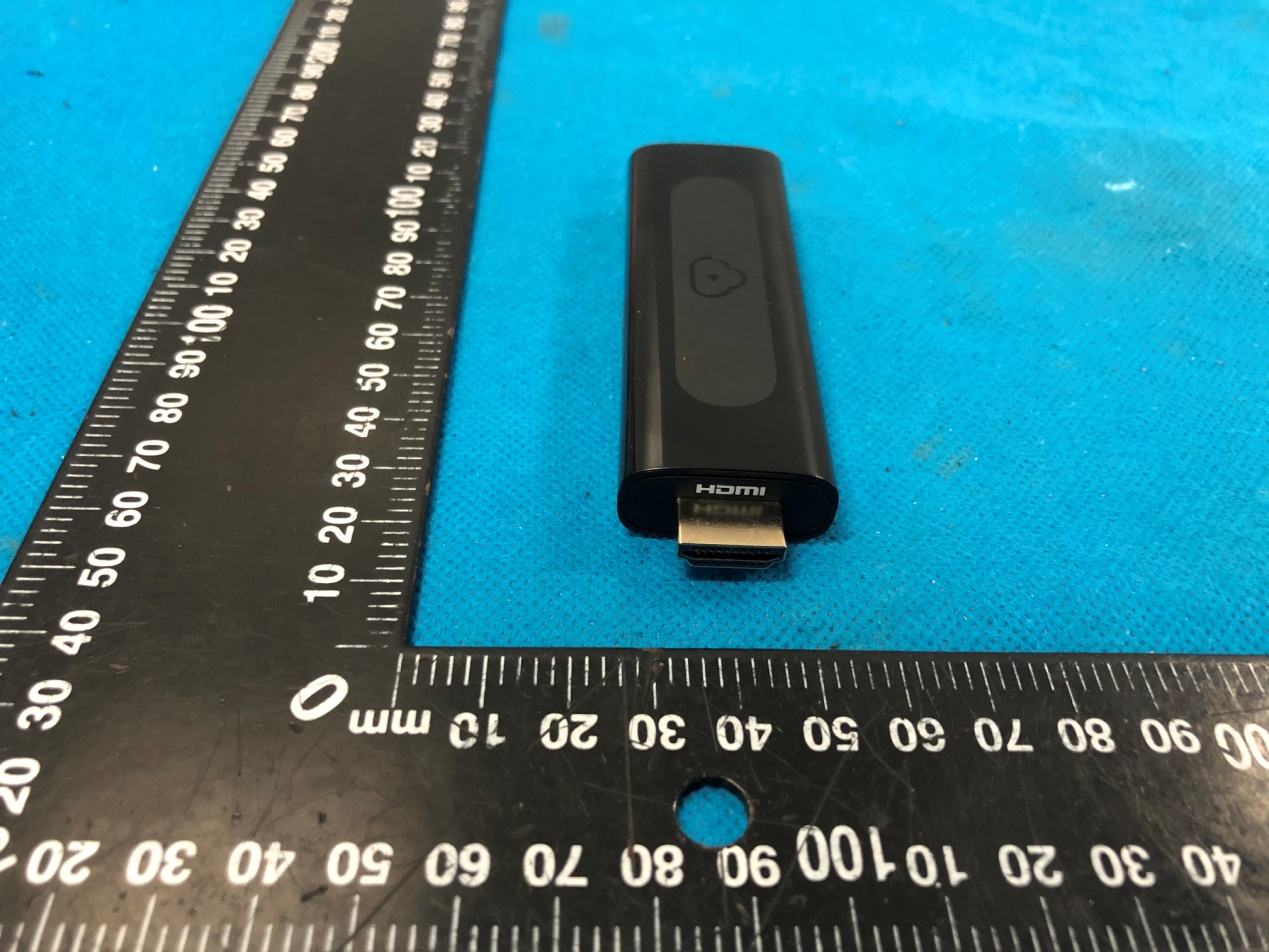

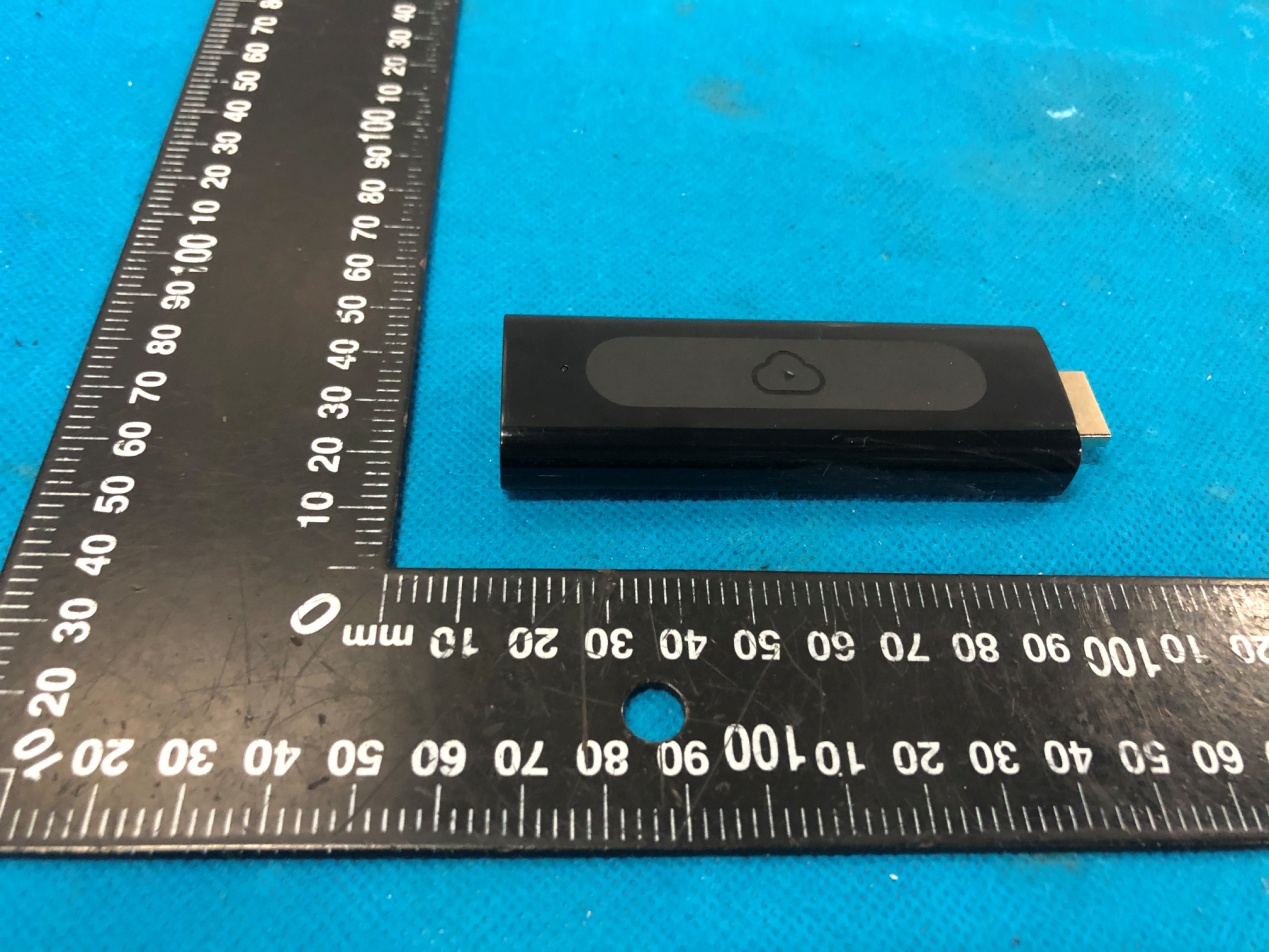

Annex A External Photos Report No.: HK2105101404-1E/2E/3E/4E/5E Page 1 of 4 Report No.: HK2105101404-1E/2E/3E/4E/5E Page 2 of 4 Report No.: HK2105101404-1E/2E/3E/4E/5E Page 3 of 4 Report No.: HK2105101404-1E/2E/3E/4E/5E Page 4 of 4

FCC ID LABEL: Ca. 5mm x 10mm Label Location FCC ID: 2AZ47-3021FS

Annex B Internal Photo Report No.: HK2105101404-1E/2E/3E/4E/5E Page 1 of 3 Report No.: HK2105101404-1E/2E/3E/4E/5E Page 2 of 3 Antenna Report No.: HK2105101404-1E/2E/3E/4E/5E Page 3 of 3

MPE ESTIMATION FCC ID: 2AZ47-3021FS 1, Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHzF/150030 1.5GHz---100GHz1.030 2, Estimation Result Mode Max PK Output power(dBm) Tune Up Power(dBm) Max Tune Up power(mW) Antenna Gain(dBi) Antenna Gain (linear) MPE (mW/cm²) BLE -14.008 -15±1(-14)0.04 3 2 0.00002 EDR 8.012 7.5±1(8.5)7.08 3 2 0.00282 2.4GWIFI 9.28 9±1(10) 10 3 2 0.00398 5.2GWIFI 16.34 16±1(17) 50.12 3 2 0.01995 5.8GWIFI 12.84 12±1(13) 19.95 3 2 0.00794 Note: Note: The estimation distance is 20cm The device could not transmit simultaneously in BT and WIFI. Note: PK Output power= conducted power. Conducted power see the test report HK2105101404-1E/2E/3E/4E/5E. Gantenna gain=3dBi when the minimum test separation distance is >20 cm, a distance of 20 cm is applied to determine RF Exposure test exclusion. The test exclusion threshold is 0.01995mW/cm² which is< 1.0mW/cm², RF Exposure testing is not required. -------The End-------

Report No.: HK2105101404-2E FCC TEST REPORT Test report On Behalf of FriendMedia For fmS tick Model No.: 3021FS FCC ID: 2AZ47-3021FS Prepared fo r : FriendMedia 6314 Brookside Plaza STE 204, Kansas City, MO 64113, United States Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Date of Test: May. 11, 2021 ~ May. 20, 2021 Date of Report: May. 20, 2021 Report Number: HK2105101404-2E Page 2 of 62 Report No.: HK2105101404-2E TEST RESULT CERTIFICATION Applicant’s name .................. : FriendMedia Address .................................. : 6314 Brookside Plaza STE 204, Kansas City, MO 64113 Manufacture's Name ............. : Shenzhen Tomato Technology Co., Ltd Address .................................. : Room 1106, Huatong Building, SunGangDong Road, LuoHu District, Shenzhen, Guangdong Province, P.R. 518022, China Product description Trade Mark: FriendMedia Product name ............................ : fmStick Model and/or type reference . : 3021FS Standards .............................. : FCC Rules and Regulations Part 15 Subpart E Section 15.407 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................................ : Date (s) of performance of tests ............. : May. 11, 2021 ~ May. 20, 2021 Date of Issue ........................................... : May. 20, 2021 Test Result ............................................... : Pass Prepared by: Project Engineer Reviewed by: Project Supervisor Approved by: Technical Director Page 3 of 62 Report No.: HK2105101404-2E TABLE OF CONTENTS 1. Test Result Summary ............................................................................... 5 1.1. TEST PROCEDURES AND RESULTS ............................................................................................... 5 1.2. TEST FACILITY .................................................................................................................................. 5 1.3. MEASUREMENT UNCERTAINTY ............................................................................................................... 6 2. EUT Description ........................................................................................ 7 2.1. GENERAL DESCRIPTION OF EUT ................................................................................................... 7 2.2. OPERATION FREQUENCY EACH OF CHANNEL ........................................................................................... 8 2.3. OPERATION OF EUT DURING TESTING .................................................................................................... 8 2.4. DESCRIPTION OF TEST SETUP ....................................................................................................... 9 3. Genera Information ................................................................................. 10 3.1. TEST ENVIRONMENT AND MODE ............................................................................................................ 10 3.2. DESCRIPTION OF SUPPORT UNITS ........................................................................................................ 11 4. Test Results and Measurement Data .................................................... 12 4.1. CONDUCTED EMISSION ........................................................................................................................ 12 4.2. MAXIMUM CONDUCTED OUTPUT POWER .............................................................................................. 16 4.3. 6DB EMISSION BANDWIDTH ................................................................................................................. 19 4.4. 26DB BANDWIDTH AND 99% OCCUPIED BANDWIDTH ............................................................................ 20 4.5. POWER SPECTRAL DENSITY ................................................................................................................ 27 4.6. BAND EDGE ......................................................................................................................................... 34 4.7. SPURIOUS EMISSION ........................................................................................................................... 49 4.8. FREQUENCY STABILITY MEASUREMENT ................................................................................................ 56 4.9. ANTENNA REQUIREMENT ............................................................................................................. 59 4.10. PHOTOGRAPHS OF TEST SETUP ........................................................................................................... 60 5. PHOTOS OF THE EUT ............................................................................ 62 Page 4 of 62 Report No.: HK2105101404-2E ** Modifited History ** Revison Description Issued Data Remark Revsion 1.0 Initial Test Report Release May. 20, 2021 Jason Zhou Page 5 of 62 Report No.: HK2105101404-2E 1. Test Result Summary 1.1. TEST PROCEDURES AND RESULTS Requirement CFR 47 Section Result Antenna requirement §15.203 PASS AC Power Line Conducted Emission §15.207 PASS Maximum Conducted Output Power §15.407(a) PASS 6dB Emission Bandwidth §15.407(e) N/A 26dB Emission Bandwidth& 99% Occupied Bandwidth §15.407(a) PASS Power Spectral Density §15.407(a) PASS Band edge §15.407(b)/15.209/15.205 PASS Radiated Emission §15.407(b)/15.209/15.205 PASS Frequency Stability §15.407(g) PASS Note: 1. PASS: Test item meets the requirem…

Text truncated - open the document above for the full version.

Report No.: HK2105101404-3E FCC TEST REPORT Test report On Behalf of FriendMedia For fmStick Model No.: 3021FS FCC ID: 2AZ47-3021FS Prepared fo r : FriendMedia 6314 Brookside Plaza STE 204, Kansas City, MO 64113, United States Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Date of Test: May. 11, 2021 ~ May. 20, 2021 Date of Report: May. 20, 2021 Report Number: HK2105101404-3E Page 2 of 61 Report No.: HK2105101404-3E TEST RESULT CERTIFICATION Applicant’s name .................. : FriendMedia Address .................................. : 6314 Brookside Plaza STE 204, Kansas City, MO 64113, United States Manufacture's Name ............. : Shenzhen Tomato Technology Co., Ltd Address .................................. : Room 1106, Huatong Building, SunGangDong Road, LuoHu District, Shenzhen, Guangdong Province, P.R. 518022, China Product description Trade Mark: FriendMedia Product name ............................ : fmStick Model and/or type reference . : 3021FS Standards .............................. : FCC Rules and Regulations Part 15 Subpart E Section 15.407 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................................ : Date (s) of performance of tests ............. : May. 11, 2021 ~ May. 20, 2021 Date of Issue ........................................... : May. 20, 2021 Test Result ............................................... : Pass Testing Engineer : (Gary Qian) Technical Manager : (Eden Hu) Authorized Signatory : (Jason Zhou) Page 3 of 61 Report No.: HK2105101404-3E TABLE OF CONTENTS 1. Test Result Summary ............................................................................... 5 1.1. TEST PROCEDURES AND RESULTS ............................................................................................... 5 1.2. TEST FACILITY .................................................................................................................................. 5 1.3. MEASUREMENT UNCERTAINTY ............................................................................................................... 6 2. EUT Description ........................................................................................ 7 2.1. GENERAL DESCRIPTION OF EUT ................................................................................................... 7 2.2. OPERATION FREQUENCY EACH OF CHANNEL ........................................................................................... 8 2.3. OPERATION OF EUT DURING TESTING .................................................................................................... 8 2.4. DESCRIPTION OF TEST SETUP ....................................................................................................... 9 3. Genera Information ................................................................................. 10 3.1. TEST ENVIRONMENT AND MODE ............................................................................................................ 10 3.2. DESCRIPTION OF SUPPORT UNITS ........................................................................................................ 11 4. Test Results and Measurement Data .................................................... 12 4.1. CONDUCTED EMISSION ........................................................................................................................ 12 4.2. MAXIMUM CONDUCTED OUTPUT POWER .............................................................................................. 16 4.3. 6DB EMISSION BANDWIDTH ................................................................................................................. 18 4.4. 26DB BANDWIDTH AND 99% OCCUPIED BANDWIDTH ............................................................................ 25 4.5. POWER SPECTRAL DENSITY ................................................................................................................ 26 4.6. BAND EDGE ......................................................................................................................................... 33 4.7. SPURIOUS EMISSION ........................................................................................................................... 48 4.8. FREQUENCY STABILITY MEASUREMENT ................................................................................................ 56 4.9. ANTENNA REQUIREMENT ............................................................................................................. 58 4.10. PHOTOGRAPHS OF TEST SETUP ........................................................................................................... 59 5. PHOTOS OF THE EUT ............................................................................ 61 Page 4 of 61 Report No.: HK2105101404-3E ** Modified History ** Revision Description Issued Data Remark Revision 1.0 Initial Test Report Release May. 20, 2021 Jason Zhou Page 5 of 61 Report No.: HK2105101404-3E 1. Test Result Summary 1.1. TEST PROCEDURES AND RESULTS Requirement CFR 47 Section Result Antenna requirement §15.203 PASS AC Power Line Conducted Emission §15.207 PASS Maximum Conducted Output Power §15.407(a) PASS 6dB Emission Bandwidth §15.407(e) PASS 26dB Emission Bandwidth& 99% Occupied Bandwidth §15.407(a) N/A Power Spectral Density §15.407(a) PASS Band edge §15.407(b)/15.209/15.205 PASS Radiated Emission §15.407(b)/15.209/15.205 PASS Frequency Stability §15.407(g) PASS Note: 1. PASS: Test item …

Text truncated - open the document above for the full version.

Test Model：3021FS Radiated Emission Conduction Emission
