2AZ4Q-VANTEENIEBluetooth earphone

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help.

Guangzhou Youxuan Electronic Technology Co., Ltd Model Difference Product Name: Bluetooth earphone Model Number: T2, A20-C1, A22-C1, i7mini, i12, Air3, C1, Q8-C1, T6-C1, M8 FCC Identifier: 2AZ4Q-VANTEENIE All the models are the same circuit and RF module, except the mode names and outlook color. Regards Sincerely Client’s signature Client’s name / title: Peter Peng / Manager Contact information: Room 303, building 4, 28 Qinglan street, Xiaoguwei street, Panyu District, Guangzhou

Guangzhou Youxuan Electronic Technology Co., Ltd 1/1 Letter of Authorization Company: Guangzhou Youxuan Electronic Technology Co., Ltd Address: Room 303, building 4, 28 Qinglan street, Xiaoguwei street, Panyu District, Guangzhou Product Name: Bluetooth earphone Model Number: T2, A20-C1, A22-C1, i7mini, i12, Air3, C1, Q8-C1, T6-C1, M8 FCC Identifier: 2AZ4Q-VANTEENIE We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Peter Peng Date: 2021-05-28 Title: Manager Signature of applicant:

Guangzhou Youxuan Electronic Technology Co., Ltd 1/1 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2021-05-28 Subject: Request for Confidentiality FCC ID: 2AZ4Q-VANTEENIE To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual No ☐ Internal Photos No ☐ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No NOTE 1: Long-Term Confidentiality may be permitted under special conditions (See II. LONG-TERM CONFIDENTIALITY, Section 3 of KDB 726920, use last in force) NOTE 2: Short-Term Confidentiality can be requested for a maximum of 180 days from the date of the grant. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Peter Peng Title: Manager

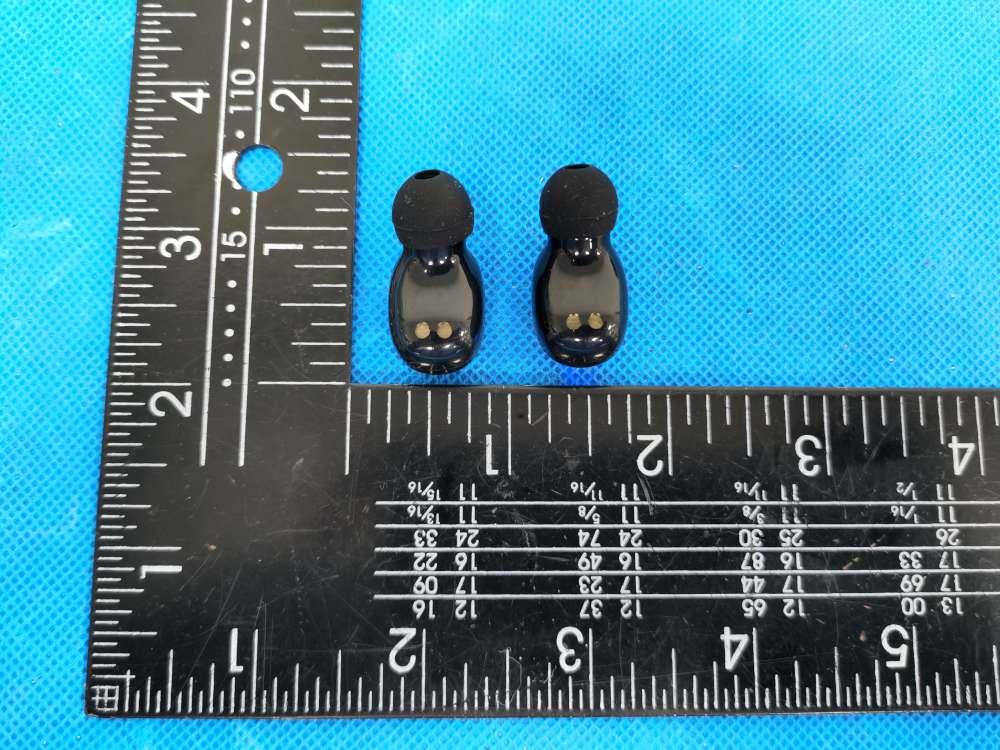

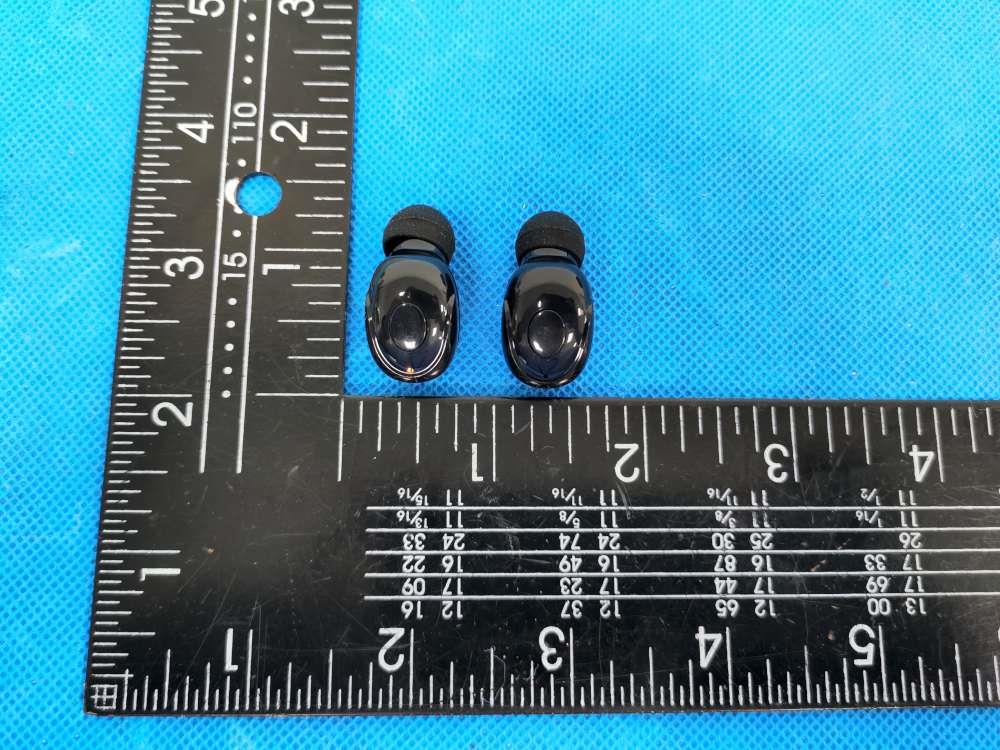

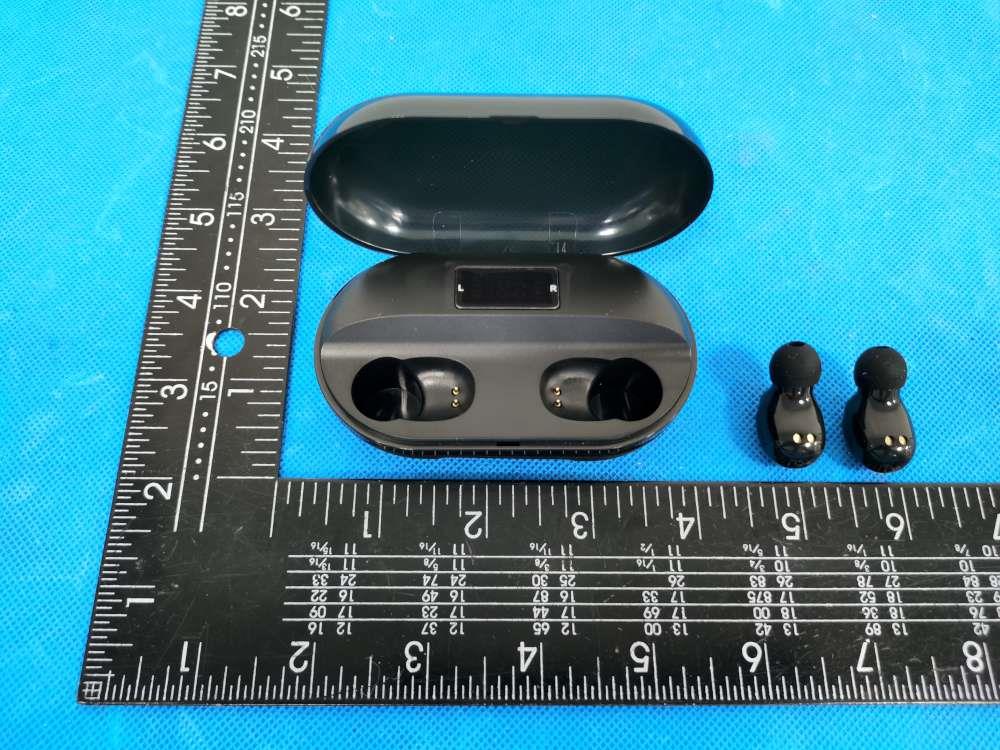

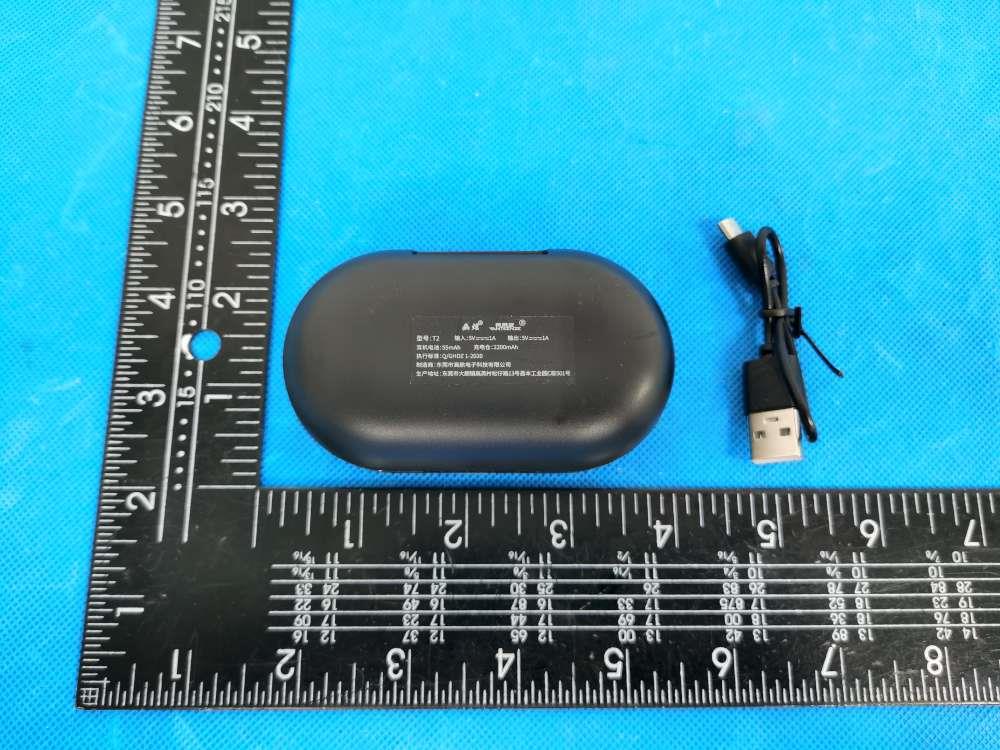

EUT PHOTO(External Photos)

Size:7.5*4.5mm M/N: T2 FCC ID: 2AZ4Q-VANTEENIE Label location

EUT PHOTO(Internal Photos) ANT 1 Photo s RF chipset ※※※※※ END OF REPORT ※※※※※

Project No.: ZKT-210524L1961E Page 1 of 33 FCC TEST REPORT FCC ID:2AZ4Q-VANTEENIE Report Number. ................................ : ZKT-210524L1961E Date of Test ................................................. : May. 20, 2021 to May. 25, 2021 Date of issue .................................... : May. 25, 2021 Total number of pages ...................... 33 Test Result ..................................... : PASS Testing Laboratory. ........................... : Shenzhen ZKT Technology Co., Ltd. Address .......................................... : 1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China Applicant's name ............................ : Guangzhou Youxuan Electronic Technology Co., Ltd Address .......................................... : Room 303, building 4, 28 Qinglan street, Xiaoguwei street, Panyu District, Guangzhou Manufacturer's name ..................... : Guangzhou tehao teku Technology Co., Ltd Address .......................................... : 16 Leshan Road, Panyu District, Guangzhou City, Guangdong Province Test specification: Standard ........................................... : FCC CFR Title 47 Part 15 Subpart C Section 15.249 ANSI C63.10:2013 Test procedure ................................. : / Non-standard test method ............. : N/A Test Report Form No. .................... : TRF-EL-111_V0 Test Report Form(s) Originator .... : ZKT Testing Master TRF .................................... : Dated: 2020-01-06 This device described above has been tested by ZKT, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of ZKT, this document may be altered or revised by ZKT, personal only, and shall be noted in the revision of the document. Product name ................................... : Bluetooth earphone Trademark ...................................... : VANTEENIE Model/Type reference ...................... : T2 A20-C1, A22-C1, i7mini, i12, Air3, C1, Q8-C1, T6-C1, M8 Ratings ............................................. : DC 5V from USB DC 3.7V from battery Project No.: ZKT-210524L1961E Page 2 of 33 Testing procedure and testing location: Testing Laboratory ................................... : Shenzhen ZKT Technology Co., Ltd. Address ...................................................... : 1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China Alen He Tested by (name + signature) .................... : Joe Liu Reviewer (name + signature) ..................... : Lake Xie Approved (name + signature) .................... : Project No.: ZKT-210524L1961E Page 3 of 33 Table of Contents Page 1.VERSION 5 2.1SUMMARY OF TEST RESULTS 6 2.11.1 TEST FACILITY 7 2.21.2 MEASUREMENT UNCERTAINTY 7 3. GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 1.1DESCRIPTION OF TEST MODES 9 3.3 1.2BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED10 3.4 1.3DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 10 3.51.4 EQUIPMENTS LIST FOR ALL TEST ITEMS 11 4. EMC EMISSION TEST 12 4.1 1.5CONDUCTED EMISSION MEASUREMENT 12 4.1.1 1.5.1POWER LINE CONDUCTED EMISSION LIMITS 12 4.1.2 1.5.2TEST PROCEDURE 12 4.1.3 1.5.3DEVIATION FROM TEST STANDARD 12 4.1.4 1.5.4TEST SETUP 13 4.1.5 1.5.5EUT OPERATING CONDITIONS 13 4.1.6 TEST RESULTS 14 4.2 1.6RADIATED EMISSION MEASUREMENT 16 4.2.1 1.6.1RADIATED EMISSION LIMITS 16 4.2.2 1.6.2TEST PROCEDURE 17 4.2.3 1.6.3DEVIATION FROM TEST STANDARD 17 4.2.4 1.6.4TEST SETUP 17 4.2.5 1.6.5EUT OPERATING CONDITIONS 18 5. BANDWIDTH OF FREQUENCY BAND EDGE 25 5.1 TEST REQUIREMENT: 25 5.2 TEST PROCEDURE 25 5.3 DEVIATION FROM TEST STANDARD 25 5.4 TEST SETUP 25 5.5 EUT OPERATING CONDITIONS 26 5.6 TEST RESULT 27 6. CHANNEL BANDWIDTH 28 7.1 APPLIED PROCEDURES / LIMIT 28 7.2 2.1TEST PROCEDURE 28 7.3 2.2DEVIATION FROM STANDARD 28 7.4 2.3TEST SETUP 28 Project No.: ZKT-210524L1961E Page 4 of 33 Table of Contents Page 7.5 2.4EUT OPERATION CONDITIONS 28 7.6 2.5TEST RESULTS 29 9.ANTENNA REQUIREMENT32 10.TEST SETUP PHOTO33 11.EUT CONSTRUCTIONAL DETAILS33 Project No.: ZKT-210524L1961E Page 5 of 33 1.VERSION Report No. Version Description Approved ZKT-210524L1961E Rev.01 Initial issue of report May. 25, 2021 Project No.: ZKT-210524L1961E Page 6 of 33 2.1SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.249) , Subpart C Standard Section Test Item Judgment Remark FCC part 15.203 Antenna requirement PASS FCC part 15.207 AC Power Line Conducted Emission PASS FCC part 15.249 Fundamental &Radiated Spurious Emission Measurement PASS FCC part 15.249 (a)(2) 20dB Channel Bandwidth PASS FCC part 15.205 Band Edge PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Project No.: ZKT-210524L1961E Page 7 of 33 2.11.1 TEST FACILITY Shenzhen ZKT Technology Co., Ltd. Add. : 1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China FCC Test Firm Registration Number: 692225 Designation Number: CN1299 IC Registered No.: 27033 2.21.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power conducted ±0.16dB 3 Spurious emissions conducted ±0.21dB 4 All emissions radiated(<1G) ±4.68dB 5 All emissions radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Project No.: ZKT-210524L1961E Page 8 of 33 3. GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT Product Name: Bluetooth earphone Model No.: T2 A20-C1, A22-C1, i7mini, i12, Air3, C1, Q8-C1, T6-C1, M8 Model Different.: Only for different model name. Serial No.: N/A Hardware Ve…

Text truncated - open the document above for the full version.

EUT TEST PHOTO
