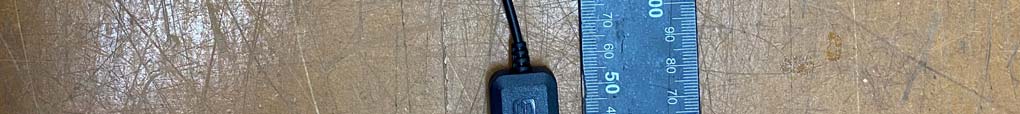

2AZ4VFST-UE1528MGPS Smart Antenna

GPS Receiver Module FST-UE1528M UBX-G8020-KT Single Chip Version 1.1 2019/04/10 www. Fourstech.com ▶Revision History RevisionDescription of changeRevision dateAPPR. VER1.0Initial ReleaseApr-21-2015ywkim VER1.1- GPS Chipset변경 - UBX-G7020-KT ->UBX-G8020-KT Apr-10-2019ywkim 2021-06-21 (주)FourStech.com 2 CONTENTS 2021-06-21(주)FourStech.com3 1 Introduction-----------------------------------------------4 1.1 GeneralDescription---------------------------------------------4 1.2 FeatureHighlights---------------------------------------------------4 1.3 Applications-----------------------------------------------------------4 2 Specification-------------------------------------------5 2.1 AbsoluteMaximumRatings----------------------------------------5 2.2 OperatingConditions----------------------------------------------5 2.3 DCElectricalCharacteristics-----------------------------------------5 3 General& PerformanceSpecification----------------------------------------6 4 BlockDiagram-------------------------------------------------7 5 PinAssignment-----------------------------------------------------------8 6 S/W– NMEAProtocol-------------------------------------------------------9 6.1 NMEAProtocolOverview----------------------------------------9 6.2 NMEAMessageOverview---------------------------------------------10 7 GPSNMEALOGDATA(Exam.)------------------------------------------------24 8 Dimension(mm)-------------------------------------------------------25 1 Introduction 2021-06-21(주)FourStech.com4 1.1 General Description The FST-UE1528M is the latest generation of low power GPS receiver Module from FourStech. It’s a highly integrated GPS receiver offering high performance and wide range applications. FST-UE528M receiver module designed to receive the L1 band signal 1575.42 MHz. 1.2 Feature Highlights - Low power, Fast standby mode - Single Supply Voltage(3.3V) - Integrated 0.5ppm TCXO - UART Support 9,600bps baud rate - 72 channels Ublox7 Engine - Hybrid GPS/SBAS engine (WAAS, EGNOS, QSZZ) - Anti-jamming technology - Removes in-band jammers up to 80dB-Hz - Navigate down to –163 dBm - Faster acquisition with AssistNowAutonomous - Support standard NMEA‐0183 and binary protocol - RoHSCompliant - ARM7TDMI-S Technologies - GPS Week rollover : 2015-10-18 ~ 2035-06-02 - Small size 22 x 46 x 10mm 1.3 Applications - Telematics equipment - Marine navigation application - Mobile Phone and Handheld GPS receiver application - Ideal for PDA, Pocket PC and other computing devices at GPS application 2 Specification 2021-06-21 (주)FourStech 5 SymbolParameterMinMaxUnit VCCSupply Voltage06.0V VBATInput back_Up Battery05V ESDESD Rating-2KV TSTGStorage Temperrature Range-40+85 ̊C Humidity-95% ParameterMinTypMaxUnit Power Consumption (With LNA) Average Acquisition-42-mA Average Tracking (Max performance Mode) -40-mA V_BackUp -15-uA 2.1 Absolute Maximum Ratings 2.3 DC Electrical Characteristics 2.2 Operating Conditions Note : Absolute maximum ratings are stress ratings only, and functional operation at the maximums is not guaranteed. Stress beyond the limits specified in this table may affect device reliability or cause permanent damage to the device. For functional operating conditions, please refer to the operating conditions tables as follow. SymbolParameterMinTypMaxUnit VCCSupply Voltage3.03.35.5V VBATVoltage Back_up battery1.43.13.3V ViHI/O input high level0.7x3.0-3.3V ViLI/O input low level-0.4-0.45V VoHI/O output high level0.7x3.0-3.0V VoLI/O output low level0.4V TemperatureWith battery-20-+60 ̊C *TemperatureWithout battery-30-+85 ̊C 2021-06-21 (주)FourStech.com 6 3 General & Performance Specification ParameterDescriptionSpecification ReceiverTypeL1 Band 1575.42MHz SensitivityTracking -166dBm Cold starts -148dBm Hot starts -157dBm Time ToFirst FixCold start(autonomous) 29sec Warm start (autonomous) 26sec Hot start (autonomous) <1S AccuracyPosition 2.5m CEP SBAS 2.0m CEP Operation LimitsVelocity 500m/s Altitude 50,000m Serial Interface1 UART 9,600bps FullDuplex Protocol MessageNMEA-0183Version 4.0 With WGS-84 LNA Gain 20dB±1dB Noise FigureLess than0.65dB Antenna TypeActive antenna Patch or Linear Centerfrequency 1575.42MHz Polarrization RHCP Impedance 50Ω 5 Pin Assignment Pin Number NameI/ODescription 1VCCISupply Voltage dc 3.3V 2TXDOSerial data output (GPS to Host) 3RXDISerial data input (Host to GPS) 4GND-GND 2021-06-21 (주)FourStech.com 8 VCC(+3.3V DC power Input) This is the main DC power supply input pin. IT provides voltage to module. TXD (GPS to Host) This is the main transmitting NMEA data and is used to programming download or debug port. NMEA Format 9,600 Baud rate. RXD (Host to GPS) This is the UART receiver port of the module. It is used to receive software commands and If you want you can change Baud rate, Static Hold, assistnowautonomous... GND GND provides the ground. 2021-06-21(주)FourStech.com9 6 S/W – NMEA Protocol 6 .1 NMEA Protocol Overview 2021-06-21(주)FourStech.com10 6.2 NMEA Message Overview 2021-06-21(주)FourStech.com11 2021-06-21(주)FourStech.com12 2021-06-21(주)FourStech.com13 2021-06-21(주)FourStech.com14 2021-06-21(주)FourStech.com15 2021-06-21(주)FourStech.com16 2021-06-21(주)FourStech.com17 2021-06-21(주)FourStech.com18 2021-06-21(주)FourStech.com19 2021-06-21(주)FourStech.com20 2021-06-21(주)FourStech.com21 2021-06-21(주)FourStech.com22 2021-06-21(주)FourStech.com23 2021-06-21(주)FourStech.com24 7. GPS NMEA DATA (Exam.) 2021-06-21(주)FourStech.com25 8. Dimension FCC Information to User This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a partic…
