Home Theater Projector INSTRUCTION MANUAL MODEL NO.: PJ132 PLEASE READ BEFORE OPERATING THIS EQUIPMENT Email: [email protected] Important Safety Instructions 1 1.Read these Instructions. 2.Keep these Instr uctions. 3.Heed all Warnings. 4.Follow all instructions. 5.Do not use this apparatus near water. 6.Clean only with a dry cloth. 7.Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8.Do not install near any heat sources such as radiator s, heat registers, stoves, or other apparatus (including amplifier) that product heat. 9.Prot ect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 10.Only use attachments/accessories specified by the manufacturer. 11.Unplug this apparatus during lightning storms or when unused for long periods of time. 12.Refer all servicing to qualified service personnel. Servicing is requi red when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen in to the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 13.Use only with a cart, stand, tripod, br acket, or table specified by the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over. Additional Warnings and Precautions 2 1.Do not look directly into the projector light. 2.Don’t touch the project lens. 3.Mains adapter is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the mains plug should be disconnected from the mains socket outlet completely. 4.CAUTION: Use of controls or adjustments or performanc e of procedures other than those specified may result in hazardous radiation exposur e. 5.WARNING: Changes or modified to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 6.WARNING: Use of this unit near fluorescent lighting may cause interference regarding use of the remote. If the unit is displaying erratic behavior move away from any fl uorescent lighting, as it may be the cause. 7.WARNING: Shock hazard - Do Not Open. 8.Caution and marking information is located at the rear or bottom of the apparatus. 9.WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain, moisture, dripping, or splashing. 10.Objects filled with liquids, such as vases, shall not be placed on the apparatus. FCC Warning 3 Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment .This equipment should be installed and operated with minimum distance 20cm between the radiator& your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. In The Box User Manual Main Unit Cleaning Cloth HDMI Cable Lens Cover ACPowerAdapter Remote Home Theater Projector INSTRUCTION MANUAL MODEL NO.: PJ132 PLEASE READ BEFORE OPERATING THIS EQUIPMENT Email: [email protected] Table of Contents 4 Important Safety Instructions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P1 Additional Warnings and Precautions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P2 FCC Warning - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P3 In The Box - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P3 Table of Contents - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P4 Remove & Close The Lens Cover - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P5 Placing of Your Projector - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P5 To reduce Image Distortion - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P6 Distance Between The Projector And Screen - - - - - - - - - - - - - - - - - - - - - - - - P6 Installing Your Projector in the Ceiling - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P6 Adjust The Vertical Location - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P7 Adjust The Focus And Keystone - - - - - - - - - - - -…

Text truncated - open the document above for the full version.

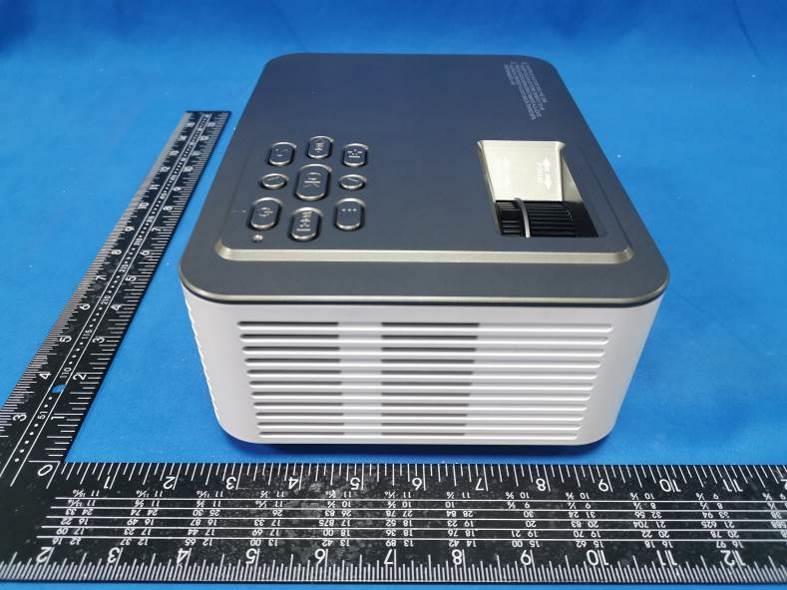

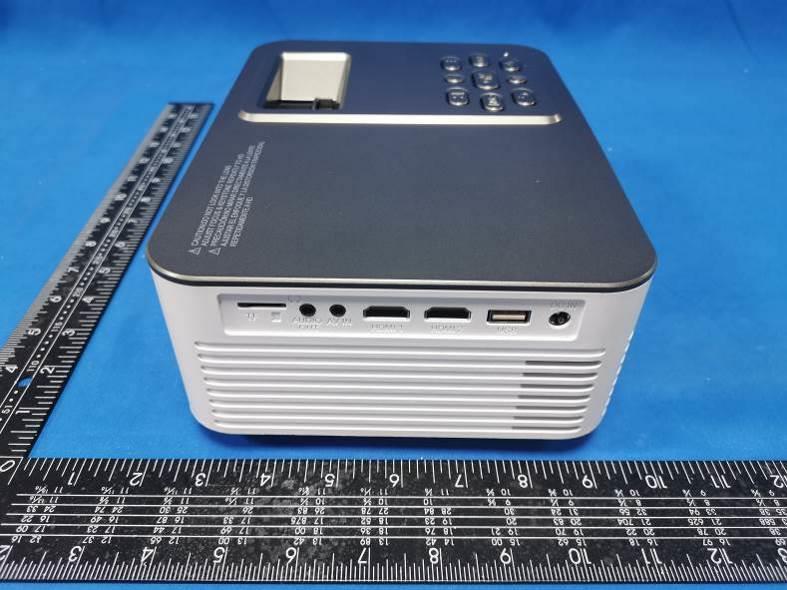

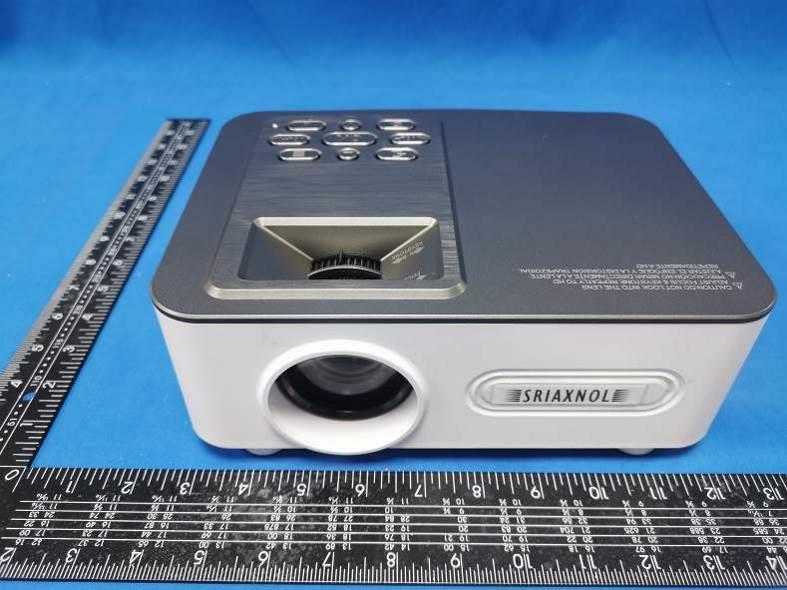

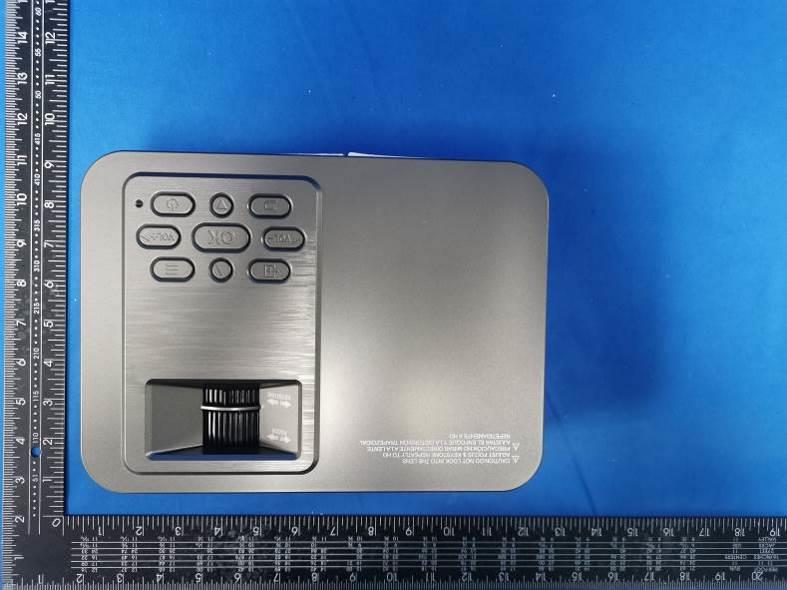

FCC ID: 2AZ57-PJ132 External Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2AZ57-PJ132 Photo 4 Photo 5 Photo 6 FCC ID: 2AZ57-PJ132 Photo 7

Label and Location Size: L: 3.0cm*W: 2.0cm Label and Location Model No.: PJ132 FCC ID : 2AZ57-PJ132

FCC ID: 2AZ57-PJ132 Internal Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2AZ57-PJ132 Photo 4 Photo 5 Photo 6 BT (PCB)Antenna FCC ID: 2AZ57-PJ132 Photo 7 Photo 8 Photo 9 2.4G WIFI (PIFA)Antenna FCC ID: 2AZ57-PJ132 Photo 10 Photo 11 Photo 12 FCC ID: 2AZ57-PJ132 Photo 13 Photo 14 Photo 15

RF Exposure evaluation FCC ID: 2AZ57-PJ132 Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Device 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Antenna Information PJ132 can only use antennas certificated as follows provided by manufacturer; Antenna No. Model No. of antenna: Type of antenna: Gain of the antenna (Max.) Frequency range: BT / PCB Antenna -0.68dBi for 2400-2500MHz; 2.4GWIFI / PIFA Antenna 2.61dBi for 2400-2500MHz 5. Manufacturing Tolerance BLE GFSK(Peak) Channel Channel 00 Channel 19 Channel 39 Target (dBm) 0.0 0.0 0.0 Tolerance ±(dB) 1.0 1.0 1.0 WIFI(Peak) Frequency (MHz) 11b 2412 2437 2462 Target (dBm) 14.0 14.0 14.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 11g 2412 2437 2462 Target (dBm) 13.0 13.0 13.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 11n(HT20) 2412 2437 2462 Target (dBm) 12.0 12.0 12.0 Tolerance ± (dB) 1.0 1.0 1.0 6. Standalone MPE Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna is 0.0dBi, the RF power density can be obtained. Modulation Type Output power Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW BLE 1.0 1.2589 -0.68 0.8551 0.0002 1.0000 2.4GWIFI ANT1 15.0 31.6228 2.61 1.8239 0.0115 1.0000 Remark: 1. Output power (Peak) including turn-up tolerance; 2. MPE evaluate distance is 20cm from user manual provide by manufacturer. 7. simultaneous MPE Result 2.4GWIFI MPE (Ratio) BLE MPE (Ratio) simultaneous MPE (Ratio) MPE Limits (Ratio) 0.0115 0.0002 0.0117 1.0000 8. Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device. ----------------THE END OF REPORT---------------

Inverted F Antenna Specification Summary ITEM ANT SPEC 2.4G ANTModel Name Horizontal Vertical 2400MHz2400MHz 2400MHz2500MHz Center Frequency -1.73 -0.84 -0.68 -6.15 -3.70 -2.32 -0.68(dBi) MAX. Gain Polarization Horizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance 50 Ohm 38.20mmAntenna Length Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo & Length (mm) Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Frequency Gain(dBi) (MHz) Max Min Avg 2400 -1.73178 -30.0815 -8.48713 2450 -0.845801 -38.5605 -7.88012 2500 -0.685586 -24.0318 -6.79139 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Frequency Gain(dBi) (MHz) Max Min Avg 2400 -6.1530 -24.1420 -13.0295 2450 -3.7054 -26.5836 -10.6700 2500 -2.32122 -30.4301 -9.70536 ANT Test Labs：Attestation of Global Compliance Co., Ltd.

R&DCenter：RoomD5 th FloorBuildingL,BlockE,71BaochengDistrict,BaoanDistrict,Shenzhen Factory：6Floor,GangHuaXingIndustrialPark,RongshuRoad2 nd ,Fuyong,Baoan,shenzhen Email:[email protected] ShenzhenSKYLinkTechnologyCo.,Ltd AntennaSpecificationforApproval CustomerName： ProductName：2.4G/5.8GWIFIAntenna PartNO.:WF84A.C113.190B.221 WriteBy：DamonCui IssuedDate:2022-11-10 Customer R&DDeptBusinessDeptApprovedBy SKYLink R&DDeptEngineerDeptApproval R&DCenter：RoomD5 th FloorBuildingL,BlockE,71BaochengDistrict,BaoanDistrict,Shenzhen Factory：6Floor,GangHuaXingIndustrialPark,RongshuRoad2 nd ,Fuyong,Baoan,shenzhen Email:[email protected] SpecificationSummary A.ElectricalCharacteristics Frequency 2.4GHz ~2.4835GHz 5.15GHz ~5.85GHz ReturnLoss<-10.0 Efficiency>40% 5dbiPeak Gain(Max.) ( Impedanc e 50Ohm PolarizationLine B.Material&MechanicalCharacteristics MaterialofRadiatorCu CableType φ 1.13MMBlack ConnectorType/ DimensionAtAttachment Heat-durability 280±5 ̊C，10sec. C.EnvironmentalCharacteristics OperationTemperature-20 ̊C~+80 ̊C StorageTemperature-30 ̊C~+85 ̊C R&DCenter：RoomD5 th FloorBuildingL,BlockE,71BaochengDistrict,BaoanDistrict,Shenzhen Factory：6Floor,GangHuaXingIndustrialPark,RongshuRoad2 nd ,Fuyong,Baoan,shenzhen Email:[email protected] TestEquipment&Conditions 1．NetworkAnalyzers: Agilent8753D5071B CommunicationsTestSet: AgilentE5515CCMW500 2 ． 3DChamberTestSystem A 0.03 0.02 0.04 0～10 ±0.05 10～18 ±0.10 18～30 ±0.12 ∅ 0.02 30～40 ±0.15 Remark Rev Date Third Angle New drawing Description 40～ ±0.20 1234 Approved by D C B 5678 A 12345678 Part No. Date Designed by Checked by Scale Rev mm Location Project Material Part Name Unit RF MD A Angle ±0.5° 1:1 D C B A SHEN ZHEN SKYLink CO.,LTD RoHS P G Compliant DWG No. 2022-11-10 WF84A.C113.190B.221 WF84A 由 Autodesk 教育版产品制作 由 Autodesk 教育版产品制作 由Autodesk教育版产品制作 由 Autodesk 教育版产品制作 R&DCenter：RoomD5 th FloorBuildingL,BlockE,71BaochengDistrict,BaoanDistrict,Shenzhen Factory：6Floor,GangHuaXingIndustrialPark,RongshuRoad2 nd ,Fuyong,Baoan,shenzhen Email:[email protected] ReturnLoss R & D Center：RoomD 5 th Floor BuildingL,BlockE ,71 BaochengDistrict,BaoanDistrict,Shenzhen Factory：6 Floor,GangHuaXingIndustrialPark,RongshuRoad2 nd ,Fuyong,Baoan,shenzhen Email: [email protected] Gain & Efficiency FreqEffiGainFreqEffiGain (MHz)(%)(dBi)(MHz)(%)(dBi) 240048.71.31515044.823.11 241050.331.72520044.983.13 242053.262.19 243056.912.45 244054.062.45 245051.162.45 246051.822.31 247055.152.43 248057.022.61 249060.232.23 250059.462.14 575053.984.84 580055.514.95 585059.875.2 R&DCenter：RoomD5 th FloorBuildingL,BlockE,71BaochengDistrict,BaoanDistrict,Shenzhen Factory：6Floor,GangHuaXingIndustrialPark,RongshuRoad2 nd ,Fuyong,Baoan,shenzhen Email:[email protected] RadiationPattern R&DCenter：RoomD5 th FloorBuildingL,BlockE,71BaochengDistrict,BaoanDistrict,Shenzhen Factory：6Floor,GangHuaXingIndustrialPark,RongshuRoad2 nd ,Fuyong,Baoan,shenzhen Email:[email protected] R & D Center：RoomD 5 th Floor BuildingL,BlockE ,71 BaochengDistrict,BaoanDistrict,Shenzhen Factory：6 Floor,GangHuaXingIndustrialPark,RongshuRoad2 nd ,Fuyong,Baoan,shenzhen Email: [email protected] R&DCenter：RoomD5 th FloorBuildingL,BlockE,71BaochengDistrict,BaoanDistrict,Shenzhen Factory：6Floor,GangHuaXingIndustrialPark,RongshuRoad2 nd ,Fuyong,Baoan,shenzhen Email:[email protected] AntennaPicture R&DCenter：RoomD5 th FloorBuildingL,BlockE,71BaochengDistrict,BaoanDistrict,Shenzhen Factory：6Floor,GangHuaXingIndustrialPark,RongshuRoad2 nd ,Fuyong,Baoan,shenzhen Email:[email protected] ReliabilityTest TestItemTestconditionEquipmentSpecificationResult 1 LowTemp.Storage Test Temperature:-30°C，Time:48hrs Testcondition:PlacingantennainaLow/High TemperatureChamber,keepthetempis25°C andhumidityis65%foronehour,thenstep-down thetemp.to-30°Cinonehour,storeantennafor 44hours;step-uptempto25°C,testantennaafter 2hours. Temp.&Humi. Tester Nomaterialdeformation isallowed. ElectronicPerformance isok. PASS 2 HighTemp./High Humid StorageTest Temperature:85°CHumidity:85%RHTime:48hrs Testcondition:PlacingantennainaLow/High TemperatureChamber,keepthetempis25°C andhumidityis65%foronehour,thenstep-upthe temp.to80°Candthehumidityupto85%inone hour,storeantennafor44hours;step-downtemp to25°C,testantennaafter2hours. Temp.&Humi. Tester Nomaterialdeformation isallowed. ElectronicPerformance isok. PASS 3Salt-Spray6prayTest PlacingantennaintheSalt-SprayTester,setthe testcondition，Temp:35±2°CHumidity:85% NaClsaltspray:5±1%.PHvalue:6.5~7.2Test time:24hours Salt-SprayTester Nocolorchange Noappearrusting PASS

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID. ............................................ : CTA22122601301 2AZ57-PJ132 Compiled by ( position+printed name+signature) .. : File administrators Zoey Cao Supervised by ( position+printed name+signature) .. : Project Engineer Amy Wen Approved by ( position+printed name+signature) .. : RF Manager Eric Wang Date of issue ..................................... : Jan. 04, 2023 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : Meiping International Network Technology(Shenzhen)Co.,Ltd. Address ............................................ : A3109, Block A, LongguangJiuzuan Business Center, Tenglong Road, Daling Community, Minzhi Street, Longhua District, Shenzhen, China Test specification ...........................: Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment description...................: Projector Trade Mark ....................................... : Sriaxnol Manufacturer .................................... : Meiping International Network Technology(Shenzhen)Co.,Ltd. Model/Type reference....................... : PJ132 Listed Models .................................. : PJ131, PJ131-XX,PJ132-XX (XX is reserved for future color and cosmetic change, it can be 0-9.A-Z) Modulation ....................................... : GFSK Frequency .......................................... From 2402MHz to 2480MHz Ratings ............................................. : DC 26.0V From external circuit Result................................................ : PASS Report No.: CTA22122601301 Page 2 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Projector Model /Type : PJ132 Listed Models : PJ131, PJ131-XX,PJ132-XX (XX is reserved for future color and cosmetic change, it can be 0-9.A-Z) Applicant : Meiping International Network Technology(Shenzhen)Co.,Ltd. Address : A3109, Block A, LongguangJiuzuan Business Center, Tenglong Road, Daling Community, Minzhi Street, Longhua District, Shenzhen, China Manufacturer : Meiping International Network Technology(Shenzhen)Co.,Ltd. Address : A3109, Block A, LongguangJiuzuan Business Center, Tenglong Road, Daling Community, Minzhi Street, Longhua District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA22122601301 Page 3 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U MM A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 6 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D RE S U L T S ........................................... 10 4.1 AC Power Conducted Emission 10 4.2 Radiated Emissions and Band Edge 13 4.3 Maximum Peak Output Power 20 4.4 Power Spectral Density 21 4.5 6dB Bandwidth 23 4.6 Out-of-band Emissions 25 4.7 Antenna Requirement 29 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 30 6 P H O T O S O F T H E E U T ........................................................... 31 Report No.: CTA22122601301 Page 4 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 V05r02: Guidance for Performing Compliance Measurements on D…

Text truncated - open the document above for the full version.

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID............................................. : CTA22122601302 2AZ57-PJ132 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Amy Wen Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Jan. 04, 2023 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : Meiping International Network Technology(Shenzhen)Co.,Ltd. Address ............................................ : A3109, Block A, LongguangJiuzuan Business Center, Tenglong Road, Daling Community, Minzhi Street, Longhua District, Shenzhen, China Test specification ........................... : Standard ........................................... : FCC Part 15.247 TRF Originator .................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Projector Trade Mark ....................................... : Sriaxnol Manufacturer .................................... : Meiping International Network Technology(Shenzhen)Co.,Ltd. Model/Type reference ...................... : PJ132 Listed Models .................................. : PJ131, PJ131-XX,PJ132-XX (XX is reserved for future color and cosmetic change, it can be 0-9.A-Z) Modulation Type ............................... : CCK/DSSS/OFDM Operation Frequency ........................ : From 2412 - 2462MHz Rating ............................................... : DC 26.0V From external circuit Result ............................................... : PASS Report No.: CTA22122601302 Page 2 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Projector Model /Type : PJ132 Series Model No. PJ131, PJ131-XX,PJ132-XX (XX is reserved for future color and cosmetic change, it can be 0-9.A-Z) Applicant : Meiping International Network Technology(Shenzhen)Co.,Ltd. Address : A3109, Block A, LongguangJiuzuan Business Center, Tenglong Road, Daling Community, Minzhi Street, Longhua District, Shenzhen, China Manufacturer : Meiping International Network Technology(Shenzhen)Co.,Ltd. Address : A3109, Block A, LongguangJiuzuan Business Center, Tenglong Road, Daling Community, Minzhi Street, Longhua District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA22122601302 Page 3 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 6 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Test Description 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 10 4.1 AC Power Conducted Emission 10 4.2 Radiated Emission 13 4.3 Maximum Peak Conducted Output Power 20 4.4 Power Spectral Density 21 4.5 6dB Bandwidth 24 4.6 Out-of-band Emissions 27 4.7 Antenna Requirement 34 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 35 6 P H O T O S O F T H E E U T ........................................................... 36 Report No.: CTA22122601302 Page 4 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices…

Text truncated - open the document above for the full version.

Report No.: CTA22122601302 Page 30 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11g Reference Reference CH06 CH11 30MHz-3GHz 30MHz-3GHz 3GHz -25GHz 3GHz -25GHz Report No.: CTA22122601302 Page 31 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n20 Reference Reference CH01 CH06 30MHz-3GHz 30MHz-3GHz 3GHz -25GHz 3GHz -25GHz Report No.: CTA22122601302 Page 32 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n20 Reference CH11 30MHz-3GHz 3GHz -25GHz Report No.: CTA22122601302 Page 33 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Band-edge Measurements for RF Conducted Emissions: 802.11b Left bandedge Right bandedge 802.11g Left bandedge Right bandedge 802.11n(HT20) Left bandedge Right bandedge Report No.: CTA22122601302 Page 34 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 4.7 Antenna Requirement Standard Applicable For intentional device, according to FCC 47 CFR Section 15.203: An intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. The use of a permanently attached antenna or of an antenna that uses a unique coupling to the intentional radiator, the manufacturer may design the unit so that a broken antenna can be replaced by the user, but the use of a standard antenna jack or electrical connector is prohibited FCC CFR Title 47 Part 15 Subpart C Section 15.247(c) (1) (I): (i) Systems operating in the 2400-2483.5 MHz band that is used exclusively for fixed. Point-to-point operations may employ transmitting antennas with directional gain greater than 6dBi provided the maximum conducted output power of the inte…
