AGC Automotive Europe Avenue Jean Monnet 4, 1348 Ottignies-Louvain-la-Neuve, Belgium LEGAL NOTICE Jack device (Model: JACK-V2): • Must be glued to the car windshield only using the provided tape. • Don’t touch device solar cells. • Operating Temperature: -40°C to +85°C. • Operating Humidity range (not condensing): 10% to 90%. • Apply the device only on a dry windshield. Don’t operate this product near water. • This product is certified to be used at a maximum height of 2.000m. • Dimension: 134.01 x 22.30 x 27.60mm; Weight: 70g. • Connectivity: BLE Contains FCC ID: 2AZ5PJACK-V2 AGC declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. In order to protect human health, this device meets the thresholds for exposure of the general public to electromagnetic fields according to Council Recommendation 1999/519/EC. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help. Description:Windshield Transducer Models:Jack 2 Input Rated Voltage:3.3Vdc battery powered Maximum EIRP (RF Output Power):3.35dBm Maximum ModeWork Frequency Transmit Frequency (MHz)Receive Frequency (MHz) Bluetooth2402MHz-2480MHz2402MHz-2480MHz

06 July 2021 TUV SUD BABT UNLIMITED TCB Octagon House, Segensworth North, Fareham, Hampshire, PO15 5RL, United Kingdom Confidentiality Request FCC ID: 2AZ5PJACK-V2 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, AGC Automotive Europe SA hereby requests permanent confidential treatment of information accompanying this application as outlined below: Block Diagram Schematics and PCB Layout Parts List Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer: Chorine Nicolas Telephone Number: +32 473 66 33 68 Email: [email protected] Chorine Nicolas July 6th 2021

29 March 2021 TUV SUD BABT UNLIMITED TCB Octagon House, Segensworth North, Fareham, Hampshire, PO15 5RL, United Kingdom Dear Sir or Madam, We, AGC Automotive Europe SA, Address : Avenue Jean Monnet 4, 1348 Ottignies-Louvain-la-Neuve, Belgium hereby authorize Matt Zhang from TUV SUD Certification and testing (China) Co., Ltd. Guangzhou Branch, Address: 5F, Communication Building, 163 Pingyun Rd, Huangpu West Ave. Guangzhou 510656 P. R. China, Phone is +86 (0) 20 3817 0684 E-mail: [email protected] to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Type of equipment: Windshield Transducer Model name: Jack 2 FCC ID: 2AZ5PJACK-V2 This authorization expires on 24 September 2021 Sincerely, Company Officer: Chorine Nicolas Telephone Number: +32 473 66 33 68 Email: [email protected] Chorine Nicolas August 3rd, 2021

Label

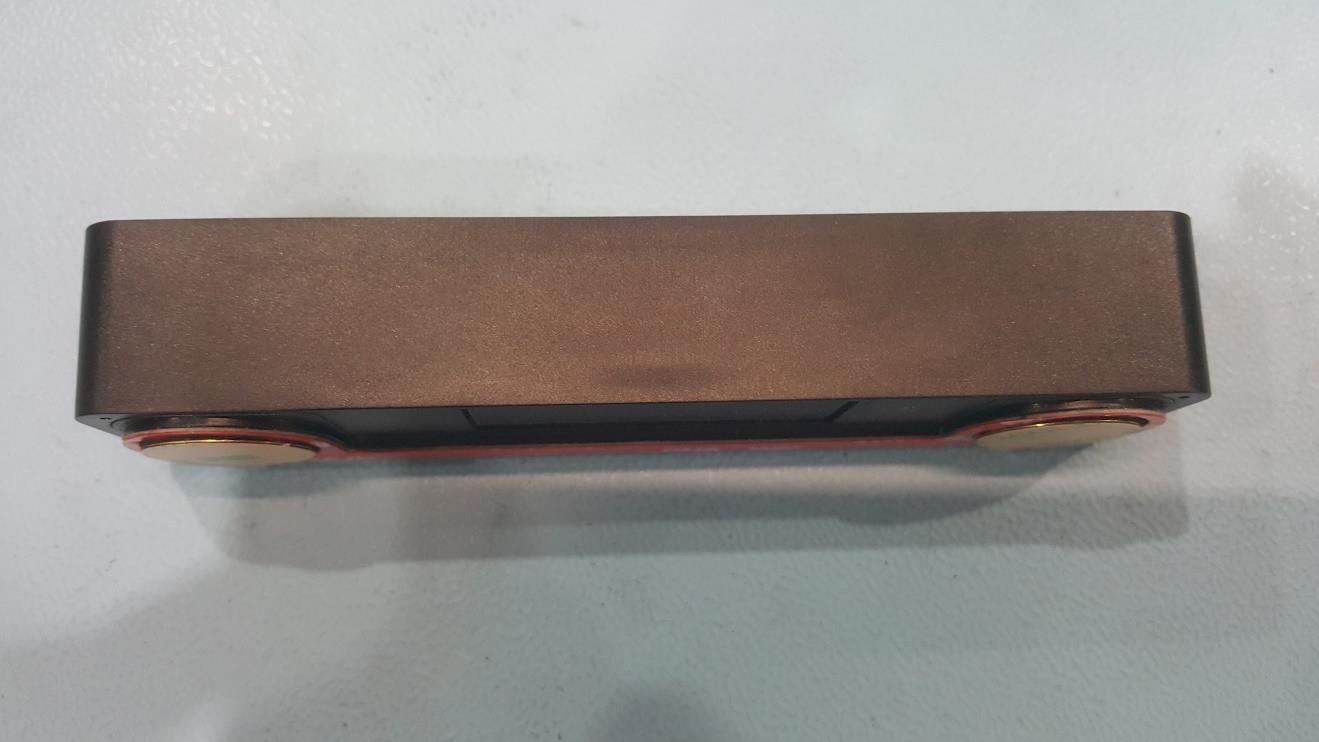

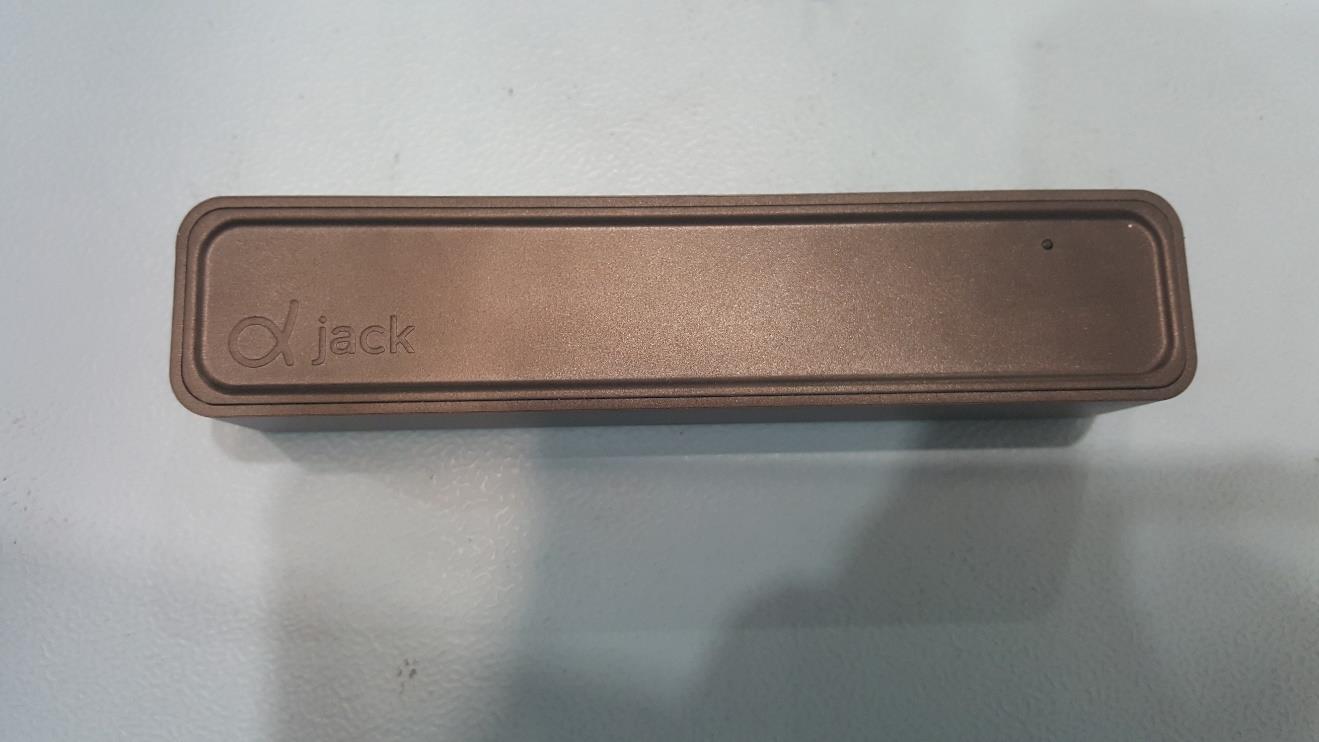

Inner view PCB front view PCB back view Bluetooth Module view Bluetooth antenna BT module back view

TÜV SÜD AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400 FAX: 858 546 0364 June 11, 2021 TUV SUD BABT UNLIMITED TCB Octagon House Segensworth North, Fareham, Hampshire, PO15 5RL, United Kingdom Attention: Director of Certification RE: Analysis of RF Exposure for Portable and Mobile use per KDB 447498 D01 RF Exposure Procedures and Equipment Authorization Policies for Mobile and Portable Devices v06 FCC ID: 2AZ5PJACK-V2 Portable exposure SAR Exemption Calculation using a 5mm separation distance: As per Clause 4.3.1 (a) of KDB 447498 D01 v06: ( max. power of channel,including tune−up tolerance,mw min.test separation distance,mm ) x ( √ 푓 ( 퐺퐻푧 ) ) ≤ 3.0 ( 2.163 mw 5 mm ) x (√2.402 ( 퐺퐻푧 ) ) ≤ 3.0 0.67 ≤ 3.0 The EUT threshold complies with standalone SAR test exclusion considerations for 100MHz to 6GHz and test separation distance ≤ 50 mm (5 mm calculated) having maximum conducted power of -1.7 dBm with an antenna gain of 5.05 dBi. Sincerely, Ferdie S. Custodio Name Authorized Signatory Title: Senior EMC Test Engineer /Wireless Team Lead

TÜV SÜD America, Inc. 10040 Mesa Rim Road San Diego, CA 92121-2912 TÜV SÜD America, Inc. Rancho Bernardo Facility 16936 Via Del Campo San Diego, CA 92127 Phone: 858 678 1400 www.tuv-sud-america.com TÜV SÜD RESPONSIBLE FOR NAME DATE SIGNATURE Authorized Signatory Xiaoying Zhang June 11, 2021 Signatures in this approval box have checked this document in line with the requirements of TÜV SÜD document control rules. EXECUTIVE SUMMARY A sample of this product was tested and found to be in compliance with FCC Part 15 Subpart C §15.247 and ISED RSS-247 Issue 2 February 2017. Radio Testing of the AGC Automotive Europe SA AGC Jack 2 In accordance with FCC Part 15 Subpart C §15.247 and ISED RSS-247 Issue 2 February 2017 Prepared for: AGC Automotive Europe SA Avenue Jean Monnet 4 Ottignies-Louvain-La-Neuve 1348 Belgium COMMERCIAL-IN-CONFIDENCE Date: June 2021 Document Number: 72165078A Issue 3 | Version Number: 03 A2LA Cert. No. 2955.13 DISCLAIMER AND COPYRIGHT This report has been prepared by TÜV SÜD America with all reasonable skill and care. The document is confidential to the potential Client and TÜV SÜD America. No part of this document may be reproduced without the prior written approval of TÜV SÜD America. ACCREDITATION Our A2LA Accreditation does not cover opinions and interpretations and any expressed are outside the scope of our A2LA Accreditation. FCC ID: 2AZ5PJACK-V2 Report No. 72165078A Issue 3 COMMERCIAL-IN-CONFIDENCE Page 2 of 58 REPORT ON TEST REPORT NUMBER TEST REPORT DATE Radio Testing of the AGC Automotive Europe SA Model: Jack 2 (Windshield Transducer) 72165078A Issue 3 June 2021 PREPARED FOR AGC Automotive Europe SA Avenue Jean Monnet 4 Ottignies-Louvain-La-Neuve 1348 Belgium CONTACT PERSON Nicolas Chorine Jack CEO [email protected] +32 473 66 33 68 PREPARED BY Ferdinand S. Custodio Name Authorized Signatory Title: Senior EMC Test Engineer / Wireless Team Lead APPROVED BY Xiaoying Zhang Name Authorized Signatory Title: Senior RF Wireless Test Engineer DATED June 11, 2021 FCC ID: 2AZ5PJACK-V2 Report No. 72165078A Issue 3 COMMERCIAL-IN-CONFIDENCE Page 3 of 58 Revision History 72165078A Issue 3 AGC Automotive Europe SA Model: AGC Jack 2 DATE OLD REVISION NEW REVISION REASON PAGES AFFECTED APPROVED BY 07/11/2020 Initial Release Xiaoying Zhang 07/14/2021 Initial Release Issue 2 Update company name and corresponding address from Celestica to AGC Automotive Europe SA Ferdinand Custodio 07/16/2021 Issue 2 Issue 3 Update contact person to Mr. Nicolas Chorine Ferdinand Custodio 07/23/2021 Issue 3 Issue 3 Version 2 Update title and email address of contact person 2 Ferdinand Custodio 08/09/2021 Issue 3 Version 2 Issue 3 Version 3 Minor formatting updates and removal of IC number reference Ferdinand Custodio FCC ID: 2AZ5PJACK-V2 Report No. 72165078A Issue 3 COMMERCIAL-IN-CONFIDENCE Page 4 of 58 CONTENTS Section Page No 1 REPORT SUMMARY ................................................................................................................... 5 1.2 Brief Summary Of Results ............................................................................................................ 7 1.3 Product Information ...................................................................................................................... 8 1.4 EUT Test Configuration ................................................................................................................ 8 1.5 Deviations From The Standard ................................................................................................... 11 1.6 Modification Record .................................................................................................................... 11 1.7 Test Methodology ....................................................................................................................... 11 1.8 Test Facility Location .................................................................................................................. 11 1.9 Test Facility Registration ............................................................................................................ 11 2 TEST DETAILS .......................................................................................................................... 13 2.1 Peak Output Power..................................................................................................................... 14 2.2 Conducted Emissions ................................................................................................................. 17 2.3 99% Emission Bandwidth ........................................................................................................... 18 2.4 Minimum 6 dB RF Bandwidth ..................................................................................................... 21 2.5 Out-Of-Band Emissions - Conducted ......................................................................................... 24 2.6 Band-Edge Compliance Of Rf Conducted Emissions ................................................................ 27 2.7 Radiated Spurious Emissions ..................................................................................................... 38 2.8 Power Spectral Density .............................................................................................................. 45 3 TEST EQUIPMENT USED ......................................................................................................... 48 3.1 Test Equipment Used ................................................................................................................. 49 3.2 Measurement Uncertainty .......................................................................................................... 50 4 DIAGRAM OF TEST SETUP ..................................................................................................... 53 4.1 Test Setup Diagram ................................................................…
