2AZ6F-131202Wireless Router

FCC Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help important announcement Note: Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Wireless Router

JARTON Group Co.,Ltd. Agent Authorization Company: JARTON Group Co.,Ltd. Address: 222 Jungkankul Building , Rama 3 Road , Bangkorlam , Bangkok 10120. THAILAND Product Name: Wireless Router Model Number(s): 131202, 131241, 131242, 131243, 131244, 131245, 131246, 131247, 131248, 131249, 131250 Product Description: Wireless Router FCC ID: 2AZ6F-131202 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-06-23 Name: Narathip Charoenchim Title: Import Company: JARTON Group Co.,Ltd.

JARTON Group Co.,Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Dear Sir/Madam, We, JARTON Group Co.,Ltd. Hereby declares the following statement for FCC, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product Name: Wireless Router Model Number(s): 131202, 131241, 131242, 131243, 131244, 131245, 131246, 131247, 131248, 131249, 131250 Sincerely, Signature: Date: 2021-06-23 Name: Narathip Charoenchim Title: Import Company: JARTON Group Co.,Ltd.

JARTON Group Co.,Ltd. 222 Jungkankul Building , Rama 3 Road , Bangkorlam , Bangkok 10120. THAILAND Date: June 23, 2021 FCC ID: 2AZ6F-131202 Model Number: 131202, 131241, 131242, 131243, 131244, 131245, 131246, 131247, 131248, 131249, 131250 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, JARTON Group Co.,Ltd. declare that this EUT (FCC ID: 2AZ6F-131202) doesn’t have Ad Hoc mode function on “non-US/Canada frequencies”. In addition. The frequency selection feature is disabled by firmware for devices marked to the US/Canada. For DTS part of this device, only channels 1-11 will be used in North America, Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name / Title: Narathip Charoenchim / Import Company: JARTON Group Co.,Ltd. Address: 222 Jungkankul Building , Rama 3 Road , Bangkorlam , Bangkok 10120. THAILAND Tel: +662 689 0888 Fax: +662 689 0888 E-mail: [email protected]

JARTON Group Co.,Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021-06-23 Subject; Request for Confidentiality FCC ID: 2AZ6F-131202 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Narathip Charoenchim Title: Import

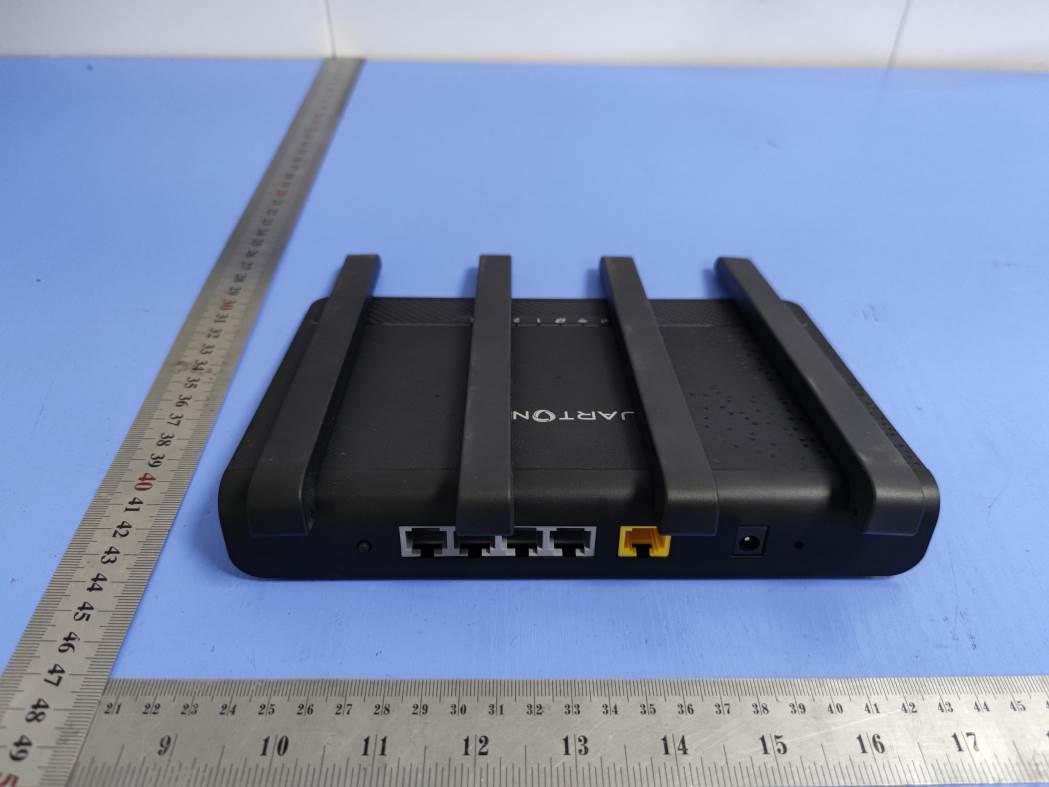

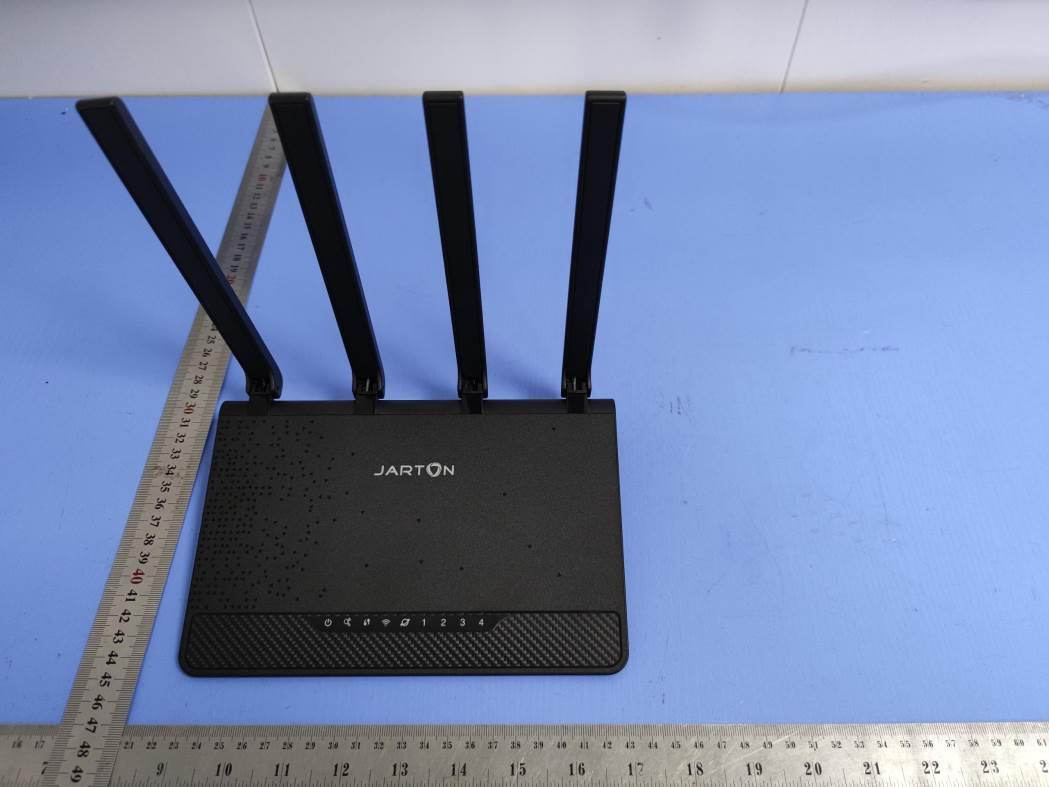

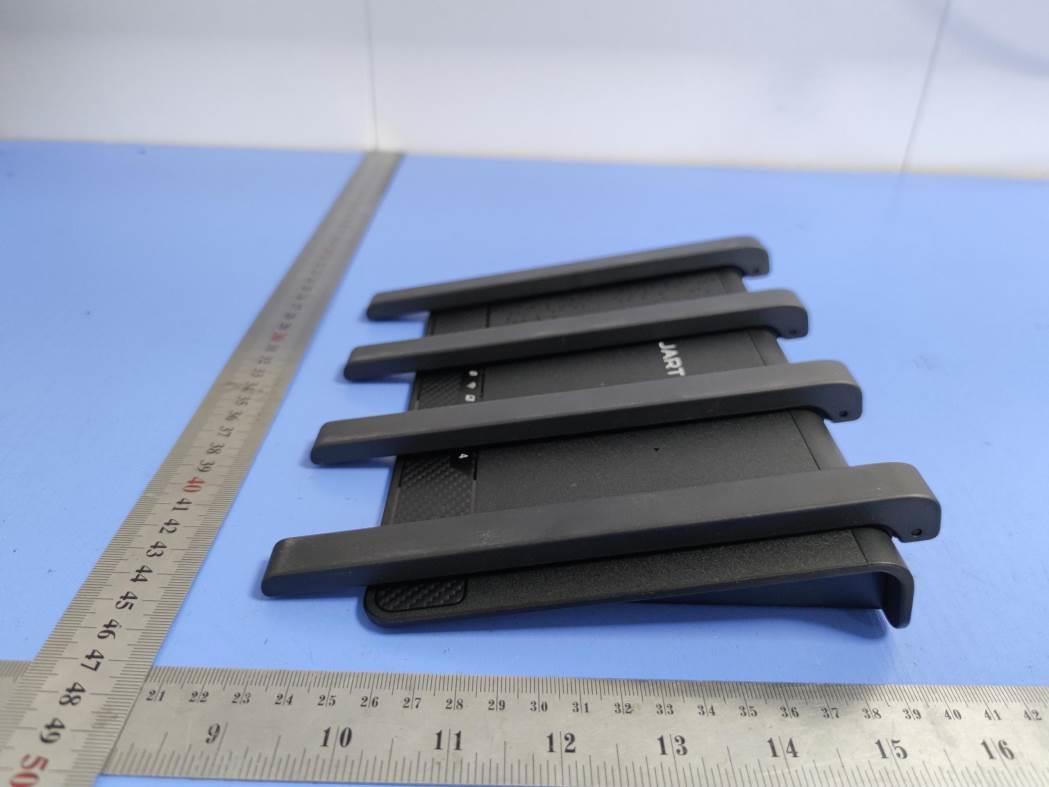

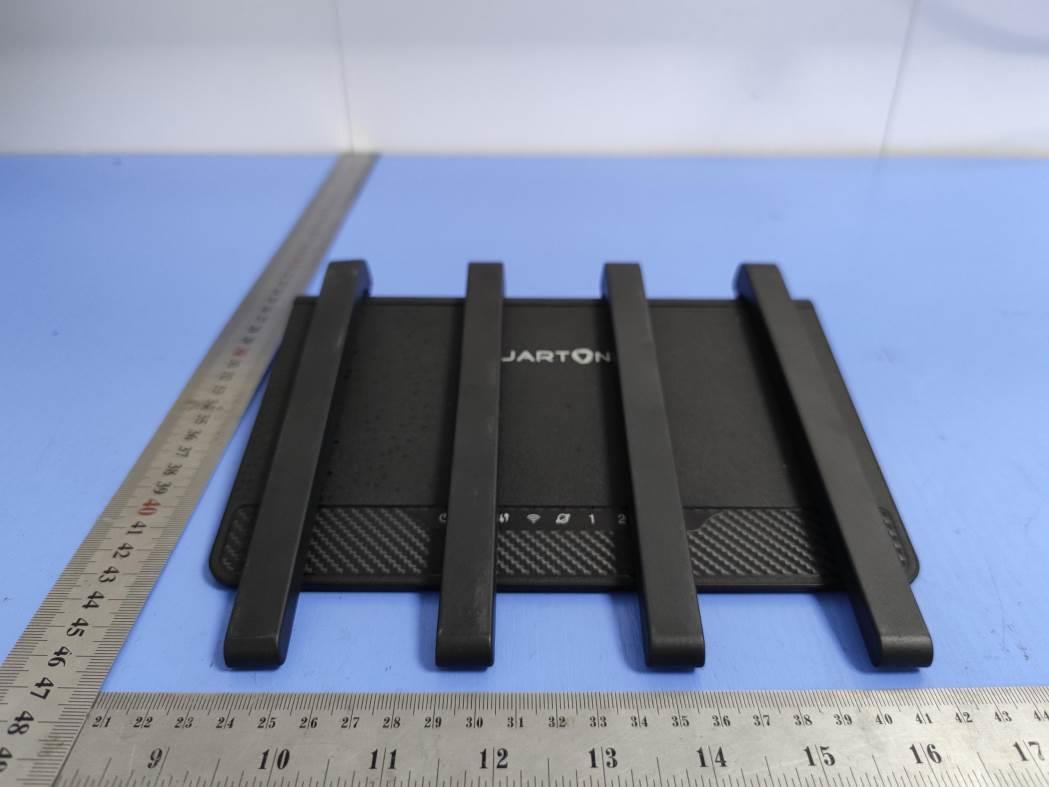

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6F-131202 EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 2.4G WIFI Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6F-131202 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6F-131202 Fig.5

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6F-131202 INTERIOR PHOTOGRAPHS Fig.1 Fig.2 2.4G WIFI Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6F-131202 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6F-131202 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6F-131202 Fig.7 Fig.8

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6F-131202 Report No.: LCS210511099AEA Page 1 of 52 Appendix A RF Test Data for 2.4G WIFI (Conducted Measurement) Product Name: Wireless Router Test Model: 131202 Environmental Conditions Temperature: 24.6 C Relative Humidity: 54.1% ATM Pressure: 100.0 kPa Test Engineer: Carl Fu Supervised by: Li Huan A.1 Duty Cycle Test Mode Test Channel Ant Duty Cycle[%] Verdict 11B 2437 Ant1 100 PASS 11G 2437 Ant1 100 PASS 11N20SISO 2437 Ant1 100 PASS 11N40SISO 2437 Ant1 100 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6F-131202 Report No.: LCS210511099AEA Page 2 of 52 Duty Cycle_11B_2437_Ant1 Duty Cycle_11G_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6F-131202 Report No.: LCS210511099AEA Page 3 of 52 Duty Cycle_11N20SISO_2437_Ant1 Duty Cycle_11N40SISO_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6F-131202 Report No.: LCS210511099AEA Page 4 of 52 A.2 Maximum Conducted Output Power Mode Channel Meas.Level [dBm] Limit [dBm] Verdict 11B LCH 12.65 30 PASS MCH 13.78 30 PASS HCH 14.18 30 PASS 11G LCH 12.60 30 PASS MCH 14.04 30 PASS HCH 14.45 30 PASS 11N20SISO LCH 12.07 30 PASS MCH 13.29 30 PASS HCH 13.95 30 PASS 11N40SISO LCH 13.13 30 PASS MCH 13.99 30 PASS HCH 14.47 30 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6F-131202 Report No.: LCS210511099AEA Page 5 of 52 Test Graphs 11B/LCH 11B/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6F-131202 Report No.: LCS210511099AEA Page 6 of 52 11B/HCH 11G/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6F-131202 Report No.: LCS210511099AEA Page 7 of 52 11G/MCH 11G/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6F-131202 Report No.: LCS210511099AEA Page 8 of 52 11N20SISO/LCH 11N20SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6F-131202 Report No.: LCS210511099AEA Page 9 of 52 11N20SISO/HCH 11N40SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6F-131202 Report No.: LCS210511099AEA Page 10 of 52 11N40SISO/MCH 11N40SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6F-131202 Report No.: LCS210511099AEA Page 11 of 52 A.3 Maximum Power Spectral Density Mode Channel Meas.Level [dBm/3KHz] Limit [dBm/3KHz] Verdict 11B LCH -14.346 8 PASS MCH -13.616 8 PASS HCH -12.713 8 PASS 11G LCH -20.283 8 PASS MCH -18.941 8 PASS HCH -18.456 8 PASS 11N20SISO LCH -20.388 8 PASS MCH -18.632 8 PASS HCH -18.456 8 PASS 11N40SISO LCH -20.388 8 PASS MCH -19.066 8 PASS HCH -19.216 8 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6F-131202 Report No.: LCS210511099AEA Page 12 of 52 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6F-131202 Report No.: LCS210511099AEA Page 13 of 52 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6F-131202 Report No.: LCS210511099AEA Page 14 of 52 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6F-131202 Report No.: LCS210511099AEA Page 15 of 52 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6F-131202 Report No.: LCS210511099AEA Page 16 of 52 11N40SISO/LCH 11N40SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6F-131202 Report No.: LCS210511099AEA Page 17 of 52 11N40SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6F-131202 Report No.: LCS210511099AEA Page 18 of 52 A.4 6dB Bandwidth Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict 11B LCH 9.598 ≥0.5 PASS MCH 9.135 ≥0.5 PASS HCH 9.560 ≥0.5 PASS 11G LCH 13.80 ≥0.5 PASS MCH 12.58 ≥0.5 PASS HCH 11.33 ≥0.5 PASS 11N20SISO LCH 13.81 ≥0.5 PASS MCH 11.36 ≥0.5 PASS HCH 11.33 ≥0.5 PASS 11N40SISO LCH 31.36 ≥0.5 PASS MCH 33.85 ≥0.5 PASS HCH 33.87 ≥0.5 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6F-131202 Report No.: LCS210511099AEA Page 19 of 52 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6F-131202 Report No.: LCS210511099AEA Page 20 of 52 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6F-131202 Report No.: LCS210511099AEA Page 21 of 52 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6F-131202 Report No.: LCS210511099AEA Page 22 of 52 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6F-131202 Report No.: LCS210511099AEA Page 23 of 52 11N40SISO/LCH 11N40SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6F-131202 Report No.: LCS210511099AEA Page 24 of 52 11N40SISO/HCH A.5 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdic SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6F-131202 Report No.: LCS210511099AEA Page 25 of 52 t 11B LCH 0.479 -37.616 -19.521 PASS MCH 1.854 -38.004 -18.146 PASS HCH 2.087 -37.937 -17.913 PASS 11G LCH -4.491 -37.038 -24.491 PASS MCH -3.716 -37.323 -23.716 PASS HCH -2.96 -37.197 -22.960 PASS 11N20 SISO LCH -4.744 -38.436 -24.744 PASS MCH -3.347 -37.716 -23.347 PASS HCH -2.553 -38.308 -22.553 PASS 11N40 SISO LCH -7.228 -37.155 -27.228 PASS MCH -6.41 -37.932 -26.410 PASS HCH -6.211 -37.732 -26.211 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6F-131202 Report No.: LCS210511099AEA Page 26 of 52 11B_LCH_Graphs Pref/11B/LCH Puw/11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6F-131202 Report No.: LCS210511099AEA Page 27 of 52 11B_MCH_Graphs Pref/11B/MCH Puw/11B/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6F-131202 Report No.: LCS210511099AEA Page 28 of 52 11B_HCH_Graphs Pref/11B/HCH Puw/11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6F-131202 Report No.: LCS210511099AEA Page 29 of 52 11G_LCH_Graphs Pref/11G/LCH Puw/11G/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6F-131202 Report No.: LCS210511099AEA Page 30 of 52 11G_MCH_Graphs Pref/11G/MCH P…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6F-131202 Report No.: LCS210511099AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 39 FCC TEST REPORT For JARTON Group Co.,Ltd. Wireless Router Test Model: 131202 Additional Model No.: Please Refer to Page 6 Prepared for : JARTON Group Co.,Ltd. Address : 222 Jungkankul Building , Rama 3 Road , Bangkorlam , Bangkok 10120. THAILAND Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : May 12, 2021 Number of tested samples : 2 Sample number : 210511099A-1, 210511099A-2 Serial number : Prototype Date of Test : May 12, 2021 ~ May 21, 2021 Date of Report : May 24, 2021 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6F-131202 Report No.: LCS210511099AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 39 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................. : LCS210511099AEA Date of Issue .................................. : May 24, 2021 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address .......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Procedure .......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ......................... : JARTON Group Co.,Ltd. Address .......................................... : 222 Jungkankul Building , Rama 3 Road , Bangkorlam , Bangkok 10120. THAILAND Test Specification Standard ......................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No. .................. : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. .......................... : Wireless Router Trade Mark ..................................... : Test Model ...................................... : 131202 Ratings ........................................... : Input: DC 12V, 1A Result ............................................ : Positive Compiled by: Supervised by: Approved by: Cherry Chen/ File administrators Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6F-131202 Report No.: LCS210511099AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 39 FCC -- TEST REPORT EUT......................................... : Wireless Router Test Model............................... : 131202 Applicant............................... : JARTON Group Co.,Ltd. Address.................................. : 222 Jungkankul Building , Rama 3 Road , Bangkorlam , Bangkok 10120. THAILAND Telephone............................... : / Fax.......................................... : / Manufacturer........................ : JARTON Group Co.,Ltd. Address................................... : 222 Jungkankul Building , Rama 3 Road , Bangkorlam , Bangkok 10120. THAILAND Telephone............................... : / Fax.......................................... : / Factory................................... : / Address................................... : / Telephone............................... : / Fax.......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS210511099AEA May 24, 2021 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6F-131202 Report No.: LCS210511099AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 39 Revision History Revision Issue Date Revisions Revised By 000 May 24, 2021 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6F-131202 Report No.: LCS210511099AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 39 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 6 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................ 6 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS .......................................................................................... 7 1.3. EXTERNAL I/O CABLE ......................................................................................................................................... 7 1.4. DESCRIPTION OF TEST FACILITY .............................................................................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6F-131202 _______________________________________________________________________________________________ TEST SETUP PHOTOGRAPHS Photo of Radiated Emissions Measurement Below 1 GHz Above 1 GHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6F-131202 _______________________________________________________________________________________________ Power Line Conducted Emission
