2AZ6Y-FDHV2FDH V2.0

1 Activate the TraceScan Device A red LED will blink every 3 seconds when the device is on The device will turn on when a user checks-in at the sync station 2 Contact Tracing The device registers the user's contact history and categorizes the risk based on proximity and duration Contact history is automatically saved within the device until the end of the workday 6 Charging the Device The Wearables can be charged through a USB port (USB 2.0, USB 3.0 compatible) *The battery will last for 5 days with a single charge TraceScan Device Power Off 5 a. The device will audibly notify the user that the device is turned off b. A blue LED will blink every 3 seconds when the device is in the sleep mode After the data transfer is complete the device will turn off by itself TraceScan User Guide 3 Social Distancing Vibration can be turned off by holding the marked area of the screen for 5 seconds The device will vibrate when a user is in close contact with another user (-2m) 4 Transfering contact history A blue LED will be on when the data is being transferred The device will transfer the captured data to the server when the user checks-out at the sync station Home Button How to Charge Pull the strap in the above mentioned direction Plug the end to any USB outlet PMN: FDH V2.0 HVIN: TraceSCAN V2.0 FCC Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ·Reorient or relocate the receiving antenna. ·Increase the separation between the equipment and receiver. · Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. · Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. ISED Statement ‐ English: This device complies with Industry Canada license‐ exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device. The digital apparatus complies with Canadian CAN ICES‐3 (B)/NMB‐3(B). ‐ French: Le présentappareilestconforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitationestautorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareildoit accepter tout brouillageradioélec triquesubi, mêmesi le brouillageest susceptible d'encompromettre le fonctionnement. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. This radio transmitter (ISED certification number: 26655-FDHV2) has been approved by Industry Canada to operate with the antenna types listed with the maximum permissible gain indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. Le présent émetteur radio (ISED certification number:26655-FDHV2) a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain admissible maximal. Les types d'antenne non inclus dans cette liste, et dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur. L'appareil a été évalué pour répondre aux exigences générales d'exposition aux RF.Le dispositif peut être utilisé dans des conditions d'exposition portatives sans restriction.

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2021-6-26> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AZ6Y-FDHV2 TraceSCAN V2.0 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Rishard Rameez/Director of Operations Company: Facedrive Health Inc. Address: 100 Consilium Pl #400, Scarborough, ON M1H 3E3,Canada Phone: 1-226-505-6517 Fax: 1-877-360-5318 E-Mail: [email protected]

Facedrive Health Inc. 100 Consilium Pl #400, Scarborough, ON M1H 3E3,Canada Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2021-6-26 To whom it may concern: We, Facedrive Health Inc. the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AZ6Y-FDHV2 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Rishard Rameez/Director of Operations Company: Facedrive Health Inc. Address: 100 Consilium Pl #400, Scarborough, ON M1H 3E3,Canada Phone: 1-226-505-6517 Fax: 1-877-360-5318 E-Mail: [email protected]

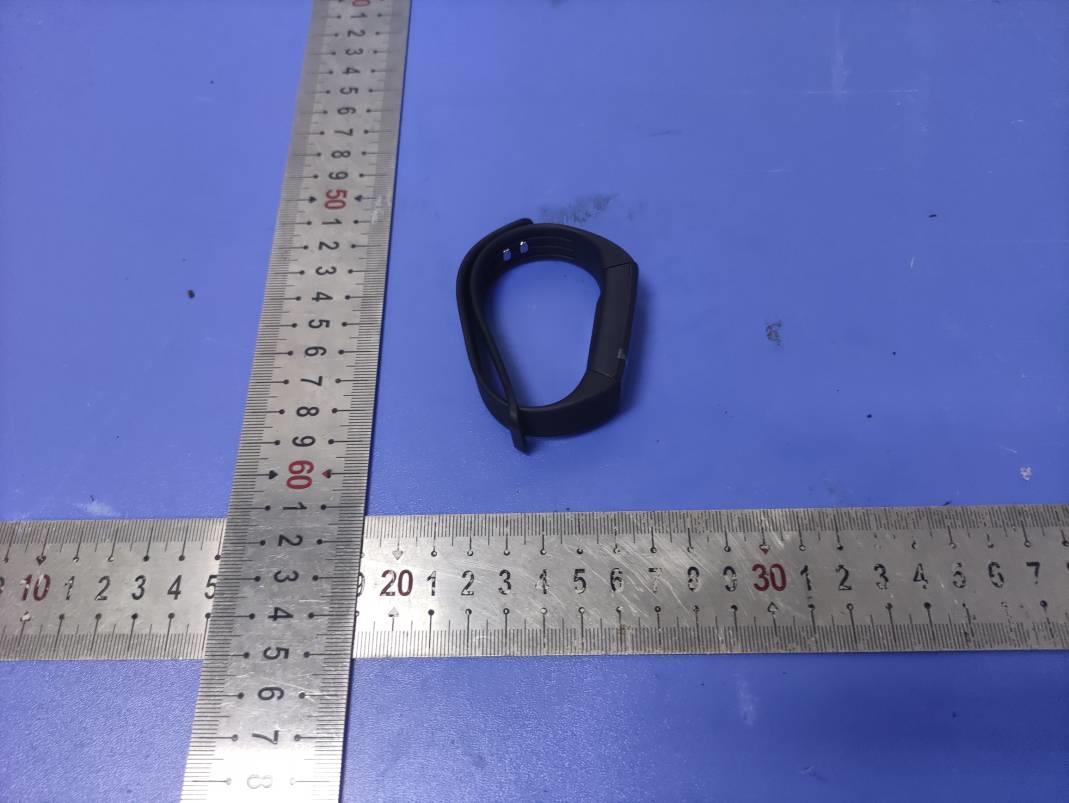

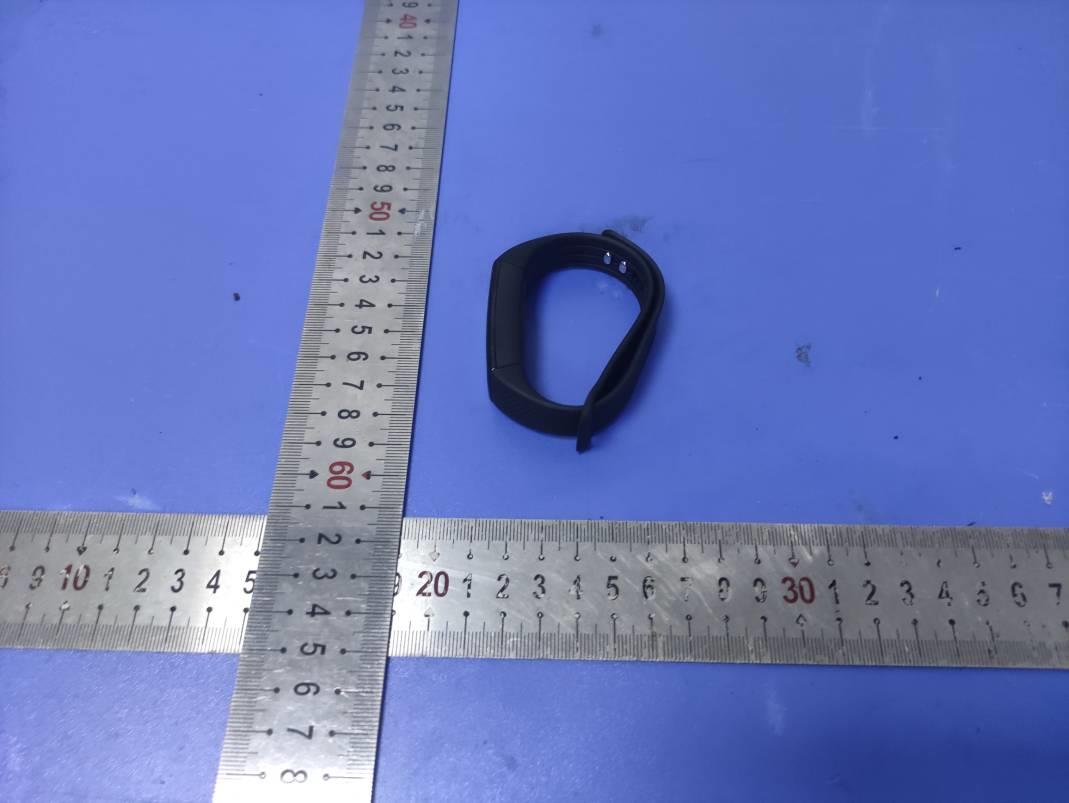

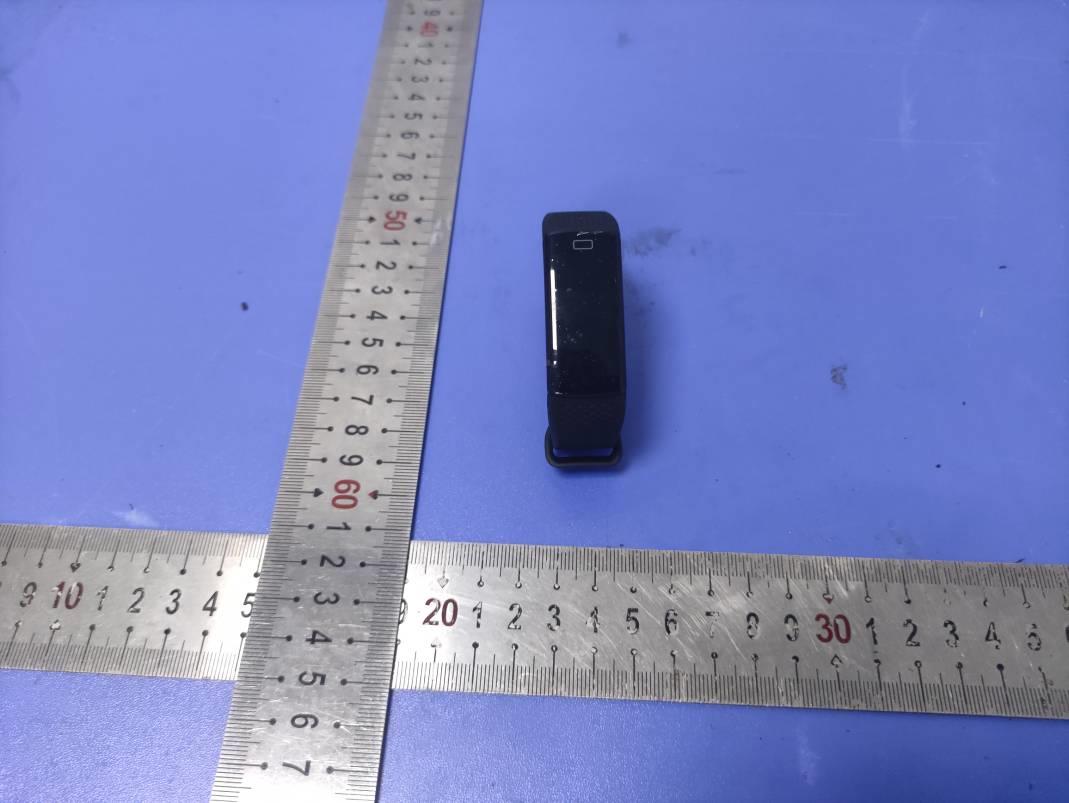

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6Y-FDHV2 IC: 26655-FDHV2 1. EXTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6Y-FDHV2 IC: 26655-FDHV2 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6Y-FDHV2 IC: 26655-FDHV2 Fig. 5 Fig. 6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6Y-FDHV2 IC: 26655-FDHV2 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L1.5cm*W1.0cm Label Location FDH V2.0 Model(HVIN): TraceSCAN V2.0 IC: 26655-FDHV2 FCC ID: 2AZ6Y-FDHV2

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6Y-FDHV2 IC: 26655-FDHV2 1. INTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 NFC Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6Y-FDHV2 IC: 26655-FDHV2 Fig. 3 Fig. 4 BT Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6Y-FDHV2 IC: 26655-FDHV2 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6Y-FDHV2 IC: 26655-FDHV2 Fig. 7

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6Y-FDHV2 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 FCC RF Exposure Evaluation 1. Product Information FCC ID : 2AZ6Y-FDHV2 Product name : FDH V2.0 Test Model : TraceSCAN V2.0 Power supply : Input: DC 5V DC 3.7V by Rechargeable Li-ion Battery, 0.333Wh Bluetooth : 2402MHz ~ 2480MHz Channel Number : 40 channels for Bluetooth V5.0(DTS) Channel Spacing : 2MHz for Bluetooth V5.0(DTS) Modulation Type : GFSK for Bluetooth V5.0(DTS) Bluetooth Version : V5.0 Antenna Type : Internal Antenna Antenna Gain : 0dBi(Max.) Hardware version : FDHV2.0 Software version : FDHVS 2.0 Exposure category : General population/uncontrolled environment EUT Type : Production Unit Device Type : Portable Device 2. Evaluation method and Limit According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.“ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6Y-FDHV2 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 When one of the following test exclusion conditions is satisfied for all combinations of simultaneous transmission configurations, further equipment approval is not required to incorporate transmitter modules in host devices that operate in the mixed mobile and portable host platform exposure conditions. The grantee is responsible for documenting this according to Class I permissive change requirements. Antennas that qualify for standalone SAR test exclusion must apply the estimated standalone SAR to determine simultaneous transmission test exclusion. a) The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. b)The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. 3. Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices 4. Conducted Power Results <BT LE> Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) GFSK 0 2402 0.379 19 2440 1.666 39 2480 0.112 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6Y-FDHV2 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 3 5. Manufacturing Tolerance <BT LE> GFSK (Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) 0 1.0 0 Tolerance ±(dB) 1.0 1.0 1.0 6. Evaluation Results 6.1 Standalone Evaluation Band/Mode f (GHz) Antenna Distance (mm) RF output power SAR Test Exclusion Threshold SAR Test Exclusion dBm mW BT LE GFSK 2.402 5 2.0 1.5849 0.4923< 3.0 Yes R…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6Y-FDHV2 IC: 26655-FDHV2 Page 1 of 16 Appendix A RF Test Data for BT V5.0(BLE) (Conducted Measurement) Product Name: FDH V2.0 Trade Mark: TraceSCAN Test Model(HVIN): TraceSCAN V2.0 Environmental Conditions Temperature: 22.8C Relative Humidity: 53.9% ATM Pressure: 100.0 kPa Test Engineer: Jay Li Supervised by: Li Huan A.1 Duty Cycle Test Mode Test Channel Ant Duty Cycle[%] Verdict BT LE 2440 Ant1 100 PASS #imgrbb le1hchnnav SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6Y-FDHV2 IC: 26655-FDHV2 Page 2 of 16 A.2 Maximum Conducted Peak Output Power Mode Channel Conduct Peak Power[dBm] Limit [dBm] Verdict BT LE LCH 0.379 30 PASS BT LE MCH 1.666 30 PASS BT LE HCH 0.112 30 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6Y-FDHV2 IC: 26655-FDHV2 Page 3 of 16 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6Y-FDHV2 IC: 26655-FDHV2 Page 4 of 16 A.3 Maximum Power Spectral Density Mode Channel PSD [dBm/3KHz] Limit [dBm/3KHz] Verdict BT LE LCH -8.449 8 PASS BT LE MCH -7.224 8 PASS BT LE HCH -8.639 8 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6Y-FDHV2 IC: 26655-FDHV2 Page 5 of 16 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6Y-FDHV2 IC: 26655-FDHV2 Page 6 of 16 A.4 6dB Bandwidth Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict BT LE LCH 0.6682 ≥0.5 PASS BT LE MCH 0.6696 ≥0.5 PASS BT LE HCH 0.6688 ≥0.5 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6Y-FDHV2 IC: 26655-FDHV2 Page 7 of 16 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6Y-FDHV2 IC: 26655-FDHV2 Page 8 of 16 A.5 Occupied Bandwidth Mode Channel Occupied Bandwidth [MHz] Limit [MHz] Verdict BT LE LCH 1.0317 ≥0.5 PASS BT LE MCH 1.0313 ≥0.5 PASS BT LE HCH 1.0330 ≥0.5 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6Y-FDHV2 IC: 26655-FDHV2 Page 9 of 16 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6Y-FDHV2 IC: 26655-FDHV2 Page 10 of 16 A.6 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict BT LE LCH 5.795 -36.891 -14.205 PASS BT LE MCH 7.155 -36.953 -12.845 PASS BT LE HCH 5.577 -37.438 -14.423 PASS BT LE_LCH_Graphs Pref/BT LE/LCH Puw/BT LE/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6Y-FDHV2 IC: 26655-FDHV2 Page 11 of 16 BT LE_MCH_Graphs Pref/BT LE/MCH Puw/BT LE/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6Y-FDHV2 IC: 26655-FDHV2 Page 12 of 16 BT LE_HCH_Graphs Pref/BT LE/HCH Puw/BT LE/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6Y-FDHV2 IC: 26655-FDHV2 Page 13 of 16 A.7 Band-edge for RF Conducted Emissions Mode Channel Carrier Power[dBm] Max.Spurious Level [dBm] Limit [dBm] Verdict BT LE LCH 5.968 -49.012 -14.03 PASS BT LE HCH 5.577 -49.023 -14.42 PASS Test Graphs LCH HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6Y-FDHV2 IC: 26655-FDHV2 Page 14 of 16 A.8 Restrict-band band-edge measurements Test Mode Test Chann el Ant Freq. Power [dBm] Gain Ground Factor E [dBuV/m] Detector Limit [dBuV/ m] Verdi ct BT LE 2402 Ant1 2310.0 -41.79 2.0 0 55.47 PEAK 74 PASS Ant1 2310.0 -53.67 2.0 0 43.59 AV 54 PASS Ant1 2390.0 -43.01 2.0 0 54.25 PEAK 74 PASS Ant1 2390.0 -53.32 2.0 0 43.93 AV 54 PASS 2480 Ant1 2483.5 -42.37 2.0 0 54.89 PEAK 74 PASS Ant1 2483.5 -52.69 2.0 0 44.57 AV 54 PASS Ant1 2500.0 -42.14 2.0 0 55.12 PEAK 74 PASS Ant1 2500.0 -52.65 2.0 0 44.60 AV 54 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6Y-FDHV2 IC: 26655-FDHV2 Page 15 of 16 Restrict-band band-edge measurements_BT LE_2402_Ant1_PEAK Restrict-band band-edge measurements_BT LE_2402_Ant1_AV SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6Y-FDHV2 IC: 26655-FDHV2 Page 16 of 16 Restrict-band band-edge measurements_BT LE_2480_Ant1_PEAK Restrict-band band-edge measurements_BT LE_2480_Ant1_AV

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6Y-FDHV2 Report No.: LCS210601008AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 33 FCC TEST REPORT For Facedrive Health Inc. FDH V2.0 Test Model: TraceSCAN V2.0 Prepared for : Facedrive Health Inc. Address : 100 Consilium Pl #400, Scarborough, ON M1H 3E3, Canada Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : June 03, 2021 Number of tested samples : 2 Sample number : 210601008A-1(Engineer sample), 210601008A-2(Normal sample) Serial number : Prototype Date of Test : June 03, 2021 ~ June 15, 2021 Date of Report : June 21, 2021 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6Y-FDHV2 Report No.: LCS210601008AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 33 FCC TEST REPORT FCC CFR 47 PART 15 C (15.247) Report Reference No. ................. : LCS210601008AEA Date of Issue ................................... : June 21, 2021 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : Facedrive Health Inc. Address ........................................... : 100 Consilium Pl #400, Scarborough, ON M1H 3E3, Canada Test Specification Standard.......................................... : FCC CFR 47 PART 15 C (15.247) Test Report Form No. ................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. ........................... : FDH V2.0 Trade Mark .......................................................................................................................................... : TraceSCAN Test Model .......................................................................................................................................... : TraceSCAN V2.0 Ratings ................................................................................................................................................ : Input: DC 5V DC 3.7V by Rechargeable Li-ion Battery, 0.333Wh Result ........................................... : Positive Compiled by: Supervised by: Approved by: Vera Deng/ File administrators Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6Y-FDHV2 Report No.: LCS210601008AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 33 FCC -- TEST REPORT Test Model........................... : TraceSCAN V2.0 EUT......................................... : FDH V2.0 Applicant............................... : Facedrive Health Inc. Address.................................. : 100 Consilium Pl #400, Scarborough, ON M1H 3E3, Canada Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Facedrive Health Inc. Address................................... : 100 Consilium Pl #400, Scarborough, ON M1H 3E3, Canada Telephone............................... : / Fax.......................................... : / Factory................................... : Facedrive Health Inc. Address................................... : 100 Consilium Pl #400, Scarborough, ON M1H 3E3, Canada Telephone............................... : / Fax.......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS210601008AEA June 21, 2021 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6Y-FDHV2 Report No.: LCS210601008AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 33 Revision History Revision Issue Date Revisions Revised By 000 June 21, 2021 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6Y-FDHV2 Report No.: LCS210601008AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 33 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 6 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................ 6 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS .................................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6Y-FDHV2 IC: 26655-FDHV2 _______________________________________________________________________________________________ 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZ6Y-FDHV2 IC: 26655-FDHV2 _______________________________________________________________________________________________ Fig. 3 1.2. Photo of Conducted Emissions Measurement Fig. 3
