USER MANUAL POWERSHIFT HUB © C opyright Classified Cycling This document is a translation of the original Dutch user manual. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stor ed in a retrieval syst em or translated into any language or computer language in any form or by any means, electr onic, mechanical, optical, chemical, manual or otherwise, without the prior written permission of Classified Cycling BV. Classified Cycling BV reserves the right to change any information in this document without notice. These changes will be incorpor ated in new editions of this manual or in additional documents and publications. Product names or trademarks of other companies are used for identification purposes only and are the property of their respective owners. Classified Cycling BV Damplein [email protected] 2060 Antwerpenhttps://classified-cycling.cc Doc. nr. classified_powershift_hub_en Ver sion 20230425 Classified Powershift hub Content 1.Introduction5 1. 1Symbols used............................................................................................................................................................................................................5 1. 2Abbreviations.............................................................................................................................................................................................................5 1. 3Intended use..............................................................................................................................................................................................................5 1. 4Prohibited use........................................................................................................................................................................................................... 6 1.5Type designation.....................................................................................................................................................................................................7 2.Safety9 2.1Saf et y pr ecautions................................................................................................................................................................................................. 9 2.2Hazar dous substances........................................................................................................................................................................................9 3.Description10 3.1IT S and ETS.............................................................................................................................................................................................................10 3.2Part names................................................................................................................................................................................................................10 4.Principles of operation14 4. 1The oper ation of the Classified Powershift hub...............................................................................................................................14 5.Configuration16 5.1Selecting and pr eparing the correct smart thru axle....................................................................................................................16 5.2Identifying the bicycle fr ame type (p ostmount - flatmount).....................................................................................................21 5.3Selecting and installing the correct tor que support for a flatmount fr ame......................................................................21 5.4Overview of options for tor que supports and spacer s f or a flatmount fr ame................................................................24 5.5Selecting and installing the correct tor que support for a postmount fr ame..................................................................25 6.Storage and tr ansport27 6.1Storing and tr ansporting the Classified Powershift hub.............................................................................................................27 7.Assembly and installation28 7.1What is included?.................................................................................................................................................................................................28 7.2Replacing a wheel with a Classified Powershift hub.....................................................................................................................28 7.3Bluetooth ® pairing (dropbar handlebar unit)......................................................................................................................................30 7.4Bluetooth ® pairing (ringshifter)....................................................................................................................................................................31 8.Initial use32 8.1Initial use of the dr opbar handlebar unit..............................................................................................................................................32 8.2Initial use of the ringshifter............................. ..............................................................................................................................................32 EN 3 Classified Powershift hub EN 9. Op er ation34 9.1Oper ation...................................................................................................................................................................................................................34 10 . Maintenance35 10 .1Maintenance schedule......................................................................................................................................................................................35 10 .2Checking the Powersh…
Text truncated - open the document above for the full version.
Damplein 23 2060 Antwerp Belgium Date: 05/04/23 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AZ7A-SU210 Attestation Statements Part 2.911(d)(5)(i) Filing To whom it may concern, Classified Cycling B.V., certifies that the equipment is seeking authorization is not on the “List of Equipment and Services Covered by Section 2 of the Secure Networks Act,” which it is prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Signature: Jelle de Vleeschouwer Electrical Engineer
Damplein 23 2060 Antwerp Belgium Date: 05/04/23 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AZ7A-SU210 Attestation Statements Part 2.911(d)(5)(ii) Filing To whom it may concern, Classified Cycling B.V. certifies that, as of the date of the filing of the application, Classified Cycling B.V. is not identified on the “List of Equipment and Services Covered by Section 2 of the Secure Networks Act,” as an entity producing “covered” equipment. Sincerely, Signature: Jelle de Vleeschouwer Electrical Engineer
Damplein 23 2060 Antwerp Belgium Date: 05/04/23 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AZ7A-SU210 US Agent – Attestation Statement / Part 2.911(d)(7) Classified Cycling B.V. certifies, that as of 05/04/2023, we have designated FCC US Agent, LLC to accept service of process on our behalf for FCC ID: 2AZ7A-SU210. Classified Cycling B.V. accepts to maintain an agent of service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission- related administrative or judicial proceeding involving the equipment, whichever is later. FCC US Agent, LLC, accepts as of the date of the filing of this application, the obligation of being the designated agent for the purpose of accepting service of process on behalf of Classified Cycling B.V.for FCC ID: 2AZ7A-SU210. Designated Agent Information: Company Name: FCC US Agent, LLC FRN: 0033402884 Address: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA Contact Person: Tim Payne Phone: 708-571-3148 Email: [email protected] Sincerely, Company: Classified Cycling B.V. Designated Agent: FCC US Agent, LLC Company Representative: Jelle de Vleeschouwer Designated Agent Representative: Tim Payne Signature: Signature:
Damplein 23 2060 Antwerp Belgium Date: 05/04/23 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AZ7A-SU210 Confidentiality Request To whom it may concern, Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of the information accompanying this application as outlined below: ☒Block Diagram ☐Tune-Up Information ☒Operational Description ☐Security Information ☒Schematics ☐Software Defined Radio (SDR) Information ☒Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signature: Jelle de Vleeschouwer Electrical Engineer
Damplein 23 2060 Antwerp Belgium Date: 05/04/23 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AZ7A-SU210 Declaration of Authorization To whom it may concern, I, the undersigned, hereby authorize, Jandy So, of Waltek Testing Group (Shenzhen) Co., Ltd., (WALTEK) to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Jandy So, of Waltek Testing Group (Shenzhen) Co., Ltd., (WALTEK) on our behalf shall have the same effects as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C 853(a). This authorization is valid until further written notice from the applicant. Sincerely, Signature: Jelle de Vleeschouwer Electrical Engineer

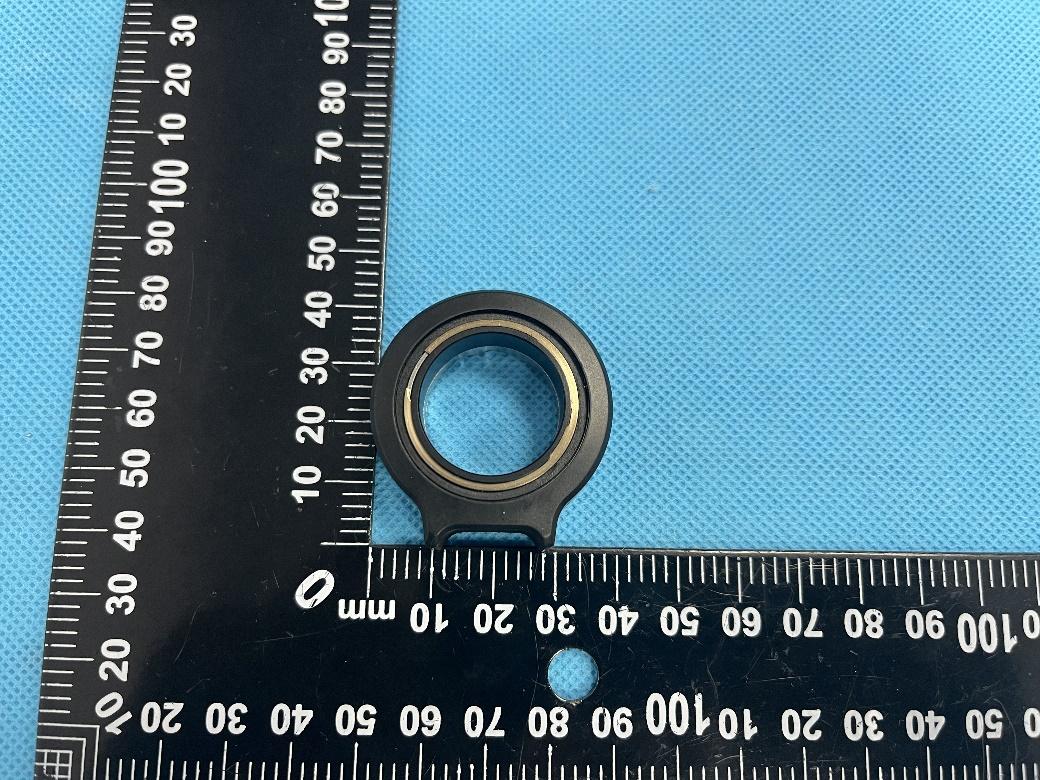

ReferenceNo.:WTX23X03043181WPage2of12 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cn EXHIBIT2-EUTEXTERNALPHOTOGRAPHS EUTView1 EUTView2 ReferenceNo.:WTX23X03043181WPage3of12 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cn EUTView3 EUTView4 ReferenceNo.:WTX23X03043181WPage4of12 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cn EUTView5 EUTView6 ReferenceNo.:WTX23X03043181WPage5of12 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cn EUTView7
Reference No.: WTX23X03043181W Page 1 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn ANNEX EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format Packaging Label Manual Label Specifications: Due to the sizing of the product, the label is not able to fit on the product. The label is in the product manual and on the product packaging instead. Proposed Label Location on EUT FCC ID Label Location Label on Product Packaging Label in Product Manual
Reference No.: WTX23X03043181W Page 6 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 Solder Board-Component View 1 Reference No.: WTX23X03043181W Page 7 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 2 Solder Board-Component View 3 Reference No.: WTX23X03043181W Page 8 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 4 Solder Board-Component View 5 Reference No.: WTX23X03043181W Page 9 of 12 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Antenna View sss
1. RF Exposure Requirements 1.1 General Information Client Information Applicant: Classified Cycling B.V. Address of applicant: Damplein 23, 2060 Antwerp, Belgium Manufacturer: Classified Cycling B.V. Address of manufacturer: Damplein 23, 2060 Antwerp, Belgium General Description of EUT: Product Name: Ringshifter Trade Name / Model No.: SU210 Adding Model(s): / Rated Voltage: Charging port:DC5V Battery:DC3.7V Battery Capacity: 40mAh FCC ID: 2AZ7A-SU210 Equipment Type: Portable device Technical Characteristics of EUT: Bluetooth Bluetooth Version: V5.0 (BLE mode) Frequency Range: 2402-2480MHz RF Output Power: 1Mbps: -11.09dBm (Conducted) 2Mbps: -11.13dBm (Conducted) Data Rate: 1Mbps, 2Mbps Modulation: GFSK Quantity of Channels: 40 Channel Separation: 2MHz Type of Antenna: Ceramic SMT Antenna Antenna Gain: 2.7dBi 1.2 RF Exposure Exemption According to §1.1307(b)(3) and KDB 447498 D04 Interim General RF Exposure Guidance v01, system operating under the provisions of this section shall be operating in a manner that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. Option A: FCC Rule Part 1.1307 (b)(3)(i)(A):The available maximum time-averaged power is no more than 1mW, regardless of separation distance. Option B: FCC Rule Part 1.1307 (b)(3)(i)(B): The available maximum time-averaged power or effective radiated power (ERP), whichever is greater, is less than or equal to the threshold P th (mW) described in the following formula. P th is given by: Option C: FCC Rule Part 1.1307 (b)(3)(i)(C): The minimum separation distance (R in meters) from the body of a nearby person for the frequency (f in MHz) at which the source operates, the ERP (watts) is no more than the calculated value prescribed for that frequency. R must be at least λ/2π, where λ is the free-space operating wavelength in meters. Single RF Sources Subject to Routine Environmental Evaluation RF Source frequency (MHz) Threshold ERP (watts) 0.3-1.34 1,920 R 2 1.34-30 3,450 R 2 /f 2 30-300 3.83 R 2 300-1,500 0.0128 R 2 f 1,500-100,000 19.2R 2 For Multiple RF sources: FCC Rule Part 1.1307(b)(3)(ii): (A) The available maximum time-averaged power of each source is no more than 1 mW and there is a separation distance of two centimeters between any portion of a radiating structure operating and the nearest portion of any other radiating structure in the same device, except if the sum of multiple sources is less than 1 mW during the time-averaging period, in which case they may be treated as a single source (separation is not required). (B) In the case of fixed RF sources operating in the same time-averaging period, or of multiple mobile or portable RF sources within a device operating in the same time averaging period, if the sum of the fractional contributions to the applicable thresholds is less than or equal to 1 as indicated in the following equation. 1.3 Calculated Result Radio Access Technology Prediction Frequency Output Power Antenna Gain Duty Cycle Tune-Up Time-Averaged Power ERP (MHz) (dBm) (dBi) (%) (dBm) (dBm) Bluetooth 2402 -11.09 2.7 100 -11.00 -10.45 Frequency Option Min. Distance Max. Power Exposure Limit Ratio Result (MHz) (cm) (dBm) (mW) (mW) Pass/Fail 2402 A -- -11.00 0.08 1 0.08 Pass Note: 1. Time-Averaged Power=Output Power * Duty Cycle; ERP= Time-Averaged Power+ Antenna gain-2.15dB 2. Option A, B and C refers as clause 1.2. 3. For option B, Max (time-averaged power, effective radiated power (ERP)) converts to Max. Power. For option C, ERP converts to Max. Power; 4. For option B, P th (mW) converts to Exposure Limit (mW); For option C, ERP (W) converts to Exposure Limit (mW). 5. Ratio= Tune-Up ERP (mW)/ Exposure Limit (mW) Mode for Simultaneous Multi-band Transmission: Radio Access Technology Ratio 1 Ratio 2 Simultaneous Ratio Limit Result Pass/Fail -- -- -- -- -- -- Result: Pass
PRODUCT SPECIFICATION REVISION: ECR/ECN INFORMATION: 2.4GHz/5GHz Ceramic SMT Product Specification SHEET No. B EC No: 1 of 11 DATE: 2018/12/20 DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: PS-2119640001 Cooper Zhou2018/12/20 Yuxi Gao 2018/12/20 Stary Song 2018/12/20 TEMPLATE FILENAME: PRODUCT_SPEC[SIZE_A4](V.1).DOC TITLE 2.4GHZ/5GHZ CERAMIC SMT ANTENNA TABLE OF CONTENTS 1.0 SCOPE 2.0 PRODUCT DESCRIPTION 3.0 APPLICABLE DOCUMENTS 4.0 GENERAL SPECIFICATION 5.0 ANTENNA SPECIFICATION 6.0 MECHANICAL REQUIREMENTS 7.0 ENVIRONMENTAL SPECIFICATION 8.0 RECOMMENDED REFLOW CONDITION 9.0 RECOMMENDED FOOTPRINT ON PCB FOR SOLDERING 10.0 PACKING PRODUCT SPECIFICATION REVISION: ECR/ECN INFORMATION: 2.4GHz/5GHz Ceramic SMT Product Specification SHEET No. B EC No: 2 of 11 DATE: 2018/12/20 DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: PS-2119640001 Cooper Zhou2018/12/20 Yuxi Gao 2018/12/20 Stary Song 2018/12/20 TEMPLATE FILENAME: PRODUCT_SPEC[SIZE_A4](V.1).DOC 2.4GHZ/5GHZ CERAMIC SMT ANTENNA 1.0 SCOPE This product specification covers the mechanical, electrical and environmental performances specification for 2.4GHz/5GHz Ceramic SMT antenna. 2.0 PRODUCT DESCRIPTION 2.1 PRODUCT NAME AND SERIES NUMBER (S) Product name: 2.4GHz/5GHz Ceramic SMT antenna. Series Number: 211964**** 2.2 DESCRIPTION 211964 is 2.4GHz/5GHz ceramic loop antenna. It works very well when being placed at PCB Center-edge. With applying different matching setup, it supports 2.4GHz single band or 2.4/5GHz dual band. 2.3 FEATURES. Working frequency 2.4GHz and/or 5GHz with high efficiency (more than 65%) Antenna size 3.2x1.6x1.2mm, PCB keep-out area 6x4mm Linear polarization RoHS Compliant Molex 2119640001 2.4GHz/5GHz Ceramic SMT antenna 3D View PRODUCT SPECIFICATION REVISION: ECR/ECN INFORMATION: 2.4GHz/5GHz Ceramic SMT Product Specification SHEET No. B EC No: 3 of 11 DATE: 2018/12/20 DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: PS-2119640001 Cooper Zhou2018/12/20 Yuxi Gao 2018/12/20 Stary Song 2018/12/20 TEMPLATE FILENAME: PRODUCT_SPEC[SIZE_A4](V.1).DOC 2.4 PRODUCT STRUCTURE INFORMATION P/N 2119640001 MECHANICAL STRUCTURE INFORMATION FOR 2119640001 3.0 APPLICABLE DOCUMENTS DOCUMENT NUMBER DESCRIPTION Sale Drawing(SD) SD-2119640001 Mechanical Dimension of the product Application Guide(AS) AS-2119640001 Antenna Application and surrounding Packing Drawing(PK) PK-2119640001 Product packaging specifications PRODUCT SPECIFICATION REVISION: ECR/ECN INFORMATION: 2.4GHz/5GHz Ceramic SMT Product Specification SHEET No. B EC No: 4 of 11 DATE: 2018/12/20 DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: PS-2119640001 Cooper Zhou2018/12/20 Yuxi Gao 2018/12/20 Stary Song 2018/12/20 TEMPLATE FILENAME: PRODUCT_SPEC[SIZE_A4](V.1).DOC 4.0 GENERAL SPECIFICATION PRODUCT NAME 2.4GHz/5GHz Ceramic SMT antenna PART NUMBER 2119640001 FREQUENCY RANGE 2400~2500MHz or 2400~2500MHz and 5150~5850MHz POLARIZATION Linear IMPEDANCE WITH MATCHING 50 Ohms STORAGE TEMPERATURE -40°C to 85°C RELATIVE HUMIDITY 55%-75% RF POWER 2 Watts ANTENNA TYPE LTCC CERAMIC DIMENSION 3.2x1.6x1.2 mm SINGLE WEIGHT 0.0192g/ pcs Note: if you plan to re-use the products that be taken out from packaging. Suggest to re-pack them within 24 hours by re-seal with vacuum packaging to prevent oxidation. Product should be used within six months of receipt. 5.0 ANTENNA SPECIFICATION All measurements are done of the antenna mounted on reference PCB (40*20*0.8mm) with VNA Agilent E5071C and Over-The-Air (OTA) chamber. 5.0.1 ANTENNA PERFORMANCE Requirements (For Configure 1) Requirements (For Configure 2) P/N 2119640001 FREQUENCY RANGE 2.4-2.5GHz 2.4-2.5GHz 5.15-5.85GHz PEAK GAIN(MAX) 2.7dBi 2.1dBi 2.2dBi AVERAGE TOTAL EFFICIENCY >80% >70% >65% RETURN LOSS < -6 dB < -5 dB < -5 dB Note that the above antenna performance is measured with just the antenna mounted on a reference PCB (40*20*0.8mm) in free space. When implement into the system, the frequency resonant might be off-tune due to the loading of surrounding components especially metal plane. This off-tune can be compensated through matching. Although module manufacturers specify a peak gain limit, it is based on free-space conditions. The peak gain will be degraded by 1 to 2dBi in the actual implementation as the radiation pattern will change due to the surround components. As such, during selection of antenna, you can select one with high peak gain to compensate for the loss. Molex can offer assistant to choose the best location and best tuning in-order to meet this peak gain requirement. PRODUCT SPECIFICATION REVISION: ECR/ECN INFORMATION: 2.4GHz/5GHz Ceramic SMT Product Specification SHEET No. B EC No: 5 of 11 DATE: 2018/12/20 DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: PS-2119640001 Cooper Zhou2018/12/20 Yuxi Gao 2018/12/20 Stary Song 2018/12/20 TEMPLATE FILENAME: PRODUCT_SPEC[SIZE_A4](V.1).DOC 6.0 MECHANICAL REQUIREMENTS DESCRIPTION TEST CONDITION TEST RESULT SHEAR FORCE Apply push force on parts soldered on the PCB at the speed rate of 253 mm/minute. Shear force:>10N 7.0 ENVIRONMENTAL SPECIFICATION DESCRIPTION SPECIFICATION HUMIDITY TEST 1. The device under test is kept for 12 hours in an environment with a temperature of 55 degrees and a relating humidity of 95%. Thereafter for 12 Hours in an environment with a temperature of 25 degrees and a relative humidity of 95%. The cycle is repeated until a total of 6 cycles have been completed. Hereafter the conditions are stabilized at room temperature. 2. Parts should meet RF spec before and after test. 3. No cosmetic problem (No bubble issue、No plating peeling off issue、 No mechanical damage.) TEMPERATURE CYCLING TEST 1. The device under test at -40 °C⇔125 °C by 72 cycles, Dwell of 30 min, transition time between Dwell 15 sec (~ 61 min / cycle ) and each item should be measured after exposing them in normal temperature and humidity for 24 h. 2. Part should meet RF spec before and after test. 3. No cosmetic pr…
Text truncated - open the document above for the full version.
APPLICATION SPECIFICATION REVISION: ECR/ECN INFORMATION: TITLE: 2.4GHz/5GHz Ceramic SMT antenna Application Specification SHEET No. A EC No: 1 of 26 DATE: DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: 2119640001 Liu Hai 2018/12/24 Cooper Zhou 2018/12/24 Chris Zhong 2018/12/24 TEMPLATE FILENAME: APPLICATION_SPEC[SIZE_A](V.1).DOC TITLE 2.4GHZ/5GHZ CERAMIC SMT ANTENNA TABLE OF CONTENTS 1.0 SCOPE 2.0 PRODUCT DESCRIPTION 3.0 APPLICABLE DOCUMENTS 4.0 ANTENNA PERFORMANCE 5.0 MATCHING NETWORK DESRICPTION 6.0 RECOMMENDED REFLOW CONDITION 7.0 RF PERFORMANCE AS A FUNCTION OF IMPLEMENTATION APPLICATION SPECIFICATION REVISION: ECR/ECN INFORMATION: TITLE: 2.4GHz/5GHz Ceramic SMT antenna Application Specification SHEET No. A EC No: 2 of 26 DATE: DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: 2119640001 Liu Hai 2018/12/24 Cooper Zhou 2018/12/24 Chris Zhong 2018/12/24 TEMPLATE FILENAME: APPLICATION_SPEC[SIZE_A](V.1).DOC 2.4GHZ/5GHZ CERAMIC SMT ANTENNA 1.0 SCOPE This specification describes the antenna application and surrounding. The information in this document is for reference and benchmark purposes only. Antenna illustrations in this document are generic representations. They are not intended to be an image of any antenna listed in the scope. 2.0 PRODUCT DESCRIPTION 2.1 PRODUCT NAME AND SERIES NUMBER (S) Product name: 2.4GHz/5GHz Ceramic SMT antenna Series Number: 211964**** 2.2 DESCRIPTION 211964 is 2.4GHz/5GHz ceramic loop antenna. It works very well when being placed at PCB Center-edge. With applying different matching setup, it supports 2.4GHz single band or 2.4/5GHz dual band. 2.3 PRODUCT STRUCTURE INFORMATION Please refer to PS-2119640001 for full information. Molex 2119640001 2.4GHz/5GHz Ceramic SMT antenna 3D VIEW APPLICATION SPECIFICATION REVISION: ECR/ECN INFORMATION: TITLE: 2.4GHz/5GHz Ceramic SMT antenna Application Specification SHEET No. A EC No: 3 of 26 DATE: DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: 2119640001 Liu Hai 2018/12/24 Cooper Zhou 2018/12/24 Chris Zhong 2018/12/24 TEMPLATE FILENAME: APPLICATION_SPEC[SIZE_A](V.1).DOC 3.0 APPLICABLE DOCUMENTS DOCUMENT NUMBER DESCRIPTION Sale Drawing (SD) SD-2119640001 Mechanical Dimension of the product Product Specification (PS) PS-2119640001 Product Specification Packing Drawing (PK) PK-2119640001 Product packaging specifications 4.0 ANTENNA PERFORMANCE 4.1 RF TEST CONDITIONS All measurements are done of the antenna mounted on a reference PCB (40*20*0.8mm) with VNA Agilent E5071C and Over-The-Air (OTA) chamber. FIGURE4.1.1 ANTENNA LOADED WITH REFERENCE PCB TESTED WITH VNA E5071C DUT APPLICATION SPECIFICATION REVISION: ECR/ECN INFORMATION: TITLE: 2.4GHz/5GHz Ceramic SMT antenna Application Specification SHEET No. A EC No: 4 of 26 DATE: DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: 2119640001 Liu Hai 2018/12/24 Cooper Zhou 2018/12/24 Chris Zhong 2018/12/24 TEMPLATE FILENAME: APPLICATION_SPEC[SIZE_A](V.1).DOC FIGURE4.1.2 ANTENNA LOADED WITH REFERENCE PCB TESTED IN OTA CHAMBER 4.2 ANTENNA PERFORMANCE DESCRIPTION EQUIPMENT Requirements (For Configure 1) Requirements (For Configure 2) Frequency Range VNA E5071C 2.4-2.5GHz 2.4-2.5GHz 5.15-5.85GHz Return Loss VNA E5071C < -6 dB < -5 dB < -5 dB Peak Gain (Max) OTA Chamber 2.7dBi 2.1dBi 2.2dBi Average Total Efficiency OTA Chamber >80% >70% >65% Polarization OTA Chamber Linear Input Impedance VNA E5071C 50 ohms Note that the above antenna performance is measured with just the antenna mounted on a reference PCB to similar a free-space condition. When implement into the system, the frequency resonant might be off-tune due to the loading of surrounding components especially metal plane. This off-tune can be compensated through matching. Although module manufacturers specify a peak gain limit, it is based on free-space conditions. The peak gain will be degraded by 1 to 2dBi in the actual implementation as the radiation pattern will change due to the surround components. As such, during selection of antenna, you can select one with high peak gain to compensate for the loss. Molex can offer assistant to choose the best location and best tuning in-order to meet this peak gain requirement. DUT APPLICATION SPECIFICATION REVISION: ECR/ECN INFORMATION: TITLE: 2.4GHz/5GHz Ceramic SMT antenna Application Specification SHEET No. A EC No: 5 of 26 DATE: DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: 2119640001 Liu Hai 2018/12/24 Cooper Zhou 2018/12/24 Chris Zhong 2018/12/24 TEMPLATE FILENAME: APPLICATION_SPEC[SIZE_A](V.1).DOC 4.3 RETURN LOSS PLOT All measurements in this document are done on a reference PCB. FIGURE 4.3.1 RETURN LOSS OF ANTENNA AT 2.4GHZ IN FREE SPACE FOR CONFIGURE 1 FIGURE 4.3.2 RETURN LOSS OF ANTENNA AT 2.4/5GHZ IN FREE SPACE FOR CONFIGURE 2 APPLICATION SPECIFICATION REVISION: ECR/ECN INFORMATION: TITLE: 2.4GHz/5GHz Ceramic SMT antenna Application Specification SHEET No. A EC No: 6 of 26 DATE: DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: 2119640001 Liu Hai 2018/12/24 Cooper Zhou 2018/12/24 Chris Zhong 2018/12/24 TEMPLATE FILENAME: APPLICATION_SPEC[SIZE_A](V.1).DOC 4.4 EFFICIENCY PLOT All measurements in this document are done on a reference PCB. FIGURE 4.4.1 EFFICIENCY OF ANTENNA AT 2.4GHZ IN FREE SPACE FOR CONFIGURE 1 FIGURE 4.4.2 EFFICIENCY OF ANTENNA AT 2.4/5GHZ IN FREE SPACE FOR CONFIGURE 2 APPLICATION SPECIFICATION REVISION: ECR/ECN INFORMATION: TITLE: 2.4GHz/5GHz Ceramic SMT antenna Application Specification SHEET No. A EC No: 7 of 26 DATE: DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: 2119640001 Liu Hai 2018/12/24 Cooper Zhou 2018/12/24 Chris Zhong 2018/12/24 TEMPLATE FILENAME: APPLICATION_SPEC[SIZE_A](V.1).DOC 4.5 2D RADIATION PATTERN All measurements in this document are done on a reference PCB. FIGURE 4.5.1 2D RADIATION PATTERN OF ANTENNA AT 2.4GHZ IN FREE SPACE FOR CONFIGURE 1 APPLICATION SPECIFICATION REVISION: ECR/ECN INFORMATION: TITLE: 2.4GHz/5GHz Ceramic SMT …
Text truncated - open the document above for the full version.
Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 1 of 45 TEST REPORT Reference No. .................... : WTX23X03043181W FCC ID ................................ : 2AZ7A-SU210 Applicant ........................... : Classified Cycling B.V. Address.............................. : Damplein 23, 2060 Antwerp, Belgium Manufacturer ..................... : The same as Applicant Address.............................. : The same as Applicant Product Name ................... : Ringshifter Model No.. .......................... : SU210 Standards .......................... : FCC Part 15.247 Date of Receipt sample .... : 2023-03-08 Date of Test........................ : 2023-03-08 to 2023-04-07 Date of Issue ..................... : 2023-04-07 Test Report Form No. ....... : WTX_Part 15_247W Test Result ......................... : Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of approver. Prepared By: Waltek Testing Group (Shenzhen) Co., Ltd. Address: 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70 Bao'an District, Shenzhen, Guangdong, China Tel.: +86-755-33663308 Fax.: +86-755-33663309 Email: [email protected] Tested by: Approved by: Mike Shi Silin Chen Reference No.: WTX23X03043181W Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 2 of 45 TABLE OF CONTENTS 1. GENERAL INFORMATION ....................................................................................................................................4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................…
Text truncated - open the document above for the full version.
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
