2AZ7H-M2M2 Asset Tracker

M2 Asset Tracker Hardware specification guide Version 0.5 Introduction M2 is a professional asset tracker leveraging multiple communication technologies and can be used in multiple logistics applications. It is developed by Zyax AB for MOST Tech Sweden AB. The device has excellent sensor measurement performance for monitoring temperature, relative humidity, ambient light level, motion detection, magnet sensors, and air pressure. The device is designed to operate in cold environments on ultralow power consumption. Basic functionality Each device has its own set of encryption keys and configuration to allow the device to securely communicate with the cloud server and perform measurements and uploads according to the client’s requirement. Sensors can be sampled down to seconds intervals, and uploads are performed on periodic intervals in which all sampled data is uploaded. The device’s configuration is updated after all data has been uploaded. The device comes pre-charger and can easily be started by holding the function button for 3 seconds. A started device is confirmed by a steady green light for 10 minutes. Normal operating temperature range of the produce is between -20 - 55°C (-4 - 131°F), and storage temperature between -20 - 55°C (-4 - 131°F). LED Sensors Button Installation instructions The device comes with a double-sided adhesive tape. Please tear off the tape and gently press the device to a reliable surface. Charging The device should be charged with a 1A 5V DC USB C Charger. This charger does not come with the product. Charging is disabled in temperatures outside of 0 - 45°C (32 - 113°F). Operational instructions Press the button for 3 seconds until a constant green light is shown. The device is pre- configured and operates automatically on 2G and LTE-M networks and may optionally be configured to communicate with external BLE sensors through the cloud interface. The device collects sensor data every 10 minutes, that are stored on the device’s internal memory and are uploaded on set frequency. Standard configuration performs uploading over the mobile network every 1 hour. The device is equipped with GNSS to accurately determine its position in order to correlate sensor readings with time and place. Safety Precautions - The device should be opened only by qualified service personnel. - Never pour any liquid into an opening. This may cause fire or electrical shock. - Do not crush, puncture, short external contacts or circuits, dispose of in fire or water, or expose a battery pack to temperatures higher than 60°C (140°F). Regulations The device conforms to the following regulations and certifications. FCC Regulatory information This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC RF Exposure This device complies with FCC radiation exposure limits set forth for an uncontrolled environment. To avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20cm (8 inches) during normal operation. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. ISED Regulatory information This device complies with Innovation, Science and Economic Development Canada license- exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en This device complies with the Canadian ICES-003 Class B specifications. CAN ICES-3(B)/ NMB-3(B) ISED RF Exposure This device complies with ISED RSS-102 RF exposure limits set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the IC RSS-102 RF exposure limits, human proximity to the antenna shall not be less than 20cm (8 inches) during normal operation. Cet appareil est conforme aux limites d'exposition aux rayonnements de la CNR-102 définies pour un environnement non contrôlé. Afin d'éviter la possibilité de dépasser les limites d'exposition aux fréquences radio de la CNR-102, la proximité humaine à l'antenne ne doit pas ê…

Text truncated - open the document above for the full version.

MOST Tech Sweden AB Address: Kevinge strand 20 182 57 Danderyd, Sweden Tel: +46761001604 Email: [email protected] Attestation Letter 2021-08-03 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir or Madam, The RF chip, model:nRF52811, installed in our productM2 Asset Tracker, model: M2, FCC ID:2AZ7H-M2, this chip supports BDR (GFSK),EDR (π/4-DQPSK, 8DPSK), BLE and Zigbee functions, But for marketingpurpose, this chip in this product only supports BLE. The BDR (GFSK), EDR (π/4-DQPSK,8DPSK) and Zigbee function was disabled to use by manufacturein the software, the end user has no capability to activate it. Sincerely Yours, Signature: Contact person: Matilda Bouchet Title: CEO

MOST Tech Sweden AB Address: Kevinge strand 20 182 57 Danderyd, Sweden Tel: +46761001604 Email: [email protected] FCC Confidential Authorization Date: 2021-07-06 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID:2AZ7H-M2 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, MOST Tech Sweden AB hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Signature: Contact person: Matilda Bouchet Title: CEO Partlist

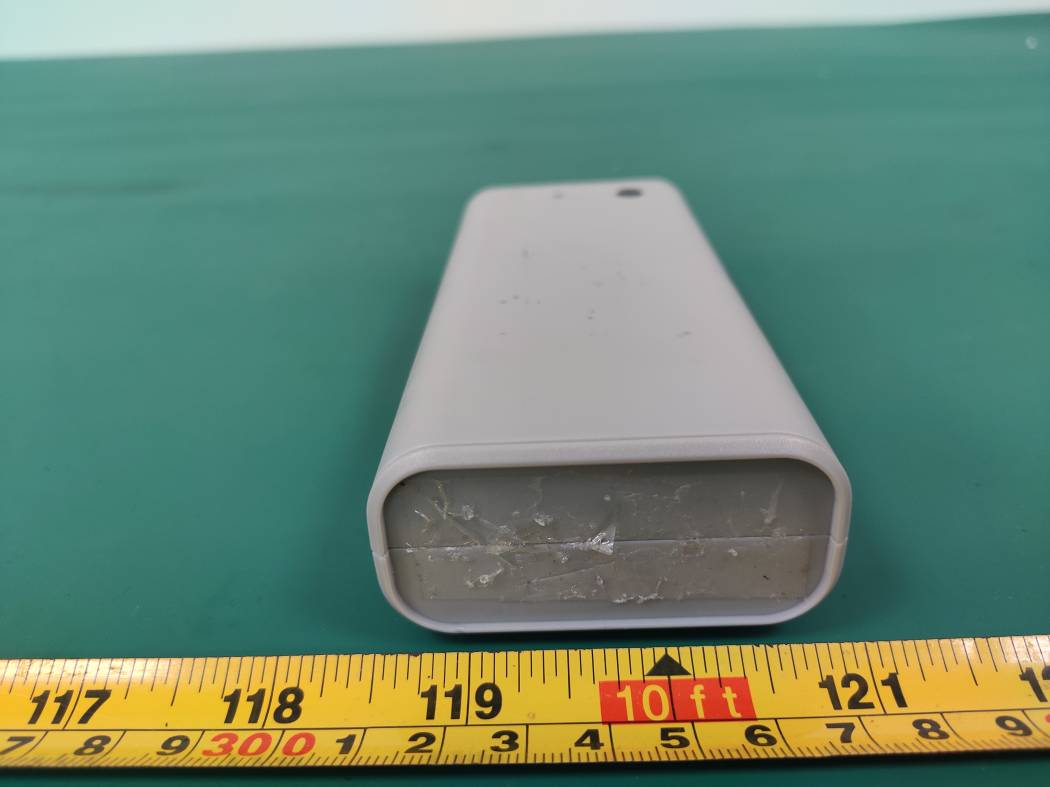

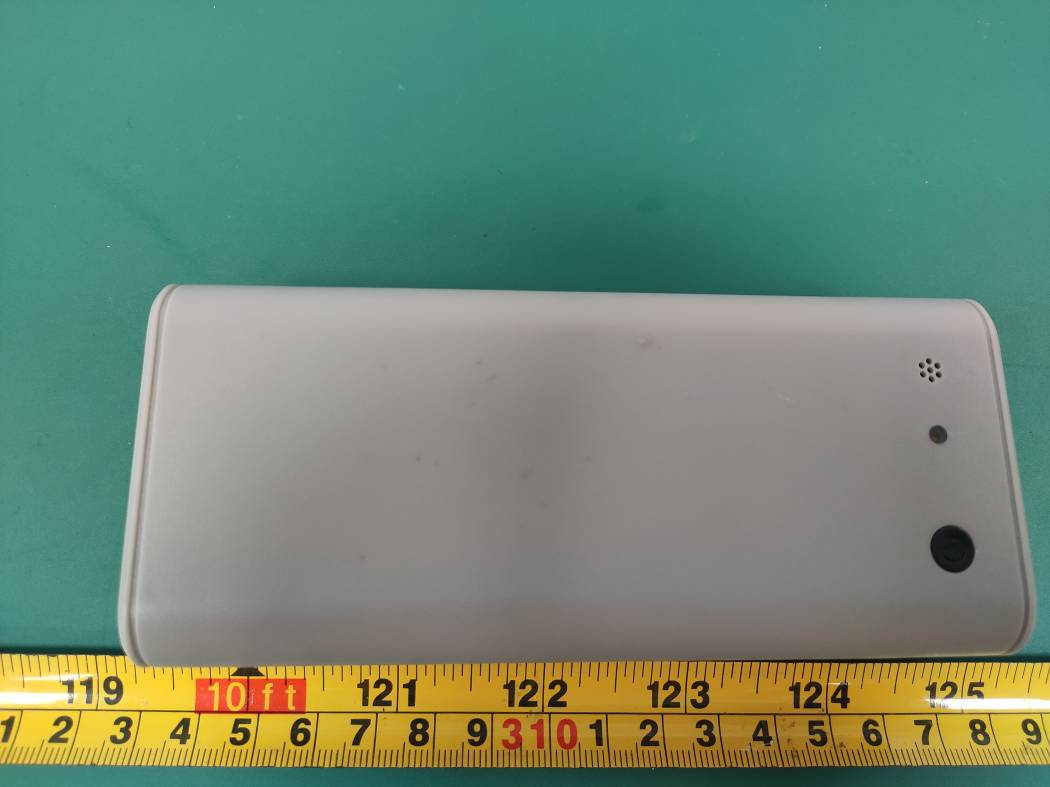

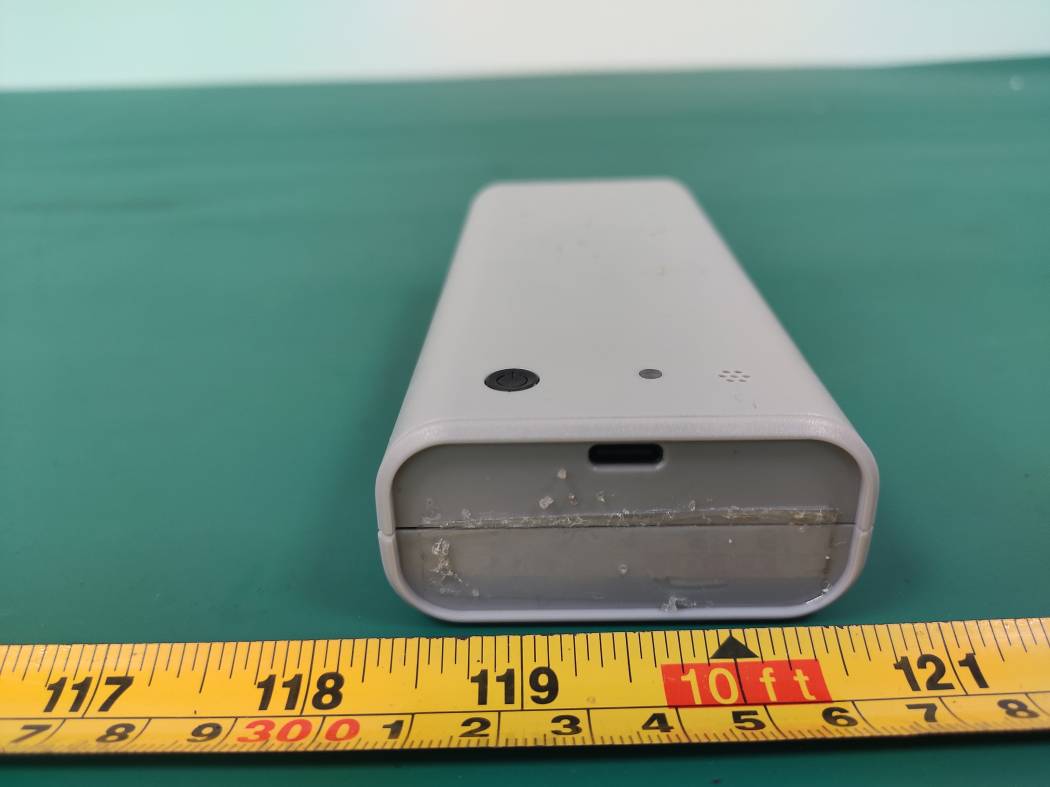

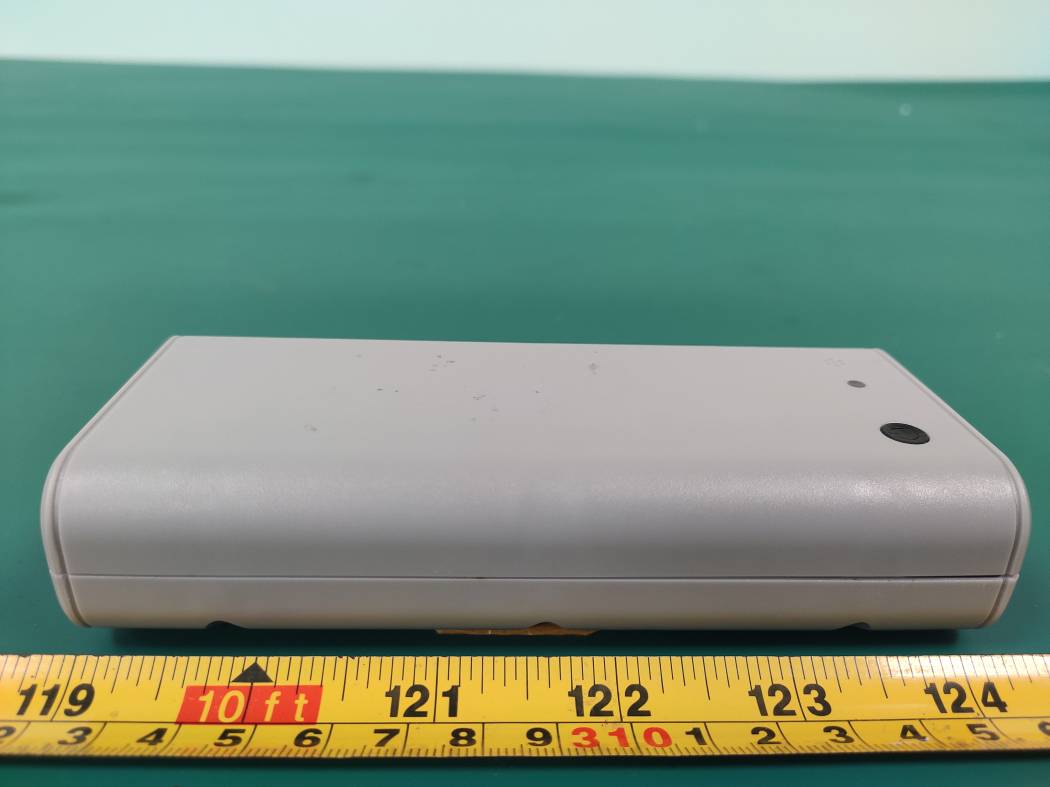

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ6210428-14459E-RF Page 1 of 3 EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ6210428-14459E-RF Page 2 of 3 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ6210428-14459E-RF Page 3 of 3

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ6210428-14459E-RF EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ6210428-14459E-RF Page 1 of 4 EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ6210428-14459E-RF Page 2 of 4 GSM & LTE Antenna GPS Antenna BLE Antenna Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ6210428-14459E-RF Page 3 of 4 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ6210428-14459E-RF Page 4 of 4

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: SZ6210428-14459E FCC Part 15.247 RSS-GEN ISSUE 5, FEBRUARY 2021 AMENDMENT 2, RSS-247, ISSUE 2, FEBRUARY 2017 Page 10 of 50 FCC §15.247 (i) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart 15.247 (i) and subpart 2.1091 systems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to RF energy level in excess of the communication guidelines. Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (Minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Result Calculated Formulary: Predication of MPE limit at a given distance S = 2 4R PG π S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mW). G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain. R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: SZ6210428-14459E FCC Part 15.247 RSS-GEN ISSUE 5, FEBRUARY 2021 AMENDMENT 2, RSS-247, ISSUE 2, FEBRUARY 2017 Page 11 of 50 Mode Frequency (MHz) Antenna Gain Max Tune Up Conducted Power Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi) (numeric)(dBm)(mW) BLE 2402-2480 2.0 1.58 1.0 1.26 20 0.0004 1.0 GSM850 824-849 -1.1 0.78 23.31 214.29 20 0.0333 0.55 GSM1900 1850-1910 -1.53 0.70 20.81 120.50 20 0.0168 1.0 LTE NB1 Band 2 1850-1910 -1.53 0.70 21.0 125.89 20 0.0175 1.0 LTE NB1 Band 4 1710-1755 -2.62 0.55 21.0 125.89 20 0.0138 1.0 LTE NB1 Band 5 824-849 -1.1 0.78 21.0 125.89 20 0.0195 0.55 LTE NB1 Band 12 699-716 -4.1 0.39 21.0 125.89 20 0.0098 0.466 LTE NB1 Band 13 777-787 -4.1 0.39 21.0 125.89 20 0.0098 0.518 LTE NB1 Band 25 1850-1915 -1.53 0.70 21.0 125.89 20 0.0175 1.0 LTE NB1 Band 26 (Part 90) 814-823.9 -1.1 0.78 21.0 125.89 20 0.0195 0.543 LTE NB1 Band 26 (Part 22H) 824-849 -1.1 0.78 21.0 125.89 20 0.0195 0.55 LTE NB1 Band 66 1710-1780 -2.62 0.55 21.0 125.89 20 0.0138 1.0 LTE NB1 Band 71 663-698 -4.1 0.39 21.0 125.89 20 0.0098 0.442 LTE NB1 Band 85 698-716 -4.1 0.39 21.0 125.89 20 0.0098 0.465 LTE CatM1 Band 2 1850-1910 -1.53 0.70 22.0 158.49 20 0.0221 1.0 LTE CatM1 Band 4 1710-1755 -2.62 0.55 22.0 158.49 20 0.0173 1.0 LTE CatM1 Band 5 824-849 -1.1 0.78 22.0 158.49 20 0.0246 0.55 LTE CATM1 Band 12 699-716 -4.1 0.39 22.0 158.49 20 0.0123 0.466 LTE CATM1 Band 13 777-787 -4.1 0.39 22.0 158.49 20 0.0123 0.518 LTE CATM1 Band 14 788-798 -4.1 0.39 22.0 158.49 20 0.0123 0.525 LTE CATM1 Band 25 1850-1915 -1.53 0.70 22.0 158.49 20 0.0221 1.0 LTE CATM1 Band 26 (Part 90) 814-824 -1.1 0.78 22.0 158.49 20 0.0246 0.543 LTE CATM1 Band 26 (Part 22H) 824-849 -1.1 0.78 22.0 158.49 20 0.0246 0.55 LTE CATM1 Band 66 1710-1780 -2.62 0.55 22.0 158.49 20 0.0173 1.0 LTE CATM1 Band 85 698-716 -4.1 0.39 22.0 158.49 20 0.0123 0.465 Note: 1. The antenna gain was provided by the applicant. 2. The BLE function can transmit at the same time with the GSM/NB-IoT/eMTC. 3. Please refer to the MPE report of the FCC ID: ZMOMA510GL grant on 2019-11-07 for the GSM/LTE output power. So the worst simultaneous transmitting consideration: The ratio=MPE BLE /limit + MPE wwan /limit=0.0004/1.0+0.0333/0.55=0.061＜1.0 To maintain compliance with the FCC’s RF exposure guidelines, place the equipment at least 20cm from nearby persons. Result: Compliance

Note: This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15.247 RSS-GEN ISSUE 5, FEBRUARY 2021 AMENDMENT 2 RSS-247, ISSUE 2, FEBRUARY 2017 TEST REPORT For MOST Tech Sweden AB Kevinge Strand 20 182 57 Danderyd, Sweden FCC ID: 2AZ7H-M2 IC: 27362-M2 Report Type: Original Report Product Type: M2 Asset Tracker Report Number: SZ6210428-14459E Report Date: 2021-06-22 Reviewed B y: Jacob Kong RF Engineer Prepared By: Bay Area Compliant Laboratories Corp. (Shenzhen) 5F(B-West) ,6F,7F,the 3rd Phase of Wan Li Industrial Building D,Shihua Rd, FuTian Free Trade Zone, Shenzhen, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: SZ6210428-14459E FCC Part 15.247 RSS-GEN ISSUE 5, FEBRUARY 2021 AMENDMENT 2, RSS-247, ISSUE 2, FEBRUARY 2017 Page 2 of 50 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 DUTY CYCLE ................................................................................................................................................................ 7 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 7 EXTERNAL I/O CABLE .................................................................................................................................................. 7 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 7 SUMMARY OF TEST RESULTS ............................................................................................................................... 8 TEST EQUIPMENT LIST ........................................................................................................................................... 9 FCC §15.247 (i) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) ................................................... 10 APPLICABLE STANDARD ............................................................................................................................................ 10 RESULT ...................................................................................................................................................................... 10 RSS-102 § 4 –EXPOSURE LIMITS ........................................................................................................................... 12 APPLICABLE STANDARD ............................................................................................................................................ 12 §15.203 & RSS-Gen §6.8 ANTENNA REQUIREMENT ......................................................................................... 14 APPLICABLE STANDARD ............................................................................................................................................ 14 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 15 §15.207 (a) & RSS-GEN §8.8 AC LINE CONDUCTED EMISSIONS ................................................................... 16 APPLICABLE STANDARD ............................................................................................................................................ 16 EUT SETUP ................................................................................................................................................................ 17 EMI TEST RECEIVER SETUP ....................................................................................................................................... 17 TEST PROCEDURE ...................................................................................................................................................... 17 CORRECTED FACTOR & MARGIN CALCULATION ...................…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: SZ6210428-14459E-RF EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions - Side View Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: SZ6210428-14459E-RF Radiated Emissions View (Below 1 GHz) Radiated Emissions View (Above 1 GHz)
