2AZ88DT-5007433mhz Remote Control

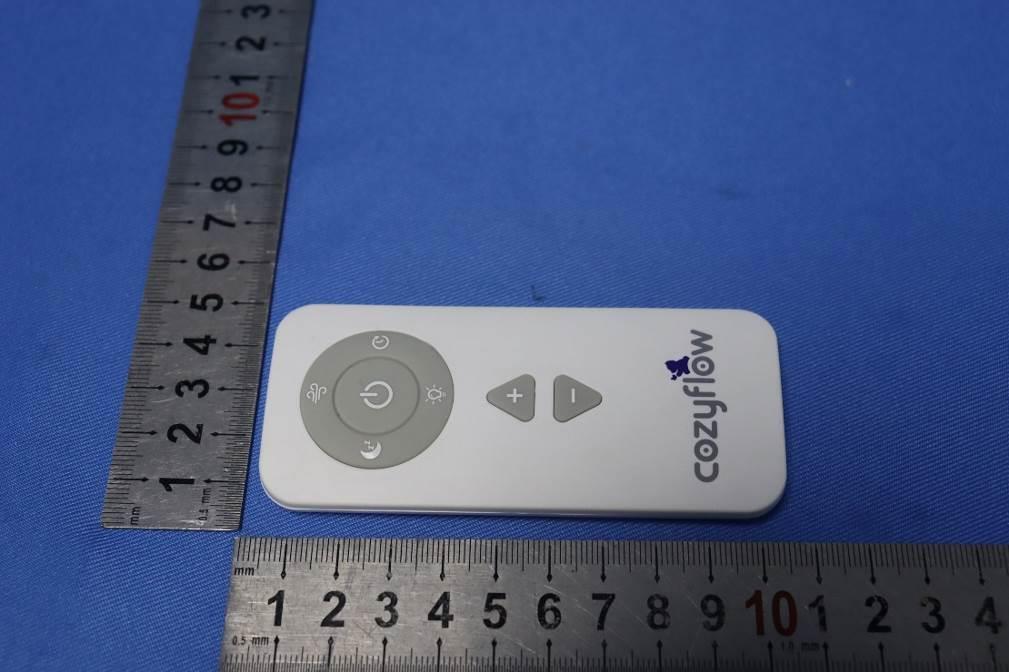

User manual Remote Control and Receiver Image Remote Control Receiver 1, Product size: 105mm*43mm*7mm 2, Battery: CR2025 3, Working voltage: DC 2.2-3.5V 4, Quiescent current (no load): 5UA 5, Working current (on load): 25MA 6, Working frequency: 433.92±0.5MHZ 7, Working temperature: 0-45(45-85%RH)86-106Kpa8, Storage temperature: - 25-60. 9, Working distance: 12M 10, Button height: before pressed 3mm, and when pressed and functioning0.5mm. 11, keys load life: 300,000 times Specification Pairing Keep the remote control and receiver power on. And then Hold and Press the center "power button" for 3 seconds to be pairing automatically. Function d u ct s All keys codes was received by our receiver and decode to the corresponding actions by the Main driver board. od uc : CarrierMap This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of. the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. FCC compliance statement Risk of explosion if the battery is replaced by an incorrect type disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion; leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas; a battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas. - Do not ingest battery, Chemical Burn Hazard - This product contains a button cell battery. If the button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. - Keep new and used batteries away from children. - If the battery compartment does not close securely, stop using the product and keep it away from children. - If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention. CAUTION

Magic Carpet LTD Date: 08/06/2021 TO: Federal CommunicationCommission EquipmentAuthorizationBranch 7435 Oakland Mills Road Columbia,MID 21046 Regarding: 2AZ88DT-5007 To whom it may concern: We, the undersigned,hereby authorizeSGS-CSTC StandardsTechnicalServices Co., Ltd. (SGS) Shenzhen Branch and Keny Xu in $GS-CSTC StandardsTechnicalServices Co. Ltd. (SGS) Shenzhen Branch to act on our behalf in al manners relating to application for equipment authorizationwith respect to the FCC ID above, includingsigning of all documentsrelating to these matters. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes Fcc benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Where our agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditionsfor Certification,as specifiedby SGS North America,Inc., still resideswith Magic Carpet LTD. This authorizationis valid until furtherwrittennotice from the applicant. Print Name: Dor Avrahami Title: Head of ProductDevelopment Signature: Magic carpet LTD 55748283 On behalf of Company:Magic Carpet LTD Telephone:+972546384476 E-mail:[email protected]

Magic Carpet LTD TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: Confidentiality Request regarding application for FCC ID: 2AZ88DT-5007 LONG TERM CONFIDENTIALITY Pursuantto 47 CFR Section 0.459 and 0.457 of the commission's rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions The documents abovecontain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. SHORT TERM CONFIDENTIALITY Additionally, the applicant requests the following documents be held confidentialuntil the device is marketed or 45 days from the grant date, whicheveris less. If the device is marketed within 45 days of the Grant Date, the applicantwill notify the TCB per FCC KDB 726920 DO1 Confidentiality Request Procedures. External Photos Internal Photos Test Setup Photos User manual(s) Sincerely, Print Name: Dor Avrahami Title: Head of Product Development Magic Carpet tTD 515748283 Signature: On behalf of Company: Magic Carpet LTD Telephone:+972546384476 E-mail: [email protected]

SGS North Amenca Inc. 620 Old PeachtreeRoad Applicant Declaration SGS SUITE 100 Suwanee, Georgia 30024 United States ApplicantLegal Business Name Magic Carpet LTD Address Rapaport 3, Kfar Saba, Israel Grantee Code 2AZ88 FCC ID 2AZ88DT-5007 Dor Avrahami [email protected] Authorized ContactName ContactEmail ContactPhone +972546384476 I, the undersigned,certify that I am an authorized signatory for the Applicant and therefore declare a) in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and corect to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authonity of the FCC, as a result of the representations made in this application,the Applicantis responsiblefor (1) labeling the equipmentwith the exact FCC ID as specifed in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) complianceof the equipmentwith the applicabletechnicalrules, c)if the Applicantis not the actual manufacturerof the equipment,appropriatearangementshave been made with the manufacturerto ensure that productionunits of this equipmentwill continue to comply with the FCC's technical requirements. d) in accordancewith 47 CFR 2.909 and KDB394321,the Applicanthas read. understoodand agrees to acoept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordancewith ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillancerequirements. (1) the Applicantunderstands,accepts and agrees that a sample may be requestedfor surveillancetesting. (2) the Applicantshall make provisions to always have a productionsample available upon request by SGS, FCC and/or ISED. (3)theApplicant shall, uponrequest by SGS,at theApplicane'sexpense, provide a productionsample ofthe requested product to SGS, FCCand/or ISEDas instructed.Thesample shall include allsupport devices, cables, software,accessoriesor other hardware or software required for evaluation, review, certificationand audit surveillanceof products certifiedby SGS. ) neither the Applicant nor any party to the application is subject to a denial of Federal benefits,that includes FCC benefits,pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. S862 becauseof a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(6) for the definition of a "party" for these purposes. g) the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) tems and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-requlations-title-47 Link to KDBs: https://apps.fcc.gov/oetcfkdb/index.cfm Link to RSP-100:https:/www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Date:08/06/2021 Magic Carpet LTD 515748283 Applicant Signature: Print Name:Dor Avrahami Title: NOTE: This deciaration cannot be signed by an Agent. it shall be signed by an authorized person listed in the FCC database Head of Product Development Applicant Declaration Rev:0.0

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 1 of 4 External Photos for SZCR2105021300AT FCC ID: 2AZ88DT-5007 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 2 of 4 1 EUT Constructional Details SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 3 of 4 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 4 of 4

丝印图 2021-04-20 频率：433MHz RCT5007-054 硅胶：RCT5007-054 背贴 Model: DT5007 FCC ID: 2AZ88DT-5007 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 注：背贴要居中 6mm 32.47*11.5mm 39*38mm 8mm

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 1 of 3 Internal Photos for SZCR2105021300AT FCC ID: 2AZ88DT-5007 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 2 of 3 1 EUT Constructional Details SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 3 of 3 Antenna:

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210502130001 Page: 1 of 25 Keny Xu EMC Laboratory Manager TEST REPORT Application No.: SZCR2105021300AT Applicant: Magic Carpet LTD Address of Applicant: Rapaport 3, Kfar Saba, Israel Manufacturer: Dongguan Doty Optoelectronics Co., Ltd Address of Manufacturer: No. 90, Xintou Village, Tangxia Town, Dongguan, Guangdong, China (Mainland) 523710 Factory: Dongguan Doty Optoelectronics Co., Ltd Address of Factory: No. 90, Xintou Village, Tangxia Town, Dongguan, Guangdong, China (Mainland) 523710 Equipment Under Test (EUT): EUT Name: 433mhz Remote Control Model No.: DT5007 FCC ID: 2AZ88DT-5007 Standard(s) : 47 CFR Part 15, Subpart C 15.231 Date of Receipt: 2021-05-31 Date of Test: 2021-06-03 to 2021-07-09 Date of Issue: 2021-07-12 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210502130001 Page: 2 of 25 Revision Record Version Chapter Date Modifier Remark 01 2021-07-12 Original Authorized for issue by: Benson Wang/Project Engineer Eric Fu/Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210502130001 Page: 3 of 25 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart C 15.231 N/A 47 CFR Part 15, Subpart C 15.203 Pass Radio Spectrum Matter Part Item Standard Method Requirement Result 20dB Bandwidth 47 CFR Part 15, Subpart C 15.231 ANSI C63.10 (2013) Section 6.9 47 CFR Part 15, Subpart C 15.231(c) Pass Dwell Time (15.231(a)) N/A 47 CFR Part 15, Subpart C 15.231(a) Pass Field Strength of the Fundamental Signal (15.231(b)) ANSI C63.10 (2013) Section 6.5 47 CFR Part 15, Subpart C 15.231(b) Pass Radiated Emissions ANSI C63.10 (2013) Section 6.4&6.5&6.6&7.5 47 CFR Part 15C Section 15.231(b) and 15.209 Pass SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210502130001 Page: 4 of 25 3 Contents Page 1 COVER PAGE ..................................................................................................................................... 1 2 TEST SUMMARY ................................................................................................................................. 3 3 CONTENTS ......................................................................................................................................... 4 4 GENERAL INFORMATION .................................................................................................................. 5 4.1 DETAILS OF E.U.T. ......................................................................................................................... 5 4.2 DESCRIPTION OF SUPPORT UNITS .................................................................................................... 5 4.3 MEASUREMENT UNCERTAINTY ......................................................................................................... 5 4.4 TEST LOCATION ............................................................................................................................. 6 4.5 TEST FACILITY ............................................................................................................................... 6 4.6 DEVIATION FROM STANDARDS ......................................................................................................... 6 4.7 ABNORMALITIES FROM STANDARD CONDITIONS ................................................................................. 6 5 EQUIPMENT LIST ............................................................................................................................... 7 6 RADIO SPECTRUM TECHNICAL REQUIREMENT ............................................................................. 9 6.1 ANTENNA REQUIREMENT ................................................................................................................. 9 6.1.1 Test Requirement: ................................................................................................................... 9 6.1.2 Conclusion ............................................................................................................................... 9 7 RADIO SPECTRUM MATTER TEST RESULTS .................................................................................10 7.1 20DB BANDWIDTH .........................................................................................................................10 7.1.1 E.U.T. Operation .....................................................................................................................10 7.1.2 Test Mode Description ............................................................................................................10 7.1.3 Test Setup Diagram ................................................................................................................10 7.1.4 Measurement Procedure and Data .........................................................................................11 7.2 DWELL TIME (15.231(A)) ...............................................................................................................12 7.2.1 E.U.T. Operation .....................................................................................................................12 7.2.2 Test Mode Description ............................................................................................................12 7.2.3 Test Setup Diagram ................................................................................................................12 7.2.4 Measurement Procedure and Data .........................................................................................13 7.3 FIELD STRENGTH OF THE FUNDAMENTAL SIGNAL AND SPURIOUS EMISSIONS (15.231(B)) .....................14 7.3.1 E.U.T. Operation ............................…
