2AZ9T-S2PROSLEEP SOUND MACHINE

SLEEPSOUNDMACHINE S2 Pro TABLE OF CONTENTS Package Contents At a Glance Use the Machine App binding and connecting to Wi-Fi Settings Bluetooth $NWGVQQVJ 15  05 Add I Password Next Control S2 Pro through Smart Life Fall asleepAwakenReminder Select the event type Restoring Factory Defaults Specifications SAFETY AND WARRANTY

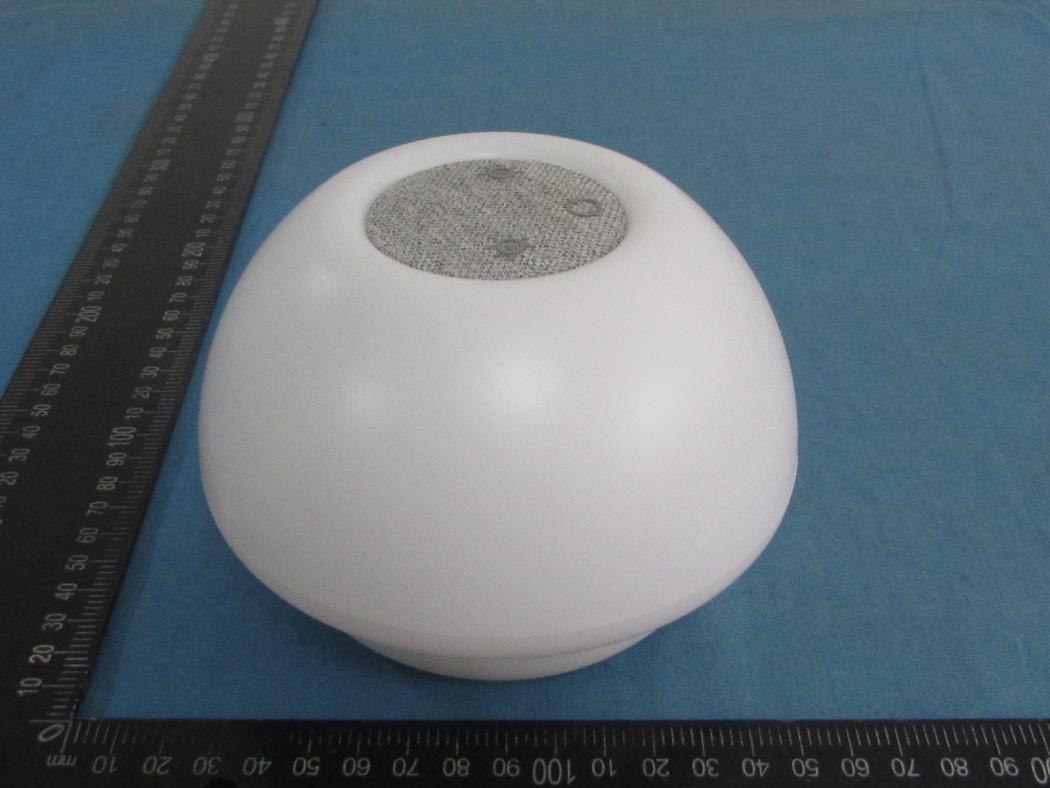

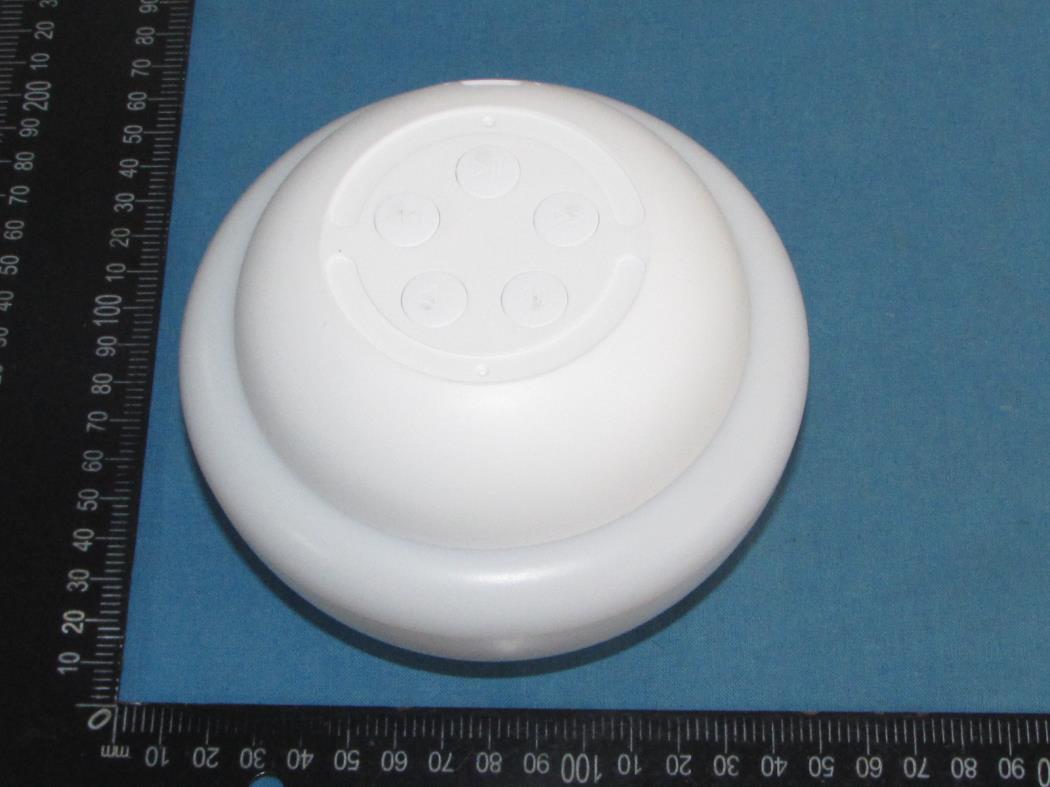

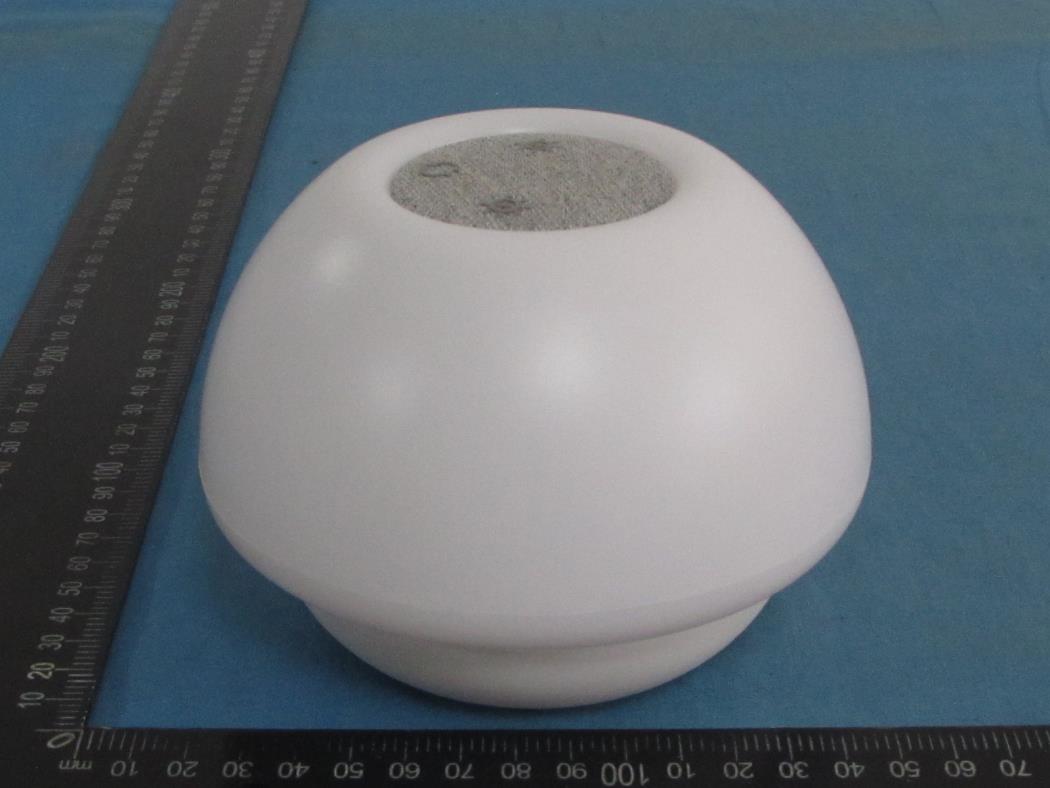

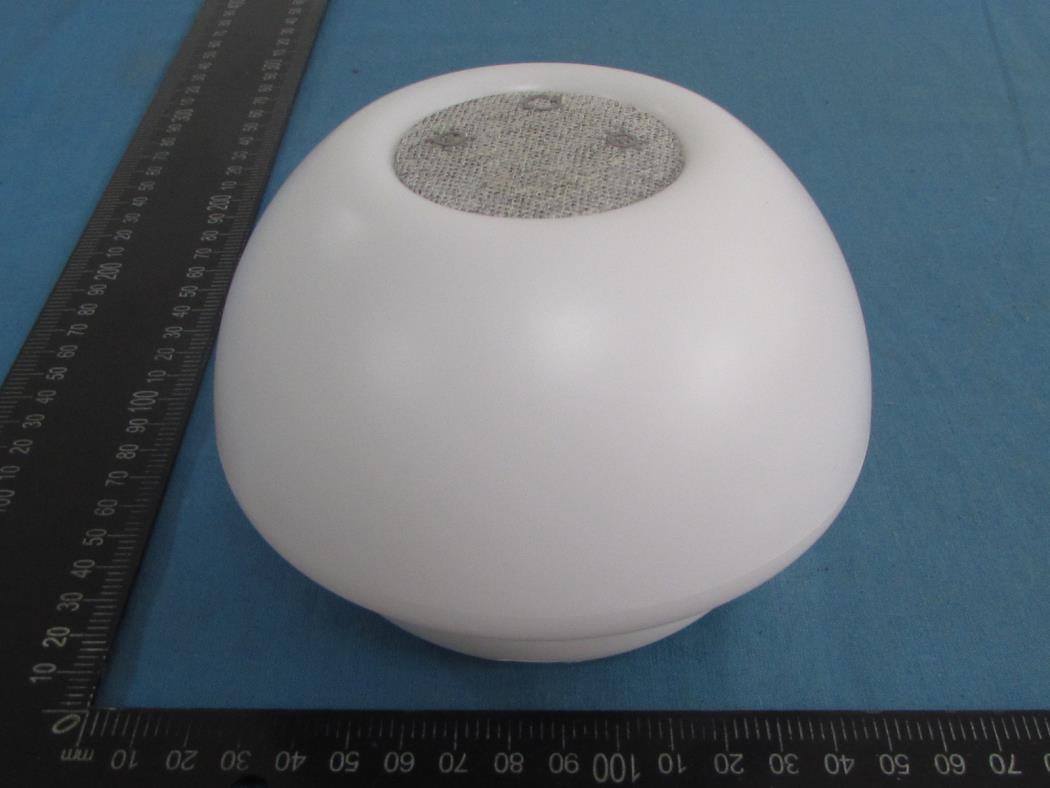

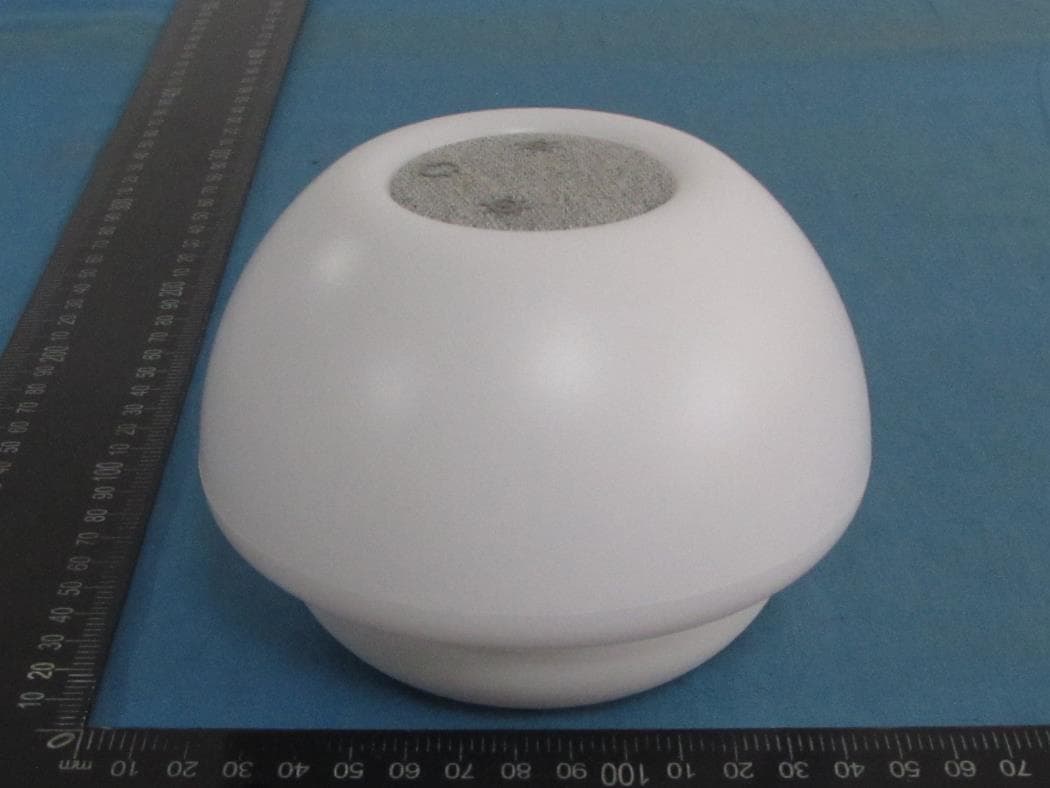

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZ9T-S2PRO This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 3 EXTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZ9T-S2PRO This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 3 Fig.3 Fig.4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZ9T-S2PRO This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 3 Fig.5 Fig.6

Label Location: FCC ID: 2AZ9T-S2PRO

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZ9T-S2PRO This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 3 INTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZ9T-S2PRO This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 3 Fig.3 Fig.4 WiFi antenna Receiver antenna Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZ9T-S2PRO This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 3 Fig.5 Fig.6

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZ9T-S2PRO This report shall not be reproduced except in full, without the written approval of Shzhen Tongzhou Testing Co.,Ltd Page 1 of 5 Maximum Permissible Exposure Report Product Information EUT : SLEEP SOUND MACHINE Model Number : S2 Pro Model Declaration : N/A Test Model : S2 Pro Power Supply : Input: DC5V,1A Hardware version : V1.5 Software version : V1.0.0 Sample ID : TZ230504299–1# TZ230504299–2# WiFi WLAN : Supported IEEE 802.11b/g/n WLAN FCC Operation Frequency : IEEE 802.11b:2412-2462MHz IEEE 802.11g:2412-2462MHz IEEE 802.11n HT20:2412-2462MHz IEEE 802.11n HT40:2422-2452MHz WLAN Channel Number : 11 Channels for 2412-2462MHz(IEEE 802.11b/g/n HT20) 7 Channels for 2422-2452MHz(IEEE 802.11n HT40) WLAN Modulation Technology : IEEE 802.11b: DSSS(CCK,DQPSK,DBPSK) IEEE 802.11g: OFDM (64QAM, 16QAM, QPSK, BPSK) IEEE 802.11n: OFDM (64QAM, 16QAM, QPSK, BPSK) Antenna Type And Gain : Internal Antenna, -0.58 dBi(Max.) Note 1: Antenna position refer to EUT Photos Note 2: The above information supplied by the applicant 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZ9T-S2PRO This report shall not be reproduced except in full, without the written approval of Shzhen Tongzhou Testing Co.,Ltd Page 2 of 5 3. Limit 3. 1 Refer evaluation method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information This Product can only use antennas certificated as follows provided by manufacturer; Antenna Gain and type refer to Product information Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZ9T-S2PRO This report shall not be reproduced except in full, without the written approval of Shzhen Tongzhou Testing Co.,Ltd Page 3 of 5 6. Conducted Power WiFi 2.4GHz Band TestMode Antenna Channel Result[dBm] 11B Ant1 2412 6.85 2437 12.45 2462 6.63 11G Ant1 2412 9.05 2437 13.64 2462 8.76 11N20SISO Ant1 2412 10.41 2437 10.05 2462 10.37 11N40SISO Ant1 2422 7.61 2437 7.61 2452 7.05 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZ9T-S2PRO This report shall not be reproduced except in full, without the written approval of Shzhen Tongzhou Testing Co.,Ltd Page 4 of 5 7. Manufacturing Tolerance WiFi 2.4GHz Band IEEE 802.11b(Average) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 6.5 12.0 6.0 Tolerance ±(dB) 1.0 1.0 1.0 IEEE 802.11g (Average) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 8.5 13.0 8.5 Tolerance ±(dB) 1.0 1.0 1.0 IEEE 802.11n HT20 (Average) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 10.0 9.5 10.0 Tolerance ±(dB) 1.0 1.0 1.0 IEEE 802.11ax VHT20 (Average) Channel Channel 3 Channel 6 Channel 9 Target (dBm) 7.0 7.0 6.5 Tolerance ±(dB) 1.0 1.0 1.0 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZ9T-S2PRO This report shall not be reproduced except in full, without the written approval of Shzhen Tongzhou Testing Co.,Ltd Page 5 of 5 8. Measurement Results 8.1 Standalone MPE As declared by the Applicant, the …

Text truncated - open the document above for the full version.

Inverted F Antenna Specification Summary ITEM ANT SPEC Model Name 2.4G ANT Center Frequency Horizontal Vertical 2400MHz 2400MHz 2500MHz 2400MHz 2400MHz 2500MHz -1.26 -0.76 -0.58 -5.25 -2.46 -1.86 MAX. Gain -0.58dBi Polarization Horizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance 50 Ohm Manufacture Benken Antenna Photo Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Frequency (MHz) Gain(dB) Max Min Avg 2400 -1.26174-30.0801-7.18716 2450 -0.765802-36.5604-7.48023 2500 -0.58258 -2 22.0315 -6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Frequency (MHz) Gain(dB) Max Min Avg 2400 -5.2537-22.1424-12.4294 2450 -2.4652 -24.5837 -10.4702 2500 -1.86120-29.5214-9.20432 ANT Test Labs：Attestation of Global Compliance Co., Ltd.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZ9T-S2PRO Report No.: TZ230504299-E1 Page 1 of 38 Appendix Test Data for WLAN(2.4G) (Conducted Measurement) Product Name: SLEEP SOUND MACHINE Trade Mark: N/A Test Model: S2 Pro FCC ID: 2AZ9T-S2PRO Environmental Conditions Temperature: 23.5°C Relative Humidity: 56% ATM Pressure: 100.0 kPa Test Engineer: Anna Hu Supervised by: Hugo Chen NOTE N/A Appendix A: DTS Bandwidth Test Result TestMode Antenna Channel DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 9.080 2407.960 2417.040 0.5 PASS 2437 9.560 2432.480 2442.040 0.5 PASS 2462 8.920 2458.080 2467.000 0.5 PASS 11G Ant1 2412 15.720 2404.480 2420.200 0.5 PASS 2437 15.720 2429.440 2445.160 0.5 PASS 2462 15.320 2454.840 2470.160 0.5 PASS 11N20SISO Ant1 2412 16.040 2404.520 2420.560 0.5 PASS 2437 17.560 2428.200 2445.760 0.5 PASS 2462 16.080 2453.480 2469.560 0.5 PASS 11N40SISO Ant1 2422 26.240 2413.280 2439.520 0.5 PASS 2437 20.080 2421.960 2442.040 0.5 PASS 2452 35.680 2433.840 2469.520 0.5 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZ9T-S2PRO Report No.: TZ230504299-E1 Page 2 of 38 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 11G_Ant1_2412 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZ9T-S2PRO Report No.: TZ230504299-E1 Page 3 of 38 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZ9T-S2PRO Report No.: TZ230504299-E1 Page 4 of 38 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZ9T-S2PRO Report No.: TZ230504299-E1 Page 5 of 38 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZ9T-S2PRO Report No.: TZ230504299-E1 Page 6 of 38 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 12.091 2406.2364 2418.3274 --- --- 2437 12.005 2431.2100 2443.2150 --- --- 2462 12.175 2456.0423 2468.2173 --- --- 11G Ant1 2412 17.167 2403.7231 2420.8901 --- --- 2437 16.910 2428.7779 2445.6879 --- --- 2462 17.130 2453.5521 2470.6821 --- --- 11N20SISO Ant1 2412 17.869 2403.2036 2421.0726 --- --- 2437 18.043 2427.9817 2446.0247 --- --- 2462 17.842 2453.0796 2470.9216 --- --- 11N40SISO Ant1 2422 35.439 2404.5664 2440.0054 --- --- 2437 35.417 2419.1025 2454.5195 --- --- 2452 36.907 2433.4741 2470.3811 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZ9T-S2PRO Report No.: TZ230504299-E1 Page 7 of 38 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 11G_Ant1_2412 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZ9T-S2PRO Report No.: TZ230504299-E1 Page 8 of 38 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZ9T-S2PRO Report No.: TZ230504299-E1 Page 9 of 38 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZ9T-S2PRO Report No.: TZ230504299-E1 Page 10 of 38 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZ9T-S2PRO Report No.: TZ230504299-E1 Page 11 of 38 Appendix C: Maximum conducted output power Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict 11B Ant1 2412 6.85 ≤30.00 PASS 2437 12.45 ≤30.00 PASS 2462 6.63 ≤30.00 PASS 11G Ant1 2412 9.05 ≤30.00 PASS 2437 13.64 ≤30.00 PASS 2462 8.76 ≤30.00 PASS 11N20SISO Ant1 2412 10.41 ≤30.00 PASS 2437 10.05 ≤30.00 PASS 2462 10.37 ≤30.00 PASS 11N40SISO Ant1 2422 7.61 ≤30.00 PASS 2437 7.61 ≤30.00 PASS 2452 7.05 ≤30.00 PASS Note：The Duty Cycle Factor is compensated in the test result. Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZ9T-S2PRO Report No.: TZ230504299-E1 Page 12 of 38 Appendix D: Maximum power spectral density Test Result TestMode Antenna Channel Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -22.32 ≤8.00 PASS 2437 -16.41 ≤8.00 PASS 2462 -22.32 ≤8.00 PASS 11G Ant1 2412 -20.81 ≤8.00 PASS 2437 -18.15 ≤8.00 PASS 2462 -22.61 ≤8.00 PASS 11N20SISO Ant1 2412 -19.83 ≤8.00 PASS 2437 -22.17 ≤8.00 PASS 2462 -19.84 ≤8.00 PASS 11N40SISO Ant1 2422 -25.32 ≤8.00 PASS 2437 -24.37 ≤8.00 PASS 2452 -26.55 ≤8.00 PASS Note：The Duty Cycle Factor is compensated in the test result. Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZ9T-S2PRO Report No.: TZ230504299-E1 Page 13 of 38 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZ9T-S2PRO Report No.: TZ230504299-E1 Page 14 of 38 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZ9T-S2PRO Report No.: TZ230504299-E1 Page 15 of 38 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZ9T-S2PRO Report No.: TZ230504299-E1 Page 16 of 38 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZ9T-S2PRO Report No.: TZ230504299-E1 Page 17 of 38 Appendix E: Band edge measurements Test Result TestMode Antenna ChName Channel RefLevel[dBm] Result[dBm] Limit[dBm] Verdict 11B Ant1 Low 2412 -1.66 -47.14 ≤-31.66 PASS High 2462 -2.00 -48.47 ≤-32 PASS 11G Ant1 Low 2412 -1.04 -31.05 ≤-31.04 PASS High 2462 -2.28 -36.88 ≤-32.28 PASS 11N20SISO Ant1 Low 2412 -0.02 -40.66 ≤-30.02 PASS High 2462 -0.47 -49.27 ≤-30.47 PASS 11N40SISO Ant1 Low 2422 -3.88 -44.54 ≤-33.88 PASS High 2452 -6.92 -49.33 ≤-36.92 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZ9T-S2PRO Report No.: TZ230504299-E1 Page 18 of 38 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 11G_Ant1_High_2462 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZ9T-S2PRO Report No.: TZ230504299-E1 Page 19 of 38 11N20SISO_Ant1_Low_2412 11N20SISO_Ant1_High_2462 11N40SISO_Ant1_Low_2422 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZ9T-S2PRO Report No.: TZ230504299-E1 Page 20 of 38 11N40SISO_Ant1_High_2452 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZ9T-S2PRO Report No.: TZ230504299-E1 Page 21 of 38 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Channel FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Refe…

Text truncated - open the document above for the full version.

Report No.: TZ230504299-E1 Page 1 of 39 FCC TEST REPORT Test report On Behalf of Shenzhen Leyun Innovation Technology Co., Ltd For SLEEP SOUND MACHINE Model No.: S2 Pro FCC ID: 2AZ9T-S2PRO Prepared for : Shenzhen Leyun Innovation Technology Co., Ltd C220 Room B Building Western Silicon Valley Baoan District, Shenzhen, Guangdong, China Prepared By : Shenzhen Tongzhou Testing Co.,Ltd 1th Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China Date of Test: 2023/5/8 ~ 2023/5/18 Date of Report: 2023/5/19 Report Number: TZ230504299-E1 The test report apply only to the specific sample(s) tested under stated test conditions It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TZ230504299-E1 Page 2 of 39 TEST RESULT CERTIFICATION Applicant’s name .................. : Shenzhen Leyun Innovation Technology Co., Ltd Address .................................. : C220 Room B Building Western Silicon Valley Baoan District, Shenzhen, Guangdong, China Manufacture's Name ............ : Shenzhen Leyun Innovation Technology Co., Ltd Address .................................. : C220 Room B Building Western Silicon Valley Baoan District, Shenzhen, Guangdong, China Product description Trade Mark ................................ : N/A Product name............................ : SLEEP SOUND MACHINE Model and/or type reference . : S2 Pro Standards .............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.247 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Tongzhou Testing Co.,Ltd is acknowledged as copyright owner and source of the material. Shenzhen Tongzhou Testing Co.,Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................................ : Date (s) of performance of tests ............. : 2023/5/8 ~ 2023/5/18 Date of Issue ........................................... : 2023/5/19 Test Result .............................................. : Pass Testing Engineer : (Nancy Li) Technical Manager : (Hugo Chen) Authorized Signatory : (Andy Zhang) Report No.: TZ230504299-E1 Page 3 of 39 Revision History Revision Issue Date Revisions Revised By 000 2023/5/19 Initial Issue Andy Zhang Report No.: TZ230504299-E1 Page 4 of 39 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 5 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................ 5 1.2 EUT CONFIGURATION .......................................................................................................................................... 6 1.3. EXTERNAL I/O CABLE ......................................................................................................................................... 6 1.4. DESCRIPTION OF TEST FACILITY ........................................................................................................................ 6 1.5. STATEMENT OF THE MEASUREMENT UNCERTAINTY .......................................................................................... 6 1.6. MEASUREMENT UNCERTAINTY ........................................................................................................................... 6 1.7. DESCRIPTION OF TEST MODES .......................................................................................................................... 7 2. TEST METHODOLOGY ......................................................................................................................................... 8 2.1. EUT CONFIGURATION......................................................................................................................................... 8 2.2. EUT EXERCISE ................................................................................................................................................... 8 2.3. GENERAL TEST PROCEDURES ........................................................................................................................... 8 3. SYSTEM TEST CONFIGURATION ...................................................................................................................... 9 3.1. JUSTIFICATION..................................................................................................................................................... 9 3.2. EUT EXERCISE SOFTWARE ................................................................................................................................ 9 3.3. SPECIAL ACCESSORIES ...................................................................................................................................... 9 3.4. BLOCK DIAGRAM/SCHEMATICS........................................................................................................................... 9 3.5. EQUIPMENT MODIFICATIONS .............................................................................................................................. 9 3.6. TEST SETUP ........................................................................................................................................................ 9 4. SUMMARY OF TEST RESULTS ........................................................................................................................ 10 5. TEST RESULT ....................................................................................................................................................... 11 5.1. ON TIME AND DUTY CYCLE .........................................................................................................…

Text truncated - open the document above for the full version.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZ9T-S2PRO This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 2 TEST SETUP PHOTOS OF THE EUT Conducted Emission Radiated Emission Below 1GHz Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZ9T-S2PRO This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 2 Radiated Emission Above 1GHz
