2AZ9Z-EY-510embedded desktop wireless charing

73mm 1 3 m m Features: .Hidden Embedding,the desktop does not need to be damaged .Smart and conveninent charging .Easy for assembly for the hole of office desk in the cafe/restaurant/airport/train station Specification: .Model:EY-510 .FCC ID:2AZ9Z-EY-510 .Input:DC5V/2A 9V/2A QC3.0 .Wireless Output:5W 7.5W 10W 15W .Standby energy consumption: 10mA .Working frequency rang:110-205KHZ .Transferefficency:73%(MAX) .Launch distance:8mm .Installation diameter:72mm .Size:D73*13mm .Weight:110g .Authenticate:CE FCC ROHS Wireless Desktop Charger Use: .Phone built-in or add a wireless receiver to it .The led indicator remains red when connected to the power and charges to blue after successful connection. .QI standard transmitter is charged automatically once recognized approximately 5 secondsd.If you put the offset distance 9mm not charge. Inxtallation: In office desk(Diameter 72mm) Punch hoie diameter 72mm by professional people It can be used on cafe/restaurant/airport/train station Notice: Insert the computer USB 2.0 is prohibited as small current by computer. USB 2.0 is the minimum requirement Please remove the USB insert again if it can’t charge. Mobile phone’s receiver must be on center,please. FCC statement: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Radiation Exposure Statement This device complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. During the operation of device a distance of 15 cm surrounding the device and 20 cm above the top surface of the device must be respected.

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2021-6-30> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AZ9Z-EY-510 EY-510 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： MingWei Song/Manager Company: DongGuan IDEAL ENTERPRISE CO.,LTD Address: No. 27, Dawei Dongfu Road, Chiling Village, Houjie Town Phone: +86 0769-85960913 Fax: +86 0769-85960952 E-Mail: [email protected]

DongGuan IDEAL ENTERPRISE CO.,LTD No. 27, Dawei Dongfu Road, Chiling Village, Houjie Town Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2021-6-30 To whom it may concern: We, DongGuan IDEAL ENTERPRISE CO.,LTD the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AZ9Z-EY-510 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： MingWei Song/Manager Company: DongGuan IDEAL ENTERPRISE CO.,LTD Address: No. 27, Dawei Dongfu Road, Chiling Village, Houjie Town Phone: +86 0769-85960913 Fax: +86 0769-85960952 E-Mail: [email protected]

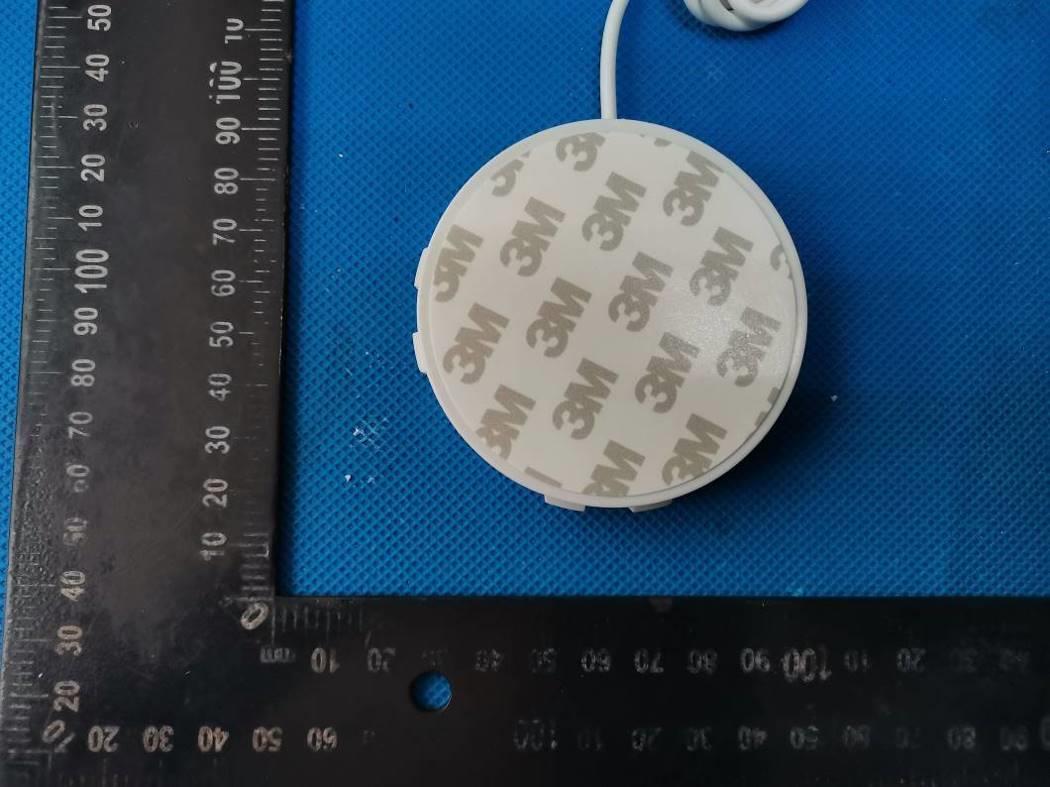

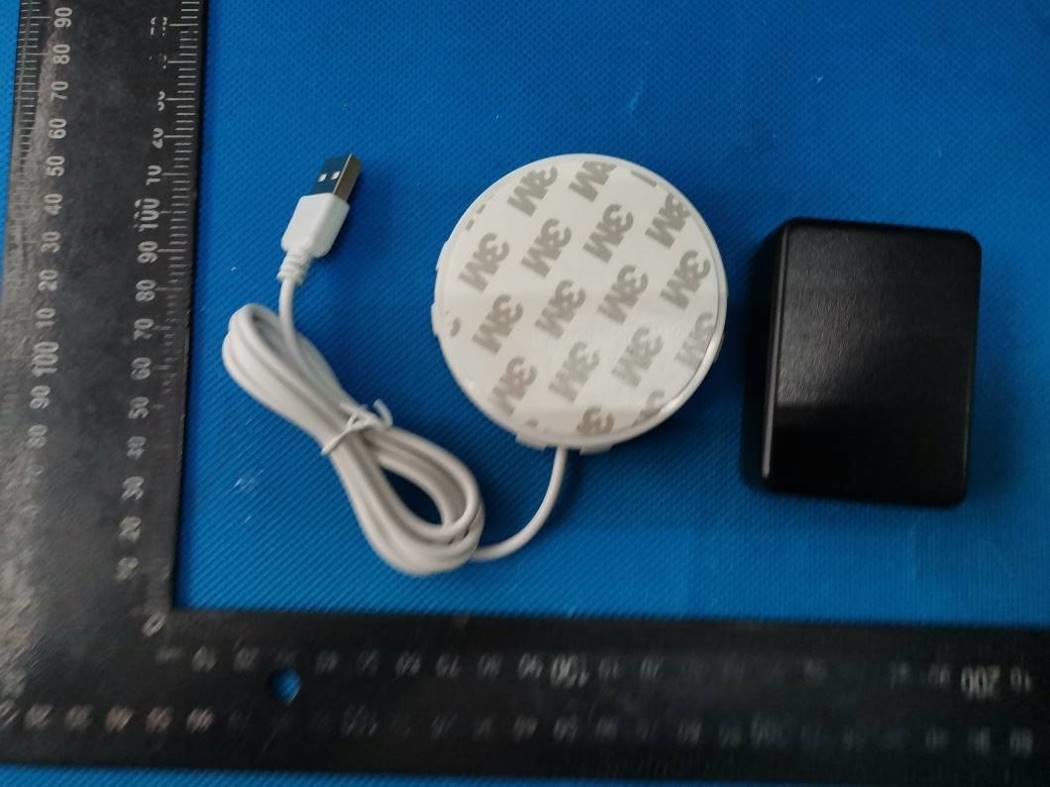

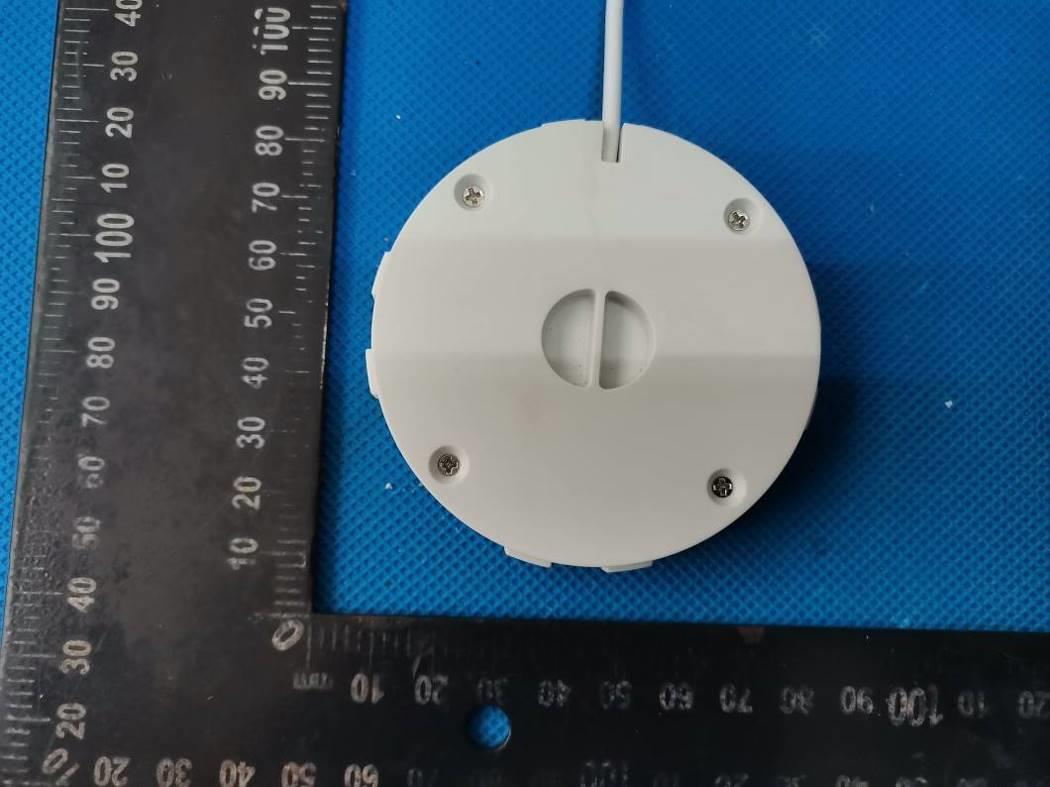

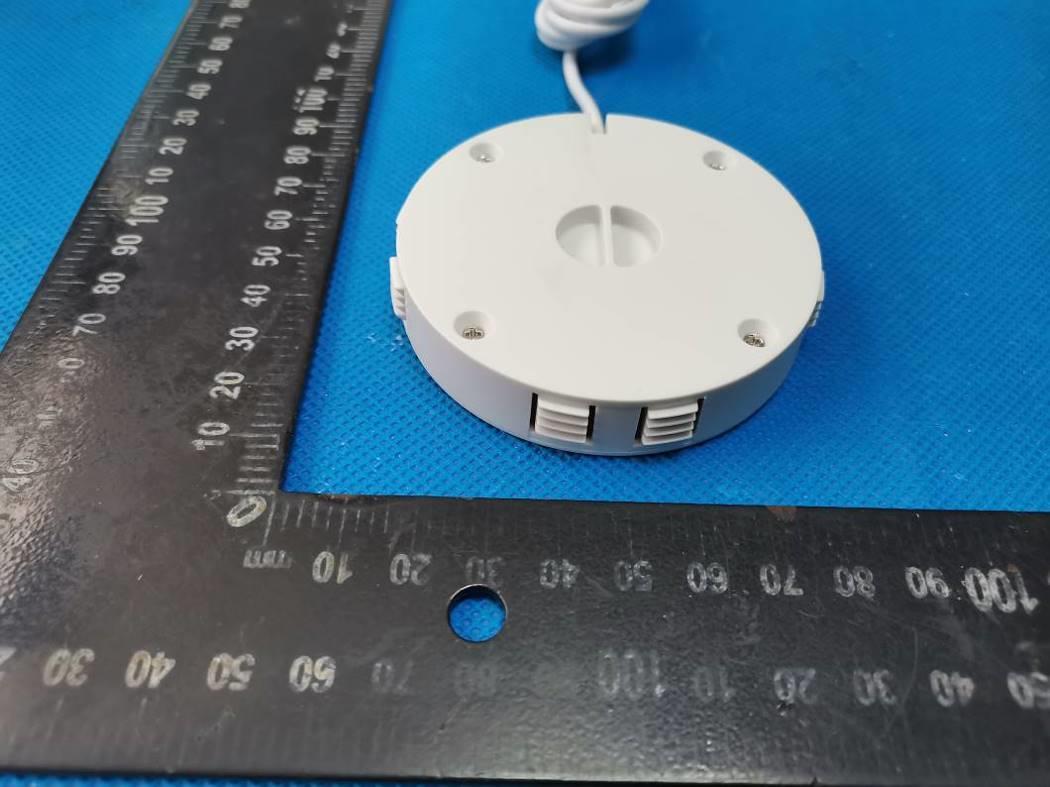

FCC ID: 2AZ9Z-EY-510 External Photos of the EUT Fig.1 Fig.2 FCC ID: 2AZ9Z-EY-510 Fig.3 Fig.4 FCC ID: 2AZ9Z-EY-510 Fig.5 Fig.6 FCC ID: 2AZ9Z-EY-510 Fig.7 Fig.8

FCC ID: 2AZ9Z-EY-510 Label and Location Size: L: 2.5cm*W: 2.0cm Label and Location embedded desktop wireless charing Model No.: EY-510 FCC ID : 2AZ9Z-EY-510

FCC ID: 2AZ9Z-EY-510 Internal Photos of the EUT Fig.1 Fig.2 FCC ID: 2AZ9Z-EY-510 Fig.3

Shenzhen GUOREN Certification Technology Service Co., Ltd. 101#, Building K & Building T, The Second Industrial Zone, Jiazitang Community, Fenghuang Street, Guangming District, Shenzhen, China Page 1 of 5 RF Exposure Evaluation FCC ID: 2AZ9Z-EY-510 1 Measuring Standard KDB 680106 D01 RF Exposure Wireless Charging Apps v03 2 Requirements According to the item 5 of KDB 680106 D01v03: Inductive wireless power transfer applications that meet all of the following requirements are excluded from submitting an RF exposure evaluation. (1) Power transfer frequency is less than 1MHz. (2) Output power from each primary coil is less than or equal to 15 watts. (3) The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that are able to detect and allow coupling only between individual pairs of coils. (4) Client device is placed directly in contact with the transmitter. (5) Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). (6) The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. Remark: Meet all the above requirements. Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Shenzhen GUOREN Certification Technology Service Co., Ltd. 101#, Building K & Building T, The Second Industrial Zone, Jiazitang Community, Fenghuang Street, Guangming District, Shenzhen, China Page 2 of 5 3 Test Setup 4 Test Procedure 1) The RF exposure test was performed in anechoic chamber. 2) The measurement probe was placed at test distance (15 cm from all sides and 20 cm from the top) which is between the edge of the charger and the geometric center of probe. 3) The highest emission level was recorded and compared with limit as soon as measurement of each points (A, B, C, D, E) were completed. 4) The EUT was measured according to the dictates of KDB 680106 D01v03. Remark：The EUT’s test position A, B, C, D and E is valid for the E and H field measurements. 5 Equipment Approval Considerations The EUT does comply with KDB 680106 D01 as follow table. Requirements of KDB 680106 D01 Yes / No Description Power transfer frequency is less than 1 MHz Yes The device operate in the frequency range 110KHz~205KHz Output power from each primary coil is less than 15 watts Yes The maximum output power for each primary coil is 10W. The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that are able to detect and allow coupling only between individual pairs of coils. Yes The transfer system includes only one primary coils. Client device is placed directly in contact with the transmitter. Yes Client device is placed directly in contact with the transmitter. Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). Yes Mobile exposure conditions only The aggregate H-field strengths at 15 cm Yes The EUT H-field strengths at 15 cm Shenzhen GUOREN Certification Technology Service Co., Ltd. 101#, Building K & Building T, The Second Industrial Zone, Jiazitang Community, Fenghuang Street, Guangming District, Shenzhen, China Page 3 of 5 surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. 6 Description of the test mode Equipment under test was operated during the measurement under the following conditions: Charging and communication mode Test Modes: Mode 1 AC/DC Adapter (5V/2.0A) + EUT + Battery Load (Battery Status: <1%) Pre-tested Mode 2 AC/DC Adapter (5V/2.0A) + EUT + Battery Load (Battery Status: <50%) Pre-tested Mode 3 AC/DC Adapter (5V/2.0A) + EUT + Battery Load (Battery Status: 100%) Pre-tested Mode 4 AC/DC Adapter (9V/2.0A) + EUT + Battery Load (Battery Status: <1%) Record Mode 5 AC/DC Adapter (9V/2.0A) + EUT + Battery Load (Battery Status: <50%) Pre-tested Mode 6 AC/DC Adapter (9V/2.0A) + EUT + Battery Load (Battery Status: 100%) Pre-tested Note: All test modes were pre-tested, but we only recorded the worst case in this report. 7 Description of Support Units Follow auxiliary equipment(s) test with EUT that provided by the manufacturer or laboratory is listed as follow: Description Manufacturer Model Technical Parameters Certificate Provided by Adapter I.T.E GEO101U-050210U Input: 100-240V~, 50/60Hz, 0.3A Output: 5V2A / 9V2A FCC Manufacturer Shenzhen GUOREN Certification Technology Service Co., Ltd. 101#, Building K & Building T, The Second Industrial Zone, Jiazitang Community, Fenghuang Street, Guangming District, Shenzhen, China Page 4 of 5 8 Test Instruments list Test Equipment Manufacturer Model No. SN. Cal.Date (mm-dd-yy) Cal.Due date (mm-dd-yy) Exposure Level Tester Narda ELT-400 N-0231 2020/11/3 2021/11/2 Magnetic field probe 100cm 2 Narda ELT probe 100cm 2 M0675 2020/11/3 2021/11/2 9 Test Result H-Field Strength at 15 cm from the edges surrounding the EUT and 15cm from the top surface of the EUT Chargin g Battery Level Unit Frequency Range (MHz) Measured E-Field Strength Values (A/m) FCC H-Field Strength 50% Limits (A/m) FCC H-Field Strength Limits (A/m) Test Position A Test Position B Test Position C Test Position D Test Position E 1% uT 0.122 0.181 0.174 0.189 0.176 0.165 -- -- 1% A/m 0.122 0.145 0.139 0.151 0.141 0.132 0.815 1.63 50% uT 0.122 0.134 0.131 0.140 0.126 0.135 -- -- 50% A/m 0.122 0.107 0.105 0.112 0.101 0.108 0.815 1.63 99% uT 0.122 0.109 0.101 0.114 0.105 0.103 -- -- 99% A/m 0.122 0.087 0.081 0.091 0.084 0…
