2AZA6FY-RC-RF-RGBRF Remote Control
Jetmax Lighting Co., Ltd
Click to zoom
Application Details
- Equipment Class
- DSC - Part 15 Security/Remote Control Transmitter
- Date of Grant
- Mar 18, 2021
- Application Purpose
- Original Equipment
- Date of Application
- Mar 17, 2021
- Equipment Note
- RF Remote Control
- Frequency Range
- 433.92000000 - 433.92000000
- Company
- Jetmax Lighting Co., Ltd
- Country
- China
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Users Manual
RFRemoteControl Model:FY-RC-RF-RGB FCCID:2AZA6FY-RC-RF-RGB READANDFOLLOWALLSAFETYINSTRUCTIONS •Donotuseseasonalproductsoutdoorsunlessmarkedsuitableforindoorandoutdooruse. •Thisseasonaluseproductisnotintendedforpermanentinstallationoruse. •Donotsecurethewiringoftheproductwithstaplesornails,orplaceonsharphooksornails. •Unplugtheproductwhenleavingthehouse,whenretiringforthenight,orifleftunattended. •Donotusethisproductforotherthanitsintendeduse. •Neveroperatethisproductifthepowercordorplugisdamaged. •CAUTION:Thisisanelectricalproduct–notatoy!Toavoidriskoffire,burns,personalinjuryandelectricshock,it shouldnotbeplayedwithorplacedwheresmallchildrencanreachit. OPERATIONGINSTRUCTIONS ControlleronRemoteassemblyworksinthesamemannerasthecontrollerthatcamewiththetree. Pressingthebuttonontheswitchorremotecontroloperatethefunctionsofthelights. PressingtheTIMERbuttononcewillturnonthelightsandbeginthetimer.Thetimerwillruncontinually:6hourswith lightson,then18hourswithlightsoffandrepeatuntildeactivatedbypressingTIMERbutton. BATTERYINSTALLATION RemoteControlrequiresoneCR2025buttonbattery(batteryincluded). OpenbatterycompartmentandinsertoneCR2025buttonbatteryobservingproperpolarity(+/-). Batteryusereminders (1)Alwayspurchasethecorrectsizeandgradeofbatterymostsuitablefortheintended use. (2)Replaceallbatteriesofasetatthesametime. (3)Cleanthebatterycontactsandalsothoseofthedevicepriortobatteryinstallation. (4)Ensurethebatteriesareinstalledcorrectlywithregardtopolarity(+and-) (5)Removebatteriesfromequipmentwhichisnottobeusedforanextendedperiodof time. (6)Removeusedbatteriespromptly. FCCStatement ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions: (1)Thisdevicemaynotcauseharmfulinterference. (2)Thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesired operation. 2.Changesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoid theuser’sauthoritytooperatetheequipment. Note:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaclassBdigitaldevice,pursuant toPart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmful interferenceinaresidentialinstallation. Thisequipmentgeneratesusesandcanradiateradiofrequenceenergyand,ifnotinstalledandused inaccordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.However,there isnoguaranteethatinterferencewillnotoccurinaparticularinstallation.ifthisequipmemtdoescause harmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoff andon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowingmeasures: •Reorientorrelocatethereceivingantenna. •Increasetheseparationbetweentheequipmentandreceiver. •Connecttheequipmentintoanautletonacircuitdifferentfromthattowhichthereceiverisconnected. •Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
ID Label/Location Info
Label: Labellocation:

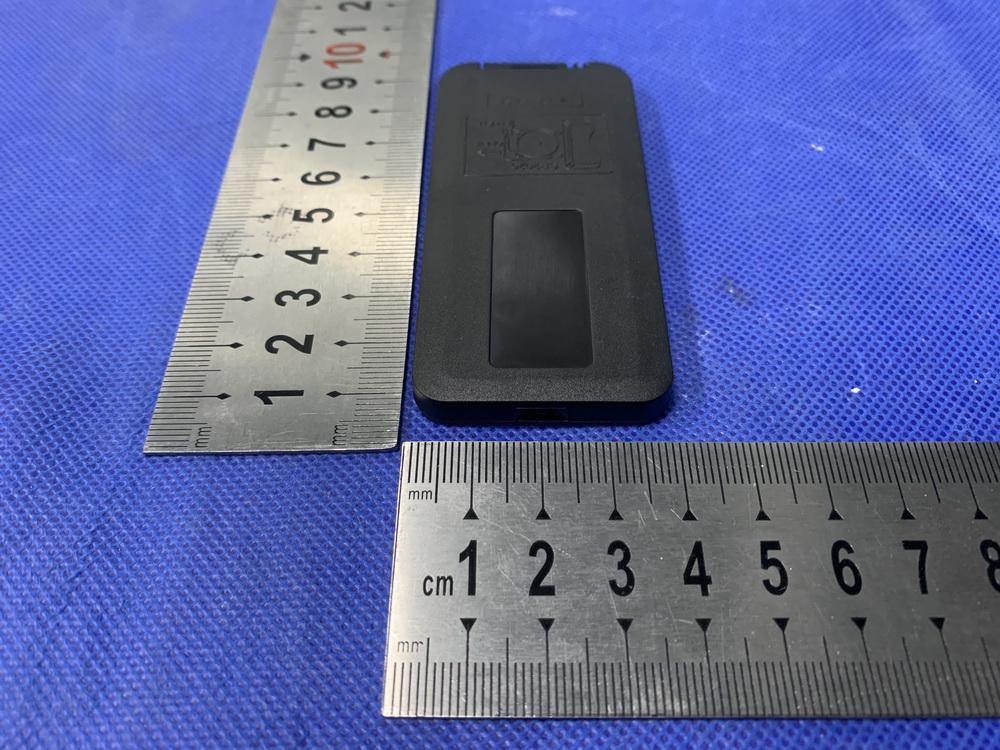

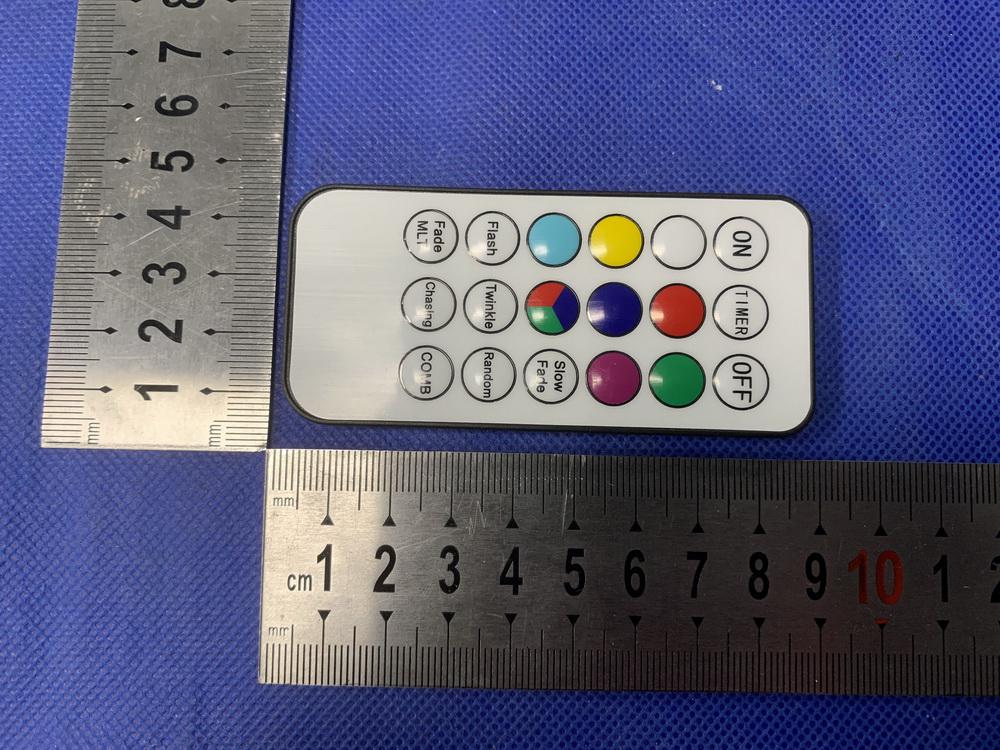

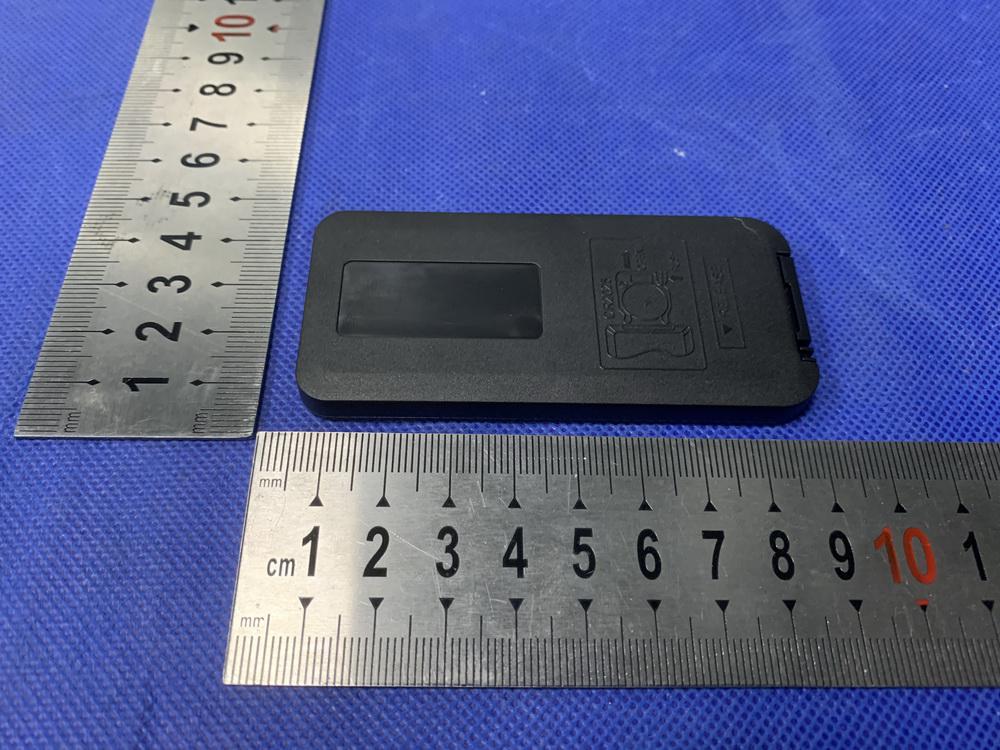

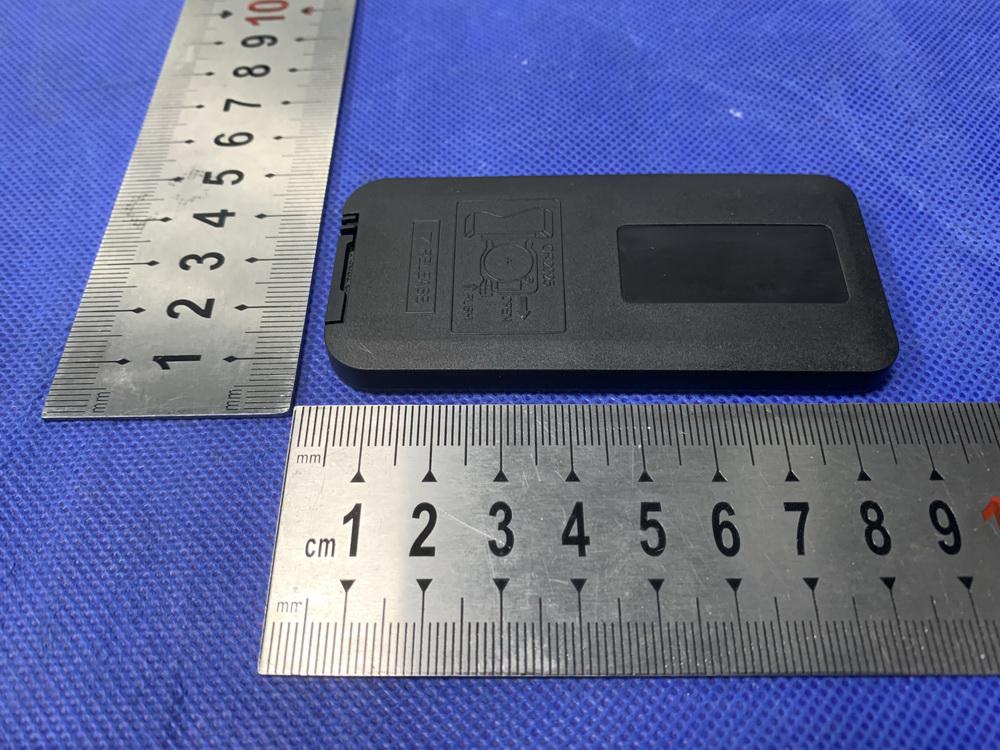

Internal Photos
ANTENNA
Test Report
ReportNo.:EA21030271F010011of33 DongGuanAnciElectronicTechnologyCo.,Ltd 1-2Floor,BuildingA,No.11,Headquarters2Road,SongshanLakeHi-techIndustrialDevelopmentZone, DongguanCity,GuangdongPr.,China. Phone:86-769-85075888;Fax:86-769-85075898E-mail:[email protected] ELECTROMAGNETICEMISSIONSCOMPLIANCEREPORT FCCPART15SUBPARTCREQUIREMENT OF RFRemoteControl ModelNo.:FY-RC-RF-RGB Trademark: FCCID:2AZA6FY-RC-RF-RGB ReportNo.:EA21030271F01001 IssueDate:Mar.16,2021 Preparedfor JETMAXLIGHTINGCO.,LTD BldgA,BlockC,ShuilianPengdongIndustrialAreaHengmei,Nancheng District,Dongguan,China Preparedby DongGuanAnciElectronicTechnologyCo.,Ltd. 1-2Floor,BuildingA,No.11,Headquarters2Road,Songshan,LakeHi-tech IndustrialDevelopmentZone,DongguanCity,GuangdongPr.,China. Thisreportshallnotbereproduced,exceptinfull,withoutthewrittenapprovalof DongGuanAnciElectronicTechnologyCo.,Ltd. ReportNo.:EA21030271F010012of33 TRFNo.:FCC15.231/AVer.1.0 VERIFICATIONOFCOMPLIANCE Applicant:JETMAXLIGHTINGCO.,LTD BldgA,BlockC,ShuilianPengdongIndustrialAreaHengmei, NanchengDistrict,Dongguan,China Manufacturer:JETMAXLIGHTINGCO.,LTD BldgA,BlockC,ShuilianPengdongIndustrialAreaHengmei, NanchengDistrict,Dongguan,China ProductDescription:RFRemoteControl TradeMark: ModelNumber:FY-RC-RF-RGB Weherebycertifythat: TheaboveequipmentwastestedbyDongGuanAnciElectronicTechnologyCo.,Ltd. Thetestdata,dataevaluation,testprocedures,andequipmentconfigurationsshown inthisreportweremadeinaccordancewiththeproceduresgiveninANSI C63.10-2013andtheenergyemittedbythesampleEUTtestedasdescribedinthis reportisincompliancewithconductedandradiatedemissionlimitsofFCCRulesPart 15.231(2020). DateofTest:Mar.12,2021toMar.16,2021 Preparedby: TomasYang/Supervisor Reviewer&Approved: AlanHe/Manager ReportNo.:EA21030271F010013of33 TRFNo.:FCC15.231/AVer.1.0 ModifiedInformation Versio n SummaryRevisionDateReportNo. Ver.1.0OriginalReport/EA21030271F01001 ReportNo.:EA21030271F010014of33 TRFNo.:FCC15.231/AVer.1.0 TableofContents 1EUTTECHNICALDESCRIPTION......................................................................................5 2SUMMARYOFTESTRESULT............................................................................................6 3TESTMETHODOLOGY.........................................................................................................7 3.1GENERALDESCRIPTIONOFAPPLIEDSTANDARDS................................................................7 3.2MEASUREMENTEQUIPMENTUSED..............................................................................................7 3.3DESCRIPTIONOFTESTMODES.....................................................................................................7 4FACILITIESANDACCREDITATIONS................................................................................8 4.1FACILITIES............................................................................................................................................8 4.2LABORATORYACCREDITATIONSANDLISTINGS.....................................................................8 5TESTSYSTEMUNCERTAINTY...........................................................................................9 6SETUPOFEQUIPMENTUNDERTEST...........................................................................10 6.1RADIOFREQUENCYTESTSETUP1...............................................................................................10 6.2RADIOFREQUENCYTESTSETUP2...............................................................................................10 6.3CONDUCTEDEMISSIONTESTSETUP...........................................................................................11 6.4BLOCKDIAGRAMCONFIGURATIONOFTESTSYSTEM...........................................................12 6.5SUPPORTEQUIPMENT......................................................................................................................12 7TESTREQUIREMENTS.......................................................................................................13 7.1OCCUPIEDBANDWIDTH.................................................................................................................13 7.2RADIATEDSPURIOUSEMISSION...................................................................................................15 7.3TRANSMISSIONREQUIREMENT...................................................................................................24 7.4ANTENNAAPPLICATION.........................................................................................................................28 ReportNo.:EA21030271F010015of33 TRFNo.:FCC15.231/AVer.1.0 1EUTTECHNICALDESCRIPTION CharacteristicsDescription DeviceType: RFRemoteControl Modulation: GFSK OperatingFrequency Range(s): 433.92MHz NumberofChannels: 1channel AntennaType: InternalPCBantenna AntennaGain: 0.6dBi Powersupply: Battery3V Note:formoredetails,pleaserefertotheUser’smanualoftheEUT. TheEUThasbeenassociatedwithperipheralspursuanttoANSIC63.10-2013and configurationoperatedinamannertendedtomaximizeitsemissioncharacteristicsina typicalapplication.Frequencyrangeinvestigated:radiation(9KHztothe10thharmonicofthe highestfundamentalfrequencyorto40GHz,whicheverislower). ForRadiated:TheEUT’santennawaspre-testedunderthefollowingmodes: TestModeDescription ModeAX-Yaxis ModeBY-Zaxis ModeCX-Zaxis Fromtheabovemodes,theworstcasewasfoundinModeA. Allthex/y/zorientationhasbeeninvestigated,andonlyworstcaseispresentedinthisreport. ReportNo.:EA21030271F010016of33 TRFNo.:FCC15.231/AVer.1.0 2SUMMARYOFTESTRESULT FCCPartClauseTestParameterVerdictRemark 15.231(c)OccupiedBandwidthPASS 15.231(b)RadiatedSpuriousEmissionsPASS 15.231(b)TransmissionRequirementPASS 15.203AntennaRequirementPASS 15.207(a)ConductedEmissionN/ASeeNOTE NOTE1:N/A(NotApplicable),EUTpoweredbybattery. RELATEDSUBMITTAL(S)/GRANT(S): Thissubmittal(s)(testreport)isintendedforFCCID:2AZA6FY-RC-RF-RGBfilingtocomplywithSection15.231 oftheFCCPart15,SubpartCRules ReportNo.:EA21030271F010017of33 TRFNo.:FCC15.231/AVer.1.0 3TESTMETHODOLOGY 3.1G…
Text truncated - open the document above for the full version.
Contact Information
Applicant
Tracy Pan(Sales manager)
Test Firm
DongGuan Anci Electronic Technology Co., Ltd.Kingbo Hu
[email protected]86-769- 8507 5888
Technical Specifications
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15.231 | 433.92 MHz - 433.92 MHz | - |
