2AZB3C1-01Floor sweeping robot

OPEN Neabot C1 Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The module in this product is labeled with its own FCC ID. The FCC ID is not visible when the module is installed inside another device. Therefore, the outside of the device into which the module is installed must also display a label referring to the module. The final end device must be labeled in a visible area with the following “Contains FCC ID: 2AMM6-825X1CA” 1-2 3 4-7 8-9 10 11-14 15 15 16-23 24-25 About Your Product Specifications Start/stop Recharge Speaker Air outlet Bottom mop release button Dust box release button Integrated Water tank dust box Built-in lidar Linging LiDAR Force shutdown button Short press to close Bottom mop release button Front casters wheel Cliff sensor Left drive wheel Right brush Right drive wheel Main brush Dust bin release button Dust box buckle Dust box Hepa Filter Bracket Hepa Filter Filter sponge Hepa Filter Bracket Cover Shell Hepa Filter 8 Top View Dust container Indicator light Infrared mirror Trash port Charging contacts Power cord Flip cover Flip cover sealing ring Fan filter bracket Dust channel (perspective view) OPEN 9 1.Product Specifications Neabot NoMo Max Robot Vacuum About Your Product Specifications 10 Product Model Rated Input RS0030W 24V1A Due to the continuous improvement of the product, the product in this information is subject to the actual product, and our company reserves the right to update the product. Working Voltage14.4V Product Dimersions350*350*87mm Self-emptying Dustbin Product Model Rated Input DS0030W 100V50/60Hz Rated Output24V1A Power (working state) Product Dimensions Net Weight 1050W 396*274*315mm About5.3kg 0.5m / 1 .6ft 0.5m / 1 .6ft 1.2m / 4ft / / • 4 cliff sensors at the bottom of the robot. • Charging contacts at the bottom of the robot. Cliff sensor OPEN Infrared mirror Charging contacts

GUANGDONG PIEBOT ROBOTICS TECHNOLOGY CO., LTD Date: 5/17/2021 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: FCC ID: 2AZB3C1-01 To whom it may concern: We, the undersigned, hereby authorize SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Guangzhou branch and Kobe Jian in SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Guangzhou branch to act on our behalf in all manners relating to application for equipment authorization with respect to the FCC ID above, including signing of all documents relating to these matters. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Where our agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by SGS North America, Inc., still resides with GUANGDONG PIEBOT ROBOTICS TECHNOLOGY CO., LTD. This authorization is valid until further written notice from the applicant. Name (Printed): Yang Bai Title: General Manager Signature: On behalf of Company: GUANGDONG PIEBOT ROBOTICS TECHNOLOGY CO., LTD

SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Declaration Applicant Legal Business Name GUANGDONG PIEBOT ROBOTICS TECHNOLOGY CO., LTD Address Room302, Building 3 No.38, Dongke Road, Dongcheng Street,DongGuan, China Grantee Code 2AZB3 FCC ID 2AZB3C1-01 Authorized Contact Name Yang Bai Contact Email [email protected] Contact Phone 0769-22269275 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a) in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d) in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g) the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Applicant Signature: Date:5/17/2021 Print Name: Yang Bai Title: General Manager *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database Applicant Declaration Rev:0.0

GUANGDONG PIEBOT ROBOTICS TECHNOLOGY CO., LTD To: SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia United States From: GUANGDONG PIEBOT ROBOTICS TECHNOLOGY CO., LTD Room302, Building 3 No.38, Dongke Road, Dongcheng Street, DongGuan, China Regarding: Confidentiality Request regarding application for FCC ID: 2AZB3C1-01 LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. Sincerely, Name (Printed): Yang Bai Title: General Manager Signature: On behalf of Company: GUANGDONG PIEBOT ROBOTICS TECHNOLOGY CO., LTD

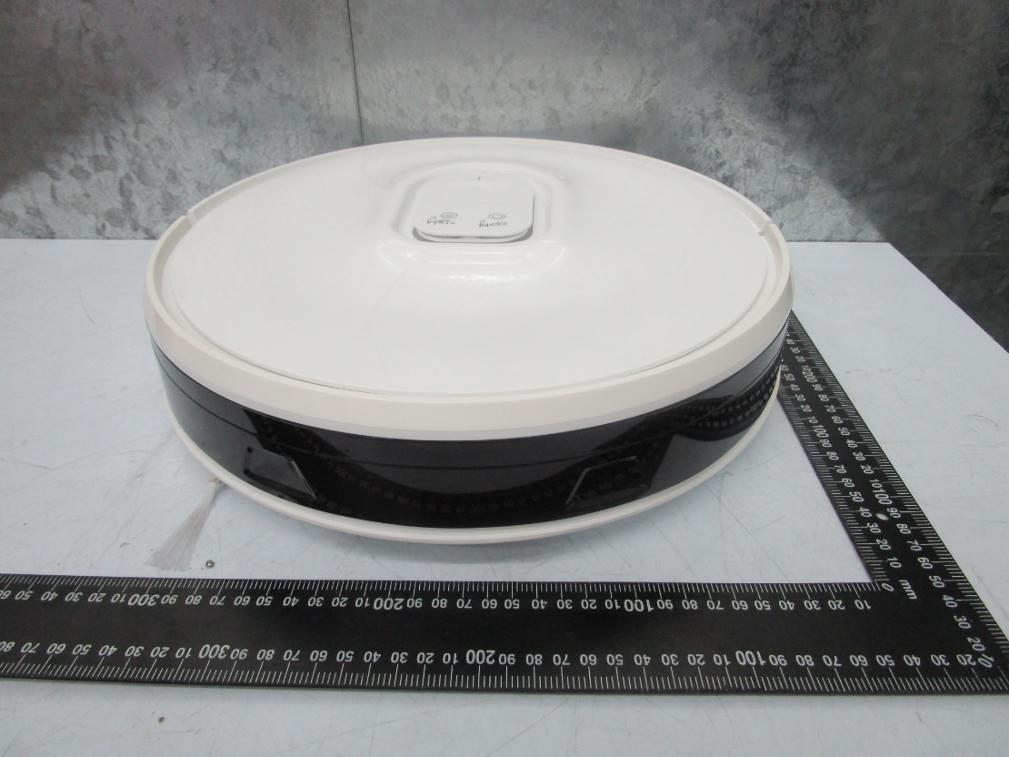

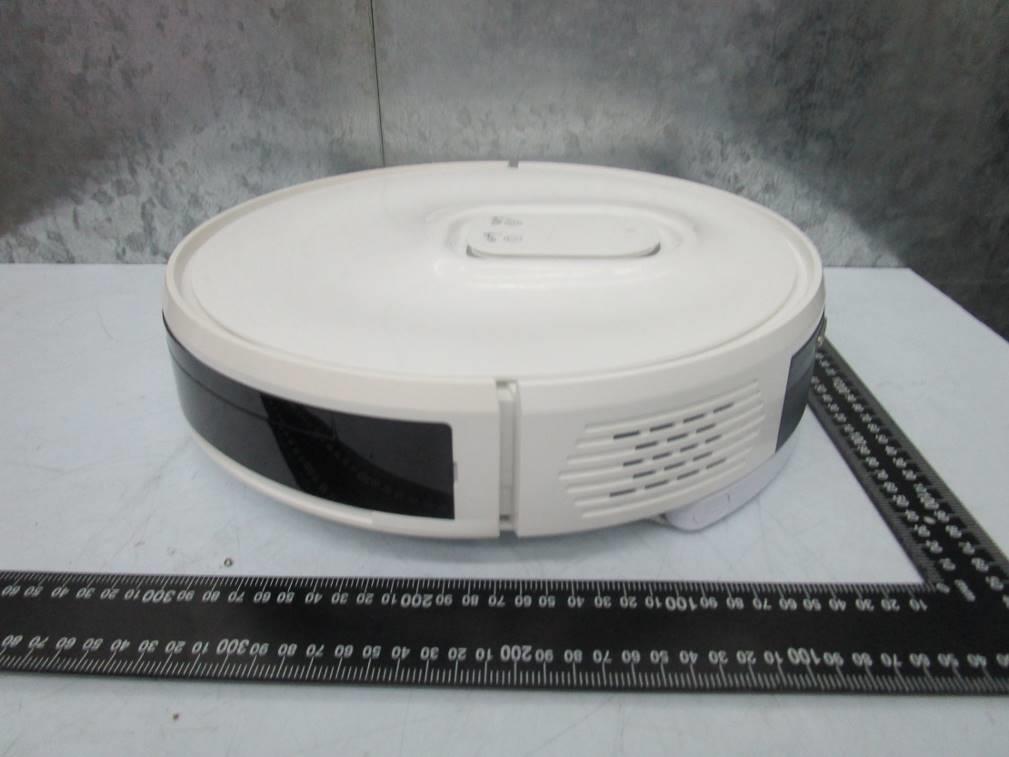

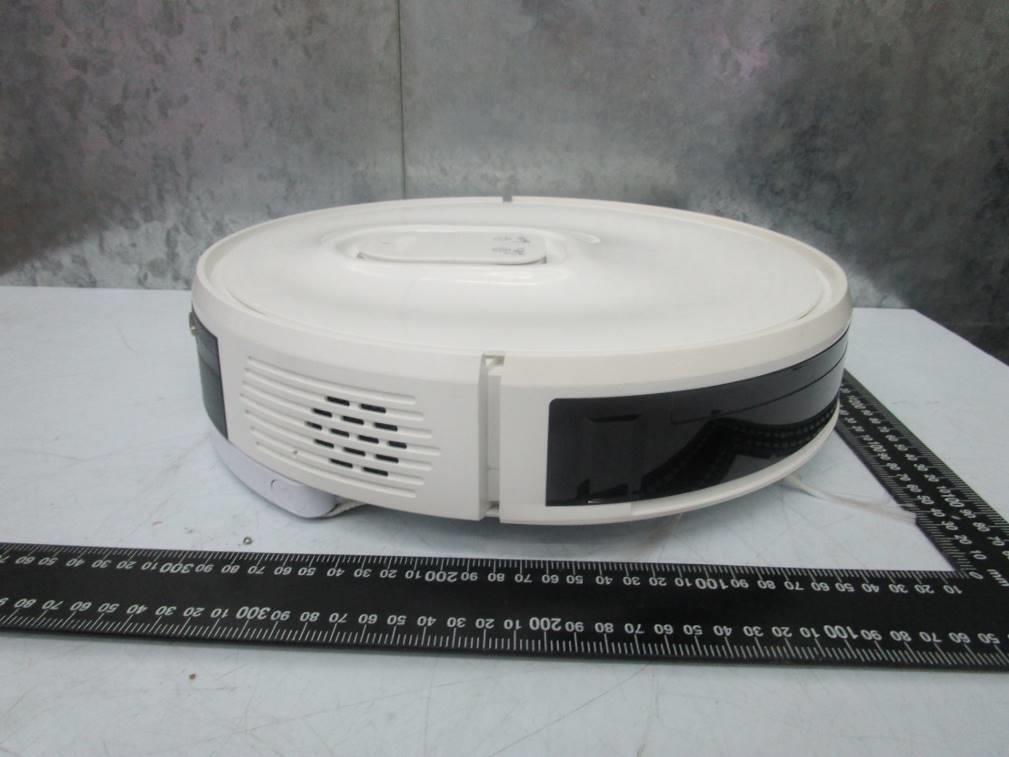

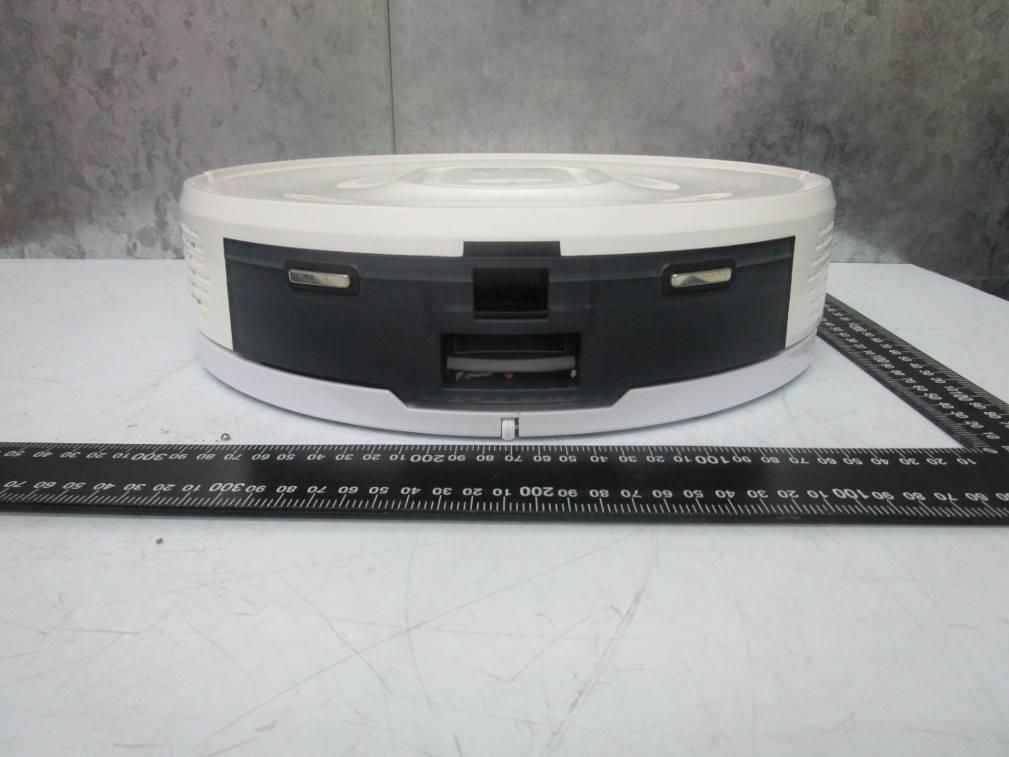

External Photo

Internal Photo WiFi Antenna BT antenna

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM210100068603 Page: 1 of 8 FCC ID: 2AZB3C1-01 Kobe Jian EMC Laboratory Manager RF EXPOSURE EVALUATION REPORT Application No.: GZEM2101000686CR Applicant: GUANGDONG PIEBOT ROBOTICS TECHNOLOGY CO., LTD Address of Applicant: Room302, Building 3 No.38, Dongke Road, Dongcheng Street, Dongguan City, Guangdong Province Manufacturer: GUANGDONG PIEBOT ROBOTICS TECHNOLOGY CO., LTD Address of Manufacturer: Room302, Building 3 No.38, Dongke Road, Dongcheng Street, Dongguan City, Guangdong Province Factory: GUANGDONG PIEBOT ROBOTICS TECHNOLOGY CO., LTD Address of Factory: Room302, Building 3 No.38, Dongke Road, Dongcheng Street, Dongguan City, Guangdong Province Equipment Under Test (EUT): EUT Name: Floor sweeping robot; Self-Emptying Dustbin Model No.: Floor sweeping robot: C1-01 Self-Emptying Dustbin: C1JCB001 Trade Mark: PIEPOT Standard(s) : 47 CFR Part 2.1091 47 CFR Part 1.1307 KDB447498D01 General RF Exposure Guidance v06 Date of Receipt: 2021-01-29 Date of Evaluation: 2021-04-08 Date of Issue: 2021-05-07 Evaluation Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM210100068603 Page: 2 of 8 Revision Record Version Chapter Date Modifier Remark 01 2021-05-07 Original Authorized for issue by: Tested By Kevin Zhang /Project Engineer Reviewed By Ricky Liu/Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM210100068603 Page: 3 of 8 2 Contents Page 1 Cover Page ......................................................................................................................................... 1 2 Contents ............................................................................................................................................. 3 3 General Information............................................................................................................................ 4 3.1 Details of E.U.T. ........................................................................................................................... 4 3.2 Evaluation Location ...................................................................................................................... 4 3.3 Test Facility .................................................................................................................................. 5 3.4 Deviation from Standards ............................................................................................................. 5 3.5 Abnormalities from Standard Conditions ....................................................................................... 5 4 Technical Requirements Specification .............................................................................................. 6 4.1 General Description of Applied Standards .................................................................................... 6 4.2 RF Exposure Evaluation ............................................................................................................... 6 4.2.1 Limit & Test Method ................................................................................................................. 6 4.2.2 Conclusion ............................................................................................................................... 7 5 EUT Constructional Details (EUT Photos) ......................................................................................... 8 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM210100068603 Page: 4 of 8 3 General Information 3.1 Details of E.U.T. Power supply: AC 120 V, 60Hz for Self-Emptying Dustbin* DC 14.52 V powered by built-in battery for Robot Vacuum* as below: Option 1: Model: N016-4S2P Rated: DC 14.4V, 5200mAh Option 2: Model: C433-A3-4S2P Rated: DC 14.52V, 5000mAh Cable(s): AC mains (unshielded, 1.2 m) Wi-Fi characterize: Refer to test report GZEM210100068602 Bluetooth characterize: Refer to FCC ID: 2AMM6-825X1CA *Remark: There is no any RF parts in this unit and please refer to the SDoC report GZEM210100068601 3.2 Evaluation Location All tests were performed at: SGS-CSTC Standards Technical Services Co., Ltd., Shenzhen Branch No. 1 Workshop, M-10, Middle Section, Science & Technology Park, Shenzhen, Guangdong, China. 518057. Tel: +86 755 2601 2053 Fax: +86 755 2671 0594 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM210100068603 Page: 5 of 8 3.3 Test Facility The test facility is recognized, certified, or accredited by the following organizations: ● NVLAP (Lab Code: 200611-0) SGS-CSTC Standards Technical Services Co., Ltd., Guangzhou EMC Laboratory is accredited by the National Voluntary Laboratory Accreditation Program (NVLAP/NIST). NVLAP Code: 200611-0. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. ● ACMA SGS-CSTC Standards Technical Services Co., Ltd., EMC Laboratory can also perform testing for the Australian/New Zealand Regulatory Compliance Mark (RCM). ● SGS UK(Certificate No.: 32), SGS-TUV SAARLAND and SGS-FIMKO Have approved SGS-CSTC Standards Technical Services Co., Ltd., EMC Laboratory as a supplier of EMC TESTING SERVICES and SAFETY TESTING SERVICES. ● CNAS (Lab Code: L0167) SGS-CSTC Standards Technical Services Co., Ltd., EMC Laboratory has been assessed and in compliance with CNAS-CL01:2018 accreditation criteria for testing laboratories (identical to ISO/IEC 17025:2017 General Requirements) for the Competence of Testing Laboratories. ● FCC Recognized Accredited Test Firm(Registration No.: 486818) SGS-CSTC Standards Technical Services Co., Ltd., EMC Laboratory has been accredited and fully described in a report filed with the (FCC) Federal Communications Commission. The acceptan…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM210100068602 Page: 1 of 115 FCC ID: 2AZB3C1-01 Kobe Jian EMC Laboratory Manager TEST REPORT Application No.: GZEM2101000686CR Applicant: GUANGDONG PIEBOT ROBOTICS TECHNOLOGY CO., LTD Address of Applicant: Room302, Building 3 No.38, Dongke Road, Dongcheng Street, Dongguan City, Guangdong Province Manufacturer: GUANGDONG PIEBOT ROBOTICS TECHNOLOGY CO., LTD Address of Manufacturer: Room302, Building 3 No.38, Dongke Road, Dongcheng Street, Dongguan City, Guangdong Province Factory: GUANGDONG PIEBOT ROBOTICS TECHNOLOGY CO., LTD Address of Factory: Room302, Building 3 No.38, Dongke Road, Dongcheng Street, Dongguan City, Guangdong Province Equipment Under Test (EUT): EUT Name: Floor sweeping robot; Self-Emptying Dustbin Model No.: Floor sweeping robot: C1-01, Self-Emptying Dustbin: C1JCB001 Trade Mark: PIEPOT Standard(s) : 47 CFR Part 15, Subpart C 15.247 Date of Receipt: 2021-01-29 Date of Test: 2021-04-08 to 2021-04-30 Date of Issue: 2021-05-07 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM210100068602 Page: 2 of 115 Revision Record Version Chapter Date Modifier Remark 01 2021-05-07 Original Authorized for issue by: Tested By Kevin Zhang /Project Engineer Reviewed By Ricky Liu/Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM210100068602 Page: 3 of 115 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart C 15.247 N/A 47 CFR Part 15, Subpart C 15.203 & 15.247(b)(4) Pass Radio Spectrum Matter Part Item Standard Method Requirement Result Conducted Emissions at AC Power Line (150kHz-30MHz) 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.2 47 CFR Part 15, Subpart C 15.207 Pass Conducted Peak Output Power 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.9.1 47 CFR Part 15, Subpart C 15.247(b)(3) Pass Minimum 6dB Bandwidth 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.8.1 47 CFR Part 15, Subpart C 15.247a(2) Pass Power Spectrum Density 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.10.2 47 CFR Part 15, Subpart C 15.247(e) Pass Conducted Band Edges Measurement 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.13.3.2 47 CFR Part 15, Subpart C 15.247(d) Pass Conducted Spurious Emissions 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.11 47 CFR Part 15, Subpart C 15.247(d) Pass Radiated Emissions which fall in the restricted bands 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.10.5 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Radiated Spurious Emissions 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.4,6.5,6.6 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass** **: The EUT passed Radiated Spurious Emissions test after modification. Note: E.U.T./EUT means Equipment Under Test. Pass means the test result passed the test standard requirement, please find the detailed decision rule in the report relative section. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM210100068602 Page: 4 of 115 3 Contents Page 1 Cover Page ......................................................................................................................................... 1 2 Test Summary ..................................................................................................................................... 3 3 Contents ............................................................................................................................................. 4 4 General Information............................................................................................................................ 6 4.1 Details of E.U.T. ........................................................................................................................... 6 4.2 Description of Support Units ......................................................................................................... 6 4.3 Measurement Uncertainty ............................................................................................................ 7 4.4 Test Location ............................................................................................................................... 7 4.5 Test Facility .................................................................................................................................. 8 4.6 Deviation from Standards ............................................................................................................. 9 4.7 Abnormalities from Standard Conditions ....................................................................................... 9 5 Equipment List ..................................................................................................................................10 6 Radio Spectrum Technical Requirement ..........................................................................................13 6.1 Antenna Requirement .................................................................................................................13 6.1.1 Test Requirement: ..................................................................................................................13 6.1.2 Conclusion ..............................................................................................................................13 7 Radio Spectrum Matter Test Results ................................................................................................14 7.1 Conducted Peak Output Power ...................................................................................................14 7.1.1 E.U.T. Operation ..............................................................…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM210100068602 Page: 61 of 115 Test Mode: 02; Polarity: Vertical; Modulation:802.11n; Bandwidth:20MHz; Channel:High; Antenna: 3 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM210100068602 Page: 62 of 115 Test Mode: 02; Polarity: Vertical; Modulation:802.11n; Bandwidth:20MHz; Channel:Low; Antenna: 3 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM210100068602 Page: 63 of 115 Test Mode: 02; Polarity: Vertical; Modulation:802.11n; Bandwidth:20MHz; Channel:middle; Antenna: 3 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM210100068602 Page: 64 of 115 Test Mode: 02; Polarity: Vertical; Modulation:802.11n; Bandwidth:40MHz; Channel:High; Antenna: 3 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM210100068602 Page: 65 of 115 Test Mode: 02; Polarity: Vertical; Modulation:802.11n; Bandwidth:40MHz; Channel:Low; Antenna: 3 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM210100068602 Page: 66 of 115 Test Mode: 02; Polarity: Vertical; Modulation:802.11n; Bandwidth:40MHz; Channel:middle; Antenna: 3 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM210100068602 Page: 67 of 115 7.8 Conducted Emissions at AC Power Line (150kHz-30MHz) Test Requirement: 47 CFR Part 15, Subpart C 15.247 Test Method: ANSI C63.10 (2013) Section 6.2 Limit: Frequency of emission(MHz) Conducted limit(dBμV) Quasi-peak Average 0.15-0.5 66 to 56* 56 to 46* 0.5-5 56 46 5-30 60 50 *Decreases with the logarithm of the frequency. Detector: Peak for pre-scan (9kHz resolution bandwidth) 0.15M to 30MHz 7.8.1 E.U.T. Operation Operating Environment: Temperature: 23 C Humidity: 56 % RH Atmospheric Pressure: 1010 mbar 7.8.2 Test Mode Description Pre-scan / Final test Mode Code Description Final test 02 Charge + TX mode_Keep the EUT in charging and continuously transmitting mode with all modulation types. All data rates for each modulation type have been tested and found the data rate @ 1Mbps is the worst case of IEEE 802.11b; data rate @ 6Mbps is the worst case of IEEE 802.11g; data rate @ 6.5Mbps is the worst case of IEEE 802.11n(HT20); data rate @ 13.5Mbps is the worst case of IEEE 802.11n(HT40). Only the data of worst case is recorded in the report. 7.8.3 Test Setup Diagram SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM210100068602 Page: 68 of 115 7.8.4 Measurement Procedure and Data 1) The mains terminal disturbance voltage test was conducted in a shielded room. 2) The EUT was connected to AC power source through a LISN 1 (Line Impedance Stabilization Network) which provides a 50ohm/50μH + 5ohm linear impedance. The power cables of all other units of the EUT were connected to a second LISN 2, which was bonded to the ground reference plane in the same way as the LISN 1 for the unit being measured. A multiple socket outlet strip was used to connect multiple power cables to a single LISN provided the rating of the LISN was not exceeded. 3) The tabletop EUT was placed upon a non-metallic table 0.8m above the ground reference plane. And for floor-standing arrangement, the EUT was placed on the horizontal ground reference plane. 4) The test was performed with a vertical ground reference plane. The rear of the EUT shall be 0.4 m from the vertical ground reference plane. The vertical ground reference plane was bonded to the horizontal ground reference plane. The LISN 1 was placed 0.8 m from the boundary of the unit under test and bonded to a ground reference plane for LISNs mounted on top of the ground reference plane. This distance was between the closest points of the LISN 1 and the EUT. All other units of the EUT and associated equipment was at least 0.8 m from the LISN 2. 5) In order to find the maximum emission, the relative positions of equipment and all of the interface cables must be changed according to ANSI C63.10 on conducted measurement. Remark: LISN=Read Level+ Cable Loss+ LISN Factor SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM210100068602 Page: 69 of 115 Test Mode: 02; Line: Live line SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM210100068602 Page: 70 of 115 Test Mode: 02; Line: Neutral Line SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM210100068602 Page: 71 of 115 8 Appendix Cable Loss = 0.9 dB 8.1 Appendix A: DTS Bandwidth 8.1.1 Test Result TestMode Antenna Channel DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 8.920 2407.680 2416.600 0.5 PASS 2442 9.280 2437.280 2446.560 0.5 PASS 2462 8.760 2457.600 2466.360 0.5 PASS 11G Ant1 2412 16.480 2403.760 2420.240 0.5 PASS 2442 16.520 2433.720 2450.240 0.5 PASS 2462 16.560 2453.720 2470.280 0.5 PASS 11N20SISO Ant1 2412 17.640 2403.240 2420.880 0.5 PASS 2442 17.440 2433.120 2450.560 0.5 PASS 2462 17.520 2453.160 2470.680 0.5 PASS 11N40SISO Ant1 2422 36.160 2404.000 2440.160 0.5 PASS 2442 35.520 2424.400 2459.920 0.5 PASS 2452 35.600 2434.320 2469.920 0.5 PASS SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM210100068602 Page: 72 of 115 8.1.2 Test Graphs 11B_Ant1_2412 11B_Ant1_2442 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM210100068602 Page: 73 of 115 11B_Ant1_2462 11G_Ant1_2412 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM210100068602 Page: 74 of 115 11G_Ant1_2442 11G_Ant1_2462 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM210100068602 Page: 75 of 115 11N20SISO_Ant1_2412 11N20SISO_Ant1_2442 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM210100068602 Page: 76 of 115 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM2101000…

Text truncated - open the document above for the full version.

Test Setup Photo RF Conducted Test Radiated Spurious Emissions & Radiated Emissions which fall in the restricted bands
