2AZBF-CK60Magnetic Wireless Charger

Pepkoo® Magnetic Wireless Charger User Manual Pepkoo are registered trademarks of Shenzhen Lanbo Technology Co., Ltd Copyright©️Shenzhen Lanbo Technology Co.,Ltd. All right reserved WWW.PEPKOO.COM Specifications Model：CK60 Input：12V(compatible 9V/5V) Output：7.5W/10W/5W Frequency：110-205kHz Charging Range:4~6mm Conversion:75%~84%(max) Compatible: iPhone X/8/8plus/Samsung S/Note Series Protection: POD,OT,OV,OC,OVP,DPL,FOD Adapter: QC3.0(12V) /Compatible with QC2.0(9V)/Normal 5V Package Inclues 1. Wireless Charger Pad x 1 2. USB Charging Cable x 1 Attention: Power Adapter is not included. We recommend QC3.0(12V) enabled power adapter for fast charging. Basic Operation ⚫ Charging Status Indicators Status Indicators: Red/Blue(Green) LEDs 1. Power On: The Red and Blue (Green) LEDs are on. 2. Stand By: The Red LED is on. 3. Charging: The Blue(Green) LED is on. 4. Error: The Red LED is flash. 5. Full: The Blue(Green) LED is off and the Red LED is on. Use Instructions • Adapters: 1. For iPhone User: Please use QC3.0(12V) adapter 2. For Samsung User: Please use QC3.0(12V) or QC 2.0(9V) adapter 3. Compatible with normal 5V adapter (Not fast charging mode) • Charging Cable Use USB-Micro cable contained in the package to connect USB power adapter. Notice Please check carefully the wireless charging compatibility before charging mobile phone. Non-standard power adapter or charging cable may impact on efficiency of wireless charging. Metal mobile phone case may block wireless charging. Charging progress will cause tempreture raising on the surfaces of mobile phone and wireless charger. Please watch out. Inappropriate use may cause damage or reduce product life. Manufacturer has no responsibility in the case of misuse. FAQ&Warnings Faults Solutions Indicators aren't working 1. Incorrect connection 2. Loose connection of charging cable 3. Damage of the charging cable or adapter 4. Others The devices cannot be charged by the wireless charger 1. Can the devices support wireless charging? 2. Place the devices on the wireless charger correctly. 3. Metal protective case. 4. Fault of the wireless charger. Please contact local distributor. Proper Usage： Please keep the wireless charger away from water and fire, high(>45°C) or low(<-10°C) temperature environment. Please do not use as a toy. Please do not dismantle or change the structure of the product. Do not scratch the surface with sharp objects. Do not throw, shake or dismantle the wireless charger. Clean only with a soft dry cloth and keep away from chemical cleaning agents. Warranty Term Thank you for choosing Pepkoo Wireless Charger. Warranty period: 1 year for wireless charger, and 6 months for charging cable. Warranty range: a. Product without Pepkoo label is out of warranty. b. Original package and accessories are required. c. Warranty service is only for quality problems except following cases: Accidents or negligence, such as collision during delivery, improper electrical Wiring and connections. Attempted repairs or modifications by unauthorized engineers. Equipment, components have exceeded the warranty period. Natural disaster, such as earthquakes or fire. Fail to provide warranty card and related sales receipts. FCC statement: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Radiation Exposure Statement The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

Shenzhen lanbo Technology Co., Ltd Add: Room 416,4th floor,fuminda technology innovation center,16 Baoji Road,xiangjiaotang community,Bantian street,Longgang District,Shenzhen China Date: 2021-5-10 FCC ID: 2AZBF-CK60 Dear Sir/Madam, We, Shenzhen lanbo Technology Co., Ltd Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: Magnetic Wireless Charger Model no.: CK60, CK50 Sincerely, Name/Title： Runzhen Liao/Manager Company: Shenzhen lanbo Technology Co., Ltd Address: Room 416,4th floor,fuminda technology innovation center,16 Baoji Road,xiangjiaotang community,Bantian street,Longgang District,Shenzhen China Phone: 13715103883 Fax: N/A E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2021-5-10> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AZBF-CK60 CK60 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Runzhen Liao/Manager Company: Shenzhen lanbo Technology Co., Ltd Address: Room 416,4th floor,fuminda technology innovation center,16 Baoji Road,xiangjiaotang community,Bantian street,Longgang District,Shenzhen China Phone: 13715103883 Fax: N/A E-Mail: [email protected]

Shenzhen lanbo Technology Co., Ltd Room 416,4th floor,fuminda technology innovation center,16 Baoji Road,xiangjiaotang community,Bantian street,Longgang District,Shenzhen China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2021-5-10 To whom it may concern: We, Shenzhen lanbo Technology Co., Ltd the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AZBF-CK60 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Runzhen Liao/Manager Company: Shenzhen lanbo Technology Co., Ltd Address: Room 416,4th floor,fuminda technology innovation center,16 Baoji Road,xiangjiaotang community,Bantian street,Longgang District,Shenzhen China Phone: 13715103883 Fax: N/A E-Mail: [email protected]

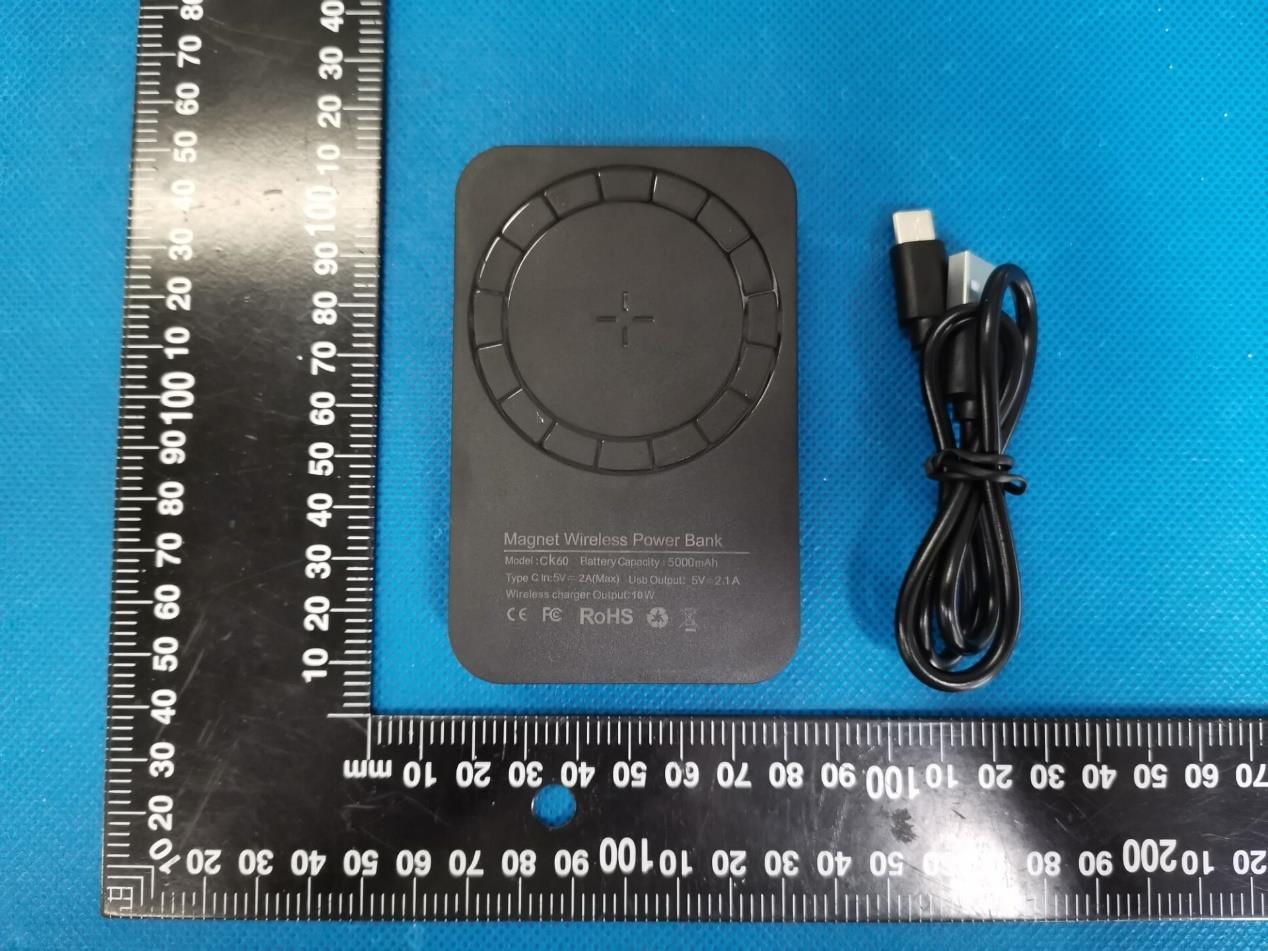

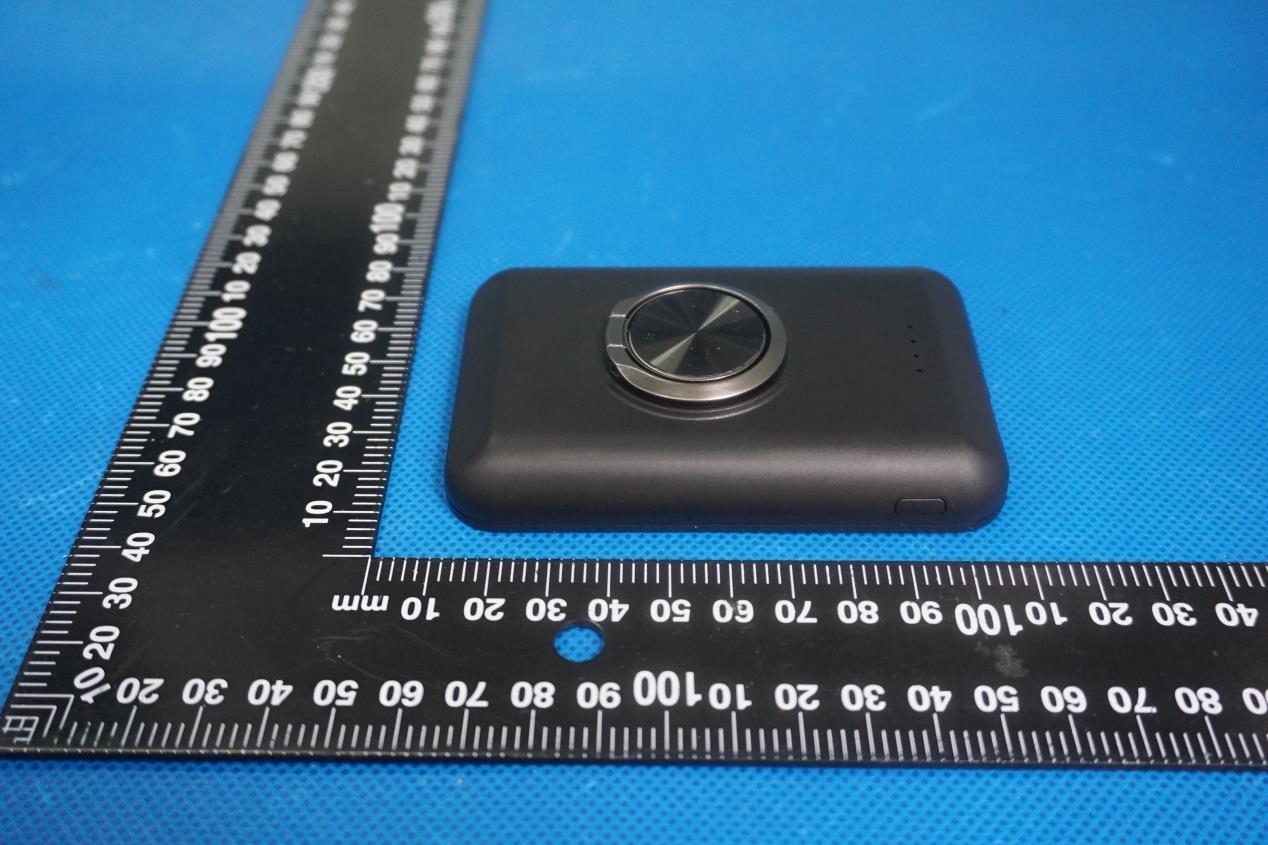

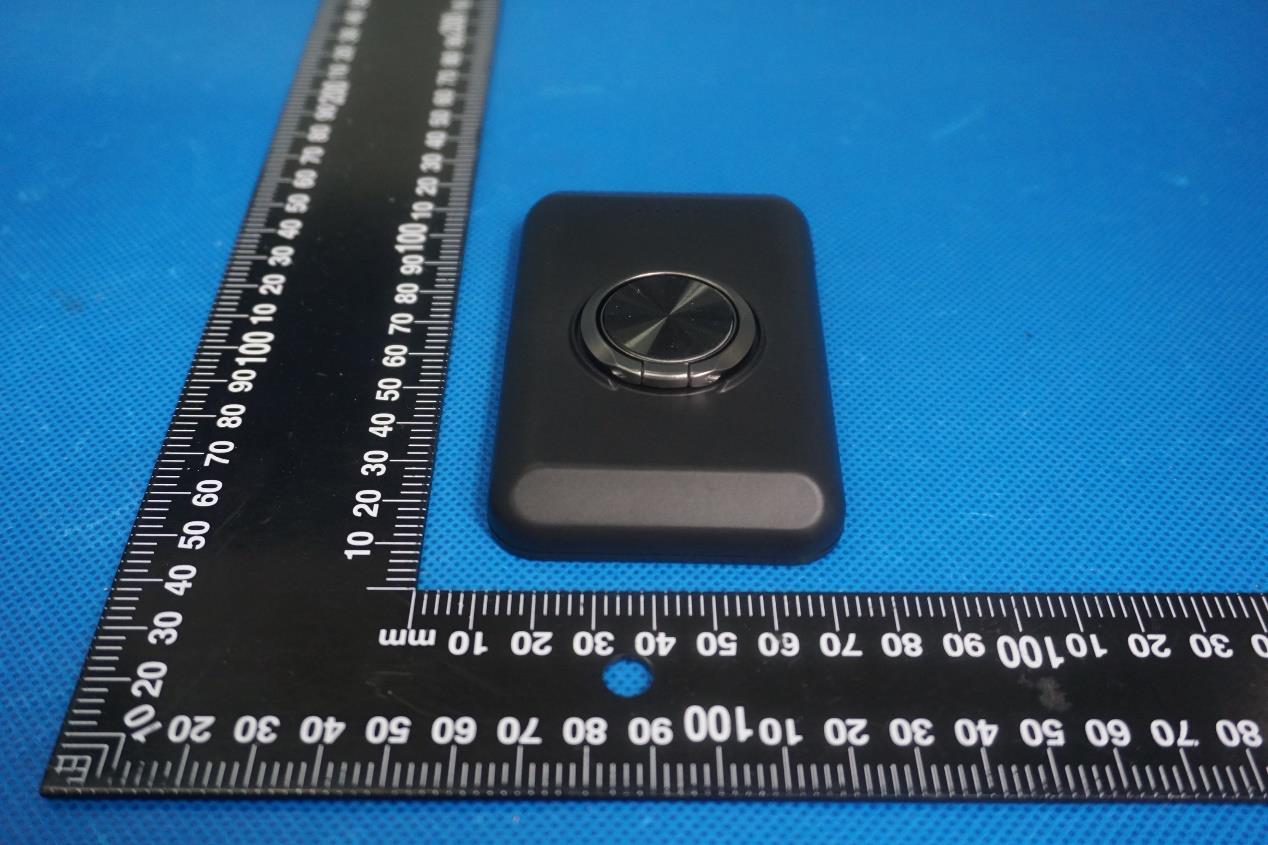

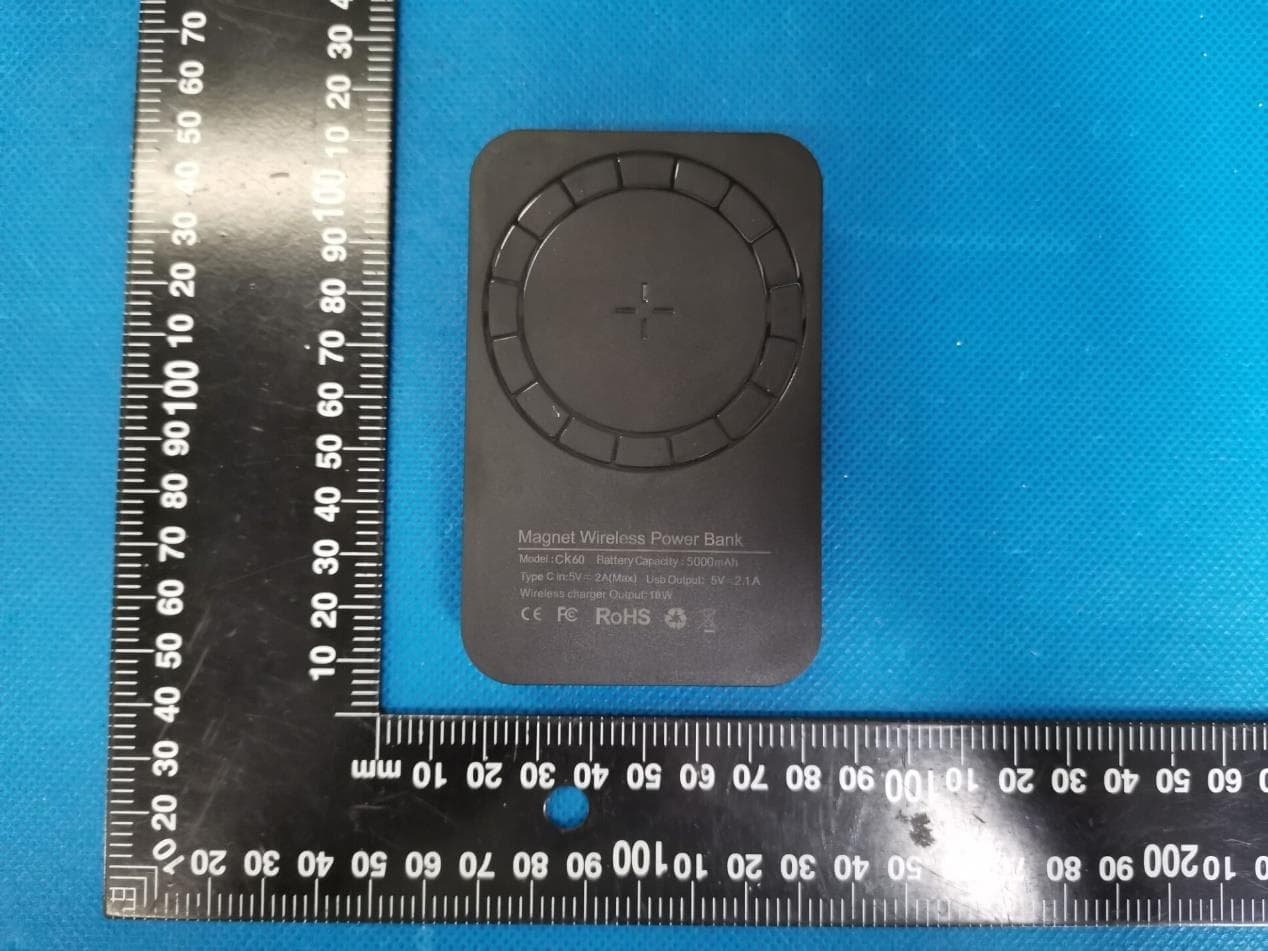

GTSL202103000119 Product Name: Magnetic Wireless Charger Test Model No.: CK60 EUT Constructional Details External Photo Fig.1 Fig.2 GTSL202103000119 Fig.3 Fig.4 GTSL202103000119 Fig.5 Fig.6 GTSL202103000119 Fig.7

FCC ID: 2AZBF-CK60 Label and Location Size: L: 3.0cm*W: 2.5cm Label and Location Magnetic Wireless Charger Model No.: CK60 FCC ID: 2AZBF-CK60 Caution : This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

GTSL202103000119 Product Name: Magnetic Wireless Charger Test Model No.: CK60 EUT Constructional Details Internal Photo Fig.1 Fig.2 Coil Antenna GTSL202103000119 Fig.3 Fig.4 GTSL202103000119 Fig.5

FCC ID: 2AZBF-CK60 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 1 of 9 RF Exposure Evaluation 1 General Description of EUT FCC ID 2AZBF-CK60 Product Name: Magnetic Wireless Charger Model/Type reference: CK60 Serial No.: CK50 Test sample(s) ID: GTSL202103000119-1(Engineer sample) GTSL202103000119-2(Normal sample) Power supply: Type-C Input: 5V 2A(Max) USB Output: 5V 2.1A; Wireless changer Output: 10W Battery Capacity: 3.7V, 5000mAh, 18.5Wh Test frequency: 145KHz Modulation type: ASK Antenna type: Loop coil antenna 2 Measuring Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. According KDB 680106 D01 RF Exposure Wireless Charging App v03 3 Requirements According to the item 5 of KDB 680106 D01v03: Inductive wireless power transfer applications that meet all of the following requirements are excluded from submitting an RF exposure evaluation. (1) Power transfer frequency is less than 1MHz. (2) Output power from each primary coil is less than or equal to 15 watts. (3) The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that are able to detect and allow coupling only between individual pairs of coils. (4) Client device is placed directly in contact with the transmitter. (5) Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). (6) The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. Remark: Meet all the above requirements. Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) FCC ID: 2AZBF-CK60 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 9 FCC ID: 2AZBF-CK60 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 9 4 Test Setup 5 Test Procedure For mobile RF exposure a) The RF exposure test was performed on 360 degree turn table in anechoic chamber. b) The measurement probe was placed at test distance (15cm) which is between the edge of the charger and the geometric center of probe. c) The turn table was rotated 360d degree to search of highest strength. d) The highest emission level was recorded and compared with limit as soon as measurement of each points (A, B, C, D, E) were completed. e) The EUT were measured according to the dictates of KDB 680106D01v03. For portable RF exposure a) The RF exposure test was performed on 360 degree turn table in anechoic chamber. b) The measurement probe was placed at test distance (0cm) which is between the edge of the charger and the geometric center of probe. c) The turn table was rotated 360d degree to search of highest strength. d) The highest emission level was recorded and compared with limit as soon as measurement of each points (A, B, C, D, E, F) were completed. e). Repeated measured (a) – (d) at measure distance 5cm, 10cm and 15cm. f) The EUT were measured according to the dictates of KDB 680106D01v03. FCC ID: 2AZBF-CK60 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 4 of 9 6 Equipment Approval Considerations The EUT does comply with KDB 680106 D01 as follow table. Requirements of KDB 680106 D01 Yes / No Description Power transfer frequency is less than 1 MHz Yes The device operate in the frequency range 110KHz~205KHz Output power from each primary coil is less than 15 watts Yes The maximum output power for each primary coil is 10W. The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that are able to detect and allow coupling only between individual pairs of coils. Yes The transfer system includes only one primary coils. Client device is placed directly in contact with the transmitter. Yes Client device is placed directly in contact with the transmitter. Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). No Mixed mobile and portable exposure conditions The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. Yes The EUT H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. 7 Description of the test mode Equipment under test was operated during the measurement under the following conditions: Charging and communication mode Test Conditions Description Exposure conditions TM1 AC/DC Adapter (5V/2A) + EUT + iphone (Battery Level ＜1%) Mobile Portable Record TM2 AC/DC Adapter (5V/2A) + EUT + iphone (Battery Level 50%) Mobile Portable Record TM3 AC/DC Adapte…
